Processor Architecture

Objectives

• show understanding of the differences between RISC and CISC processors
• show understanding of the importance/use of pipelining and registers in RISC processors
• show understanding of interrupt handling on CISC and RISC processors
• show awareness of the four basic computer architectures: SISD, SIMD, MISD, MIMD
• show awareness of the characteristics of massively parallel computers

Research

What kind of Processor (CPU) used in different devices?

https://www.anandtech.com/show/16226/apple-silicon-m1-a14-deep-dive

CISC

RISC

Micro-programming control unit

• Machine instructions are not directly executed by control unit, but first interpreted to micro-instructions, then control unit will perform those micro-instructions, this is usually found in CISC CPUs
• The micro-instructions is stored in a ROM inside CPU which is the instructions for a micro-programming type control unit
• The micro-instructions is referred as "Firmware"
• For RISC, control unit is hardwired, meaning that instruction is handled directly in hardware

CISC

• Intel x86 CPUs are examples of CISC
• Example of multiply two numbers from 0x001 and 0x002 and store the result in 0x001 will be:

MULT 0x001, 0x002

RISC

• Example includes ARM based CPU (found in mobile devices)
• The same instruction for RISC can become:


LDD 0x001

MUL 0x002

STO 0x001

Fetch-decode-execute Cycle

• The fetch-decode-execute cycle in CPU can be model as 5 stages: (Also refer to p. 87 flowchart)
  • Instruction Fetch (IF)
  • Instruction Decode (ID)
  • Operand Fetch (OF)
  • Instruction Execute (IE)
  • Result write back (WB)
• Assume each stage required one CPU cycle to run, an instruction will take 5 cycle to complete if we done sequentially

Pipelining

• RISC computer allows more efficient Pipelining, one of the reason why RISC CPU is adopted
• Pipelining allows CPU instructions to run in parallel
• Refer to page 343, fig 18.01
• Assume there are 5 independent pipelines (hardware) in a CPU, each one handling one of the 5 stages
• After 5 cycles, the CPU is fully utilized

Think Pair Share

1. What will be the problem to pipeline in case of an interrupt happens?
2. How to handle interrupt in the pipeline system?

More on pipeline

• When interrupt happens, two possible implementations for CPU
  • After WB, remove all contents in pipeline, PC set to -4
    (Simple but waste a few cycles to restart the pipeline
  • Store the states of the pipeline and handle the interrupt (maybe more efficient, but require extra set of storage)
• There are other cases pipeline will not work, e.g.
  • Instructions depending on result from previous
  • Branches
    • CPU might have branch predictor circuit that guess the branching result (http://users.cs.fiu.edu/~downeyt/cop3402/prediction.html)

Parallel computing

• A computer can have multiple processors running in parallel
• Note: Pipeline is a instruction-level parallelism
• There are four categories of parallelism

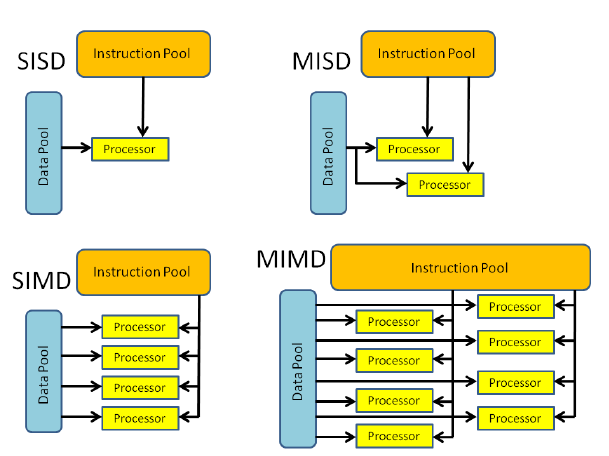

Different modes of parallelism

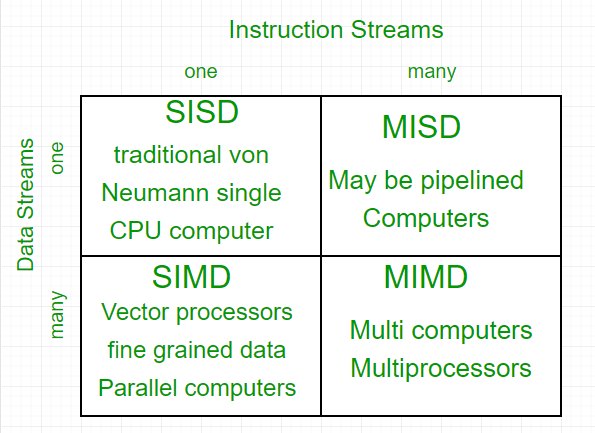

Flynn’s taxonomy

GPU vs CPU illustrated

CPU GPU and TPU

Parallel computer systems

• One example of multi computer parallel system is massively parallel computers
• Traditionally called supercomputers
• Massively parallel computers are MIMD
• The computers are communicate using computer network
• Another example of multi computer parallel is cluster computing, where large number of networked PC works together (e.g. Folding@Home)

https://youtube.com/shorts/X4HoGr0QSBQ?feature=share

Supercomputer from >1000 PS3

folding@home

an example of Cluster computer
