Correlations and symmetry in mean-field wavefunctions

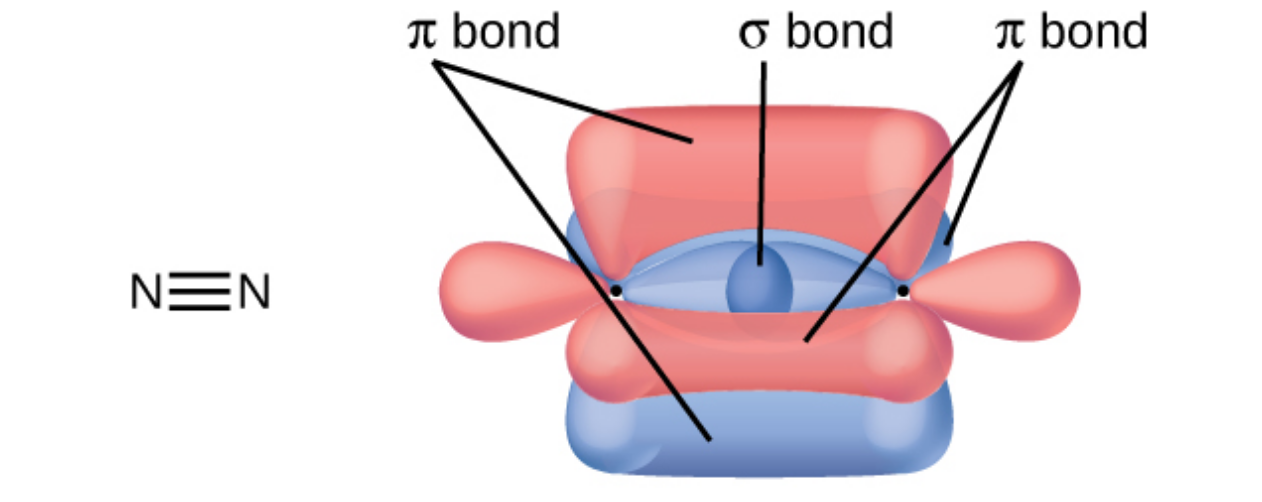

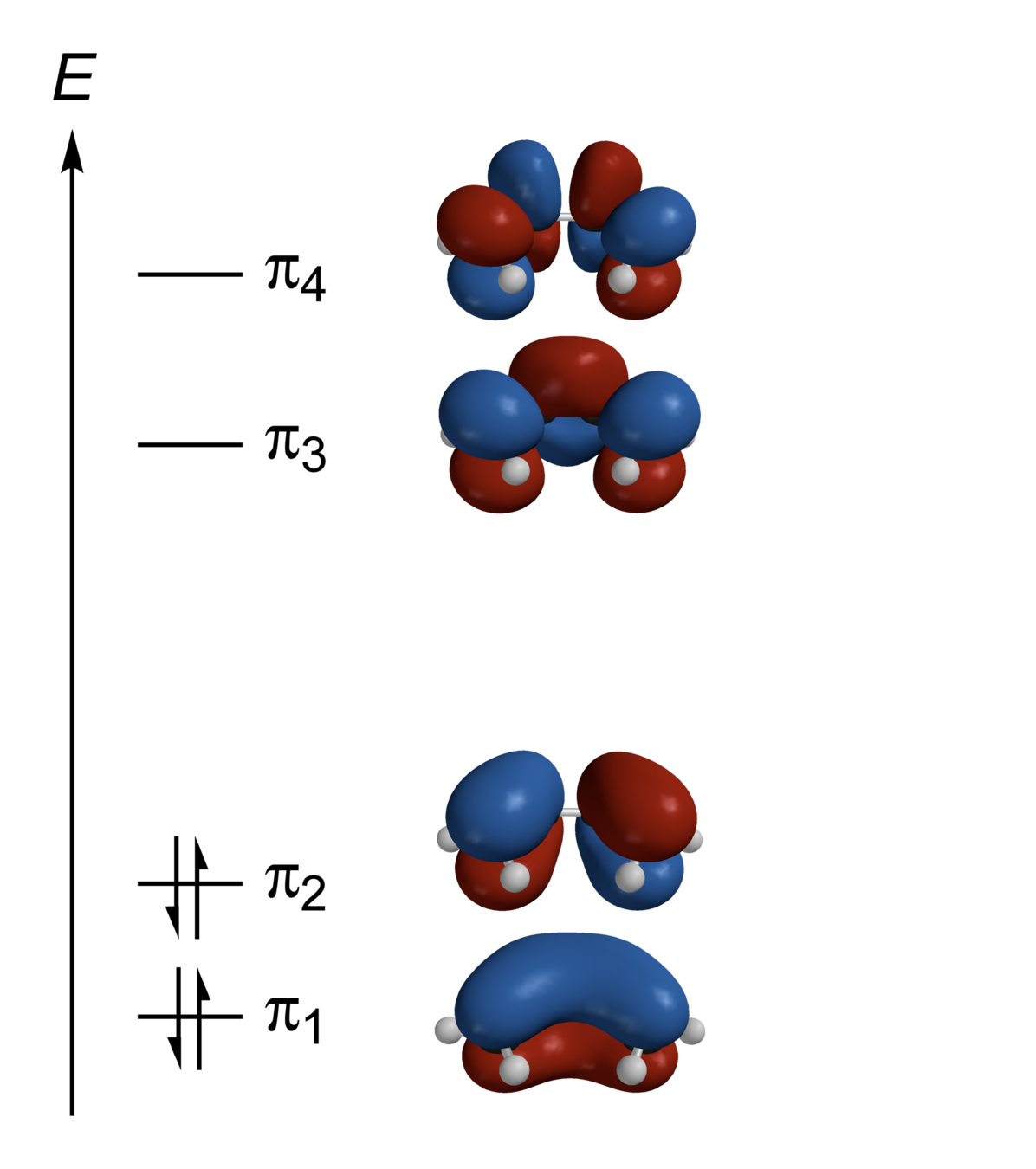

Molecular orbital theory

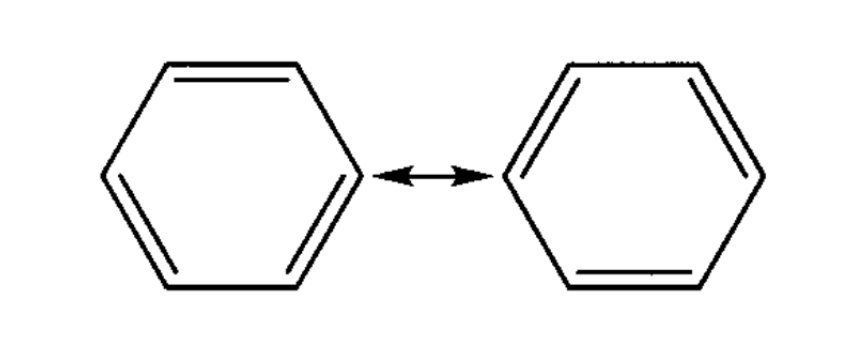

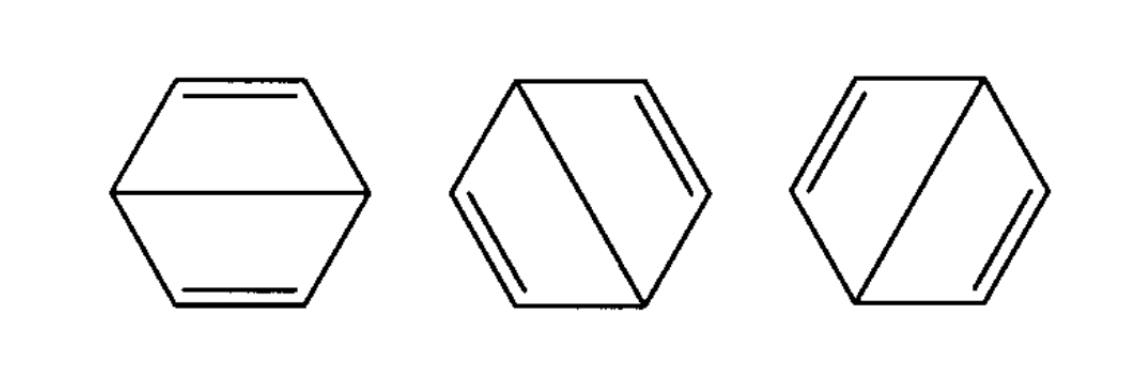

Valence bond theory
Variational principle
E=⟨ψ∣ψ⟩⟨ψ∣H∣ψ⟩
E = \dfrac{\langle \psi|H|\psi\rangle }{\langle \psi|\psi\rangle}
Strategy:
Ground state minimizes
- Come up with a clever wavefunction parametrization
- Minimize its energy by varying parameters (we use Monte Carlo methods to do this)
Variational Monte Carlo
⟨ψ(p)∣ψ(p)⟩⟨ψ(p)∣H∣ψ(p)⟩=∑nρnEL[n]
\ \dfrac{\langle \psi(\mathbf{p})|H|\psi(\mathbf{p})\rangle }{\langle \psi(\mathbf{p})|\psi(\mathbf{p})\rangle} = \sum_{\mathbf{n}} \rho_{\mathbf{n}} E_L[\mathbf{n}]
- Calculate energy: continuous time sampling
EL[n]=∑mHn,m⟨n∣Ψ(p)⟩⟨m∣Ψ(p)⟩
E_L[\mathbf{n}] = \sum_{\mathbf{m}} H_{\mathbf{n},\mathbf{m}} \frac{ \langle \mathbf{m}|\Psi(\mathbf{p})\rangle}{\langle \mathbf{n}|\Psi(\mathbf{p})\rangle}
overlap ratios
- Calculate energy gradient: by sampling
∣n⟩=
|\mathbf{n}\rangle =

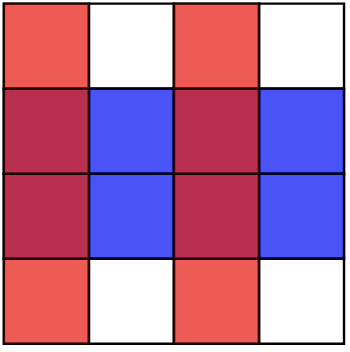

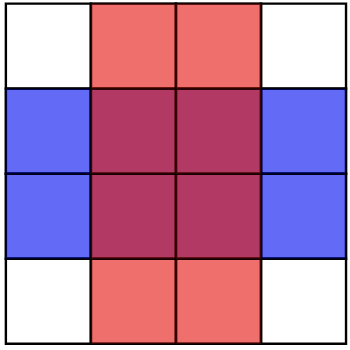

local orbitals allow screening of distant excitations
∂p∂E(p)
\frac{\partial E(\mathbf{p})}{\partial\mathbf{p}}
- Change parameters: smart gradient descent
walker
ϵ
\epsilon
- O(N3) scaling, parallelizable
Restricted Hartree Fock (RHF)

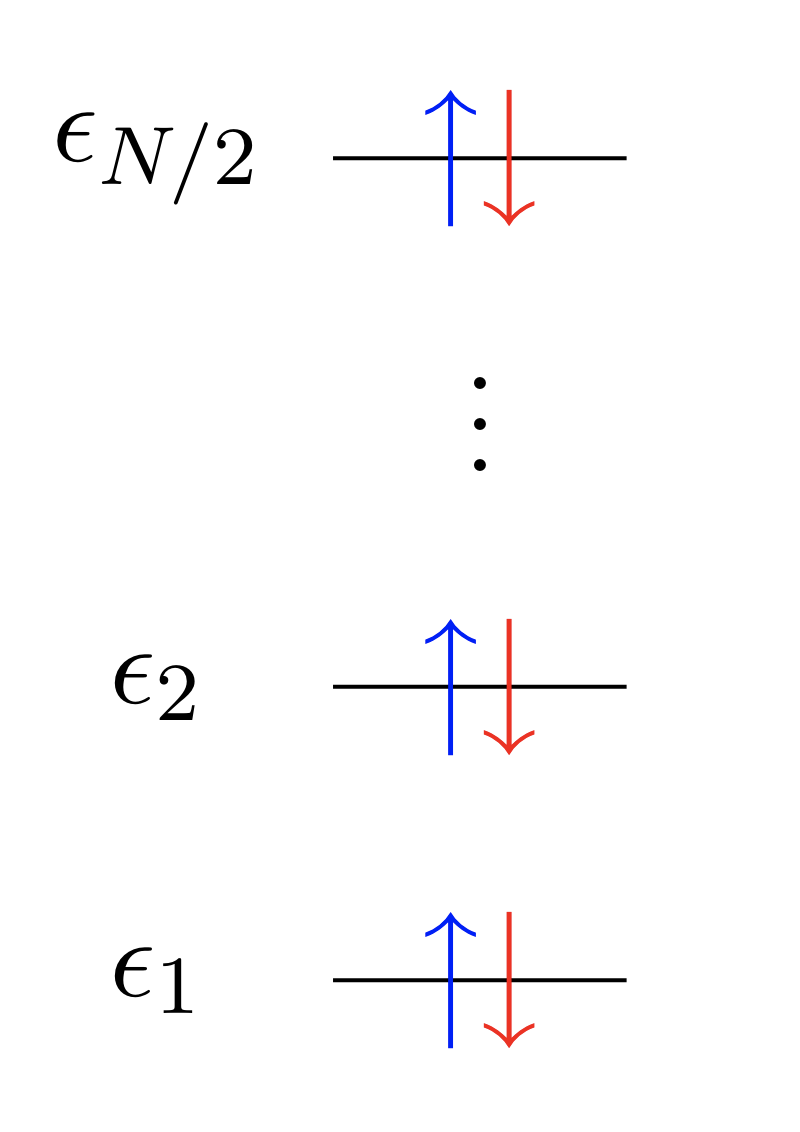

Doubly occupied orbitals:
∣ψ⟩=c1↑†c1↓†c2↑†c2↓†…c2N↑†c2N↓†∣0⟩
|\psi\rangle = c_{1\uparrow}^{\dagger}c_{1\downarrow}^{\dagger}c_{2\uparrow}^{\dagger}c_{2\downarrow}^{\dagger}\dots c_{\frac{N}{2}\uparrow}^{\dagger}c_{\frac{N}{2}\downarrow}^{\dagger}|0\rangle

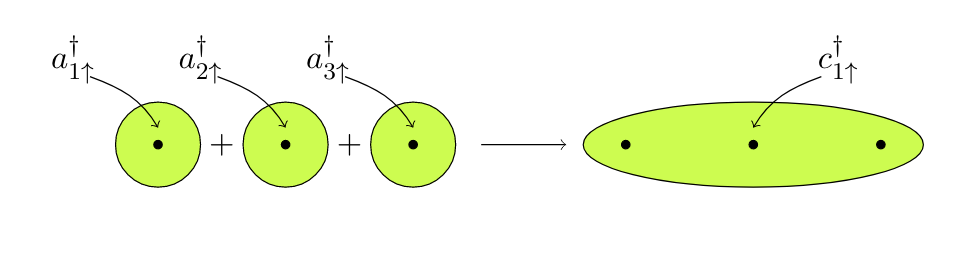

ciσ†=∑lθilalσ†
c_{i\sigma}^{\dagger}=\sum_{l}\theta^{l}_{i}a^{\dagger}_{l\sigma}
atomic
molecular

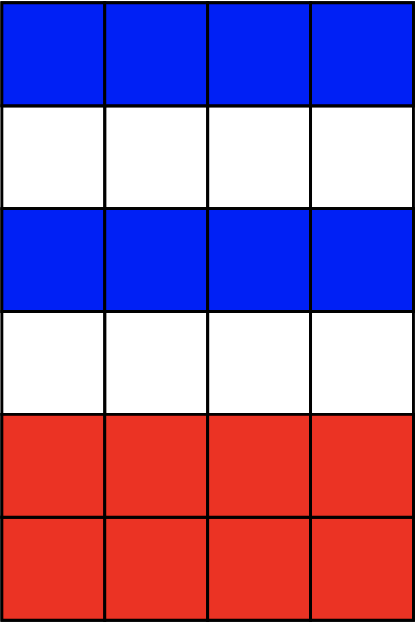

⟨n∣ψ⟩=det()det()
\langle\mathbf{n}|\psi\rangle = \text{det}(\qquad)\text{det}(\qquad)

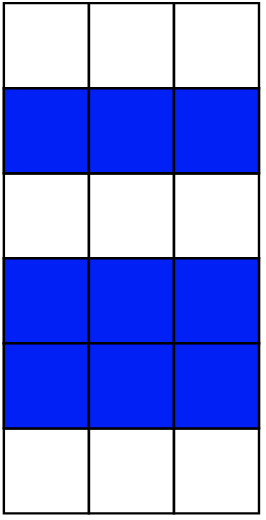

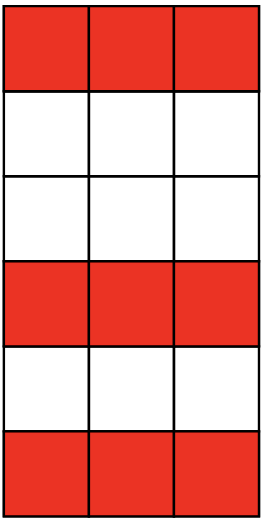

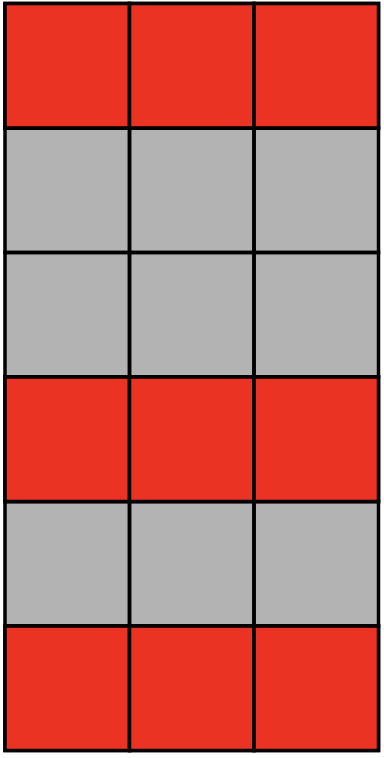

θ slices
ψ=A[ϕ1(r1↑)ϕ1(r1↓)…ϕN/2(rN/2↑)ϕN/2(rN/2↓)]
\psi=\mathcal{A}[\phi_1(r_{1\uparrow})\phi_1(r_{1\downarrow})\dots \phi_{N/2}(r_{N/2\uparrow})\phi_{N/2}(r_{N/2\downarrow})]
Shortcomings of restricted orbitals
- Doesn't correlate ↑ and ↓ electrons
⟨ρi↑ρj↓⟩=⟨ρi↑⟩⟨ρj↓⟩,
\langle\rho_{i\uparrow}\rho_{j\downarrow}\rangle = \langle\rho_{i\uparrow}\rangle\langle\rho_{j\downarrow}\rangle,
⟨ρi↑⟩=⟨ρi↓⟩
\langle\rho_{i\uparrow}\rangle=\langle\rho_{i\downarrow}\rangle

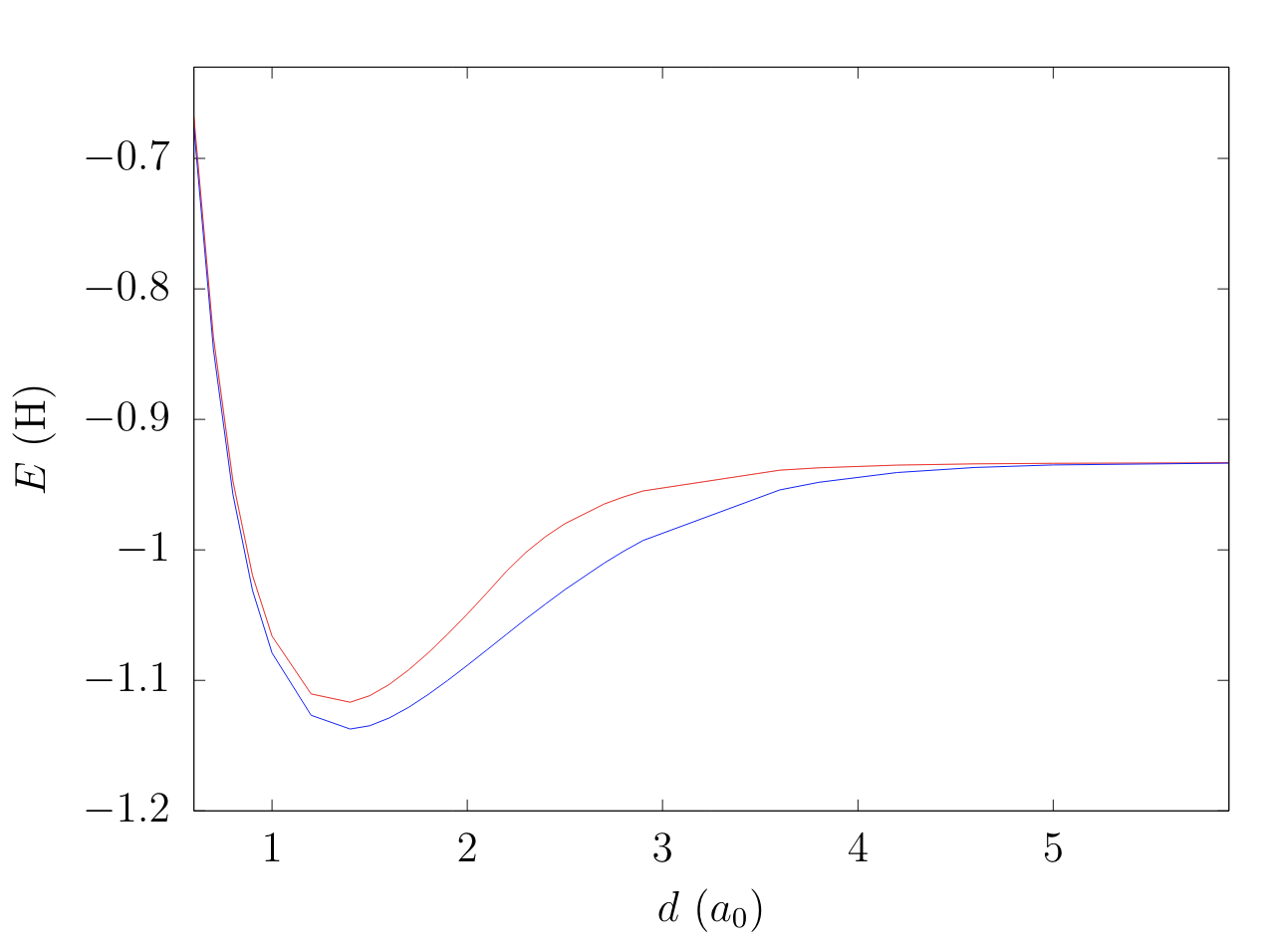

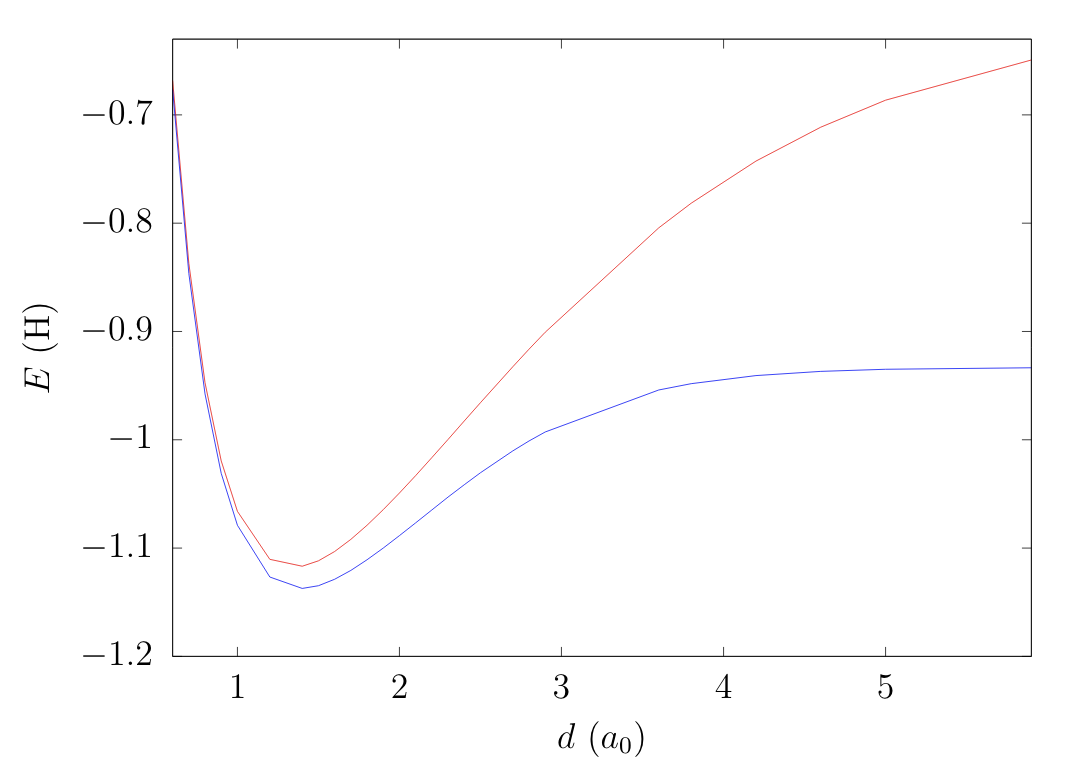

- Doesn't break bonds correctly: H2 dissociation
Restricted
Exact
c1↑†c1↓†∣0⟩=(a1↑†a2↓†+a1↓†a1↑†+a1↑†a1↓†+a2↑†a2↓†)∣0⟩
c_{1\uparrow}^{\dagger}c_{1\downarrow}^{\dagger}|0\rangle = (a_{1\uparrow}^{\dagger}a_{2\downarrow}^{\dagger}+a_{1\downarrow}^{\dagger}a_{1\uparrow}^{\dagger}+a_{1\uparrow}^{\dagger}a_{1\downarrow}^{\dagger}+a_{2\uparrow}^{\dagger}a_{2\downarrow}^{\dagger})|0\rangle
c1†=a1†+a2†
c_{1}^{\dagger}\qquad =\quad a_{1}^{\dagger}+a_{2}^{\dagger}
as d→∞
Unrestricted Hartree Fock (UHF)

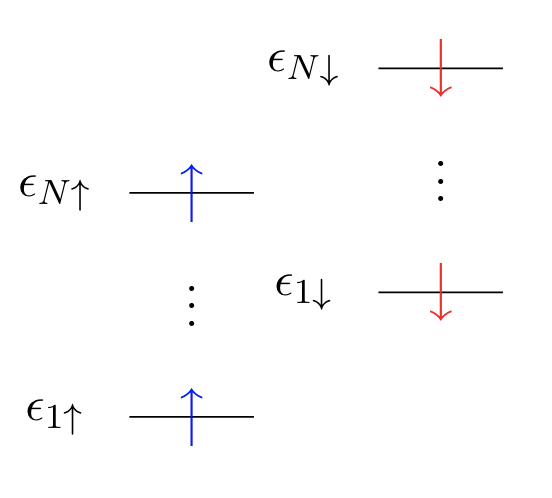

Singly occupied orbitals:
∣ψ⟩=c1↑†c1↓†c2↑†c2↓†…c2N↑†c2N↓†∣0⟩
|\psi\rangle = c_{1\uparrow}^{\dagger}c_{1\downarrow}^{\dagger}c_{2\uparrow}^{\dagger}c_{2\downarrow}^{\dagger}\dots c_{\frac{N}{2}\uparrow}^{\dagger}c_{\frac{N}{2}\downarrow}^{\dagger}|0\rangle
ciσ†=∑lθiσlalσ†
c_{i\sigma}^{\dagger}=\sum_{l}\theta^{l}_{i\sigma}a^{\dagger}_{l\sigma}
⟨n∣ψ⟩=det()det()
\langle\mathbf{n}|\psi\rangle = \text{det}(\qquad)\text{det}(\qquad)
- Correlates ↑ and ↓ electrons
- Breaks bonds correctly (in many cases)
Unrestricted
Exact
c1↑†=a1↑†, c1↓†=a2↓†
c_{1\uparrow}^{\dagger}=a_{1\uparrow}^{\dagger},\ c_{1\downarrow}^{\dagger}=a_{2\downarrow}^{\dagger}
as d→∞
Broken symmetry
- Hamiltonian has spin symmetry: invariant under spin rotations
[H,S]=0
[H, \mathbf{S}] = 0
The exact ground state is a spin eigenstate.
- The restricted wavefunction is a spin eigenstate, the unrestricted wavefunction is not. It breaks S2 symmetry.
- The unrestricted wavefunction is an Sz eigenstate. We can break this symmetry as well.
- For an approximate variational wavefunction, symmetry is a constraint that can only raise its energy. In general, we can break all symmetries to remove constraints.
Generalized Hartree Fock (GHF)
∣ψ⟩=c1†c2†…cN†∣0⟩
|\psi\rangle = c_{1}^{\dagger}c_{2}^{\dagger}\dots c_{N}^{\dagger}|0\rangle
ci†=∑l,σθilσalσ†=∑l(θil↑al↑†+θil↓al↓†)
c_{i}^{\dagger}=\sum_{l,\sigma}\theta^{l\sigma}_{i}a^{\dagger}_{l\sigma}=\sum_{l}\left(\theta^{l\uparrow}_{i}a^{\dagger}_{l\uparrow}+\theta^{l\downarrow}_{i}a^{\dagger}_{l\downarrow}\right)
⟨n∣ψ⟩=det()
\langle\mathbf{n}|\psi\rangle = \text{det}(\qquad)
Orbitals are not Sz eigenstates, spin and space entangled

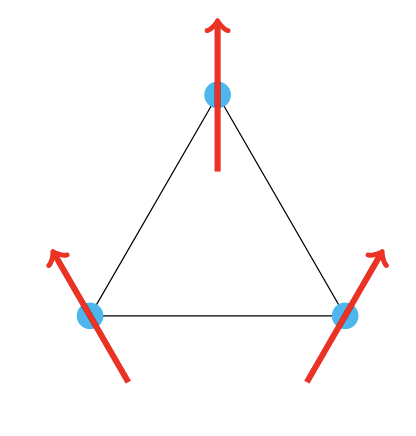

Frustrated systems:
Restore broken symmetries
- We can restore the broken symmetry by projecting onto the desired symmetry sector, thus improving the wavefunction
- In Monte Carlo sampling, we can project certain symmetries trivially by choosing the walkers appropriately. For example, if the walkers are Sz eigenstates:
⟨n∣PSz∣ψ⟩=⟨n∣ψ⟩
\langle\mathbf{n}|P_{S_z}|\psi\rangle = \langle\mathbf{n}|\psi\rangle
- Breaking symmetries may lower energy, but resulting wavefunction doesn't have good quantum numbers.
- We can break and restore complex conjugation symmetry by using complex orbitals and taking the real part of the overlap.
⟨n∣PK∣ψ⟩=Re(⟨n∣ψ⟩)
\langle\mathbf{n}|P_{K}|\psi\rangle = \text{Re}(\langle\mathbf{n}|\psi\rangle)
H8 linear chain (8e, 8o)

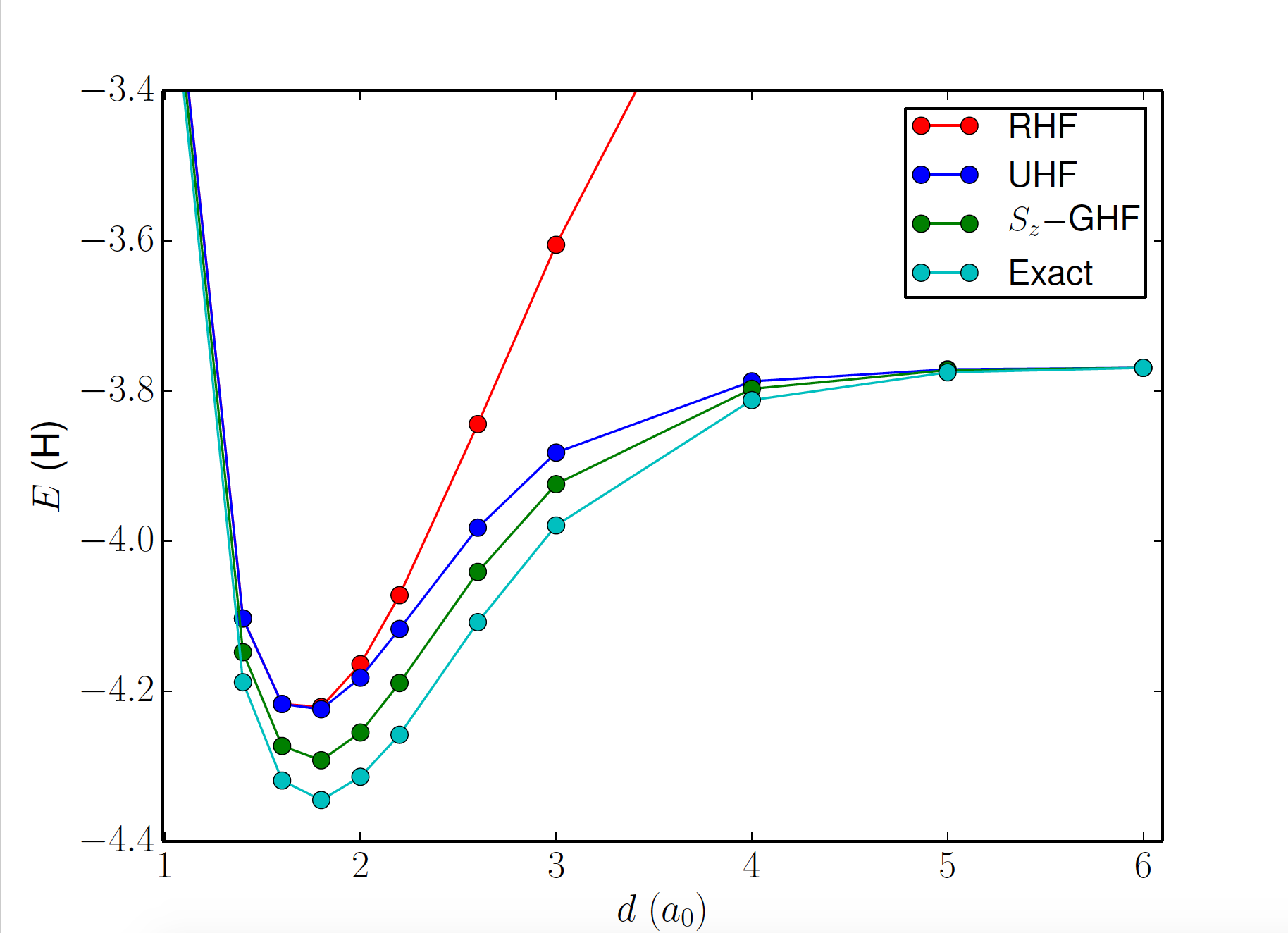

restoring Sz symmetry

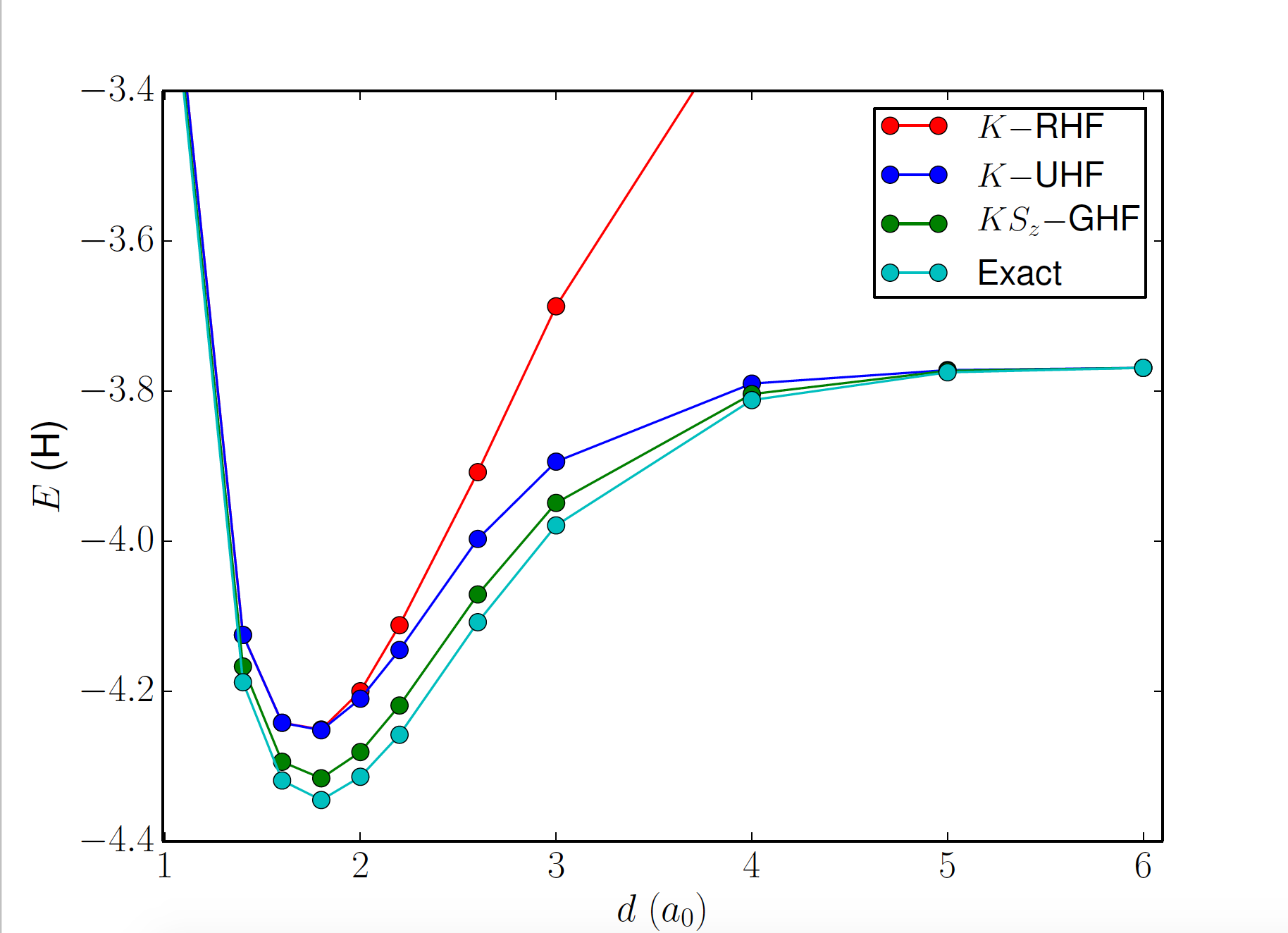

restoring Sz and K symmetries
Antisymmetrized geminal power (AGP)
We can break the number symmetry as well!
∣ψ⟩=PNexp(∑p,qFp↑,q↓ap↑†aq↓†)∣0⟩=(∑p,qFp↑,q↓ap↑†aq↓†)N/2∣0⟩
|\psi\rangle = P_N\exp\left(\sum_{p,q}F_{p\uparrow,q\downarrow}a_{p\uparrow}^{\dagger}a_{q\downarrow}^{\dagger}\right)|0\rangle=\left(\sum_{p,q}F_{p\uparrow,q\downarrow}a_{p\uparrow}^{\dagger}a_{q\downarrow}^{\dagger}\right)^{N/2}|0\rangle
Fp↑,q↓→ amplitude for the bond between p and q
⟨n∣ψ⟩=det()
\langle\mathbf{n}|\psi\rangle = \text{det}(\qquad)

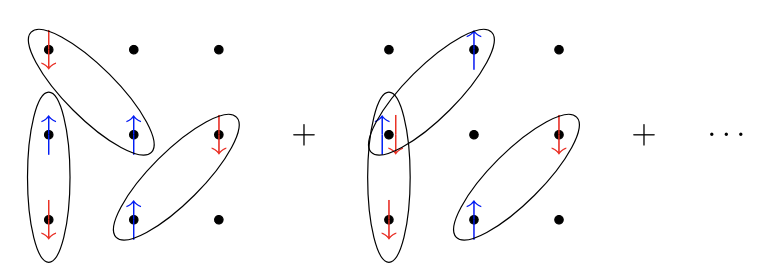

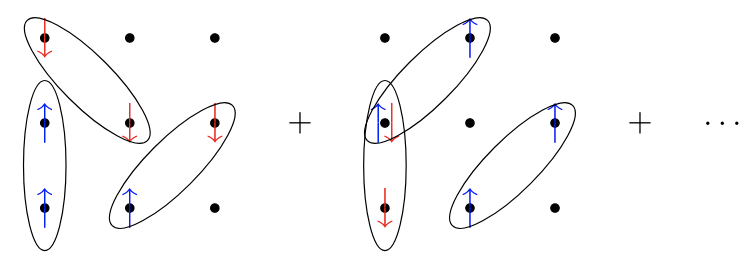

BCS wavefunction in real space
Spin eigenstate if Fp↑,q↓ symmetric, breaks S2 symmetry otherwise
Pfaffians
Includes same spin pairing: breaks all symmetries
∣ψ⟩=(∑pσ,qγFpσ,qγapσ†aqγ†)N/2∣0⟩
|\psi\rangle =\left(\sum_{p\sigma,q\gamma}F_{p\sigma,q\gamma}a_{p\sigma}^{\dagger}a_{q\gamma}^{\dagger}\right)^{N/2}|0\rangle
⟨n∣ψ⟩=pfaffian()=±[det()]1/2
\langle\mathbf{n}|\psi\rangle = \text{pfaffian}(\qquad) = \pm\left[\text{det}(\qquad)\right]^{1/2}
antisymmetric matrix
The most general mean field wavefunction: includes all others as special cases
Jastrow factor
J^∣ψ⟩=exp(∑pσ,qγvpσ,qγn^pσn^qγ)∣ψ⟩
\hat{\mathcal{J}}|\psi\rangle = \exp\left(\sum_{p\sigma,q\gamma} v_{p\sigma,q\gamma}\hat{n}_{p\sigma}\hat{n}_{q\gamma}\right)|\psi\rangle
counts site occupations and suppresses spurious ionic configurations (double occupations)
also correlates long range excitations: important for describing insulators

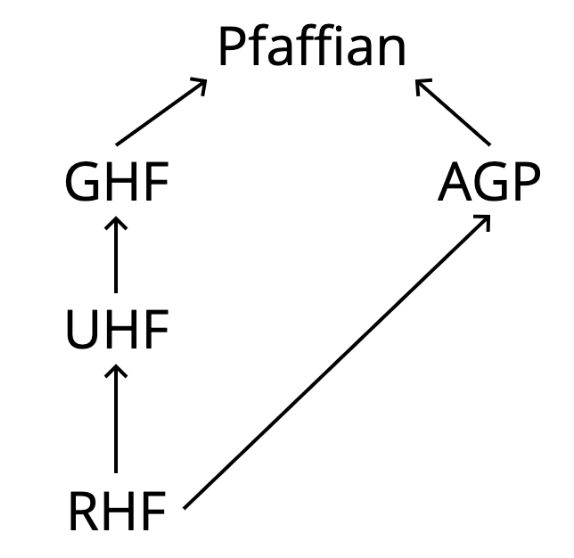

Wavefunction hierarchy
∣ψ⟩=J^P^∣ϕ⟩
|\psi\rangle=\hat{\mathcal{J}}\hat{P}|\phi\rangle
jastrow
projector
reference
General form:

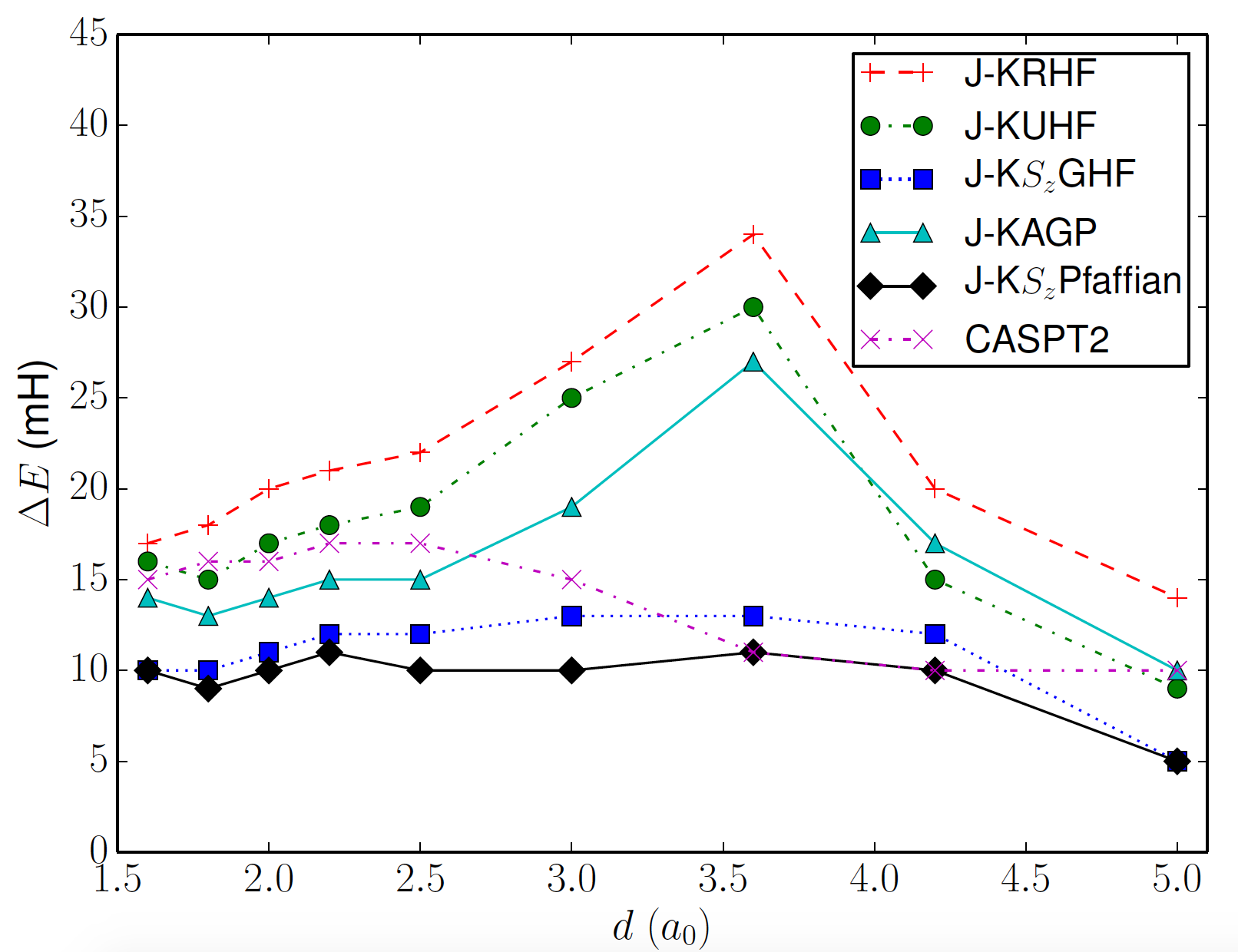

N2 (14e, 18o)
| d (Bohr) | Exact | Jastrow-KSPfafian | Green's function MC |
| 1.6 | -0.5344 | -0.5337 | -0.5342 |
| 1.8 | -0.5408 | -0.5400 | -0.5406 |
| 2.5 | -0.5187 | -0.5180 | -0.5185 |
H50 linear chain (50e, 50o)
| U | Accurate result | Jastrow- KSGHF |
Green's function MC |
| 2 | -1.1962 | -1.1920 | -1.1939 |
| 4 | -0.8620 | -0.8566 | -0.8598 |
| 8 | -0.5237 | -0.5183 | -0.5221 |
2D Hubbard: 98 sites
Thank you!
