Calculating properties in AFQMC using automatic differentiation
Properties in AFQMC
- Mixed estimators often require very accurate trials
⟨O^⟩m=⟨ψT∣P^∣ψI⟩⟨ψT∣O^P^∣ψI⟩
\langle \hat{O}\rangle_m = \dfrac{\langle\psi_T|\hat{O}\hat{P}|\psi_I\rangle}{\langle\psi_T|\hat{P}|\psi_I\rangle}
⟨O^⟩corrected=2⟨ψT∣P^∣ψI⟩⟨ψT∣O^P^∣ψI⟩−⟨ψT∣ψT⟩⟨ψT∣O^∣ψT⟩
\langle \hat{O}\rangle_{\text{corrected}} = 2\dfrac{\langle\psi_T|\hat{O}\hat{P}|\psi_I\rangle}{\langle\psi_T|\hat{P}|\psi_I\rangle} - \dfrac{\langle\psi_T|\hat{O}|\psi_T\rangle}{\langle\psi_T|\psi_T\rangle}
- Backpropagation correlates bra and ket to reduce noise
⟨O^⟩=⟨ψT∣P^′P^∣ψI⟩⟨ψT∣P^′O^P^∣ψI⟩
\langle \hat{O}\rangle = \dfrac{\langle\psi_T|\hat{P}'\hat{O}\hat{P}|\psi_I\rangle}{\langle\psi_T|\hat{P}'\hat{P}|\psi_I\rangle}
⟨O^⟩v=⟨ψT∣P^2∣ψI⟩⟨ψT∣P^O^P^∣ψI⟩
\langle \hat{O}\rangle_v = \dfrac{\langle\psi_T|\hat{P}\hat{O}\hat{P}|\psi_I\rangle}{\langle\psi_T|\hat{P}^2|\psi_I\rangle}
- Variational estimators are tricky to evaluate in AFQMC
⟨O^⟩=dλdE(H^+λO^)λ=0
\langle\hat{O}\rangle = \dfrac{d E(\hat{H}+\lambda \hat{O})}{d\lambda}\bigg\vert_{\lambda=0}
- Analytical derivatives (?)
- Finite difference:
Response formulation
- small energy differences between large noisy energies → correlated sampling
- Lots of calculations required if multiple observables or forces are desired
- Automatic differentiation is a viable alternative
Outline
- Forward and reverse mode automatic differentiation:
putting the chain rule to good use
- Analysis of stochastic and systematic errors:
scaling of error and cost with system and basis size
- Results:
comparison to experimental dipole moments
Automatic differentiation (AD)
f:Rm→Rn
f:\mathbb{R}^m\rightarrow\mathbb{R}^n

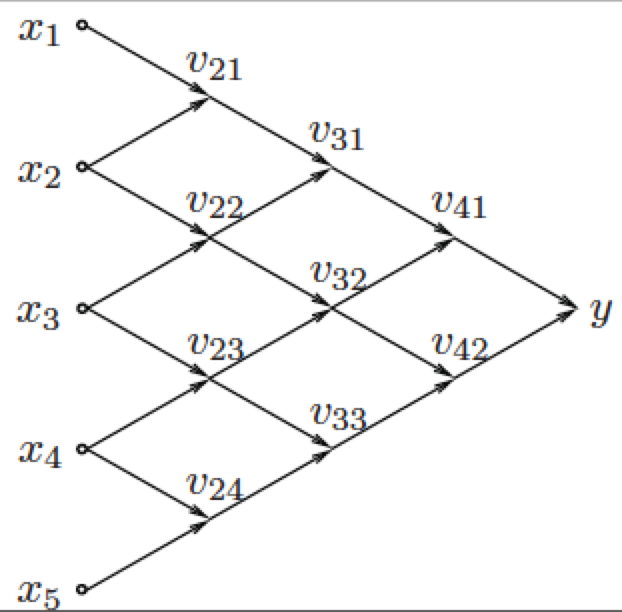

Consider a program that evaluates a function f
Intermediates formed during execution
f=fl∘fl−1∘⋯∘f1
f = f_l\circ f_{l-1}\circ\dots\circ f_1
f′=fl′.fl−1′.…f1′
f'=f_l'.f_{l-1}'.\dots f_1'
The Jacobian vector products are performed numerically
The order in which these evaluations are performed depends on the problem and dictates efficiency
Forward mode
Suppose we only want derivatives wrt a small number of inputs
y˙=fl′.fl−1′.…f1′.x˙
\dot{y}=f_l'.f_{l-1}'.\dots f_1'.\dot{x}
derivative time cost ~ 2-3 × cost of f
Good choice if only a small number of observables are required
⟨O^⟩=dλdE(H^+λO^)λ=0
\langle\hat{O}\rangle = \dfrac{d E(\hat{H}+\lambda \hat{O})}{d\lambda}\bigg\vert_{\lambda=0}
Reverse mode
To calculate derivatives of few outputs wrt to a lot of inputs
xˉT=f1′T.f2′T.…fl′T.yˉ
\bar{x}^{T}=f_1'^{T}.f_{2}'^{T}.\dots f_l'^{T}.\bar{y}
gradient time cost ~ 2-4 × cost of f

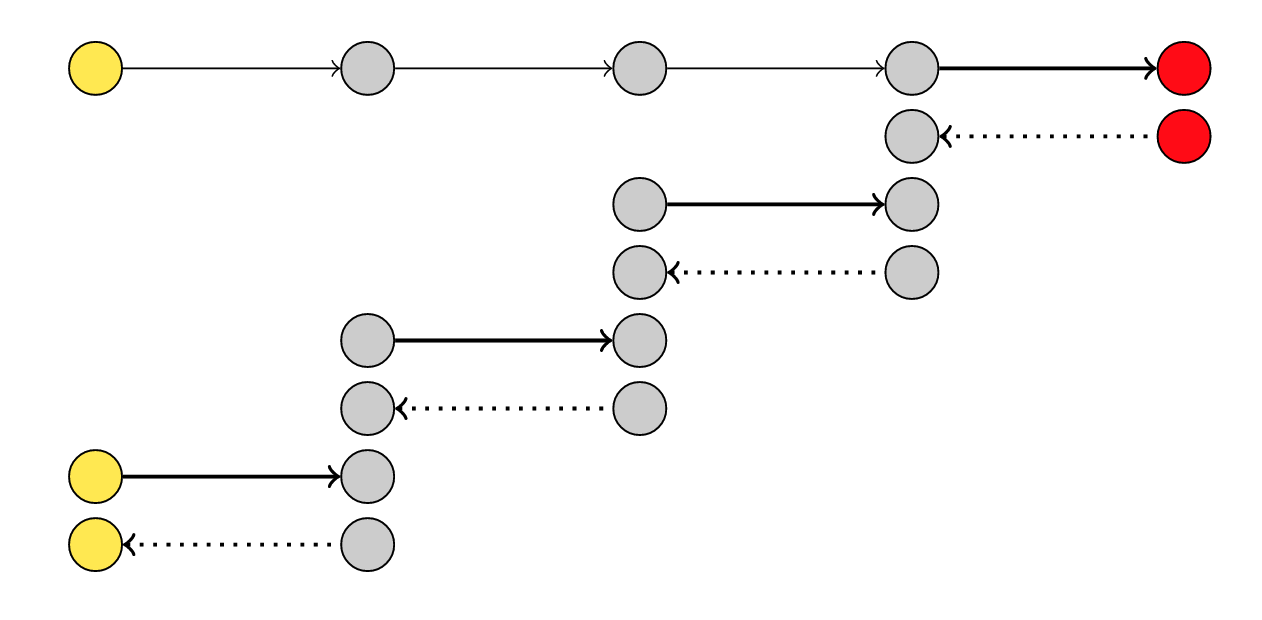

checkpointing to reduce memory cost
dλijdE(H^+λijai†aj)
\frac{dE(\hat{H}+\lambda_{ij} a_{i}^{\dagger}a_j)}{d\lambda_{ij}}
Suitable for RDM's e.g.

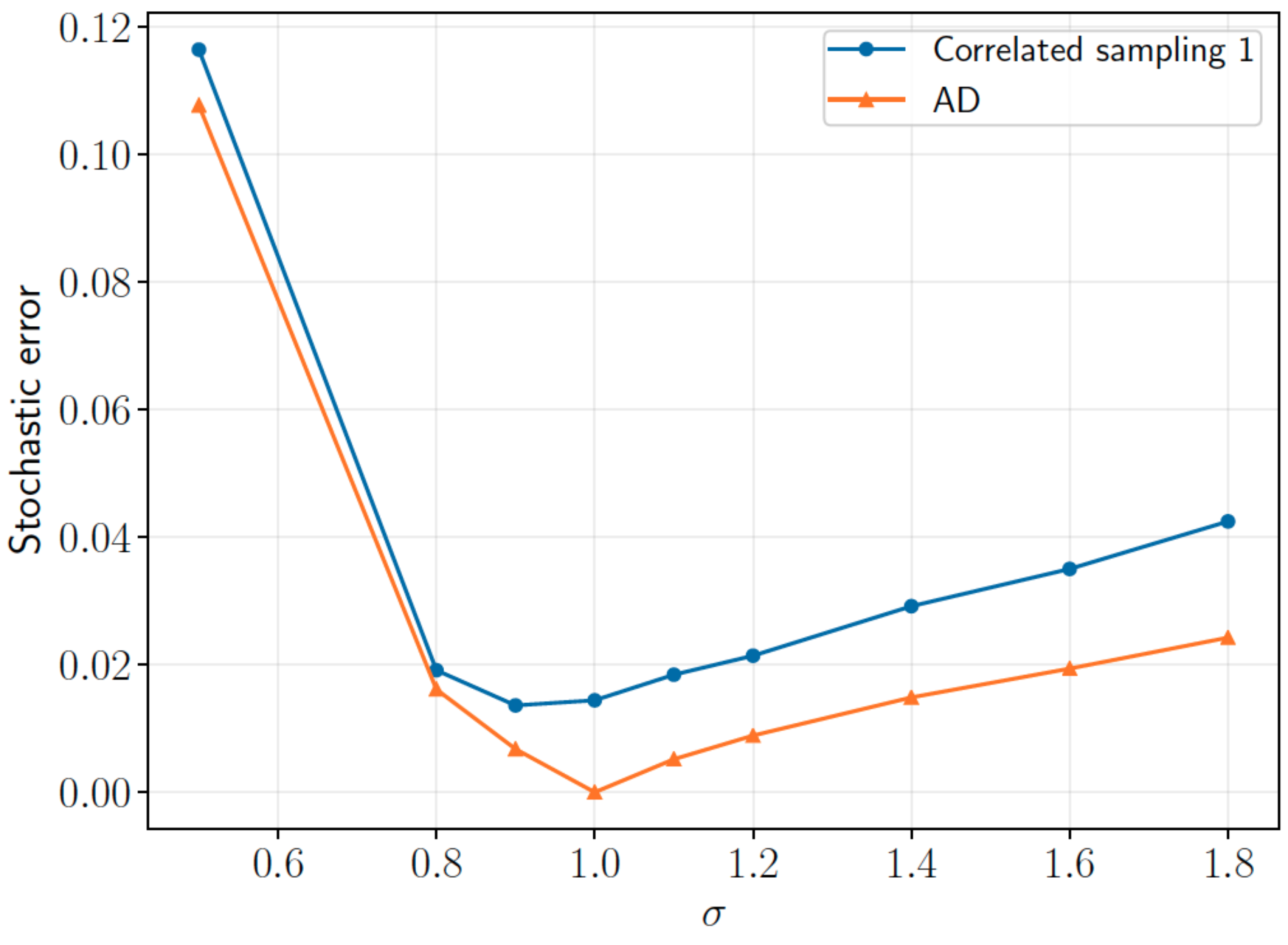

Toy example
Harmonic oscillator in an electric field VMC:
H(F)=(p2+x2)/2−Fx
H(F) = (p^2 + x^2)/2 - Fx
ψσ(x;μ)=e−(x−μ)2/2σ2
\psi_{\sigma}(x; \mu) = e^{-(x-\mu)^2/2\sigma^2}
Correlated sampling 1:
E(δ)−E(0)=⟨ELδψσ(0)2ψσ(δ)2−EL0⟩
E(\delta)-E(0) = \langle E_L^{\delta}\dfrac{\psi_{\sigma}(\delta)^2}{\psi_{\sigma}(0)^2}-E_L^0\rangle
Correlated sampling 2:
Use the same random numbers in E(δ) and E(0) calculations,
FD equivalent of AD
Possibility of divergences in correlated sampling → AD?
Assaraf, Caffarel, Kollias '11

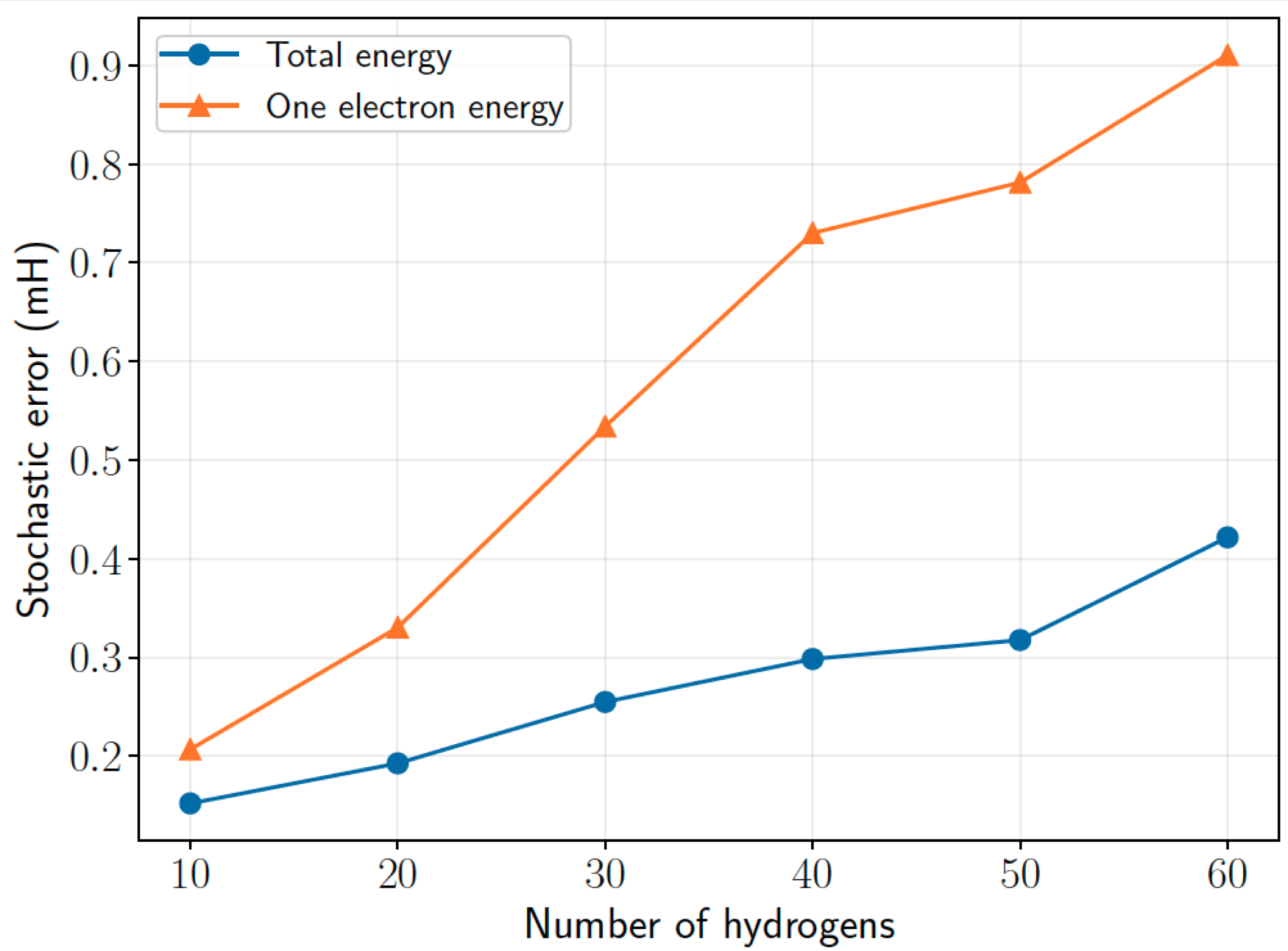

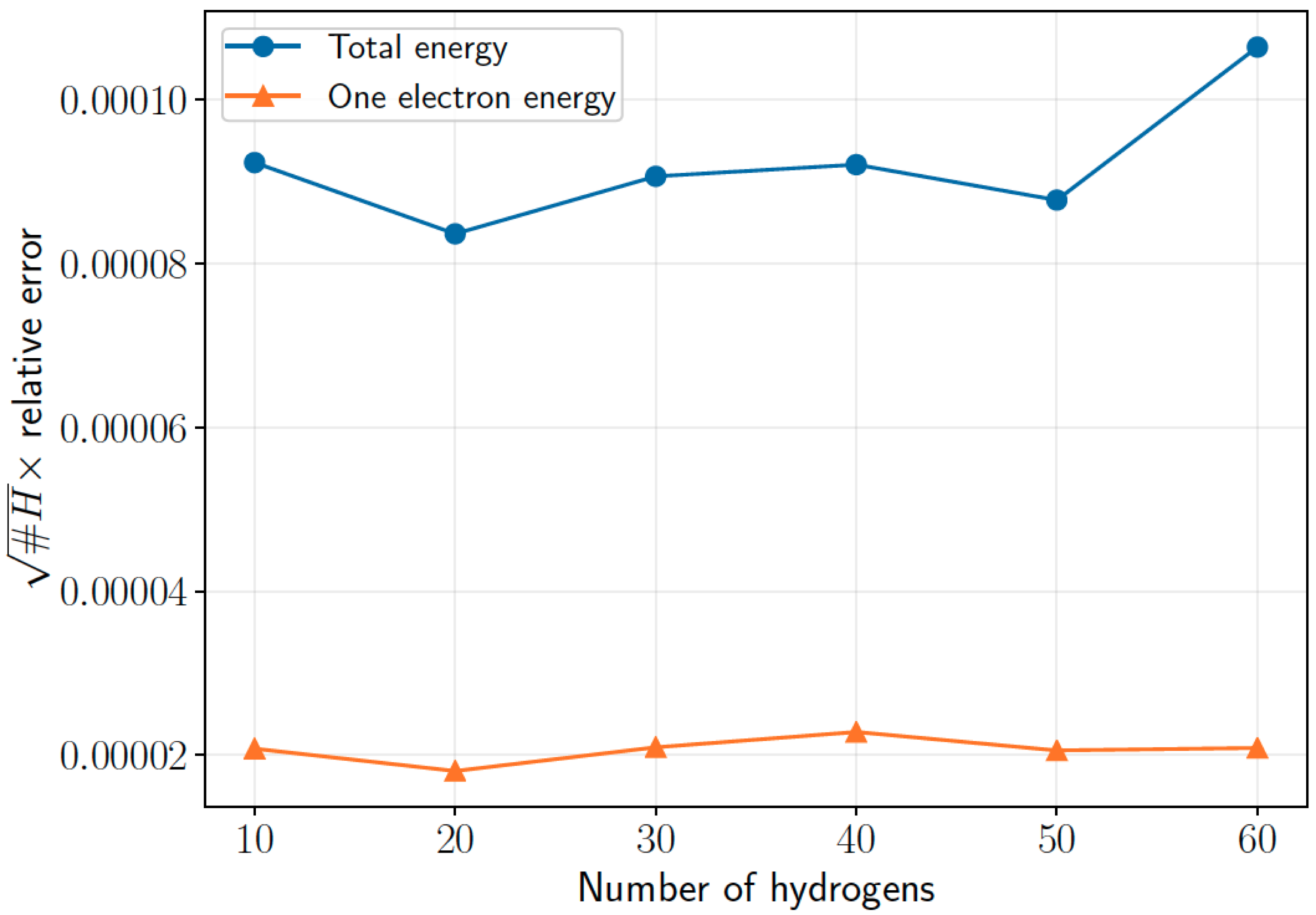

Scaling of stochastic error in H chains (minimal basis)
Relative error

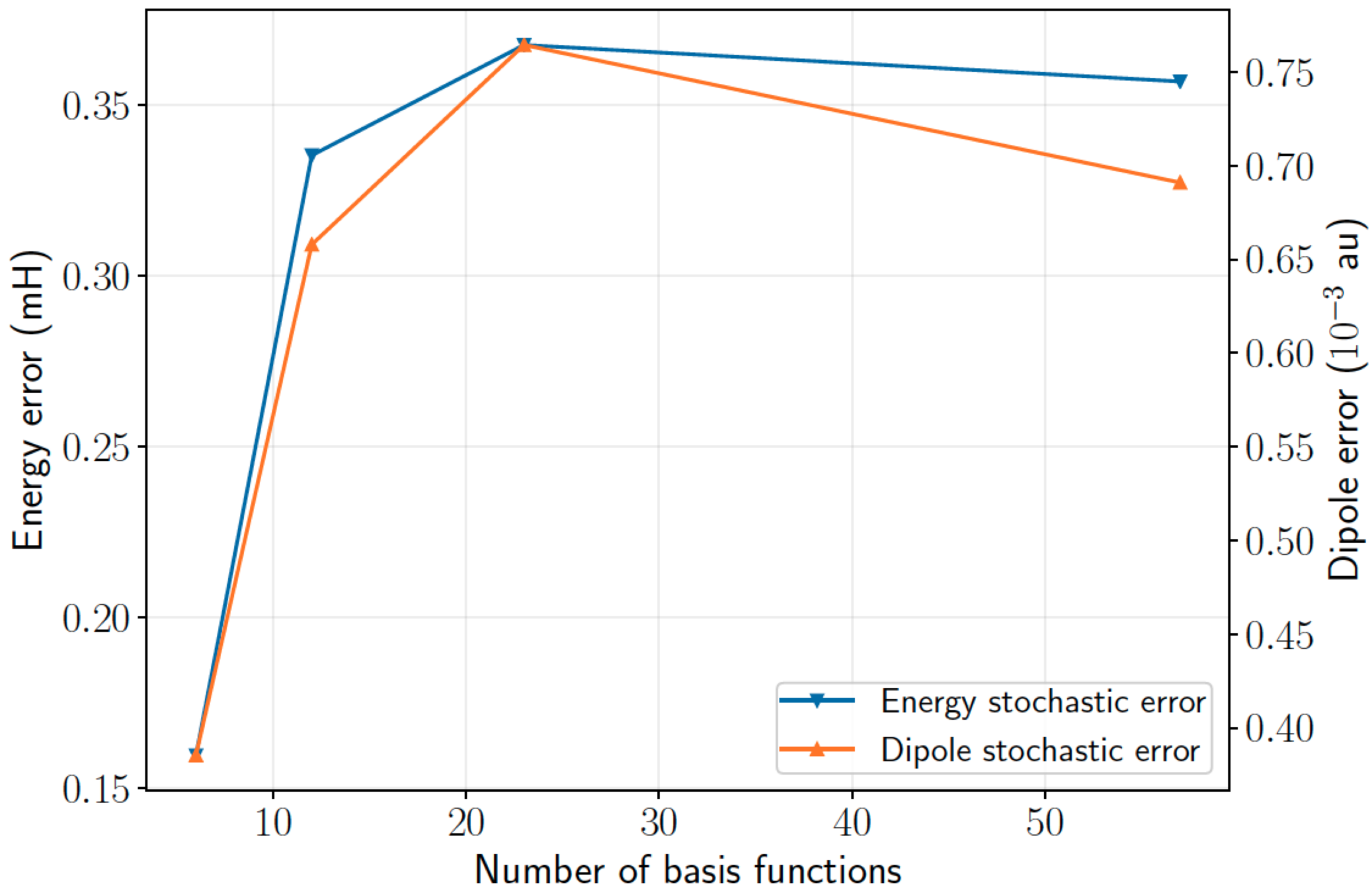

Scaling of error with basis size in water

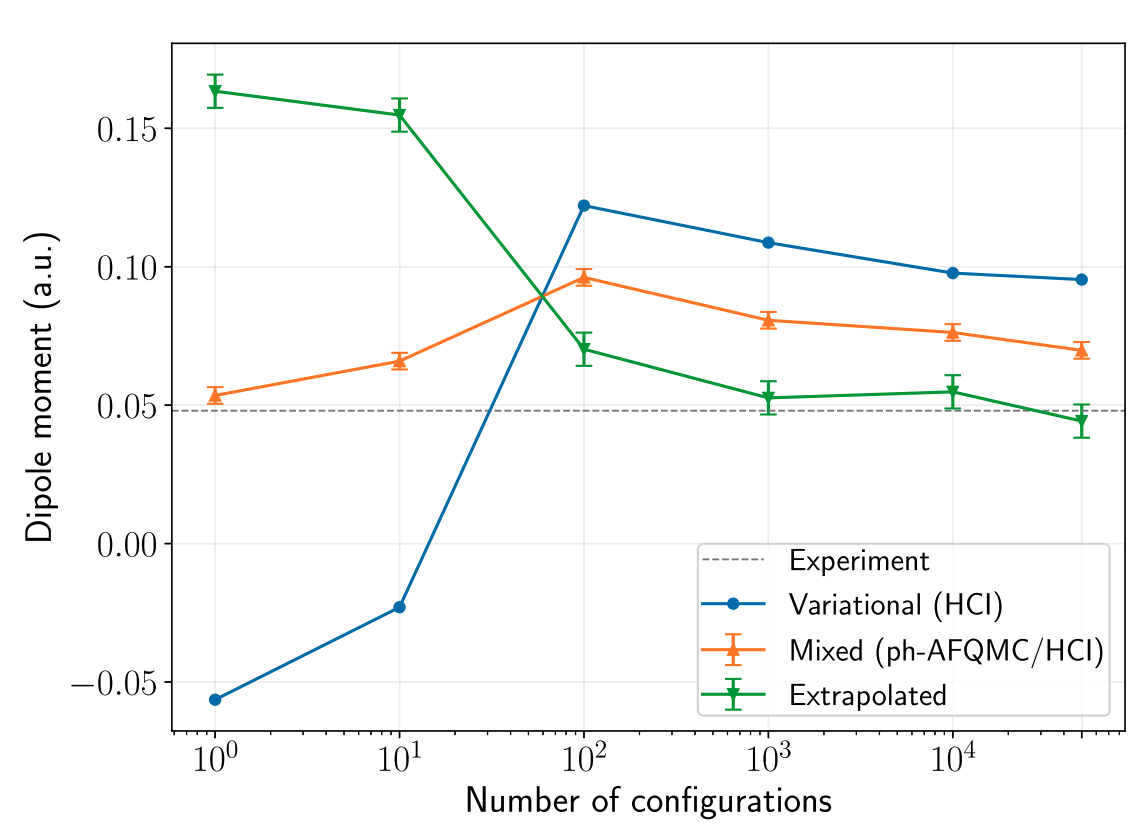

Systematic errors in ammonia dipole moment (dz basis)

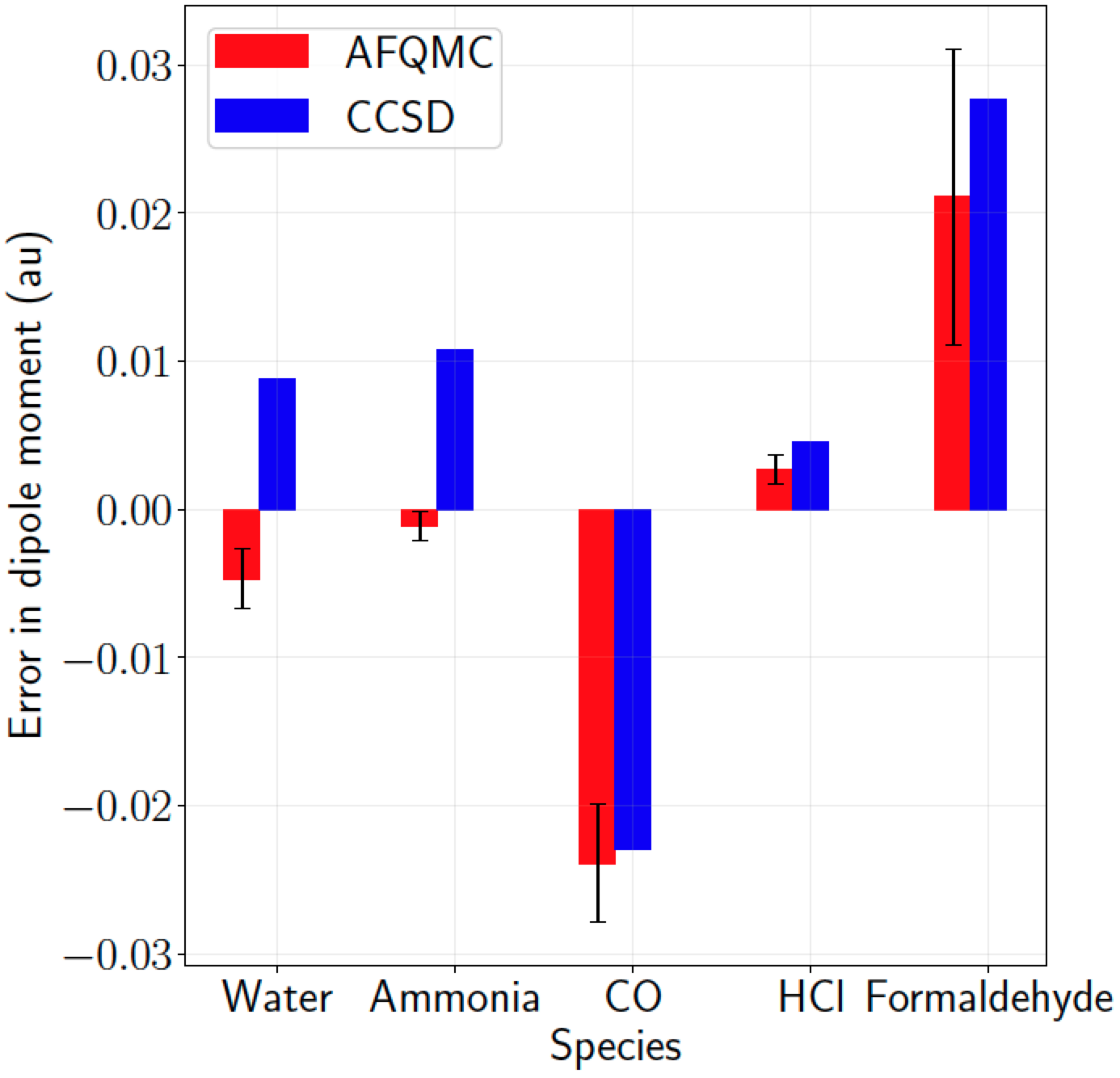

Dipole moments in the continuum limit

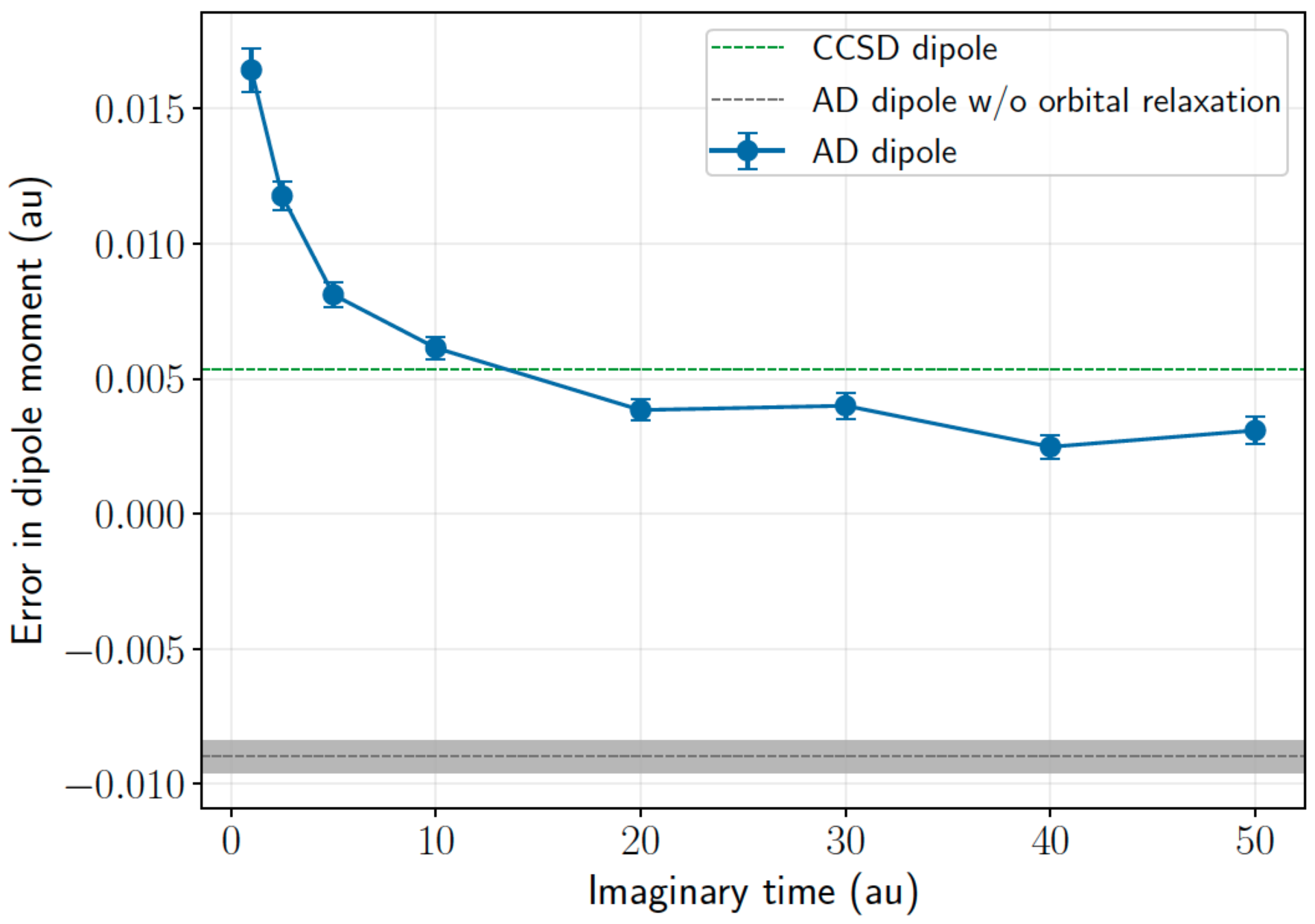

Self-consistent AFQMC to improve properties
AFQMC reverse AD 1RDM → natural orbitals for trial
Test for CO (in DZ basis):
CCSD(T) dipole: 0.087
AFQMC dipole without self-consistency: 0.073(4)
AFQMC dipole with self-consistency: 0.093(3)
Energy improved by about ~2m mH as well!
Summary
AD with AFQMC brings observable calculations on par with energy calculations
Forward and reverse AD can be employed depending on the problem
Higher order properties, nuclear forces, ...
