Gülçin Yıldırım

5432...MeetUs!  Milano 2016

Ansible loves PostgreSQL

select * from me;

Postgres DBA @ 2ndQuadrant

MSc Comp. & Systems Eng. @ Tallinn University of Technology

BSc Maths Eng. @ Yildiz Technical University

Writes blog on 2ndQuadrant blog

Does some childish paintings

Loves independent films

@apatheticmagpie

Skype: gulcin2ndq

Github: gulcin

What is Ansible?

Simple, agentless and powerful open source IT automation tool

• Provisioning
• Configuration Management
• Application Deployment
• Continuous Delivery
• Security & Compliance
• Orchestration

What are the options?

What are the options?

Why Ansible?

• Agent-less architecture (no agent is required, everything is done by using SSH, ssh for communication)
• No centralized server, no client-side agents
• SSH based
• Configuration as data, not code (YAML files)
• Batteries included
• Full conf. management, deployment and orchestration
• Custom modules can be written in any programming language.
• JSON input/output is sufficient to integrate a module into Ansible.

Life before Ansible

Multiple ssh, control panels, editing config files manually.

Let's install Ansible

Debian or Ubuntu:

apt-get install python-dev python-setuptools
easy_install pip
pip install ansible boto

Mac OS X:

sudo easy_install pip
sudo pip install ansible boto

Code of this talk

github.com/gulcin/pgconfeu2015

This example:

• Provision Amazon VPC and EC2 instances
• Install latest PostgreSQL packages
• Setup a streaming replication with 1 master and 2 standbys
• Add a new standby server

Building Blocks

Typically,

   our solutions executes tasks for an inventory,

   utilizing some modules,

   using or populating some variables,

   processing some file templates,

   in a playbook,

   which can be organized in roles.

Inventory

• Tells Ansible about hosts it should manage
  • Hostnames, IPs, ports, SSH parameters
  • Server specific variables

• 2 common ways to provide Ansible an inventory:
  • Static inventory: A flat INI file (e.g., hosts.ini)
  • Dynamic inventory: An application returning a JSON data (e.g.,: ec2.py for Amazon EC2)

• Hosts are grouped. They can belong to multiple groups

• Groups can also belong to multiple groups

Inventory

Below inventory file in INI format contains 3 hosts under 2 groups.

There is also a 3rd group which contains other groups and all of the hosts.

# "master" group with 1 host
[master]
postgresql-master        ansible_ssh_host=10.0.0.5     ansible_ssh_user=ubuntu

# "standby" group with 2 hosts
[standbys]
postgresql-standby-01    ansible_ssh_host=10.0.0.10    ansible_ssh_user=ubuntu
postgresql-standby-02    ansible_ssh_host=10.0.0.11    ansible_ssh_user=ubuntu

# the "replication" group contains both "master" and "standbys" groups
[replication:children]
master
standbys

Module

• Modules provide Ansible means to control or manage resources on local or remote servers.

• They perform a variety of functions. For example a module may be responsible for rebooting a machine or it can simply display a message on the screen.

• Ansible allows users to write their own modules and also provides out-of-the-box core or extras modules.
  • Core
  • Extras

Module

Some of the most commonly used modules are:

• File handling: file, stat, copy, template

• Remote execution: command, shell

• Service management: service

• Package management: apt, yum, bsd, ports

• Source control systems: git, subversion

Task

Tasks are responsible for calling a module with a specific set of parameters.

Each Ansible task contains:

• a descriptive name [optional]
• a module to be called
• module parameters
• pre/post-conditions [optional]
• processing directives [optional]

They allow us to call Ansible modules and pass information to consecutive tasks.

Task

Below task invokes the "file" module by providing 4 parameters. It ensures 3 conditions are true:

• /var/lib/postgresql exists as a directory
• owner of /var/lib/postgresql is "postgres"
• group of /var/lib/postgresql is "postgres"


If it doesn't exist, Ansible creates the directory and assigns owner & group. If only the owner is different, Ansible makes it "postgres".

- name: Ensure the data folder has right ownership
  file: path="/var/lib/postgresql" state=directory owner=postgres group=postgres

Task

Following example shows relationships between tasks. The first task checks if a device exists and the second task mounts the device depending on the result from the first task.

Please note "register" and "when" keywords.

- name: Check if the data volume partition exists
  stat: path=/dev/sdc1
  register: partition

- name: Ensure the PostgreSQL data volume is mounted
  mount: src=/dev/sdc1 name="/var/lib/postgresql/9.4" fstype=ext4 state=mounted
  when: partition.stat.exists is defined and partition.stat.exists

Variable

Variables in Ansible are very useful for reusing information. Sources for variables are:

• Inventory: We can assign variables to hosts or groups (group vars, host vars).
• YAML files: We can include files containing variables.
• Task results: Result of a task can be assigned to a variable using the register keyword as shown in the previous slide.
• Playbooks: We can define variables in Ansible playbooks (more on that later).
• Command line: (-e means extra variable // -e  "uservar=gulcin")

Variable

There is also discovered variables (facts) and they can be found by using setup module:

• All of the output in json: bios_version, architecture, default_ipv4_address, ansible_os_family, etc.


You can use variables in tasks, templates themselves and you can iterate over using with_type functions.

ansible -i hosts.ini -m setup hostname

- name: Ensure PostgreSQL users are present
  postgresql_user:
    state: present
    name: "{{ item.name }}"
    password: "{{ item.password }}"
    role_attr_flags: "{{ item.roles }}"
  with_items: postgresql_users

Template

We can think templates as our configuration files. Ansible lets us use the Jinja2 template engine for reforming and parameterising our files.

The Jinja2 templating engine offers a wide range of control structures, functions and filters..

Some of useful capabilities of Jinja2:

• for-loops
• join(), default(), range(), format()
• union(), intersect(), difference()
• | to_json, | to_nice_yaml, | from_json, | from_yml
• | min, | max, | unique, | version_compare, | random

Template

*:*:*:{{ postgresql_replication_user.name }}:{{ postgresql_replication_user.password }}

Let's check our pgpass.j2 template:

Let's have a look at pg_hba.conf.j2 file, too:

# Access to user from local without password, from subnet with password
{% for user in postgresql_users %}
local  all         {{ user.name }}                             trust
host   all         {{ user.name }}    {{ ec2_subnet }}         md5
{% endfor %}

# Replication user for standby servers access
{% for standby_ip in postgresql_standby_ips %}
host   replication {{ postgresql_replication_user.name }}  {{ standby_ip }}/32  md5
{% endfor %}

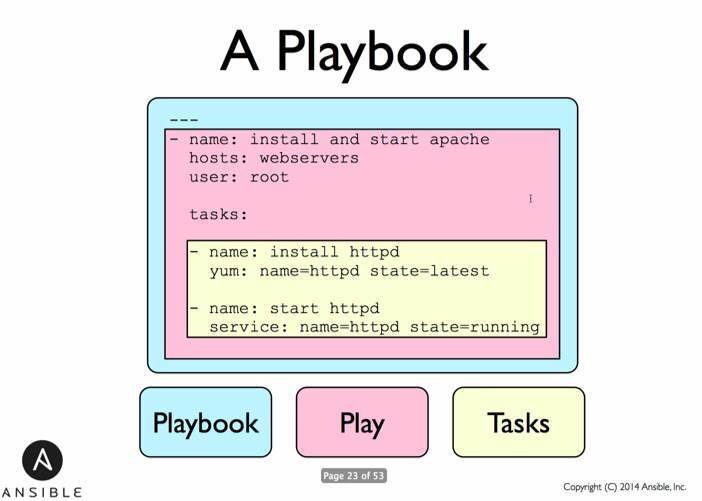

Playbook

• Playbooks contains Plays
  • Plays contain Tasks
    • Tasks call Modules and may (optionally) trigger handlers (run once, run at the end)

Playbook

If Ansible modules are the tools in your workshop, playbooks are your design plans.

• Ansible playbooks are written using the YAML syntax.
• Playbooks may contain more than one plays
• Each play contains:
  • name of host groups to connect to
  • tasks it needs to perform.

Strict dependency ordering: everything in file performs in a sequential order. (Before v.2)

Playbook

Let's look at our playbook example (main.yml):

---
- name: Ensure all virtual machines are ready
  hosts: 127.0.0.1
  connection: local
  vars_files: # load default variables from YAML files below
    - 'defaults/postgresql.yml'
    - 'defaults/aws.yml'
  tasks:
    - include: 'tasks/provision.yml' # load infrastructure setup tasks

- name: Ensure all required PostgreSQL dependencies ready
  hosts: postgresql-all # manage all PostgreSQL servers
  sudo: yes
  sudo_user: root
  vars_files:
    - 'defaults/postgresql.yml'
    - 'defaults/aws.yml'
  tasks:
    - include: 'tasks/postgresql.yml' # load PostgreSQL setup tasks

...

Role

You absolutely should be using roles. Roles are great. Use roles. Roles! Did we say that enough? Roles are great.

In Ansible,

• playbooks organize tasks
• roles organize playbooks

Imagine that we have lots of independent resources to manage (e.g., web servers, PostgreSQL servers, logging, monitoring, AWS, ...).

Putting everything in a single playbook may result in an unmaintainable solution.

Role

Here you can see a dependency graph and the corresponding role directory structure:

How to Invoke Ansible?

To work with Ansible, we have 2 main alternatives;

1. Running ad-hoc commands
2. Running playbooks

Let's check them out one by one.

Ad-hoc Commands

We can call any Ansible module from the command line, anytime.

The ansible CLI tool works like a single task. It requires an inventory, a module name, and module parameters.

For example, given an inventory file like:

     [dbservers]
     db.example.com

Now we can call any module.

Ad-hoc Commands

We can check uptimes of all hosts in dbservers using:

ansible dbservers -i hosts.ini -m command -a "uptime"

Here we can see the Ansible output:

gulcin@apathetic ~ # ansible dbservers -i hosts.ini -m command -a "uptime"
db.example.com | success | rc=0 >>
21:16:24 up 93 days,  9:17,  4 users,  load average: 0.08, 0.03, 0.05

How to Run Playbooks?

For more complex scenarios, we can create playbooks or roles and ask Ansible to run them.

When we run a playbook or a role, Ansible first gathers a lot of useful facts about remote systems it manages. These facts can later be used in playbooks, templates, config files, etc.

We can use the ansible-playbook CLI tool to run playbooks.

How to Run Playbooks?

Given an inventory file like this:

     [dbservers]

     db.example.com

We may have a playbook that connects to hosts in dbservers group, executes the uptime command, and then displays that command's output.

Now let's create a simple playbook to see how it can be ran.

How to Run Playbooks?

Here is the main.yml file for the playbook we just described:

---

- hosts: dbservers

  tasks:
  - name: retrieve the uptime
    command: uptime
    register: command_result # Store this command's result in this variable

  - name: Display the uptime
    debug: msg="{{ command_result.stdout }}" # Display command output here

How to Run Playbooks?

Now we can run the playbook and see it's output here:

gulcin@apathetic ~ $ ansible-playbook -i hosts.ini main.yml

PLAY [dbservers] **************************************************************

GATHERING FACTS ***************************************************************
ok: [db.example.com]

TASK: [retrieve the uptime] ***************************************************
changed: [db.example.com]

TASK: [Display the uptime] ****************************************************
ok: [db.example.com] => {
    "msg": " 15:54:47 up 3 days, 14:32,  2 users,  load average: 0.00, 0.01, 0.05"
}

PLAY RECAP ********************************************************************
db.example.com             : ok=3    changed=1    unreachable=0    failed=0

Postgres modules

My blog post covers Ansible PostgreSQL modules: Ansible Loves PostgreSQL

You can find the related Postgres modules' examples on my github repo.

• postgresql_db: Creates/removes a given db.

• postgresql_ext: Adds/removes extensions from a db.

• postgresql_user: Adds/removes users and roles from a db.

• postgresql_privs: Grants/revokes privileges on db objects (table, sequence, function, db, schema, language, tablespace, group).

• postgresql_lang: Adds, removes or changes procedural languages with a db.

postgresql_db

Creates/removes a given db.  In Ansible terminology, it ensures that a given db is present or absent.

• Required param: name
• Connection params: login_host, port,login_user, login_password
• Important param: state (present or absent)

Create db module_test

Remove db module_test

postgresql_ext

Adds/removes extensions from a db. PostgreSQL offers a wide range of extensions which are extremely helpful.

• Mandatory params: db and name (for extension)
• Other params: state and connection params (login_host, port) as in postgres_db

postgresql_user

Adds/removes users and roles from a db.

Parameters: name (mandatory), state, connection params, db, password, priv, role_attr_flags ([NO]SUPERUSER, [NO]CREATEDB..)

Creates user

Alters role and gives login and createdb

postgresql_privs

Grants/revokes privileges on db objects (table, sequence, function, db, schema, language, tablespace, group).

• Required params: database, roles
• Important opt. params: type (i.e. table,sequence,function), objs, privs (i.e. ALL; SELECT, UPDATE, INSERT)

postgresql_lang

 Adds, removes or changes procedural languages with a db.

One of the very powerful features of PostgreSQL is its support for virtually any language to be used as a procedural language.

Params: lang (mandatory), db, connection params, state, cascade, trust

AWS modules

Ansible provides more than 50 modules for provisioning and managing Amazon Web Services resources.

http://docs.ansible.com/ansible/list_of_cloud_modules.html

We have modules for:

• EC2 (Virtual machine instances)
• AMI (Virtual machine images)
• ELB (Load balancers)
• VPC (Networking infrastructure)
• EBS (Storage infrastructure)
• ...

AWS modules

Ansible AWS modules are developed using Boto.

Boto is a Python package that provides interfaces to Amazon Web Services.

For more complex workflows, we can use the ec2.py script to discover dynamic inventories for our playbooks:

• Download ec2.py and ec2.ini from github.com/ansible/ansible/tree/devel/contrib/inventory
• cp ec2.py /etc/ansible/hosts
• cp ec2.ini /etc/ansible
• chmod +x /etc/ansible/hosts

Playbook structure

Playbook AWS architecture

Action!

First run

New standby server

Conclusion

Ansible loves PostgreSQL and Ansible has a very active community.

<wishlist>

That's why more PostgreSQL modules would be helpful for everyone.

Making contributions to Ansible will be appreciated :)

</wishlist>

References

Ansible quick start video http://www.ansible.com/videos

Review: Puppet vs Chef vs Ansible vs Salt http://www.infoworld.com/article/2609482/data-center/data-center-review-puppet-vs-chef-vs-ansible-vs-salt.html

Managing PostgreSQL with Ansible in EC2 https://www.safaribooksonline.com/library/view/velocity-conference-2013/9781449371630/part22.html

Jinja2 for better Ansible playbooks and templates

https://blog.codecentric.de/en/2014/08/jinja2-better-ansible-playbooks-templates/

Edmund The Elephant https://dribbble.com/shots/2223604-Edmund-The-Elephant
