Encryption

and

 Key Distribution Methods

APPLIED DATA COMMUNICATION

Tallinn University of Technology

Gülçin Yıldırım - Team #12

What is Encryption?

Encryption is the process of encoding messages or information in such a way that only authorized parties can read it.

Why Encryption?

Confidentiality

Authentication

Message Integrity

Access and Availability

Eavesdropping

Intercept messages

Inserting messages

Actively insert messages into connection

Impersonation

Can fake (spoof) source address in packet (or any field in packet)

Hijacking

"Take over" ongoing connection by removing sender or receiver by inserting himself in place

Denial of Service

Prevent service from being used by others (e.g, by overloading resources)

Insecure Communication

Sender

Intended Receiver

MITM

Secure Channel

Sender

Intended Receiver

MITM

Encrypted Message

Sender

Intended Receiver

MITM

A Secret Message
371c79266d08ca124f3f8ea8ebb5d368

Encryption

  • Generates a ciphertext from a plaintext using an encryption key and an encryption algorithm (cipher)



  • It is a two way process:
    an encrypted data is expected to be decrypted later.
Plaintext
A Secret Message
371c79266d08ca124f3f8ea8ebb5d368

Ciphertext
Cipher
Key

Encryption Types

Symmetric Key Encryption

Public
Key Encryption

Symmetric Key Encryption

  • All communicating parties use the same key

  • Key is used both for encryption and decryption

Symmetric Key Encryption

  • Faster compared to public key encryption



  • Key needs to be stored securely  (only accessed when required)



  • Secure channel required to transfer the key

Public Key Encryption

Requires two keys:



  •    Public Key: used for encryption



  •    Private Key: used for decryption

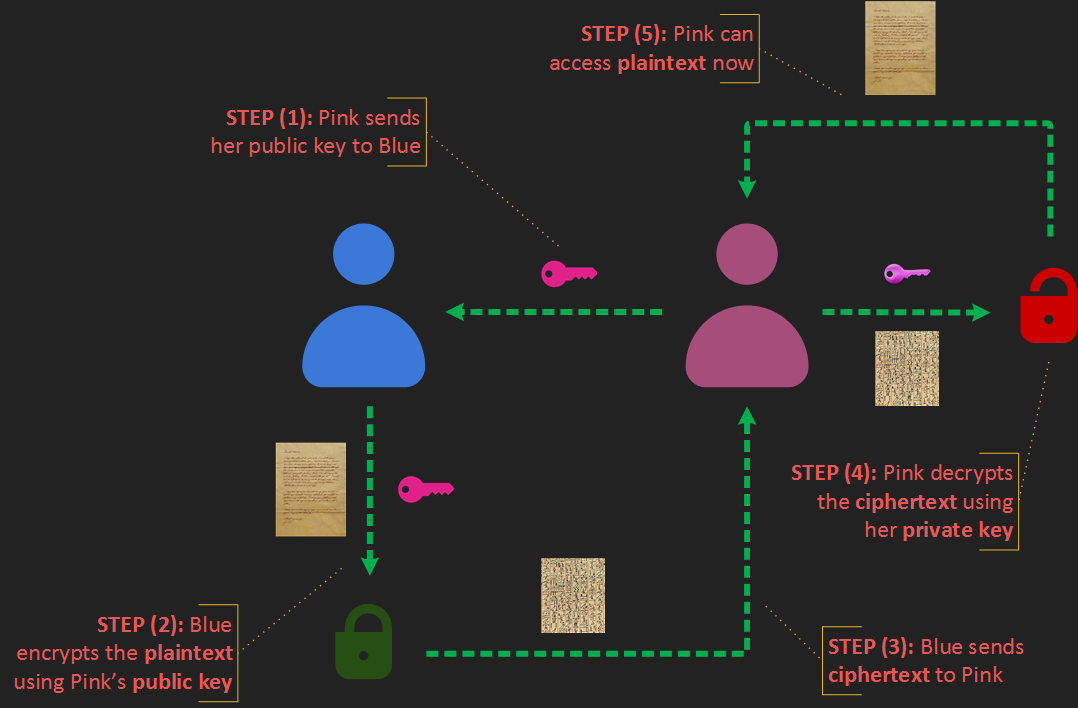

    All communicating parties exchange their public keys

   Sender encrypts the plaintext using receiver's public key

    Receiver decrypts the ciphertext using their own private key

Public Key Encryption

  • Slower compared to Symmetric Key Encryption

  • Public key & ciphertext can be sent over an insecure channel

  • More secure because there is no need to share private keys with anyone

Public Key Encryption

Public Key

(share with pink)

Private Key

(keep it secret)

Public Key

(share with blue)

Private Key (keep it secret)

Public Key Encryption

Logic Behind the Keys

Trying to find a prize behind a series of number of doors

Public & Symmetric Key Mix

Performance ?

Security ?

Public key encryption used to exchange keys

Symmetric key encryption used to encrypt data

Encryption Algorithms

Block Cipher and Stream Cipher

Encryption Algorithms

  • An encryption algorithm is called "cipher"

  • There are two types of ciphers:
    • Block cipher
    • Stream cipher
      ​
  • Two concepts are very important for both of them:
    • Prime numbers
    • Entropy for random number generation

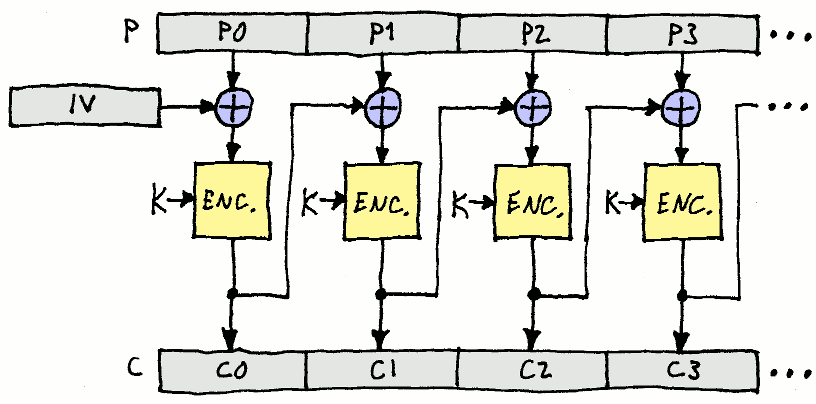

Block Cipher

Operates on fixed-size blocks (N bits) and uses fixed-size keys (K bits)


  1. Reads N-bits of data from the plaintext
  2. Uses the key and applies the encryption algorithm
  3. Produces ciphertext in size of N-bits
  4. Repeats steps 1-4 until all plaintext is processed

Block Cipher - AES

One of the most popular block ciphers is the AES algorithm.
Some other examples are: DES, Blowfish, RC5, ...



  • AES stands for Advanced Encryption Standard
  • Works on 128 bits (16 bytes) of blocks
  • Uses 128, 192 or 256 bits of keys
  • Operates on a 4x4 matrix of bytes



There are four stages in the algorithm:



  1. KeyExpansions: Keys are derived from the provided key

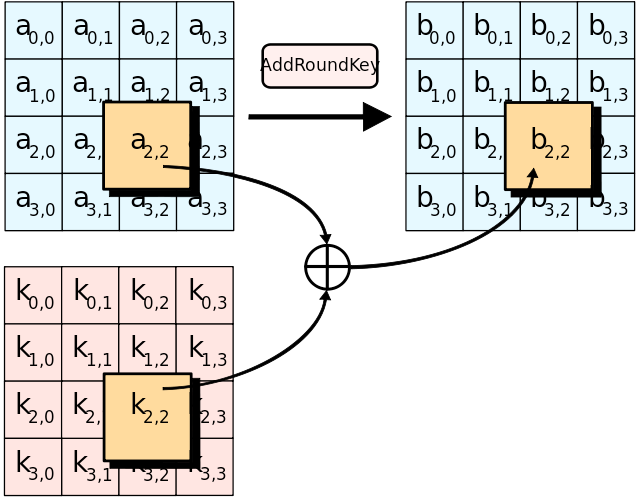

  2. InitialRound: AddRoundKey

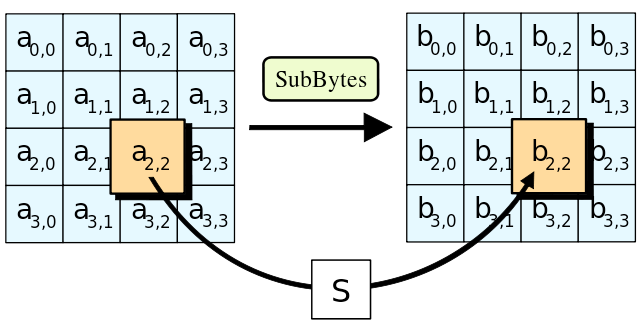

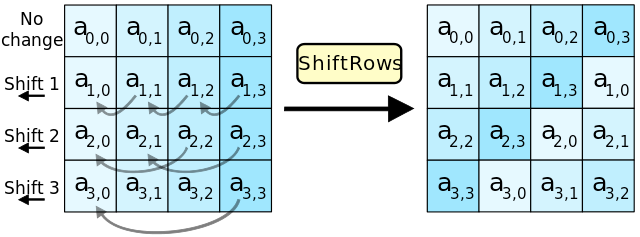

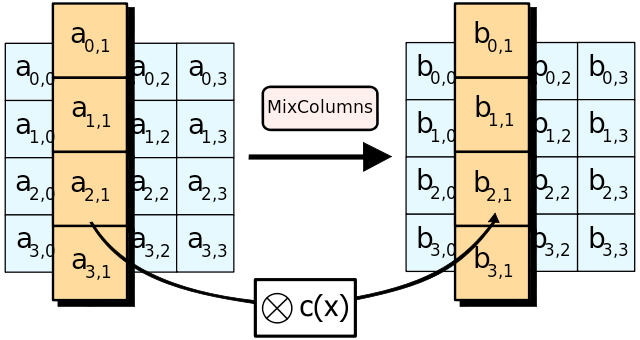

  3. Rounds: SubBytes, ShiftRows, MixColumns, AddRoundKey

  4. FinalRound: SubBytes, ShiftRows, AddRoundKey

Block Cipher - AES

Stream Cipher

Operates on variable-size blocks (N bits) and uses random-size keys


  1. Generates a random number N
  2. Reads N-bits of data from the plaintext
  3. Uses the key and applies the encryption algorithm
  4. Produces ciphertext in size of N-bits
  5. Repeats steps 1-5 until all plaintext is processed



A popular stream cipher algorithm is RC4.
However, it is replaced by RC5, a block cipher algorithm.

Key Distribution Methods

The main concern of a key distribution method is how to securely supply keys between all communicating parties



There are some important security questions we must consider:



  • Symmetric Key Encryption
    • Is the shared key stored securely? Is it compromised?
    • Is the communication channel secure?
  • Public Key Encryption
    • Am I encrypting for the intended receiver?



A key distribution method helps us with those concerns.

Key Distribution Methods

There are various different key distribution methods for different encryption types:



  • In symmetric key encryption, trusted key distribution center (KDC) is acting as intermediary between parties

  • In public key encryption, public key servers are used for both uploading and downloading public keys

  • One another method is using a public key infrastructure (PKI) to share SSL certificates. A Certificate Authority (CA) provides public keys and also validates SSL certificates

Use-Case: GPG

  • GPG (GNU Privacy Guard) is a very popular application that uses public key encryption

  • Most commonly used for encryption / decryption of files & email messages

  • Available for many platforms: Linux, Mac OS X, Microsoft Windows, BSD, etc...

  • There are very large key servers to distribute public keys (e.g., MIT PGP Public Key Server)

Demo - Sender

Demo - Receiver

References

Thank you!

Encryption and Key Distribution Methods

By Gülçin Yıldırım Jelínek

Made with Slides.com

Encryption and Key Distribution Methods

This presentation is created for Applied Data Communication lecture of Computer Systems Engineering master programme at Tallinn University of Technology
