Spatial Navigation in the Hippocampal Formation

Understanding spatial reasoning

The Hippocampal Structures

The Hippocampal Neurons

Stellate neurons

Pyramidal neurons

Granule neurons

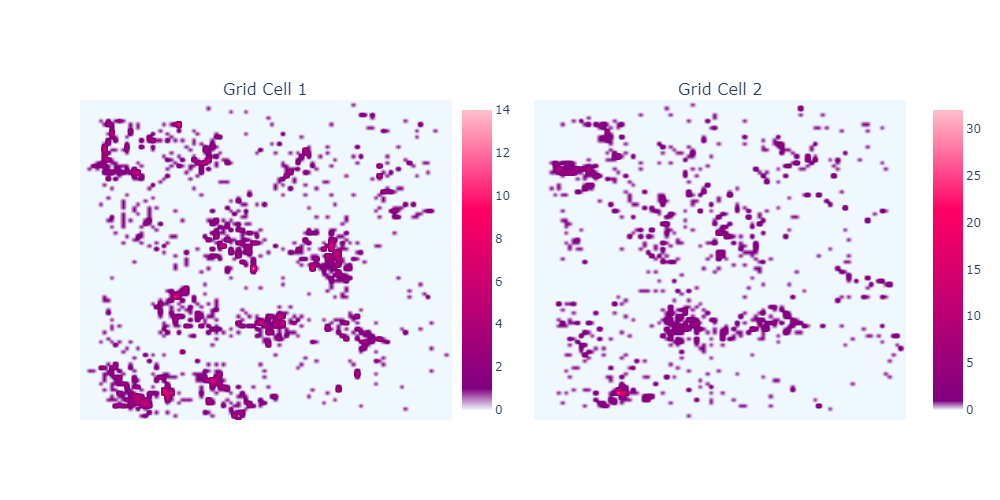

What is a grid cell?

  • Mostly stellate neurons in EC between pyramidal neurons
  • Modulate firing within a 2D space, regardless of landmarks

dorsal

ventral

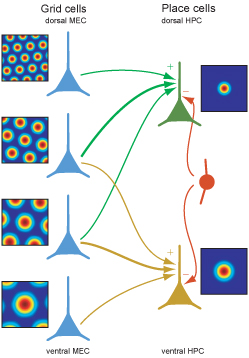

  • Spacing/size of fields increase moving to ventral mEC

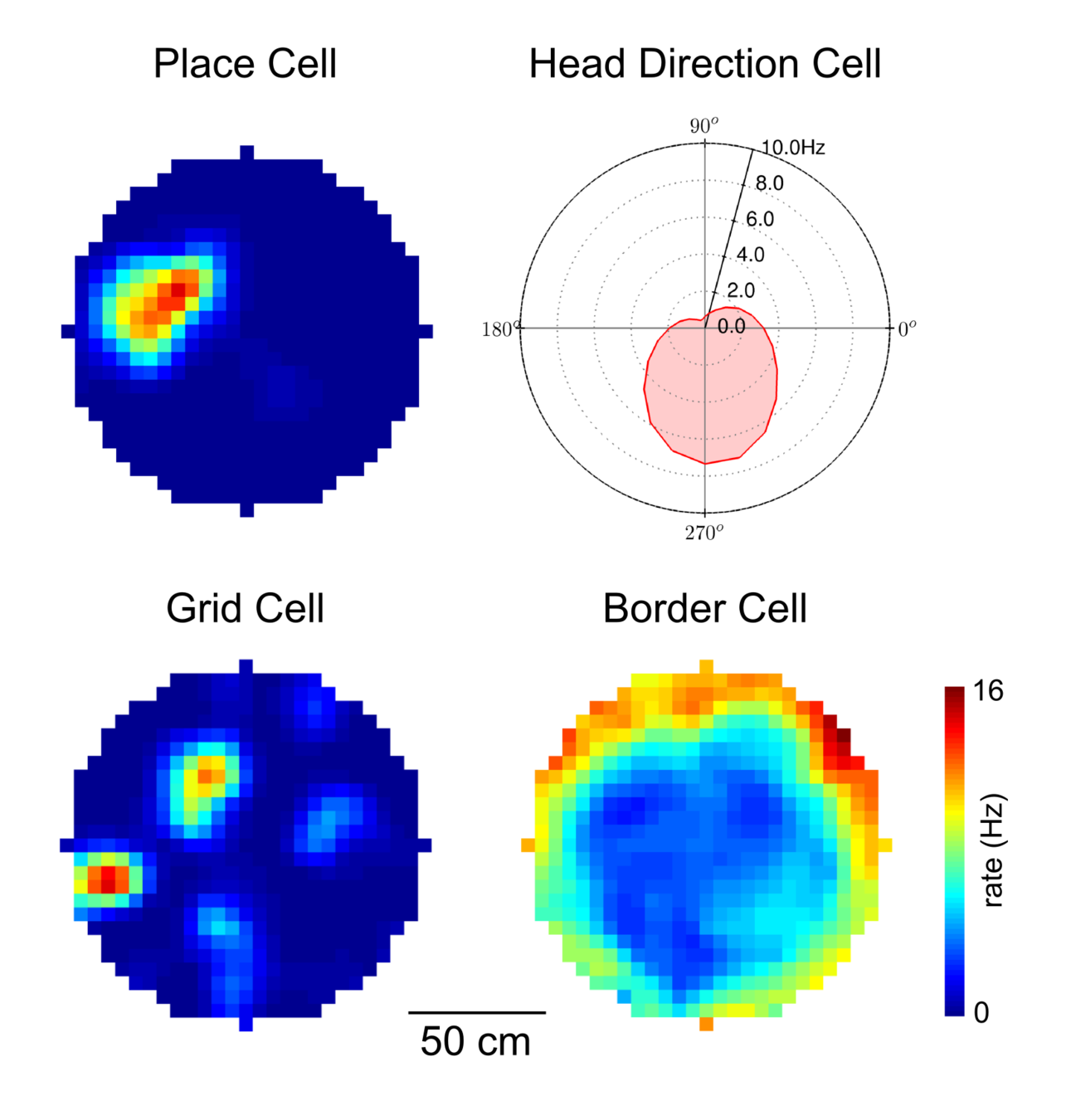

What is a place cell?

Source: Ryan Jones

  • Pyramidal neuron typically located in CA1 or CA3
  • Attenuate firing with changes in spatial location (one location)
  • Role in spatial learning, decision making and memory encoding

What's the difference?

Head direction, border & speed cells

Head Direction

  • Subiculum & EC

Border

  • Entorhinal Cortex
  • Responds to changes in where the animal is looking
  • Attenuates firing as nears a barrier

Speed

  • Entorhinal Cortex

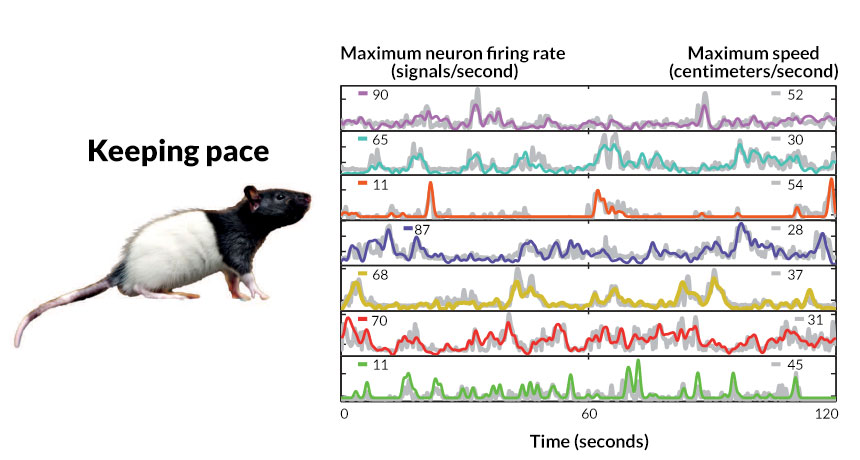

  • Increase firing with speed

How do these work together?

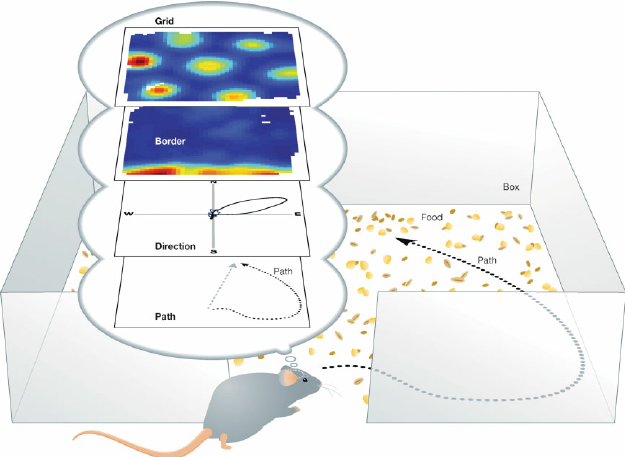

  • Head direction and speed cells inform grid cells
  • These three, with border cells, inform place cells
  • Project back to EC/subiculum from place cells
  • Indicate some level of feedback?
  • Hebbian learning of place cells

Rhythms of the hippocampal network

Theta

Sharp-wave ripples (SWRs)

Gamma

  • ~4-12 Hz
  • ~150-250 Hz
  • Slow ~22-55 Hz
  • Fast ~60-100 Hz

Theta Oscillations

  • Formation of sequential memories
  • Allows brain to accept new information
  • Observed during activity and REM
  • Septum impacts firing in DG, CA1 & CA3
  • Theta sequences
  • Required for memory, not place fields

Gamma Oscillations

  • Slow gamma driven by CA3, fast driven by EC
  • Theta and gamma couple to each other
  • Phase-locking observed both in awake and REM
  • Fast gamma related to current trajectory and recent locations
  • Slow gamma retrieves spatial memories from CA3 network
  • Upcoming locations when re-running

Sharp Wave Ripples (SWRs)

raw LFP

ripple band filtered

SWR

CA3 propagates to CA1, to produce SWRs

Adapted from Laura Colgin

Responsible for consolidation of spatial memories

def sosfiltfilt(timeseries, *, fl=None, fh=None, fs=None, inplace=False, bandstop=False,
                gpass=None, gstop=None, ftype=None, buffer_len=None, overlap_len=None,
                parallel=True,
                **kwargs):
                # make sure that fs is specified, unless AnalogSignalArray is passed in
                if isinstance(timeseries, (np.ndarray, list)):
        if fs is None:
            raise ValueError("Sampling frequency, fs, must be specified!")
        elif isinstance(timeseries, core.RegularlySampledAnalogSignalArray):
            if fs is None:
                fs = timeseries.fs
        else:
            raise TypeError('Unsupported input type!')

        try:
            assert fh < fs, "fh must be less than sampling rate!"
        except TypeError:
            pass
        try:
            assert fl < fh, "fl must be less than fh!"
        except TypeError:
            pass

        if inplace:
            out = timeseries
        else:
            out = deepcopy(timeseries)
        if overlap_len is None:
            overlap_len = int(fs*2)
        if buffer_len is None:
            buffer_len = 4194304
        if gpass is None:
            gpass = 0.1 # max loss in passband, dB
        if gstop is None:
            gstop = 30 # min attenuation in stopband (dB)
        if ftype is None:
            ftype = 'cheby2'

        try:
            if np.isinf(fh):
                fh = None
        except TypeError:
            pass
        if fl == 0:
            fl = None

        # Handle cutoff frequencies
        fso2 = fs/2.0
        if (fl is None) and (fh is None):
            raise ValueError('Nonsensical all-pass filter requested...')
        elif fl is None: # lowpass
            wp = fh/fso2
            ws = 1.4*fh/fso2
        elif fh is None: # highpass
            wp = fl/fso2
            ws = 0.8*fl/fso2
        else: # bandpass
            wp = [fl/fso2, fh/fso2]
            ws = [0.8*fl/fso2,1.4*fh/fso2]
        if bandstop: # notch / bandstop filter
            wp, ws = ws, wp

        sos = sig.iirdesign(wp, ws, gpass=gpass, gstop=gstop, ftype=ftype, output='sos', **kwargs)

        # Prepare input and output data structures
        # Output array lives in shared memory and will reduce overhead from pickling/de-pickling
        # data if we're doing parallelized filtering
        if isinstance(timeseries, (np.ndarray, list)):
            temp_array = np.array(timeseries)
            dims = temp_array.shape
            if len(temp_array.shape) > 2:
                raise NotImplementedError('Filtering for >2D ndarray or list is not implemented')
            shared_array_base = Array(ctypes.c_double, temp_array.size, lock=False)
            shared_array_out = np.ctypeslib.as_array(shared_array_base)
            # Force input and output arrays to be 2D (N x T) where N is number of signals
            # and T is number of time points
            if len(temp_array.squeeze().shape) == 1:
                shared_array_out = np.ctypeslib.as_array(shared_array_base).reshape((1, temp_array.size))
                input_asarray = temp_array.reshape((1, temp_array.size))
            else:
                shared_array_out = np.ctypeslib.as_array(shared_array_base).reshape(dims)
                input_asarray = temp_array
        elif isinstance(timeseries, core.RegularlySampledAnalogSignalArray):
            dims = timeseries._data.shape
            shared_array_base = Array(ctypes.c_double, timeseries._data_rowsig.size, lock=False)
            shared_array_out = np.ctypeslib.as_array(shared_array_base).reshape(dims)
            input_asarray = timeseries._data

        # Embedded function to avoid pickling data but need global to make this function
        # module-visible (required by multiprocessing). I know, a bit of a hack
        global filter_chunk
        def filter_chunk(it):
            """The function that performs the chunked filtering"""

            try:
                start, stop, buffer_len, overlap_len, buff_st_idx = it
                buff_nd_idx = int(min(stop, buff_st_idx + buffer_len))
                chk_st_idx = int(max(start, buff_st_idx - overlap_len))
                chk_nd_idx = int(min(stop, buff_nd_idx + overlap_len))
                rel_st_idx = int(buff_st_idx - chk_st_idx)
                rel_nd_idx = int(buff_nd_idx - chk_st_idx)
                this_y_chk = sig.sosfiltfilt(sos, input_asarray[:, chk_st_idx:chk_nd_idx], axis=1)
                shared_array_out[:,buff_st_idx:buff_nd_idx] = this_y_chk[:, rel_st_idx:rel_nd_idx]
            except:
                raise ValueError(("Some epochs were too short to filter. Try dropping those first,"
                                  " filtering, and then inserting them back in"))

        # Do the actual parallellized filtering
        if (sys.platform.startswith('linux') or sys.platform.startswith('darwin')) and parallel:
            pool = Pool(processes=cpu_count())
            if isinstance(timeseries, (np.ndarray, list)):
                # ignore epochs (information not contained in list or array) so filter directly
                start, stop = 0, input_asarray.shape[1]
                pool.map(filter_chunk, zip(repeat(start), repeat(stop), repeat(buffer_len),
                                         repeat(overlap_len), range(start, stop, buffer_len)),
                                        chunksize=1)
            elif isinstance(timeseries, core.RegularlySampledAnalogSignalArray):
                fei = np.insert(np.cumsum(timeseries.lengths), 0, 0) # filter epoch indices, fei
                for ii in range(len(fei)-1): # filter within epochs
                    start, stop = fei[ii], fei[ii+1]
                    pool.map(filter_chunk, zip(repeat(start), repeat(stop), repeat(buffer_len),
                             repeat(overlap_len), range(start, stop, buffer_len)),
                             chunksize=1)
            pool.close()
            pool.join()
        # No easy parallelized filtering for other OSes
        else:
            if isinstance(timeseries, (np.ndarray, list)):
                # ignore epochs (information not contained in list or array) so filter directly
                start, stop = 0, input_asarray.shape[1]
                iterator = zip(repeat(start), repeat(stop), repeat(buffer_len),
                               repeat(overlap_len), range(start, stop, buffer_len))
                for item in iterator:
                    filter_chunk(item)
            elif isinstance(timeseries, core.RegularlySampledAnalogSignalArray):
                fei = np.insert(np.cumsum(timeseries.lengths), 0, 0) # filter epoch indices, fei
                for ii in range(len(fei)-1): # filter within epochs
                    start, stop = fei[ii], fei[ii+1]
                    iterator = zip(repeat(start), repeat(stop), repeat(buffer_len),
                                   repeat(overlap_len), range(start, stop, buffer_len))
                    for item in iterator:
                        filter_chunk(item)

        if isinstance(timeseries, np.ndarray):
            out[:] = np.reshape(shared_array_out, dims)
        elif isinstance(timeseries, list):
            out[:] = np.reshape(shared_array_out, dims).tolist()
        elif isinstance(timeseries, core.RegularlySampledAnalogSignalArray):
            out._data[:] = shared_array_out

        return out

Nelpy Filtering

Spatial Navigation in the Hippocampus

By Ariel Feldman

Spatial Navigation in the Hippocampus

How do the hippocampal structures inform our knowledge of the world around us?

  • 562
