by Arvin Liu
Foresight camp
Virtual Machine
About me
not important.
Details
Before Lecture...
Please download...
Ubuntu(64-bit).iso
www.csie.ntu.edu.tw/~b05902127/ubuntu-amd64.iso
VM-demo.ova
www.csie.ntu.edu.tw/~b05902127/VM-demo.ova
VM-demo.img
www.csie.ntu.edu.tw/~b05902127/VM-demo.img
Git_Tutorial.pptx
www.csie.ntu.edu.tw/~b05902127/Git_Tutorial.pptx
Why VM?
0. fashion
有個"Virtual"聽起來就是潮。

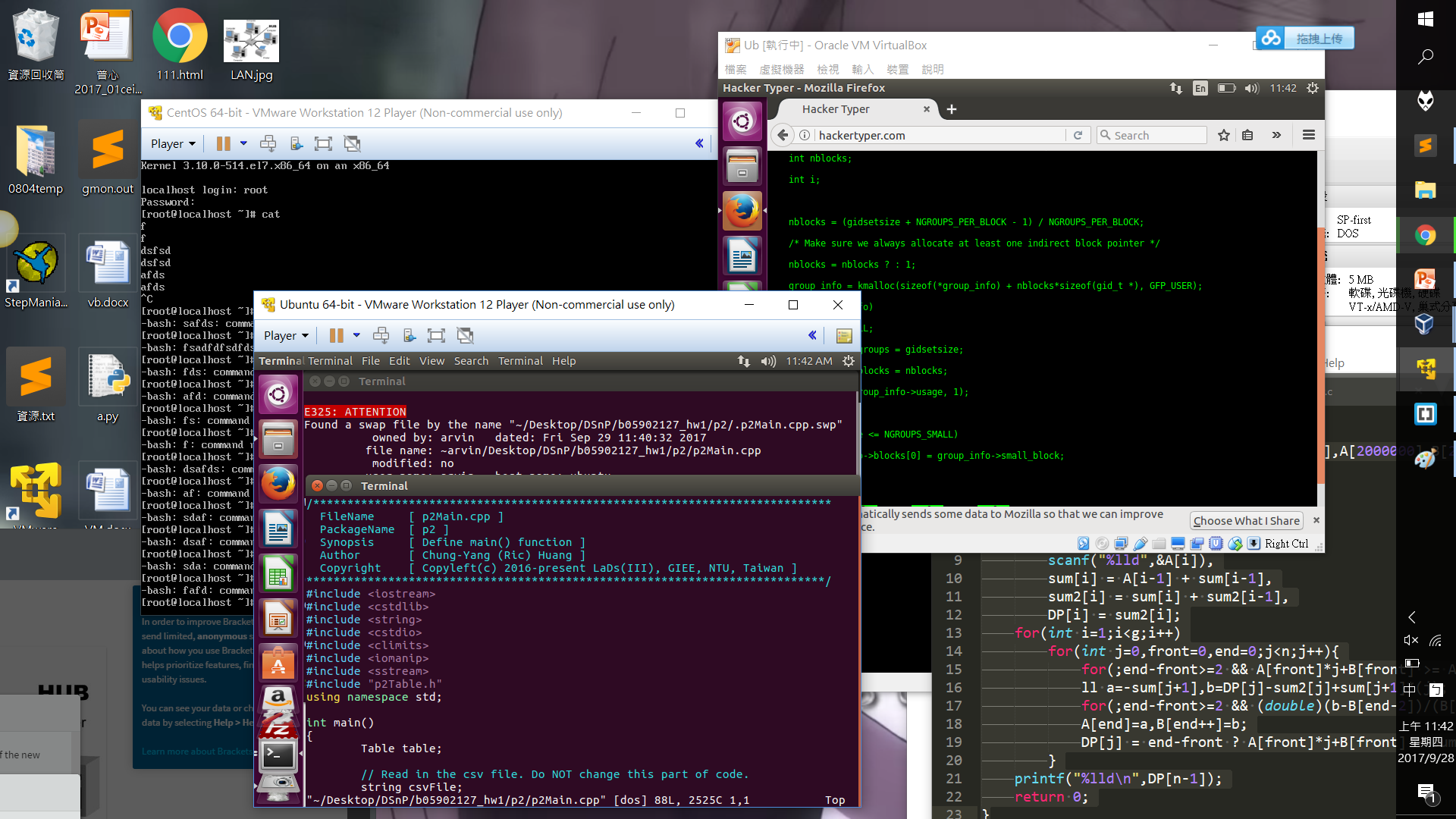

1. 一台電腦，多重享受。
看起來也很潮。
2.沙盒環境
3.模擬小型網路環境

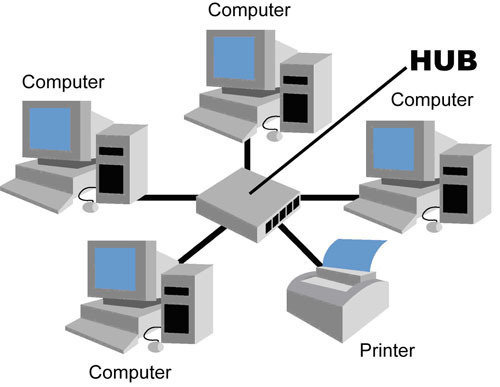

LAN-Local Area Network

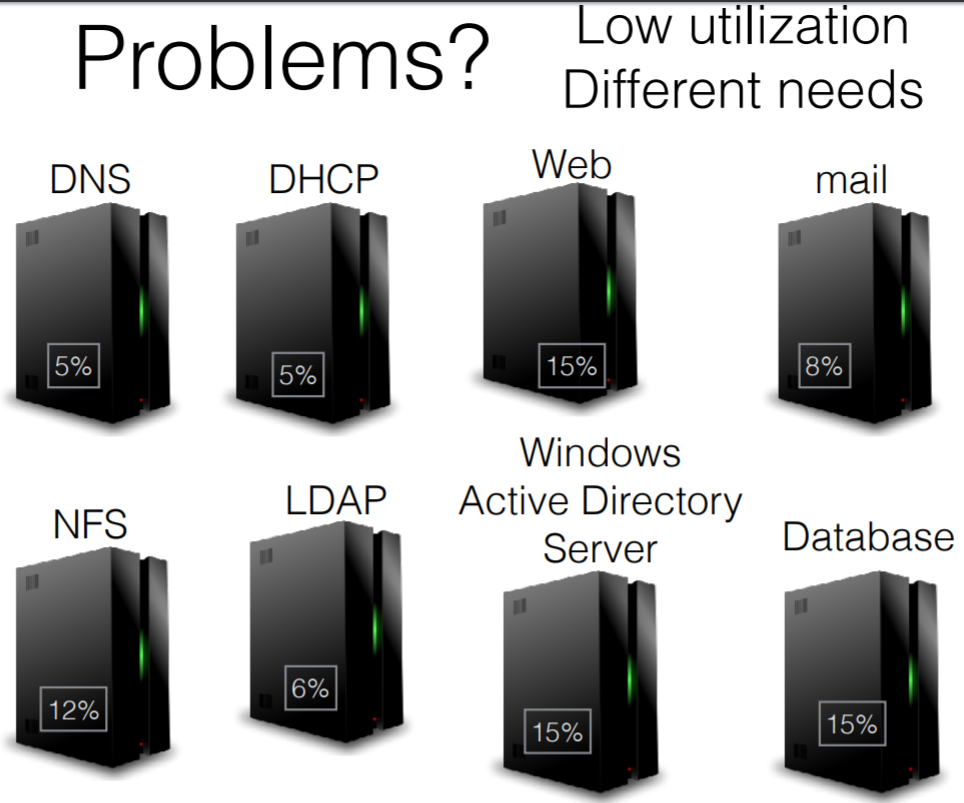

4.複數系統，管理方便。
(NASA lecture by hsinmu)
What VM?
4(or 2) popular VM
Xen/VirtualBox/VMware/Hyper-V
It is said that...
Stability :
VirtualBox > VMware > Hyper-v
Efficiency :
Hyper-v > VMware > VirtualBox
VirtualBox v.s. VMware
Where is Hyper-v ?
VirtualBox/VMware?

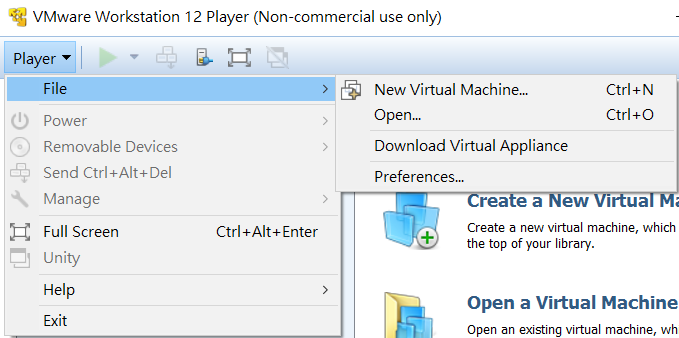

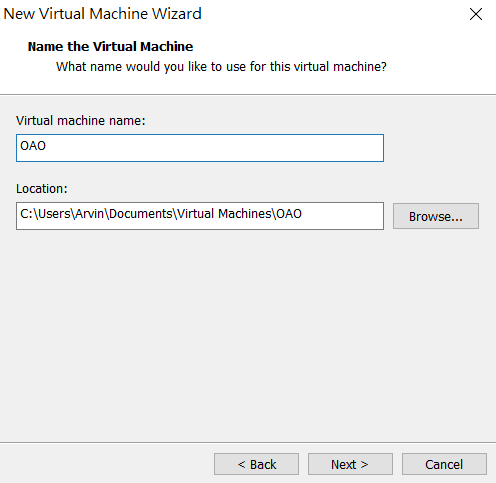

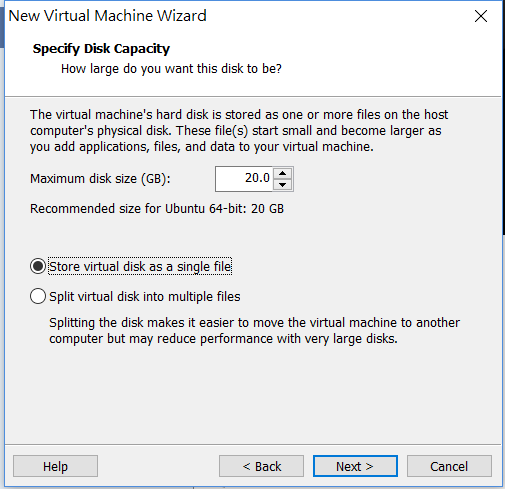

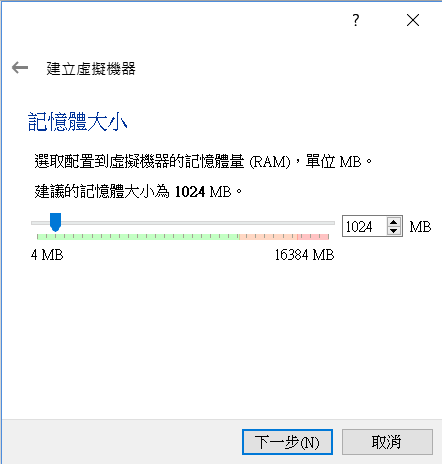

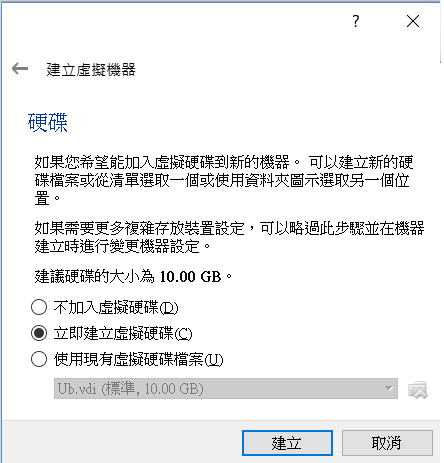

Add new VM

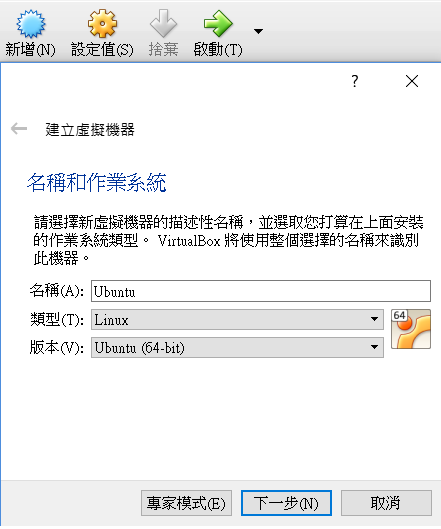

VirtualBox

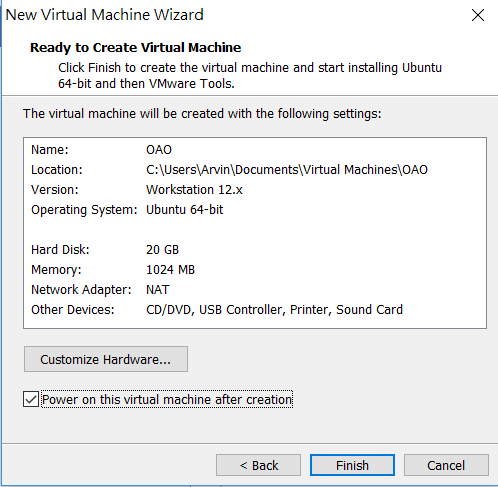

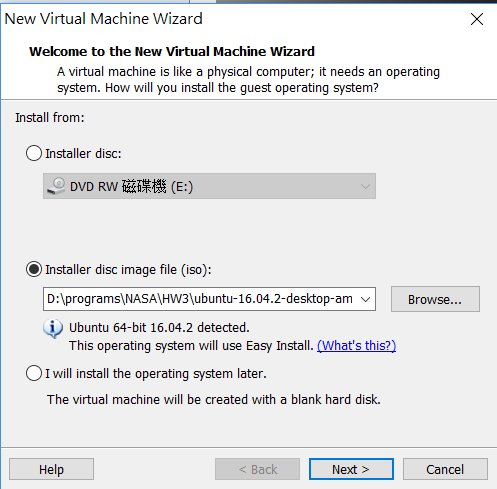

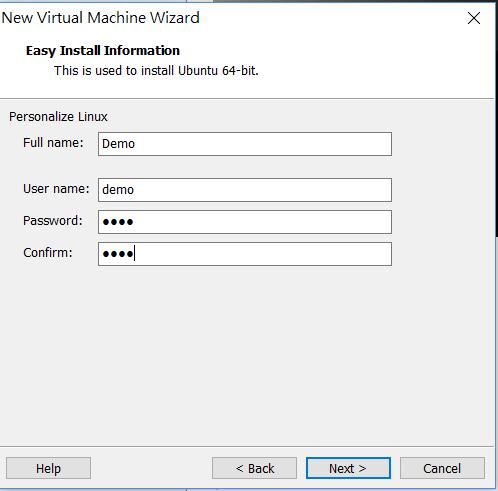

VMware
Demo Time
Practice :
install ubuntu.

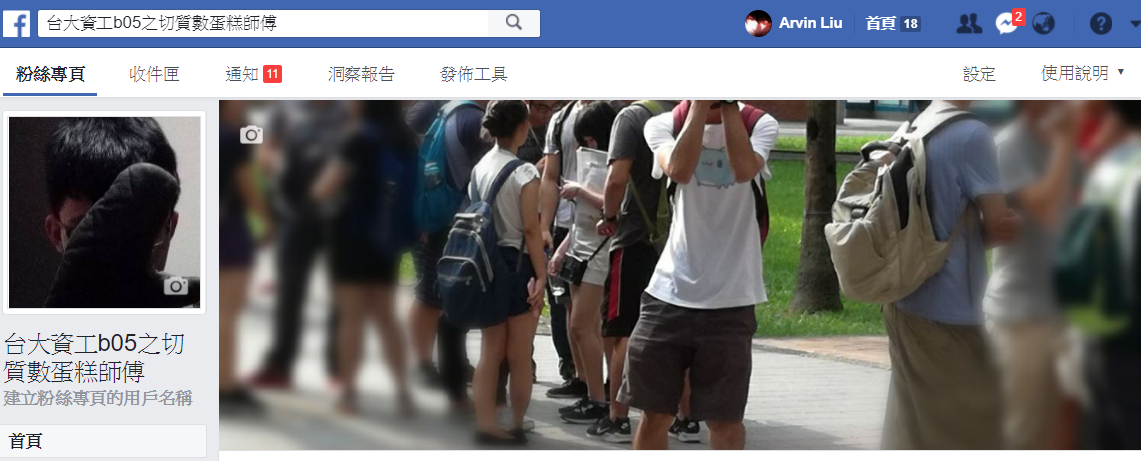

Support us!
-台大資工b05之切質數蛋糕師傅-
filename extension

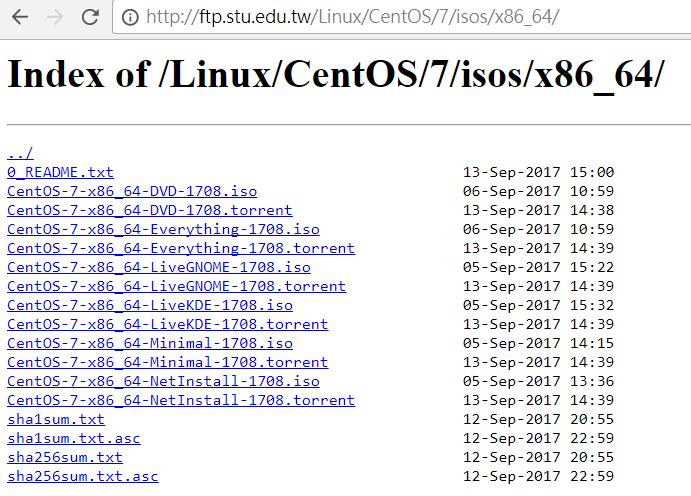

.iso
An ISO file, often called an ISO image, is a single file that's a perfect representation of an entire CD, DVD, or BD
Load .ISO image
Should I know .iso?
.ova / .ovf
An OVA(Open Virtual Appliance) package, which is a tar archive file with the OVF directory inside.
OVF (Open Virtualization Format), which is a standard format used to package and distribute software that is run in virtual machines.
.img
The .img filename extension is used by disk image files, which contain raw dumps of a magnetic/optical/floppy disc.

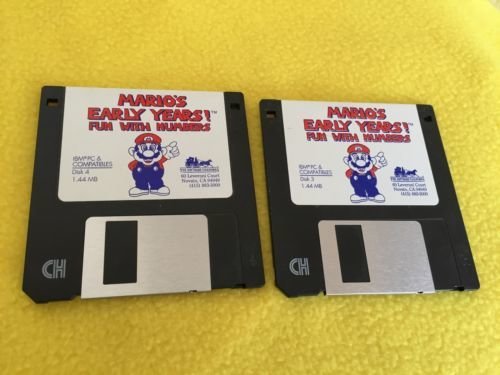

Have you ever seen floppy?
import / export

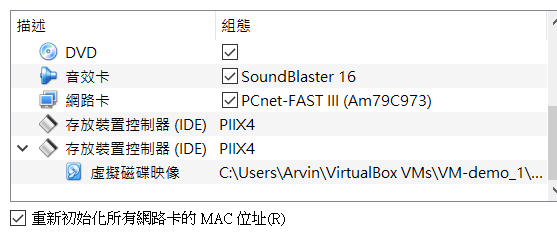

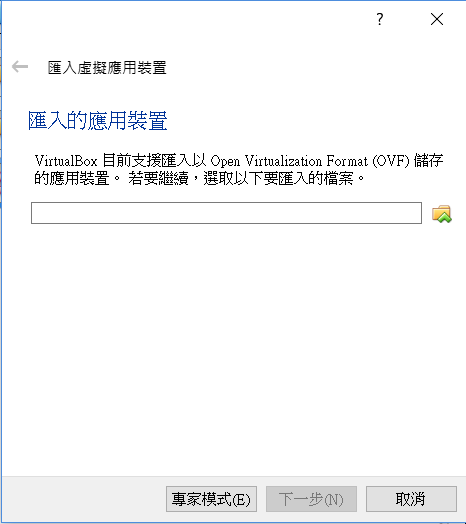

IMPORT - VirtualBox
WARNING
不是這個MAC。

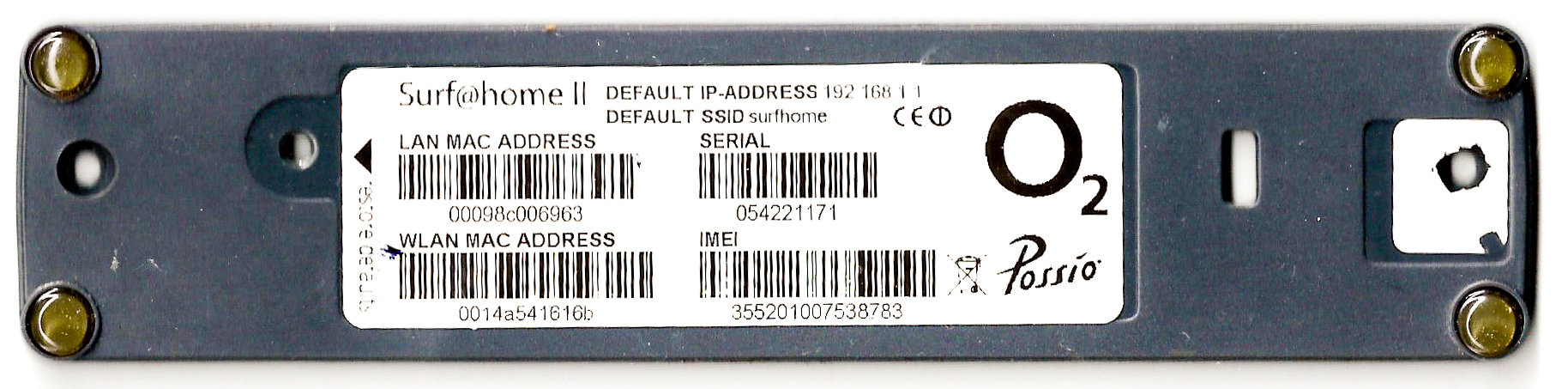

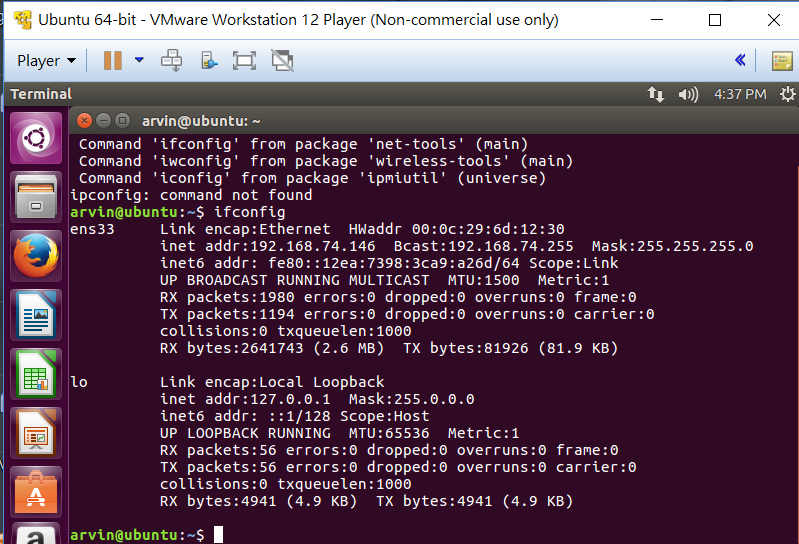

MAC Address
Windows : ipconfig
Linux : ip link show
MAC address collision

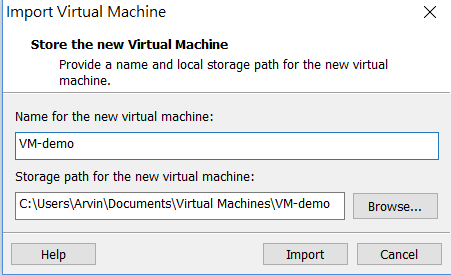

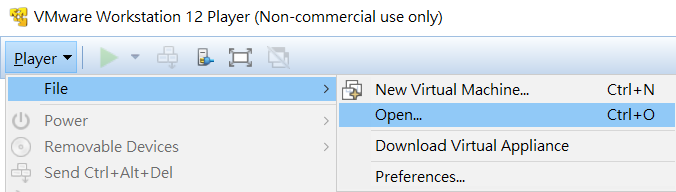

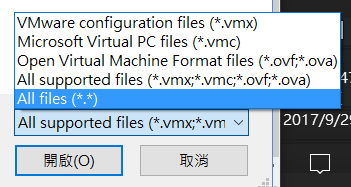

IMPORT - VMware
VirtualBox Settings

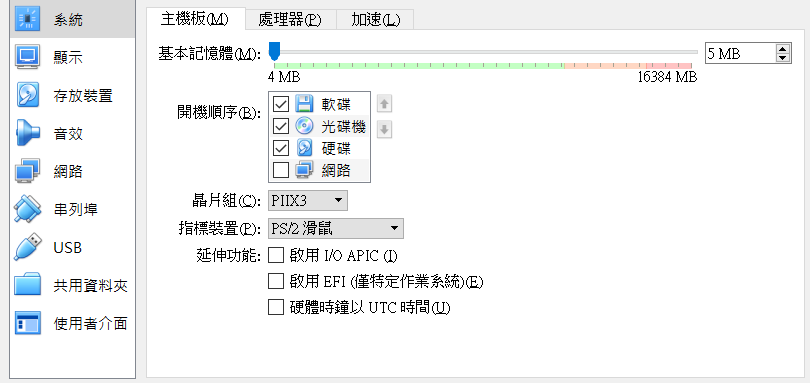

System
All in all
>
All in all
存放裝置
IDE
.iso file
SATA

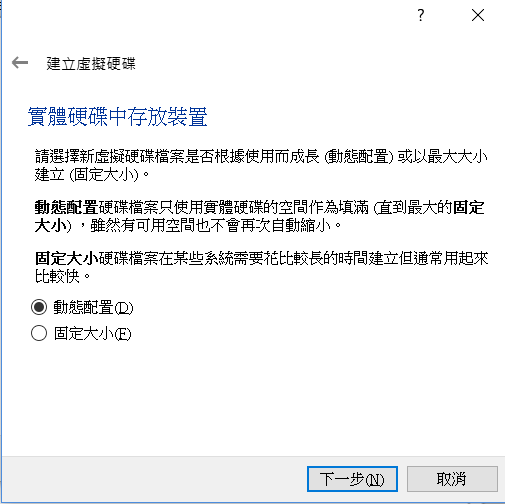

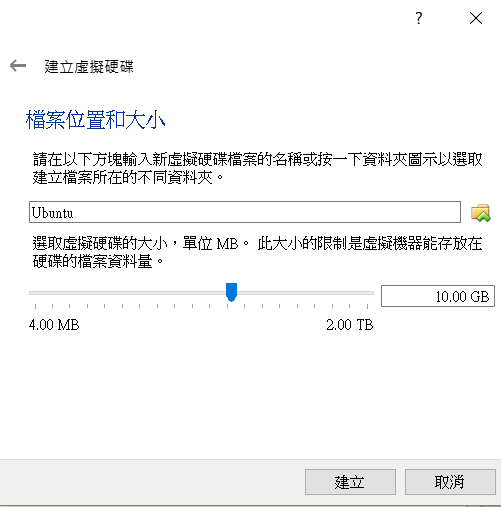

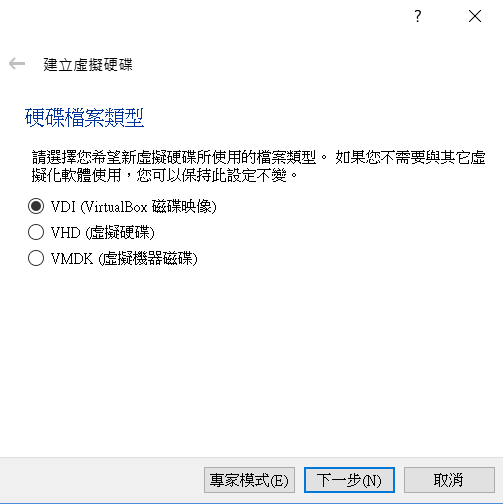

建立虛擬硬碟(.vdi/.vmdx)
軟碟(Floppy)
.img file

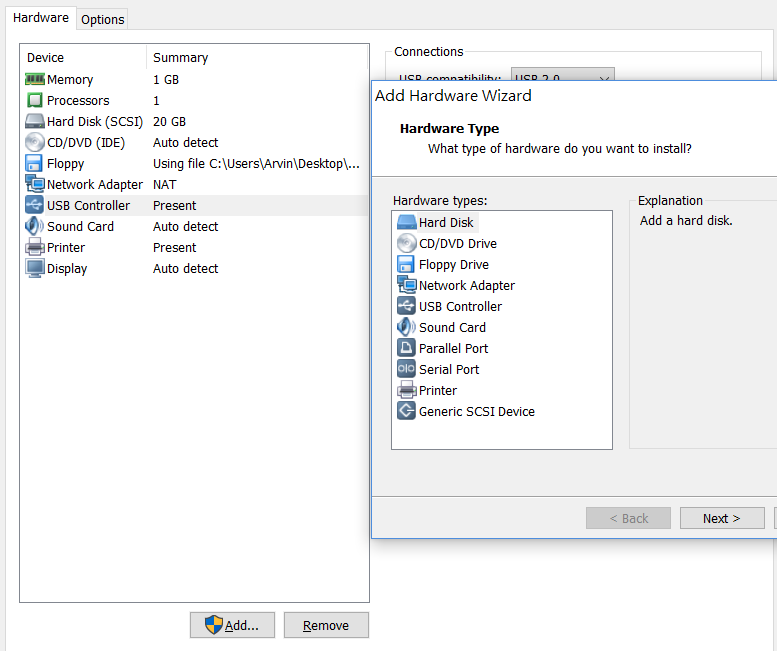

VMware Settings
一張一張的插入。

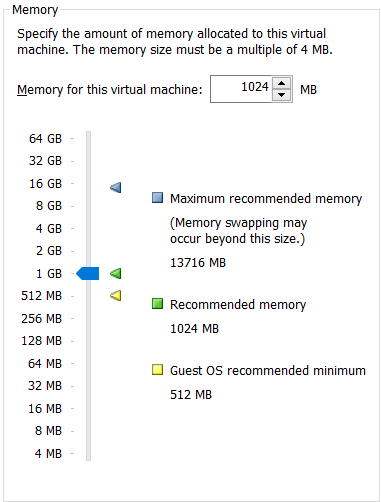

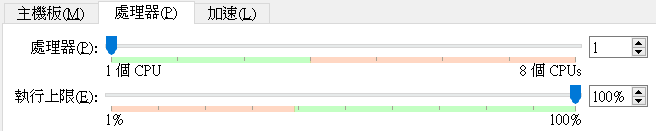

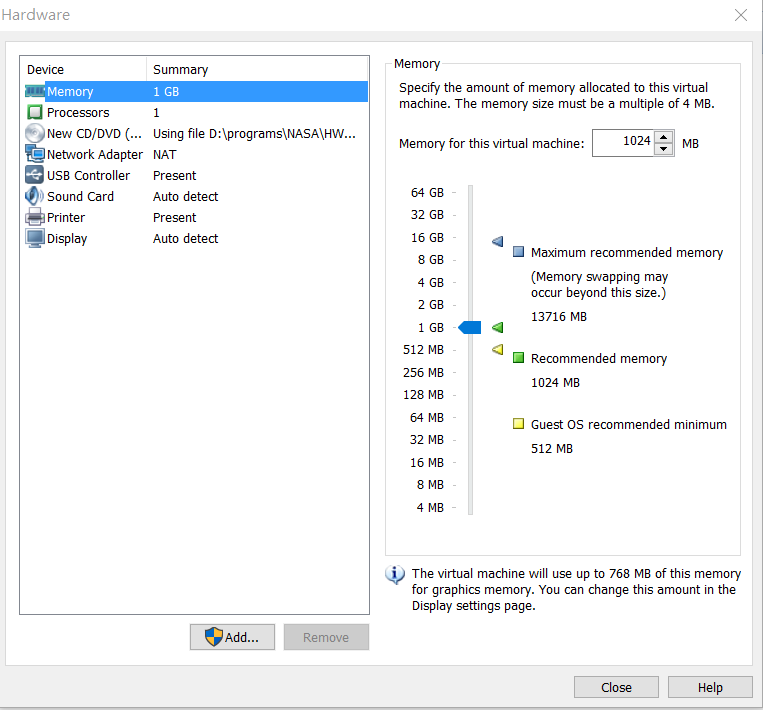

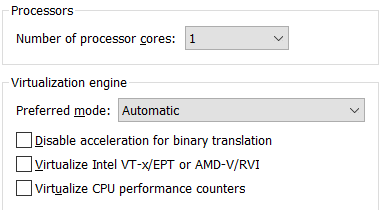

Memory / Processor

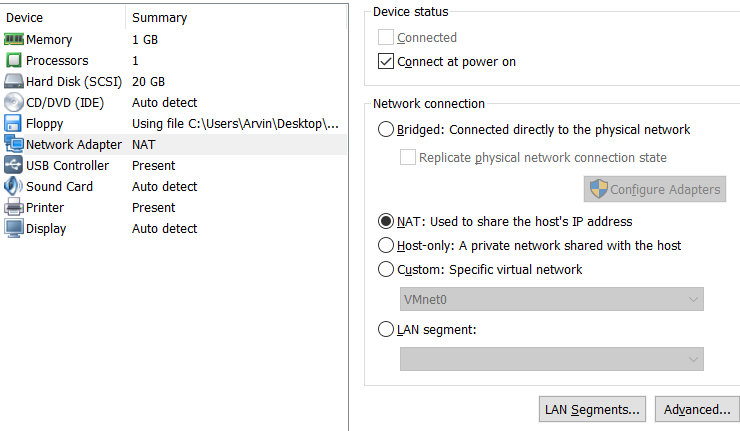

Network Adapter

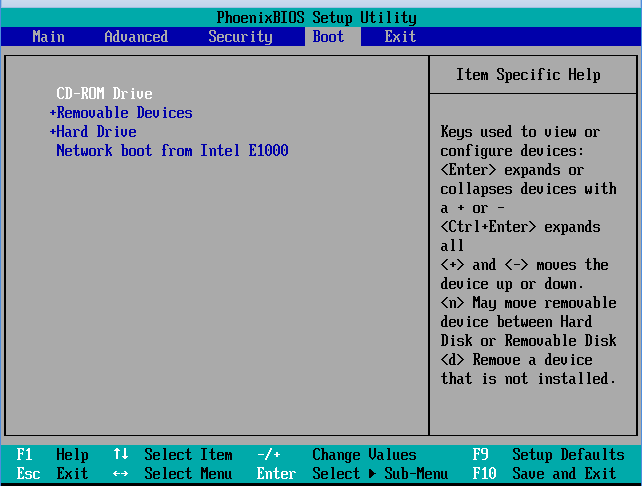

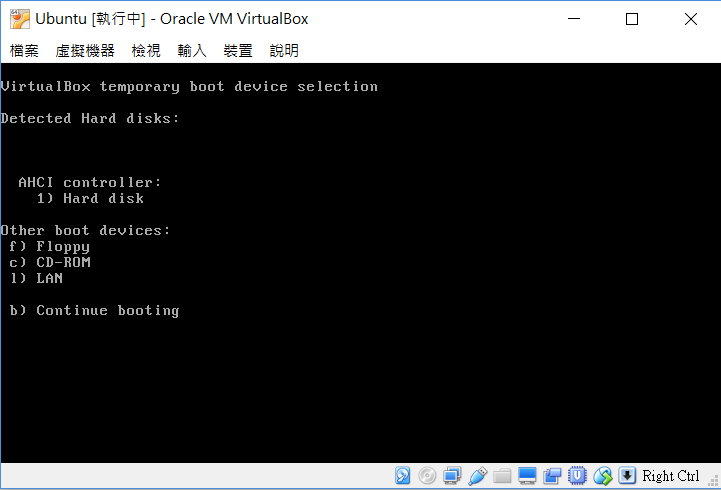

boot sequence
Normal method
VirtualBox (normal)
VirtualBox (lazy)
Review
-
boot seq.
-
import/export .ova
-
import .iso / .img
-
reset MAC address
Practice
一定是我開啟的方式有錯。
一定是我開啟的方式有錯。
description:
Given an ova and img file,
plz start the VM correctly.
(import an ova -> import an img.)

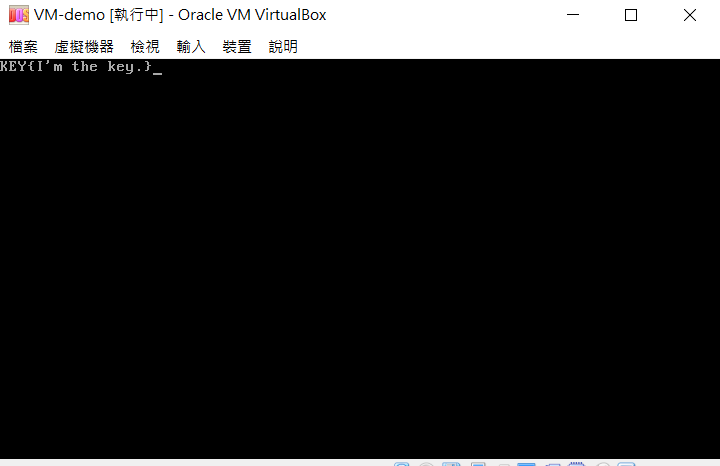

Do you find the answer?
Solution - VirtualBox

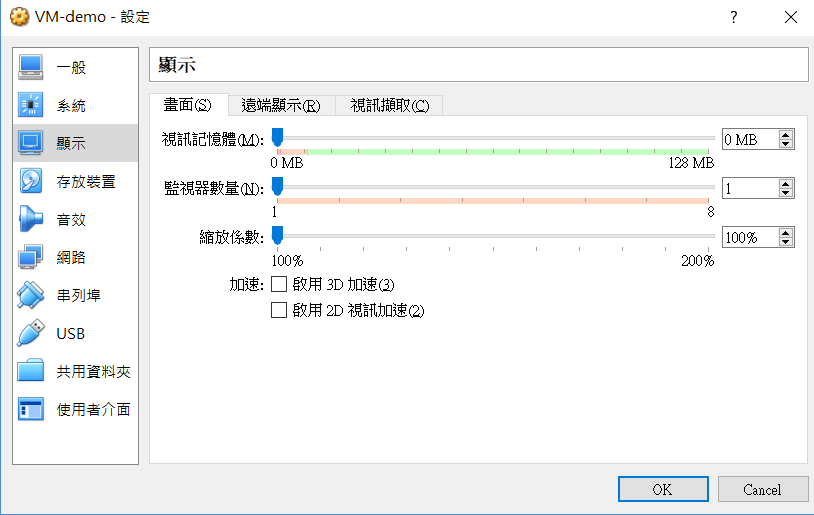

V-ram is too small.
move it to green zone.

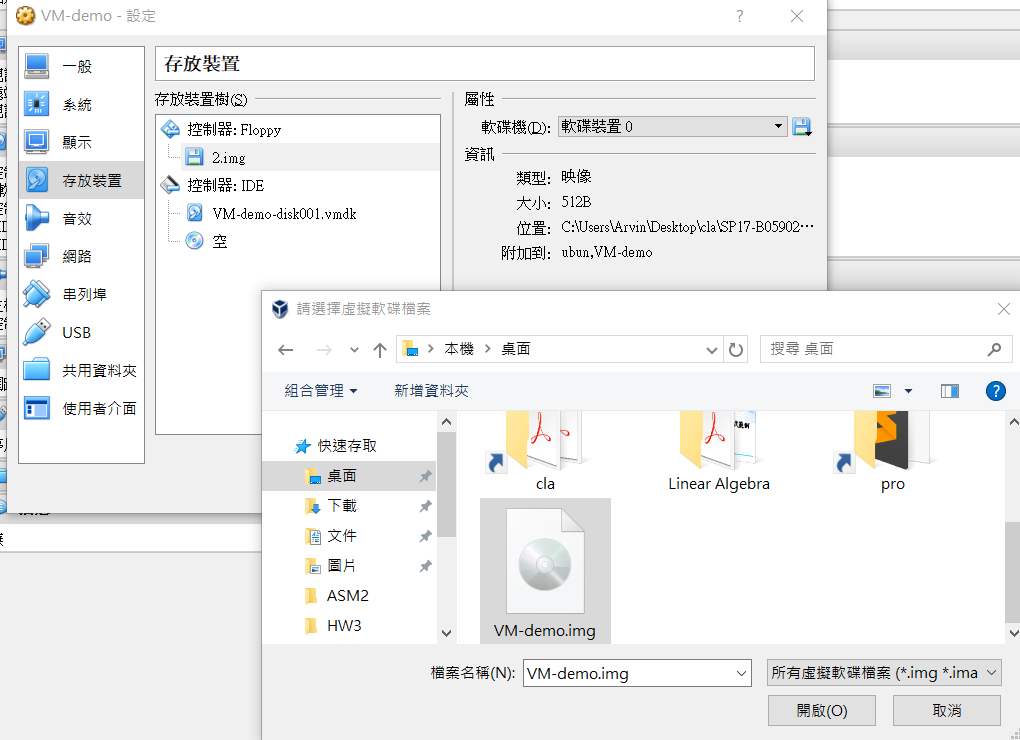

import img
FIN

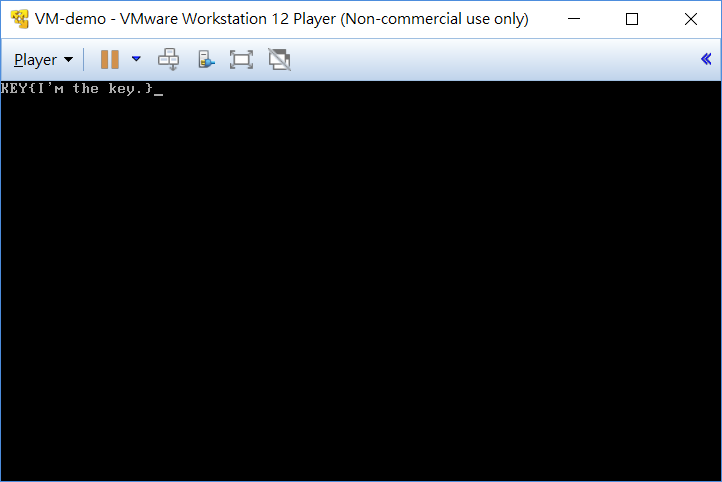

Solution - Vmware

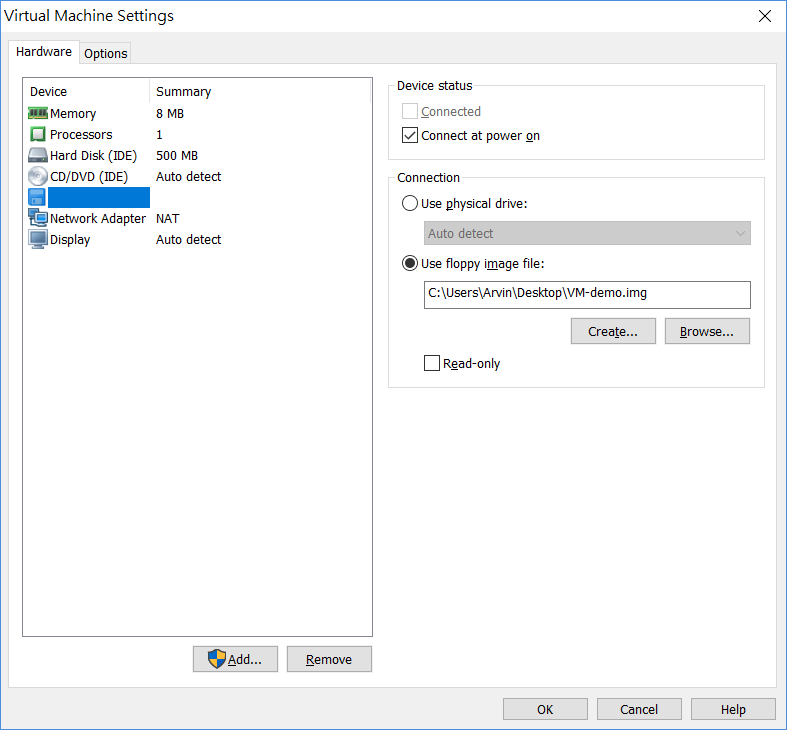

Import img
FIN
MISC
(miscellaneous)
misc 1 : Alias
Alias
temporary alias
alias <??>=<command>
permanant alias
edit your ~/.bashrc
reload: . ~/.bashrc
Interesting Problem:
alias mkdir=ls
misc 2 :

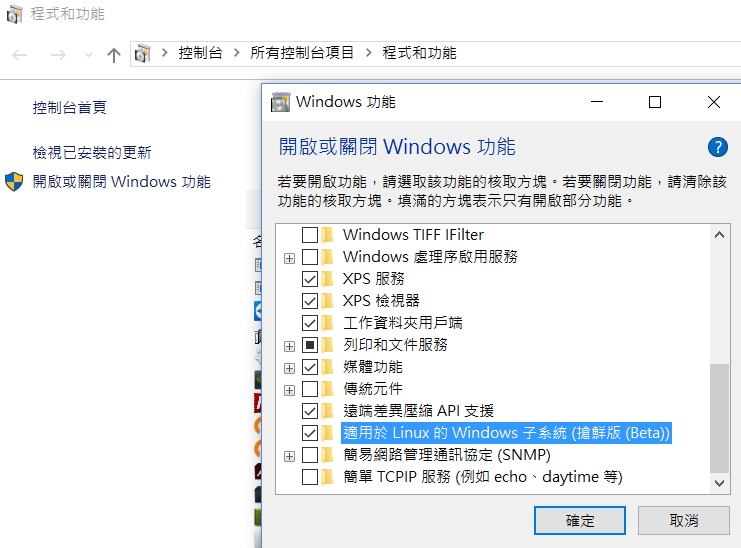

Bash on Windows X
misc 3 :
scp through VM
Q&A
END
Foresight camp
By Arvin Liu
