GAN Tutorial
Arvin Liu @ 北區AIA
Here is
slides.com/arvlinliu/gan-9
This slide is suitable for:
1. Have some experience in Deep Learning
2. Having basic GAN concept.
3. Thinking?
Schedule
| 表定時間 | 大致內容 |
|---|---|
| 14:00 ~ 15:00 | GAN Review, DCGAN, GAN problems (1) |
| 15:00 ~ 15:20 | break |
| 15:20 ~ 16:20 | Least Square GAN, IS/FID, WGAN |
| 16:20 ~ 16:40 | break |
| 16:40 ~ 17:40 | WGAN-GP, conditional GAN, ACGAN, cycle GAN, etc. |
| 17:40 ~ 18:00 | Q&A |
GAN Review
GAN's GOAL
Generate a new data
Generative
Adversarial
Network
Generative Adversarial Network
image resource: 李宏毅老師的投影片
能力值 -G-> 角色
Generative Adversarial Network
Generative Adversarial Network
Generative Adversarial Network
image resource: 李宏毅老師的投影片
Given skill points to generate something.
Skill points
image resource: 李宏毅老師的投影片, anime image powered by http://mattya.github.io/chainer-DCGAN/
Low dim to high dim?
題外話：為什麼我們可以用低維度的vector表示高維度的圖片？
Low dim to high dim?
題外話：為什麼我們可以用低維度的vector表示高維度的圖片？
幾乎不會出現這種圖片
圖片本身就是一個資訊量很低的data。
圖片 dimension >> 可能會出現的圖片 dimension
Auto-Encoder就是想辦法抽取 :)
Generative Adversarial Network
image resource: 李宏毅老師的投影片
Generative Adversarial Network
image resource: 李宏毅老師的投影片
Generally...
Generator
被囚禁在孤島的畫家
Discriminator
常來探望並幫畫家賣畫的藝術家
Generator
- 可以想像成一位被囚禁在孤島的畫家學生
- 為了獎勵 (minimize G_loss)，你會想要好好畫畫。
- 智商低落，自己來學可能無法好好歸納特徵。(Why?)
Discriminator
- 可以想像成一位常來探望並幫畫家賣畫的藝術家
- "常常來探望": 他看過其他的人作品，再來探望這位畫家。
(表示看過real data) - "幫畫家賣畫": 想辦法讓畫家畫的更像其他人的畫。
- "常常來探望": 他看過其他的人作品，再來探望這位畫家。
- 不代表他自己會畫畫。(Why?)
Generative Adversarial Network
image resource: 李宏毅老師的投影片
GAN Target
image resource: 李宏毅老師的投影片
Generator:
騙過Discriminator
Discriminator:
分辨出Generator
Why both?
Only Generator
VAE, but blur due to loss function
讓畫家自己依樣畫葫蘆。

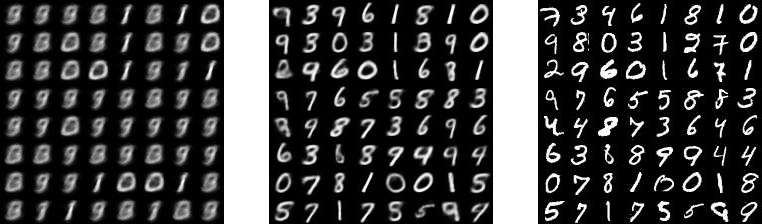

Blur VAE
http://kvfrans.com/variational-autoencoders-explained/
1st epoch
9th epoch
Original
(Recall) What is
Variational AutoEnconder (VAE)?

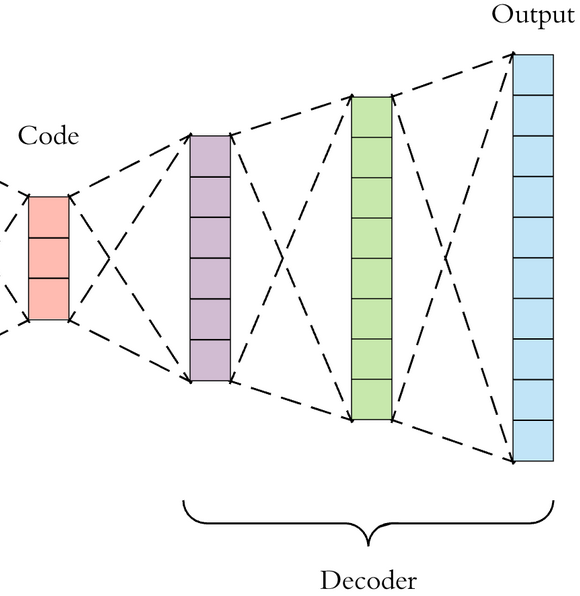

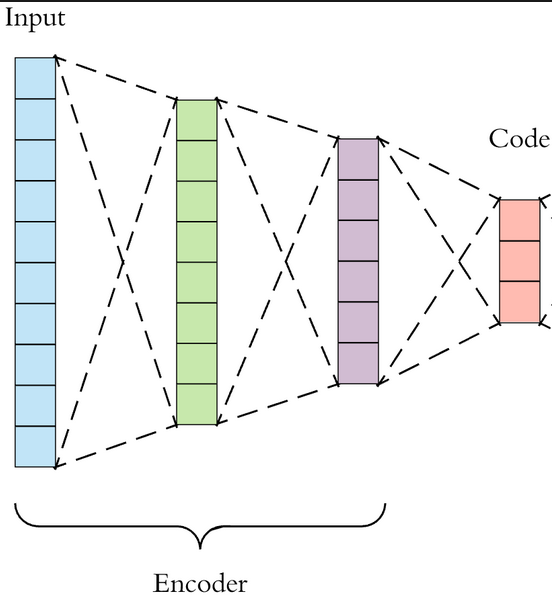

這是一般的AE，
中間的Code就是個圖片的能力值。
image resource: https://cdn-images-1.medium.com/max/1600/1*ZEvDcg1LP7xvrTSHt0B5-Q@2x.png
Generator
(Recall) What is
Variational AutoEnconder (VAE)?
AE中間都壓成code了，
為什麼不直接調code就好？
image resource: https://cdn-images-1.medium.com/max/1600/1*ZEvDcg1LP7xvrTSHt0B5-Q@2x.png
因為你並不知道中間code的distribution。
(大前提：AE的Decoder做的非常好。)
用AE做Generator可不可達成隨意輸出？
(Recall) What is
Variational AutoEnconder (VAE)?
用AE做出mean(能力值)/std(隨機值)，
並希望最後的能力值可以~N(0,1)
image resource: https://www.cnblogs.com/huangshiyu13/p/6209016.html
VAE一切都很好？
目前在seq2seq是很好沒錯。
但是圖片...
(Recall)
VAE的Target是什麼？
前後picture要長的L1/L2一樣
(minimize L1 loss / L2 loss)
image resource: https://cdn-images-1.medium.com/max/1600/1*ZEvDcg1LP7xvrTSHt0B5-Q@2x.png
image resource: 李宏毅老師的投影片
Due to superficial loss, we miss somthing.
Loss = NN?
You get the point!
Only Discriminator
Where is GOOD negative
(D(x)=0) sample?
Basically, it's a binary (predict 0,1) problem.
Review of Review
GAN 是一個類似VAE的東西，只差在...
Loss function 是個 NN
GAN 的 latent(能力值)
VAE 的 code 都像是一個distribution。
Intro popular GAN ->
DCGAN Structure
DCGAN(ICLR'16) : https://arxiv.org/abs/1511.06434
Deep Convolutional GAN
Generator Structure
BN-> ReLU
tanh
DCGAN deconv: kernel size (5,5) , stride (2,2)
Discriminator Structure
BN + lReLU
lReLU
score
Before Viewing Code...
* resolution is not high due to image size(64x64).
DCGAN WITHOUT ANY TIPS
After Tips & High Resolution
* resolution = 128x128.
After Tips & High Resolution
Implement by code ->
GAN Code Definition
Sorry... but
I use tensorflow to train my GAN.
picture resource: https://www.tensorflow.org/
Utils
picture resource: my code displayed on sublime text3
Discriminator
Convolution 128
f : (5,5) , s : (2,2)
Convolution 256
f : (5,5) , s : (2,2)
Convolution 512
f : (5,5) , s : (2,2)
Convolution 1024
f : (5,5) , s : (2,2)
Dense 1
Score
64x64x3 image
picture resource: my code displayed on sublime text3
Generator
Conv^T 512
f : (5,5) , s : (2,2)
Conv^T 256
f : (5,5) , s : (2,2)
Conv^T 128
f : (5,5) , s : (2,2)
Conv^T 3
f : (5,5) , s : (2,2)
Dense 2^14
64x64x3 image
latent 100~N(0,1)
picture resource: my code displayed on sublime text3,
note that the latent in original paper is sampled from uniform distribution.
Loss definition
Generator:
騙過Discriminator
Discriminator:
分辨出Generator
想辦法讓Discriminator(Generator) = 1
想辦法讓Discriminator(Generator) = 0,
Discriminator(Real Data) = 1
Loss definition
picture resource: my code displayed on sublime text3
Loss=labels×−log(σ(logits))+(1−labels)×−log(1−σ(logits))
Loss = \\\\
labels \times -\log( \sigma(logits) ) + \\
(1 - labels) \times -\log(1 - \sigma( logits))
binary cross entropy
tf.nn.sigmoid_cross_entropy_with_logits
Loss definition
picture resource: my code displayed on sublime text3
fake_score = discriminator(fake_data)
real_score = discriminator(real_data)
GAN Code Details
GAN in short terms...
picture resource: 宏毅老師投影片
Why "Fix" parameters?
picture resource: 宏毅老師投影片
Why "Fix" parameters?
picture resource: 宏毅老師投影片
step1 : NOT fix G, train D
step2 : NOT fix D, train G
學生被洗腦，老師痛罵學生。
老師被洗腦，學生騙過老師。
How "Fix" parameters?
picture resource: 宏毅老師投影片
Train on specific variables
- Define Scope : tf.variable_scope(name)
- Get Variables : tf.trainable_variables(name)
- Optimize it : optimizer.minimize(loss,var_list=vars)
Reminder:
variable_scope(reuse = tf.AUTO_REUSE)
Fix specific variables
Graph
這種Loss function稍後會講
Training
picture resource: my code displayed on sublime text3
Tips:
讓Discriminator 每個step train比較多次。
Discriminator沒學好，Generator怎麼學？
GAN in tasks
1step = 5 Discriminator iters + 1 Generator iter.
Step 0
picture resource: GAN result from Arvin Liu (myself).
Step 800
picture resource: GAN result by Arvin Liu (myself).
Step 2400
picture resource: GAN result by Arvin Liu (myself).
Step 6200
picture resource: GAN result by Arvin Liu (myself).
Step 21800
picture resource: GAN result by Arvin Liu (myself).
However... mode collapse
step 31600
However... mode collapse
step 31600
Wait... what is mode collapse?
GAN Problems
GAN Problems
- Mode Collapse
- Diminished Gradient
- Non-Convergence
What is Mode Collapse?
種類 - 崩潰/塌陷。
Why Mode Collapse?
Student
Teacher
What is Mode Collapse?
( latent : random normal distribution)
img created
by myself.
What is Mode Collapse?
( latent : random normal distribution)
img created
by myself.
image resource: 李宏毅老師的投影片
Why called Mode Collapse?
Pg(x)
P_g(x)
Distribution(Mode) Collapse!
科普一下

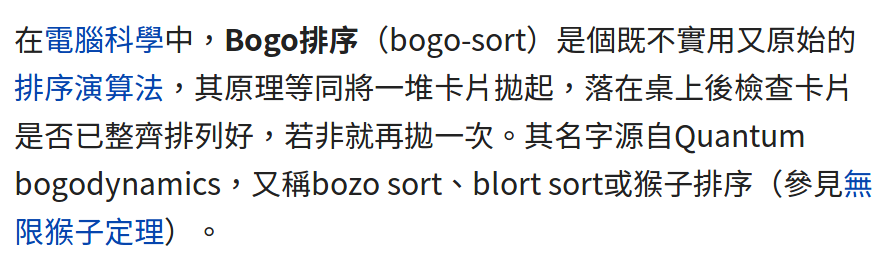

What is Bogo Sort?
image resource: wiki
What is Diminished Grad?
Student
Teacher
Question : Generate a code for sorting
到底是誰的錯？
What is Diminished Grad?
Discriminator too strict!
image resource: 李宏毅老師的投影片
Discri-
minator
score
All possible data
What is Non-convergence?
When to stop
your training?
What is Non-convergence?
Before that,
thinking about GAN's target.
let V=Ex∼Pdata[logD(x)]+Ex∼PG[log(1−D(x))]G∗=argminG(maxD(V(D,G)))
\text{let }V = E_{x \sim P_{data}}[\log D(x)] + E_{x \sim P_{G}}[\log (1-D(x))] \\
G^* = arg\,\,min_G\,(\,max_D\,(\,V(D,G)))

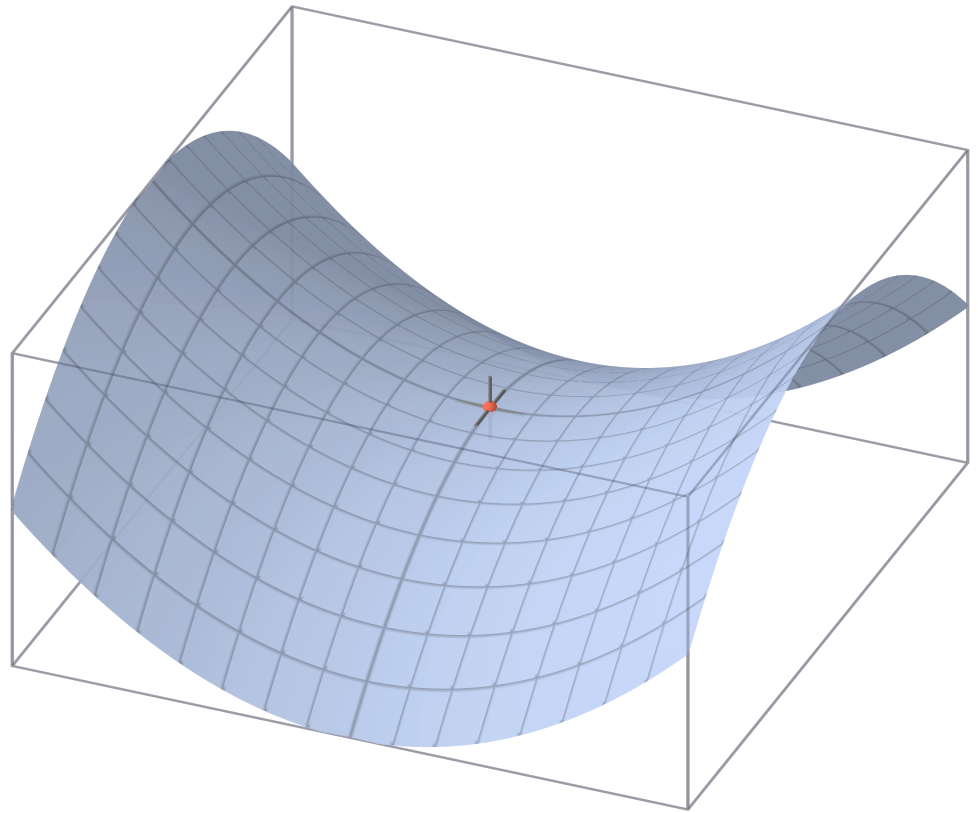

What is Non-convergence?
General Goal
GAN's Goal
image resource https://www.offconvex.org/2016/03/22/saddlepoints/
Early stopping +
validation
HUMAN!
Why GAN finds
a saddle point?
G的參數
D的參數
G的loss
Solve Non-convergence
Human monitoring
Save your model everytime,
save your whole life time.
Problem Timeline - Review
Diminished Gradient
Mode Collapse or
Gradient Explode
Non-convergence
Least Square GAN
Solve Diminished Gradient
https://arxiv.org/abs/1611.04076
Least Square GAN
image resource: 李宏毅老師的投影片

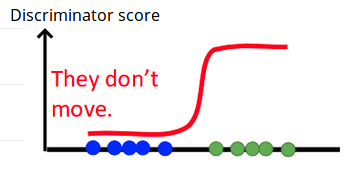

(with sigmoid)
(without sigmoid)
Discriminator score
Sigmoid
會讓整個學習曲線變得很顛頗。
所以我們不過Sigmoid，
讓學習曲線平緩。
Score Scaling Problem
score: 20
Sigmoid後分數
Sigmoid前分數
score: -20
score: 40
score: -40
Sigmoid 不會受到這個問題困擾。
Score Scaling Problem
score: 20
Linear後分數
Linear前分數
score: -20
score: 40
score: -40
對於Linear，只要參數乘倍loss就會下降！
更具體一點：
帶入數字吧！
Least Square GAN
image resource: 李宏毅老師的投影片
Discriminator score
Sigmoid -> Linear , D_loss= D(fake)-D(Real)
step 0: D(fake)=-1 , D(real)=1 , Loss= -2
step 1: D(fake)=-2 , D(real)= 2 , Loss = -4
Loss 變低了， 但是其實它什麼都沒有學到。
Least Square GAN
image resource: 李宏毅老師的投影片
Discriminator score
Sigmoid -> Linear , D_loss= D(fake)-D(Real)
因為 NN 本身就有點自帶Regularization，
所以分數馬上就會爆開。
D(fake) -> -∞ , D(real) -> ∞
Q: D(fake) -> -∞ ,
D(real) -> ∞
會有什麼問題？
Least Square GAN
A: 分數變成 nan/ inf，
python處理不來，
爆掉。
Least Square GAN
image resource: 李宏毅老師的投影片
Discriminator score
Sigmoid -> Linear
D(G) -> -∞ , D(real) -> ∞ ?
壓制在0~1:
D_Loss = (D(G) - 0)^2 + (D(real) - 1)^2
Loss Definition
picture resource: my code displayed on sublime text3
* both real_score & fake_score are NOT
pass through sigmoid function.
* LS GAN有兩種：
Least Square GAN
Loss Sensitive GAN
Early-Stopping
Solve Mode Collapse
How to Prevent Mode Collapse?
Stop training when it happens if you can. :)
Early Stopping
你潮棒der。
Mode Collapse
Mode Collapse
你潮棒der。
Case1:
Case2:
Nice Choice!
img resource:https://9gag.com/gag/aeexzeO/drake-meme
??????
沒人在天天過年的啦!
Early Stopping
IS / FID
Solve Non-convergence
Q1: Non-convergence
真的只能用眼睛看嘛？
A1:
原本是找saddle point，這不可找。
但是你可以用
其他已經固定的model做validation
Recall - Inception Score (IS)
拿一個"已經可以分辨出task物體"的pretrain model 看可不可以分辨出你的生成data。
非常直觀的想法。
你看不看得出來這是～～？
Recall - Inception Score (FID)
拿一個"已經可以歸納出低等級feature"的pretrain model，將fake/real丟進去
看差距多大。
非常直觀的想法。
real跟fake到底像不像？
Q2:
不是所有task都有model啊？
A2:
要是沒有類似的pretrain model，
目前就不可評估。 (例如音樂生成) /
自己用real data做一個AutoEncoder，用它來做FID。
(個人經驗，參考用)

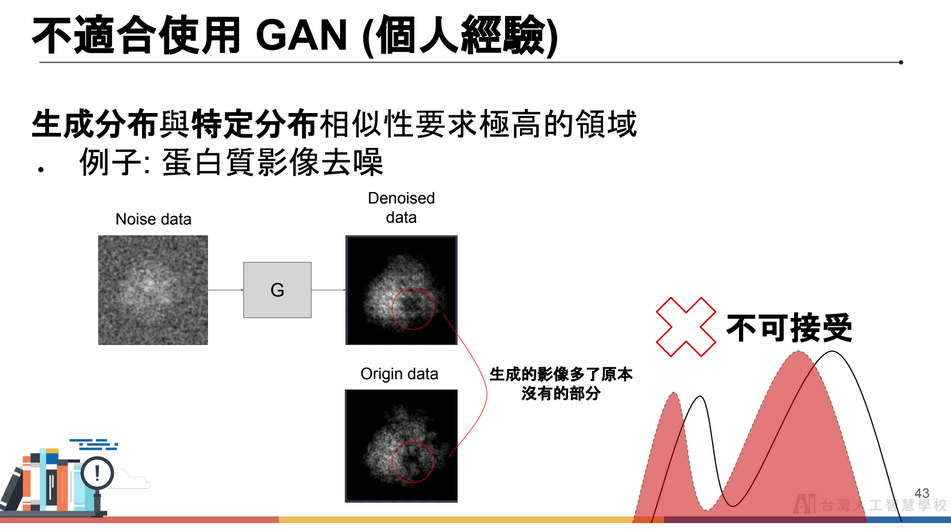

題外話 - 不適合GAN?
題外話 - 不適合GAN?
你心目中所能接受的"Loss" 和你給GAN訂定的 "Loss"不一樣。
沒有人告訴Discriminator 真正的data該長怎樣，那麼它判斷的依據就根你不一樣。
做不好的時候，告訴Discriminator loss該長怎樣
題外話 - 不適合GAN?

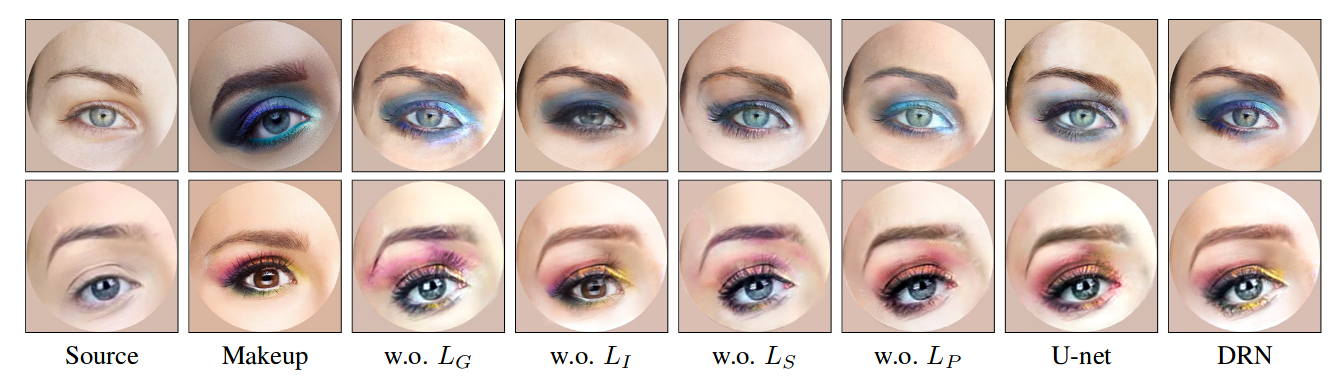

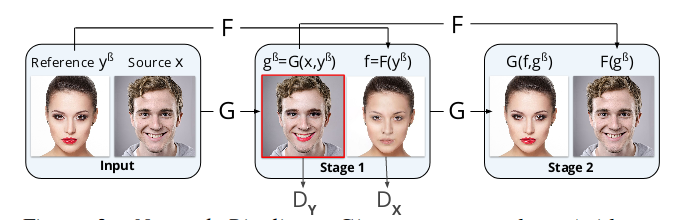

CVPR '18: PairedCycleGAN: Asymmetric Style Transfer for Applying and Removing Makeup
題外話 - 不適合GAN?
CVPR '18: PairedCycleGAN: Asymmetric Style Transfer for Applying and Removing Makeup
告訴Discriminator：
你覺得什麼地方是重要的。(疊loss)
WGAN
WGAN : https://arxiv.org/pdf/1701.07875.pdf
Lipschitz Function
Lipschitz Function
如果對於所有的x1,x2都滿足
我們就稱f為
K-lipschitz function
∣f(x1)−f(x2)∣≤K∣x1−x2∣
|f(x_1) - f(x_2)| \leq K|x_1 - x_2|
1-Lipschitz Function
所有的x1,x2都滿足
Q: 那麼f會有怎麼樣的性質？
∣f(x1)−f(x2)∣≤∣x1−x2∣
|f(x_1) - f(x_2)| \leq |x_1 - x_2|
A: 不會很抖，
因為從x1往外走斜率都會<=1
Wasserstein Distance
省略 :)
只要知道他是某種Error Measure就好
What is WGAN?
WGAN obj function
WGAN objective funciton:
max{Wassersteindis(D(real),D(G))}
\max \{ Wasserstein\,dis(D(real) , D(G))\}
How to measure?
max{D(real)−D(G)}
\max \{ D(real) - D(G) \}
if D is 1-lipschitz -> must be smooth
通過繁雜的證明...
WGAN constraint
Q: WGAN怎讓
Discriminator變成 1-lipschitz?
A: 靠clipping
讓每次更新的參數有個限制。
A2 : 其實不能。它只是個限制。
Q2 : 這樣真的能？
WGAN Method
Q: Weight Clipping?
A: 將每次更新後的各個參數w，
全部壓回 [-c,c]之內。
WGAN
Dloss=D(fake)−D(real)
D_{loss} = D(fake) - D(real)
在D是 1-lipschitz function的條件下，(D 不過simgoid)
會不會這種情況?
D(fake) -> -∞ , D(real) -> ∞
Maybe! 但因為WC, 會很緩慢。
1-lipschitz : |f(x)-f(y)| <= |x-y|
WGAN can be better?
Weight Clipping 綁手綁腳。
但是沒有WC又會爆開
如果把WC先拔掉會怎麼樣？
Make it Smooth!!!
image resource: 李宏毅老師的投影片
They don't move.
Why?
Gradient too steep!
(slope is too steep.)
Discriminator score
All possible data
Diminished Gradient
Explode Score
Gradient Problems?
Problem1: Fake data's score may diminished gradient. (too flat)
Problem2: Due to loss function, score may be scale drastically. (too steep)
Gradient Problems?
Problems: diminished + steep gradient
How to solve unbalanced gradient?
WGAN-GP solve it!
WGAN-GP
Solve Diminished Gradient & Mode Collapse
Improved WGAN(NIPS '17): https://arxiv.org/abs/1704.00028
What is WGAN-GP?
WGAN - Gradient Penalty
Gradient Problems?
Problems: diminished + steep gradient
How to solve unbalanced gradient?
Penalty 中間的 Gradient to 1!
(because of 1-lipschitz function)
Make it Smooth!!!
image resource: 李宏毅老師的投影片
Q: How to smooth the gradient?
A: Regularization
(give it penalty)
That is Gradient Penalty(GP).
Regularization ?
Too Steep.
More Flat.
However...
How to find the middle of real & fake data?
How to find this value?
image resource: 李宏毅老師的投影片
Discriminator score
All possible data
Target is between the real data and fake data.
Between
the real and fake?
Interpolation!
Interpolation ?
B
-
α=0.1
α=0.9
Why not GP only on D(G)?
Score may explode in the middle!
Interpolation ?
B
-
α=0.1
α=0.9
How to suppress learning curve?
α = U[0,1]，隨機壓一壓。
Improved WGAN / WGAN-GP
Note that 2-norm,
image resource: 李宏毅老師的投影片
Personal comment: gradient不能太高因為Loss，
gradient不能太低因為 diminished gradient，而1剛剛好。
(1是paper實驗出的，剛好巧合的符合1-lip的1。)
WGAN-GP implement
Improved WGAN(NIPS '17): https://arxiv.org/abs/1704.00028
Gradient Penalty Step
- 1. Find interpolation
- 2. Calculate 2-norm of gradient
- 3. Calculate gradient penalty
WGAN loss function
Gradient Penalty - Step1
Find interpolation
Gradient Penalty - Step2
||gradient of D(interpolate data)||
Gradient Penalty - Step3
Calculate Gradient Penalty
* lambda = 10 in paper
Reach 1-lipschitz
WGAN
Weight Clipping (WC)
WGAN-GP
Gradient Penalty (GP)
SN-GAN (spectral norm GAN)
divide spectral norm
(Not mentioned but very powerful)
WGAN-GP
Gradient Penalty (GP)
DCGAN+WGAN-GP result
* resolution is not high due to image size(64x64).
Another result
D:G = 4:1 , 5500 iterations
picture resource: GAN result by Arvin Liu (myself).
Why WGAN-GP solve the Mode Collapse?
[Personal viewpoint]
Actually, mode collapse...
If real data & G distribution....
A
B
C
What's your expect?
A
B
C
A
B
C
Dream on ! Get real!
A
B
C
A
B
C
Easy to minimize G_loss for G's data
Mode Collapse!
Discriminator do well on class B,C
Cyclic Changing
A
B
C
Easy to minimize G_loss for G's data
Mode Collapse!
A
B
C
Mode Collapse!
Original GAN
A
B
C
-
-
-
-
Easy to minimize G_loss for G's data
GP with Random Pair -
Amortize the Difficulty
A
B
C
-
-
-
-
Easy to minimize G_loss for G's data
GP with Random Pair -
Amortize the Difficulty
A
B
C
A
B
C
Easy to minimize G_loss for G's data
Cyclic Mode Collapse with Real Examples
DCGAN structure, image size 128x128
DCGAN - Step 44400
picture resource: GAN result by Arvin Liu (myself).
DCGAN - Step 44600
picture resource: GAN result by Arvin Liu (myself).
DCGAN - Step 44800
picture resource: GAN result by Arvin Liu (myself).
DCGAN - Step 45000
picture resource: GAN result by Arvin Liu (myself).
Minibatch-discrimination
Solve Mode Collapse
Ian Goodfellow : https://arxiv.org/pdf/1606.03498.pdf
Add Diversity Loss Intuitively
How to measure diversity?
It's cross-data loss!
MAMA MIA!
Thanks to minibatch!!
We can peep other data!
Main Idea of Minibatch Discrimination
- Let discriminator generalize the feature per data.
- N^2 calculate the difference of each pair.
- Append to the original Neural Network.
Flow Chart
img resource: https://arxiv.org/pdf/1606.03498.pdf
F: raw
feature from each data
T: Projection
c: calculate difference
o: calculate diversity
What will Minibatch Discrimination works?
Generator 會順著 Discriminator "diversity"的gradient將接近的data拆開來。
因為Discriminator會知道"哪些data"很像。(有N^2比較。)
Minibatch Discrimination implementation
picture resource: my code displayed on sublime text3
Minibatch Discrimination
picture resource: GAN result by Arvin Liu (myself).
WGAN-GP
- 很難mode collapse。
- Train起來相對久，中間有很大一段過程是在各個隱藏class的疊加態。
- 到非常後段(要收斂了)才會慢慢分離。
- WGAN-GP 就像是一個人生規劃導師，規劃各個data走向不同的路 (interpolation GP)。
Minibatch-Discrimination
- 一開始不會mode collapse，但其實train久了還是會。
- train的速度堪比一般的GAN，甚至更快(?)
- Minibatch-Discrimination就像是一個社會學家，勸戒各位不要都做同個工作。 (Discriminator diverge it)
多重Class的疊加態？
picture resource: GAN result by Arvin Liu (myself).
conditional GAN
https://arxiv.org/abs/1411.1784
In a nut shell...
給GAN condition，要求生成資料要符合 condition.
How cGAN?
就直接丟進去Generator和Discriminator就好了!
Why it works???
Discriminator 會利用給定的condition痛罵Generator。
Simple cGAN Flow Chart
image resource: 李宏毅老師的投影片
Another Loss Measurement
你開心就好:)
例如 classify 一個分數，real/fake 一個分數？
cGAN code
Generator Code
Discriminator Code
Loss Definition
同GAN/W-GAN/f-GAN...。
ACGAN
https://arxiv.org/abs/1610.09585
Some Collection...
image resource: https://www.cnblogs.com/punkcure/p/7873566.html
Main Idea of ACGAN
D output C/S
Thus, Having Classification & Synthesis(合成) eror.
ACGAN loss fucntion
ACGAN code
Generator
same as cGAN.
Discriminator
Only need to change last layer.
Loss Function
In this task, I change some loss function.
(For G, +log(z) -> -log(1-z))
Ls : loss in original GAN.
Lc : binary cross entropy
(tag loss, not softmax.)
ACGAN + minibatch
Cycle GAN
Style Transfer
A -> B
例如 畫風 / 聲音變聲等等...
Style Transfer
data
A
fake data B
A -> B
Generator
data
B
A -> B
Discriminator
now task: 畫風A轉B
Style Transfer
paired data A
paired fake dataB
A -> B
Generator
paired data B
now task: 畫風A轉B (paired)
一般的作法。
Style Transfer
paired data A
paired fake dataB
A -> B
Generator
paired data B
now task: 畫風A轉B (paired)
A -> B
Discriminator
condition : embbeded A
GAN
version
Paired Data 不好拿到？
Style Transfer
data
A
paired fake dataB
A -> B
Generator
data
B
now task: 畫風A轉B (paired)
B
Discriminator
Style Transfer - AB接近
data
A
fake data B
A -> B
Generator
data
B
B
Discriminator
?
G會不會只是亂生一個B呢？
由之前的Mode Collapse，我們就可以知道這件事可能發生。
加一個Loss / 直接做或pretrain model都可以
Style Transfer - Cycle GAN
data
A
fake data B
A -> B
Generator
data
B
B
Discriminator
fake data A
B -> A
Generator
A
Discriminator
Style Transfer - Cycle GAN
data
A
fake data B
A -> B
Generator
fake data A
B -> A
Generator
L1_loss
這個L1_loss，我們稱為
Cycle Consistency Loss
Style Transfer - Cycle GAN
data
A
fake
data B
A -> B
Generator
fake
data A
B -> A
Generator
data
B
fake
data A
A -> B
Generator
fake
data B
A ->B
Generator
Cycle Consistency
Cycle Consistency
B
Discriminator
A
Discriminator

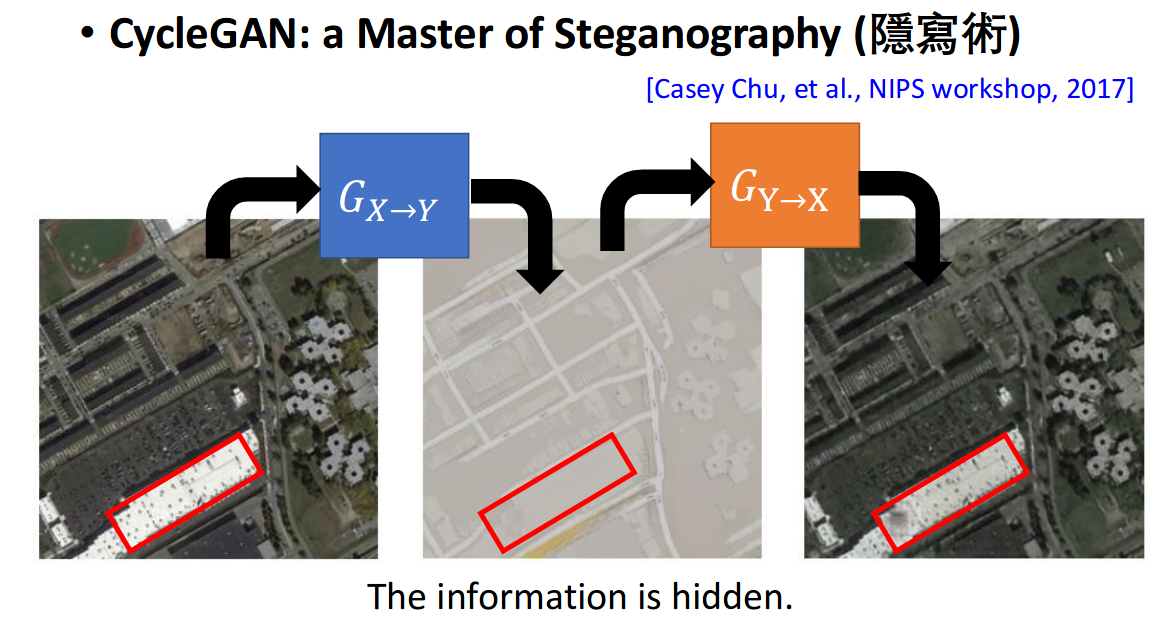

Cycle GAN's Problem
image resource: 李宏毅老師的投影片
What is Stego?
Magic

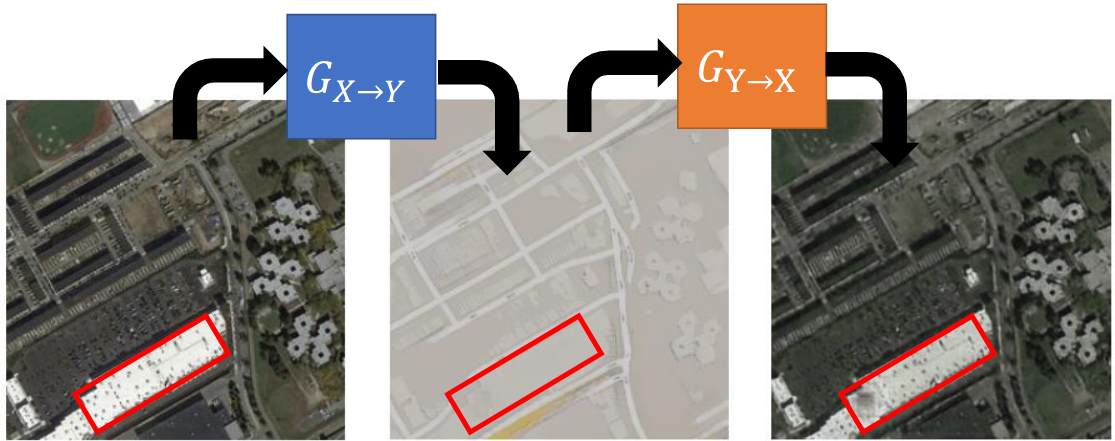

Cycle GAN's Problem
Cycle Consistency
image resource: 李宏毅老師的投影片
Cycle Consistency 的目的是讓Y像X。但如果G能把資料藏起來，
那麼Cycle consistency loss就沒有意義。
Why GAN?
pix2pix
https://affinelayer.com/pixsrv/
pix2pix
use conditional GAN ?
where is the conditional?
Embedding
Generator
U-net
Image Caption (im2txt)
Memes Generation: https://arxiv.org/pdf/1806.04510.pdf
Condition: Encoder(Picture)
Use language model or something as Discriminator

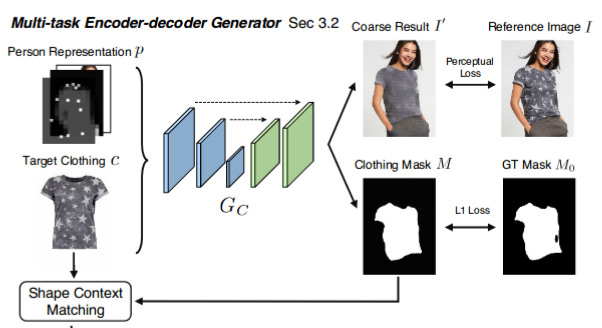

Cloth Try on
https://arxiv.org/pdf/1711.08447.pdf
Cloth Try on
https://arxiv.org/pdf/1711.08447.pdf
(Part from original model)
Style Transfer
https://github.com/Aixile/chainer-cyclegan

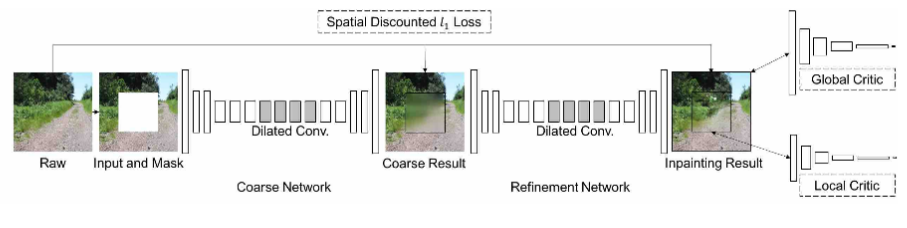

Generative Image Inpainting
https://arxiv.org/pdf/1801.07892.pdf
Generative Image Inpainting
https://arxiv.org/pdf/1801.07892.pdf
In General...
GAN can do most of "Generation Tasks"!
Personal Experience
看看就好，拿來作弊用的
Personal Experience 1
Filter Bad Image
Use STRONGER D to filter G's data.
"Stronger" means train D lonely in the end.
Personal Experience 2
low lr at the end
When you think G is good enough, lower the learning rate, brighter image you get.
(Optional)
Why GAN? - 2
However...
These fashion application, maybe it's too far for you?
太炫砲了用不到!
Ultimate Data Augmentation
In classification problem...
Data Augmentation? Why not ...
image resource: https://chtseng.wordpress.com/2017/11/11/data-augmentation-%E8%B3%87%E6%96%99%E5%A2%9E%E5%BC%B7/
[Personal viewpoint]
In real tasks
class A
class B
class C
real data
GAN ganerator
simple augmentation
???
???
???
It's no guarantee that your augmented data follows original data distribution.
For example..
Rotation Degree?
Gaussian Noise?
Scale fx?
These data is based on "exist dataset."
In GAN, generator will generate new data.
In Real Tasks...
[Lab talk]
Data Shortage
假設有兩個相關的dataset，
(CT & MRI)
但是有些圖片只有CT沒有MRI?
Style Transfer!
| Dataset A | Dataset B | is_pair? |
|---|---|---|
| exist | exist | Yes |
| not exist | exist | No |
| exist | not exist | No |
| not exist | not exist | ??? |
Data Shortage
Tips : Dropout in G
https://arxiv.org/pdf/1611.07004v1.pdf
Tips : Use labels
Tips : Batch Normalization
Tips : Avoid Sparse Function
i.e.: Maxpooling, ReLU(but G can use it.)
Tips : Leaky ReLU for D, ReLU for G.
Maybe ReLU is suitible for "edge"?
Ques1 : slerp or lerp?
ICLR'2017 (rejected)
https://openreview.net/forum?id=SypU81Ole
LERP (Liner IntERPolation)
https://en.wikipedia.org/wiki/Linear_interpolation
SLERP (Spherical LERP)
WGAN LERP 不用自作主張用SLERP :)
Ques2 : Batch Size?
Expert said...
In any tasks, size of mini-batch = 16~64 in my own practical experience :) .
Why? Maybe...
Q: Why not GD?
A: Easily sink into local minima.
Q: Why not SGD?
A: Hard to converge.
Q: Mini-batch?
Ques3 : Complex task is hard to GAN?
(WGAN-GP) only pink hair
D:G = 4:1 , 5500 iterations
picture resource: GAN result by Arvin Liu (myself).
(WGAN-GP) no-constraint
D:G = 4:1 , 5500 iterations
picture resource: GAN result by Arvin Liu (myself).
MISCs
MISC2 - patch GAN
Patch GAN
image resource: 李宏毅老師的投影片
Patch GAN risks
picture resource: GAN result by Arvin Liu (myself).
Review
GAN model
- DCGAN (Deep Convolutional GAN)
- LSGAN (Least Square GAN)
- WGAN (Wesserstein GAN)
- WGAN-GP (Improved Wesserstein GAN)
- Patch GAN (Pix2Pix's Discriminator)
-
conditional GAN
-
ACGAN (Auxiliary Classifier GAN)
-
Cycle GAN
GAN main problems
- Mode collapse
- Diminished Gradient
- Non-convergence
Q & A
Thanks for your listening!
Code:
goo.gl/yRvUk1
GAN Tutorial Arvin Liu @ 北區AIA
GAN - 2
By Arvin Liu
GAN - 2
Leacture slide - GAN II
- 1,499
