Algorithms for construction of elimination tree for multi-frontal solver of isogeometric finite element method
dr hab. inż. Maciej Paszyński
What has been done
Research

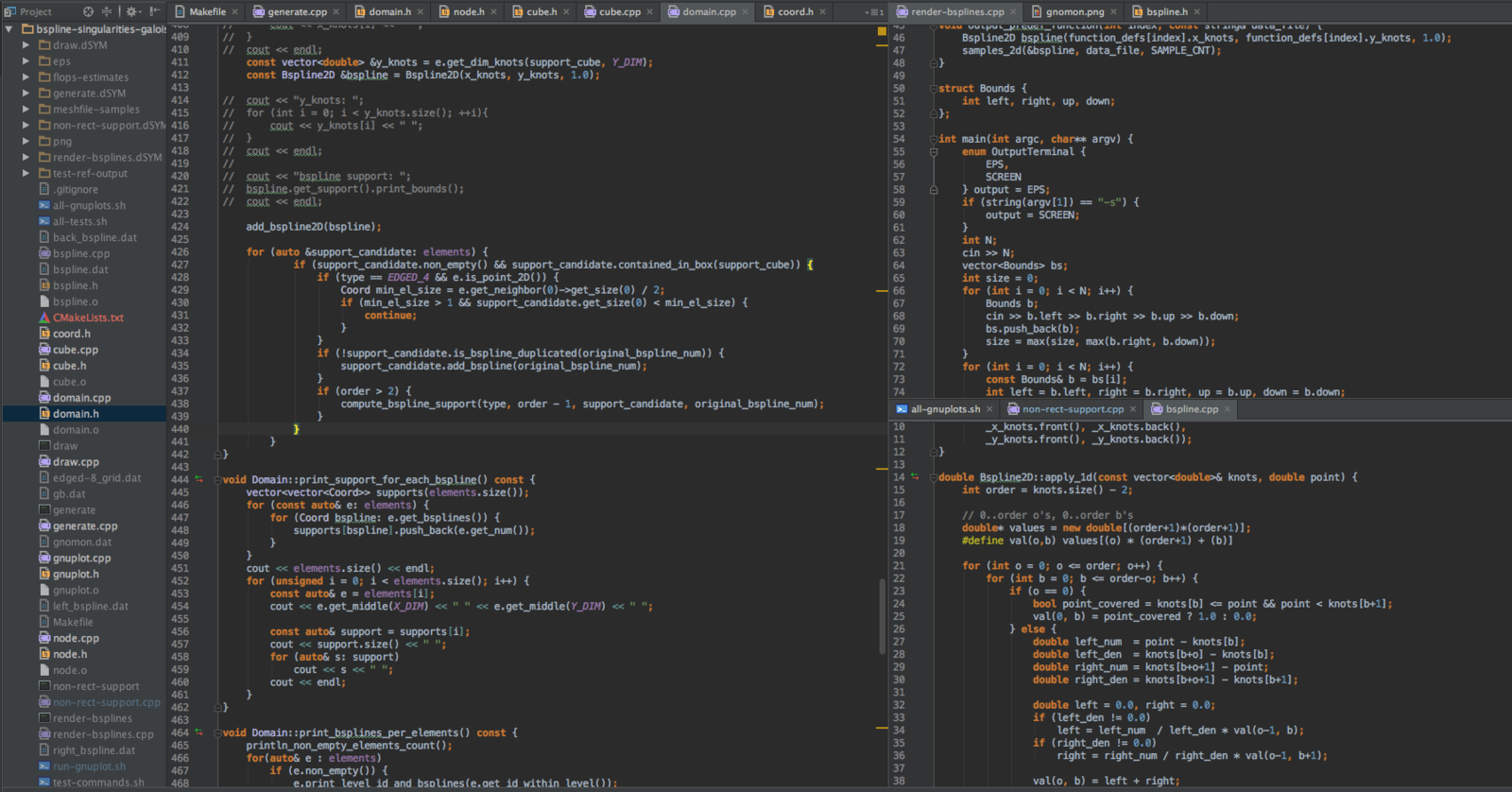

Code
Computations
Abstract (congress)

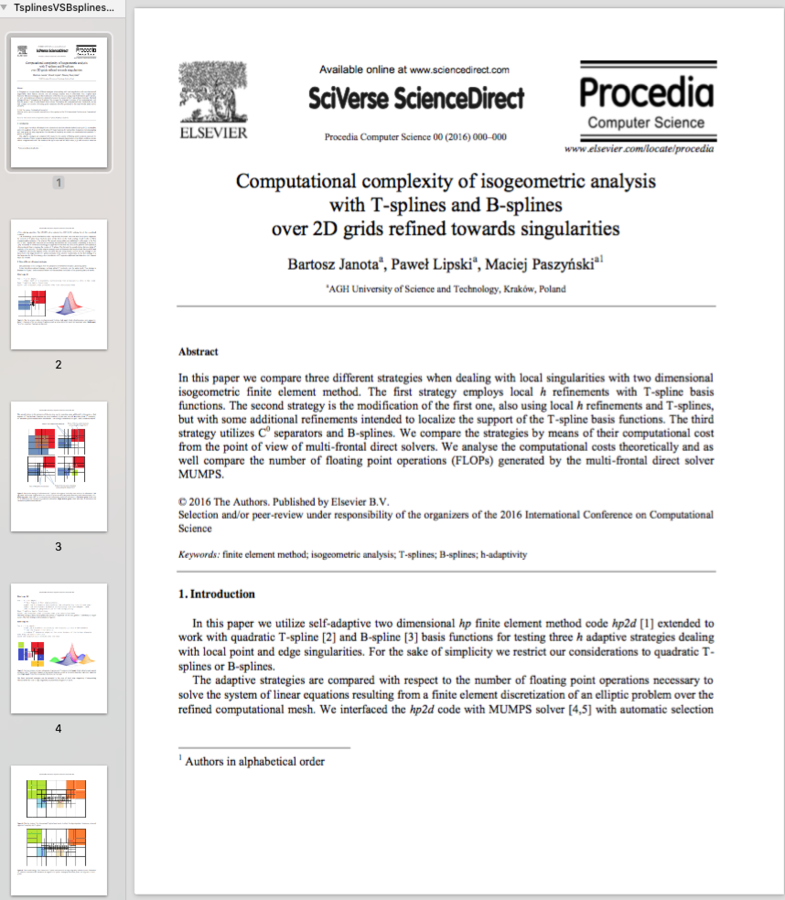

Paper (congress)
Research
We need an optimal strategy
There are two existing strategies
Both of them are using T-Splines

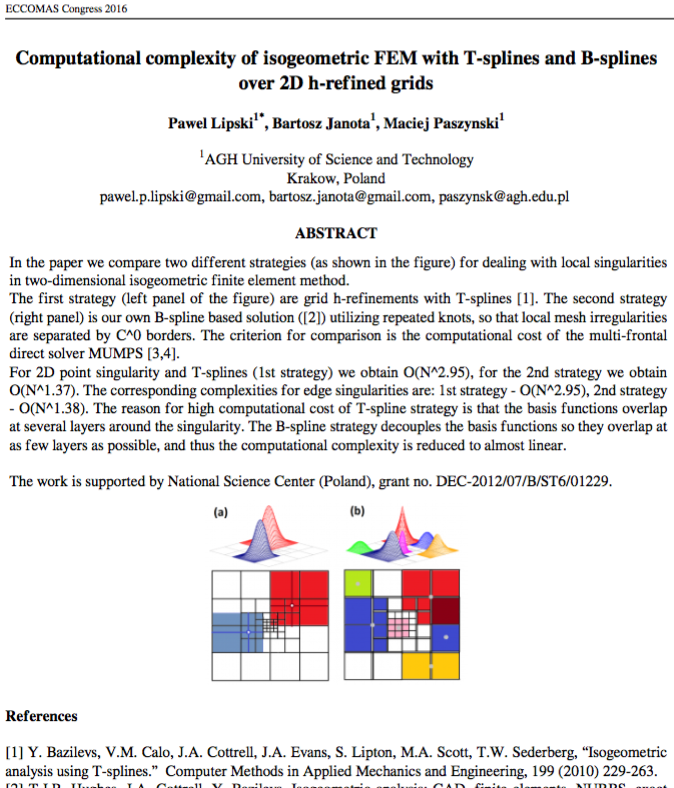

Computational complexity of isogeometric FEM with T-splines and B-splines over 2D h-refined grids
The 1st Strategy
Utilizes h refinements and T-spline basis functions

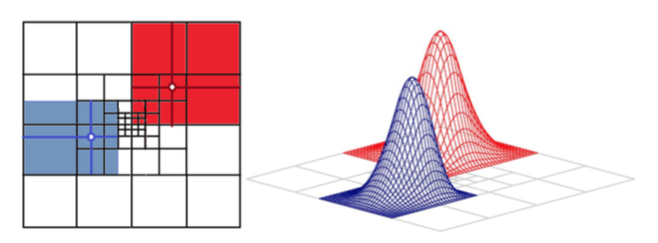

For the point singularity the supports of T-spline basis functions from all the levels of the mesh overlap, which results in O(N^3) computational complexity of the solution

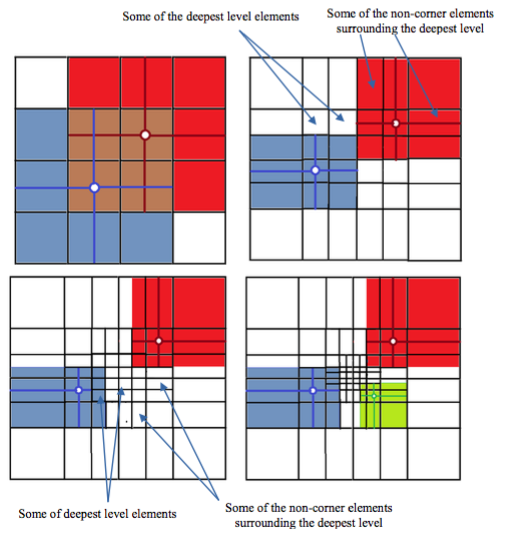

The 2nd Strategy
additional h refinements to the first one, so that T-spline basis functions do not overlap and therefore the computational complexity is reduced to O(N)
N for the second strategy is larger than for the first one
The 3rd Strategy
No global C1 continuity of the solution anymore
The third adaptive strategy uses h refinements with B-spline basis functions [1 and C0 separators (recursively repeated knots).
We show that the computational cost of the third strategy is also linear, but we no longer preserve C1 global continuity of the solution
