Foundation Models

for Decision Making

MIT 6.4210/6.4212 Lec 22

Boyuan Chen

Slide: https://slides.com/d/EyfmqBY/live

Agenda today

LLM & Embodied AI
Challenges and Opportunities
Vision Foundation Models

Task Planning with LLM

Connect unstructured world with structured algorithms

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

What human wants:

How robot algorithms work:

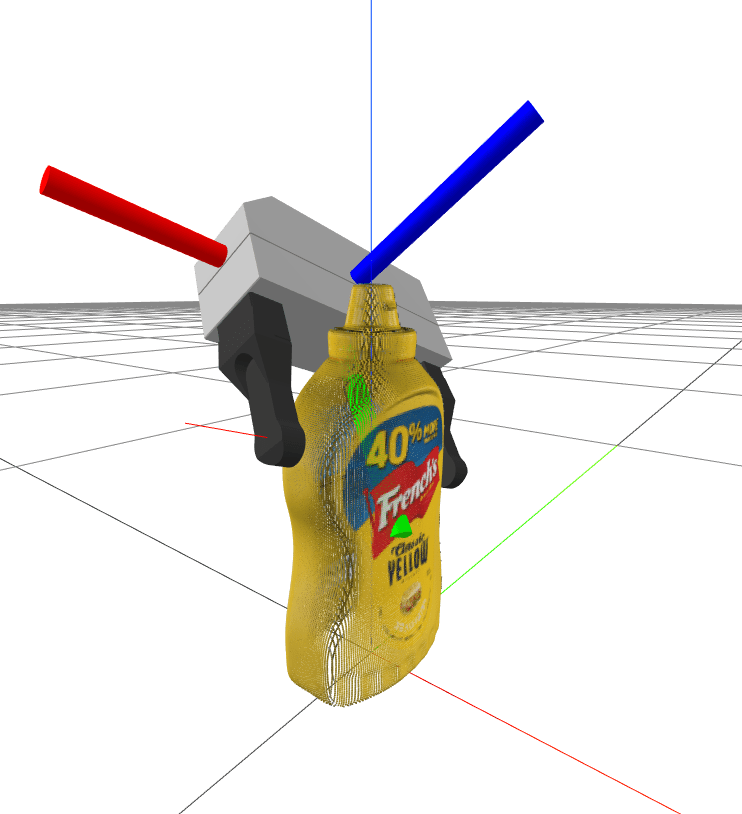

Segmentation, Point Cloud -> Grasp

Finite State Machine

....

These are all very structured!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Question: how can we connect unstructured with structured

Task: clean up the spilled coke

Set the coke can into an upright position
Find some napkins
Pick up napkins
Wipe the spilled coke with napkins
Wipe the coke can
Throw away the used napkins

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Humans: Language as tasks

Language as plans!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Can we use human priors & knowledges

It turns out humans activities on the internet produces a massive amount of knowledge in the form of text that are really useful!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

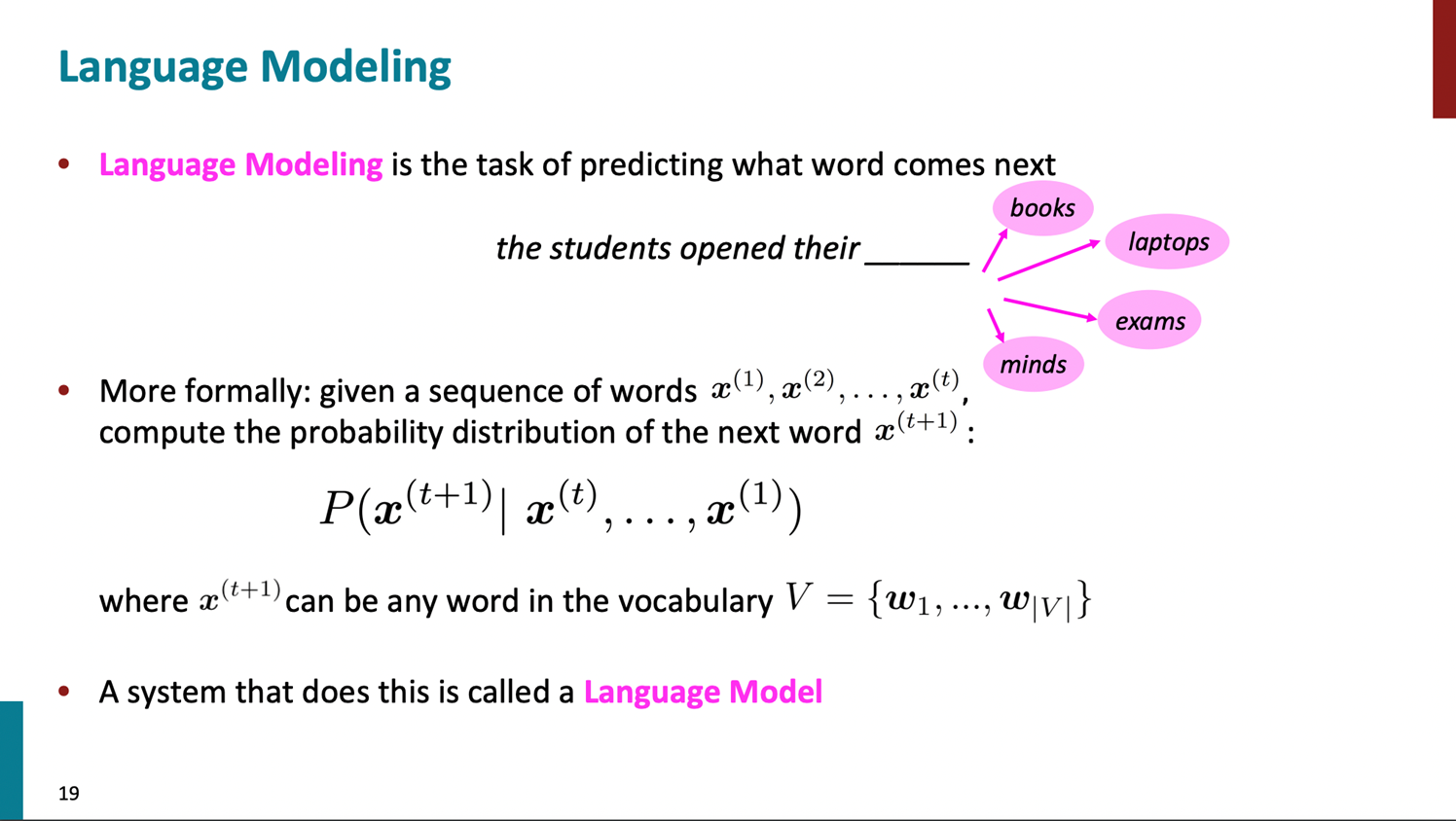

Background:

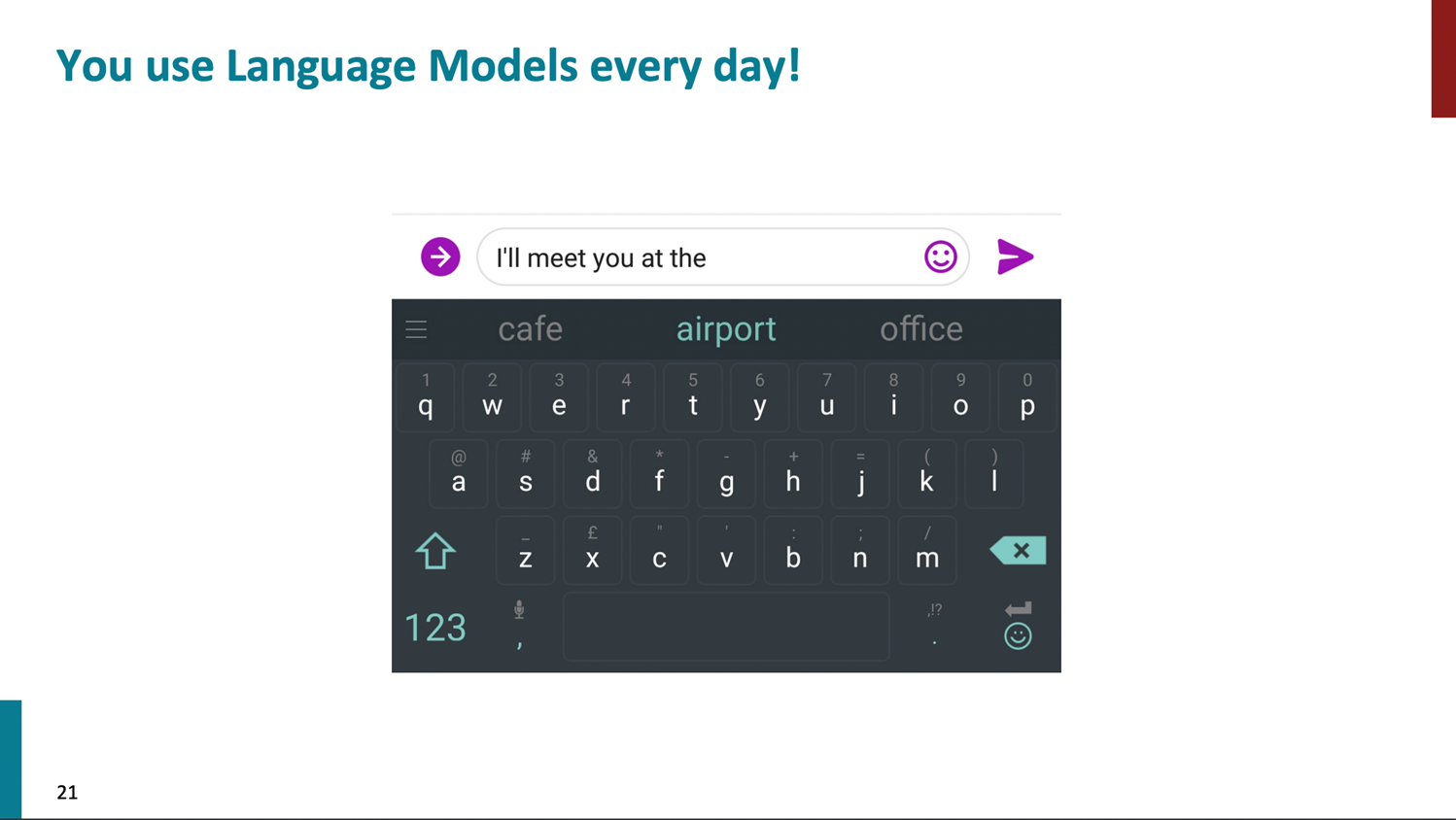

Large Language Models

Text

Highlight

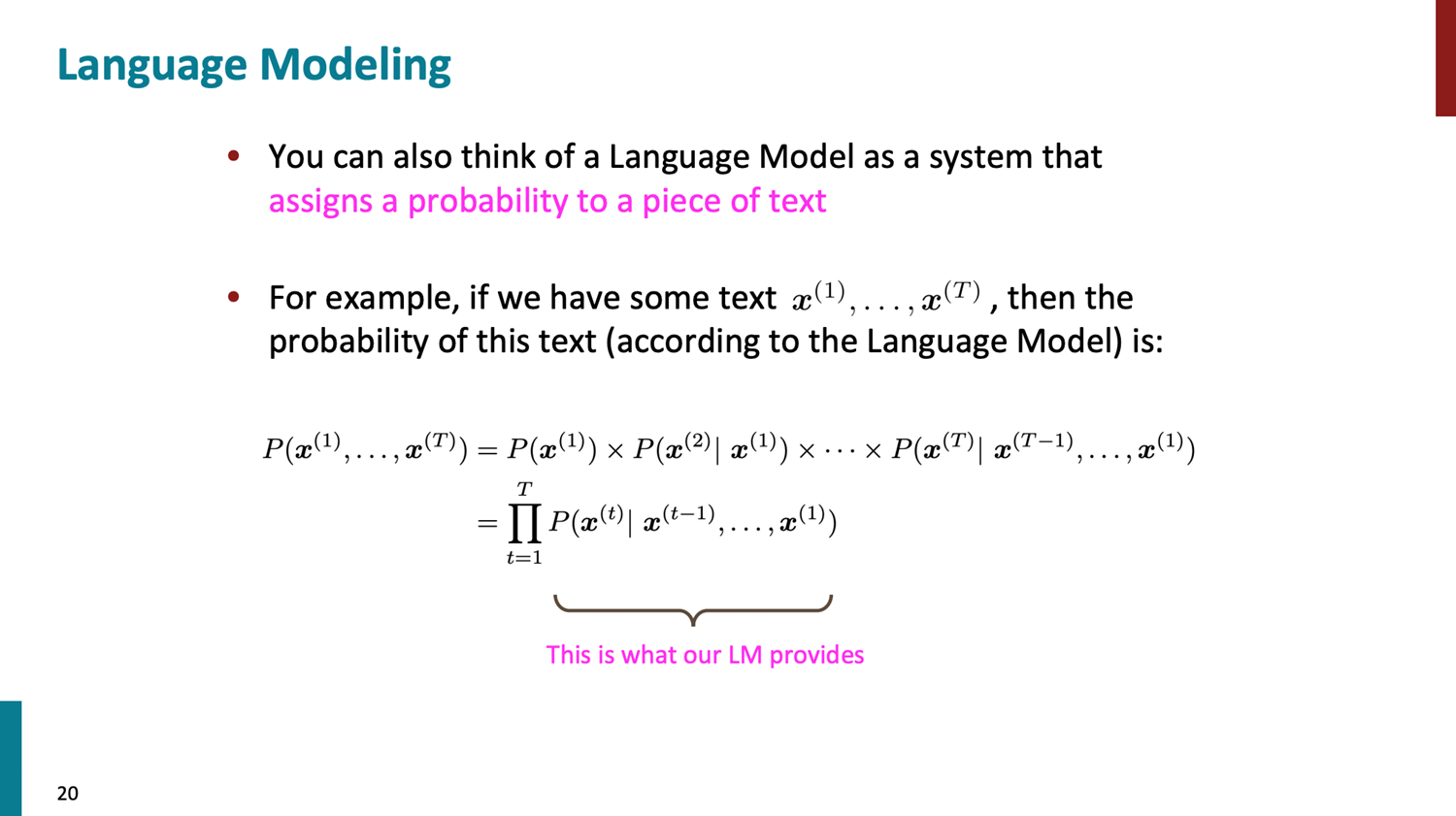

Given a fixed list of options, can evaluate likelihood with LM
Given all vocabularies, can sample with likelihood to generate

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Text

Large Language Models

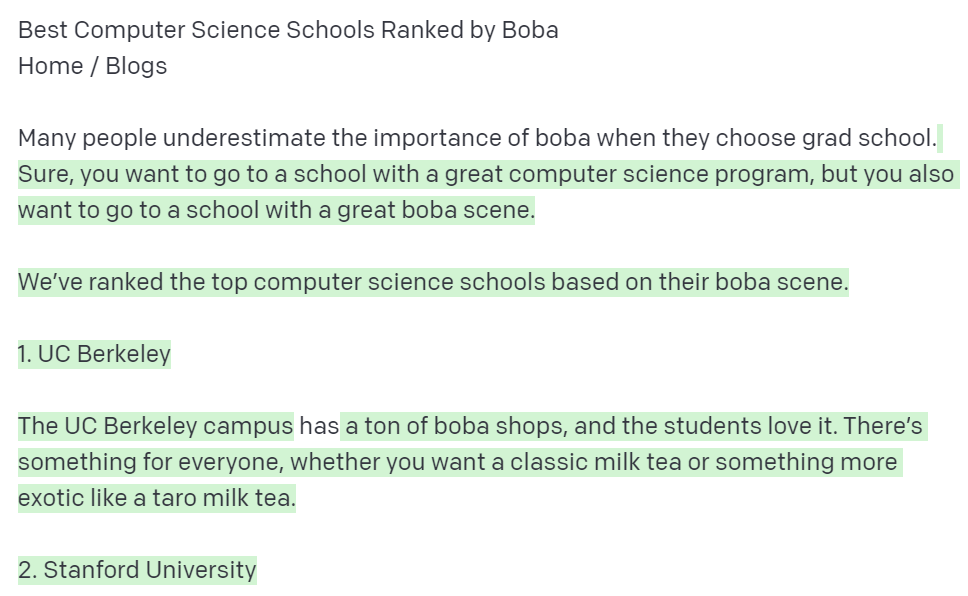

can complete essays

Large Language Models

can complete essays

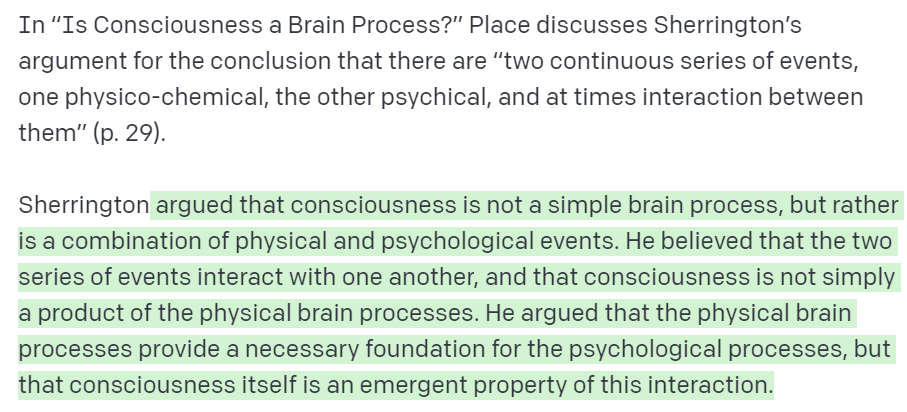

GPT 3 writing MIT 24.09 Essay

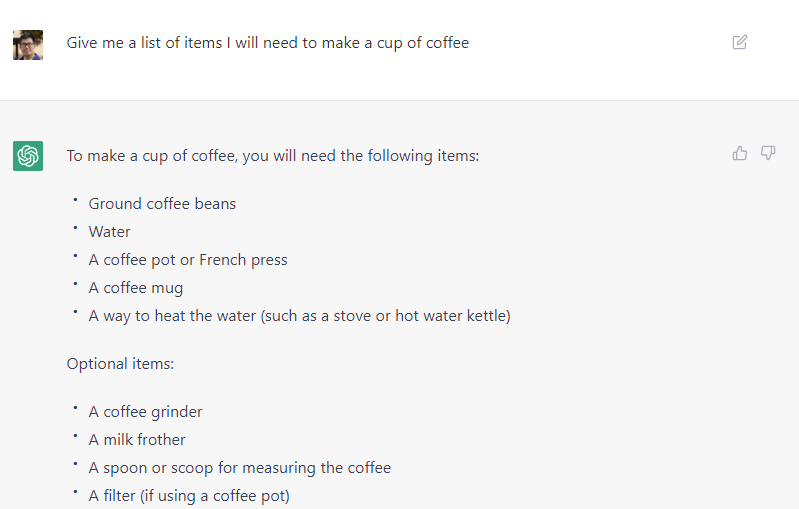

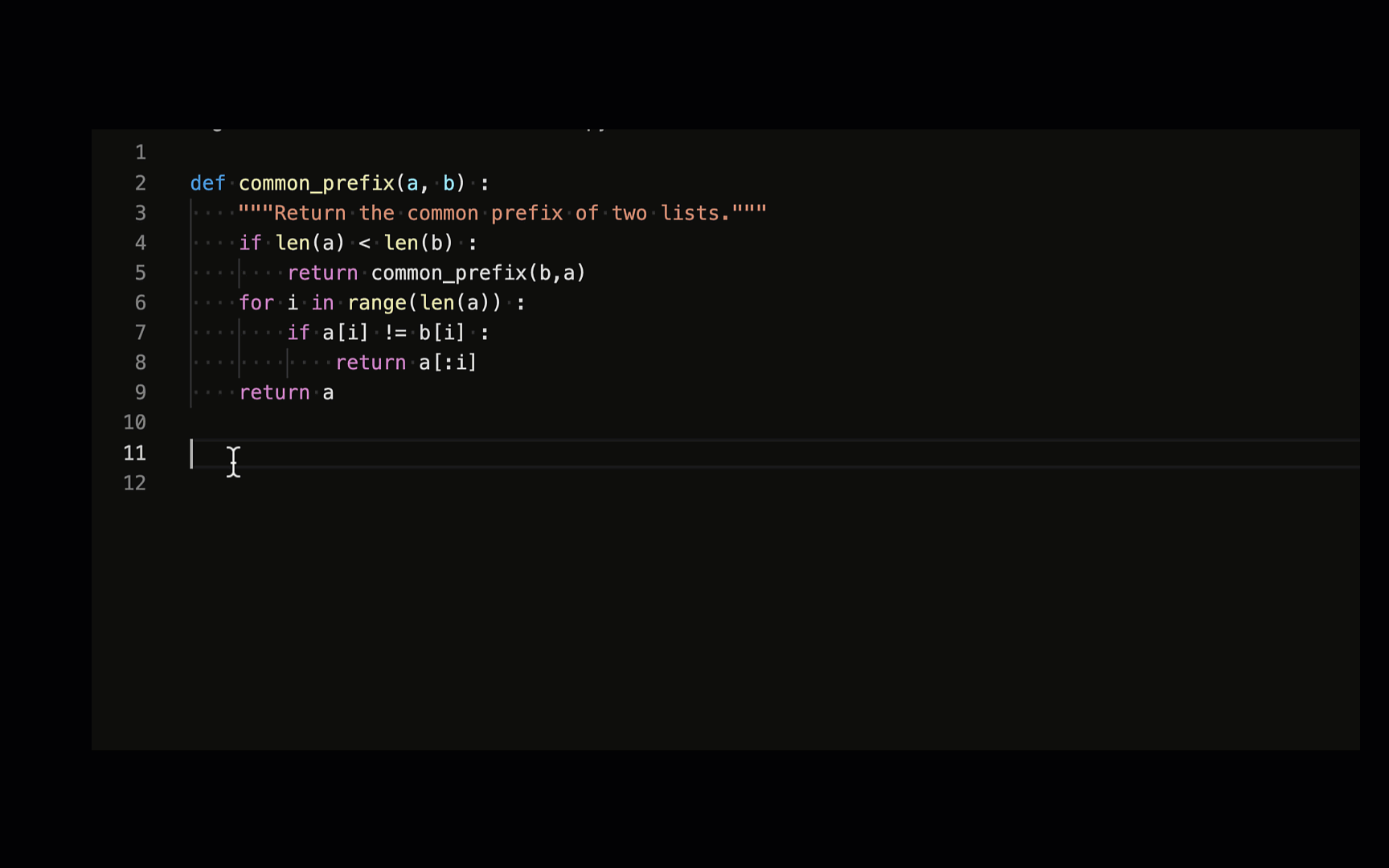

Large Language Models

can code!

This is really powerful

for planning!

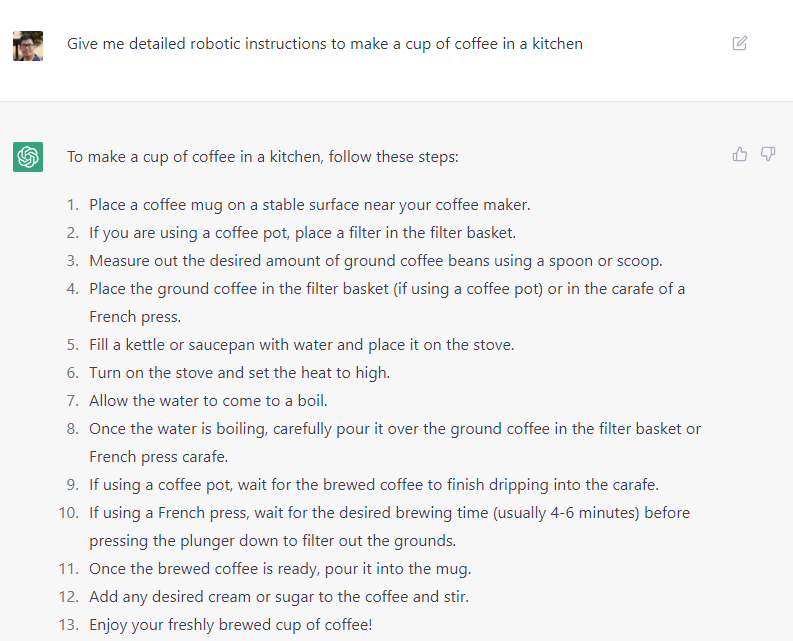

This is really powerful

for planning!

LLMs for robotics

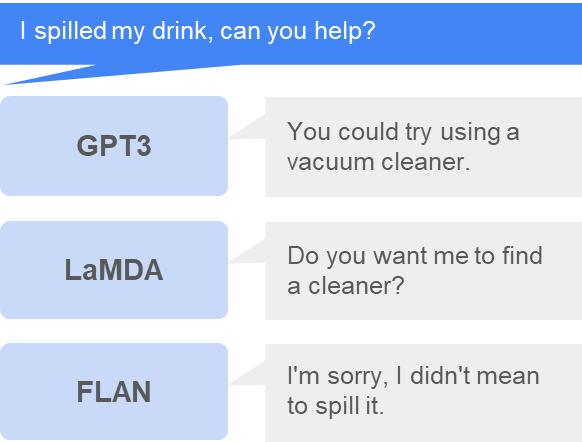

Problem:

Our robots can only do a fixed number of commands and need the problem broken down in actionable steps. This is not what LLMs have seen.

We need to get LLMs to speak “robot language”!

Ingredient 1

Bind each executable skill to some text options
Have a list of text options for LM to choose from
Given instruction, choose the most likely one

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Ingredient 2

Prompt LLM to output in a more structured way
Parse the structure output

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Few-shot prompting of Large Language Models

LLMs can copy the logic and extrapolate it!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Prompt Large Language Models to do structured planning

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

LLMs for robotics

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

Reinforcement learning already provides task-based affordances.

They are encoded in the value function!

[Value Function Spaces, Shah, Xu, Lu, Xiao, Toshev, Levine, Ichter, ICLR 2022]

Robotic affordances

Combine LLM and Affordance

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

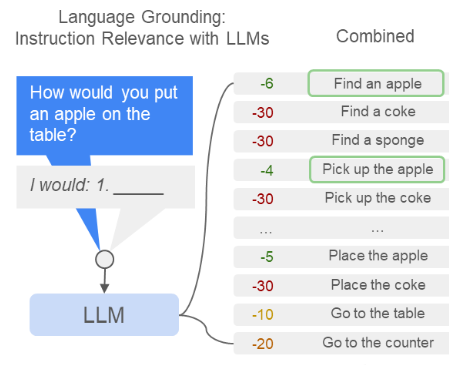

LLM x Affordance

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

SayCan on robots

Do As I Can, Not As I Say: Grounding Language in Robotic Affordances, Ahn et al. , 2022

Language Models as Zero-Shot Planners:
Extracting Actionable Knowledge for Embodied Agents
Inner Monologue: Embodied Reasoning through Planning with Language Models
PaLM-E: An Embodied Multimodal Language Model
Chain-of-thought prompting elicits reasoning in large language models
Tree of Thoughts: Deliberate Problem Solving with Large Language Models

Extended readings in

LLM + Planning

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vanilla SayCan has issues...

Object lists are hard-coded
Object locations are hard-coded
Assume all objects are available in the scene
A small, finite list of executable options
No perception
Only ~30 objects

Vanilla Saycan is not grounded by scene!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

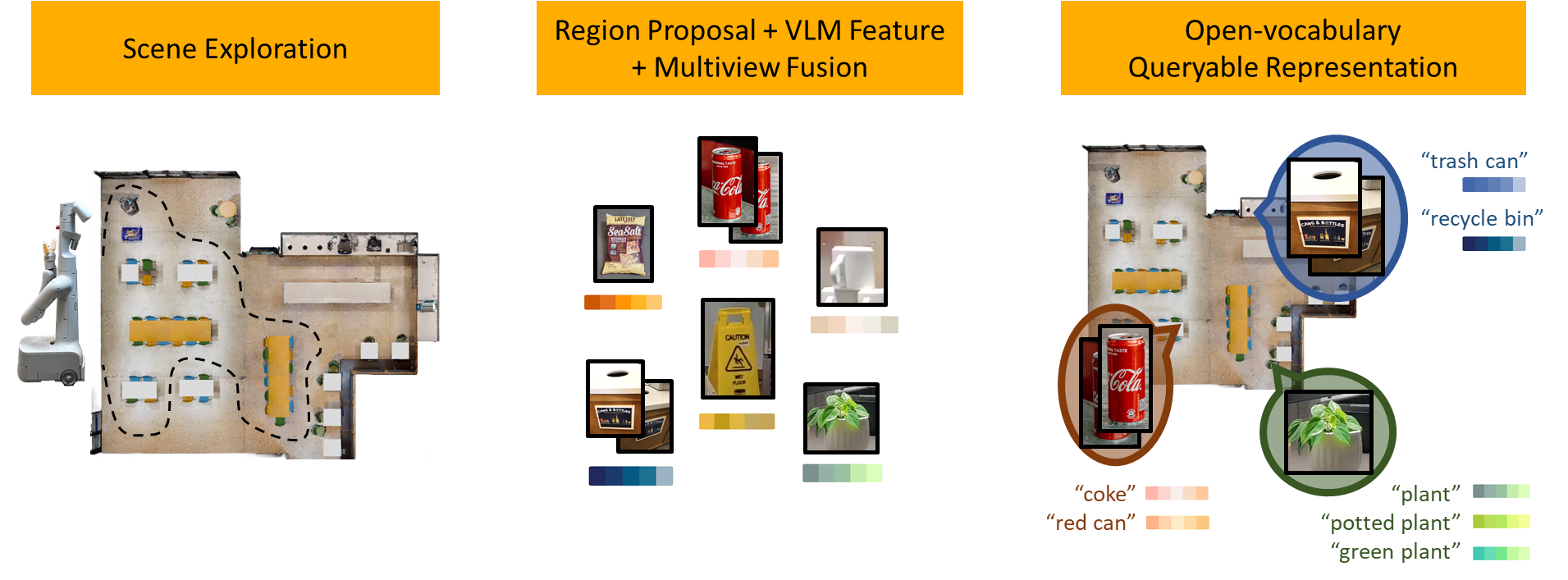

NLMap: Open-vocabulary Queryable Scene Representations for Real World Planning

Open-vocabulary Queryable Scene Representations for Real World Planning, Chen et al. 2022

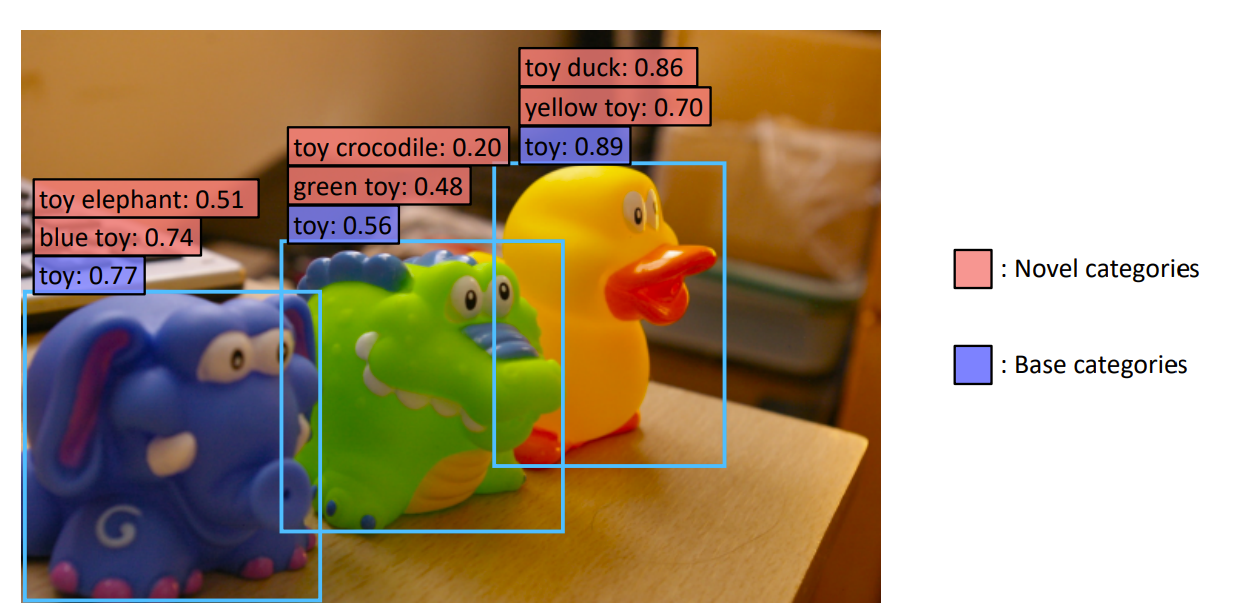

Open Vocabulary Detection

Open-vocabulary object detection via vision and language knowledge, Gu et al. 2021

Ground planning with vision

Open-vocabulary Queryable Scene Representations for Real World Planning, Chen et al. 2022

Ground planning with scene

Open-vocabulary Queryable Scene Representations for Real World Planning, Chen et al. 2022

Propose options instead of choose from a fixed list!

Open-vocabulary Queryable Scene Representations for Real World Planning, Chen et al. 2022

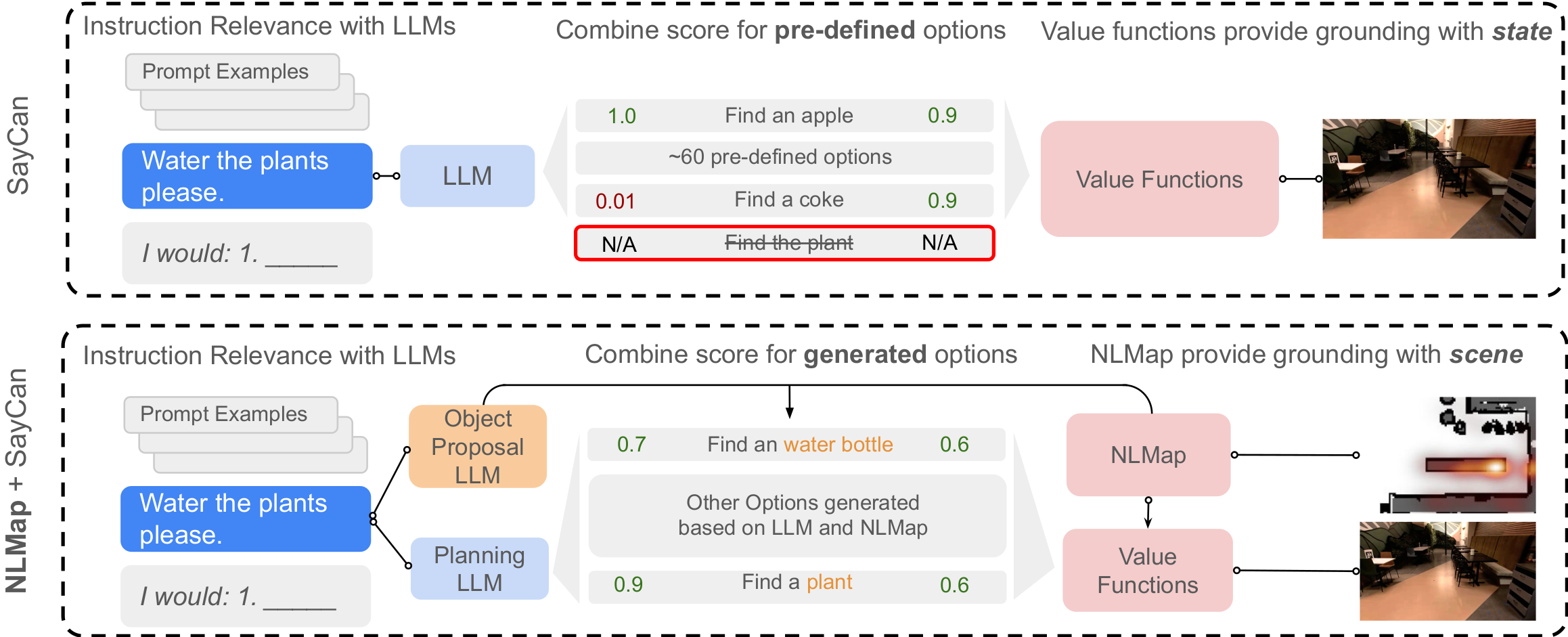

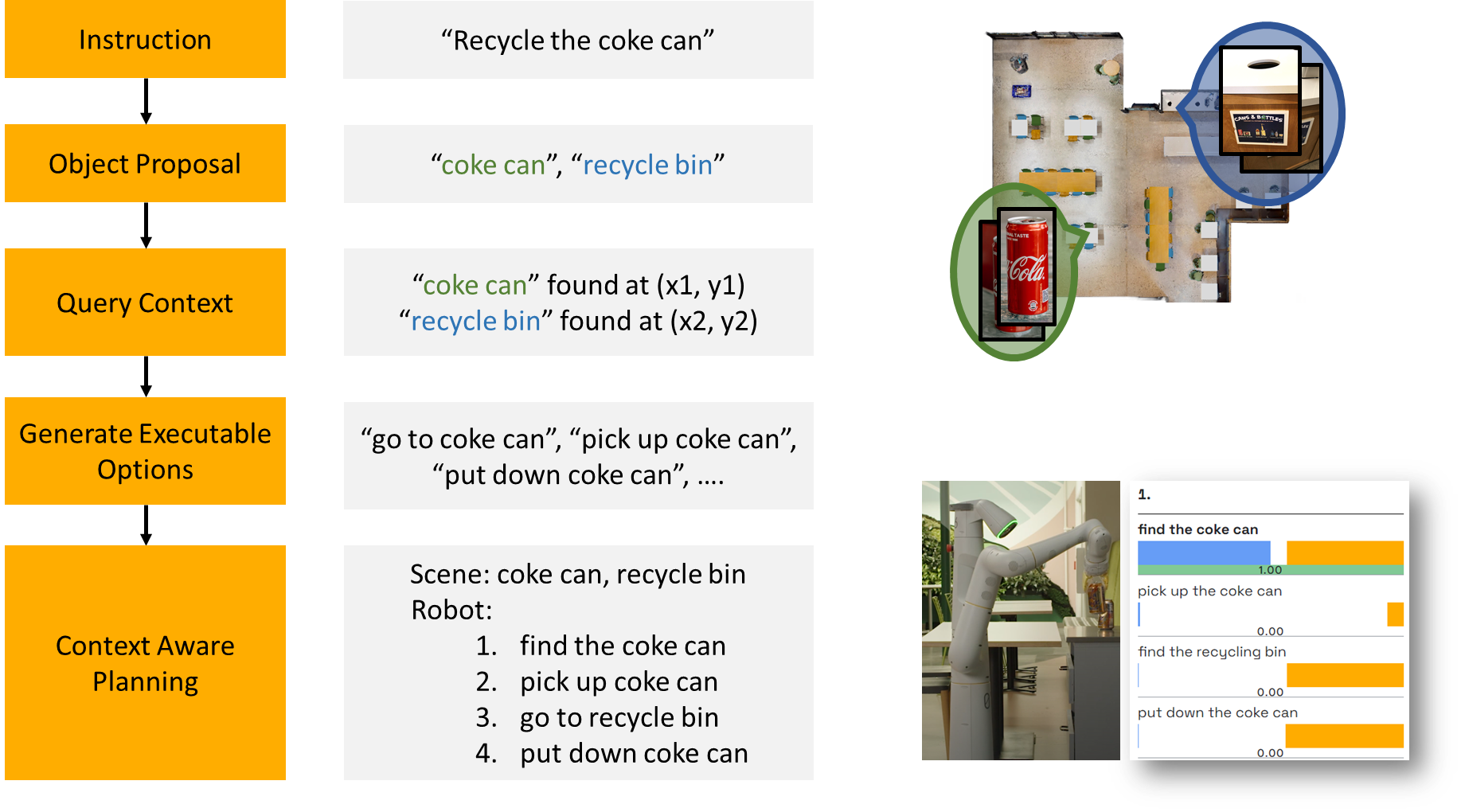

NLMap + SayCan

Open-vocabulary Queryable Scene Representations for Real World Planning, Chen et al. 2022

Extended readings in

LLM + Vision + Robotics

LM-Nav: "Robotic Navigation with Large Pre-Trained Models of Language, Vision, and Action"
NLMap: Open-vocabulary Queryable Scene Representations for Real World Planning
VLMaps: "Visual Language Maps for Robot Navigation"
Socratic Models: Composing Zero-Shot Multimodal Reasoning with Language"

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Now LLM can use maps/vision.

What about using other hardware/algorithms?

Tool use

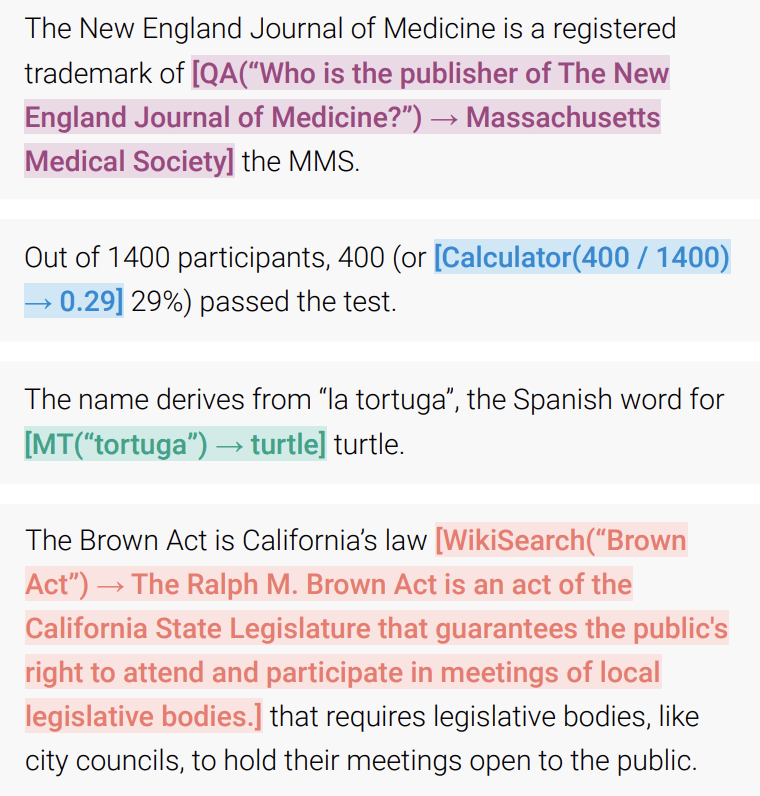

Toolformer: Language Models Can Teach Themselves to Use Tools, Schick et al. 2023

Ask LLM to coordinate other tools by writing code!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Recall that LLM can code

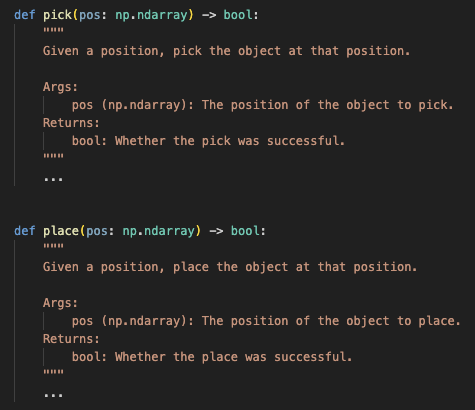

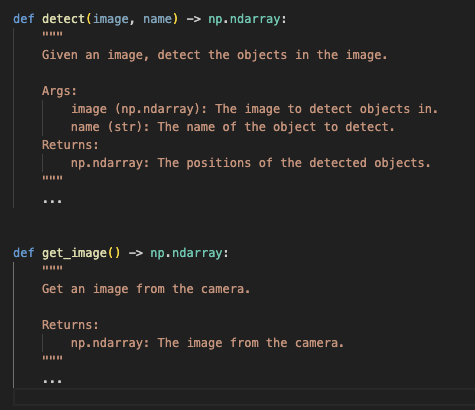

Prompt LLM with APIs and ask it to write code as a response

Human: help me put the apple on the book

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Robot:

img = get_image()
book_pos = detect(img, "book")[0]
apple_pos = detect(img, "apple")[0]
pick(apple_pos)
place(book_pos + np.array([0, 0, 0.1]))

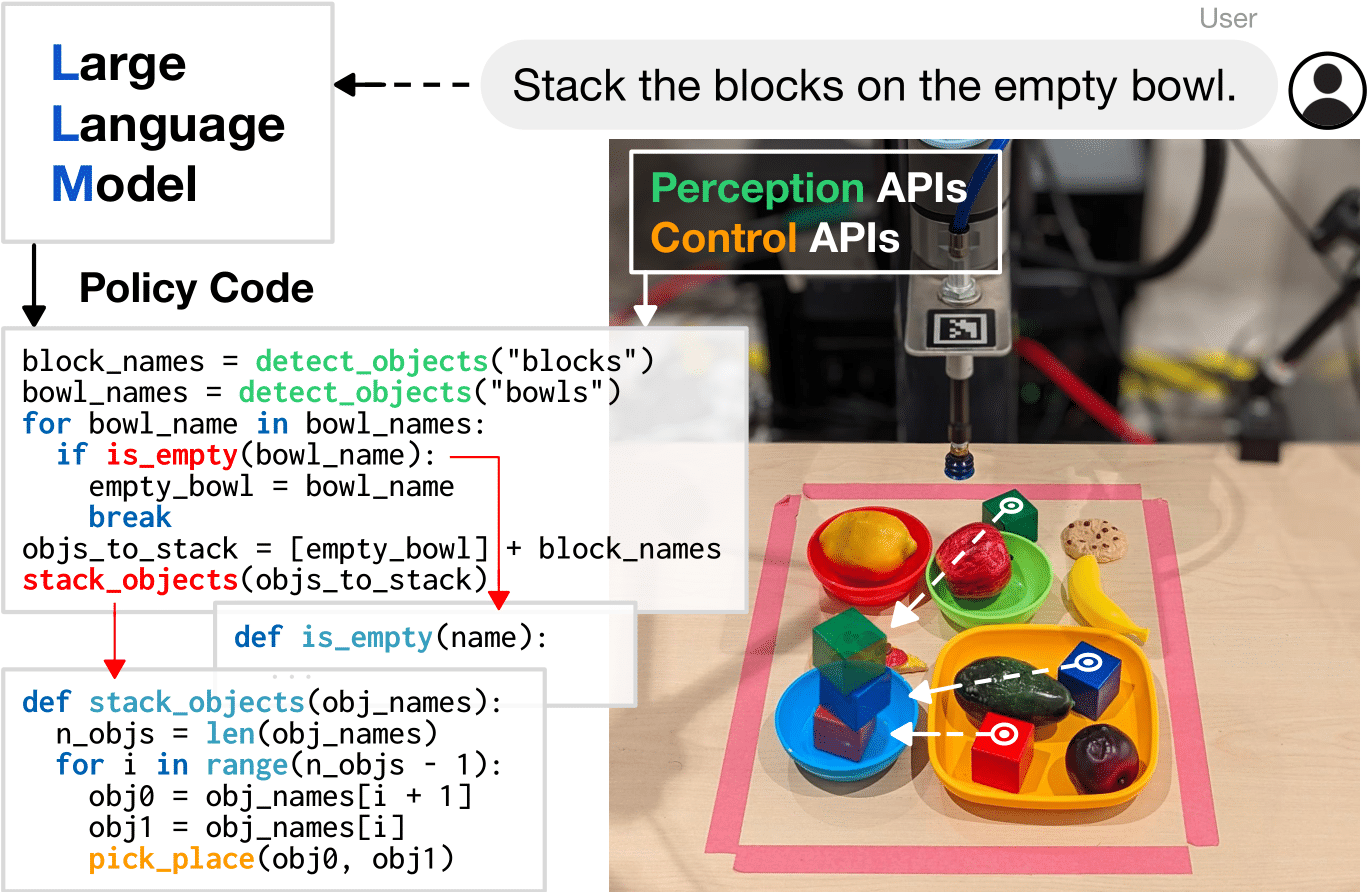

Code as Policie: Language Model Programs for Embodied Control, Liang et al. , 2022

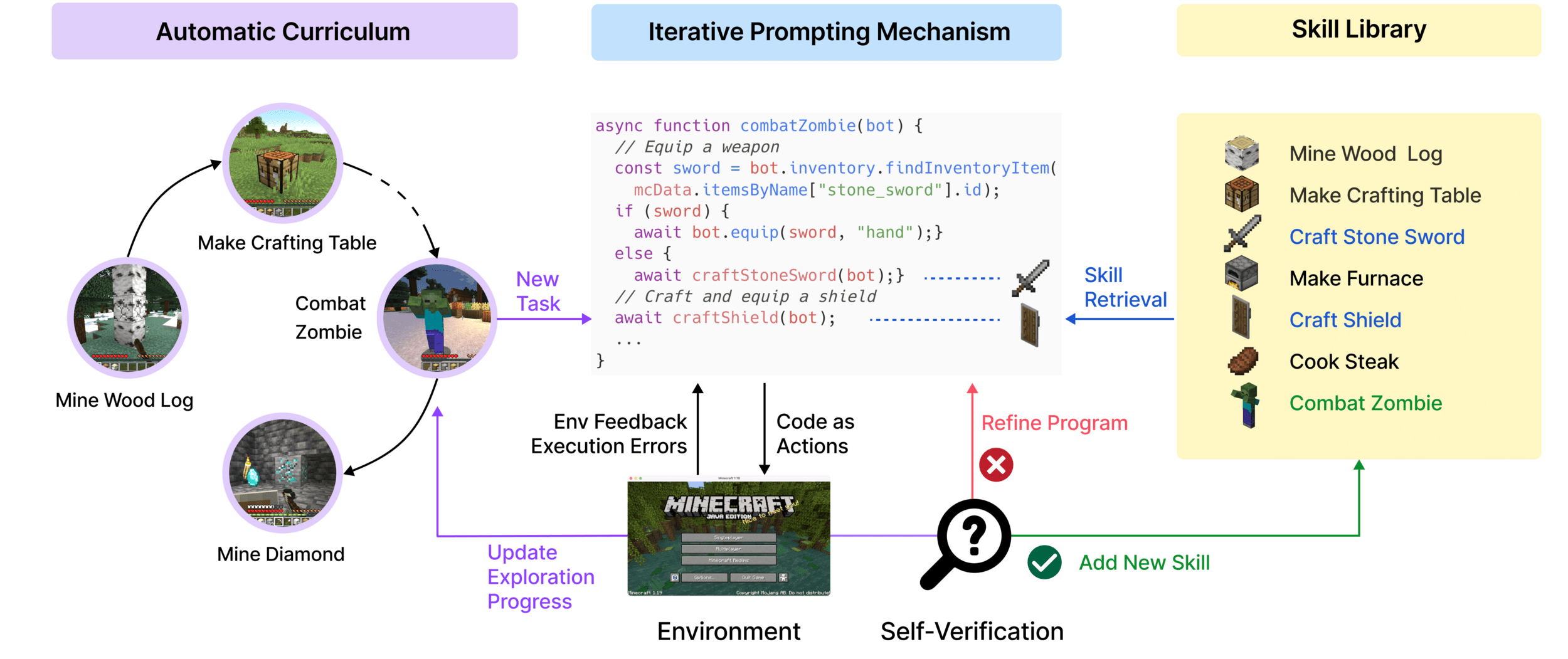

Create complex open-world agents with API of basic skills

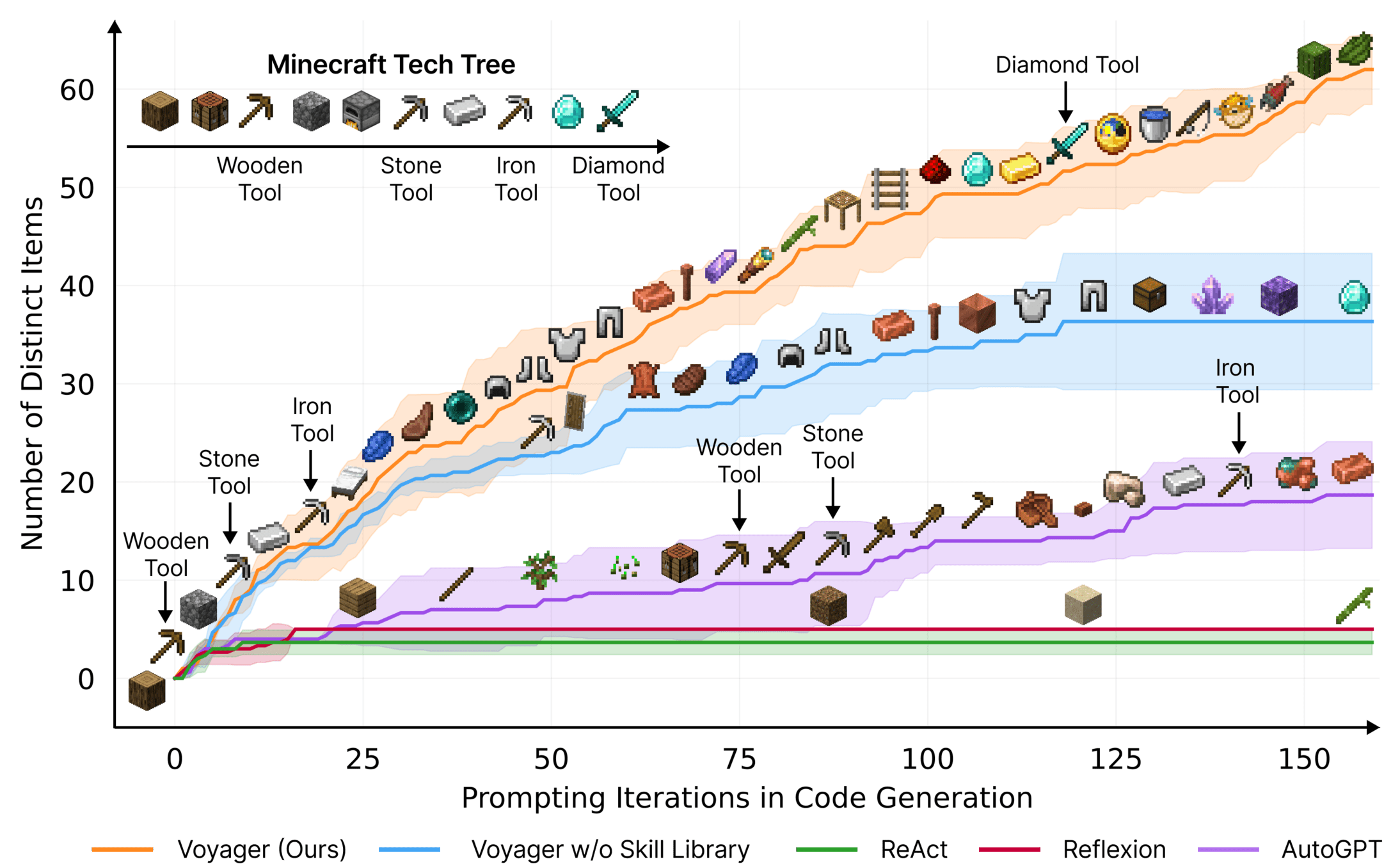

Voyager: An Open-Ended Embodied Agent with Large Language Models, Wang et al. , 2023

Create complex open-world agents with API of basic skills

Voyager: An Open-Ended Embodied Agent with Large Language Models, Wang et al. , 2023

Challenges and Opportunities

Is scaling all you need?

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Why is LLM so useful for robotics?

LLM parses unstructured tasks to structured programes
LLM absorbs common sense knowledge

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Why is LLM so useful for robotics?

LLM parses unstructured tasks to structured programes
LLM absorbs common sense knowledge

How sufficient is this?

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

What did LLM absorb

Wikipedia
Book
Website
Blog
Code
....

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Text is not the whole world!

Humans do so many tasks with vision
Human also do so many tasks with physical body

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Can we replicate success of LLM in robotics?

LLM is good only because they are pre-trained on Internet scale of text data
Is that the case for other domains?
Vision? Action?

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Multi Modal LLM

Vision

Text

Action

Vision

Text

Action

Inputs

Outputs

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vision? A case study

Vision

Text

Inputs

Outputs

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vision? A case study

The campus of the Massachusetts Institute of Technology in Cambridge will soon be home to a new college of computer science, which will get its own building

GPT-4V came almost a year after ChatGPT....

VLMs are pretrained on image-text pairs like these:

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vision? A case study

Paired image-text data is still widely available on the internet, though dirty and not at a scale similar to text data alone
Distribution shift between pre-training and inference... Train on caption but test on QA & other fancy things
This is unlike LLM!

Vision

Text

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vision? A case study

How to solve this issue?
Extensive instruction tuning (w/ human annotation) after pre-training
Connect image encoder with pre-trained LLM so it has language knowledge already

Vision

Text

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Vision? A case study

How to solve this issue?
Extensive instruction tuning (w/ human annotation) after pre-training
Connect image encoder with pre-trained LLM so it has language knowledge already

Vision

Text

works because output is text, so we also have generalization in output behavior

Pre-trained so we have some

generalization in input behavior

What about action?

Vision

Text

Vision

Text

Action

Inputs

Outputs

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

What about action?

No internet scale data of joint angles, trajectories in states
Even less paired action-text data

Vision

Text

Action

Pre-trained so we have some generalization in input behavior

Output behavior is unclear. Hard to get data to have a foundation model that generates actions

What about action?

Let's try our best collecting enough data
The promise: the input encoders already provides part of the generalization, so we need less action data for whole problem
Valuable scientific explorations on this:
- Robot Transformer 1, RT2 from Google
- Large Behavior Model from TRI
- Some in academia

RT-1: Robotics Transformer for real-world control at scale, Brohan et al., 2022

RT2: RT-2: Vision-Language-Action Models Transfer Web Knowledge to Robotic Control, Brohan et al., 2023

Diffusion Policy: Visuomotor Policy Learning via Action Diffusion, Chi et al. 2023

What about action?

Teaching Robots New Behaviors, TRI 2023

Diffusion Policy: Visuomotor Policy Learning via Action Diffusion, Chi et al. 2023

BTW don't miss the talk

Thursday (Dec 7th) 4 pm at 32-D463

Ben Burchfield & Siyuan Feng from TRI will be giving a talk, "Towards Large Behavior Models: Versatile and Dexterous Robots via Supervised Learning."

Is this enough?

Each operator still needs an expensive robot
Limited environment / task diversity
This approach shows some generalization in individual tasks but not across tasks yet
For a robot GPT we will need way more, maybe internet scale data containing actions!

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Alternative opportunities

Let admit we have no action data on the internet, at least action data in lagrangian states
But... We have other ways of extracting action data, with foundation models

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

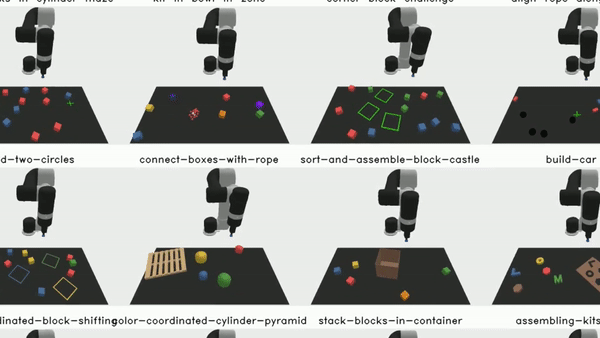

Generate simulation w/ LLM

GenSim: Generating Robotic Simulation Tasks via Large Language Models, Wang et al., 2023

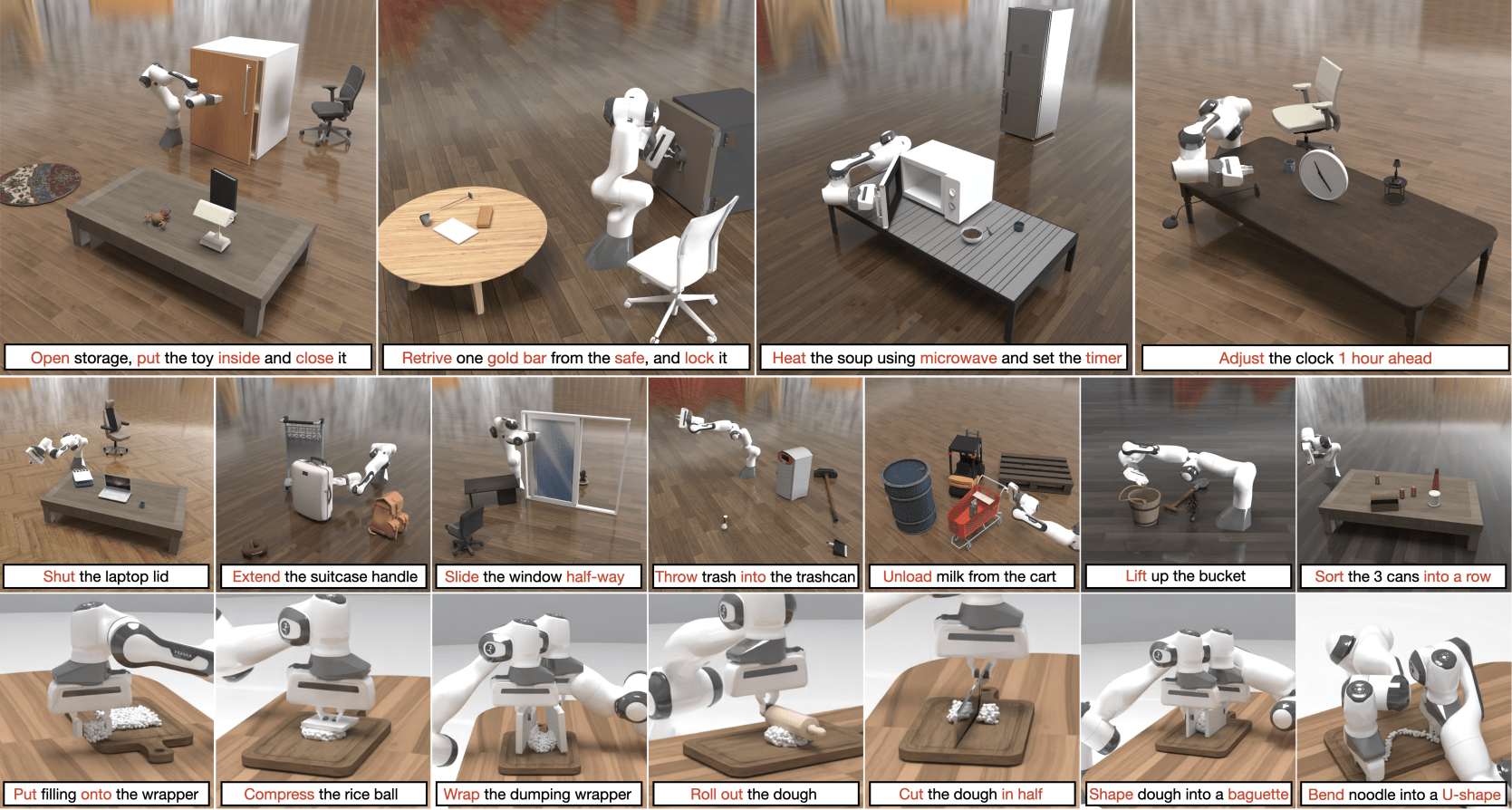

Generate simulation w/ LLM

RoboGen: Towards Unleashing Infinite Data for Automated Robot Learning via Generative Simulation Wang et al., 2023

Generate simulation assets

One-2-3-45: Any Single Image to 3D Mesh in 45 Seconds without Per-Shape Optimization, Liu et al., 2023

Annotate reward for RL

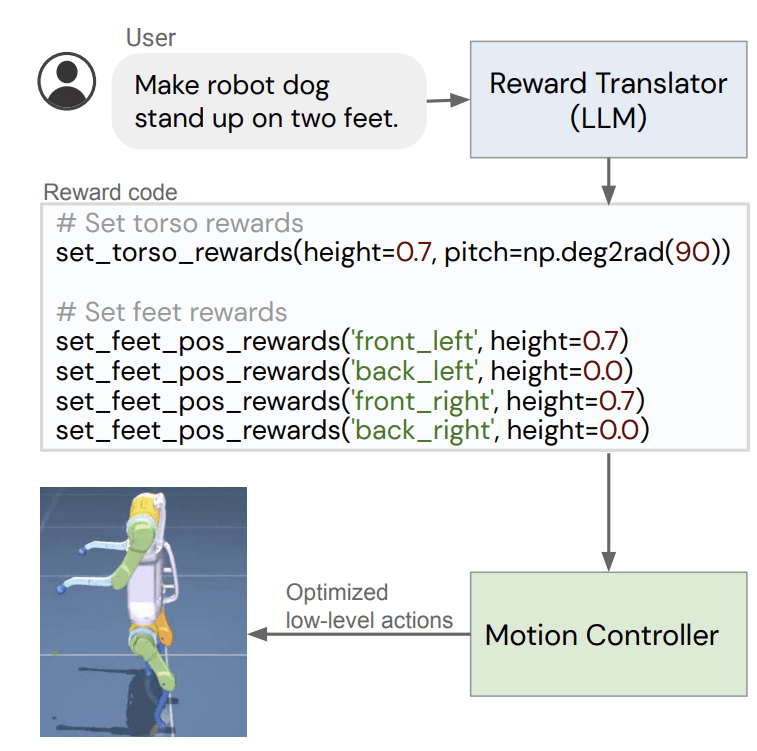

Language to Rewards for Robotic Skill Synthesis, Yu et al., 2023

Eureka: Human-Level Reward Design via Coding Large Language Models, Ma et al., 2023

Annotate reward for RL

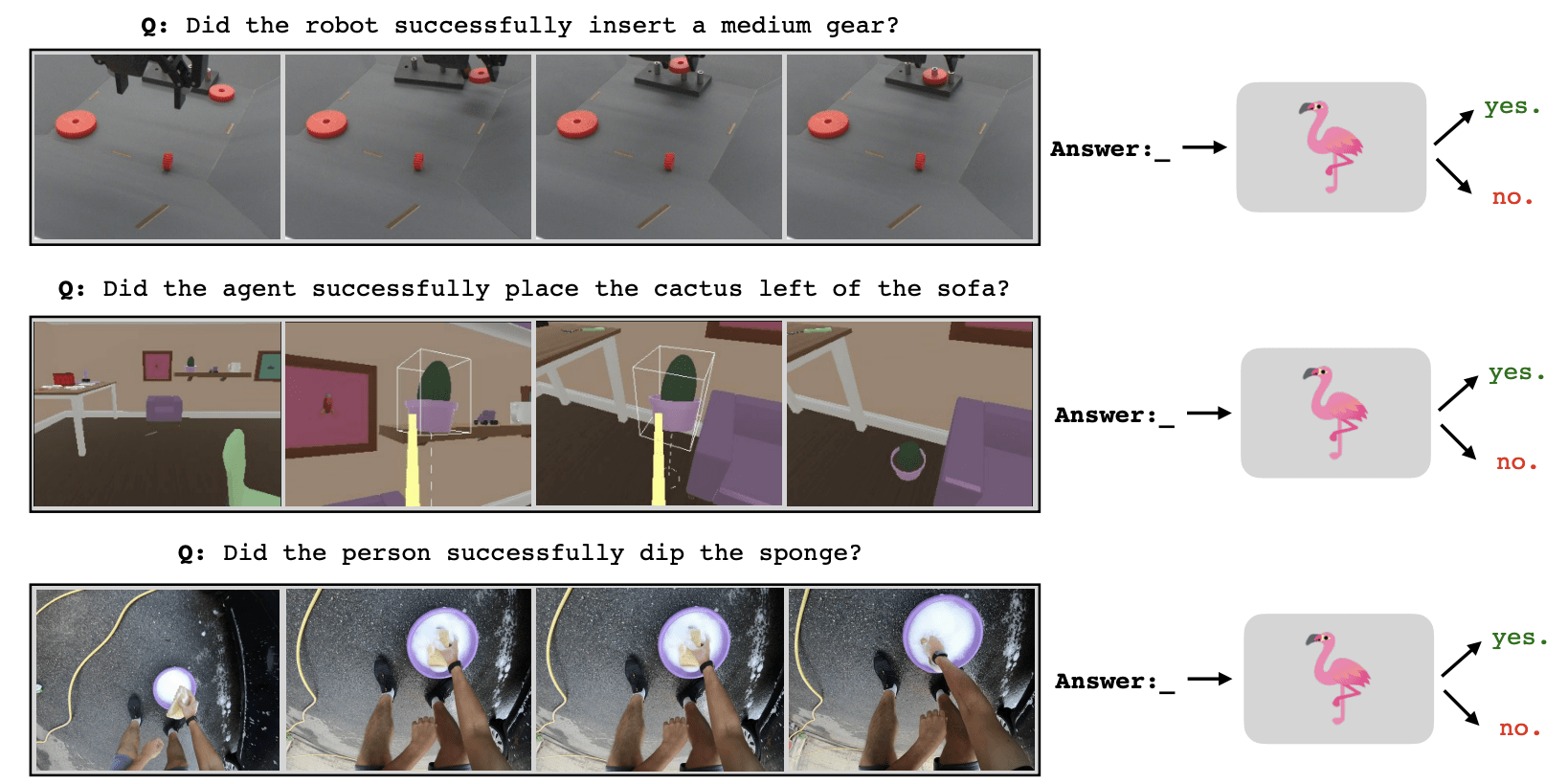

Vision-Language Models as Success Detectors, Du et al., 2023

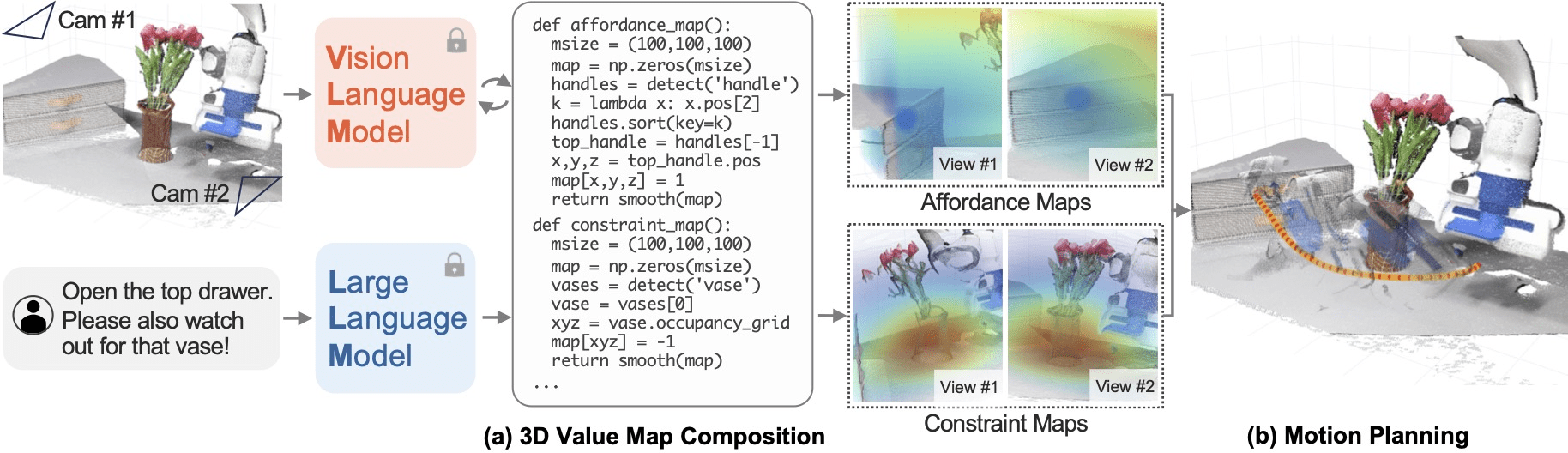

VoxPoser: Composable 3D Value Maps for Robotic Manipulation with Language Models, Huang et al. 2023

Annotate cost for Motion Planning

With all of these...

Foundation Model -> simulations
Foundation Model -> reward / cost
Maybe we can generate internet scale action data with enough compute?

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Video Foundation Models

Boyuan Chen on scaling robotics:

Model scales, data collection doesn't.

Video give you action data.

Why video

Video is how humans perceive the world (physics, 3D)
Video is widely available on the internet
Videos contains human actions and tutorial
Video + LLM give you a world model

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Video is fundamental to vision, e.g. 3D

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

A lot of videos on internet

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

A lot of actions/tutorials

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website

Promise of video prediction

Pre-train on entire youtube, first image + text -> video
Finetune on some robot video
Inference time,
- given observation image + text prompt ->
- video of robot / human hand doing the task ->
- back out actions

MIT 6.4210/6.4212 Guest Lecture By Boyuan Chen, Twitter, Website
