Progress on Dyablo subgrid

Cooling, star formation and units



See #218, #219, #226

Corentin Cadiou

PDRA @ Lund Sweden

Chargé de recherche @ IAP from February

cphyc.github.io

Star formation

Star formation rate is given by

\[\frac{\Delta M_\star}{\Delta t} = \epsilon_\mathrm{ff} \frac{m_\mathrm{g}} {t_\mathrm{ff}} \propto m_\mathrm{g}^{3/2},\]

where

  • \(t_\mathrm{ff}={0.5427}/{\sqrt{\rho_\mathrm{g}G}}\) and,
  • \(\epsilon_\mathrm{ff}\sim 0.01-0.30\) is a user-defined parameter,
  • \(\Delta M_{\star,\mathrm{max}}<0.9\times m_\mathrm{g}\) to prevent full depletion of the cell in one step.



SF is only allowed in cells with

\[n_\mathrm{H}>n_\mathrm{th} \quad\text{and}\quad T<T_\mathrm{th},\]

where \(n_\mathrm{th}\) and \(T_\mathrm{th}\) are user-defined density and temperature thresholds (typically \(\sim 10\,\mathrm{cm^{-3}}\) and \(\sim 500-1000\,\mathrm{K}\)).



Stellar particle has mass

\[M_\star=N\times m_\star,\quad \text{with}\quad m_\star = n_\mathrm{th}\Delta x_\mathrm{min}^3 \text{  and  } N \sim \mathcal{P}\left(\frac{m_\star}{\Delta M_\star}\right).\]



Note: this is mini-ramses' implementation

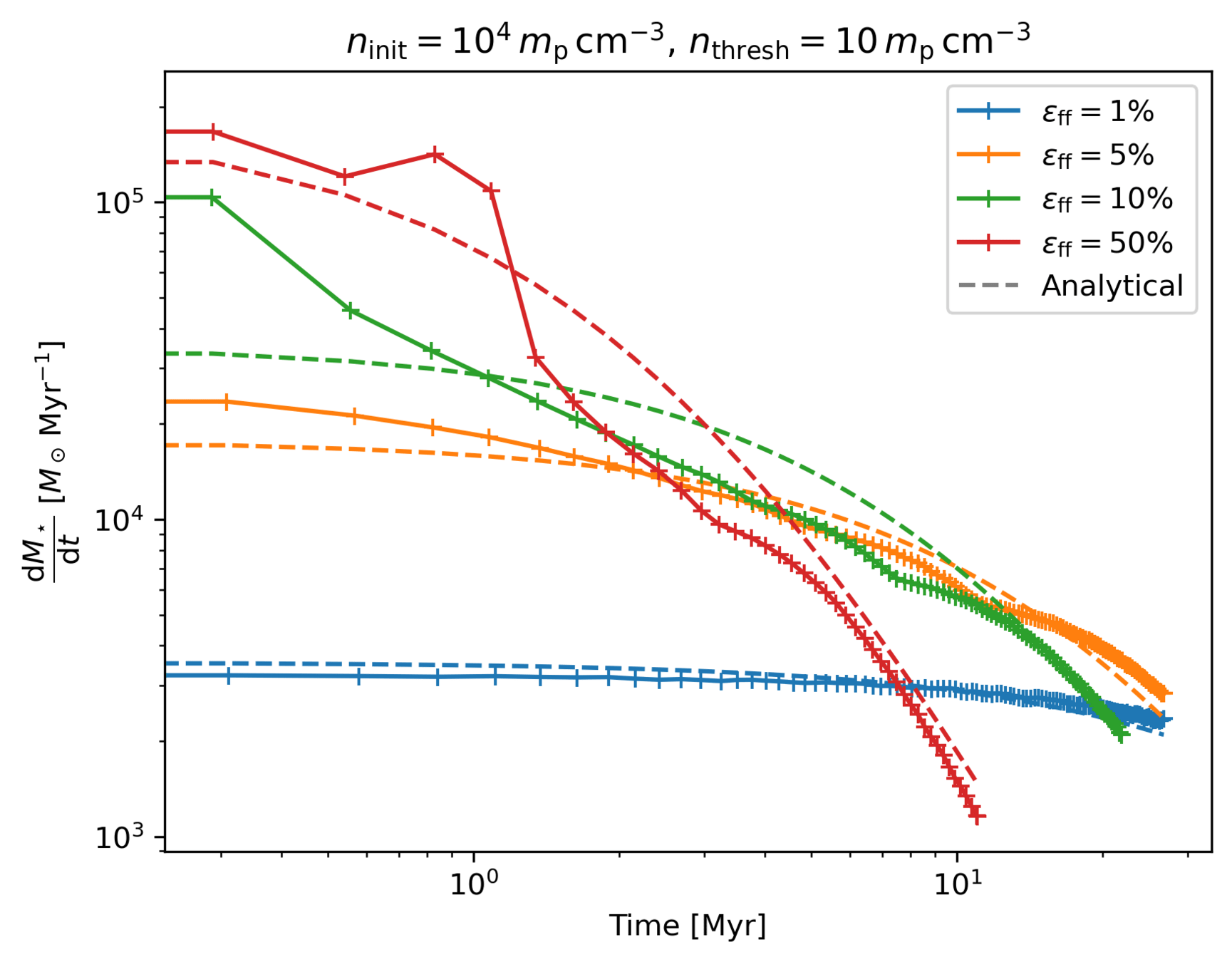

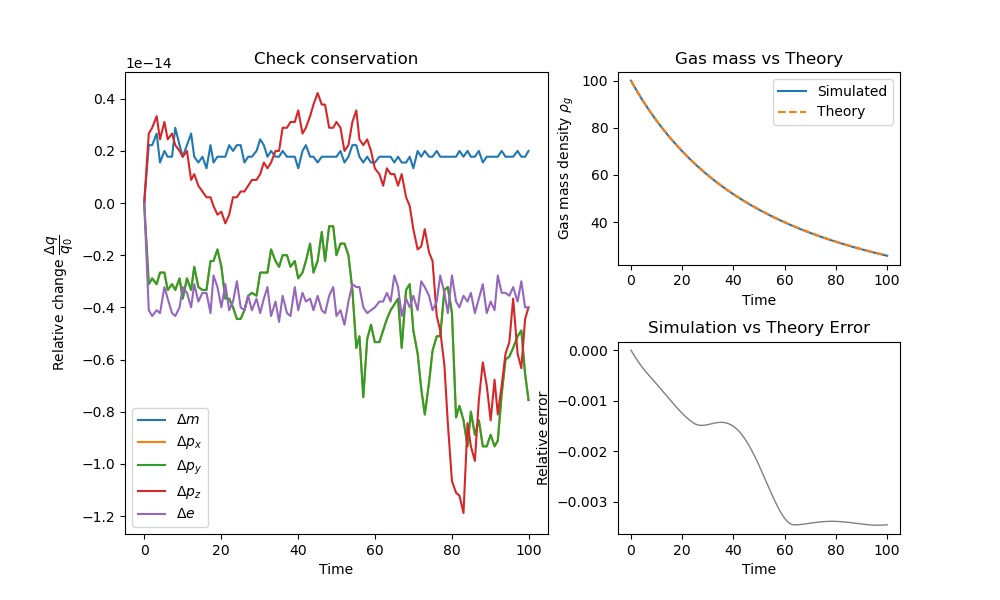

Star formation - test

ICs

  • uniform density grid with
    \(\rho = 10^4\,m_\mathrm{p}\,\mathrm{cm^{-3}}\), \(L_\mathrm{box} = 10\,\mathrm{pc}\)
  • SF above \(n_\mathrm{th}= 10\,\mathrm{cm^{-3}}\)
  • no gravity



Theoretical DERIVATION

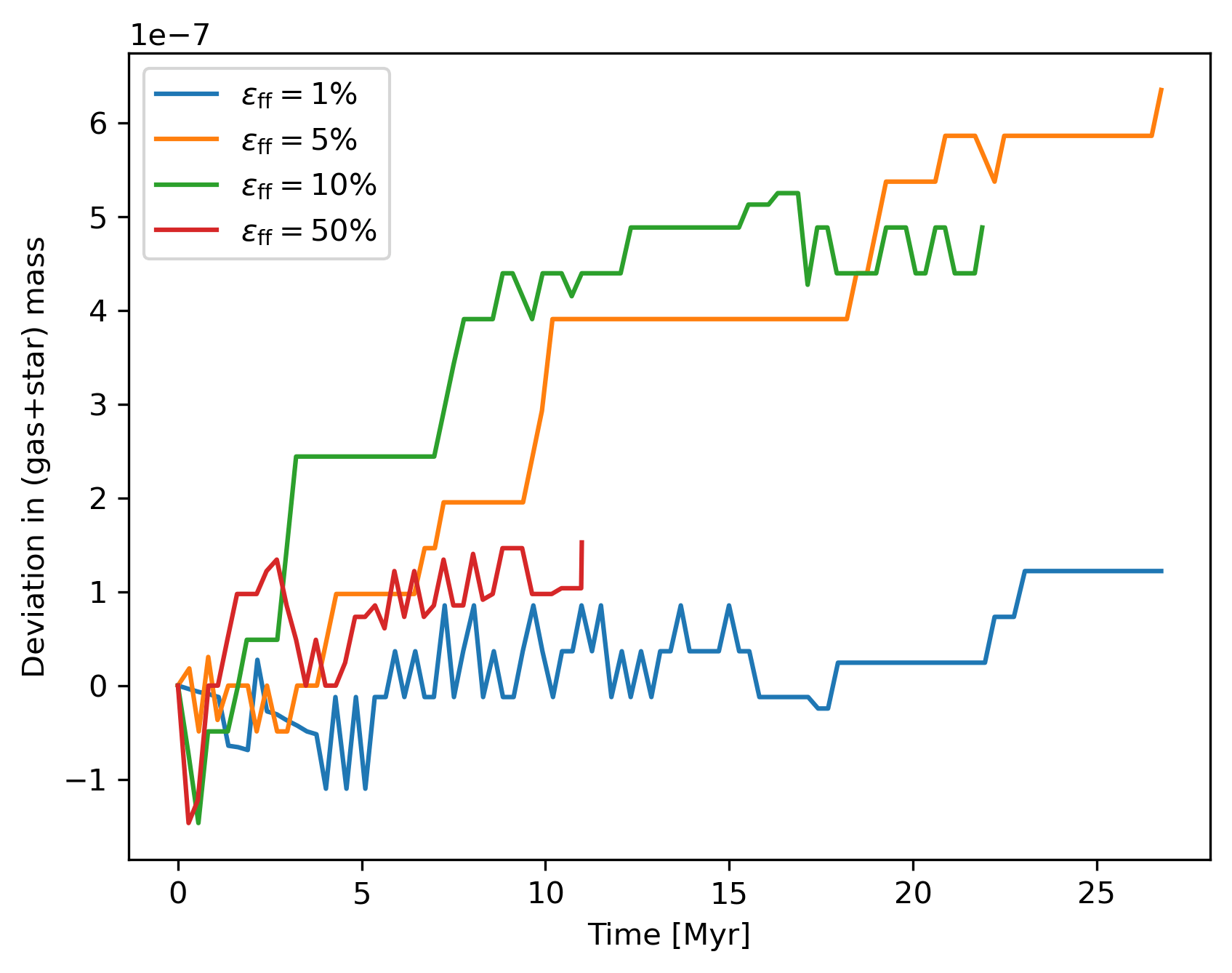

Mass conservation:

\[\dot m_\mathrm{g}+Km_\mathrm{g}^{3/2}=0,\]

where \(K = \sqrt{\frac{\epsilon_\mathrm{ff}^2 G}{0.5427 V}}\), \(V=(10\,\mathrm{pc})^3\) and \(G\) the gravitational constant.



The solution to this equation is

\[m_\mathrm{g} = \frac{4}{(K t - b)^2},\]

with \(b = \sqrt{4 / m_\mathrm{g,i}}\). Given mass conservation, we get the total stellar mass

Analytical solution

\[M_\star(t) = m_\mathrm{g,i}-\frac{4}{(K t - b)^2}.\]

// First pass, count number of cells elligible for SF
uint Nformation_sites = 0;
foreach_cell.reduce_cell( "star_formation_count", U.getShape(),
  CELL_LAMBDA(const ForeachCell::CellIndex& iCell, uint32_t& count)
{
  [...]
}, Nformation_sites);

// Create temporary views to store particle data
Kokkos::View<real_t*> mp("new_particle_mass", Nformation_sites);
Kokkos::View<real_t**> xp("new_particle_pos", Nformation_sites, 3);
Kokkos::View<real_t**> vp("new_particle_vel", Nformation_sites, 3);

// Second pass, effectively create particle properties
uint Npart_created = 0;
foreach_cell.reduce_cell( "star_formation_spawn", U.getShape(),
  CELL_LAMBDA(const ForeachCell::CellIndex& iCell, uint32_t& count)
{
  [...]
}, Npart_created);


// Increase the number of particles
uint32_t Npart_old = U.getParticleArray("particles").getNumParticles();
U.growParticleArray("particles", Npart_old + Npart_created);

// Copy the temporary views to the particle array
Kokkos::parallel_for("star_formation_create", Npart_created,
  KOKKOS_LAMBDA(uint32_t iPart)
{
  [...]
});

Shortcomings:

  • Many formation sites, few stars created

  • Two passes required

  • Growing array: temporarily doubles memory + is slow
    \(\mathcal{O}(N_\mathrm{part})\)
  • Analytical
  • No metallicity dependence
  • Simple redshift dependence (UV-heating + compton)

Cooling

Theuns+98 implementation

\[\frac{\mathrm{d}u}{\mathrm{d}t} = \left(\frac{1-Y}{m_\mathrm{H}}\right)^2\rho({\color{red}\mathcal{H}}-{\color{blue}\mathcal{C}})\]

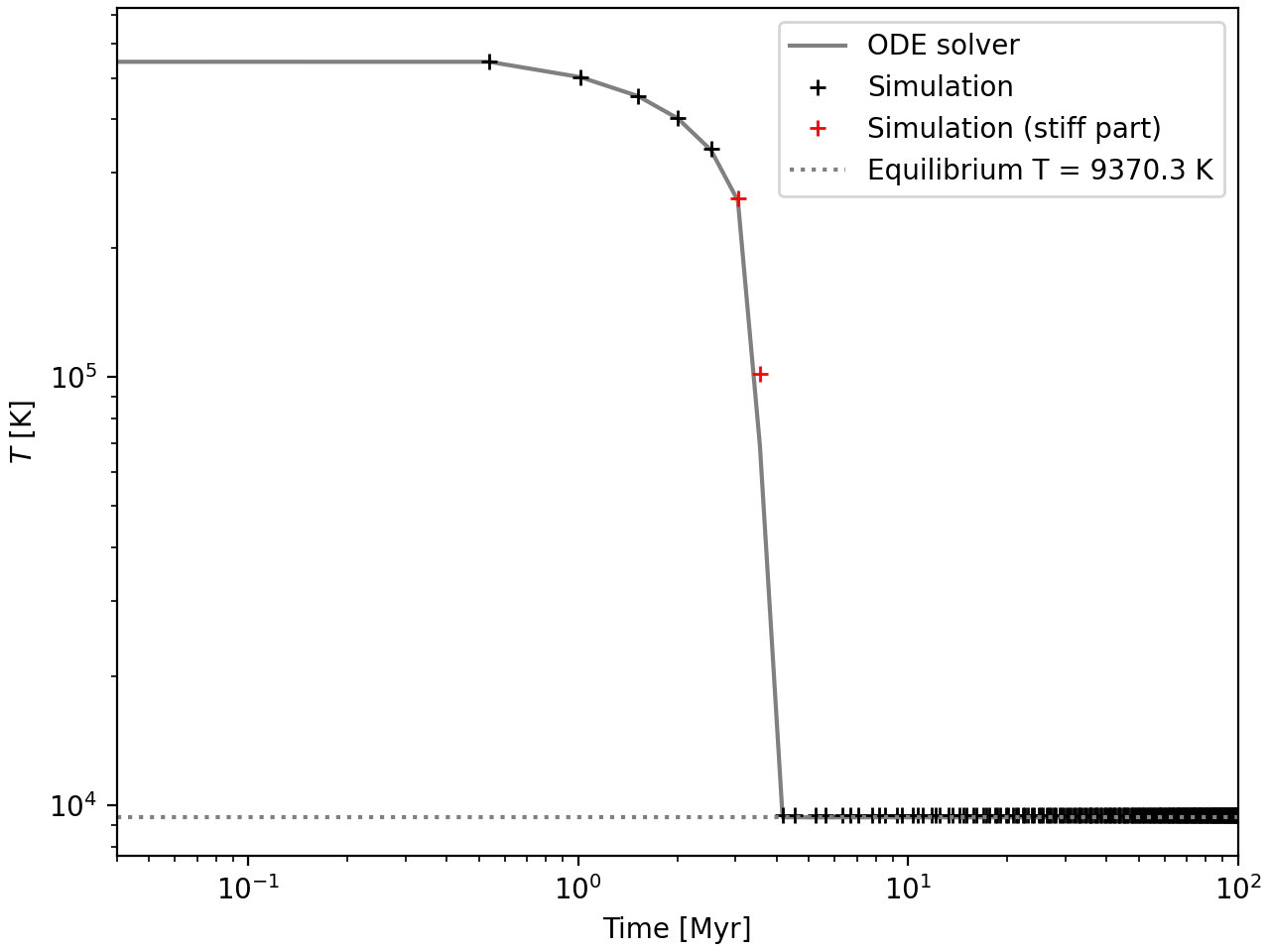

Cooling

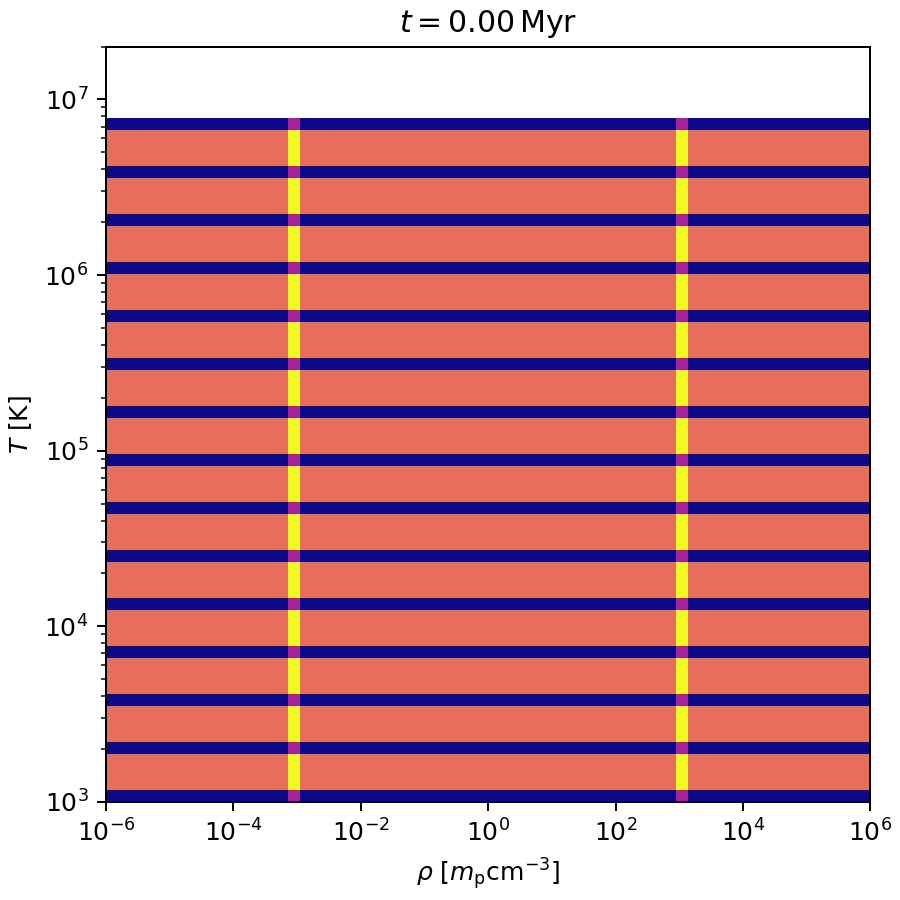

Test:

  • thin \(x,y\) slab with grid of
    \(\rho=10^{-6}-10^6\,m_\mathrm{p}\,\mathrm{cm}^{-3}\)
    and
    \(T=10^2-10^7\,\mathrm{K}\).
  • hydro bypassed,
  • activate cooling,
  • let evolve outputs.



Note 1: \(T\) may be off by factors \(\mu\), \(\Lambda\) may be off by factor \(X\).

foreach_cell.foreach_cell("cooling", U.getShape(),
CELL_LAMBDA(const ForeachCell::CellIndex& iCell)
{
  while (t_cool < dt * scale_t) {
    // Get abundances (in eq or not)
    real_t    HI = interpolate(   HI_table, iz, iT, inH);
    [...]
    real_t HeIII = interpolate(HeIII_table, iz, iT, inH);
    real_t e = HII + HeII + 2 * HeIII;

    // Compute heating/cooling terms [erg/s.cm**3]
    real_t net_cooling, H, C;
    C = cooling(T_over_mu, nH, z, e, HI, HII, HeI, HeII, HeIII);
    H = heating(nH, z, HI, HeI, HeII);

    // Compute cooling [K/s]
    net_cooling = (C - H) * nH / threekB_over_twoX;

    // Cooling timescale [s]
    dt_cool = FMIN(
      // do not allow more than 25% change in temperature
      FABS(T_over_mu * 0.25 / net_cooling),
      // do not overshoot the remaining time
      dt * scale_t - t_cool
    );

    T_over_mu -= net_cooling * dt_cool;

    // Update cooling time
    t_cool += dt_cool;

    Nstep++;
  }
}};

Pros/cons:

  • Already supports non-eq chemistry [untested],

  • Stability issues and negative pressures

  • Warp divergence on GPUs

Units

The old RAMSES way

subroutine dummy_sfr
    call units([...], scale_d, [...], aexp)


    do icell = 1, ncell   ! Loop over cells
        rho = uold(icell, 1) / scale_d  ! Convert to g/cm**3
        rho = uold(icell, 1) * scale_d  ! Which one is correct?

        rho = rho / mp                  ! Convert to mp/cm**3

        if (rho < rho_treshold) then    ! Implicit: rhs is in mp/cm**3
            ! do stuff
        end if
    end do
end subroutine

Units
two distinct problems

  • unitful inputs/outputs
  • conversion to/from code units

Discussion points:

  • Code units are comoving → conversion is time-dependent
// In kernel:
//   real     → code units     [comoving]
real_t rho = Uin.at(iCell, IRho);

// The RAMSES' way
real_t rho_cgs = rho * some_conversion_factor;

// BETTER?
if (rho < rho_treshold.toCode) {...}
if (rho < 10 * mp_per_cc.toCode) {...}

rho * mp_per_cc.fromCode;

Conversion to/from code units

Discussion points:

  • either all or no parsing,
  • robust parsing is hard.

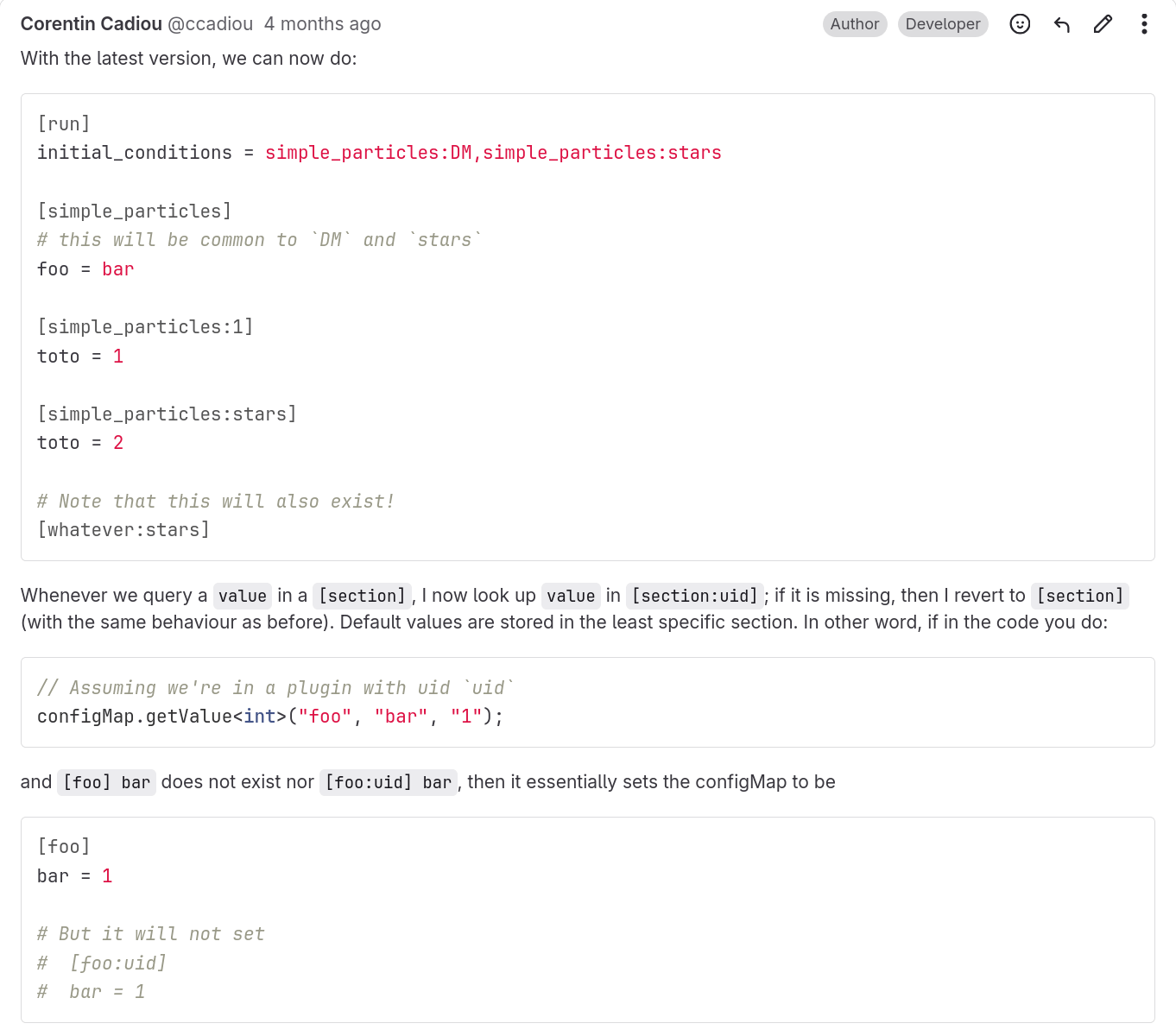

Input/output units

[star_formation]
rho_threshold = 10 mp/cm**3
// Read config file:   Dyablo's initialization
auto config = readConfig();

// Get runtime params: plugin initialization
auto rho_threshold = config.get<…>("star_formation", "rho_threshold");
typedef Density     = Unit<M=1, L=-3>;
typedef Temperature = Unit<Temp=1>;

// In plugins:
// -- init --------------------------------------------------!
Quantity<Density> rho_threshold = configMap.get<Density>("star_formation", "rho_threshold");
auto T_threshold = configMap.get<Temperature>("star_formation", "T_threshold");


// -- update ------------------------------------------------!
auto erg  = Units::erg;
auto s    = Units::s;
auto cm3  = Units::cm.pow<3>();

Unit<M=1, L=3, T=-3> erg_per_s_cc (erg / s * cm3, scalarData);

real_t rho_threshold = this->rho_threshold.toCode(scalarData);

foreach_cell.reduce_cell("do_stuff", U.getShape(),
  CELL_LAMBDA(const ForeachCell::CellIndex& iCell) {
    real_t rho = Uin.at(iCell, VarIndex_Cooling::Irho);

    if (rho > rho_threshold) {...}

    real_t cooling_rate = table(...)   * erg_per_s_cc.toCode;
    real_t …            = cooling_rate * erg_per_s_cc.fromCode;
});
// config.ini
[star_formation]
rho_threshold = 10 mp/cm**3

Units: Proposed draft
