Cryptocurrencies & Blockchain Techs

What is money?

  • A medium of exchange
  • A unit of account
  • A store of value
  • A standard of deferred payment

How to create money?

  • M0: cash money created by a central bank by minting coins and printing banknotes
  • M1/M2: money created by private banks through the recording of loans as deposits of borrowing clients
    • Currently created as electronic money

Rai stones from Yap

Bitcoin

  • A cryptocurrency invented by Satoshi Nakamoto
  • Verified transactions are recorded in a public distributed ledger
  • A decentralized digital currency

Key technologies

  • Ownership established using digital signatures
  • Transaction history in tamper-evident logs, a.k.a. blockchains
  • Decentralization via consensus protocols

Digital signatures

The cannonball problem

The method of Diophantus

  • 12+22++x2=x(x+1)(2x+1)6=y21^2+2^2+\cdots+x^2=\frac{x(x+1)(2x+1)}{6}=y^2
    • Two trivial solutions: (x,y)=(0,0)(x,y)=(0,0) or (1,1)(1,1)
  • The line through these two points is y=xy=x, which intersects with the curve and gives the equation x332x2+12x=0x^3-\frac{3}{2}x^2+\frac{1}{2}x=0
    • The third root is x=12x=\frac{1}{2}

Repeat for (1,1) & (1/2,-1/2)

  • The line is y=3x2y=3x−2, so the equation is x3512x2+=0x^3-\frac{51}{2}x^2+\cdots=0
    • The third root is x=24x=24, so y=70y=70, i.e., 12+22++242=7021^2+2^2+\cdots+24^2=70^2
  • If we keep repeating this procedure, we'll obtain infinitely many rational solutions to our equation
  • However, it can be shown that (24,70)(24,70) is the only non-trivial solution in positive integers

The congruent number problem

  • The question of which integers nn can occur as areas of right triangles with rational sides is known as the congruent number problem
  • E.g., n=5n=5: are there rational numbers a,b,ca,b,c s.t. a2+b2=c2,ab=10?a^2+b^2=c^2,ab=10?
  • Equivalently, c2+20=(a+b)2,c220=(ab)2c^2+20=(a+b)^2,c^2-20=(a-b)^2
  • Let x=(c/2)2x=(c/2)^2: y2=(x+5)x(x5)=x325xy^2=(x+5)x(x-5)=x^3-25x

Diophantus revisited

  • Consider the tangent line at (4,6)(−4,6): y=2312x+413,y=\frac{23}{12}x+\frac{41}{3}, which intersects the curve and gives x3(2312)2x2+=0x^3-\left(\frac{23}{12}\right)^2x^2+\cdots=0
  • The third root is (23/12)2+4+4=(41/12)2(23/12)^2+4+4=(41/12)^2, i.e., a=203,b=32,c=416a=\frac{20}{3},b=\frac{3}{2},c=\frac{41}{6}
  • There are infinitely many other solutions, which can be obtained by successively repeating this procedure

An elliptic curve EE is the graph of an equation of the form y2=x3+Ax+By^2=x^3+Ax+B, where AA and BB are constants.  This will be referred to as the Weierstraß equation for an elliptic curve.  We will need to specify what set A,B,xA,B,x and yy belong to.  Usually, they will be taken to be elements of a field, for example, the real numbers R\mathbb R, the complex numbers C\mathbb C, the rational numbers Q\mathbb Q, one of the finite fields Fp(=Z/pZ)\mathbb F_p(=\mathbb Z/p\mathbb Z) for a prime pp, or one of the finite fields Fq\mathbb F_q, where q=pkq=p^k with k1k\geq 1.  If KK is a field with A,BKA,B\in K, then we say that EE is defined over KK.

Points on elliptic curves

  • If we want to consider points with coordinates in some field LKL\supseteq K, we write E(L)E(L)
  • By definition, this always contains the point at infinity: E(L)={}{(x,y)L×L:y2=x3+Ax+B}E(L)=\Big\{\infty\Big\}\bigcup\Big\{(x,y)\in L\times L:y^2=x^3+Ax+B\Big\}
  • E(L)E(L) is an abelian group

Group operations in E(L)E(L)

Elliptic curve cryptography

  • Security depends on the hardness of the elliptic curve discrete logarithm problem (ECDLP)
    • Given a point QGE(L)Q\in G\subseteq E(L) and a generator PP of G,G, find an integer nn s.t. nP=QnP=Q
  • Pros: smaller keys and ciphertexts for achieving same security level as DLP-based cryptosystems
    • 160–256\text{160--256} bits vs. 1024–3072\text{1024--3072} bits
  • Cons: security is achieved only over secure curves

ECDSA

  • To sign a message mm:
    1. hH(m)h\leftarrow H(m)
    2. k$(Z/qZ)k\stackrel{\$}{\leftarrow}(\mathbb Z/q\mathbb Z)^*
    3. rf(kP)modq\color{blue}r\color{black}\leftarrow f(kP)\bmod q
    4. s(h+xr)/kmodq\color{blue}s\color{black}\leftarrow(h+\color{red}x\color{blue}r\color{black})/k\bmod q
  • To verify signature (r,s)\color{blue}(r,s):
    1. hH(m)h\leftarrow H(m)
    2. ah/smodqa\leftarrow h/\color{blue}s\color{black}\bmod q
    3. br/smodqb\leftarrow \color{blue}r\color{black}/\color{blue}s\color{black}\bmod q
    4. f(aP+bQ)=?rmodqf(aP+bQ)\stackrel{?}{=}\color{blue}r\color{black}\bmod q

Why it works? f(aP+bQ)=f(aP+bxP)=f(h+xrsP)=f(kP)f(aP+bQ)=f(aP+b\color{red}x\color{black}P)=f(\frac{h+\color{red}x\color{blue}r\color{black}}{s}P)=f(kP)

Digital signatures in Bitcoin

  • ECDSA over curve secp256k1
    • Public/private keys: 33 or 65 bytes
    • Signatures: 71, 72, or 73 bytes
  • Bitcoin address = RIPEND160(SHA256(pk)): 20 bytes

Bitcoin transactions

  • Transactions consist of 1\geq 1 inputs and 1\geq 1 outputs
  • To prevent double spending, each input must refer to a previous unspent transaction output (UTXO)

Merkel trees

Blockchains as

tamper-evident logs

The Bitcoin consensus protocol

  • New transactions are broadcast to all nodes
  • Each node collects transactions into a block and broadcasts the block as its proof of work
  • Other nodes accept the block only if all transactions in it are valid, i.e., unspent with valid signatures
  • Nodes express their acceptance of the block by including its hash in the next block they create

Incentivization via mining

  • Bitcoin miners' incentives
    • Transaction fees
    • Block rewards
      • Started being 50 bitcoins in 2009, now 3.125
      • Cut in half every 4 years to limit supply to ≈21M
  • Best strategy: when there are multiple chains of blocks, follow the longest chain of blocks
opcode mnemonic description
0x01–0x4b push next opcode bytes of data
0x69 OP_VERIFY if (pop() != true) then fail
0x76 OP_DUP let x := pop() in push(x) push(x)
0x87 OP_EQUAL push(pop() == pop())
0x88 OP_EQUALVERIFY = OP_EQUAL OP_VERIFY
0xa9 OP_HASH160 push(RIPEND160(SHA256(pop())))
0xac OP_CHECKSIG verify signature

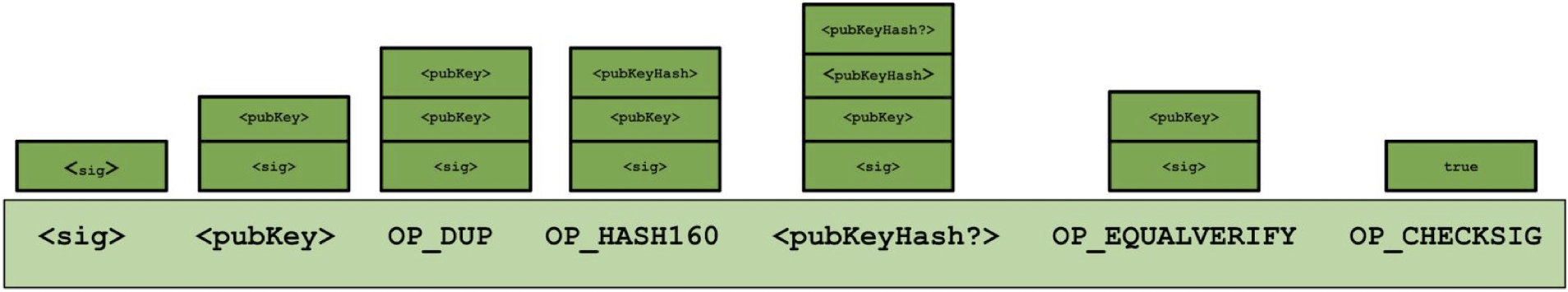

Executing P2PKH scripts

  • Pay-to-PubkeyHash
    • scriptSig: <sig> <pubKey>
    • scriptPubKey: OP_DUP OP_HASH160 <pubKeyHash?> OP_EQUALVERIFY OP_CHECKSIG
  • Pay-to-ScriptHash
    • scriptSig: ...signatures... <serialized script>
    • scriptPubKey: OP_HASH160 <scriptHash> OP_EQUAL

Ethereum

  • Proposed in late 2013 by Vitalik Buterin
  • Went live on 30 July 2015
  • Stewarded by nonprofit foundation
  • Turing-complete scripts, a.k.a. smart contracts
    • A contract is a program that lives on the blockchain
    • A dApp is a collection of integrated contracts
    • A decentralized autonomous organization (DAO) is an organization represented by rules encoded as contracts on a blockchain

An example contract

contract NameRegistry {
  mapping(bytes32 => address) public registryTable;
  function claimName(bytes32 name) {
    if (msg.value < 10) {
      throw;
    }
    if (registryTable[name] == 0) {
      registryTable[name] = msg.sender;
    }
  }
}

Opportunities

  • Electronic payment
  • Asset tokenization
  • Provenance tracking
  • Digital identity
  • Custody & escrow
  • Automation

Challenges

  • Operating models and regulation
  • Scalability
  • Privacy
  • Latency
  • Integration

Lack of privacy on blockchains

  • H(x)H(x) is a "proof" of xx
  • To verify, however, need to reveal xx
  • Zero-knowledge proofs:
    • Can prove without revealing xx

Questions or comments?
