Managing Complexity

• Environments are complex
  • Distributed + cloud based
  • CI/CD
  • Containerized workloads

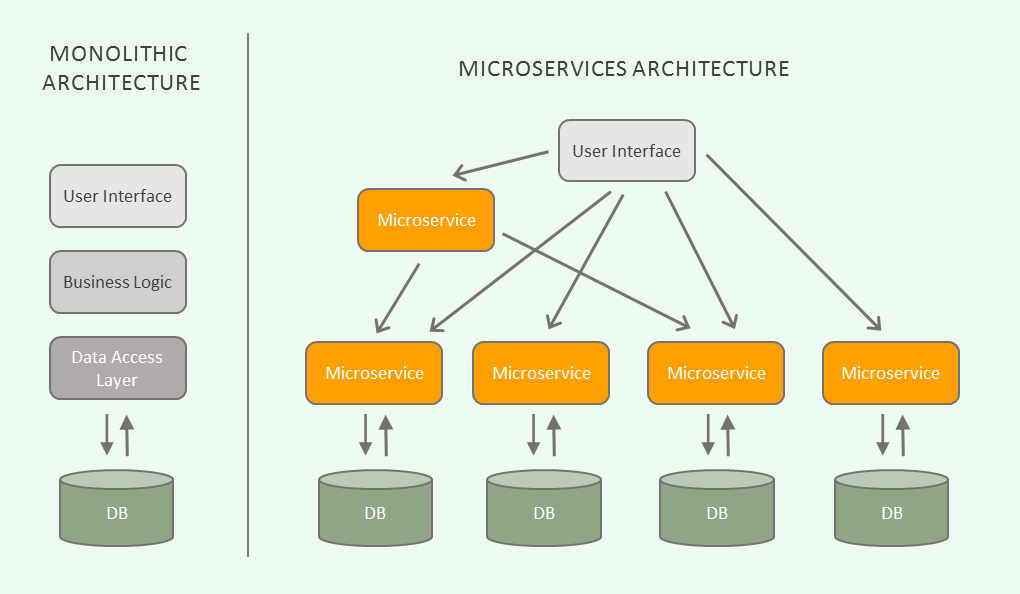

  • Microservices architecture

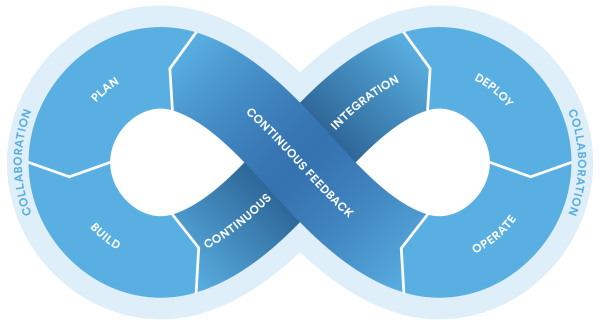

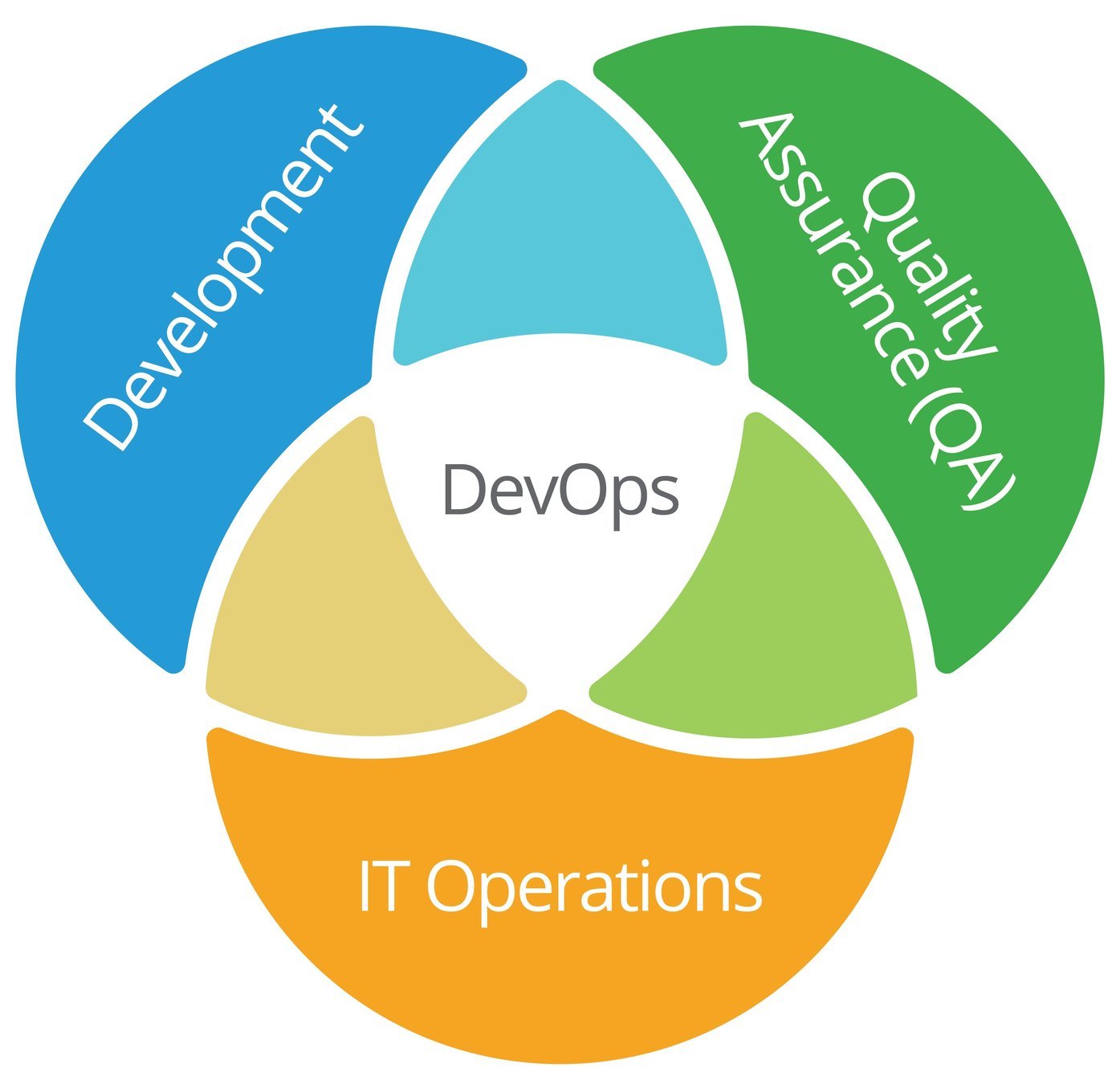

• Automation is at the center of DevOps
• Actual vs. desired state
  • Controllability
    • State deterministic from inputs

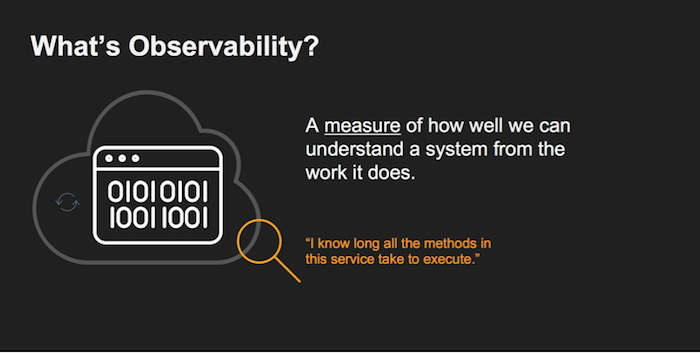

  • Observability
    • ​State can be determined from outputs

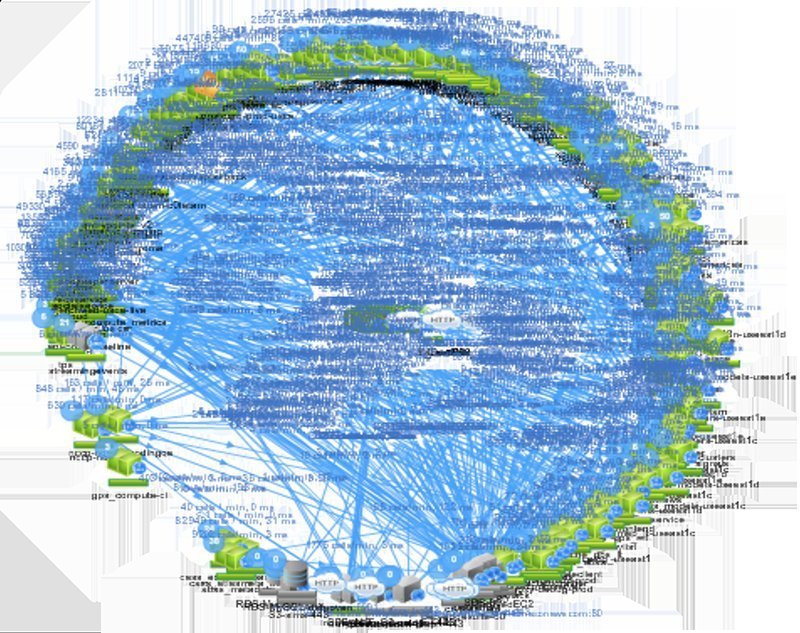

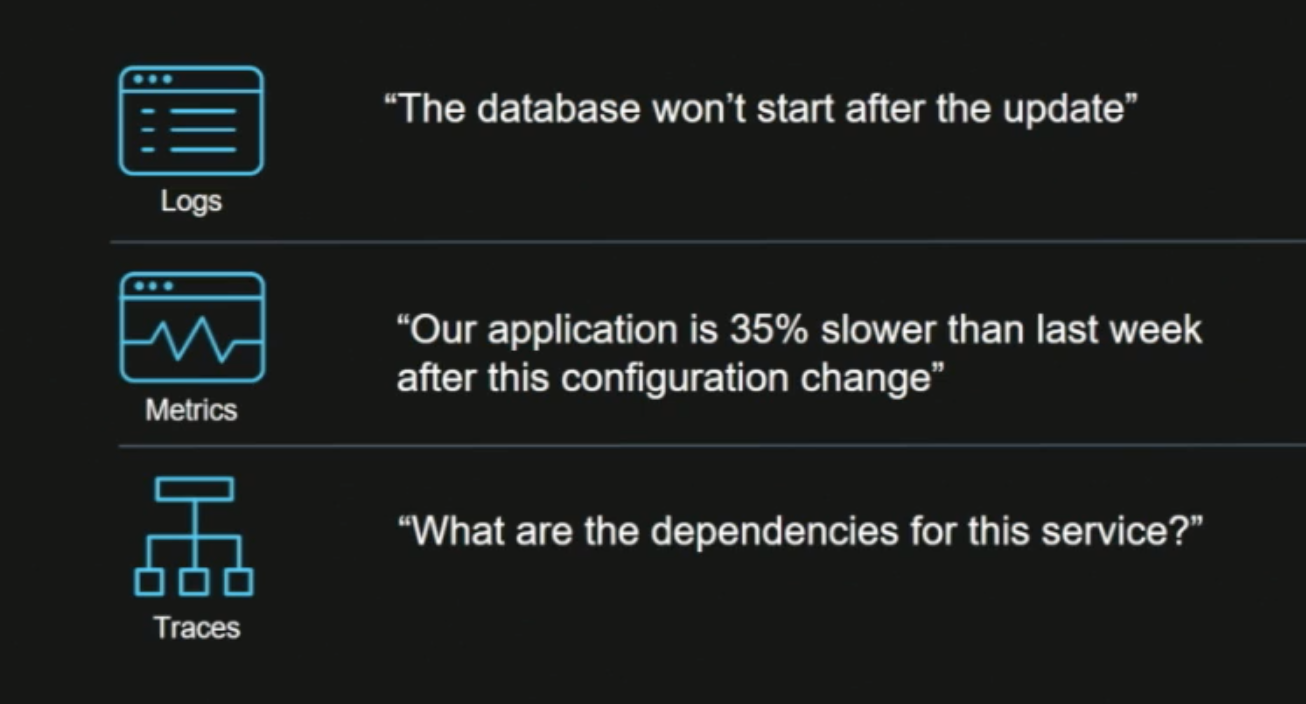

Netflix's Deathstar

Logs

Logs

Evolution of log analytics

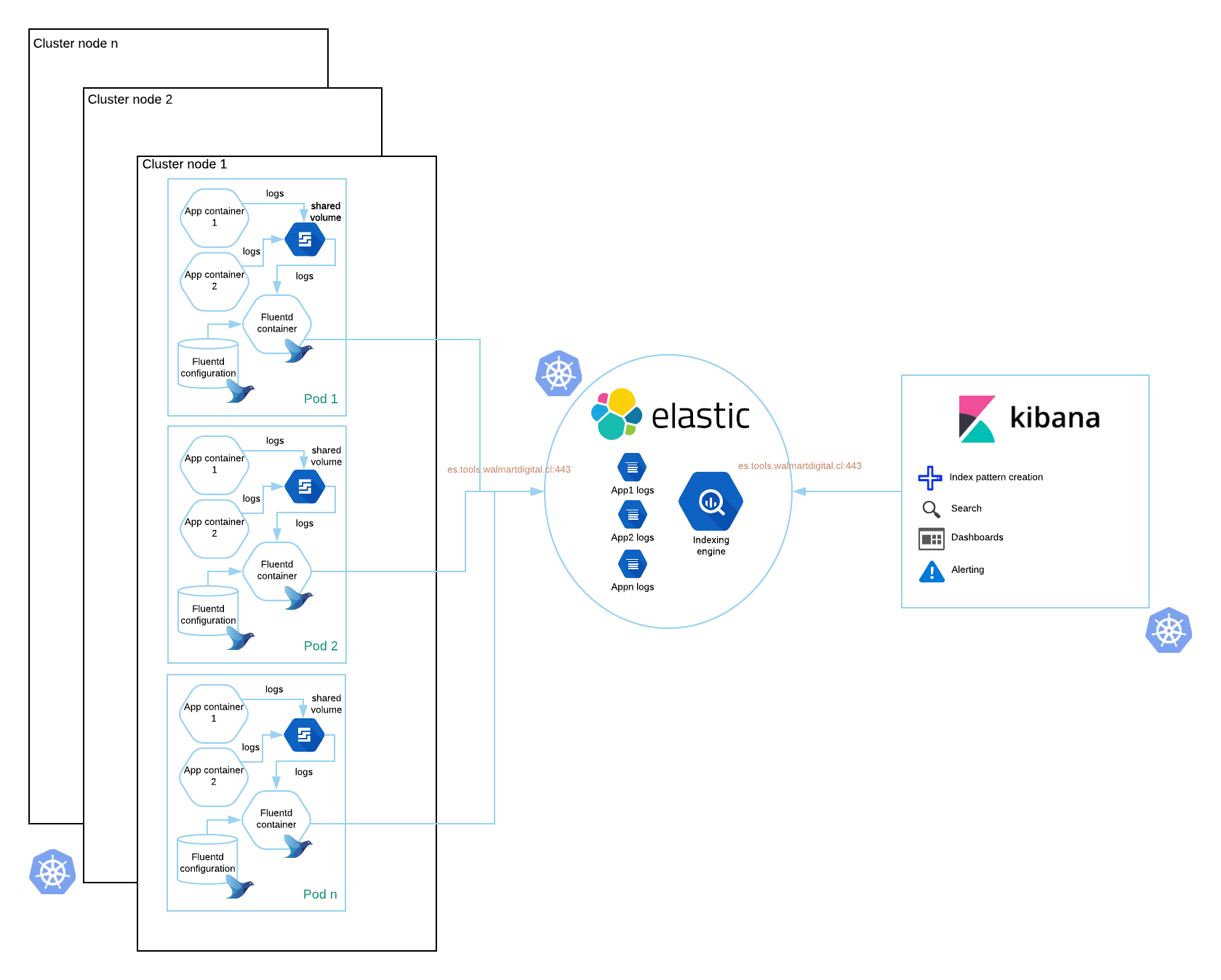

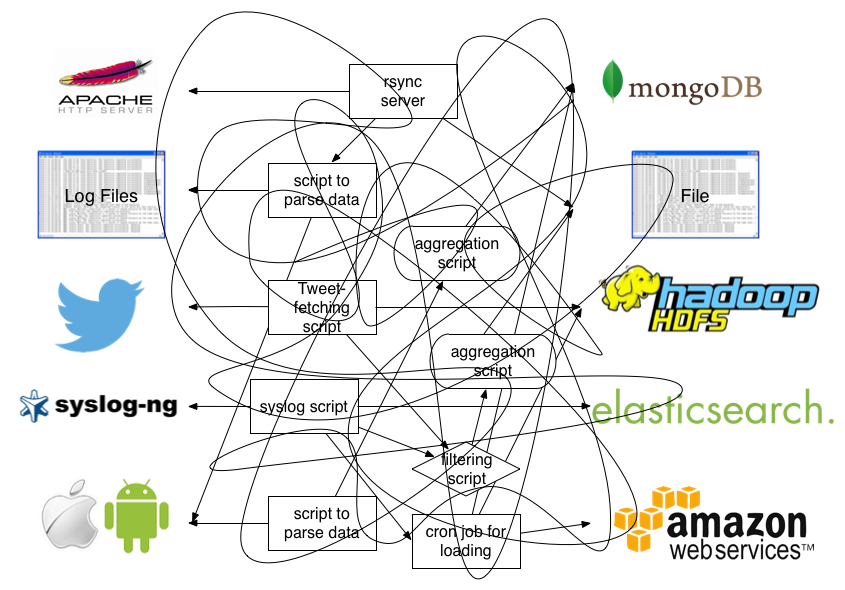

Challenges of logging

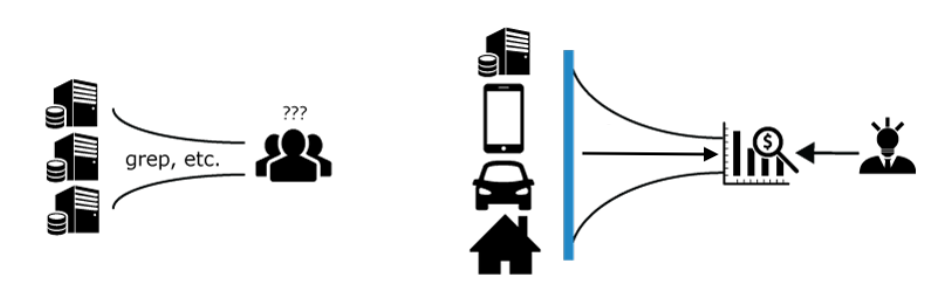

• Cloud-native data collector for a unified logging layer
  • A single interface for multiple
    • Data sources
    • Destinations
  • Horizontally-scalable and provides reliable data transfers
    • Small memory footprint
• Plugin architecture for input, parsing, filtering, formatting and outputting logs

Elasticsearch

• Distributed and highly-available RESTful search engine
  • ​​​Full-text search
  • Each index is sharded to paralellize operations
  • Shard replicas for HA
• JSON-document oriented​
  • No need for upfront schema definition
• (Near) real-time search

Inverted index

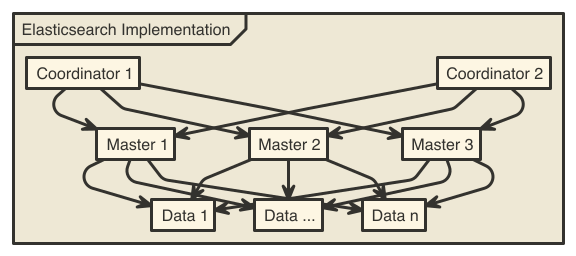

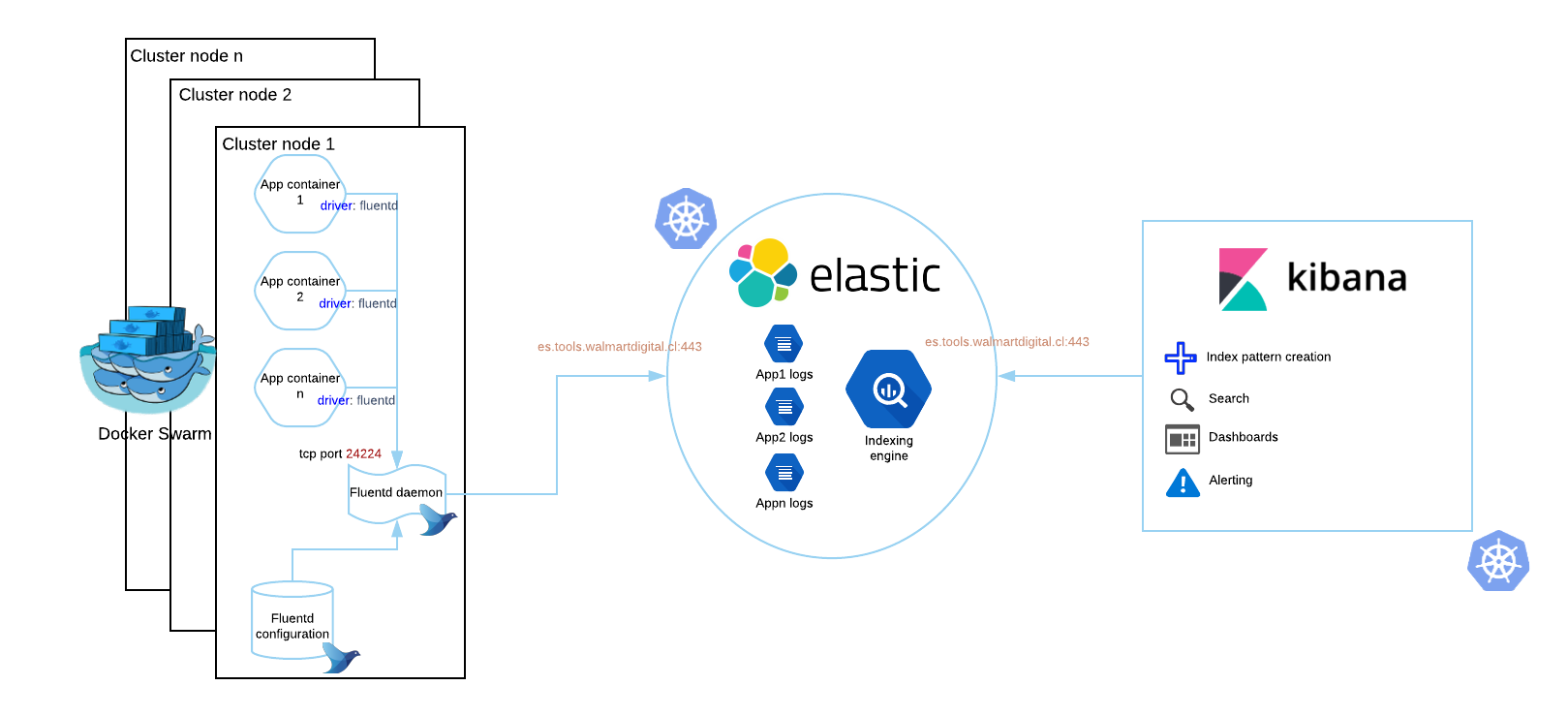

ES cluster design

• Analytics and visualization for Elasticsearch
  • ​Search, view, and interact data stored in indices
• Filter events based on tags such as environments, application names, K8s namespaces, etc...
• Advanced time-series data analysis
• Create custom dashboards including histograms, line graphs, pie charts and sunbursts

Examples

• Docker Swarm
  • https://bitbucket.org/walmartdigital/bff-black-cyber/src/285af956fdd748a843793f2a5aa2786ba758166d/stack.yml?at=master#stack.yml-20,22,64,66,98
• K8s
  • https://bitbucket.org/walmartdigital/backend-k8s/src/c8e4c3e141fa42d6eb203266eaff645b96d35b9b/deployments/production/eastus2/grocery/production/oms/broker/deployment.yaml
  • https://bitbucket.org/walmartdigital/backend-k8s/src/master/deployments/production/eastus2/grocery/production/shared/configmap.yaml

Metrics

Metrics

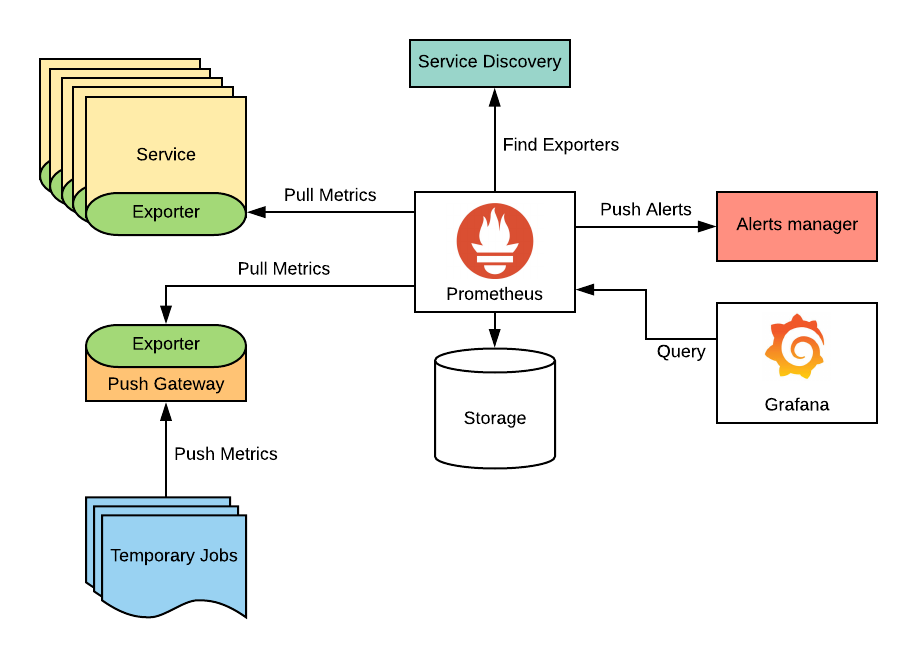

Prometheus

• Monitoring system and time series database
• Time series collection happens via a pull model over HTTP
• Trigger alerts when a rule expression is evaluated from given time interval
• Multiple modes of graphing and dashboarding supported
• Flexible query language to leverage multiple dimensions
• Targets are discovered via service discovery or static configuration (like consul)

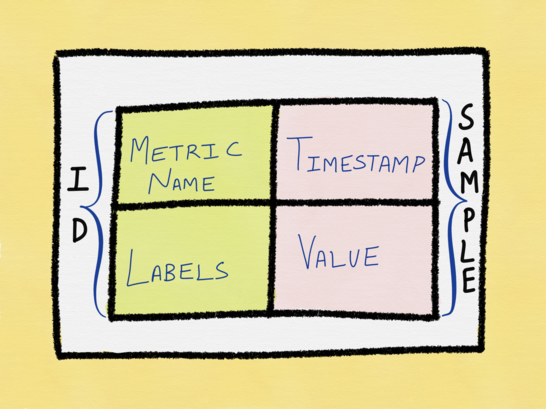

Anatomy of a Prometheus Metric

Grafana

• Feature-rich metrics dashboard and graph editor for multiple datasources like Elasticsearch, OpenTSDB, Prometheus and InfluxDB
• Allows to query, visualize, alert and understand metrics no matter where they are stored
• Templating queries for generic dashboards
• Different ways to visualize metrics and logs
• Alias patterns for short readable series names

Examples

• Production Prometheus instance:
  • https://prometheus.tools.walmartdigital.cl/graph
• Business-model metrics
  • https://bitbucket.org/walmartdigital/job-metrics/src/master/src/index.js
• System-level metrics
  • https://bitbucket.org/walmartdigital/midas-nats/src/master/stack.yml

• APM for micro-services-based applications
• Real-time alerting and notifications
  • Integrations with web hook, slack, email
• 1 second metric granularity
• Monitoring multiple client technologies based on Sensors​
• Full-stack distributed tracing
  •  Traces every single request
• Auto-discovery, data collection, and dynamic graph features

Examples

• Production Instana instance:
  • https://production-walmartdigital.instana.io
  • mercurio-slots-api service dashboard
    • https://production-walmartdigital.instana.io/#/service;serviceId=157e9ee1ac301b74f25f15dd7280ddbd273f01e4/summary?timeline.to&timeline.ws=3600000
• Grafana panel from Instana metrics
  • https://grafana.tools.walmartdigital.cl/d/XqGwU-Qik/slots?refresh=5s&orgId=1

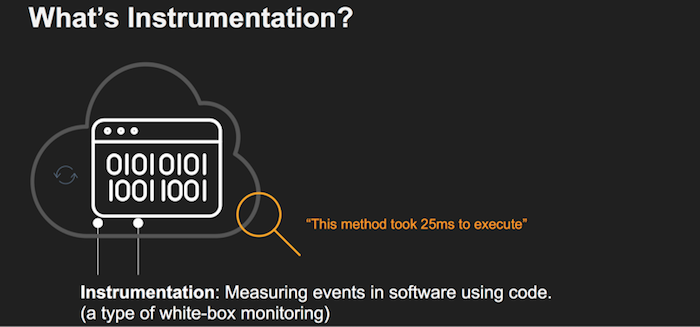

Tracing

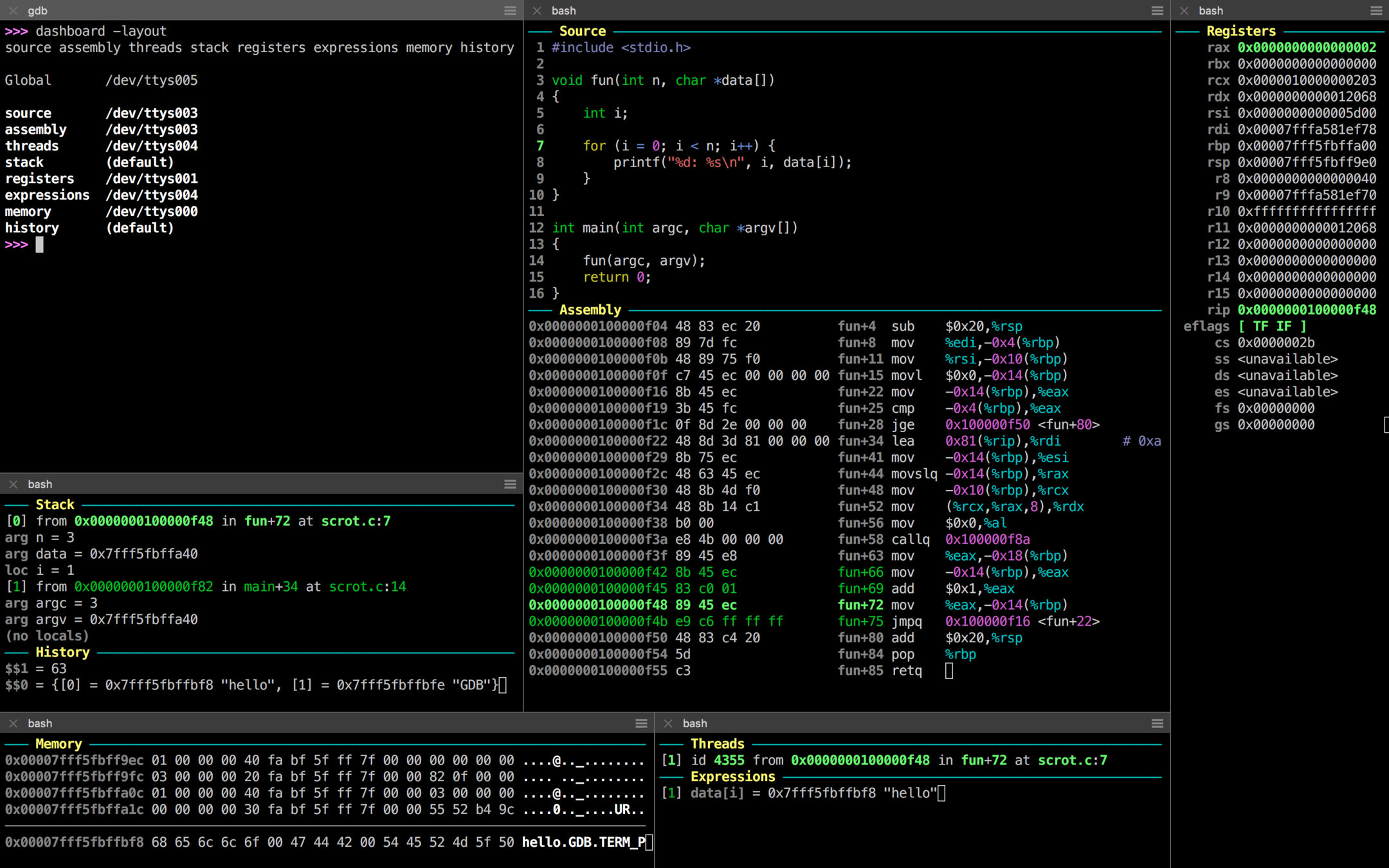

Oldschool Debugging

Tracing

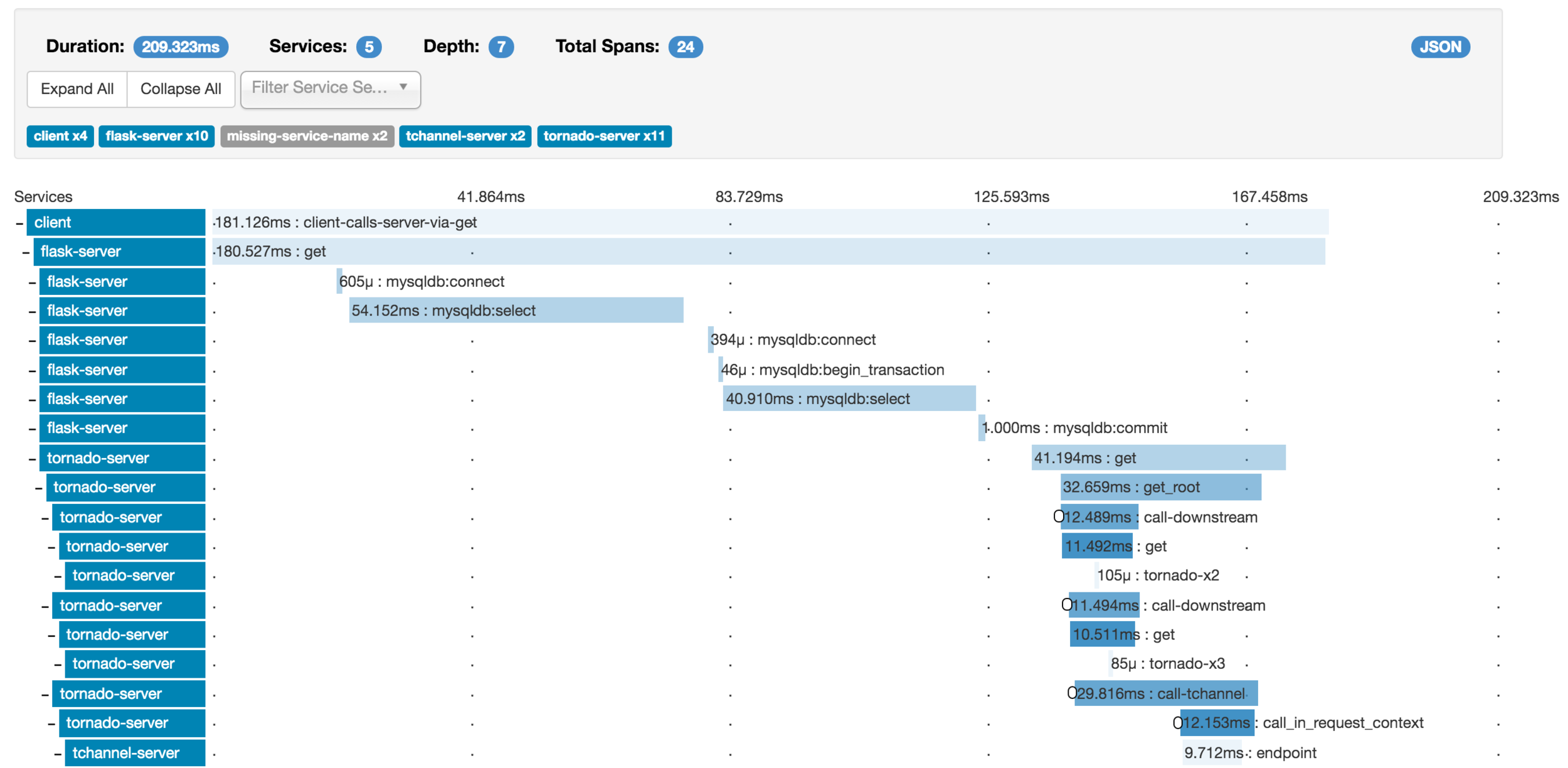

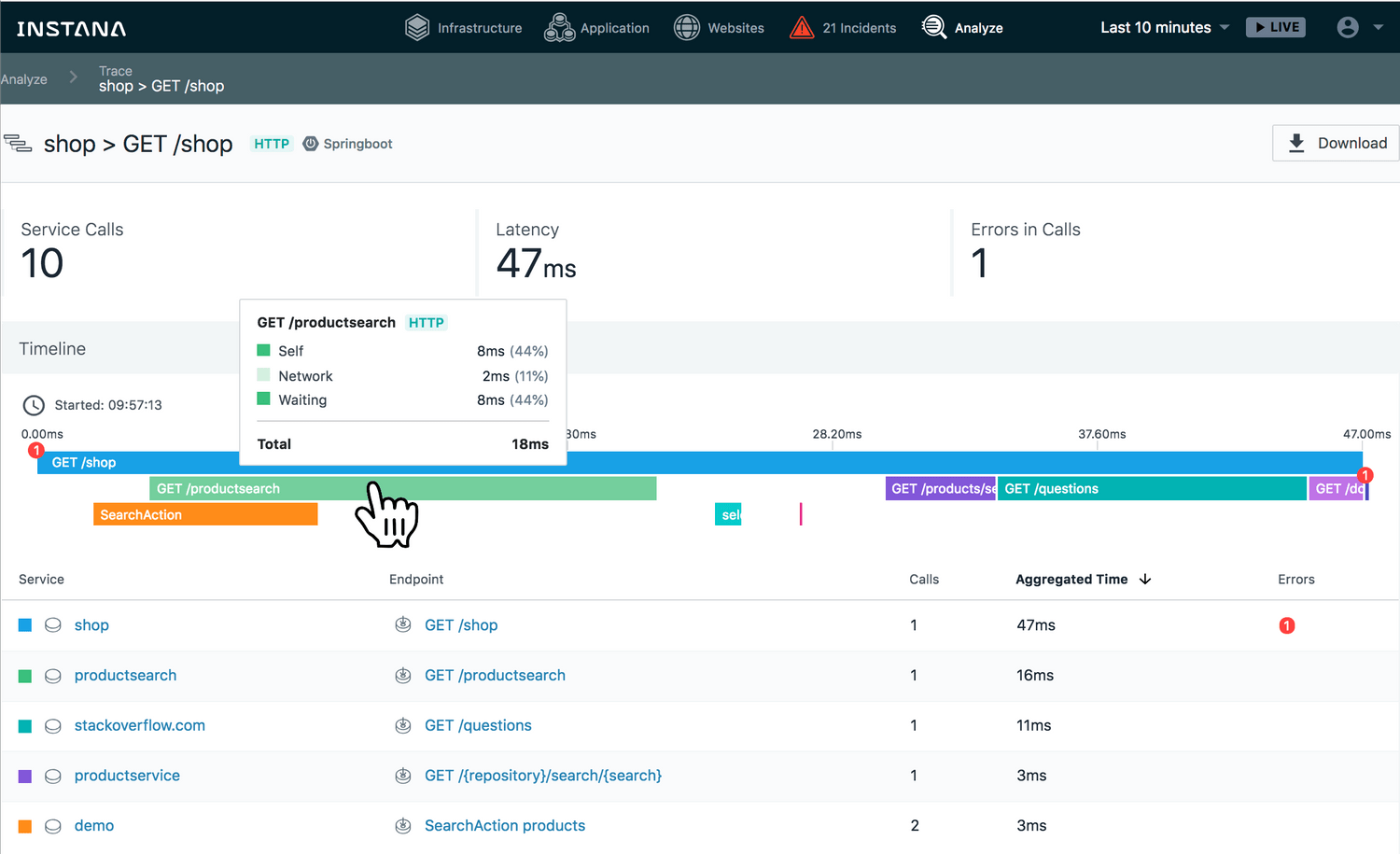

What's distributed tracing?

Examples

• Including the Instana sensor in NodeJS code
  • https://bitbucket.org/walmartdigital/mercurio-slots-api/src/71b8edbcd586ac9fe5e381bffcdc8bb87c9df3ec/src/index.js?at=master#index.js-1
• Production Instana instance:
  • https://production-walmartdigital.instana.io
  • mercurio-slots-api service dashboard
    • https://production-walmartdigital.instana.io/#/service;serviceId=157e9ee1ac301b74f25f15dd7280ddbd273f01e4/summary?timeline.to&timeline.ws=3600000

Grafana

• Visualize metrics from tracing tools such as:
  • Instana
    • https://grafana.com/plugins/instana-datasource
  • Zipkin
    • https://grafana.com/dashboards/1598
  • Jaeger
    • https://grafana.com/dashboards/7439

Alerting

AlertManager

• What is an alert?
• Prometheus server sends alerts to an Alertmanager
• Alertmanager manages the alerts it receives
  • Aggregate
  • Group
  • Inhibit
  • Silence
  • Route and send out notifications

Example

• Slack receiver configuration:
  • https://bitbucket.org/walmartdigital/tools-deployments/src/f84922e84a93b8c51d00bd79bc5381b634030403/prometheus.yaml?at=master#prometheus.yaml-403
• Consul backups job alerting rule:
  • https://bitbucket.org/walmartdigital/tools-deployments/src/f84922e84a93b8c51d00bd79bc5381b634030403/prometheus.yaml?at=master#prometheus.yaml-226,229

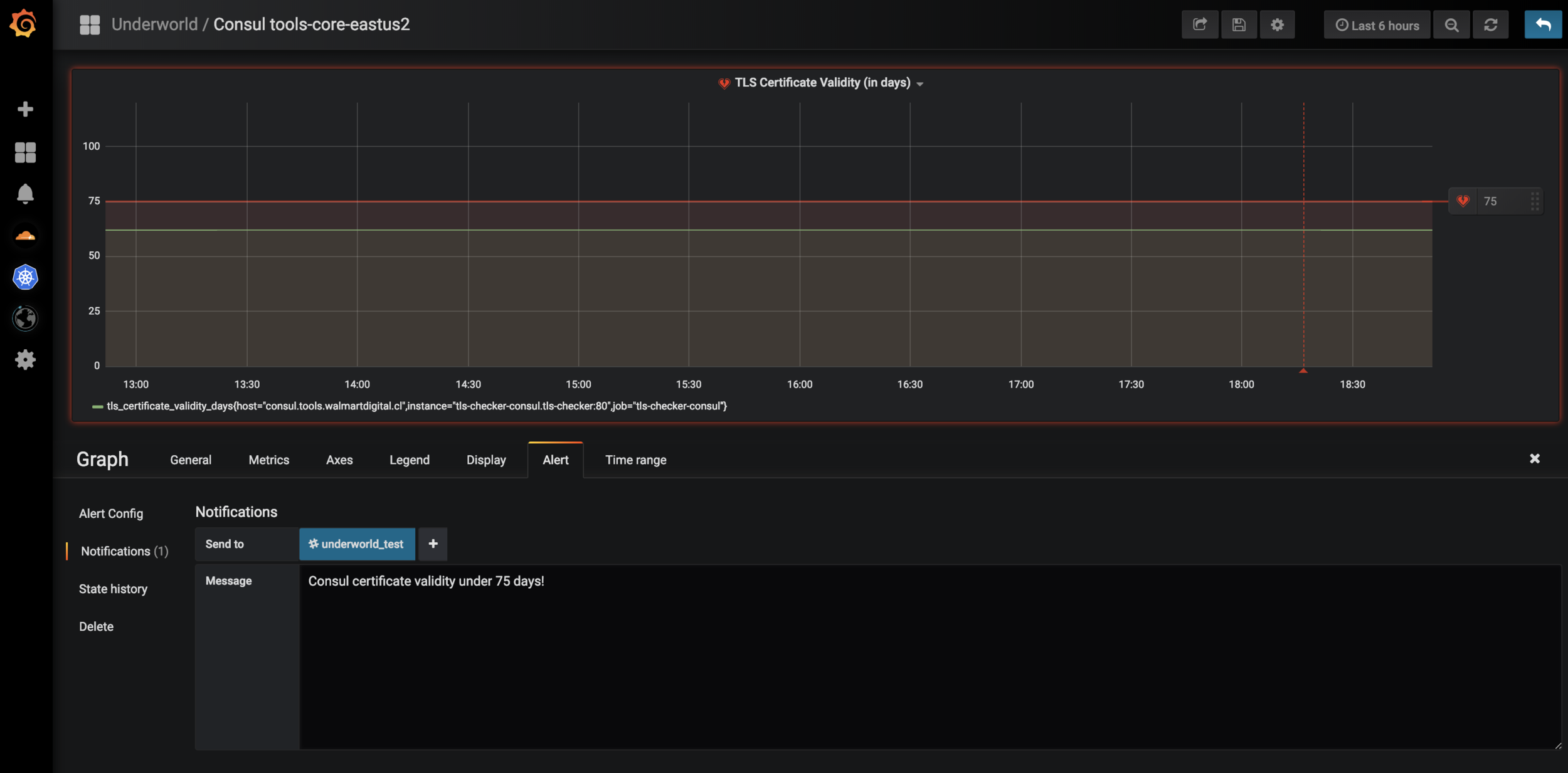

Grafana Alerts

ElastAlert

• Open source project from Yelp
• Alerting based on logs or other information managed in Elasticsearch
• Define alerting conditions based on a DSL query
• Define notification channel
  • Slack
  • Email
  • JIRA
  • HipChat
  • ...

Instana Alerts

• Integrates with Instana concepts of
  • Issues
  • Incidents
  • Changes
• Uses Lucene query syntax to filter assets
• Integrations represent notification channels
  • Slack
  • Email
  • Splunk
  • Office365
  • ...
