Testing

With

Protractor

Who Am I?

• Daniela Green
• Automation Developer @Wix
• danielagr@wix.com

Gonna Talk About...

• What is Protractor ??
• The frameworks inside Protractor
• How to use Protractor
• Protractor debugging tools

What Is Protractor?

• An end-to-end test framework for AngularJS applications
• A wrapper on top of WebDriverJS to control browsers
• A Node.js program

Protractor

• Framework to simulate user interaction with the browser
• Written by Julie Ralph -Software Engineer in Test at Google, Lead developer for Protractor
• First version release in 2013
• Public Github project
• https://github.com/angular/protractor

 @juliemr is very active

Deep Diving Into

Protractor

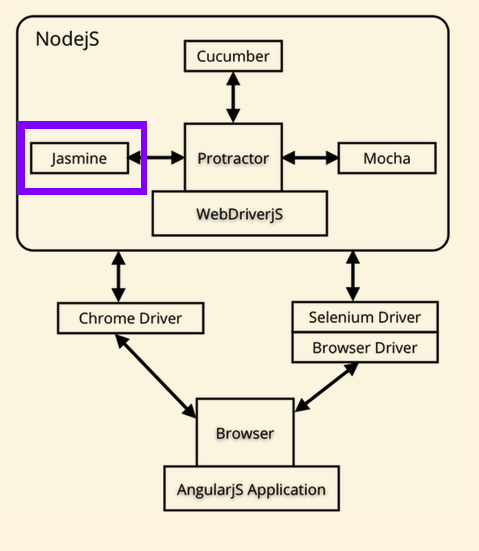

System Structure

WebDriverJS

• WebDriver refers to the language bindings and the implementation of the browser control code

• WebDriverJS has an important difference from other languages - it is asynchronous

But Why Do I Care?

Webdriver

VS

WebdriverJS

Java

Javascript

JAVA

driver.get(p1);
driver.click(E1);

Javascript

driver.get(p1).then(function(){
  driver.click(E1);
}

The Way To Deal With That:

• Control Flow
  • no Sleep
  • no Wait
  • no Promises​

Control Flow

• Managing entirely asynchronous API (WebdriverJS)
• Queue of pending promises

it('should find an element by text input model', function() {
    browser.get('app/index.html#/form');

    var username = element(by.model('username'));
    username.clear();
    username.sendKeys('Jane Doe');

    var name = element(by.binding('username'));

    expect(name.getText()).toEqual('Jane Doe');

    // Point A
  });

- At Point A, none of the tasks are executed yet. The browser.get method is in the front of the control flow queue, and the name.getText() call is at the back.

The value of name.getText() at Point A is an unresolved promise object.

driver.get("http://www.google.com").
   then(function() {
     return driver.findElement(By.name("q"));
   }).
   then(function(q) {
     return q.sendKeys("webdriver");
   }).
   then(function() {
     return driver.findElement(By.name("btnG"));
    }).
   then(function(btnG) {
     return btnG.click();
    }).
   then(function() {
     return driver.getTitle();
   }).
   then(function(title) {
     assertEquals("webdriver - Google Search", title);
    });

Avoid doing this:

Easy To Catch Elements In the DOM

Protractor Global Variables

• element
• by
• browser

element, by

• element (by.css('#search'))
• element(by.model('name'))

by.model

In your test

In your application

element(by.model("myModel"));

<input ng-model="myModel" />

by.repeater

In your test

In your application

element( by.repeater('user in users'));

<ul>
  <li ng-repeat="user in users" class="a">
  <li ng-repeat="user in users" class="b">
  </li>
</ul>

browser

• browser.get(url)
• browser.switchTo().iframe(indexOrName)
• browser.wait(1000)

expect is adapted to Promises:

expect(name.getText()).toEqual('Jane Doe');

Instead of this:

name.getText().then(function (name) {
  expect(name).toEqual('jane Doe')
})

Do this:

element(by.css('#searchBtn')) === $('#searchBtn')

Use the '$' Symbol, It's equal

Jasmine

• Jasmine is a testing framework for javascript
• Protractor uses Jasmine for its test syntax
• describe, it, expect, toBe...

describe(‘A suite’, function() {
  it(‘contains spec with an expectation’, function() {
    expect(true).toBe(true);
  });
});

Test Structure

Let See How It Really Works!

Installing Protractor

(via Node Package Manager)

npm

• Node Package Manager
• Manage dependencies for an application

npm

Example - install Protractor

https://www.npmjs.com/package/protractor

 In Terminal:

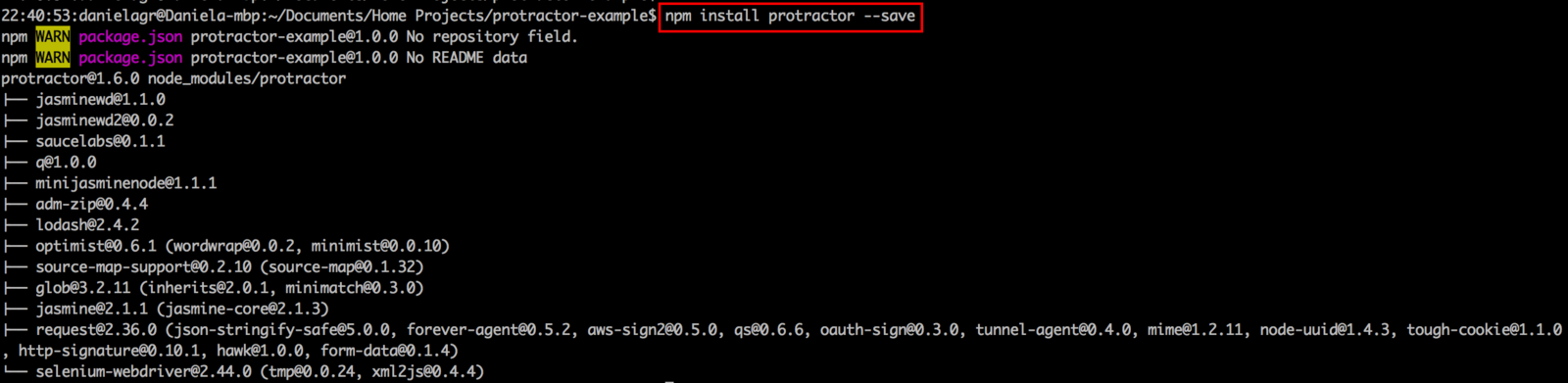

Example - Install Protractor

In our project:

- Creates 'Protractor' package in node-modules

Example - Install Protractor

Running Tests

• conf.js
• spec.js

conf.js

• How to connect to selenium
• Tells specs location
• Browser options

exports.config = {
  seleniumAddress: 'http://localhost:4444/wd/hub',
  specs: ['angularPage-spec.js'],
  capabilities: {
    browserName: 'chrome',
    'chromeOptions': {
      'loggingPrefs': {
        'browser': 'ALL'
      }
    }
  };

spec.js

• The tests

How to run?

protractor someConfFile.js

In the terminal:

Command

calc

Protractor

+

Non-Angular Apps

• Switching from ng-app pages to non ng-apps pages
• Ignoring the protractor synchronisation (control flow)

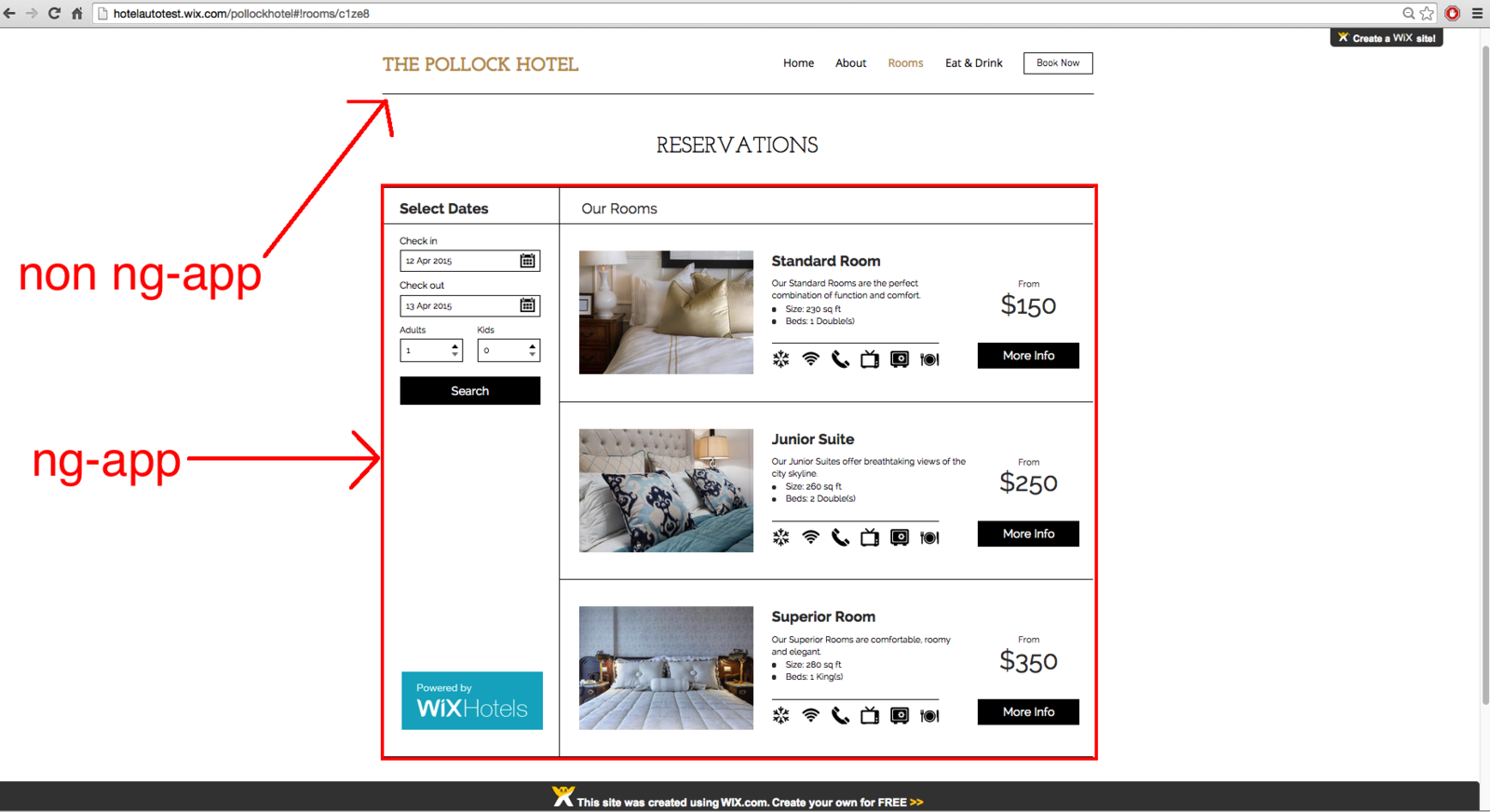

Testing with non-ng pages

How the ???? do we deal with it?

Ignoring The Angular Synchronisation!

google

browser.ignoreSynchronization = true;

HOW?

• Page objects
• Tests specs

Best Practices

Page Objects

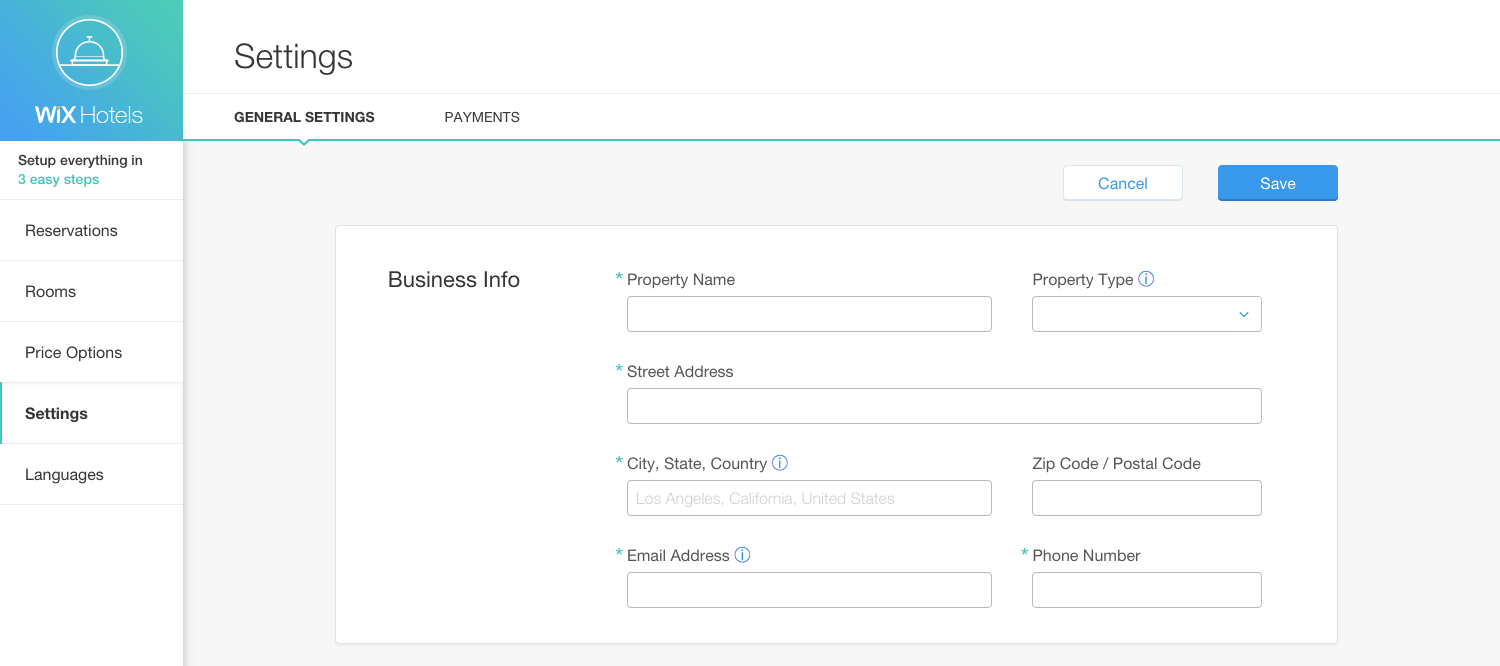

settings form:

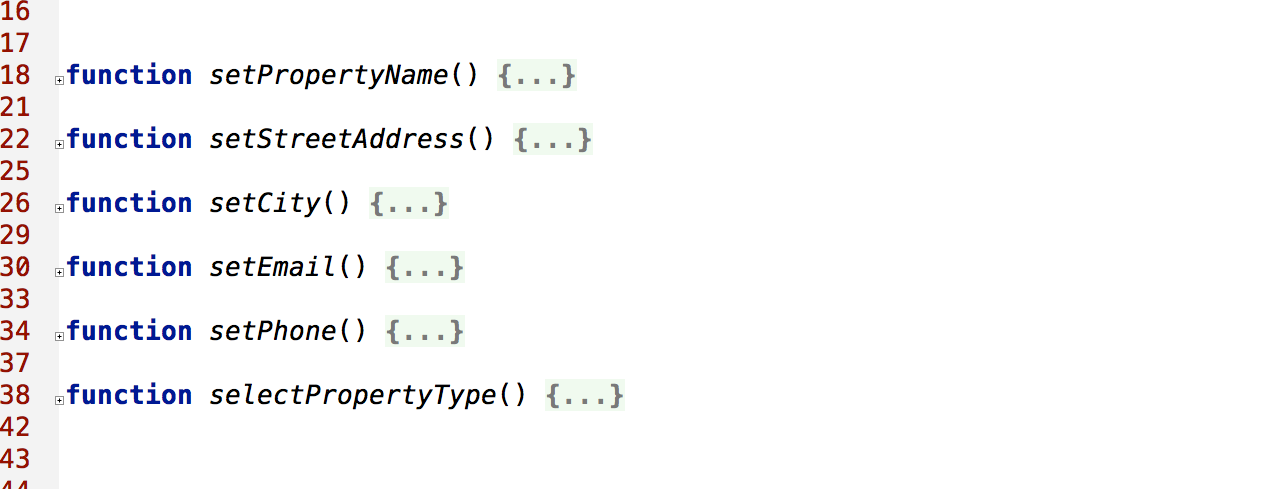

settings.js

Page object file

Page test file

function HomePage(url) {
  this.url = url;
  this.nameInput = element(by.model('yourName'));
}

HomePage.prototype.get = function() {
  browser.get(this.url);
}

HomePage.prototype.setName = function(name) {
  this.nameInput.sendKeys(name);
}

module.exports = HomePage;

var HomePage = require('../HomePage.js');

describe('HomePage Tests', function() {
  var homePage = new HomePage('https://angularjs.org');

  it('should verify homePage loads', function() {
    homePage.get();
    //...
  }
}

Debugging Tools

• browser.pause()
  • in your test code:
• browser.debugger()
  • in the terminal:
• elementExplorer.js

protractor debug conf.js

browser.pause();

debugging using elementexplorer.js:

1. Start your webDriver server:

webdriver-manager start

2.   Run the elementexplorer (project root) :

elem

.../protractor-example/node_modules/protractor/bin(master)$ ./elementexplorer.js someUrl

So... Lets sum it up:

• Protractor and its frameworks (selenium, jasmine)
• Advantages using the protractor (control flow, special Angular attributes..)
• How to install protractor + run tests
• debugging tools

Thank You!

Ask me anything :)

danielagr@wix.com

@daniella_gr
