Data Science & Machine Learning
with R
DISCLAIMER: The images, code snippets...etc presented in this presentation were collected, copied and borrowed from various internet sources, thanks & credit to the creators/owners
SaveDeep Dive
-
What is Data Science?
-
What Data Science Can Do?
-
Prerequisites & Skillset
-
Data Science Workflow
-
R Programming
-
Statistics
-
Data Analysis & Visualization
-
Machine Learning
-
Course Curriculum
-
Q & A
What is Data Science?
To gain insights into data through computation, statistics and visualization
The ability to take data—to be able to understand it, to process it, to extract value from it, to visualize it, to communicate it—that’s going to be a hugely important skill in the next decades - Hal Varian
What Data Science Can Do?
- Predict whether a patient hospitalized due to a heart attach, will have a second heart attach. The prediction is to be based on demographic, diet & clinical measurement for that patient..
- Predict the price of a stock in 6 months from now, on the basis of company performance measures & economic data.
- Identify the risk factors for prostate cancer, based on clinical & demographic variables.
- It can also figure out whether a customer is pregnant or not by capturing their shopping habits from retail stores
- It also knows your age and gender, what brands you like even if you never told., including your list of interests(which you can edit) to decide what kind of ads to show you.
- It can also predict whether or not your relationship is going to last, based on activities and status updates on social networking sites. Police departments in some major cities also know you're going to commit a crime.
- It also tells you what videos you've been watching, what you like to read, & when you're going to quit your job.
- It also guess how intelligent you are how satisfied you are with your life, and whether you are emotionally stable or not -simply based on analysis of the 'likes' you have clicked
this is actually just the tip of the iceberg

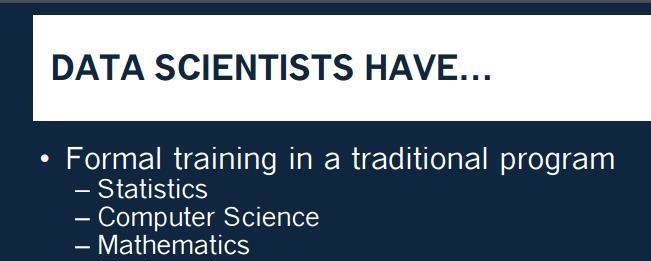

Prerequisites & Skillset

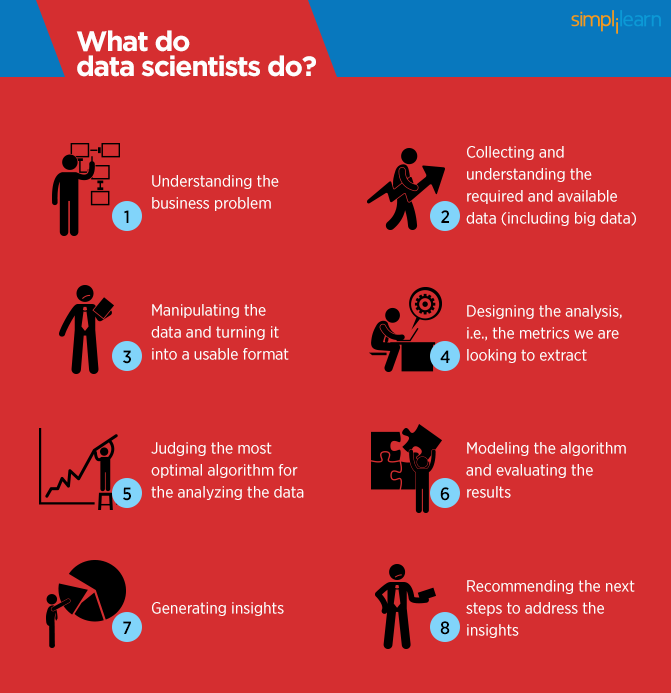

Data Science Workflow
R Programming
Statistics
Elementary statistics
Statistics
Mean, Median, Mode, Standard Deviation, Range, Quartiles, skewness, kurtosis,.. more
#Applying basic statistics
data(iris)
class(iris)
mean(iris$Sepal.Length)
sd(iris$Sepal.Length)
var(iris$Sepal.Length)
min(iris$Sepal.Length)
max(iris$Sepal.Length)
median(iris$Sepal.Length)
range(iris$Sepal.Length)
quantile(iris$Sepal.Length)
sapply(iris[1:4], mean, na.rm=TRUE)
summary(iris)
cor(iris[,1:4])
cov(iris[,1:4])
t.test(iris$Petal.Width[iris$Species=="setosa"],
iris$Petal.Width[iris$Species=="versicolor"])
cor.test(iris$Sepal.Length, iris$Sepal.Width)
aggregate(x=iris[,1:4],by=list(iris$Species),FUN=mean)
library(reshape)
iris.melt <- melt(iris,id='Species')
cast(Species~variable,data=iris.melt,mean,
subset=Species %in% c('setosa','versicolor'),
margins='grand_row')
?reshape
?aggregate
Data Analysis & Visualization
Data Analysis & Visualizations
Summarize, Scatter plot, Histogram, Box plot, Pie chart, Bar plot, ...... more
data(iris)
table.iris = table(iris$Species)
table.iris
pie(table.iris)
hist(iris$Sepal.Length)
boxplot(Petal.Width ~ Species, data = iris)
plot(x=iris$Petal.Length, y=iris$Petal.Width, col=iris$Species)
pairs(iris[1:4], main = "Edgar Anderson's Iris Data", pch = 21,
bg = c("red", "green3", "blue")[unclass(iris$Species)])
head(sales)
cust_id sales_total num_of_orders gender
1 100001 800.64 3 F
2 100002 217.53 3 F
3 100003 74.58 2 M
4 100004 498.60 3 M
5 100005 723.11 4 F
6 100006 69.43 2 F
summary(sales)
cust_id sales_total num_of_orders gender
Min. :100001 Min. : 30.02 Min. : 1.000 F:5035
1st Qu.:102501 1st Qu.: 80.29 1st Qu.: 2.000 M:4965
Median :105001 Median : 151.65 Median : 2.000
Mean :105001 Mean : 249.46 Mean : 2.428
3rd Qu.:107500 3rd Qu.: 295.50 3rd Qu.: 3.000
Max. :110000 Max. :7606.09 Max. :22.000
#console and script
> x = 7
> x + 9
[1] 16
#comments
# COMMENTS ARE SUPER IMPORTANT so we learned about them
#graphics
x = rnorm(1000, mean = 100, sd = 3)
hist(x)
#getting help
# if you know the function name, but not how to use it:
?chisq.test
# if you know what you want to do, but don't know the function name:
??chisquare
#data types
# character vector
> y = c("apple", "apple", "banana", "kiwi", "bear", "strawberry", "strawberry")
> length(y)
[1] 7
# numeric vector
> numbers = rep(3, 99)
> numbers
[1] 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
[39] 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
[77] 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3
#matrices
> mymatrix = matrix(c(10, 15, 3, 29), nrow = 2, byrow = TRUE)
> mymatrix
[,1] [,2]
[1,] 10 15
[2,] 3 29
> t(mymatrix)
[,1] [,2]
[1,] 10 3
[2,] 15 29
> solve(mymatrix)
[,1] [,2]
[1,] 0.1183673 -0.06122449
[2,] -0.0122449 0.04081633
> mymatrix %*% solve(mymatrix)
[,1] [,2]
[1,] 1 0
[2,] 0 1
> chisq.test(mymatrix)
Pearson's Chi-squared test with Yates' continuity correction
data: mymatrix
X-squared = 5.8385, df = 1, p-value = 0.01568
#data frames (the mother of all R data types)
# set working directory
setwd("~/Documents/R_intro")
# read in a dataset
wages = read.table("wages.csv", sep = ",", header = TRUE)
#exploratory data analysis
> names(wages)
[1] "edlevel" "south" "sex" "workyr" "union" "wage" "age"
[8] "race" "marital"
> class(wages$marital)
[1] "integer"
> table(wages$union)
not union member union member
438 96
> summary(wages$workyr)
Min. 1st Qu. Median Mean 3rd Qu. Max.
0.00 8.00 15.00 17.82 26.00 55.00
> nrow(wages)
[1] 534
> length(which(is.na(wages$sex)))
[1] 0
> linmod = lm(workyr ~ age, data = wages)
> summary(linmod)
hist(wages$wage, xlab = "hourly wage", main = "wages in our dataset", col = "purple")
plot(wages$age, wages$workyr, xlab = "age", ylab="years worked", main = "age vs. years worked")
abline(lm(wages$workyr ~ wages$age), col="red", lwd = 2)
mtcars[mtcars$mpg>=20,c('gear','mpg')]
aggregate(. ~ gear,mtcars[mtcars$mpg>=20,c('gear','mpg')],mean)
subset(aggregate(. ~ gear,mtcars[mtcars$mpg>=20,c('gear','mpg')],mean),mpg>25)
#output
gear mpg
2 4 25.74
3 5 28.20Machine Learning
myData <- data.frame(age=c(10,20,30), weight=c(100,200,300))
myPersonsAge <- data.frame(age=c(20,25,30))
myTrainModel <- lm(weight~age,data = myData)
predict(myTrainModel,myPersonsAge)Machine Learning Intro
Algorithms:
Machine Learning Algorithms
Linear regression
Decision trees
K-means
# Load required packages
library(ggplot2)
library(datasets)
# Load data
data(iris)
# Set seed to make results reproducible
set.seed(20)
# Implement k-means with 3 clusters
iris_cl <- kmeans(iris[, 3:4], 3, nstart = 20)
iris_cl$cluster <- as.factor(iris_cl$cluster)
# Plot points colored by predicted cluster
ggplot(iris, aes(Petal.Length, Petal.Width, color = iris_cl$cluster)) + geom_point()# Include required packages
library(party)
library(partykit)
# Have a look at the first ten observations of the dataset
print(head(readingSkills))
input.dat <- readingSkills[c(1:105),]
# Grow the decision tree
output.tree <- ctree(
nativeSpeaker ~ age + shoeSize + score,
data = input.dat)
# Plot the results
plot(as.simpleparty(output.tree))# Load required packages
library(ggplot2)
# Load iris dataset
data(iris)
# Have a look at the first 10 observations of the dataset
head(iris)
# Fit the regression line
fitted_model <- lm(Sepal.Length ~ Petal.Width + Petal.Length, data = iris)
# Get details about the parameters of the selected model
summary(fitted_model)
# Plot the data points along with the regression line
ggplot(iris, aes(x = Petal.Width, y = Petal.Length, color = Species)) +
geom_point(alpha = 6/10) +
stat_smooth(method = "lm", fill="blue", colour="grey50", size=0.5, alpha = 0.1)Support vector machine
#svm
library(e1071)
# quick look at the data
plot(iris)
# feature importance
plot(iris$Sepal.Length, iris$Sepal.Width, col=iris$Species)
plot(iris$Petal.Length, iris$Petal.Width, col=iris$Species)
#split data
s <- sample(150, 100)
col <- c('Petal.Length','Petal.Width','Species')
iris_train <- iris[s,col]
iris_test <- iris[-s,col]
#create model
svmfit <- svm(Species ~ ., data = iris_train, kernel="linear", cost=.1, scale = FALSE)
print(svmfit)
plot(svmfit, iris_train[, col])
tuned <- tune(svm, Species~., data = iris_train, kernel='linear', ranges = list(cost=c(0.001, 0.01,.1, 1.10, 100)))
summary(tuned)
p <- predict(svmfit, iris_test[,col], type='class')
plot(p)
table(p, iris_test[,3])
mean(p==iris_test[,3])
Simple Linear Regression
# Creating Statistical Models
# Load the data
data(iris)
# Peak at data
head(iris)
# Create a scatterplot
plot(
x = iris$Petal.Length,
y = iris$Petal.Width,
main = "Iris Petal Length vs. Width",
xlab = "Petal Length (cm)",
ylab = "Petal Width (cm)")
# Create a linear regression model
model <- lm(
formula = Petal.Width ~ Petal.Length,
data = iris)
# Summarize the model
summary(model)
# Draw a regression line on plot
lines(
x = iris$Petal.Length,
y = model$fitted,
col = "red",
lwd = 3)
# Get correlation coefficient
cor(
x = iris$Petal.Length,
y = iris$Petal.Width)
# Predict new values from the model
predict(
object = model,
newdata = data.frame(
Petal.Length = c(2, 5, 7)))
some important algorithms: https://goo.gl/zAyFea
Least squares regression line
# generate normally distributed data for linear regression, make the scatter plot, and draw
# the least squares regression line.
# generate 1000 normally distributed random numbers and plot a histogram.
x <- rnorm(100)
hist(x)
y <- x + rnorm(100)
plot(x, y)
foo <- lm(y ~ x)
abline(coefficients(foo))Course Curriculum
