Neural networks modelled by dynamical systems
Davide Murari
DNA Seminar - 20/06/2022
\(\texttt{davide.murari@ntnu.no}\)
Joint work with Elena Celledoni, Brynjulf Owren,
Carola-Bibiane Schönlieb and Ferdia Sherry

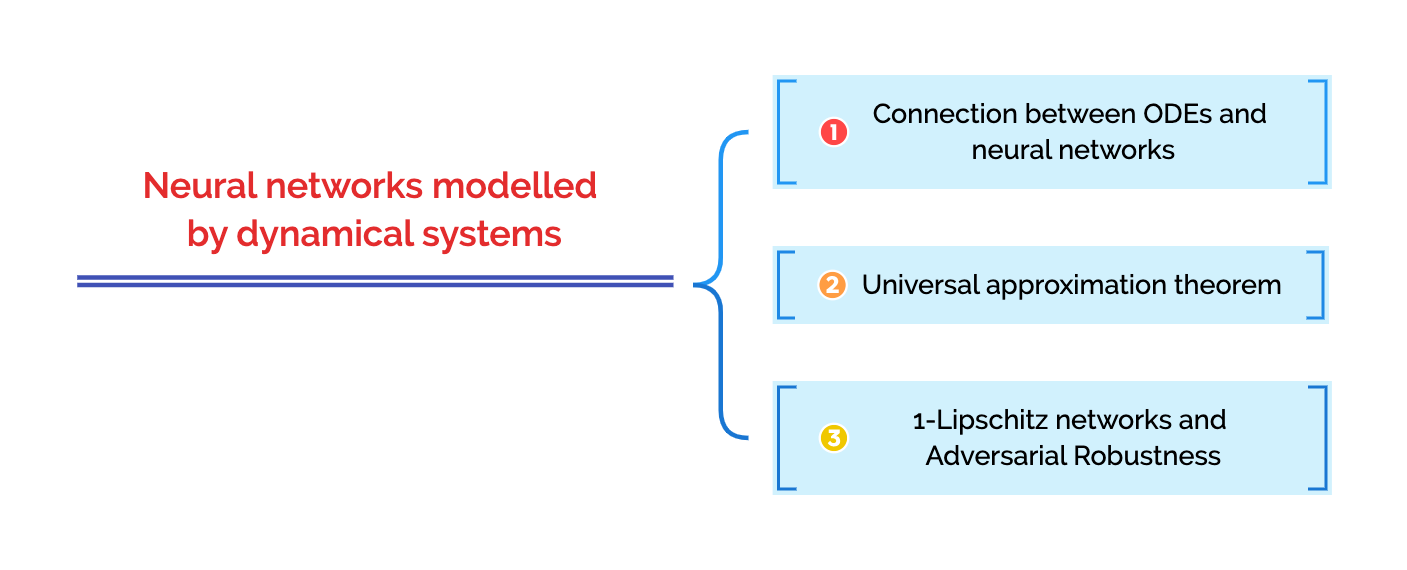

Outline
What is supervised learning
Consider two sets \(\mathcal{C}\) and \(\mathcal{D}\) and suppose to be interested in a specific (unknown) mapping \(F:\mathcal{C}\rightarrow \mathcal{D}\).
The data we have available can be of two types:
- Direct measurements of \(F\): \(\mathcal{T} = \{(x_i,y_i=F(x_i)\}_{i=1,...,N}\subset\mathcal{C}\times\mathcal{D}\)
- Indirect measurements that characterize \(F\): \(\mathcal{I} = \{(x_i,z_i=G(F(x_i))\}_{i=1,...,N}\subset\mathcal{C}\times G(\mathcal{D})\)
GOAL: Approximate \(F\) on all \(\mathcal{C}\).
What are neural networks
What are neural networks
They are compositions of parametric functions
\( \mathcal{NN}(x) = f_{\theta_k}\circ ... \circ f_{\theta_1}(x)\)
Examples
\(f_{\theta}(x) = x + B\Sigma(Ax+b),\quad \theta = (A,B,b)\)
ResNets
Feed Forward
Networks
\(f_{\theta}(x) = B\Sigma(Ax+b),\quad \theta = (A,B,b)\)
\(\Sigma(z) = [\sigma(z_1),...,\sigma(z_n)],\quad \sigma:\mathbb{R}\rightarrow\mathbb{R}\)

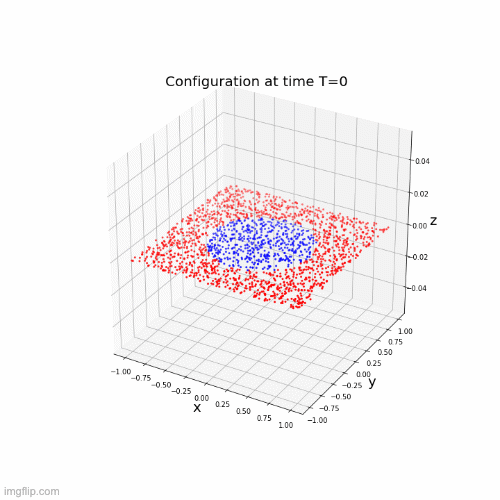

Neural networks modelled by dynamical systems
\mathcal{NN}(x) = \Psi_{f_k}^{h_k}\circ ...\circ \Psi_{f_1}^{h_1}(x)
EXPLICIT
EULER
\( \Psi_{f_i}^{h_i}(x) = x + h_i f_i(x)\)
\( \dot{x}(t) = f(t,x(t),\theta(t)) \)
Time discretization : \(0 = t_1 < ... < t_k <t_{k+1}= T \), \(h_i = t_{i+1}-t_{i}\)
Where \(f_i(x) = f(t_i,x,\theta(t_i))\)
EXAMPLE
\(\dot{x}(t) = \Sigma(A(t)x(t) + b(t))\)
Imposing some structure
\dot{x}(t) = \left[A(t,x(t))-A^T(t,x(t))\right]\boldsymbol{1}
\dot{x}(t) = \mathbb{J}A^T(t)\Sigma(A(t)x(t)+b(t))
\ddot{x}(t) = \Sigma(A(t)x(t)+b(t))
MASS PRESERVING NETWORKS
HAMILTONIAN NETWORKS
VOLUME PRESERVING, INVERTIBLE
Approximation result
f_i(x) = \nabla U_i(x) + X_S^i(x)
U_i(x) = \int_0^1 x^Tf_i(tx)dt
x^TX_S^i(x)=0\quad \forall x\in\mathbb{R}^n
Then \(F\) can be approximated arbitrarily well by composing flow maps of gradient and sphere preserving vector fields.
F:\Omega\subset\mathbb{R}^n\rightarrow\mathbb{R}^n\quad \text{continuous}
\forall \varepsilon>0\,\,\exist f_1,…,f_k\in\mathcal{C}^1(\mathbb{R}^n,\mathbb{R}^n)\,\,\text{s.t.}
\|F-\Phi_{f_k}^{h_k}\circ … \circ \Phi_{f_1}^{h_1}\|<\varepsilon
Approximation result
\Phi_{f_i}^h = \Phi_{f_i}^{\alpha_M h} \circ ... \circ \Phi_{f_i}^{\alpha_1 h}
\sum_{i=1}^M \alpha_i = 1
f = \nabla U + X_S \\
\implies \Phi_f^h(x) = \Phi_{\nabla U}^{h/2} \circ \Phi_{X_S}^h \circ \Phi_{\nabla U}^{h/2}(x) + \mathcal{O}(h^3)

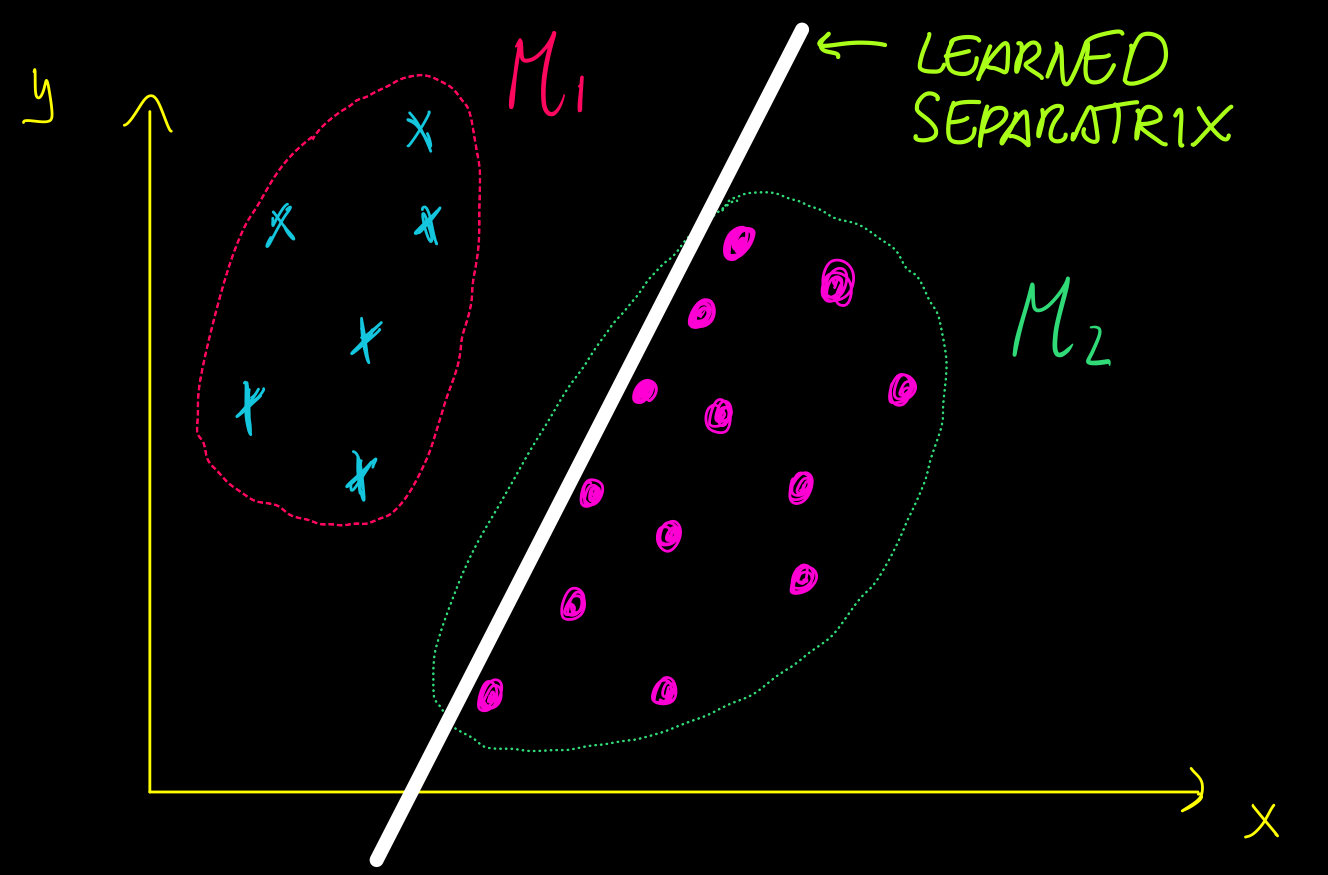

The classification problem
Given a "sufficiently large" set of \(N\) points in \(\mathcal{M}\subset\mathbb{R}^k\) that belong to \(C\) classes, we want to learn a function \(F\) assigning all the points of \(\mathcal{M}\) to the correct class.
F : \mathbb{R}^k \rightarrow \mathbb{R}^C
\ell_F(x):=\arg\max\{F(x)_j:j=1,...,C\} = i=:\ell(x) \\ \forall x\in \mathcal{M}_i
\mathcal{M} = \bigcup\limits_{i=1}^C \mathcal{M}_i \subset \mathbb{R}^k

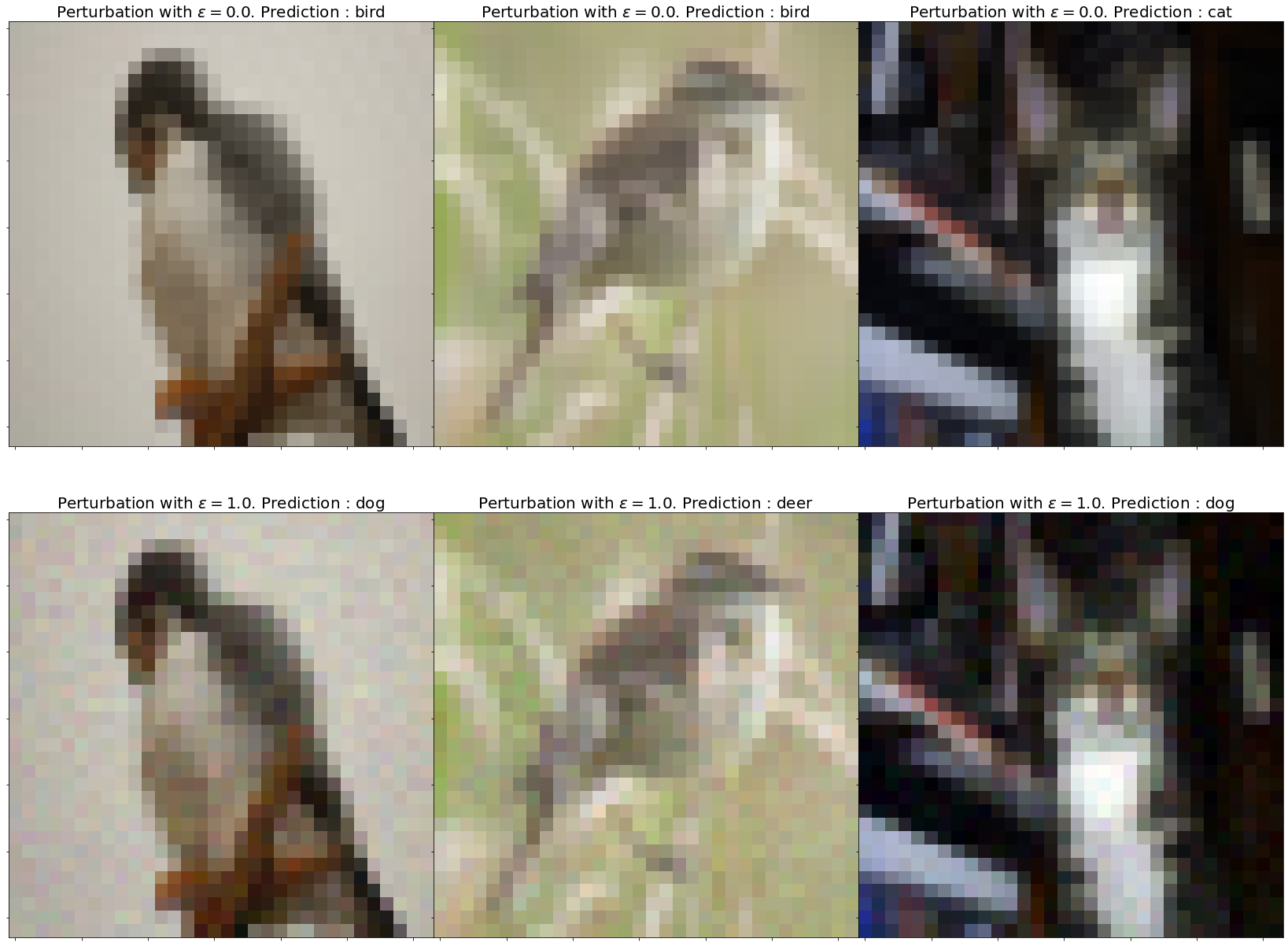

Adversarial examples
\text{Find }\eta\in\mathbb{R}^k\\
\text{s.t.}\,\,\|\eta\|\leq \varepsilon,\,\,\ell_F(x)\neq \ell_F(x+\eta)
What is a robust classifier?
An \(\varepsilon\)-robust classifier is a function that not only correctly classifies the points in \(\mathcal{M}\) but also those in
Suppose that
d(\mathcal{M_i},\mathcal{M}_j)>2\varepsilon\quad \forall i\neq j
\mathcal{M}_{\varepsilon} := \{x\in\mathbb{R}^k\,:\,d(x,\mathcal{M})\leq \varepsilon\}
1.
2.
\ell_F(x) = i := \ell(x) \quad \forall x\in \mathcal{M}_i
\ell_F(x+\eta) = i\;\; \forall x\in \mathcal{M}_i,\|\eta\|\leq \varepsilon
In other words, we should learn a
F : \mathbb{R}^k \rightarrow \mathbb{R}^C
such that
Sensitivity measures for \(F\)
\|F(x+\eta)-F(x)\|\leq \text{Lip}(F)\|\eta\|
Idea:
"GOOD"
x
[0.99, 0.05, 0.05]
"BAD"
x
[0.34, 0.33, 0.33]
M_F(x) := \max\{0,F(x)_{i} - \max_{j\neq i} F(x)_j\}\\ \ell(x)=i
How to have guaranteed robustness
M_F(x)\geq \sqrt{2}\text{Lip}(F)\varepsilon \\
\implies \ell_F(x) = \ell_F(x+\eta)\,\forall \|\eta\|\leq \varepsilon
\mathcal{L} = \frac{1}{N}\sum_{i=1}^N \sum_{j\neq \ell(x)} \max\{0,m-(F(x)_{\ell(x)}-F(x)_j)\}
1️⃣
2️⃣
We constrain the Lipschitz constant of \(F\)
Lipschitz networks based on dynamical systems
\Gamma(x) = [\gamma(x_1),...,\gamma(x_k)]\\
V_{\theta} = \boldsymbol{1}^T\Gamma(Ax+b),\,\,\theta =[A,b]\\
X_{\theta}^{\pm}(z) := \pm \nabla V_{\theta}(z)
\mu_{\theta} \|z-y\|^2\leq\langle \nabla V_{\theta}(z)- \nabla V_{\theta}(y),z-y\rangle\leq L_{\theta}\|x-y\|^2\\
\implies \|\Phi^{t}_{\nabla V_{\theta}}(x)-\Phi^{t}_{\nabla V_{\theta}}(y)\|\leq e^{L_{\theta} t} \|x-y\|\\
\implies \|\Phi^{t}_{-\nabla V_{\theta}}(x)-\Phi^{t}_{-\nabla V_{\theta}}(y)\|\leq e^{-\mu_{\theta} t} \|x-y\|
Lipschitz networks based on dynamical systems
F(x) \approx F_{\theta}(x)=\Phi_{-\nabla V_{\theta_{2k}}}^{h_{2k}} \circ \Phi_{\nabla V_{\theta_{2k-1}}}^{h_{2k-1}} \circ ... \circ \Phi_{-\nabla V_{\theta_2}}^{h_2} \circ \Phi_{\nabla V_{\theta_{1}}}^{h_1}(x)
\|F_{\theta}(x)-F_{\theta}(y)\|\leq \exp\left(\sum_{i=1}^k \gamma_i\right)\|x-y\|
\exp\left(\sum_{i=1}^k \gamma_i\right)
\gamma_i = h_{2i-1}L_{\theta_{2i-1}} - h_{2i}\mu_{\theta_{2i}}

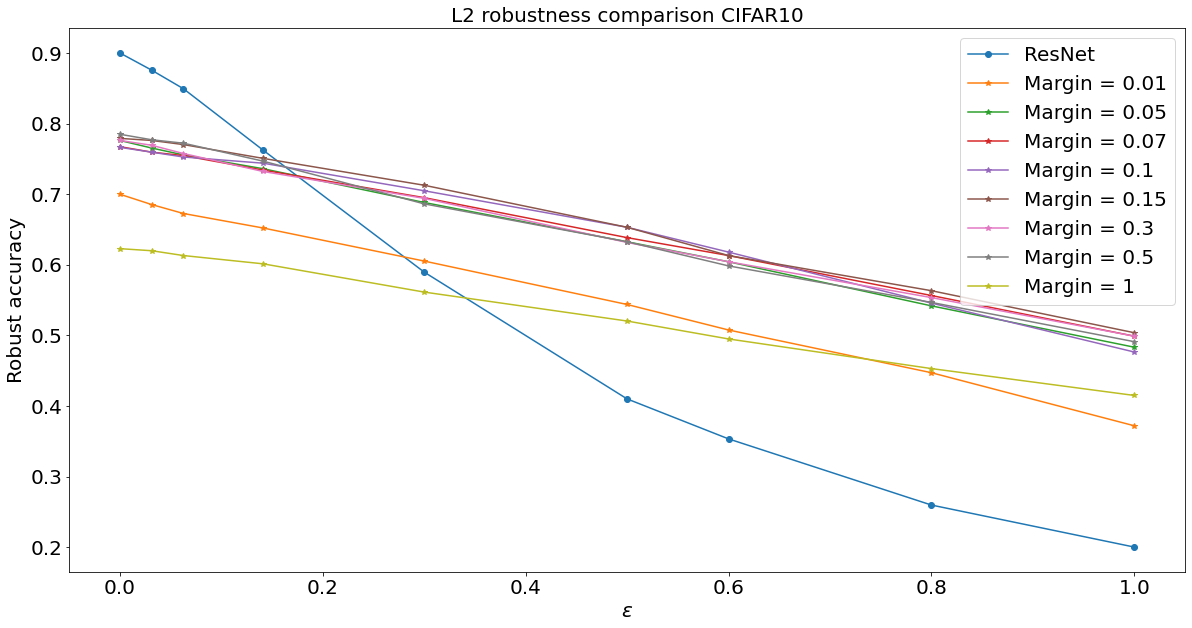

Adversarial robustness
Thank you for the attention
