Structured neural networks and some applications to dynamical systems
Davide Murari
davide.murari@ntnu.no
In collaboration with : Elena Celledoni, Andrea Leone, Brynjulf Owren, Carola-Bibiane Schönlieb, and Ferdia Sherry
FoCM, 12 June 2023
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)

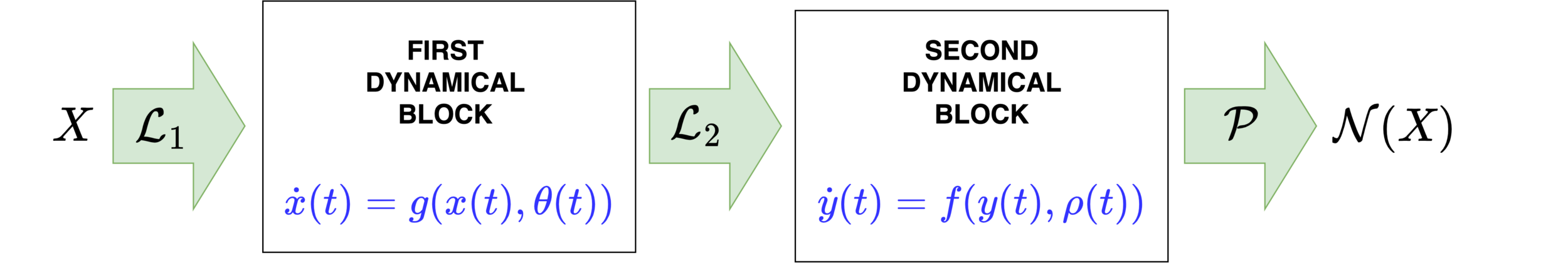

Neural networks motivated by dynamical systems
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
\( \dot{x}(t) = f(x(t),\theta(t)) \)
\( \delta t_i = t_{i}-t_{i-1}\)
t_0
t_1
t_2
t_i
t_{i+1}
t_M
\cdots
\cdots
\cdots
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
t_0
t_1
t_2
t_i
t_{i+1}
t_M
\cdots
\cdots
\cdots
\mathcal{N}(x) = \Psi_{f_M}^{\delta t_M}\circ ...\circ \Psi_{f_1}^{\delta t_1}(x)
\( \dot{x}(t) = f(x(t),\theta(t)) \)
Where \(f_i(x) = f(x,\theta(t_i))\)
\( \delta t_i = t_{i}-t_{i-1}\)
Neural networks motivated by dynamical systems
Accuracy is not everything
\(X\) , Label : Plane
\(X+\delta\), \(\|\delta\|_2=0.3\) , Label : Cat
Informed network design
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
\mathcal{N}(x) = \Psi_{f_M}^{\delta t_M}\circ ...\circ \Psi_{f_1}^{\delta t_1}(x)
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(f_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{f_{\theta}:\,\,\theta\in\Theta\}\)
Informed network design
\mathcal{N}(x) = \Psi_{f_M}^{\delta t_M}\circ ...\circ \Psi_{f_1}^{\delta t_1}(x)
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Integrator \(\Psi^{\delta t}\) that preserves \(\mathcal{P}\)
x_{n+1}=x_n+\delta t\Sigma(A_nv_n+a_n)\\
v_{n+1}=v_n+\delta t\Sigma(B_nx_{n+1}+b_n)\\
(x_{n+1},v_{n+1}) = \Psi^{\delta t}_{f_{\theta_n}}(x_n,v_n)
Informed network design
\mathcal{N}(x) = \Psi_{f_M}^{\delta t_M}\circ ...\circ \Psi_{f_1}^{\delta t_1}(x)
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(f_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{f_{\theta}:\,\,\theta\in\Theta\}\)
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation

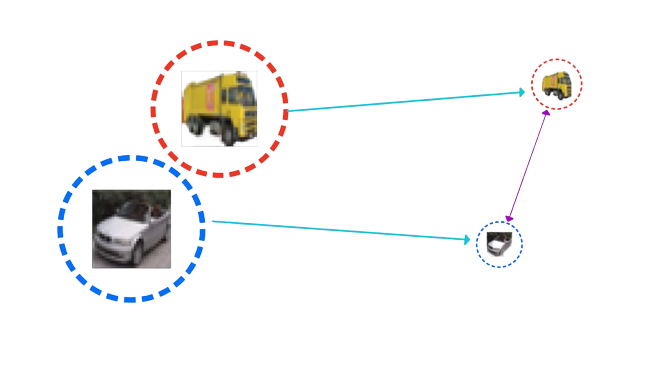

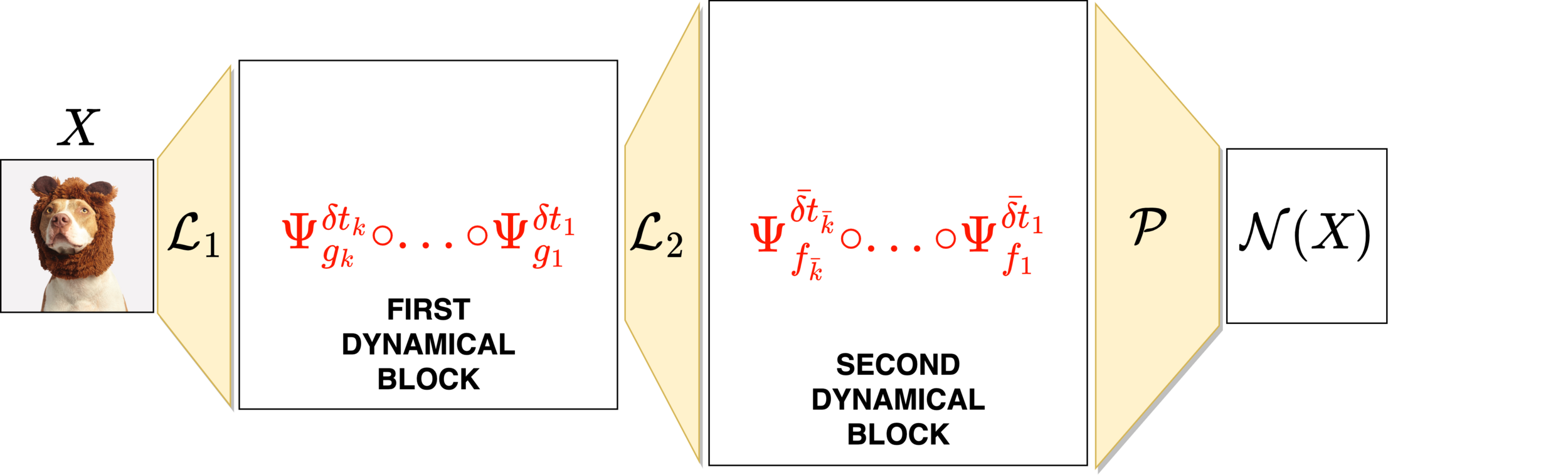

Non-expansive neural
networks
\(\mathcal{N}_{\theta}\)
\(\mathcal{N}_{\theta}\)
Margin
\(B_{\delta}(X)\)
\(B_{\gamma}(Y)\)
\(B_{\gamma'}(\mathcal{N}_{\theta}(Y))\)
\(B_{\delta'}(\mathcal{N}_{\theta}(X))\)
\(X\)
\(Y\)
\mathbb{R}^{3\times 32\times 32}
\mathbb{R}^{10}
\delta'<\delta,\,\,\gamma'<\gamma
Building blocks of the network
f_{\theta_i}(x) := - \nabla V_{\theta_i}(x) = -A_i^T\Sigma(A_ix+b_i)
\Psi^{\delta t_C}_{f_{\theta_i}}(x) = x - {\delta t_C}A_i^T\Sigma(A_ix+b_i)
g_{\theta_i}(x) := W_i^T\Sigma(W_ix + v_i)
\|\Psi^{\delta t_C}_{f_{\theta_i}}(y) - \Psi^{\delta t_C}_{f_{\theta_i}}(x)\|\leq \sqrt{1-{\delta t_C}+{\delta t_C}^2}\|y-x\|
\Psi^{\delta t_E}_{g_{\theta_i}}(x) = x + {\delta t_E}W_i^T\Sigma(W_ix+v_i)
\|\Psi^{\delta t_E}_{g_{\theta_i}}(y) - \Psi^{\delta t_E}_{g_{\theta_i}}(x)\|\leq (1+{\delta t_E})\|y-x\|
\mathcal{N}_{\theta}(x)=\Psi_{f_{\theta_{2k}}}^{\delta t_{2k}} \circ \Psi_{g_{\theta_{2k-1}}}^{\delta t_{2k-1}} \circ ... \circ \Psi_{f_{\theta_2}}^{\delta t_2} \circ \Psi_{g_{\theta_{1}}}^{\delta t_1}(x)
We impose :
\|\mathcal{N}_{\theta}(x)-\mathcal{N}_{\theta}(y)\|\leq \|x-y\|
\sqrt{1-{\delta t_{2i}}+{\delta t_{2i}}^2}(1+\delta t_{2i-1})\leq 1,\,\,i=1,...,k
Non-expansivity constraint
Adversarial robustness
Approximating constrained mechanical systems
Data : \(\{(y_i^0,...,y_i^M)\}_{i=1,...,N}\)
\(y_i^{j} = \Phi^{j\delta t}_{Y}(y_i^0) + \varepsilon_i^j\in\mathbb{R}^n\)
\(Y\in\mathfrak{X}(\mathcal{M})\) and
\(\delta t>0\) unknown
Goal : Approximate the map \(\Phi^{\delta t}_Y\)
\(\mathcal{M}\subset\mathbb{R}^n\)
\(y_1^0\)
\(y_1^1\)
\(y_1^2\)
\(y_1^3\)
\(y_2^0\)
\(y_2^1\)
\(y_2^2\)
\(y_2^3\)
\(y_3^0\)
\(y_3^1\)
\(y_3^2\)
\(y_3^3\)
A possible approach
\(\mathcal{N}_{\theta}:=\Psi^h_{Y_{\theta}}\circ ... \circ \Psi^h_{Y_{\theta}}\)
\(\theta = \arg\min_{\rho} \sum_{i=1}^N\sum_{j=1}^M\left\|y_i^j -\mathcal{N}_{\rho}^j(y_i^0)\right\|^2\)
\mathcal{M}
\mathbb{R}^n

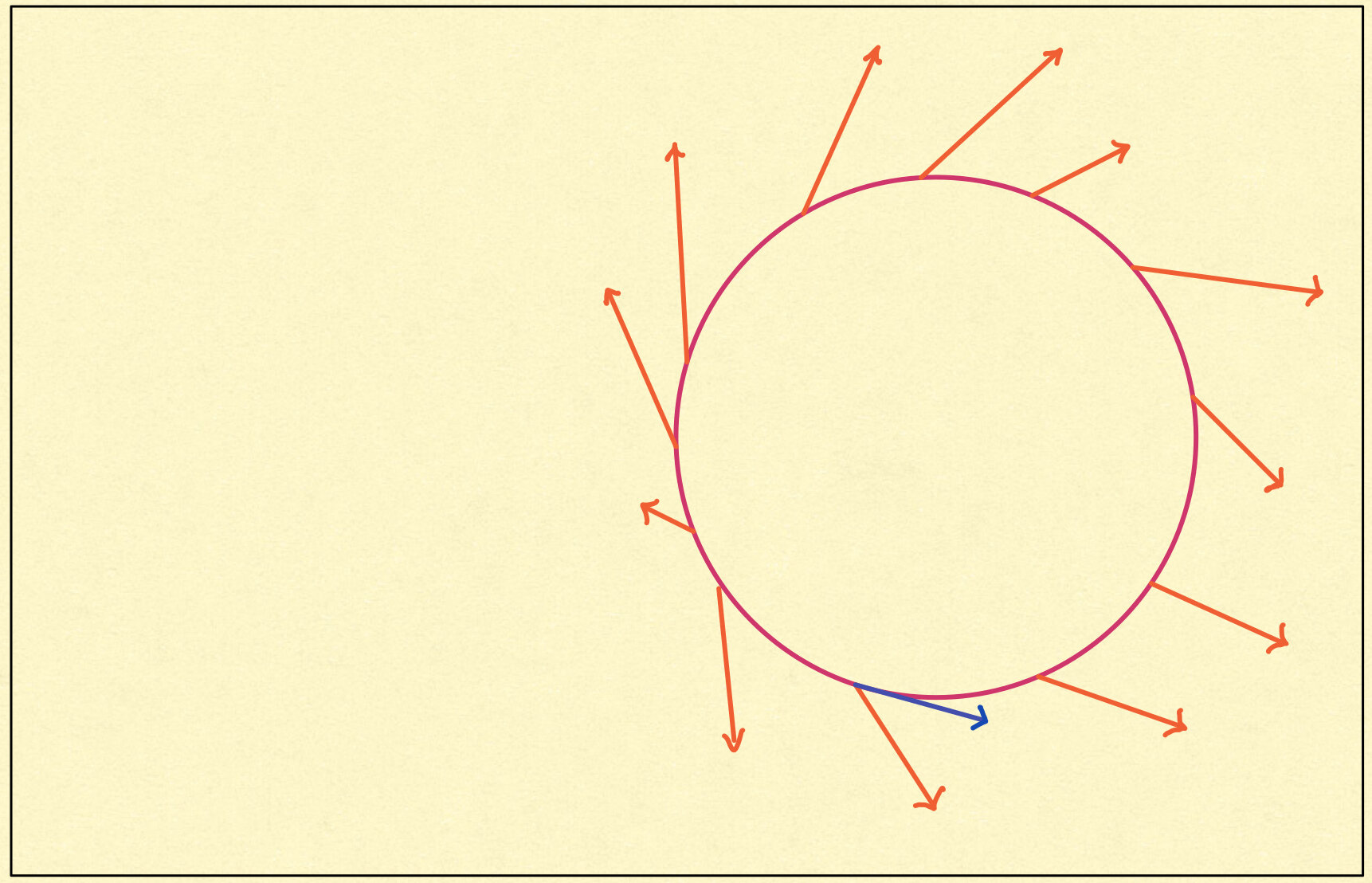

\(P(q) : \mathbb{R}^n\rightarrow T_q\mathcal{M},\, q\in\mathcal{M}\)
\(X_{\theta}\in\mathfrak{X}(\mathbb{R}^n)\)
\(Y_{\theta}(q) = P(q)X_{\theta}(q)\in T_q \mathcal{M}\)
\(\Psi_{Y_{\theta}}^h : \mathcal{M}\rightarrow\mathcal{M}\)
\(X_{\theta}(q)\)
\(q\)
\(Y_{\theta}(q)\)
Hamiltonian case
\Pi(q) : \mathbb{R}^n\rightarrow T_q\mathcal{Q},\,v\mapsto \Pi(q)v
T_q\mathcal{Q} = \{v\in\mathbb{R}^n:\,G(q)v=0\}
\begin{cases}
\dot{q}=\Pi(q) \partial_{p} H(q, p) \\
\dot{p}=-\Pi(q)^{T} \partial_{q} H(q, p)+W(q, p) \partial_{p} H(q, p)
\end{cases}
⚠️ On \(\mathbb{R}^{2n}\setminus\mathcal{M}\) the vector field extends non-uniquely.
\mathcal{Q} = \{q\in\mathbb{R}^n:\,G(q)=0\},\,\, \mathcal{M} = T^*\mathcal{Q}\subset\mathbb{R}^{2n}
Hamiltonian case
Y_{\theta}(q,p) = \begin{bmatrix}
\Pi(q) \partial_{p} H_{\theta}(q, p) \\
-\Pi(q)^{T} \partial_{q} H_{\theta}(q, p)+W(q, p) \partial_{p} H_{\theta}(q, p)
\end{bmatrix}
H_{\theta}(q, p)=\frac{1}{2} p^{T} M_{\theta_{1}}^{-1}(q) p+\mathcal{N}_{\theta_{2}}(q), \\
\mathcal{N}_{\theta_2}(q) = f_{\rho_m}\circ ... \circ f_{\rho_1}(q)\\
\theta=\left(\theta_{1}, \theta_{2}\right),\,\,\theta_2=(\rho_1,...,\rho_m)
Double spherical pendulum
\mathcal{Q} = \mathcal{S}^2\times\mathcal{S}^2\subset\mathbb{R}^6
\mathcal{M} = T^*S^2\times T^*S^2\text{ homogeneous}
\(\Psi^h\) is Commutator Free Lie Group method of order 4
Conclusion
- Dynamical systems and numerical analysis provide a natural framework to analyse and design (structured) neural networks.
- Imposing a specific structure can be valuable for qualitatively accurate approximations or a "better behaved" model.
- Interesting questions: How is the expressivity of the model restricted when we impose some structure? How to efficiently deal with implicit geometric integrators to design, for example, symplectic or energy-preserving neural networks?
Thank you for the attention
- Celledoni, E., Leone, A., Murari, D., Owren, B., JCAM (2022). Learning Hamiltonians of constrained mechanical systems.
- Celledoni, E., Murari, D., Owren B., Schönlieb C.B., Sherry F, preprint (2022). Dynamical systems' based neural networks
Choice of dynamical systems
\dot{x}(t) = \left[A(\theta(t),x(t))-A(\theta(t),x(t))^T\right]\boldsymbol{1} = f(t,x(t))\\
\mathrm{vec}\left[A(\theta(t),x(t))\right] = V^T(t)\Sigma(W(t)x(t)+w(t))\in\mathbb{R}^{n^2}\\
I(x) = \sum_{i=1}^n x_i = \boldsymbol{1}^Tx
MASS-PRESERVING NEURAL NETWORKS
+ Any Runge-Kutta method
Choice of dynamical systems
\dot{x}(t) = \left[A(\theta(t),x(t))-A(\theta(t),x(t))^T\right]\boldsymbol{1} = f(t,x(t))\\
\mathrm{vec}\left[A(\theta(t),x(t))\right] = V^T(t)\Sigma(W(t)x(t)+w(t))\in\mathbb{R}^{n^2}\\
I(x) = \sum_{i=1}^n x_i = \boldsymbol{1}^Tx
MASS-PRESERVING NEURAL NETWORKS
SYMPLECTIC NEURAL NETWORKS
\dot{x}(t) = \mathbb{J}\nabla_x H(\theta(t),x(t))=f(t,x(t))\in\mathbb{R}^{2n}
\mathbb{J} = \begin{bmatrix} 0_n & I_n \\ -I_n & 0_n\end{bmatrix}\in\mathbb{R}^{2n\times 2n}
+ Any Runge-Kutta method
+ Any Symplectic method
FoCM 2023
By Davide Murari
FoCM 2023
Slides for the talk at FoCM conference in Paris, 2023
