Davide Murari
A PhD student in numerical analysis at the Norwegian University of Science and Technology.
Davide Murari
ICIAM - 22/08/2023
\(\texttt{davide.murari@ntnu.no}\)
In collaboration with : Elena Celledoni, Brynjulf Owren, Carola-Bibiane Schönlieb and Ferdia Sherry
Structured neural networks and some applications
Neural networks motivated by dynamical systems
\( \mathcal{N}(x) = f_{\theta_L}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
\( \mathcal{N}(x) = f_{\theta_L}\circ ... \circ f_{\theta_1}(x)\)
\mathcal{N}(x) = \Psi_{F_L}^{h_L}\circ ...\circ \Psi_{F_1}^{h_1}(x)
\( \dot{x}(t) = F(x(t),\theta(t))=:F_{s(t)}(x(t)) \)
Where \(F_i(x) = F(x,\theta_i)\)
\( \theta(t)\equiv \theta_i,\,\,t\in [t_i,t_{i+1}),\,\, h_i = t_{i}-t_{i-1}\)
t_0
t_1
t_2
t_i
t_{i+1}
t_L
\cdots
\cdots
\cdots
Neural networks motivated by dynamical systems
\dot{x}(t) = B(t)\mathrm{tanh}(A(t)x(t) + b(t))
Neural networks motivated by dynamical systems
Accuracy is not all you need
\(X\) , Label : Plane
\(X+\delta\), \(\|\delta\|_2=0.3\) , Label : Cat
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Imposing some structure
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(F_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{F_{\theta}:\,\,\theta\in\mathcal{P}\}\)
Imposing some structure
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(F_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{F_{\theta}:\,\,\theta\in\mathcal{P}\}\)
Integrator \(\Psi^h\) that preserves \(\mathcal{P}\)
x_{n+1}=x_n+h\Sigma(A_nv_n+a_n)\\
v_{n+1}=v_n+h\Sigma(B_nx_{n+1}+b_n)
Imposing some structure
\dot{y} = \begin{bmatrix} 0 & -y_3y_1^2 & y_2y_3 \\
y_3y_1^2 & 0 & -\sin{y_1} \\
-y_2y_3 & \sin{y_1} & 0\end{bmatrix}\boldsymbol{1}
\dot{x}(t) = \{A_{\theta}(x(t))-A_{\theta}(x(t))^T\}\boldsymbol{1}\\
\mathrm{vec}(A_{\theta}(x)) = V\Sigma(Ux+u)\\
\theta=(U,V,u)
Mass-preserving networks
Lipschitz-constrained networks
\(m=1\)
\(m=\frac{1}{2}\)
\(\Sigma(x) = \max\left\{x,\frac{x}{2}\right\}\)
A_c^TA_c = A^TA = I
X_{\theta_i}(x) := - \nabla V_{\theta_i}(x) = -A_c^T\Sigma(A_cx+b_c)
\Psi^{h^i_C}_{X_{\theta_i}}(x) = x - h_cA_c^T\Sigma(A_cx+b_c)
Y_{\theta_i}(x) := A^T\mathrm{ReLU}(Ax + b)
\|\Psi^{h_c}_{X_{\theta_i}}(y) - \Psi^{h_c}_{X_{\theta_i}}(x)\|\leq \sqrt{1-{h_c}+h_c^2}\|y-x\|
\Psi^{h_e}_{Y_{\theta_i}}(x) = x + {h_e}A^T\mathrm{ReLU}(Ax+b)
\|\Psi^{h_e}_{Y_{\theta_i}}(y) - \Psi^{h_e}_{Y_{\theta_i}}(x)\|\leq (1+{h_e})\|y-x\|

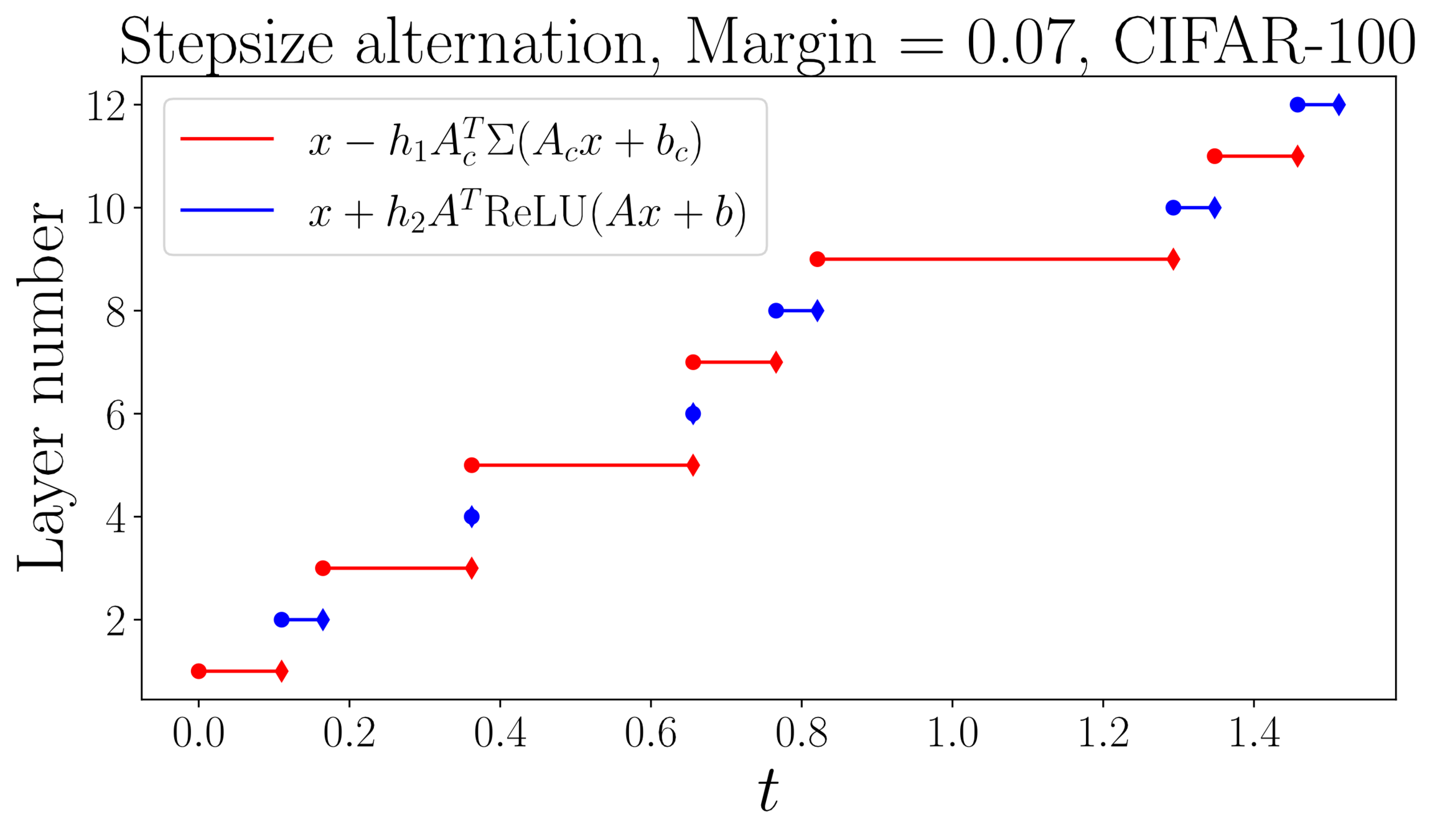

Lipschitz-constrained networks
\mathcal{N}_{\theta}(x)=\Psi_{X_{\theta_{2k}}}^{h_{2k}} \circ \Psi_{Y_{\theta_{2k-1}}}^{h_{2k-1}} \circ ... \circ \Psi_{X_{\theta_2}}^{h_2} \circ \Psi_{Y_{\theta_{1}}}^{h_1}(x)
\sqrt{1-{h_{2k}}+h_{2k}^2}(1+h_{2k-1})\leq 1
Lipschitz-constrained networks
Adversarial robustness
Thank you for the attention
- Celledoni, E., Murari, D., Owren B., Schönlieb C.B., Sherry F, preprint (2022). Dynamical systems' based neural networks
\(\texttt{davide.murari@ntnu.no}\)
Examples
\dot{x}(t) = -A^T(t)\Sigma(A(t)x(t) + b(t)) =\\
-\nabla \left( \boldsymbol{1}^T\Gamma(A(t)x(t)+b(t)) \right)
\dot{x}(t) = \mathbb{J}A^T(t)\Sigma(A(t)x(t)+b(t))
\ddot{x}(t) = \Sigma(A(t)x(t)+b(t))
1-LIPSCHITZ NETWORKS
HAMILTONIAN NETWORKS
VOLUME PRESERVING, INVERTIBLE
Naively constrained networks
x\mapsto F_{\theta_i}(x):=\frac{1}{2}\left(x + A_i\Sigma(B_ix+b_i)\right)\\
\|A_i\|_2,\|B_i\|_2\leq 1\\
\mathcal{N}_{\theta}(x) = F_{\theta_L}\circ ... \circ F_{\theta_1}(x)
