Dynamical systems' based neural networks
Davide Murari
davide.murari@ntnu.no
Theoretical and computational aspects of dynamical systems
HB60
What are neural networks
They are compositions of parametric functions
\( \mathcal{N}(x) = f_{\theta_k}\circ ... \circ f_{\theta_1}(x)\)
ResNets
\(\Sigma(z) = [\sigma(z_1),...,\sigma(z_n)],\)
\( \sigma:\mathbb{R}\rightarrow\mathbb{R}\)
f_{\theta}(x) = x + B\Sigma(Ax+b),\\
\theta = (A,B,b)
Neural networks motivated by dynamical systems
\mathcal{N}(x) = \Psi_{f_k}^{h_k}\circ ...\circ \Psi_{f_1}^{h_1}(x)
\( \dot{x}(t) = h(x(t),\theta(t))=:h_{s(t)}(x(t)) \)
Where \(f_i(x) = f(x,\theta_i)\)
\theta(t)\equiv \theta_i,\,\,t\in [t_i,t_{i+1})
t_0
t_1
t_2
t_i
t_{i+1}
t_M=T
\cdots
\cdots
\cdots
h_i
{
Neural networks motivated by dynamical systems
What if I want a network with a certain property?
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\)Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(X_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{X_{\theta}:\,\,\theta\in\mathcal{A}\}\)
Integrator \(\Psi^h\) that preserves \(\mathcal{P}\)
x_{n+1}=x_n+h\Sigma(Av_n+a)\\
\,\,\,\,v_{n+1}=v_n+h\Sigma(Bx_{n+1}+b)
1.
2.
3.
Mass-preserving networks
\dot{y} = \begin{bmatrix} 0 & -y_3y_1^2 & y_2y_3 \\
y_3y_1^2 & 0 & -\sin{y_1} \\
-y_2y_3 & \sin{y_1} & 0\end{bmatrix}\boldsymbol{1}
\dot{x}(t) = \{A_{\theta}(x(t))-A_{\theta}(x(t))^T\}\boldsymbol{1}\\
\mathrm{vec}(A_{\theta}(x)) = \Sigma(Ux+u)

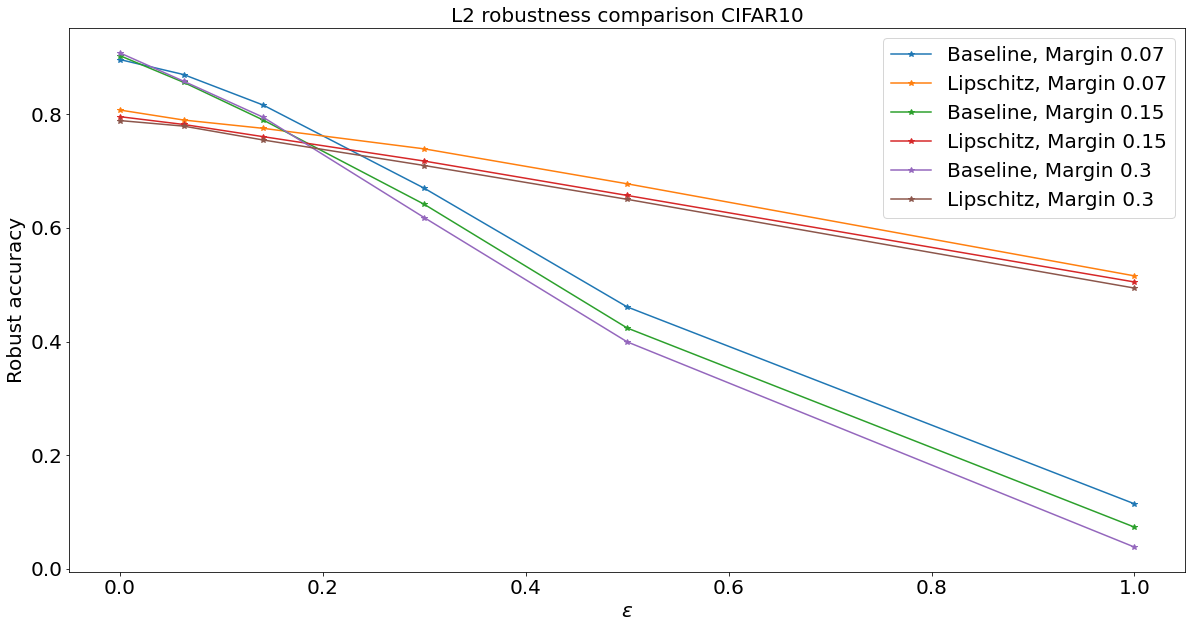

Lipschitz-constrained networks
\(m=1\)
\(m=\frac{1}{2}\)
\(\Sigma(x) = \max\left\{x,\frac{x}{2}\right\}\)
We consider orthogonal weight matrices
Lipschitz-constrained networks
X_{\theta_i}(x) := - \nabla V_{\theta_i}(x) = -A_i^T\Sigma(A_ix+b_i)
\Psi^{h_C}_{X_{\theta_i}}(x) = x - {h_C}A_i^T\Sigma(A_ix+b_i)
Y_{\theta_i}(x) := \Sigma(W_ix + v_i)
\|\Psi^{h_C}_{X_{\theta_i}}(y) - \Psi^{h_C}_{X_{\theta_i}}(x)\|\leq \sqrt{1-{h_C}+{h_C}^2}\|y-x\|
\Psi^{h_E}_{Y_{\theta_i}}(x) = x + {h_E}\Sigma(W_ix+v_i)
\|\Psi^{h_E}_{Y_{\theta_i}}(y) - \Psi^{h_E}_{Y_{\theta_i}}(x)\|\leq (1+{h_E})\|y-x\|
Lipschitz-constrained networks
\mathcal{N}(x)=\Psi_{X_{\theta_{2k}}}^{h_{2k}} \circ \Psi_{Y_{\theta_{2k-1}}}^{h_{2k-1}} \circ ... \circ \Psi_{X_{\theta_2}}^{h_2} \circ \Psi_{Y_{\theta_{1}}}^{h_1}(x)
We impose :
\|\mathcal{N}(x)-\mathcal{N}(y)\|\leq \|x-y\|
\sqrt{1-{h_C}+{h_C}^2}(1+h_E)\leq 1
Adversarial examples
\(X\) ,
Label : Plane
\(X+\delta\),
\(\|\delta\|_2=0.3\) ,
Label : Cat
Thank you for the attention
f_i = \nabla U_i + X_S^i
U_i(x) = \int_0^1 x^Tf_i(tx)dt
x^TX_S^i(x)=0\quad \forall x\in\mathbb{R}^n
Then \(F\) can be approximated with flow maps of gradient and sphere preserving vector fields.
F:\Omega\subset\mathbb{R}^n\rightarrow\mathbb{R}^n\quad \text{continuous, and}
\forall \varepsilon>0\,\,\exist f_1,…,f_k\in\mathcal{C}^1(\mathbb{R}^n,\mathbb{R}^n)\,\,\text{s.t.}
\|F-\Phi_{f_k}^{h_k}\circ … \circ \Phi_{f_1}^{h_1}\|<\varepsilon.
Can we still accurately approximate functions?
Can we still accurately approximate functions?
\Phi_{f_i}^h = \Phi_{f_i}^{\alpha_M h} \circ ... \circ \Phi_{f_i}^{\alpha_1 h}
\sum_{i=1}^M \alpha_i = 1
f = \nabla U + X_S \\
\implies \Phi_f^h = \Phi_{\nabla U}^{h/2} \circ \Phi_{X_S}^h \circ \Phi_{\nabla U}^{h/2} + \mathcal{O}(h^3)
