A numerical analysis perspective on neural networks
Davide Murari
davide.murari@ntnu.no
In collaboration with : Elena Celledoni, James Jackaman, Brynjulf Owren, Carola-Bibiane Schönlieb, and Ferdia Sherry
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
t_0
t_1
t_2
t_i
t_{i+1}
t_M
\cdots
\cdots
\cdots
\mathcal{N}(x) = \Psi_{F_M}^{\delta t_M}\circ ...\circ \Psi_{F_1}^{\delta t_1}(x)
\( \dot{x}(t) = F(x(t),\theta(t)) \)
Where \(F_i(x) = F(x,\theta(t_i))\)
\( \delta t_i = t_{i}-t_{i-1}\)
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
\mathcal{N}(x) = \Psi_{F_M}^{\delta t_M}\circ ...\circ \Psi_{F_1}^{\delta t_1}(x)
\( \dot{x}(t) = F(x(t),\theta(t)) \)
Where \(F_i(x) = F(x,\theta(t_i))\)
\( \delta t_i = t_{i}-t_{i-1}\)
t_0
t_1
t_2
t_i
t_{i+1}
t_M
\cdots
\cdots
\cdots
\( \mathcal{N}(x) = f_{\theta_M}\circ ... \circ f_{\theta_1}(x)\)
Neural networks motivated by dynamical systems
t_0
t_1
t_2
t_i
t_{i+1}
t_M
\cdots
\cdots
\cdots
\mathcal{N}(x) = \Psi_{F_M}^{\delta t_M}\circ ...\circ \Psi_{F_1}^{\delta t_1}(x)
\( \dot{x}(t) = F(x(t),\theta(t)) \)
Where \(F_i(x) = F(x,\theta(t_i))\)
\( \delta t_i = t_{i}-t_{i-1}\)
Neural networks motivated by dynamical systems
Outline
Universal approximation theorem based on gradient flows
Approximation theory for ResNets applied to space-time PDE data
Defining neural networks with prescribed properties

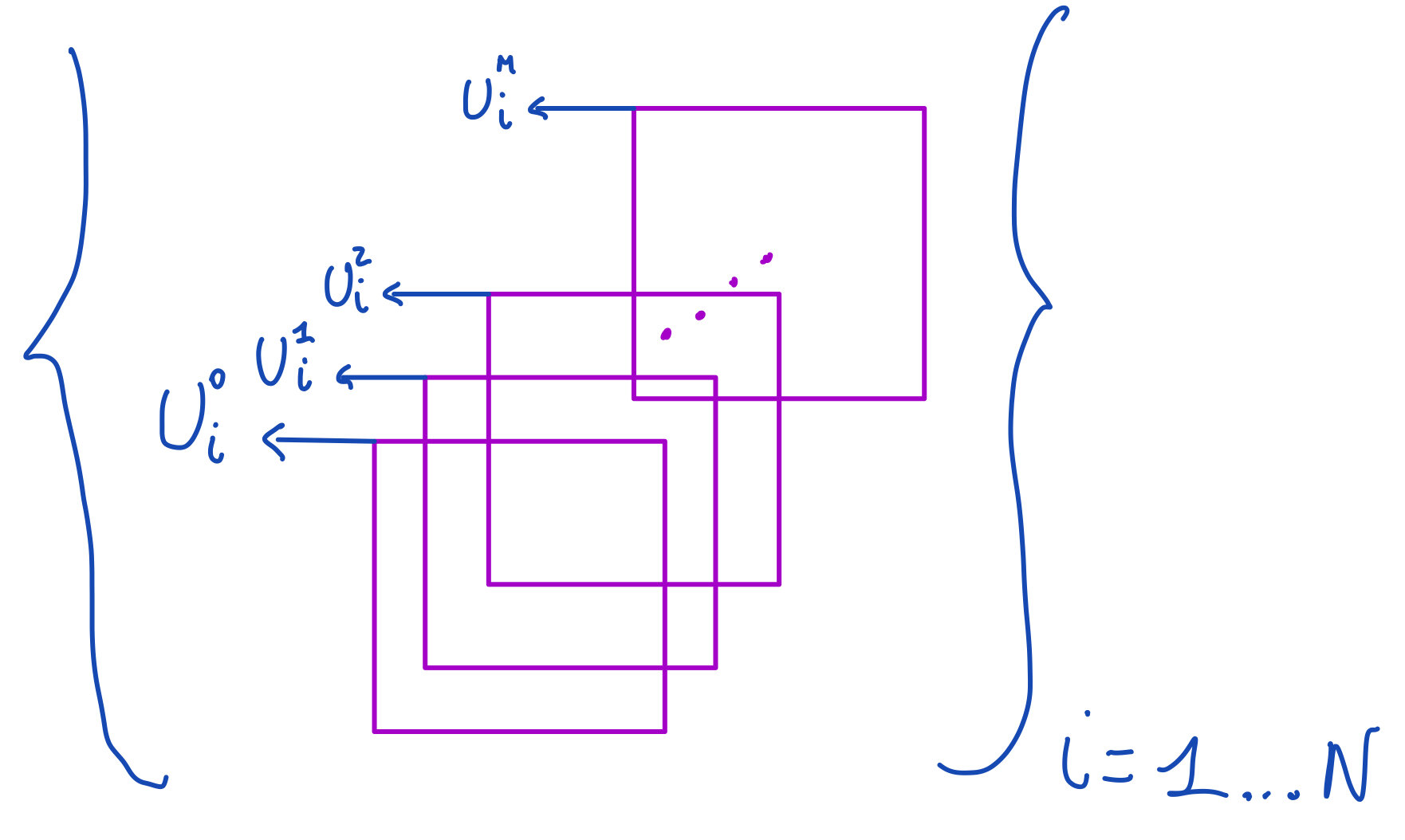

Pixel-based learning
\(U^{n+1} = \Phi(U^n)\)
GOAL: Approximate the map \(\Phi\)
Predictions at time \(40\delta t\)
Fisher's equation:
\(\partial_t u=\alpha \Delta u+u(1-u)\)
Approximation of space-time dynamics of PDEs
\partial_t u = \mathcal{L}u + \sum_{i=1}^n\beta_i\,\partial_{\alpha_{i1}}u\cdot \,...\,\cdot \partial_{\alpha_{im_i}}u,\\
\beta_i\in\mathbb{R},\,\,\alpha_{ij}\in \mathbb{N}^2
u=u(t,x,y)
\(0=t_0 < t_1<...<t_M\)
\(U_{ij}^n = u(t_n,x_i,y_j)\)
{
\delta x
Method of lines
\partial_t u = \mathcal{L}u + \sum_{i=1}^n\beta_i\,\partial_{\alpha_{i1}}u\cdot \,...\,\cdot \partial_{\alpha_{im_i}}u
\dot{U}(t)=L * U(t)+\sum_{i=1}^n \beta_i\left[\left(D_{i 1} * U(t)\right) \odot \cdots \odot\left(D_{i m_i} * U(t)\right)\right]\\
=: F(U(t))
Initial PDE
Semidiscretisation in space with finite differences
Approximation of the time dynamics
U(t)_{ij} := u(x_i,y_j,t)
U^{n+1} = U^n + \delta t F(U^n)=: \Psi_{F}^{\delta t}(U^n)
Method of lines
\partial_t u = \mathcal{L}u + \sum_{i=1}^n\beta_i\,\partial_{\alpha_{i1}}u\cdot \,...\,\cdot \partial_{\alpha_{im_i}}u
\dot{U}(t)=L * U(t)+\sum_{i=1}^n \beta_i\left[\left(D_{i 1} * U(t)\right) \odot \cdots \odot\left(D_{i m_i} * U(t)\right)\right]\\
=: F(U(t))
Initial PDE
Semidiscretisation in space with finite differences
Approximation of the time dynamics
U(t)_{ij} \approx u(x_i,y_j,t)
U^{n+1} = U^n + \delta t F(U^n)=: \Psi_{F}^{\delta t}(U^n)
Method of lines
\partial_t u = \mathcal{L}u + \sum_{i=1}^n\beta_i\,\partial_{\alpha_{i1}}u\cdot \,...\,\cdot \partial_{\alpha_{im_i}}u
\dot{U}(t)=L * U(t)+\sum_{i=1}^n \beta_i\left[\left(D_{i 1} * U(t)\right) \odot \cdots \odot\left(D_{i m_i} * U(t)\right)\right]\\
=: F(U(t))
U^{n+1} = U^n + \delta t F(U^n)=: \Psi_{F}^{\delta t}(U^n)
Initial PDE
Semidiscretisation in space with finite differences
Approximation of the time dynamics
U(t)_{ij} \approx u(x_i,y_j,t)
Finite differences as convolutions
R = K*U
\frac{1}{\delta x^2}\left[\begin{array}{ccc}
0 & 1 & 0 \\
1 & -4 & 1 \\
0 & 1 & 0
\end{array}\right] * U=\Delta u\left(t, x_i, y_j\right)+\mathcal{O}\left(\delta x^2\right)
Example
Error splitting
\begin{aligned}
& \left\|U^{n+1}-\Psi_{F_\theta}^{\delta t}\left(U^n\right)\right\| \\
& =\left\|\mathcal{O}\left(\delta x^2\right)+\Phi_F^{\delta t}\left(U^n\right)-\Psi_{F_\theta}^{\delta t}\left(U^n\right)\right\| \\
& \leq \mathcal{O}\left(\delta x^2\right)+\left\|\Phi_F^{\delta t}\left(U^n\right)-\Psi_F^{\delta t}\left(U^n\right)+\Psi_F^{\delta t}\left(U^n\right)-\Psi_{F_\theta}^{\delta t}\left(U^n\right)\right\| \\
& \leq \underbrace{\mathcal{O}\left(\delta x^2\right)}_{\text {spatial error }}+\underbrace{\left\|\Phi_F^{\delta t}\left(U^n\right)-\Psi_F^{\delta t}\left(U^n\right)\right\|}_{\text {classical error estimate }}+\underbrace{\left\|\Psi_F^{\delta t}\left(U^n\right)-\Psi_{F_\theta}^{\delta t}\left(U^n\right)\right\|}_{\text {neural network approximation }} \\
& \leq \mathcal{O}\left(\delta x^2\right) + \mathcal{O}\left(\delta t^{r+1}\right) + \left\|\Phi_F^{\delta t}\left(U^n\right)-\Phi_{F_\theta}^{\delta t}\left(U^n\right)\right\|\\
& \leq \mathcal{O}\left(\delta x^2\right) + \mathcal{O}\left(\delta t^{r+1}\right) + \delta t \exp (\operatorname{Lip}(F) \delta t) \sup _{\|U\| \leq c}\left\|F_\theta(U)-F(U)\right\|
\end{aligned}
U^n \mapsto \Psi_{F_{\theta}}^{\delta t}(U^n)
Layer of a ResNet we want to study
Splitting:
Useful activation functions
Simple but useful property:
\(x^p = \max(0,x)^p + (-1)^p\max(0,-x)^p\)
Approximation theorem
F(U) = L*U + (D_1*U) \odot (D_2*U)
Simplified setting
2ab = (a+b)^2 - (a^2 + b^2)\\
= \sigma_2(a+b) + \sigma_2(-(a+b))- \\
\left(\sigma_2(a) +\sigma_2(-a) + \sigma_2(b)+\sigma_2(-b) \right)
a = \sigma_1(a) - \sigma_1(a)
Approximation theorem
F_{\theta}(U) := \mathcal{\boldsymbol{B}} * \sigma(\mathcal{\boldsymbol{A}}*U)
Approximation theorem
F_{\theta}(U) := \mathcal{\boldsymbol{B}} * \sigma(\mathcal{\boldsymbol{A}}*U)
\begin{aligned}
& \left\|U^{n+1}-\Psi_{F_\theta}^{\delta t}\left(U^n\right)\right\|\\
&\leq \mathcal{O}\left(\delta x^2\right) + \mathcal{O}\left(\delta t^{r+1}\right) + \delta t \exp (\operatorname{Lip}(F) \delta t) \sup _{\|U\| \leq c}\left\|F_\theta(U)-F(U)\right\|
\end{aligned}
This can theoretically be 0. In practice, it depends on to the optimisation error.
Examples of problems with a specific structure
What if I want a network to satisfy a certain property?
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(F_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{F_{\theta}:\,\,\theta\in\mathcal{P}\}\)
Integrator \(\Psi^{\delta t}\) that preserves \(\mathcal{P}\)
\mathcal{N}(x) = \Psi_{F_M}^{\delta t_M}\circ ...\circ \Psi_{F_1}^{\delta t_1}(x)
x_{n+1}=x_n+\delta t\Sigma(A_nv_n+a_n)\\
v_{n+1}=v_n+\delta t\Sigma(B_nx_{n+1}+b_n)\\
(x_{n+1},v_{n+1}) = \Psi^{\delta t}_{F_{\theta}}(x_n,v_n)
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(F_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{F_{\theta}:\,\,\theta\in\mathcal{P}\}\)
Integrator \(\Psi^{\delta t}\) that preserves \(\mathcal{P}\)
x_{n+1}=x_n+\delta t\Sigma(A_nv_n+a_n)\\
v_{n+1}=v_n+\delta t\Sigma(B_nx_{n+1}+b_n)\\
(x_{n+1},v_{n+1}) = \Psi^{\delta t}_{F_{\theta}}(x_n,v_n)
What if I want a network to satisfy a certain property?
GENERAL IDEA
EXAMPLE
Property \(\mathcal{P}\)
\(\mathcal{P}=\) Volume preservation
Family \(\mathcal{F}\) of vector fields that satisfy \(\mathcal{P}\)
\(F_{\theta}(x,v) = \begin{bmatrix} \Sigma(Av+a) \\ \Sigma(Bx+b) \end{bmatrix} \)
\(\mathcal{F}=\{F_{\theta}:\,\,\theta\in\mathcal{P}\}\)
Integrator \(\Psi^{\delta t}\) that preserves \(\mathcal{P}\)
x_{n+1}=x_n+\delta t\Sigma(A_nv_n+a_n)\\
v_{n+1}=v_n+\delta t\Sigma(B_nx_{n+1}+b_n)\\
(x_{n+1},v_{n+1}) = \Psi^{\delta t}_{F_{\theta}}(x_n,v_n)
What if I want a network to satisfy a certain property?
Choice of dynamical systems
\dot{x}(t) = \left[A(\theta(t),x(t))-A(\theta(t),x(t))^T\right]\boldsymbol{1} = F(t,x(t))\\
\mathrm{vec}\left[A(\theta(t),x(t))\right] = V^T(t)\Sigma(W(t)x(t)+w(t))\in\mathbb{R}^{n^2}\\
I(x) = \sum_{i=1}^n x_i = \boldsymbol{1}^Tx\\
\implies \nabla I(x)^TF(t,x)=\boldsymbol{1}^TF(t,x) = 0
MASS-PRESERVING NEURAL NETWORKS
SYMPLECTIC NEURAL NETWORKS
\dot{x}(t) = \mathbb{J}\nabla_x H(\theta(t),x(t))=F(t,x(t))\in\mathbb{R}^{2n}
\mathbb{J} = \begin{bmatrix} 0_n & I_n \\ -I_n & 0_n\end{bmatrix}\in\mathbb{R}^{2n\times 2n}
Choice of dynamical systems
\dot{x}(t) = \left\{A(\theta(t),x(t))-A(\theta(t),x(t))^T\right\}\boldsymbol{1} = F(t,x(t))\\
I(x) = \sum_{i=1}^n x_i = \boldsymbol{1}^Tx\\
\implies \nabla I(x)^TF(t,x)=\boldsymbol{1}^TF(t,x) = 0
MASS-PRESERVING NEURAL NETWORKS
SYMPLECTIC NEURAL NETWORKS
\dot{x}(t) = \mathbb{J}\nabla_x H(\theta(t),x(t))=F(t,x(t))\in\mathbb{R}^{2n}
\mathbb{J} = \begin{bmatrix} 0_n & I_n \\ -I_n & 0_n\end{bmatrix}\in\mathbb{R}^{2n\times 2n}
Choice of numerical methods
I(x) = \boldsymbol{1}^Tx,\quad x_{n+1} = x_n + \delta tF(t_n,x_n)\\
I(x_{n+1}) = \boldsymbol{1}^Tx_{n+1} = \boldsymbol{1}^Tx_{n} + \delta t\boldsymbol{1}^TF(t_n,x_n)\\
= \boldsymbol{1}^Tx_{n} = I(x_n)
MASS-PRESERVING NEURAL NETWORKS
SYMPLECTIC NEURAL NETWORKS
Any Runge-Kutta method
Any Symplectic numerical method
Choice of numerical methods
I(x) = \boldsymbol{1}^Tx,\quad x_{n+1} = x_n + \delta tF(t_n,x_n)\\
I(x_{n+1}) = \boldsymbol{1}^Tx_{n+1} = \boldsymbol{1}^Tx_{n} + \delta t\boldsymbol{1}^TF(t_n,x_n)\\
= \boldsymbol{1}^Tx_{n} = I(x_n)
MASS-PRESERVING NEURAL NETWORKS
SYMPLECTIC NEURAL NETWORKS
Any Runge-Kutta method
Any Symplectic numerical method
Can we still approximate many functions?
f_i(x) = \nabla U_i(x) + X_S^i(x)
U_i(x) = \int_0^1 x^Tf_i(tx)dt
x^TX_S^i(x)=0\quad \forall x\in\mathbb{R}^n
Then \(F\) can be approximated arbitrarily well by composing flow maps of gradient and sphere preserving vector fields.
F:\Omega\subset\mathbb{R}^n\rightarrow\mathbb{R}^n\quad \text{continuous}
\forall \varepsilon>0\,\,\exist f_1,…,f_k\in\mathcal{C}^1(\mathbb{R}^n,\mathbb{R}^n)\,\,\text{s.t.}
\|F-\Phi_{f_k}^{\delta t_k}\circ … \circ \Phi_{f_1}^{\delta t_1}\|<\varepsilon
Presnov Decomposition
Idea of the proof
\Phi_{f_i}^{\delta t} = \Phi_{f_i}^{\alpha_M \delta t} \circ ... \circ \Phi_{f_i}^{\alpha_1 \delta t}
\sum_{i=1}^M \alpha_i = 1
f = \nabla U + X_S \\
\implies \Phi_f^{\delta t}(x) = \Phi_{\nabla U}^{\delta t} \circ \Phi_{X_S}^{\delta t}(x) + \mathcal{O}(\delta t^2)
