AUTOMATION I: DREAMING OF NO HUMAN INVOLVEMENT
Ryan: FYS Computational Reasoning Fall 2025
Lecture content licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
CTFYS25-AUTO01
Automation I
PLAYLIST
IMage Gallery
Software tools
Excel PID Drone Simulation (.xlsx)
NetLogo Simulations
Google Docs version (lame)
Bibliography
Motivation
CTFYS25-AUTO01
Automation: Learning Outcomes
auto08 Big Picture: appreciate the ambition of automation and generic notion of building something whose adaptive behavior can be specified by a finite number of settings coupled to a feedback mechanism
auto01 Fundamentals: define "automatic" and explain what components of an automatic machine (sensor, actuator, mechanism, control) do
auto04 Mechanics of Examples: explain how cams and followers, steam engine governor, thermostat work
auto05 Feedback: explain the concept; give everyday examples; distinguish positive and negative; describe possible system behaviors verbally and with charts
auto07 PID Controllers: describe to person-on-the-street what PID controller does; explain association of past, present, future with I, P, D; describe what's going on in an output over time chart; carry out simple math of difference equations in a PID table
auto06 Causal Loop Diagrams: interpret CLD, construct from text, distinguish positive and negative causal relations, recognize balancing/reinforcing loop
auto03 Taxonomy: recognize/explain difference between automation as following rules/seeking goal; open/closed loop
auto02 History: describe linguistic origins of "automatic" and "cyber"; convey sense that automation is not new but a long-term human project; describe automata and famous historical exemplars of automation (centrifugal governor, Jacquard loom)
auto08 Big Picture
auto01 Fundamentals
auto04 Mechanics of Examples
auto05 Feedback
auto07 PID Controllers
auto06 Causal Loop Diagrams
auto03 Taxonomy
auto02 History
CTFYS25-AUTO01
DEFINITION
Automation = machines running without human intervention.CTFYS25-AUTO01
The Six Simple Machines
wheel
Pulley
inclined plane
LEVER
wedge
screw
MACHINE: an instrument designed to transmit or modify the application of power, force, or motion.
MACHINES:
-
transferring a force from one place to another,
-
changing the direction of a force,
-
increasing the magnitude of a force, or
-
increasing the distance or speed of a force.
CTFYS25-AUTO01
- Oakley, KP. 1964. Man the Tool-maker
- Lucas, Jim. 2018. "6 Simple Machines: Making Work Easier"
- SMORE. "Work, energy, and simple machines"
- Wikipedia. "Tool use by animals"
Main TAKEAWAY VERSION 1
Automatic machines can be controlled by programing them to do what humans want.CTFYS25-AUTO01
Main TAKEAWAY VERSION 2
Automatic machines can be controlled to do what humans want by minimizing error through feedback.
CTFYS25-AUTO01
Terminology
machine
automatic
control
feedback
cybernetics
A machine is "(1): an instrument (such as a lever) designed to transmit or modify the application of power, force, or motion
(2): an assemblage of parts that transmit forces, motion, and energy one to another in a predetermined manner"
An automatic machine is one that, once turned on, operates without human intervention.
Regulation of a system to achieve desired performance.
control that does not have access to feedback.
control that does have access to feedback.
Evaluative information about a process that is available to a controller of that process
the science of automatic control systems in both machines and living things
closed loop
open loop
CTFYS25-AUTO01
Automation as Following Instructions
CTFYS25-AUTO01
Automation is Old
CTFYS25-AUTO01
αὐτόματον, automaton, "acting of one's own will." First used by Homer to describe an automatic door.
Automaton
Automaton clock in Gloucester, United Kingdom
Henri Maillardet automaton, London, c1810 - Franklin Institute
CTFYS25-AUTO01
Behind
the
scenes
CTFYS25-AUTO01
V. Ryan (no relation) aka

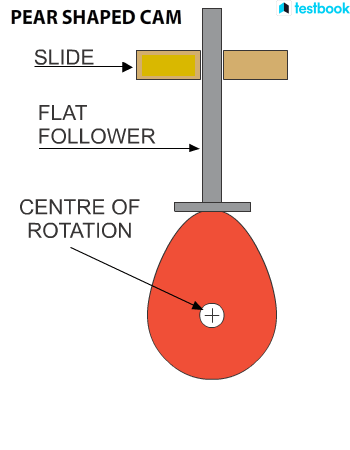

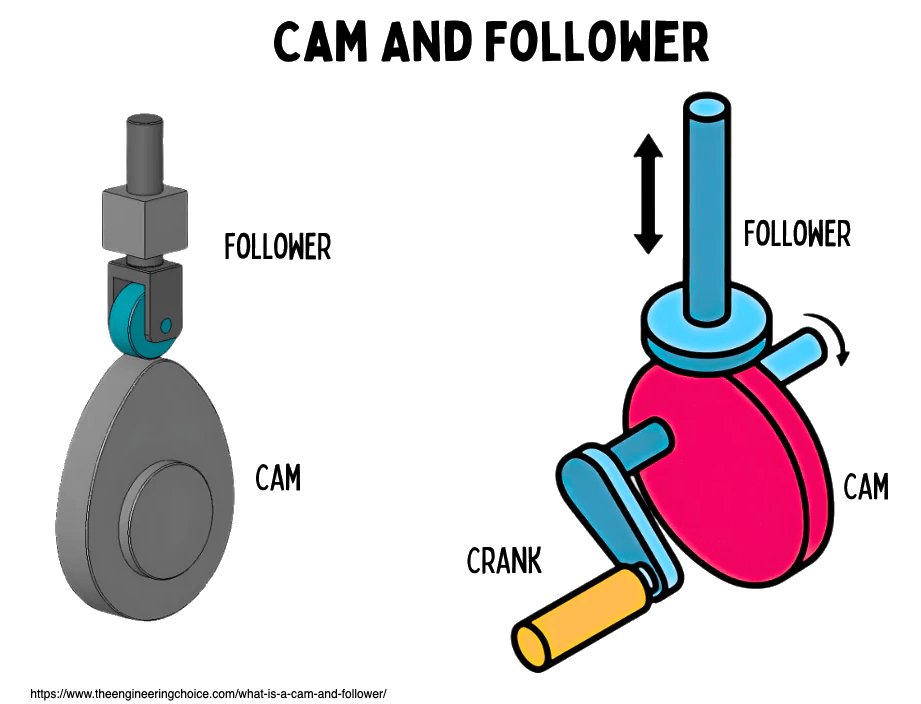

This produces an up and down motion of the grey part which is called the "follower."
See also: "Eccentric Cam Mechanism"
CTFYS25-AUTO01
V. Ryan (no relation) aka

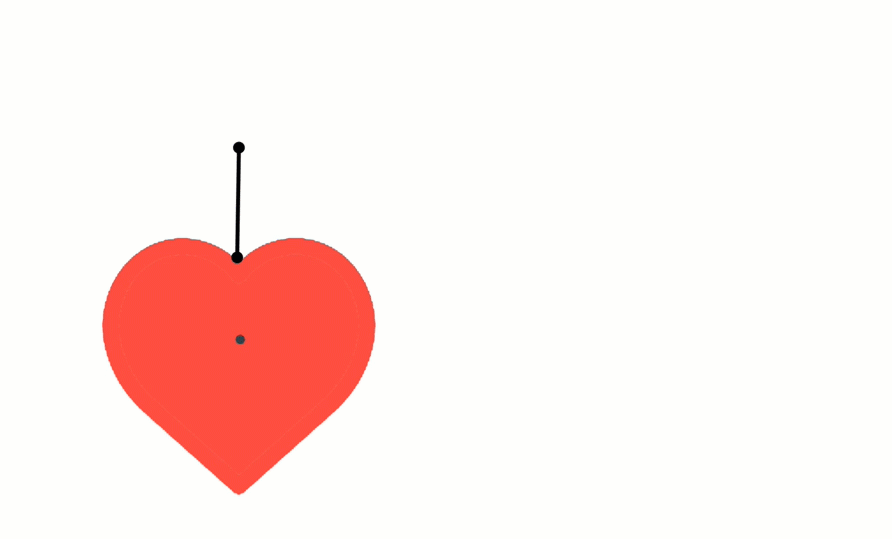

Differently shaped cams yield different patterns of motion
CTFYS25-AUTO01
Wikipedia says the camshaft was first described in 1206 by Arab engineer Al-Jazari. He employed it as part of his automata, water-raising machines, and water clocks such as the castle clock.
CTFYS25-AUTO01
CTFYS25-AUTO01

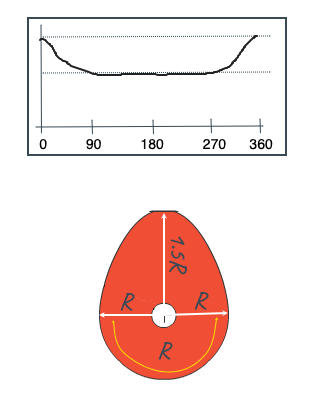

What is relationship between cam shape and behavior over the course of one cycle?
STOP+THINK
R\sqrt{2}
R
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
STOP+THINK
Exercise
How would we build an automaton that could write?
| STEP | X | Y |
|---|---|---|
| 0 | ||
| 30 | ||
| 60 | ||
| 90 | ||
| 120 | ||
| 150 | ||
| 180 | ||
| 210 | ||
| 240 | ||
| 270 | ||
| 300 | ||
| 330 | ||
| 360 |
| STEP | X | Y |
|---|---|---|
| 0 | 20 | 0 |
| 30 | 30 | 2 |
| 60 | 40 | 4 |
| 90 | 50 | 8 |
| 120 | 60 | 15 |
| 150 | 70 | 45 |
| 180 | 60 | 60 |
| 210 | 50 | 45 |
| 240 | 60 | 15 |
| 270 | 70 | 8 |
| 300 | 80 | 4 |
| 330 | 90 | 2 |
| 360 | 100 | 0 |
| STEP | X | Y |
|---|---|---|
| 0 | 20 | 0 |
| 30 | 30 | 2 |
| 60 | 40 | 4 |
| 90 | 50 | 8 |
| 120 | 60 | 15 |
| 150 | 70 | 45 |
| 180 | 60 | 60 |
| 210 | 50 | 45 |
| 240 | 60 | 15 |
| 270 | 70 | 8 |
| 300 | 80 | 4 |
| 330 | 90 | 2 |
| 360 | 100 | 0 |
follower
time
CTFYS25-AUTO01
CTFYS25-AUTO01
time
CTFYS25-AUTO01
command
rotation
2
3
7
4
follower
time
CTFYS25-AUTO01
command
rotation
2
3
7
4
follower
time
2
3
6
4
CTFYS25-AUTO01
STOP+THINK
What might a flow chart for this automatic machine look like?
command
sequence
2
3
7
5
follower
command
sequence
2
3
7
5
CTFYS25-AUTO01
Exercise
3. [auto04] What would a charting of the follower's motion be for this cam?
CTFYS25-AUTO01
Automation Class I Activities
Q: simple causal loop: description via broadcast work together drawing (pairs)
CTFYS25-AUTO01
CTFYS25-AUTO01
Jacquard Loom, see also
CTFYS25-AUTO01
Sequence
Heads-Down, Think and Write on your own white board
Find your table
Breakout rooms open, go to your room
Decide on order
Timer starts
Hear from everyone, craft collective response, write on table's white board
15 second warning - finish up
Return to main room. Instructor resets deck. Individual called to report for group
Feedback/takeaway
CTFYS25-AUTO01
instruction
rotation
1
4
3
2
follower
1
2
3
4
CTFYS25-AUTO01
Exercise
[auto04] Quick draw flowchart for cam- or card-based automation if it's basically "instruction 1, instruction 2, instruction 3, instruction 4, repeat." Use the graphical pieces below.
CTFYS25-AUTO01
Exercise
[auto04] Quick draw flowchart for cam- or card-based automation if it's basically "instruction 1, instruction 2, instruction 3, instruction 4, repeat."
CTFYS25-AUTO01
Automation as Sequence
2
3
7
5
CTFYS25-AUTO01
STOP+THINK Write a definition for the term "automatic."
CTFYS25-AUTO01
0 5 10 15 20 25 30
0 5 10 15 20 25 30
0 5 10 15 20 25 30
15 10 5
0,0
5,1
10,2
15,4
20,10
15,15
10,10
15,9
20,2
25,1
30,0
x
x
x
x
x
x
x
x
x
x
x
x
Humans, Machines, Governance, and Automation
1
2
3
4
Unpacking
"Automation"
PID ControllERS
FEEDBACK
CTFYS25-AUTO01
HOOK
CTFYS25-AUTO01
Evolution of Agency in Homo Sapiens
Simple Machines
Compound Machines
Nonhuman Power
homo faber
Doing and Making
homo gubernator
homo tractus
homo machinator
Instructions
Goals
homo delegator
automation
CTFYS25-AUTO01
humans
We are lazy and we like to control things.
CTFYS25-AUTO01
See Also
CTFYS25-AUTO01
from Kubernetes (κυβερνήτης, Greek for "governor", "helmsman" or "captain" or "steerer"; becomes gubernet- in Latin)
Earliest usages were more social than technical: governance of society
GOVERNANCE
Cybernetics
CTFYS25-AUTO01
STOP+THINK:What's the "AUTOMAT" Part?
These things were "AUTOMATIC" in that humans supplied the energy or the power but the device could carry out the sequence of activities "on its own."
The Secret: built-in CONTROL
AKA GOVERNANCE
CTFYS25-AUTO01
Tools and Machines Bibliography
- Wikipedia, "Kenneth Oakley"
- Oakley, KP. 1964. Man the Tool-maker
- Lucas, Jim. 2018. "6 Simple Machines: Making Work Easier"
- SMORE. "Work, energy, and simple machines"
- Wikipedia. "Tool use by animals"
CTFYS25-AUTO01
MACHINE:
an assemblage of parts
that transmit
forces, motion, and energy
to one another
in a predetermined manner.
CTFYS25-AUTO01
Cybernetics : the study of the control of systems.
CTFYS25-AUTO01
CTFYS25-AUTO01
UNPACKING "Automation"
2
CTFYS25-AUTO01
TWO KINDS OF Automation
Instruction Following
Goal Seeking
An automatic machine is one that, once turned on, operates without human intervention.
CTFYS25-AUTO01
components of an automatic machine
Actuator: generates force
Mechanism: transmit and focus force
Sensor: detects states
Controller: Compares sensor output to
goal and adjusts actuator
CTFYS25-AUTO01
Stop+Think: automatic kettle?
Actuator: ?
Mechanism: ?
Sensor: ?
Controller: ?
button
switch
heater
temperature
sensor
at 100c
throw switch
CTFYS25-AUTO01
