CSS

Cascading   Style   Sheets

Part II

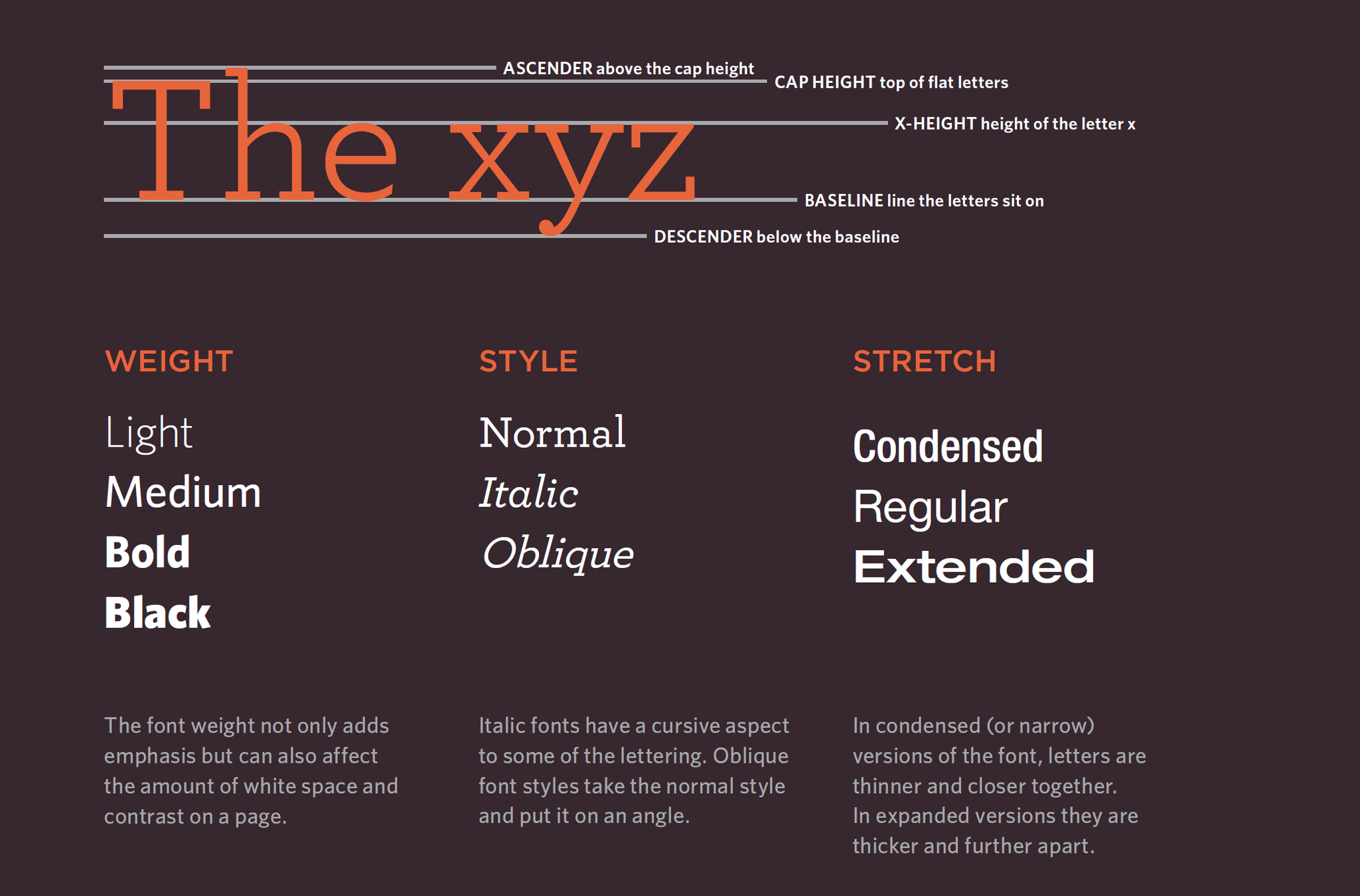

Text Styling

  • Font and Size

  • Bold, Italics, capitals, underlines

  • Spacing between lines, letters and words

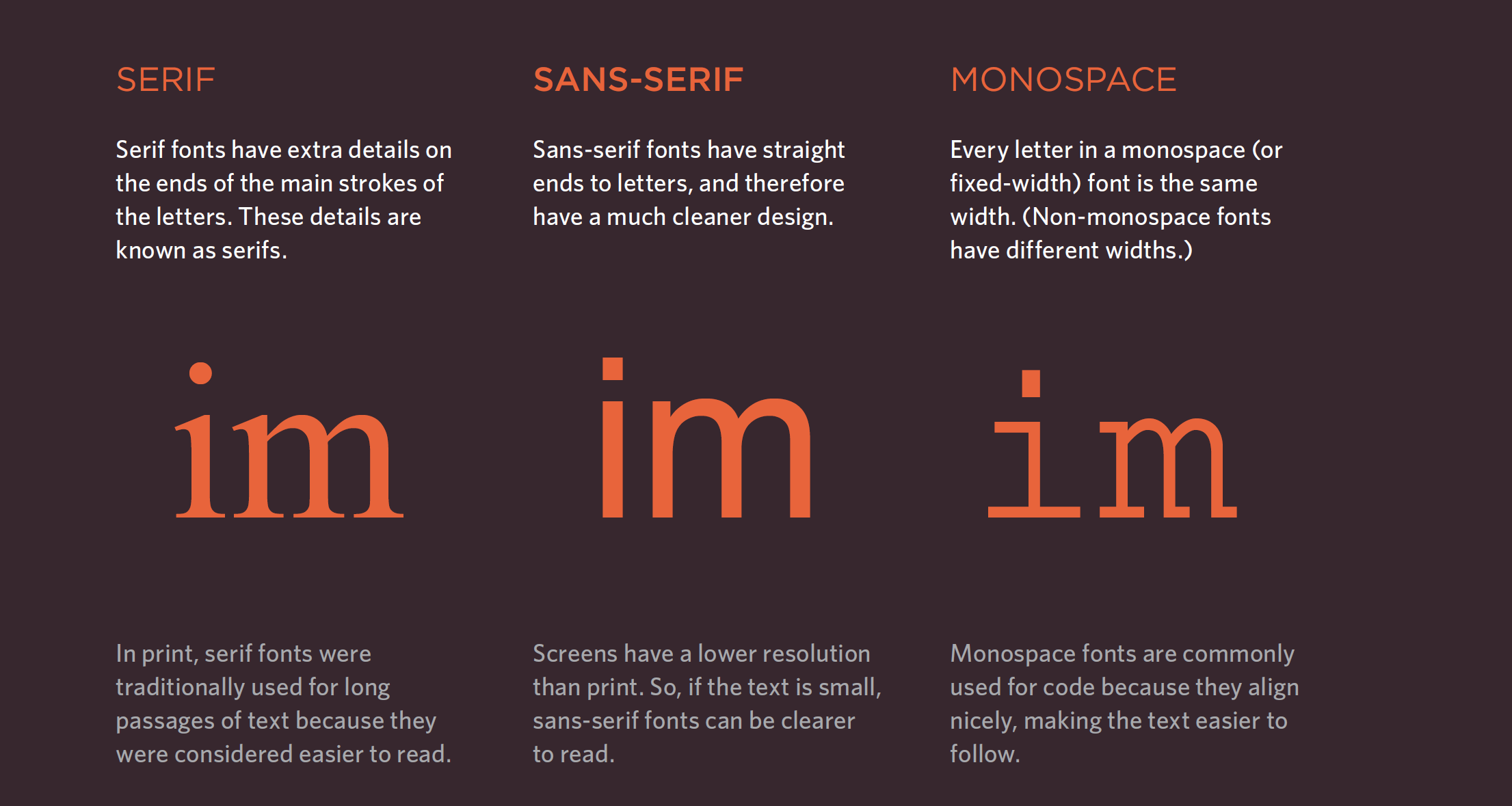

Font Family

selector
{
    font-family: Arial;
}

*Different Fonts are available on different machines/OS's (see here)

Specifies the name of the font to be used.

Font Size

h1
{
    font-size: 60px;
}

Specifies the size of the font to be used.

Heading 1

h1
{
    font-size: 14px;
}

Heading 1

Font Size: em

h1
{
    font-size: 2.0em;
}

em = Parent Font Size

2.0em = 2 x Parent Font Size

3.5em = 3.5 x Parent Font Size

...

Dynamic Font Size where em is equal to the size of the font that applies to the parent of the element in question

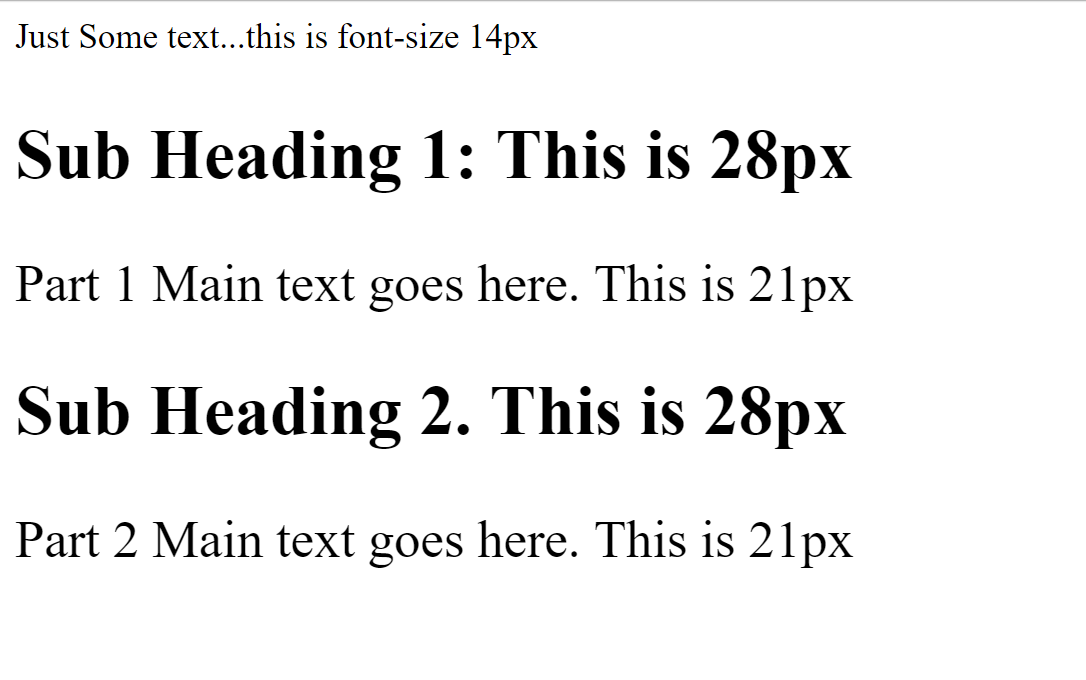

Font Size: em

div
{
  font-size: 14px;
}

h2
{
  font-size: 2.0em;
}

p
{
  font-size: 1.5em
}
<div>

  Just Some text...this is font-size 14px

    <h2>Sub Heading 1: This is 28px</h2>

    <p>Part 1 Main text goes here. This is 21px</p>

    <h2>Sub Heading 2. This is 28px</h2>

    <p>Part 2 Main text goes here. This is 21px</p>
</div>

emFontIntro

Font Weight

h1
{
    font-weight: bold;
}
p
{
    font-weight: normal;
}

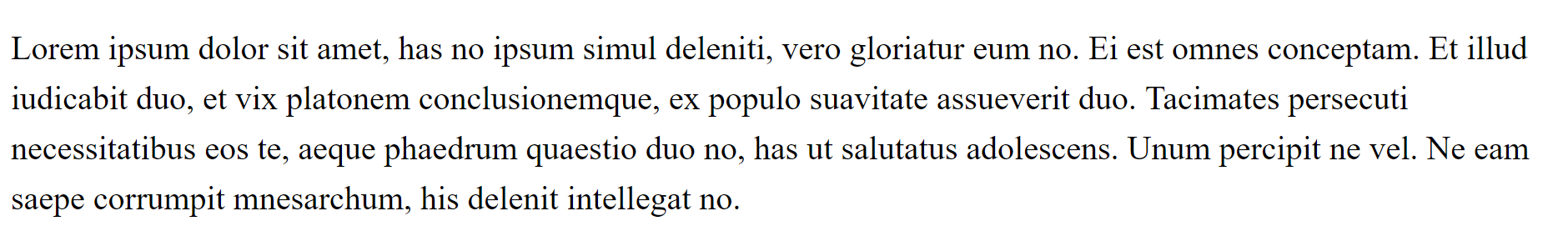

Line Spacing

p
{
    line-height: 1.5;
}

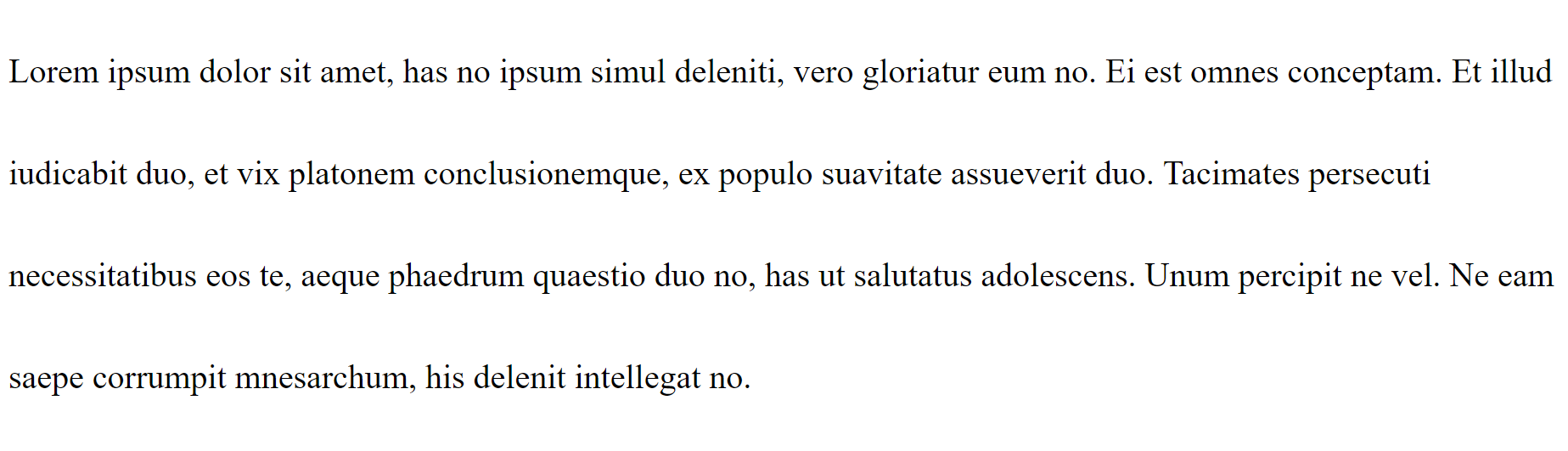

p
{
    line-height: 3;
}

Text Align

h1
{

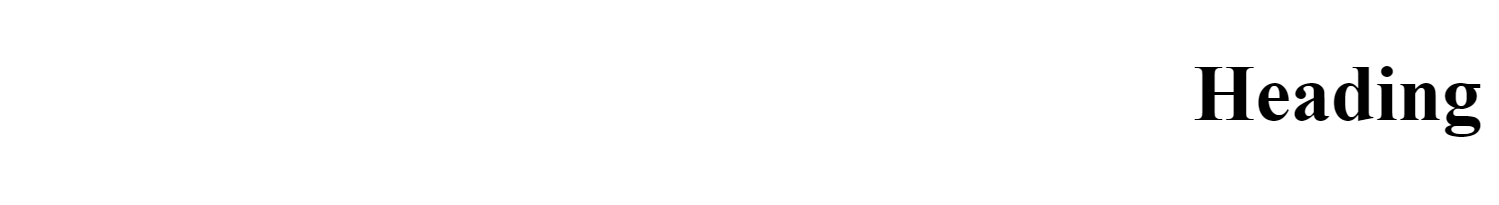

    line-align: right;
}
h1
{

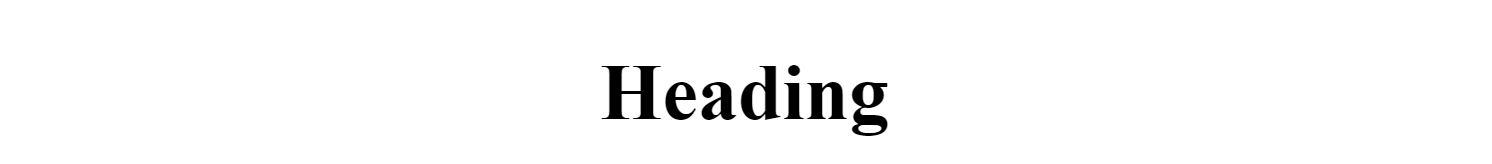

    line-align: center;
}

Text Decoration

h1
{

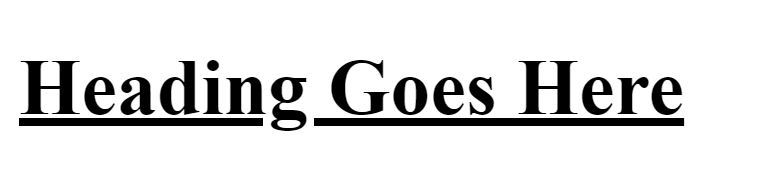

    text-decoration: underline;
}
h1
{

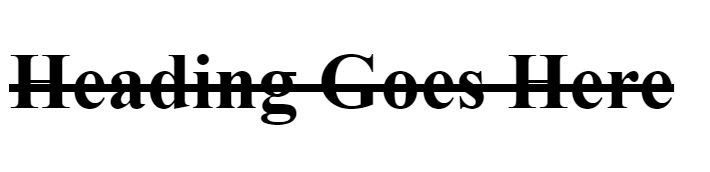

    text-decoration: line-through;
}

fontBasics

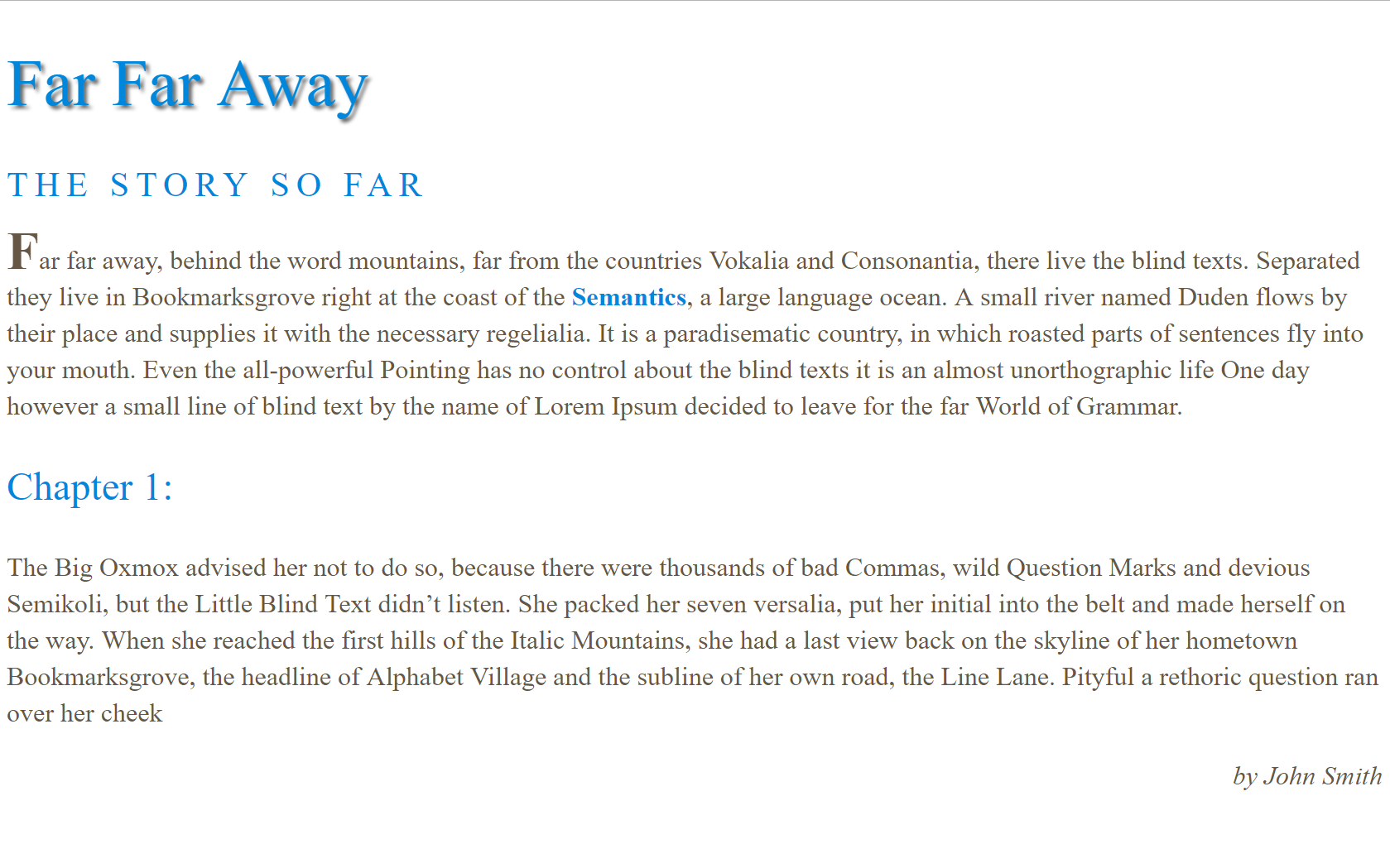

Additional Text Styling

  1. Go to fontChallenge replit
  2. Edit the CSS file to replicate web page below
  3. Hints:
    • text-shadow is used to the "Far Far Away heading"
    • :first-letter can be used to select the opening "F" (i.e ".intro:first-letter")

fontChallenge

External Fonts

1. Add link to font in HTML File

<link href="https://fonts.googleapis.com/css?family=Rubik" rel="stylesheet">

2. Reference Font in CSS

p
{
    font-family: Rubik;
}

0. Locate a Font that you like

  1. Go to fontBasics on replit
  2. Go to google fonts and choose a font of your liking
  3. Paste the google fonts link element into the head section of your html file
  4. In CSS change the font of all text to your chosen font
  5. Chose a second font on google fonts
    • Paste link in to html head
    • Style the <p> such that it uses the second font

CSS Box Model

HTML Box

A helpful way to understand CSS is to imagine a box surrounding every HTML element

<body>
    <h1>Far Far Away</h1>

    <p>Far far away, <em>behind the word mountains</em>, far from the
    countries Vokalia and Consonantia, there live the blind texts.
    Separated they live in Bookmarksgrove right at the coast of the
    Semantics, a large language ocean. A small river named Duden flows
    by their place and supplies it with the necessary regelialia.</p>

    <p>It is a paradisematic country, in which roasted parts of sentences
     fly into your mouth. Even the all-powerful <strong>Pointing</strong>
    has no control about the blind texts it is an almost unorthographic life.
    One day however a small line of blind text by the name of Lorem Ipsum
    decided to leave for the far World of Grammar.</p>

    <p>The Big Oxmox advised her not to do so, because there were thousands of
    bad Commas, wild Question Marks and devious Semikoli, but the
    <strong>Little Blind Text</strong> didn’t listen. She packed her seven versalia,
    put her initial into the belt and made herself on the way.</p>
</body>

: Block Level Element

: Inline Element

Box Properties

hello

Margin

Border

Padding

Box Dimensions

Height, Width

hello

Height

Width

Height and Width specify the dimensions of the contents area. Sizes of borders, margin and padding will be added to the width and height

Margin

Border

Padding

Box Dimensions

Height, Width

p
{
    width: 200px;
    height: 200px;
}

basicDimensions

Box Dimensions

Height, Width

p
{
    width: 50%;
}

Dimension as a percentage of parent dimension

basicDimensions2

sizeExperiment

Box Dimensions

Height, Width

hello

Height

Width

Height and Width specify the dimensions of the contents area. Sizes of borders, margin and padding will be added to the width and height

Margin

Border

Padding

Box Dimensions

Height, Width

hello

Box Dimensions

hello

Increased Padding Example

Box Dimensions

hello

Increased Margin Example

boxSize

<div>
    <p>Lorem ipsum dolor sit amet, consectetur adipiscing elit.
    In vitae ligula arcu. Nulla facilisi. Nulla at molestie tellus,
    laoreet imperdiet arcu. Ut eu nisl id urna pharetra lacinia non id lorem.
    </p>
</div>

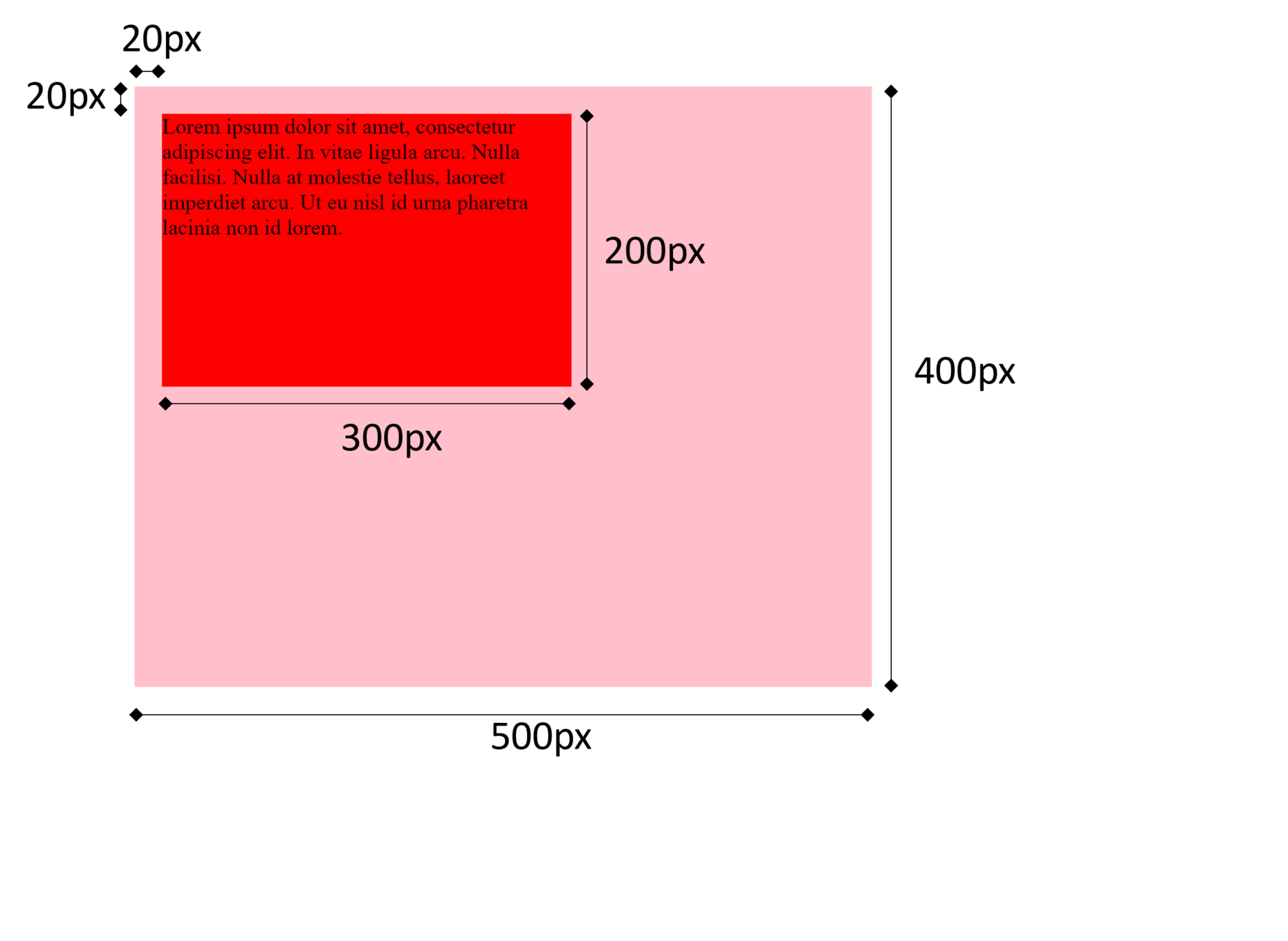

Given the below HTML, write some CSS which produces the following page:

nestedBoxTask

Box Padding

Space between an elements content and any defined borders

p
{
    padding: 10px;
}
p
{
    padding: 10px 20px 30px 15px;
            /*top right bottom left*/
}
p
{
    padding-top: 10px;
    padding-right: 20px;
    padding-bottom: 30px;
    padding-left: 15px;
}

=

Padding

hello

Box Margin

Space around an element outside, of any defined borders

p
{
    margin: 10px;
}
p
{
    margin-top: 40px;
    margin-bottom: 10px;
}

Margin

hello

marginAndPadding1

Use auto to center boxes

Set margin-left and margin-right to auto

Box Margin

p
{
    margin-left: auto;
    margin-right: auto;
    margin-top: 40px;
    margin-bottom: 10px;
}

marginCenter1

<body>
<div>
<h1>3 x 3 Board</h1>
<table>
  <tr>
    <td>1</td>
    <td>2</td>
    <td>3</td>
  </tr>
  <tr>
    <td>4</td>
    <td>5</td>
    <td>6</td>
  </tr>
  <tr>
    <td>7</td>
    <td>8</td>
    <td>9</td>
  </tr>
</table>
</div>
<body>

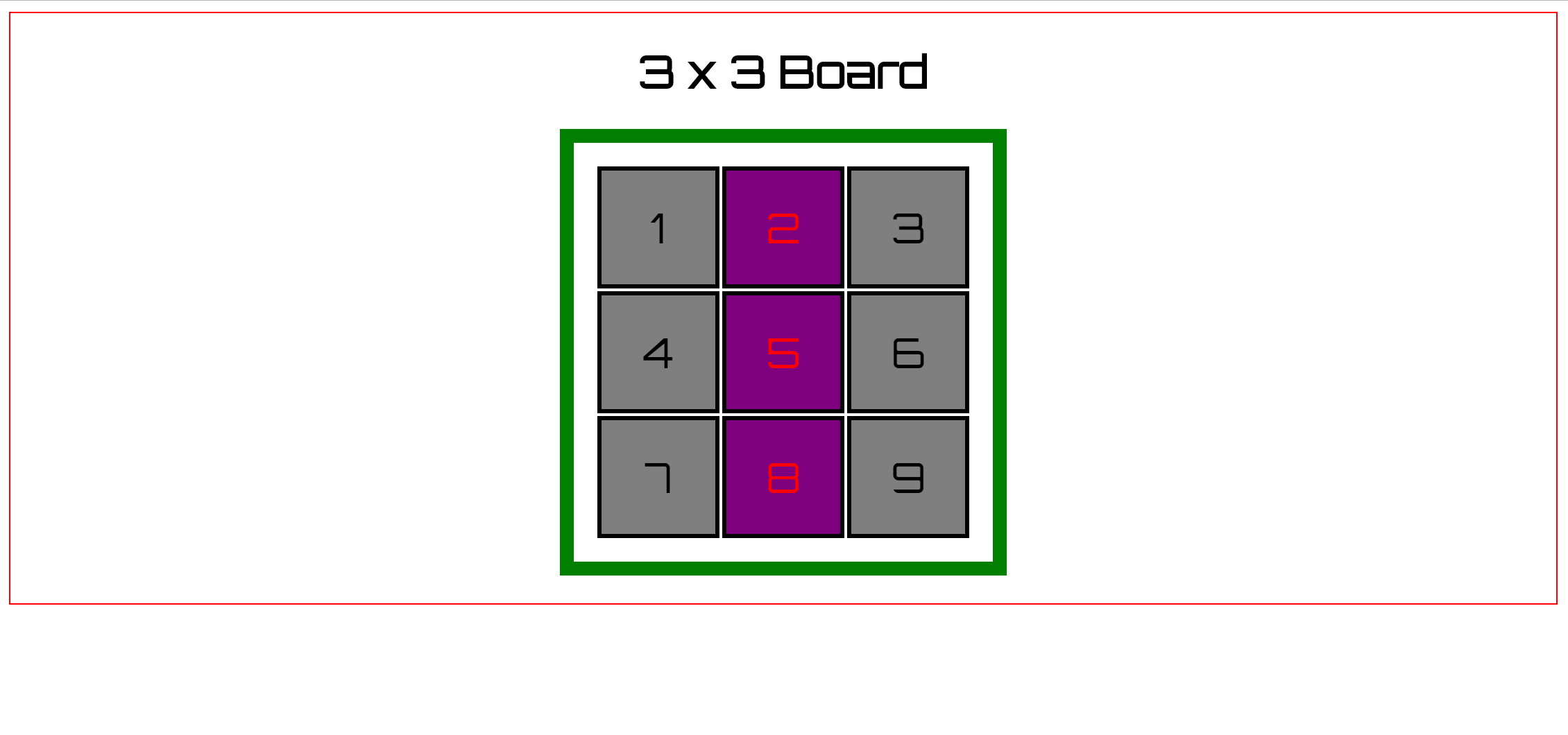

  • Copy HTML code into new Visual Studio Code html page
  • Create new CSS file and link HTML page to it.
  • Change CSS to mimic page below
  • (Only change HTML to add class labels)

Hint: Font is Orbitron from google fonts

Border Radius

Add rounded corners to a border

p
{
    border-radius: 20px;
}

border_radius

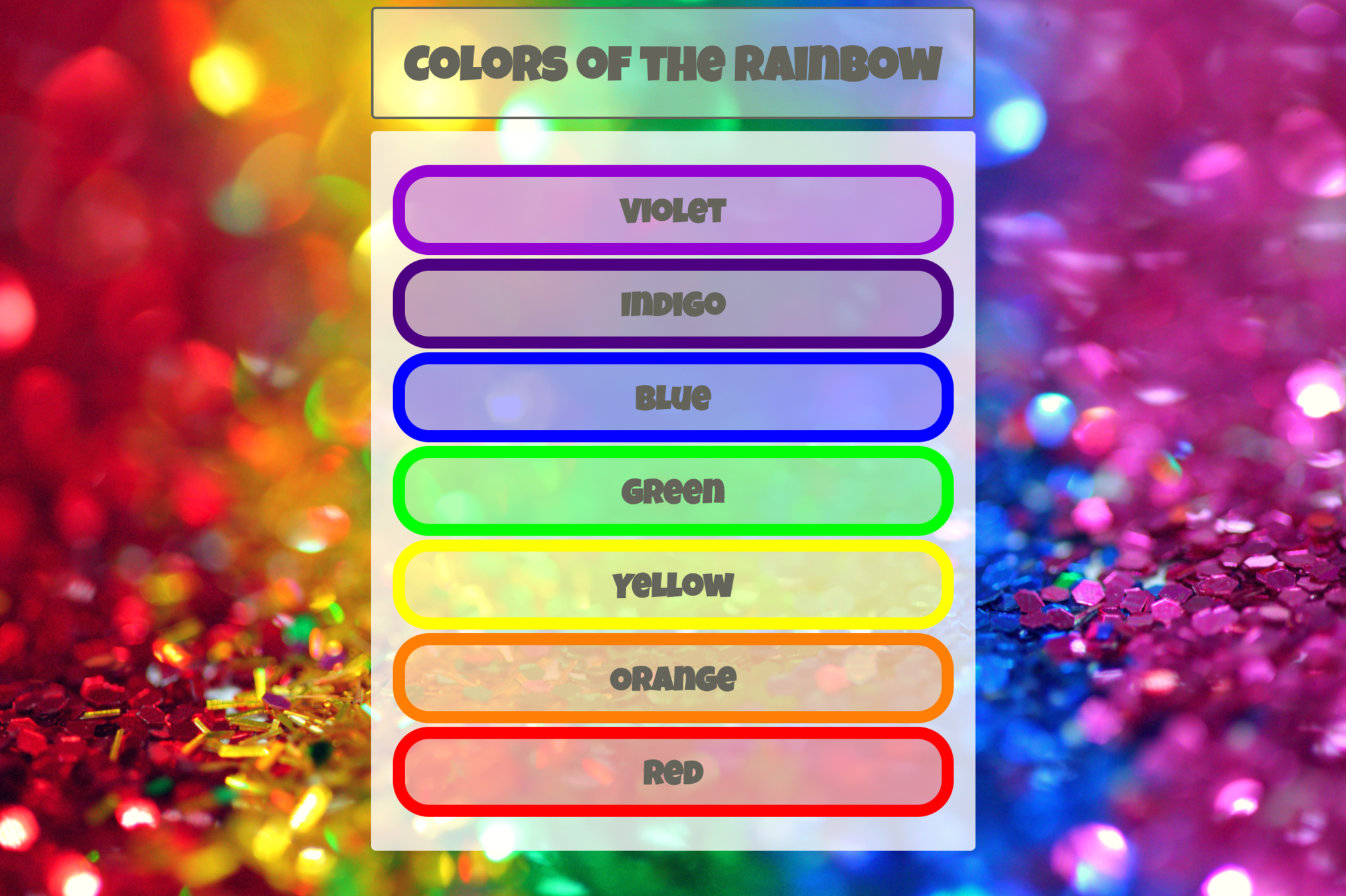

Continue Last Weeks Rainbow Example to get as close ad you can to example page here on right



  1. Update the HTML code to include additional <div> as below
  2. Edit background image
  3. Edit size, padding, margin, radius and font
<!DOCTYPE html>
<html>
<head>
	<title>Rainbow Colors</title>
	<link rel="stylesheet" type="text/css" href="rainbowstyle.css">
</head>
<body>
	<h1>Colors of the Rainbow</h1>
	<div>
		<h3 id="violet">Violet</h3>
		<h3 id="indigo">Indigo</h3>
		<h3 id="blue">Blue</h3>
		<h3 id="green">Green</h3>
		<h3 id="yellow">Yellow</h3>
		<h3 id="orange">Orange</h3>
		<h3 id="red">Red</h3>
	</div>
</body>
</html>

Background Image is on Blackboard:

  • (Content->Week 3->Media->Rainbow Background..)
  • Download from BBL...then upload to the replit

rainbow

body
{
	background-color: grey;

}

h1
{
	background-color: rgba(255,255,255,0.5);
	color: #64645A;

  	border: 2px solid #64645A;
}



#violet
{
	background-color: rgba(148, 0, 211,0.3);
	border: 10px solid rgb(148, 0, 211);
	/*color: rgb(148, 0, 211);*/
}

#indigo
{
	background-color: rgba(75, 0, 130,0.3);
	border: 10px solid rgb(75, 0, 130);
	/*color: rgb(75, 0, 130);*/
}

#blue
{
	background-color: rgba(0, 0, 255,0.3);
	border: 10px solid rgb(0, 0, 255);
	/*color: rgb(0, 0, 255);*/
}

#green
{
	background-color: rgba(0, 255, 0,0.3);
	border: 10px solid rgb(0, 255, 0);
	/*color: rgb(0, 255, 0);*/
}

#yellow
{
	background-color: rgba(255, 255, 0,0.3);
	border: 10px solid rgb(255, 255, 0);
	/*color: rgb(255, 255, 0);*/
}

#orange
{
	background-color: rgba(255, 127, 0,0.3);
	border: 10px solid rgb(255, 127, 0);
	/*color: rgb(255, 127, 0);*/
}

#red
{
	background-color: rgba(255, 0, 0,0.3);
	border: 10px solid rgb(255, 0, 0);
	/*color: rgb(255, 0, 0);*/
}

Continue Last Weeks Rainbow Example to get as close ad you can to example page here on right



  1. Update the HTML code to include additional <div> as below
  2. Edit background image
  3. Edit size, padding, margin, radius and font
<!DOCTYPE html>
<html>
<head>
	<title>Rainbow Colors</title>
	<link rel="stylesheet" type="text/css" href="rainbowstyle.css">
</head>
<body>
	<h1>Colors of the Rainbow</h1>
	<div>
		<h3 id="violet">Violet</h3>
		<h3 id="indigo">Indigo</h3>
		<h3 id="blue">Blue</h3>
		<h3 id="green">Green</h3>
		<h3 id="yellow">Yellow</h3>
		<h3 id="orange">Orange</h3>
		<h3 id="red">Red</h3>
	</div>
</body>
</html>

rainbow

Google Fonts: Luckiest-Guy

Recap: Block vs Inline

<h1></h1>

<div></div>

<h1></h1>

<div></div>
<em></em>

<input></input>

<input></input>

<button></button>

BLOCK:

INLINE:

Change Inline / Block

display property allows you to change inline element into block element, or vise versa

Change Inline / Block

display: inline;
display: block;
display: inline-block;

Causes a block level element to act like an inline element

Causes an inline element to act like a block level element

Causes block level element to flow like an inline element, while retaining other features of a block level element

(e.g. can set width and height)

displayProperty

displayStyle2

<ul>
  <li>Home</li>
  <li>Products</li>
  <li>Services</li>
  <li>About</li>
  <li>Contact</li>
</ul>

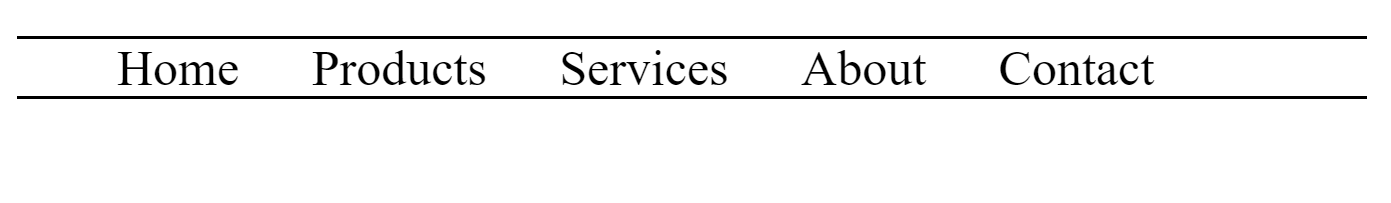

Create CSS in order to mimic the following

Do not alter the HTML code

basicMenu

<!DOCTYPE html>
<html>
<head>
	<title></title>
	<link rel="stylesheet" type="text/css" href="travelcomp.css">
</head>

<body>
	<div id="page">
		<div id="logo">
		<img src="logo.jpg" alt="The Ultimate Travel Company" />
		</div>

		<ul id="navigation">
			<li><a href="#" class="on">Home</a></li>
			<li><a href="#">Destinations</a></li>
			<li><a href="#">Bookings</a></li>
			<li><a href="#">About</a></li>
			<li><a href="#">Contact</a></li>
		</ul>

		<p id="banner">
			<img src="yacht.jpg" alt="Yacht on the Sea" />
		</p>

		<p>
		We specialise in the sales of customised and exotic holidays, managing your everying holiday need leaving you to enjoy your break.
		</p>
	</div>
</body>
</html>

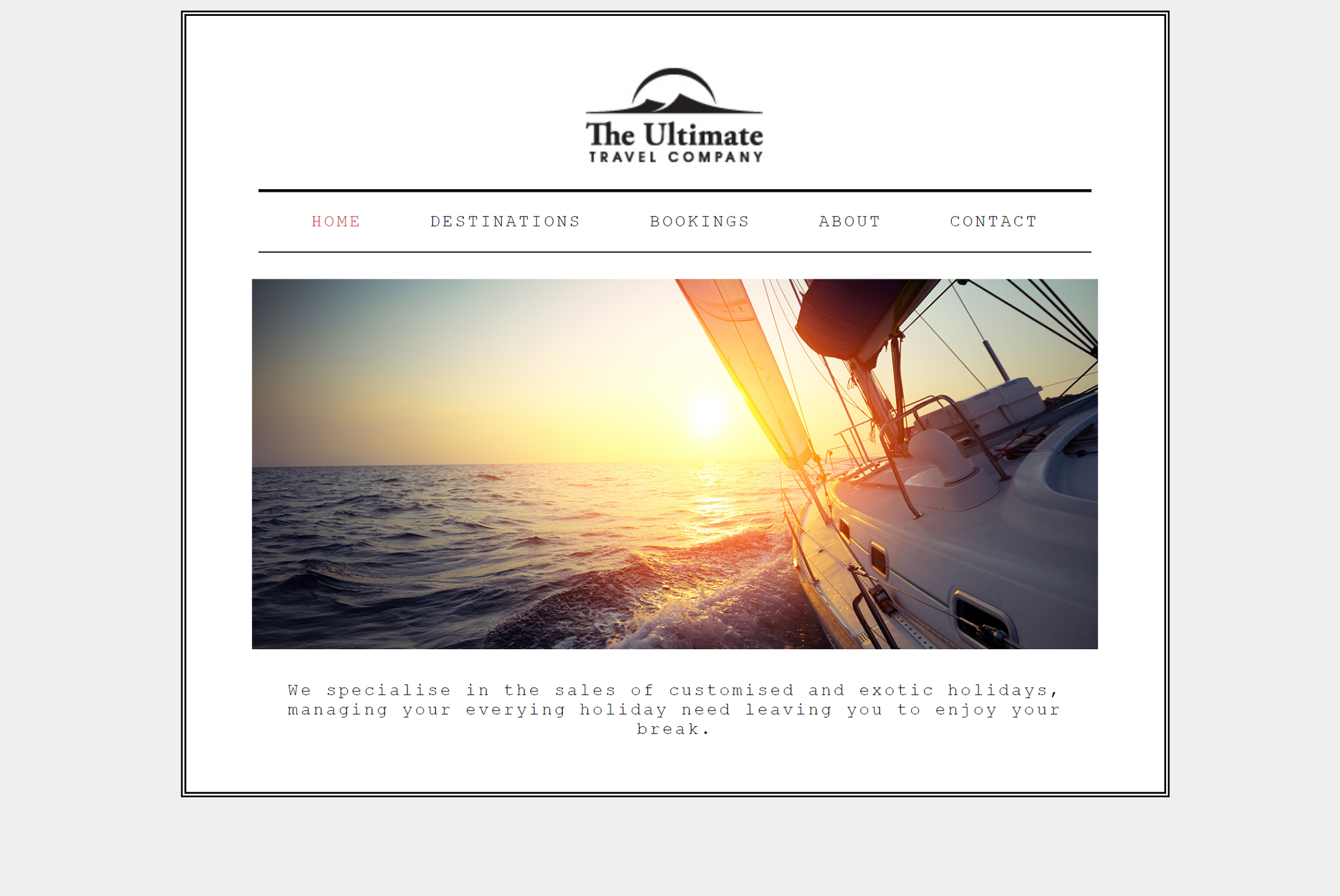

Create CSS in order to mimic the following

travelAgent

CSS

Cascading   Style   Sheets

Part III

Layout

Layout

  • Positioning of elements
  • Web page layout
  • Different Screen Sizes

Recap: Block vs Inline

<h1></h1>

<div></div>

<h1></h1>

<div></div>
<em></em>

<input></input>

<input></input>

<button></button>

BLOCK:

INLINE:

Container Elements

When one block level element sits inside another

Usually a <div>

Header 1


CSS Positional Schemes

  • Normal Flow

  • Relative Positioning

  • Absolute Positioning

  • Fixed Positioning

  • Floating Elements

Normal Flow

Each block level element Sits on top of the next

Far Far Away

<body>
    <h1>Far Far Away</h1>
    <p>Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts</p>
    <p>Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.</p>
    <p>A small river named Duden flows by their place and supplies it with the necessary regelialia.</p>
</body>

Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts

Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.

A small river named Duden flows by their place and supplies it with the necessary regelialia.

h1
{
	position: static;
        /*static is default*/
}

Relative Positioning

Move element in relation to where it would have been in normal flow

Far Far Away

<body>
    <h1>Far Far Away</h1>
    <p>Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts</p>
    <p class="example">Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.</p>
    <p>A small river named Duden flows by their place and supplies it with the necessary regelialia.</p>
</body>

Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts

Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.

A small river named Duden flows by their place and supplies it with the necessary regelialia.

.example
{
	position: relative;
	top: 10px;
	left: 100px;
}

Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.

Absolute Positioning

Box is taken out of normal flow - Does not affect position of other elements

Box offsets (top, left, bottom, right) used to specify where it should appear relative to container

Far Far Away

<body>
    <h1>Far Far Away</h1>
    <p>Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts</p>
    <p class="example">Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.</p>
    <p>A small river named Duden flows by their place and supplies it with the necessary regelialia.</p>
</body>

Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts

A small river named Duden flows by their place and supplies it with the necessary regelialia.

h1
{
	position: absolute;
	top: 0px;
	left: 500px;
	width: 250px;
}

p
{
	width: 450px;
}

Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.

450px

500px

Fixed Positioning

Similar to Absolute Positioning

Key Difference: when user scroll, fixed element stays in exact same place

Far Far Away

<body>
    <h1>Far Far Away</h1>
    <p class="firstP">Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts</p>
    <p>Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.</p>
    <p>A small river named Duden flows by their place and supplies it with the necessary regelialia.</p>
</body>





Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts

A small river named Duden flows by their place and supplies it with the necessary regelialia.

h1
{
	position: fixed;
	top: 0px;
	left: 0px;
	padding: 10px;
	margin: 0px;
	width: 100%;
	background-color: #efefef;
}

p.firstP
{
	margin-top: 100px;
}

Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean.

fixedExample

positioning1

Overlapping Elements

For Relative, Fixed or Absolute Positioning: Boxes can overlap.

Which Box is displayed if they overlap



Box A content goes here

Box B content goes here

Box A content goes here

Box B content goes here

OR

Overlapping Elements

Element "Closest to the front" will be displayed

z-index defines how close to front an element is.

The bigger the z-index, the closer it is to the front

selector
{
    z-index: 1;
}

Overlapping Elements

Box A content goes here

Box B content goes here

Box A content goes here

Box B content goes here

OR

#boxA
{
    z-index: 1;
}

#boxB
{
    z-index: 2;
}
#boxA
{
    z-index: 2;
}

#boxB
{
    z-index: 1;
}

overlapping

Floating Elements

Floating allows you to take an element in normal flow and place it as far left or right of the containing element as possible

Anything else that sits inside the containing element flow around the floated element

<body>

    <h1>Far Far Away</h1>
    <p class="quote">"It is a paradisematic country, in which roasted parts of sentences fly into your mouth."</p>
    <p class="firstP">Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean. A small river named Duden flows by their place and supplies it with the necessary regelialia. It is a paradisematic country, in which roasted parts of sentences fly into your mouth. Even the all-powerful Pointing has no control about the blind texts it is an almost unorthographic life One day however a small line of blind text by the name of Lorem Ipsum decided to leave for the far World of Grammar. The Big Oxmox advised her not to do so, because there were thousands of bad Commas, wild Question Marks and devious Semikoli, but the Little Blind Text didn’t listen. She packed her seven versalia, put her initial into the belt and made herself on the way. When she reached the first hills of the Italic Mountains, she had a last view back on the skyline of her hometown Bookmarksgrove, the headline of Alphabet Village and the subline of her own road, the Line Lane. Pityful a rethoric question ran over her cheek, then</p>
</body>
.quote
{
	float: right;
	width: 200px;
	border: 1px solid red;
}

Floating Elements

Floating allows you to take an element in normal flow and place it as far left or right of the containing element as possible

<body>

    <h1>Far Far Away</h1>
    <p class="quote">"It is a paradisematic country, in which roasted parts of sentences fly into your mouth."</p>
    <p class="firstP">Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean. A small river named Duden flows by their place and supplies it with the necessary regelialia. It is a paradisematic country, in which roasted parts of sentences fly into your mouth. Even the all-powerful Pointing has no control about the blind texts it is an almost unorthographic life One day however a small line of blind text by the name of Lorem Ipsum decided to leave for the far World of Grammar. The Big Oxmox advised her not to do so, because there were thousands of bad Commas, wild Question Marks and devious Semikoli, but the Little Blind Text didn’t listen. She packed her seven versalia, put her initial into the belt and made herself on the way. When she reached the first hills of the Italic Mountains, she had a last view back on the skyline of her hometown Bookmarksgrove, the headline of Alphabet Village and the subline of her own road, the Line Lane. Pityful a rethoric question ran over her cheek, then</p>
</body>
.quote
{
	float: left;
	width: 200px;
	border: 1px solid red;
}

Floating Elements

Floating allows you to take an element in normal flow and place it as far left or right of the containing element as possible

<body>

    <h1>Far Far Away</h1>
    <p class="quote">"It is a paradisematic country, in which roasted parts of sentences fly into your mouth."</p>
    <p class="firstP">Far far away, behind the word mountains, far from the countries Vokalia and Consonantia, there live the blind texts. Separated they live in Bookmarksgrove right at the coast of the Semantics, a large language ocean. A small river named Duden flows by their place and supplies it with the necessary regelialia. It is a paradisematic country, in which roasted parts of sentences fly into your mouth. Even the all-powerful Pointing has no control about the blind texts it is an almost unorthographic life One day however a small line of blind text by the name of Lorem Ipsum decided to leave for the far World of Grammar. The Big Oxmox advised her not to do so, because there were thousands of bad Commas, wild Question Marks and devious Semikoli, but the Little Blind Text didn’t listen. She packed her seven versalia, put her initial into the belt and made herself on the way. When she reached the first hills of the Italic Mountains, she had a last view back on the skyline of her hometown Bookmarksgrove, the headline of Alphabet Village and the subline of her own road, the Line Lane. Pityful a rethoric question ran over her cheek, then</p>
</body>
.quote
{
	float: left;
	width: 200px;
	border: 1px solid red;
}

.firstP
{
	float: right;
	width: 600px;
	border: 1px solid red;
}

float

2Columns

css-part2

By D.Kelly

Made with Slides.com

css-part2

  • 1,816

More from D.Kelly
