Electrostatics
The influence of electric charges
The Electric Field
Electrostatics
The Electric Field
Learning Outcomes
Learn how to:
Calculate the electric field at a given point in space due to
- a configuration of point charges.
- a "continuous" distribution of electric charges.
Relate the electric field to
- the electric potential
- the electric force
Electrostatics
The Electric Charge
... and the rest of the cast
Electrostatics
The influence & interaction of electric charges
The Cast
q
\vec{E}
V
\Phi
\vec{F}
U
potential
potential energy
field
force
charge
flux
influence
interaction
Electric ....
Electrostatics
The influence & interaction of electric charges
The Cast - relationship map
Electric ....
\vec{E}
V
\Phi
influence
interaction
\ \vec{E}=-\vec{\nabla} V\
\ \Delta V =- \int \vec{E}\cdot d\vec{s}\
\ \Phi = \int \vec{E}\cdot d\vec{A}\
\vec{F}
U
\ \vec{F}=-\vec{\nabla} U\
\ \Delta U = -\int \vec{F}\cdot d\vec{s}\
\ \vec{F} = q_0\ \vec{E}\
\ \vec{E} = \vec{F}/q_0\ \
\ U = q_0\ V\
\ V = U/q_0\ \
q
Electrostatics
The influence & interaction of electric charges
The Cast - relationship map
Electric ....
\vec{E}
V
\Phi
influence
interaction
\ \vec{E}=-\vec{\nabla} V\
\ \Delta V = -\int \vec{E}\cdot d\vec{s}\
\ \Phi = \int \vec{E}\cdot d\vec{A}\
\vec{F}
U
\ \vec{F}=-\vec{\nabla} U\
\ \Delta U = -\int \vec{F}\cdot d\vec{s}\
\ \vec{F} = q_0\ \vec{E}\
\ \vec{E} = \vec{F}/q_0\ \
\ U = q_0\ V\quad
\ V = U/q_0\ \
q
\Phi_g
influence
\ \Phi_g = \int \vec{g}\cdot d\vec{A}\
\vec{g}
gy
\ \vec{g}=-\vec{\nabla} (gy)\
\ \Delta V = \int \vec{g}\cdot d\vec{s}\
\vec{F}_g
mgy
interaction
\ \vec{F}=-\vec{\nabla} (mgy)\\
=-mg\hat j
\ \Delta U = -\int \vec{F}\cdot d\vec{s}\
m
\ \vec{F_g} = m\ \vec{g}\
\ \vec{g} = \vec{F_g}/m\ \
\ U_g = m\ V_g\
\ V_g = U_g/m\ \
gravitational....
analogus to
Electrostatics
The Electric Charge
Charge Distribution
Electrostatics
Electric Charge
Charge Distributions
\lambda = dq / dl
Linear Charge Density
\sigma=dq / dA
Surface Charge Density
\rho=dq / dV
Volume Charge Density
\lambda_\text{\tiny uniform} = \frac{Q_\text{\tiny total}}{l_\text{\tiny total}}
\sigma\text{\tiny uniform} = \frac{Q_\text{\tiny total}}{A_\text{\tiny total}}
\rho\text{\tiny uniform} = \frac{Q_\text{\tiny total}}{V_\text{\tiny total}}
Electrostatics
Electric Charge
Point Charge
Charge distribution A
Charge distribution B
What do we mean by point charges?
\text{size$_\text{charge distribution}$}
\text{scale of analysis}
\lt\lt\lt
Electrostatics
The Electric Potential
and The Electric Field
Electrostatics
The Electric Field
From Potential to Field
Video walkthrough this stack
Electrostatics
\vec{E}
V
The influence
of Electric Charges
The Electric Potential
Relationship to the Electric Field
\ \vec{E}=-\vec{\nabla} V\
Electrostatics
The Electric Potential
and the Relationship to the Electric Field
The Electric Field ~ the slope of the Electric Potential
\Delta V
\Delta s
\Delta V
\Delta s
Electrostatics
The Electric Potential
Relationship to the Electric Field
\vec{E}
V
\ \vec{E}=-\vec{\nabla} V\
\Delta s
\Delta V
V_1
V_2
s_1
s_2
The average Electric Field
\vec{E}_\text{avg}=-\frac{~~~~~~~~}{~~~~~~~}\ \hat{s}
\Delta V
\Delta s
magnitude = Electric Potential Difference per unit length.
direction = from High potential to Low potential
V
s
Electrostatics
The Electric Potential
Relationship to the Electric Field
V
s
s_1
s_2
V_1
V_2
\Delta s
\Delta V
\vec{E}=-\ \frac{~~~~~~}{~~~~~}\ \hat{s}
d V
d s
\vec{E}
V
\ \vec{E}=-\vec{\nabla} V\
The local Electric Field
\ \vec{E}=-\vec{\nabla} V\
In higher dimensions
s_3
Math Interlude
Differential Calculus
\vec{\nabla} f{\small (x,y,z)}= \tfrac{\partial f}{\partial x}\ \hat{i}
+
\tfrac{\partial f}{\partial y}\ \hat{j}
+
\tfrac{\partial f}{\partial z}\ \hat{k}
\vec{\nabla} = \tfrac{\partial }{\partial x}\ \hat{i}
+
\tfrac{\partial }{\partial y}\ \hat{j}
+
\tfrac{\partial }{\partial z}\ \hat{k}
\vec{\nabla} f{\small (r,\theta,\phi)}= \tfrac{\partial f}{\partial r}\ \hat{r}
+
\tfrac{1}{r}\tfrac{\partial f}{\partial \theta}\ \hat{\theta}
+
\tfrac{1}{r \sin\theta}\tfrac{\partial f}{\partial \phi}\ \hat{\phi}
Cartesian Coordinates
Spherical Coordinates
\vec{\nabla} f{\small (x,y,z)}= \tfrac{\partial f}{\partial x}\ \hat{i}
+
\tfrac{\partial f}{\partial y}\ \hat{j}
+
\tfrac{\partial f}{\partial z}\ \hat{k}
Cartesian Coordinates
h{\small (x,y,z)}= ay+b
\vec{\nabla} h{\small (x,y,z)}= \tfrac{\partial h}{\partial x}\ \hat{i}
+
\tfrac{\partial h}{\partial y}\ \hat{j}
+
\tfrac{\partial h}{\partial z}\ \hat{k}
= 0\ \hat{i}
~~+~
a\ \hat{j}
~~+~
0\ \hat{k}
f{\small (x,y,z)}= axy^2+x^2 z
\vec{\nabla} f{\small (x,y,z)}=
+
x^2\ \hat{k}
+2axy\ \hat{j}
(ay^2+2xz) \hat{i}
\tfrac{\partial f}{\partial x}\ \hat{i}
+
\tfrac{\partial f}{\partial y}\ \hat{j}
+
\tfrac{\partial f}{\partial z}\ \hat{k}
=
Math Interlude
Differential Calculus
\vec{\nabla} f{\small (r,\theta,\phi)}= \tfrac{\partial f}{\partial r}\ \hat{r}
+
\tfrac{1}{r}\tfrac{\partial f}{\partial \theta}\ \hat{\theta}
+
\tfrac{1}{r \sin\theta}\tfrac{\partial f}{\partial \phi}\ \hat{\phi}
Spherical Coordinates
Math Interlude
Differential Calculus
\vec{\nabla} f{\small (r,\theta,\phi)}=
\tfrac{\partial f}{\partial r}\ \hat{r}
+
\tfrac{1}{r}\tfrac{\partial f}{\partial \theta}\ \hat{\theta}
+
\tfrac{1}{r \sin\theta}\tfrac{\partial f}{\partial \phi}\ \hat{\phi}
{\small \sin\phi}\ \hat{r}
\small +0\ \hat{\theta}
=
-
\tfrac{r\cos\phi}{r \sin\theta}\ \hat{\phi}
\vec{\nabla} V{\small (r,\theta,\phi)}=
\tfrac{\partial V}{\partial r}\ \hat{r}
+
\tfrac{1}{r}\tfrac{\partial V}{\partial \theta}\ \hat{\theta}
+
\tfrac{1}{r \sin\theta}\tfrac{\partial V}{\partial \phi}\ \hat{\phi}
=
-\tfrac{kq}{r^2}\ \hat{r}
\small +0\ \hat{\theta}
\small +0\ \hat{\phi}
\vec{E}=\tfrac{kq}{r^2}\ \hat{r}
V=\tfrac{kq}{r}
\ \vec{E}=-\vec{\nabla} V\
For a point charge
f{\small (r,\theta,\phi)}= r \sin\phi
V{\small (r,\theta,\phi)}= \tfrac{kq}{r} + V_0
Electrostatics
The Electric Field
due to a point charge
Electrostatics
The Electric Field
due to a point charge
The Electric Field due to a point charge is
\vec{E}(r)=\frac{kq}{r^2}\hat{r}
given by ...
charge creating the field.
distance from the charge q to the point of interest P
unit-vector pointing away from the charge towards P
\hat{r}:
q:
r:
Electrostatics
The Electric Field
due to a point charge
\vec{E}(r)=\frac{kq}{r^2}\hat{r}
charge creating the field.
distance from the charge q to the point of interest P
unit-vector pointing away from the charge towards P
\hat{r}:
q:
r:
+
-
\vec{E}
\vec{E}
Electrostatics
The Electric Field
due to a point charge
\vec{E}(r)=\frac{kq}{r^2}\hat{r}
charge creating the field.
distance from the charge q to the point of interest P
unit-vector pointing away from the charge towards P
\hat{r}:
q:
r:
+
\vec{E}
\vec{E}
-

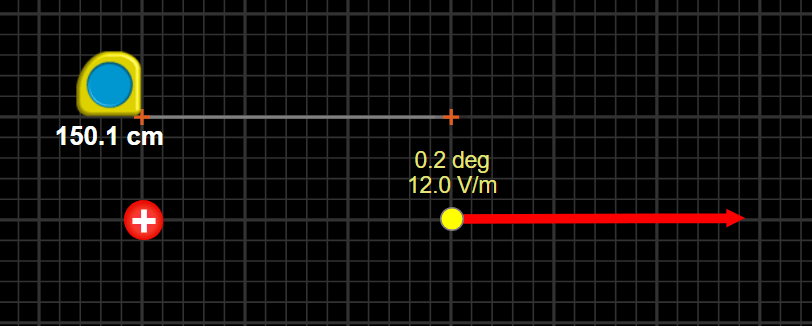

Electrostatics
The Electric Field
Example

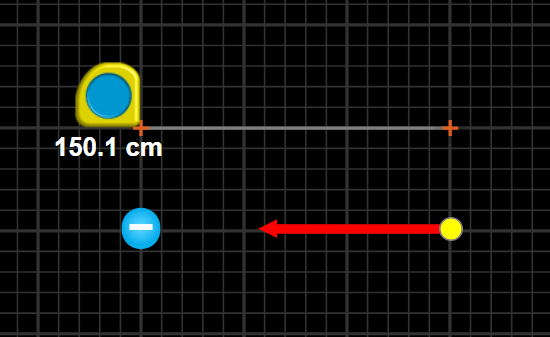

q=+1.0\ \text{nC}
Find the magnitude and direction of the electric field.

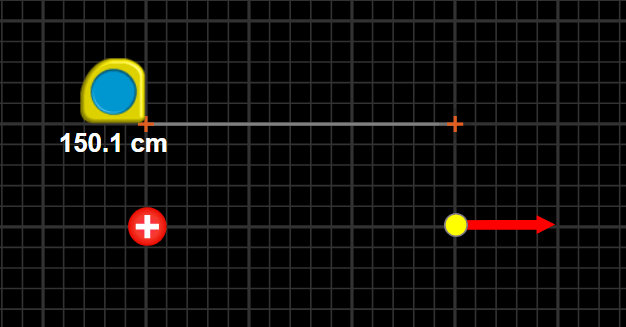

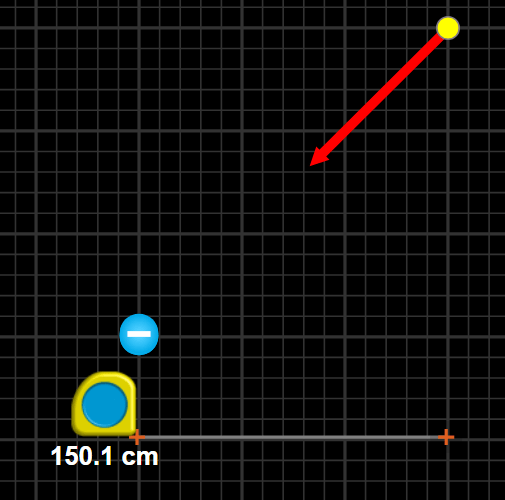

Electrostatics
The Electric Field
Example
q=-2.0\ \text{nC}
Find the magnitude and direction of the electric field.
Electrostatics
The Electric Field
Example
Find the magnitude of the charge generating the field.
Electrostatics
The Electric Field
Example
q=-4.0\ \text{nC}
Find the magnitude and direction of the electric field.
Electrostatics
The Electric Field
due to a configuration of point charges
Electrostatics
The Electric Field

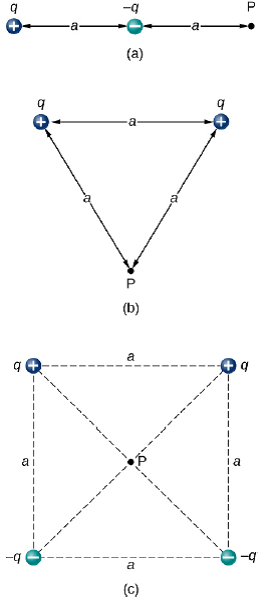

Multiple point charges
\vec{E}_\text{@ P}={\Large \Sigma}_{\tiny i} ^{\tiny N} \ \frac{k\ q_i}{r^2_i}\hat{r}_i
\text{The Net Electric Field due to multiple point-charges }
\text{vector sum}
\text{the contribution due to $q_i$}
Electrostatics
The Electric Field
Representation and Visualization
Electrostatics
The Electric Field
Visualizing the Electric Field
In this simulation, the electric field is represented on a grid by arrows whose color indicates their magnitude.
The yellow sensors detect the magnitude and direction of the electric field at any given point in space.
Electrostatics
The Electric field
Visualizing the Electric Field
In this simulation, you can switch between presenting the field as vectors (arrows) or by electric field lines (EFLs).
The electric field lines follow the vectors in tip-to-tail sequence.
Electrostatics
The Electric Field
The Electric Field Lines
Electrostatics
The Electric Field
Electric Field Lines and Equipotential Surfaces

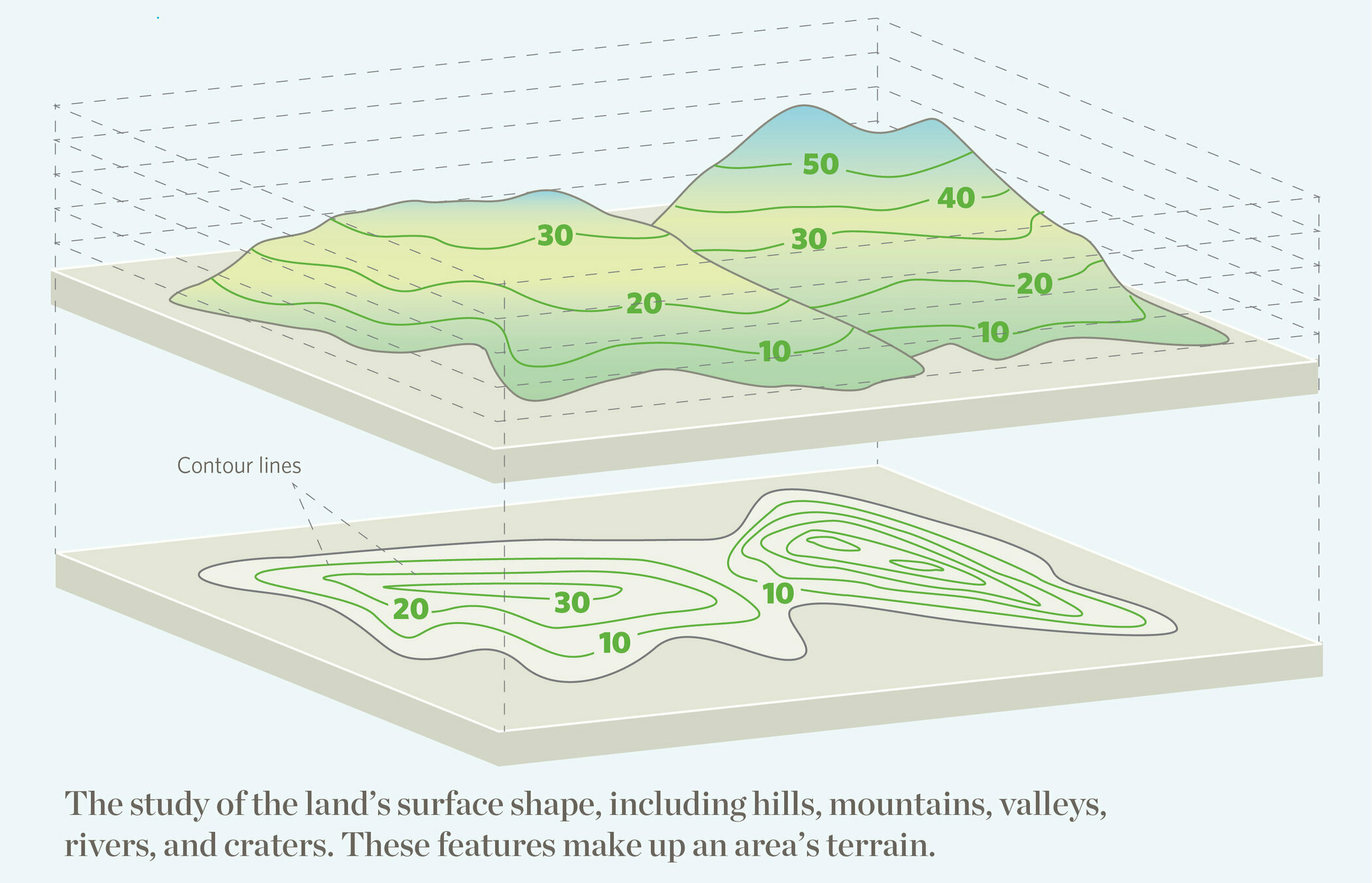

The "landscape" analogy
The electric field at any point is the steepest slope of the electric potential -- if the potential is smooth, the steepest slope is a continuous curve.
If you follow that curve, you are traveling on an electric field line.
Electric Field lines are perpendicular to the equipotential surfaces.
Electrostatics
The Electric field
Visualizing the Electric Field
In this simulation, you can switch between presenting the electric potential or the EFLs
Notice how these two sets are perpendicular to each other at every point they meet?
Electrostatics
The Electric Field
Electric Field Lines
\Delta V
\Delta V
Draw the EFLs for a dipole; use the equipotential surfaces as a guide
Electrostatics
The Electric Field
Electric Field Lines
\Delta V
\Delta V
Read more about electric field lines, and the 5 criteria for a correct drawing.
Electrostatics
The Electric Field
Due to charge distributions
Electrostatics
The Electric Field

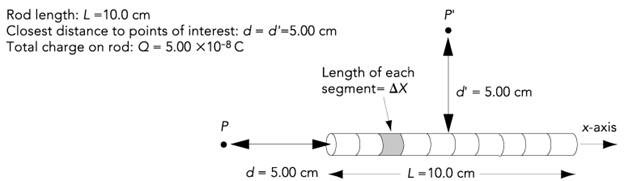

Due to a straight-line-segment of length L
| Segment | x | z | Ex | Ez |
|---|---|---|---|---|
| 1 | ||||
| 2 | ||||
| ... |
x
z
Electrostatics
The Electric Field
Due to a straight-line-segment of length L
Electrostatics
The Electric Field
Due to a straight-line-segment of length L
d\vec{E}_1=\frac{k\ dq}{r^2}\hat{r}_1
=\frac{k\ \lambda dl}{r^2}
(\cos\theta\hat{k}+\sin\theta\hat{i})
d\vec{E}_2=\frac{k\ dq}{r^2}\hat{r}_2
=\frac{k\ \lambda dl}{r^2}
(\cos\theta\hat{k}-\sin\theta\hat{i})
d\vec{E}_1+d\vec{E}_2=
\frac{k\ \lambda dl}{r^2} (2\cos\theta\hat{k})
Electrostatics
The Electric Field
Due to a straight-line-segment of length L
d\vec{E}_1+d\vec{E}_2=
\frac{k\ \lambda dl}{r^2} (2\cos\theta\hat{k})
d\vec{E}=
\vec{E}=\int d\vec{E}= ?
=\int_x \frac{k\ \lambda dl}{r^2} (2\cos\theta\hat{k})
= \int_x \frac{ k\ \lambda\ dx}{(x^2+z^2)}\frac{2z}{\sqrt{x^2+z^2}} \hat{k}
=2k\lambda z \hat{k} \int_0^{L/2} \frac{dx}{(x^2+z^2)^{3/2}}
=\frac{k \lambda L}{z\sqrt{z^2+(L/2)^2}}\hat{k}
Electrostatics
The Electric Field
Due to an infinite straight-line-segment
\vec{E}=\frac{k \lambda L}{z\sqrt{z^2+(L/2)^2}}\hat{k}
"Infinite" line-segment
L\gt\gt\gt z
\vec{E}\approx\frac{k \lambda L}{z\sqrt{(L/2)^2}}\hat{k}
L\gt\gt\gt z
z^2+(L/2)^2\approx (L/2)^2
=\frac{2k \lambda }{z}\hat{k}
Electrostatics
The Electric Field
Due to a straight-line-segment of length L
\vec{E}=\frac{k \lambda L}{z\sqrt{z^2+(L/2)^2}}\hat{k}
"Infinite"ly far from the line-segment
\vec{E}\approx\frac{k \lambda L}{z\sqrt{z^2}}\hat{k}
z\gt\gt\gt L
z^2+(L/2)^2\approx z^2
\approx\frac{k \lambda L}{z^2}\hat{k}
\approx\frac{k \ q_\text{total}}{z^2}\hat{k}
like a point-charge!
Electrostatics
The Electric Field
Due to a line-segment in the shape of a ring
Electrostatics
The Electric Field
Due to a ring of charge -- key points
=\lambda R\ d\theta
\vec{E}=\frac{k q_\text{total}z}{{(z^2+R^2)^{3/2}}}\hat{k}
Symmetry leads to Field only in z direction
What is the Electric Field at the center of the ring?
?
"Infinite"ly far from the ring?
?
dq=\lambda \ dl
Electrostatics
The Electric Field
Due to a disk of charge -- key points
\vec{E}=\int_{r'=0}^{r'=R} \frac{k\ q_\text{ring of radius r'}\ z}{\sqrt{(z^2+r'^2)^{3/2}}}\hat{k}
Symmetry leads to Field only in z direction
q_\text{ ring of radius r'}= \sigma \ 2\pi r\ dr
Electrostatics
The Electric Field
Due to a disk of charge -- key points
\vec{E}=\frac{k q_\text{total}z}{\sqrt{(z^2+R^2)^{3/2}}}\hat{k}
Symmetry leads to Field only in z direction
What is the Electric Field at the center of the disk?
?
"Infinite"ly far from the ring?
?
Electrostatics
The Electric Field
& The Electric Flux
Electrostatics
The Electric Field
Definition of the Electric Flux
The Electric Flux through a given surface, s, is a measure of how much electric field passes through the surface.
Electrostatics
The Electric Field
Definition of the Electric Flux
The Electric Flux through a given surface, s, is a measure of how much electric field passes through the surface.
For a flat surface, and a uniform field
\Phi=E_\perp \times dA
=\vec{E}\cdot\hat{n} \times dA
\text{the vector}
\text{Electric Field}
\text{the normal}
\text{to the surface}
\text{the component of}
\text{the Electric Field}
\text{normal to the surface}
Electrostatics
The Electric Field
Definition of the Electric Flux
The Electric Flux through a given surface, s, is a measure of how much electric field passes through the surface.
In general, the field maybe variable, and the surface maybe curved.
so, surface is divided into patches, and the flux through the patches is added up
\Phi = \int_s \vec{E} \cdot \hat{n}\ d{A}
E_\perp \times dA
\vec{E}\cdot\hat{n} \times dA
\text{the normal}
\text{to the surface}
\text{the vector}
\text{Electric Field}
\Phi = \int_s \vec{E} \cdot d\vec{A}
Electrostatics
The Electric Field
Definition of the Electric Flux
\Phi_1 = \int_{s_1} \vec{E} \cdot d\vec{A}
= \int_{s_1} E \hat{j} \cdot d{A}\hat{j}
= \int_{s_1} E\ dA
\Phi_2 = \int_{s_2} \vec{E} \cdot d\vec{A}
= \int_{s_2} E \hat{j} \cdot d{A}(\cos\theta\hat{j}+\sin\theta\hat{k})
= \int_{s_2} E\cos\theta\ dA
\Phi = \int_s \vec{E} \cdot d\vec{A}
= E\cos\theta A_2
= E\ A_1
Find the Electric Flux through the two surfaces shown in the figure due to a uniform field pointing in the +y direction.
h/\cos\theta
w
h
Which is larger?
\Phi_1 =EA_1=E\ wh
\Phi_2 =E \cos\theta A_2=(E\cos\theta)\ (wh/\cos\theta)=E\ wh=\Phi_1
Field is uniform: is constant (magnitude and direction.)
Surface is flat: is constant (direction.)
\vec{E}
\hat{n}
Electrostatics
The Electric Field
Definition of the Electric Flux
Field is radial w/ constant magnitude on the spherical surface.
Surface is spherical, so the normal to the surface is radial.
\Phi_s= \int_{s} \vec{E} \cdot d\vec{A}
= \int_{s} E \hat{r} \cdot d{A}\ \hat{r}
= \int_{s} E\ dA
\Phi = \int_s \vec{E} \cdot d\vec{A}
= E\ A_s
Find the electric flux through a spherical surface of radius R, centered around a charge +q.
= \frac{kq}{R^2}\cdot 4\pi R^2
= \frac{q}{\epsilon}
The Flux is independent of the size of the sphere!
Electrostatics
The Electric Field
Definition of the Electric Flux
\Phi = \int_s \vec{E} \cdot d\vec{A}
because all the EFLs that go through the smaller spherical surface must also go through the larger one!
In fact, any shape that encloses the charge will have the same total flux through it.
\Phi_\text{closed surface} = \frac{q_\text{enclosed}}{\epsilon}
Gauss' Law:
The Flux is independent of the size of the sphere!
Electrostatics
The Electric Field
Gauss' Law
\Phi_\text{closed surface} = \frac{q_\text{enclosed}}{\epsilon}
Electrostatics
The Electric Field
Gauss' Law -- example: uniformly charged sphere
Electrostatics
The Electric Field
Gauss' Law -- example: conducting sphere
Electrostatics
The Electric Field
Gauss' Law -- example: uniformly charged rod
Electrostatics
The Electric Field
and The Electric Potential
Electrostatics
\vec{E}
V
The influence
of Electric Charges
The Electric Field
Relationship to the Electric Potential
\ \Delta V = -\int \vec{E}\cdot d\vec{s}\
\ \vec{E}=-\vec{\nabla} V\
Electrostatics
The Electric Field
Relationship to the Electric Potential
\vec{E}
V
\ \vec{E}=-\vec{\nabla} V\
V
s
s_1
s_2
V_1
V_2
s_3
\Delta s
\Delta V
\vec{E}_\text{local}=-\frac{~~~~~~~~}{~~~~~~~}
{E}
d V
d s
\hat{s}
Electrostatics
The Electric Field
Relationship to the Electric Potential
V
s
s_1
s_2
V_1
V_2
s_3
d s
\Delta V
d s
d V
\vec{E}
V
\ \Delta V = -\int \vec{E}\cdot d\vec{s}\
\ d V = -\vec{E}\cdot d\vec{s}\
\ \Delta V = \int dV
\vec{E}_\text{local}=-\frac{~~~~~~}{~~~~~}
d V
d s
\hat{s}
Electrostatics
The Electric Field
and The Electric Force
Electrostatics
The Electric Field
Relationship to the Electric Force
Electrostatics
The Electric Field
Relationship to the Electric Force
\vec{E}
influence at some location in space
interaction between charges
\vec{F}
\ \vec{F} = q_0\ \vec{E}\
\ \vec{E} = \vec{F}/q_0\ \
Electric Field
Electric Force
Analogy to gravity
\vec{g}
influence at some location in space
interaction between masses
\vec{F}_g
\ \vec{F} = m\ \vec{g}\
\ \vec{g} = \vec{F}_g/m\ \
Gravitational Field
Gravitational Force
Electrostatics
The Electric Field
Relationship to the Electric Force
\vec{E}
influence at some location in space
interaction between charges
\vec{F}
\ \vec{F} = q_0\ \vec{E}\
\ \vec{E} = \vec{F}/q_0\ \
Electric Field
Electric Force
Electrostatics
The Electric Field
Relationship to the Electric Force
\ \vec{F} = q_0\ \vec{E}\
\vec{E}
influence at some location in space
interaction between charges
\vec{F}
\ \vec{F} = q_0\ \vec{E}\
\ \vec{E} = \vec{F}/q_0\ \
Electric Field
Electric Force
\text{a charge $q_0$ in a local field $\vec{E}$}
\text{experiences a force $\vec{F}=q_0\vec{E}$}
\vec{E}
\vec{E}
\vec{E}
\vec{F}
\text{the force on a positive charge}
\text{is in the same direction as the field}
\text{the force on a negative charge}
\text{is in the opposite direction to the field}
\vec{F}
Electrostatics
The Electric Field
Relationship to the Electric Potential
Imagine two parallel plates that are 8.0cm by 8.0cm, separated by 2.0cm. One plate carries a net charge of +20nC and the other a net charge of -20nC.
a) Determine the surface charge density on each plate.
b) Calculate the Electric Field between the plates.
c) Determine the Electric Potential Difference between the plates.
d) Suppose that an electron passes between the plates, what is the force that the electron experiences?
Electrostatics
The Electric Field
Wait, wait ... what is a field?
Electrostatics
\vec{E}
V
Scalar & Vector Fields
The Electric Field
What is a field?
\ \vec{E}=-\vec{\nabla} V\
\ \Delta V = -\int \vec{E}\cdot d\vec{s}\
Electrostatics
The topology of some geographical area can be represented by a field. In this case, the elevation above sea level is a scalar field. That is to say, for every point on this map, the physical quantity called the elevation above sea level has a known magnitude (represented by the contour lines.)
The Electric Field
What is a field?
Electrostatics

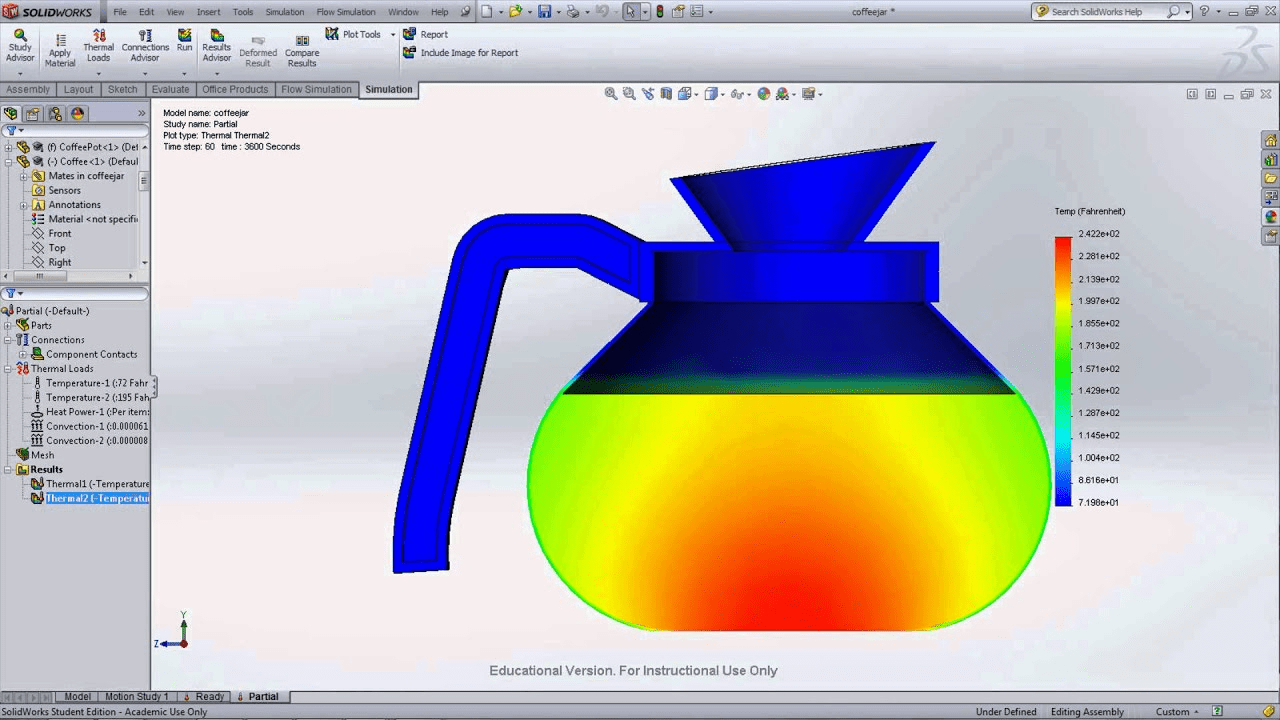

The temperature distribution inside a coffee pot is a scalar field. i.e. at every point in the space within the pot, the physical quantity known as temperature has a given magnitude. (represented by the colormap)
The Electric Field
What is a field?
Electrostatics
The gulf stream can be represented by a vector field. At every point on the ocean surface, the velocity of the water has some magnitude (represented by the color scale) and a direction (represented by the direction of the little arrows.
The Electric Field
What is a field?
Electrostatics

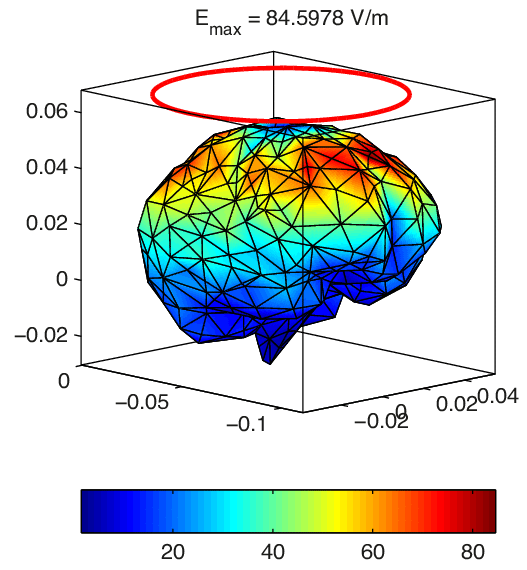

A simulation of the electric field strength induced in a model of a human brain via external electrodes. The magnitude of the electric field at each location within the brain is represented by the color map. The direction of the electric field is not represented in this figure.
The Electric Field
What is a field?
Electric Field
By drmoussaphysics
Electric Field
Introduction to electric field using the electric potential
