Practical Natural Language Processing

Building yourself Chatbot with LINE

Du Mingzhe (mingzhe@nus.edu.sg)

Milestones

Convolutional Neural Networks

Recurrent Neural Networks

Sequence-to-sequence Models

Transformers

More infoamation can be found here: https://arxiv.org/pdf/2105.04387.pdf

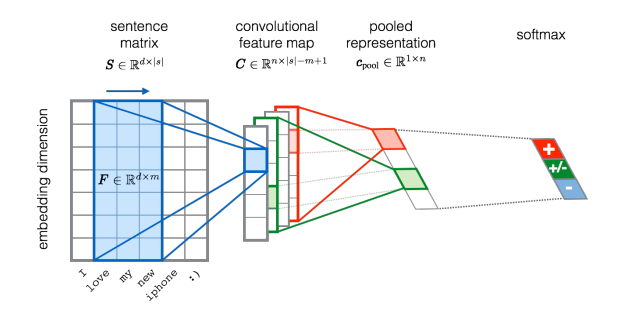

Convolutional Neural Networks

Recurrent Neural Networks

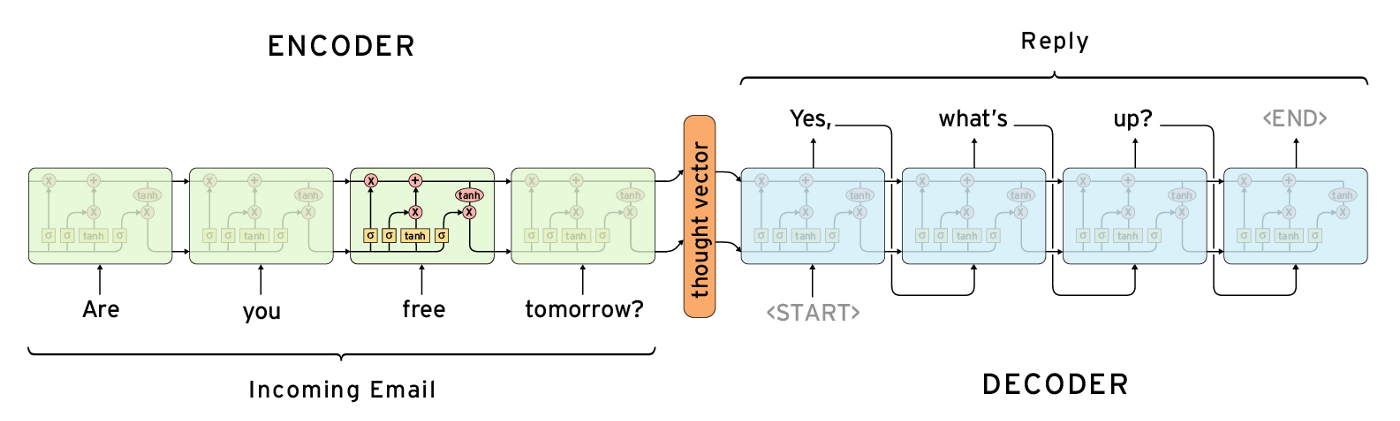

Sequence-to-sequence Models

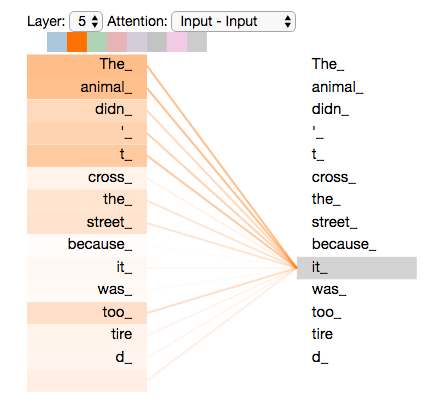

Attention

What is the colour

of the building?

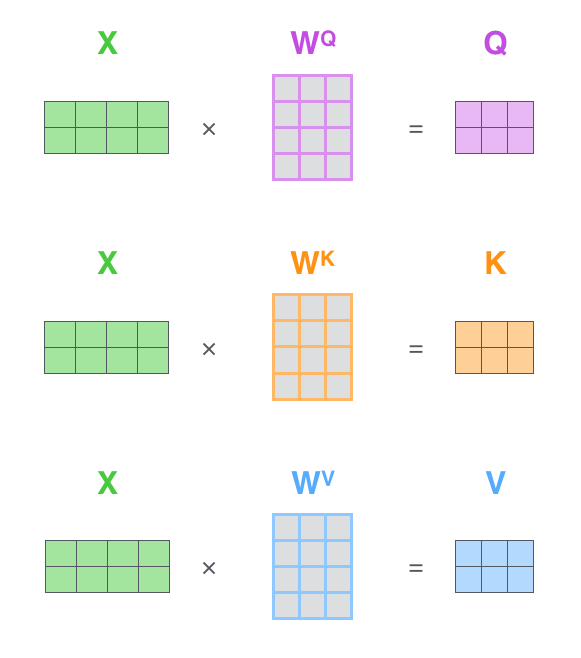

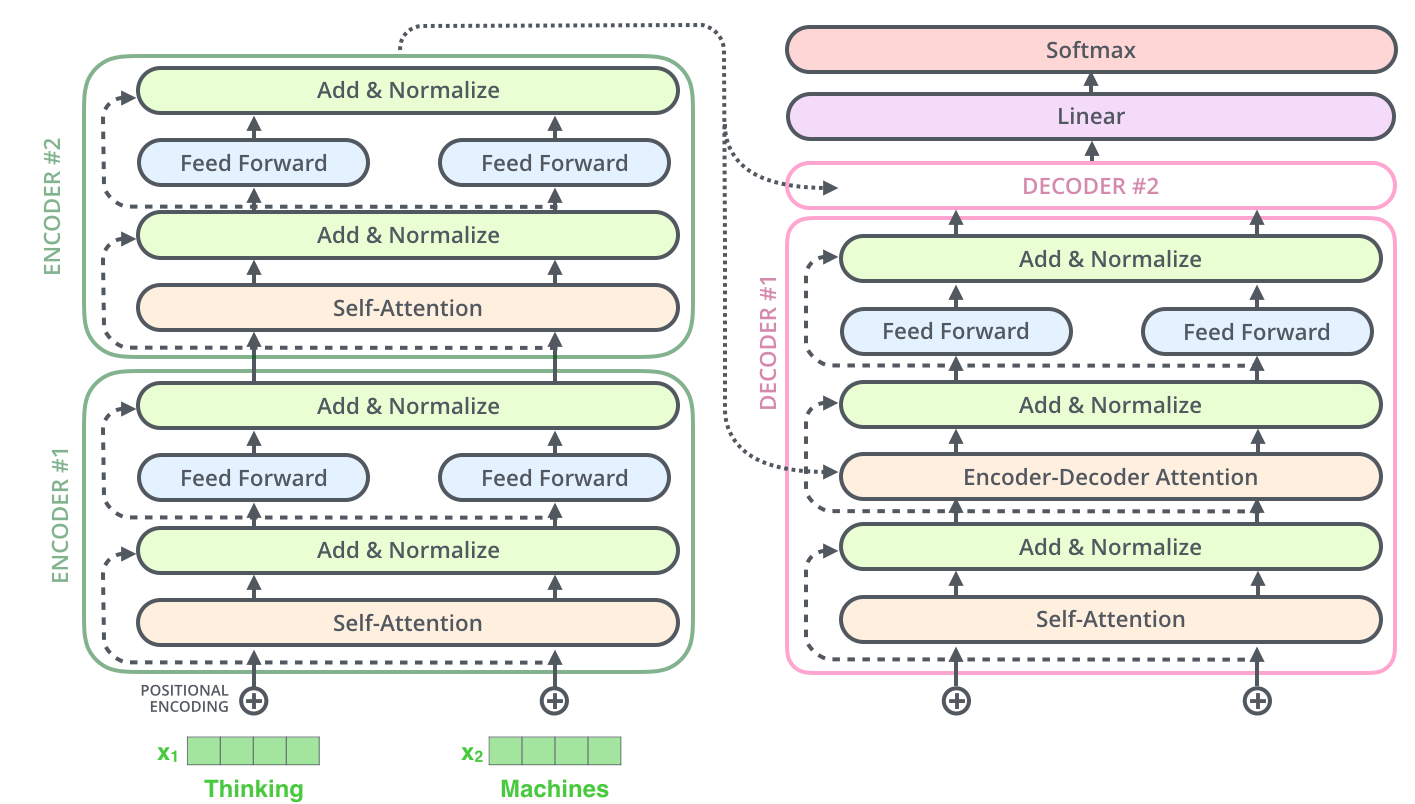

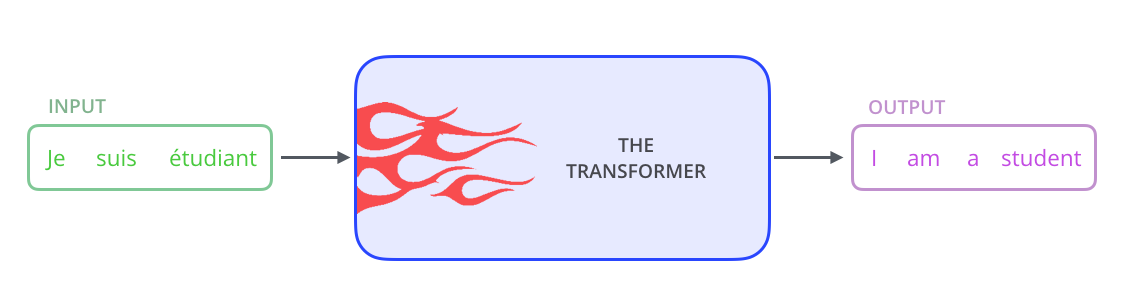

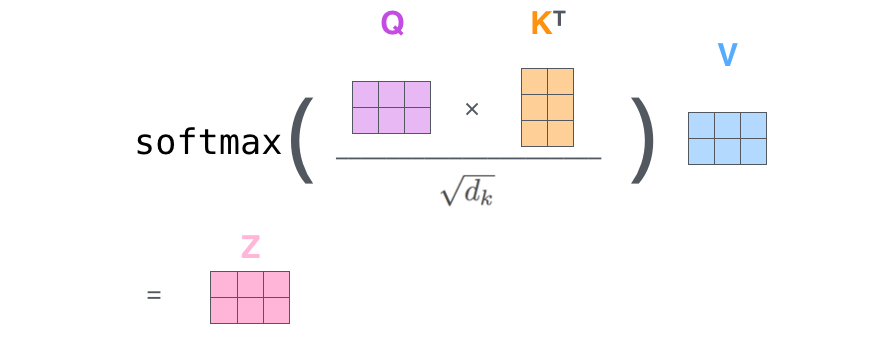

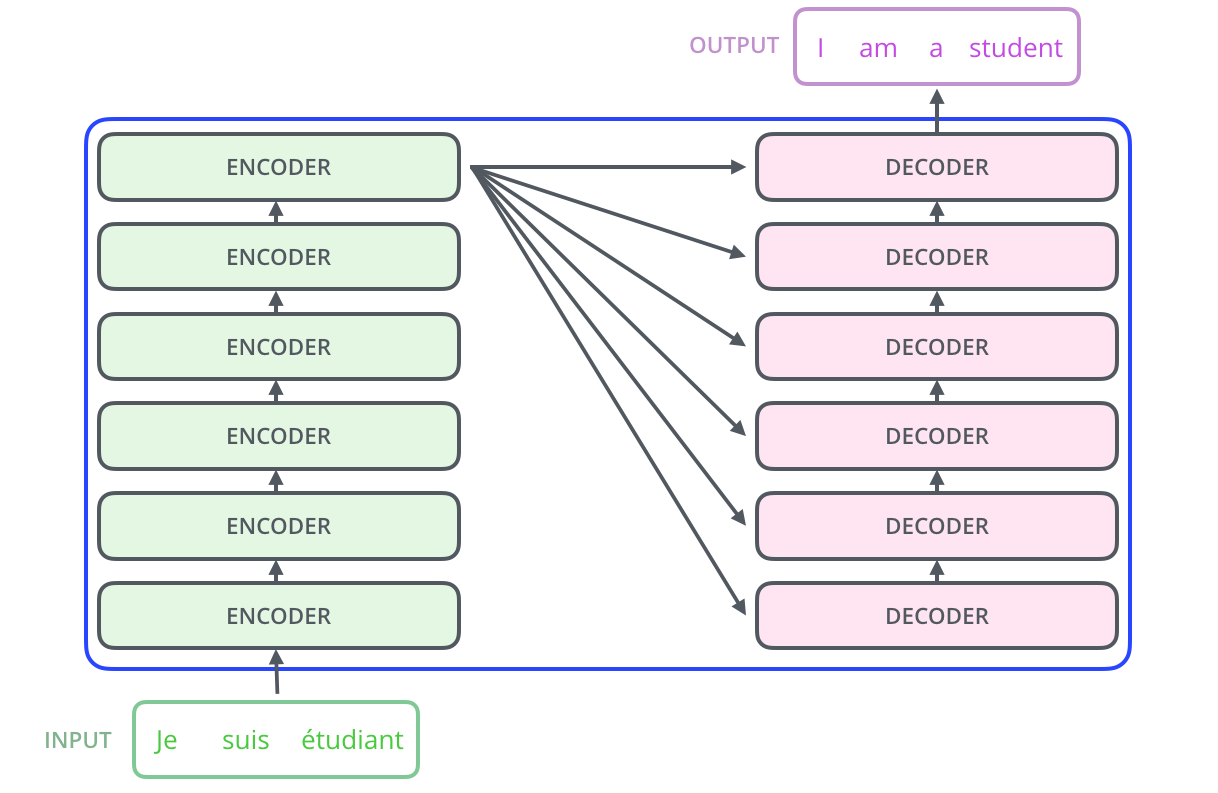

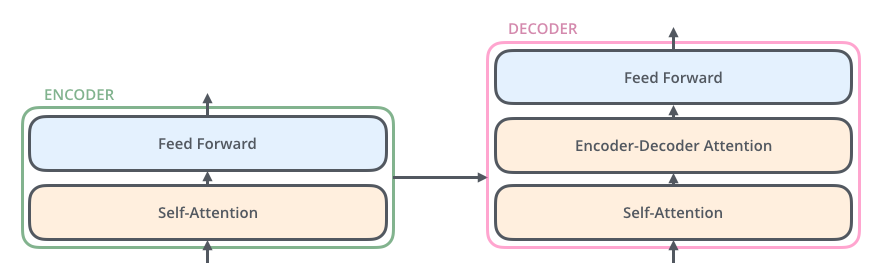

Transformers

ฉัน   เป็น   นักเรียน

ฉัน   เป็น   นักเรียน

ฉัน   เป็น   นักเรียน

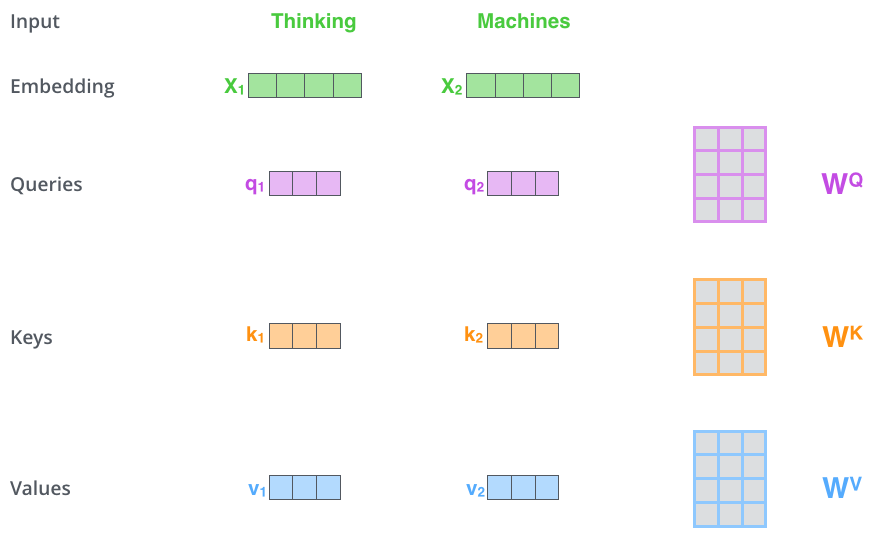

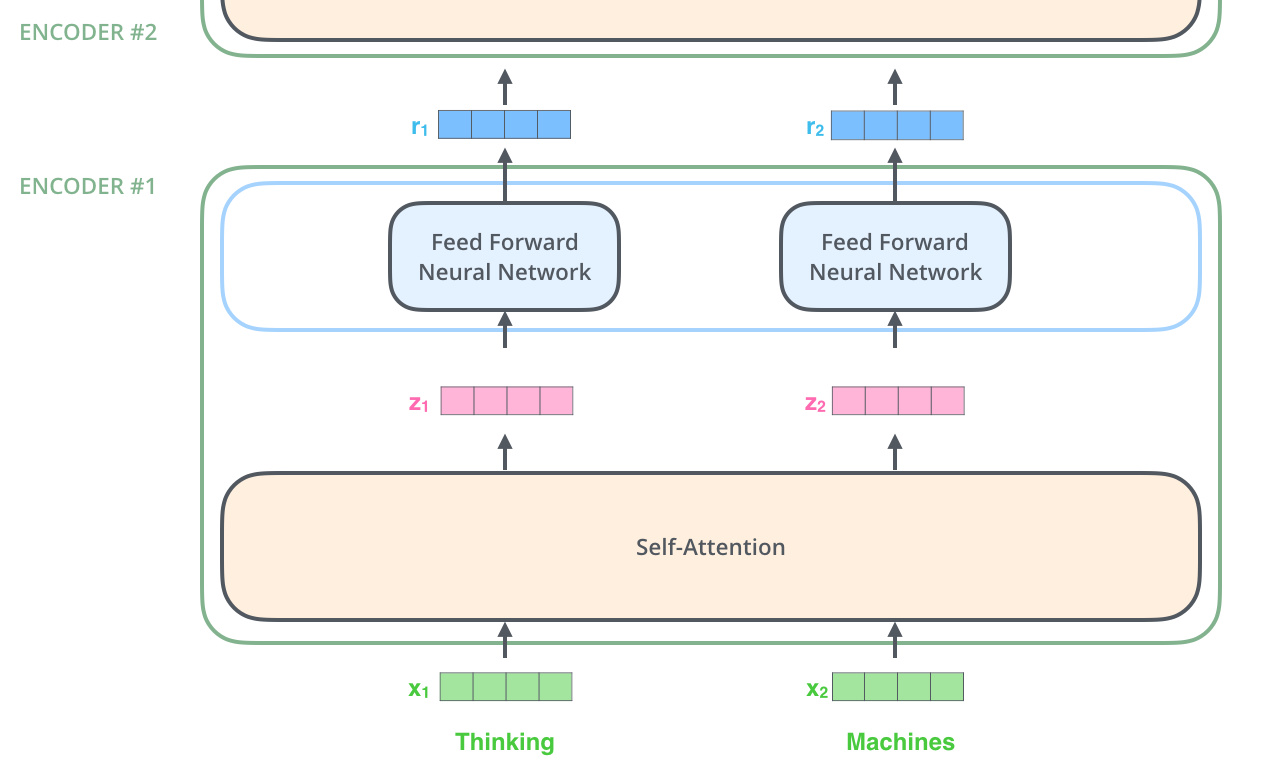

Now We’re Encoding!

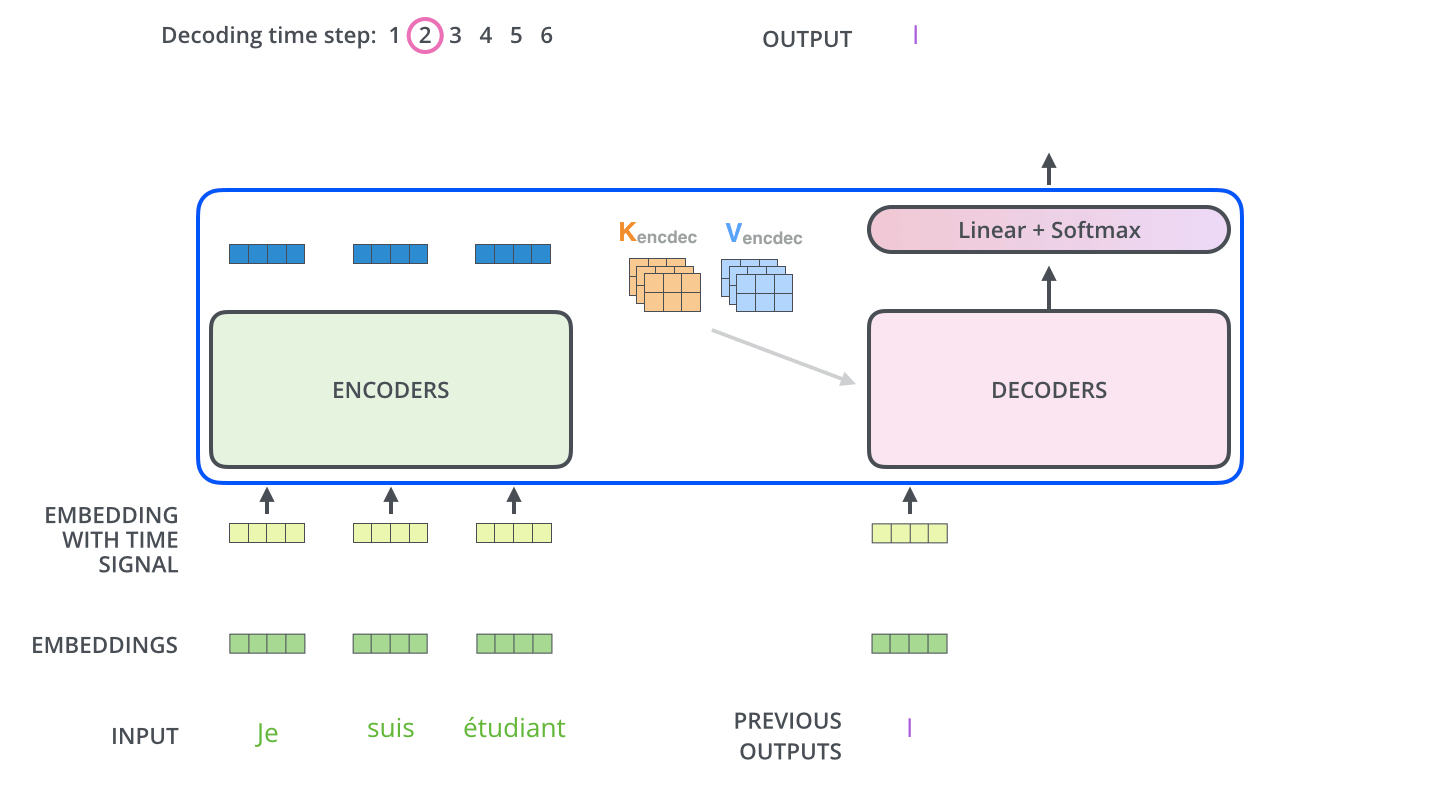

Then decoding...

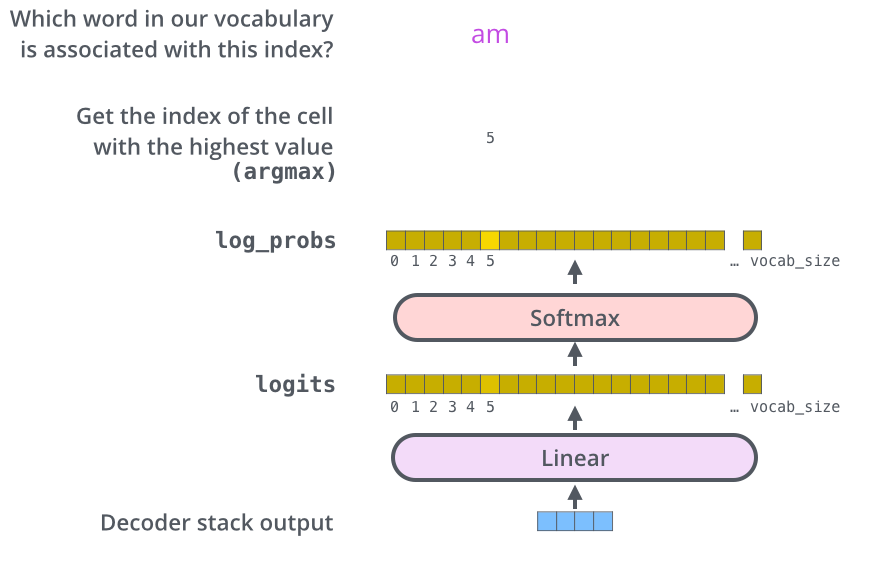

How to process outputs?

ฉัน        เป็น      นักเรียน

Hands-on

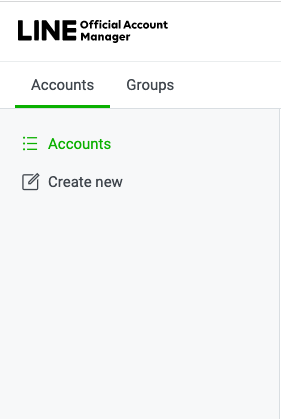

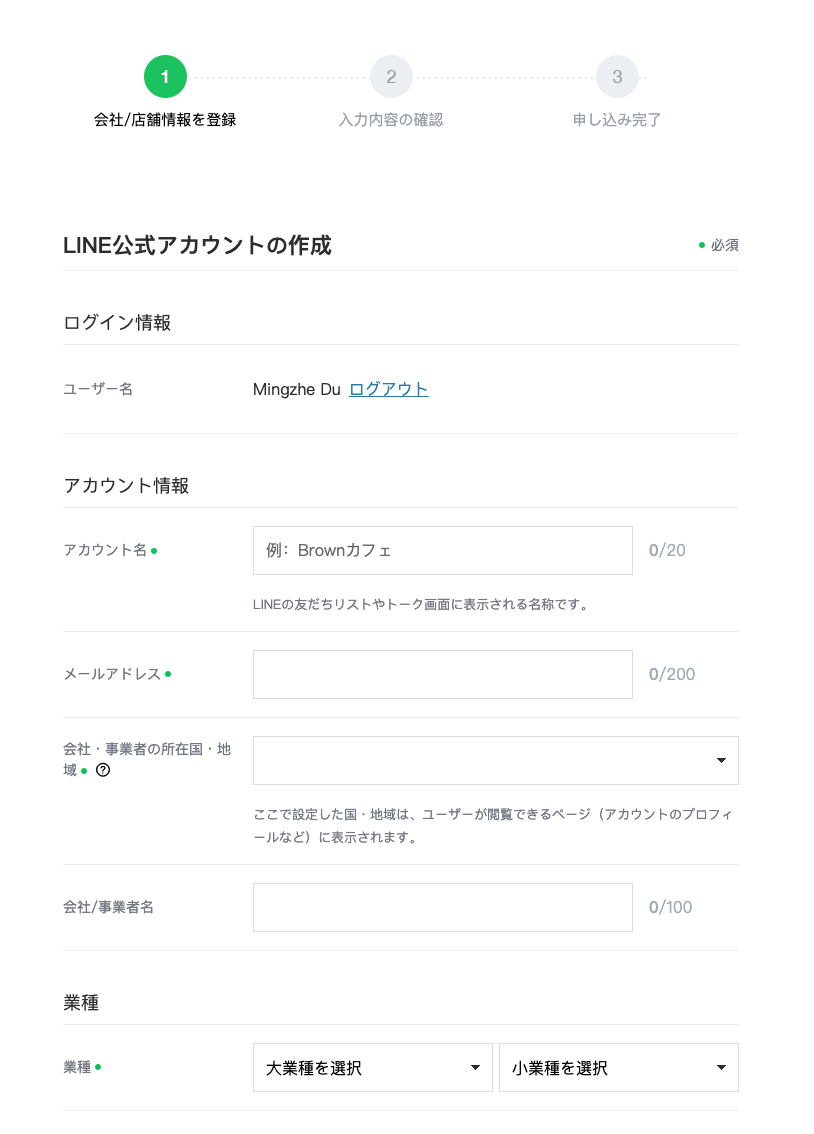

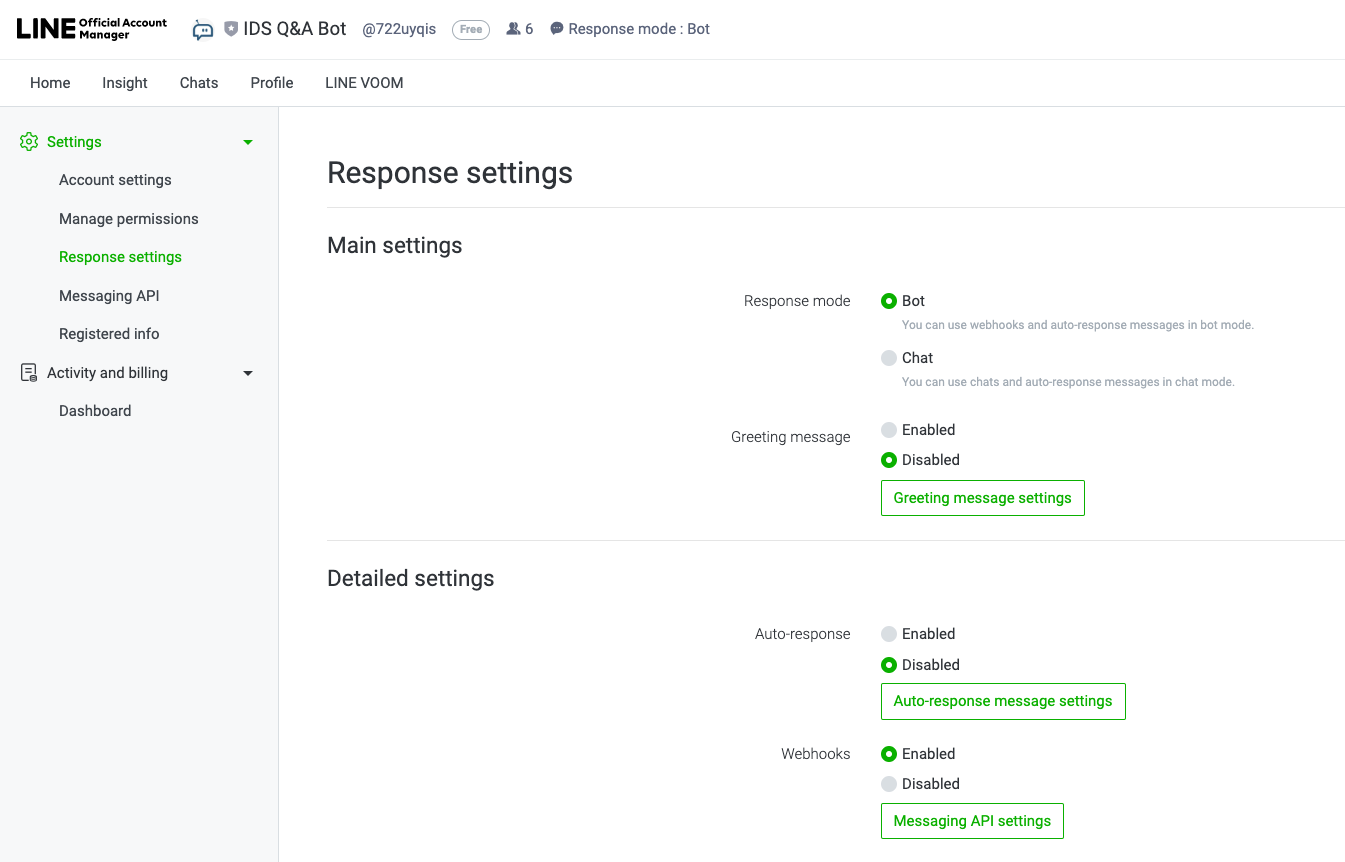

Line Official Account Manager

Account Name

Email Address

Industry

Country / Region

Company Name

Click it

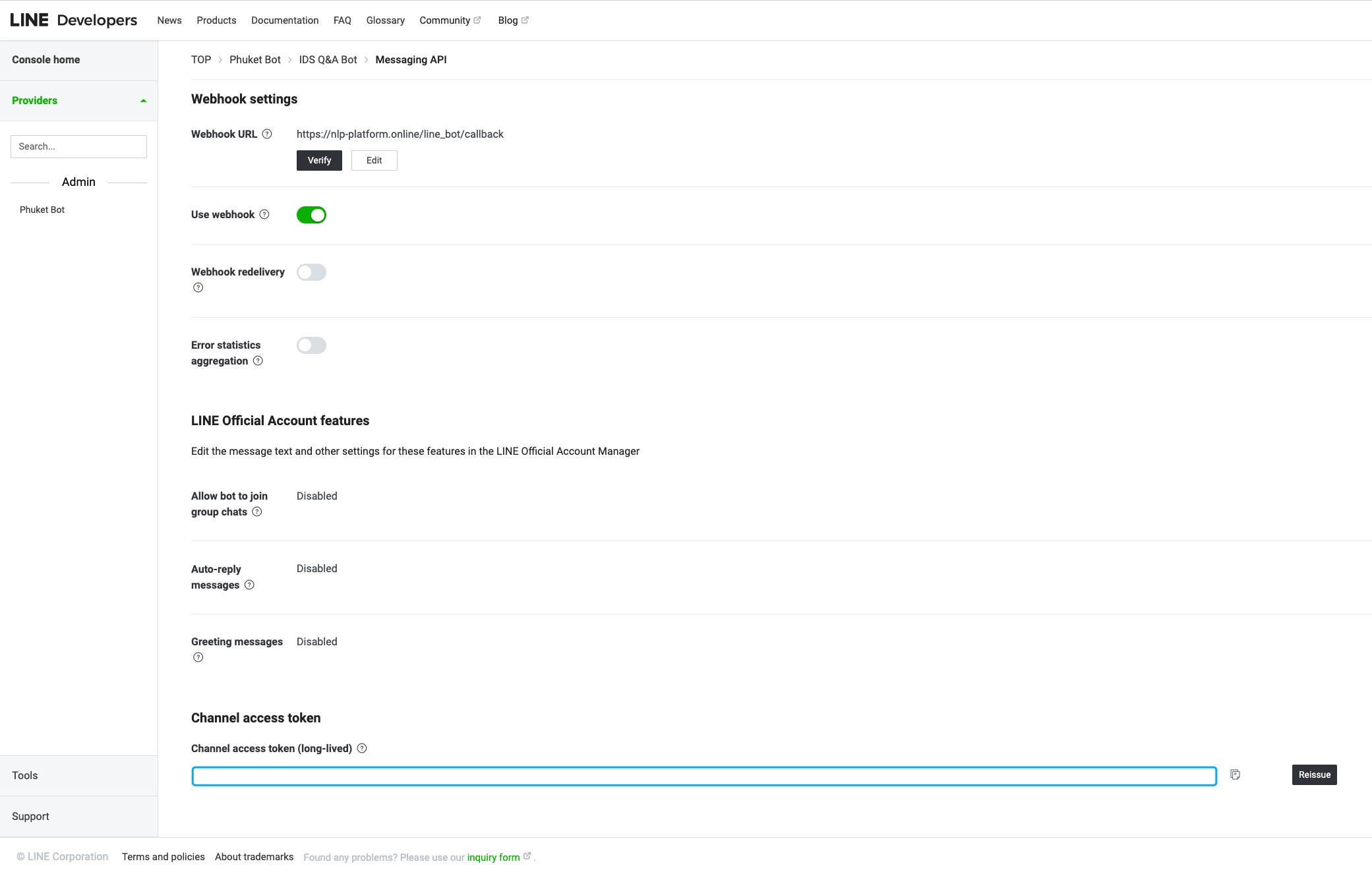

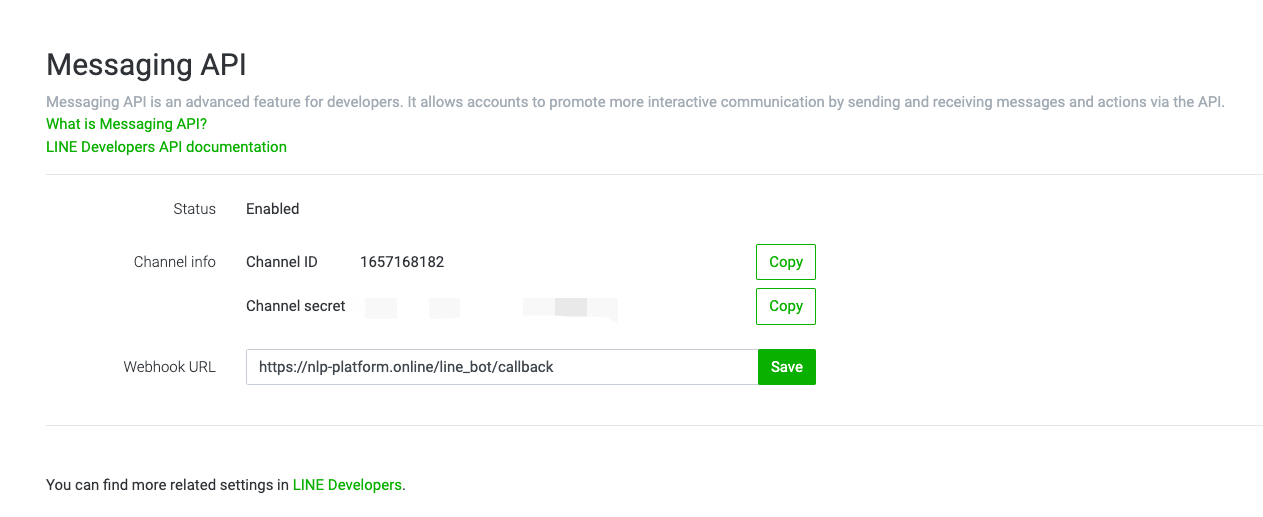

Go to LINE Developers

Then you have the token

shorturl.at/ACLNS

Install Packages and Import Libraries

# Install LINE Python SDK and pyngrok
!pip install line-bot-sdk
!pip install pyngrok

# Import libraries
import json
import requests
from pyngrok import ngrok

from flask import Flask, request, abort
from linebot import LineBotApi, WebhookHandler
from linebot.exceptions import InvalidSignatureError
from linebot.models import MessageEvent, TextMessage, TextSendMessage

First Glance at Chatbot Model

# First glance
from transformers import pipeline, Conversation
from transformers import BlenderbotTokenizer, BlenderbotForConditionalGeneration

model = BlenderbotForConditionalGeneration.from_pretrained("facebook/blenderbot-400M-distill")
tokenizer = BlenderbotTokenizer.from_pretrained("facebook/blenderbot-400M-distill")

inputs = tokenizer(["My friends are cool but they eat too many carbs."], return_tensors="pt")
next_reply_ids = model.generate(**inputs)
print("Bot: ", tokenizer.batch_decode(next_reply_ids, skip_special_tokens=True)[0])

# Bot:   That's unfortunate. Are they trying to lose weight or are they just trying to be healthier?

Chatbot Pipeline

# Build a pipeline
conversational_pipeline = pipeline("conversational", model="facebook/blenderbot-400M-distill")
conversation = Conversation()

# Get response function
def get_response(conversation, sentence):
    conversation.add_user_input(sentence)
    output = conversational_pipeline([conversation])
    return output

Line Configuration

# Line Channel ID (DON'T share it with others)
channel_id = "[YOUR_LINE_CHANNEL_ID]"

# Line Channel Secret (DON'T share it with others)
channel_secret = "[YOUR_LINE_CHANNEL_SECRET]"

# Issue a short-term token
def issueToken(client_id, client_secret):
  endpoint = "https://api.line.me/v2/oauth/accessToken"
  header = {'Content-Type': 'application/x-www-form-urlencoded'}
  body = {'grant_type': 'client_credentials',
          'client_id': client_id,
          'client_secret': client_secret}
  response = requests.post(url=endpoint, data=body, headers=header)
  print(response)
  obj = json.loads(response.text)
  return obj

# Your Line Token (DON'T share it with others)
tokenDict = issueToken(channel_id, channel_secret)

# Assume tokenDict should look like that
# {
# 	'access_token': '[YOUR_LINE_CHANNEL_TOKEN]',
#  	'expires_in': 2592000,
#  	'token_type': 'Bearer'
# }

Running Flask app on localhost

app = Flask(__name__)
handler = WebhookHandler(channel_secret)
line_bot_api = LineBotApi(tokenDict["access_token"])

@app.route("/callback", methods=['POST'])
def callback():
    signature = request.headers['X-Line-Signature']
    body = request.get_data(as_text=True)

    print("# Webhook event:\n", body)
    print('-'*100)

    # Handle webhook body
    try:
        handler.handle(body, signature)
    except InvalidSignatureError:
        print("Invalid signature. Please check your channel access token/channel secret.")
        abort(400)

    return "OK"

@handler.add(MessageEvent, message=TextMessage)
def handle_message(event):
    print(f"Message Return: {event}")
    line_bot_api.reply_message(event.reply_token, TextSendMessage(text=event.message.text.strip()))

Expose Localhost to Public

# Ngrok configuration
!ngrok authtoken 2EkXz20Sxld1yr6MDyEw3wGe8FG_7E5Nh1H6fH1AHCHVdVCAw
!cat /root/.ngrok2/ngrok.yml

# Setting up http tunnel
http_tunnel = ngrok.connect(5000)
print(http_tunnel)

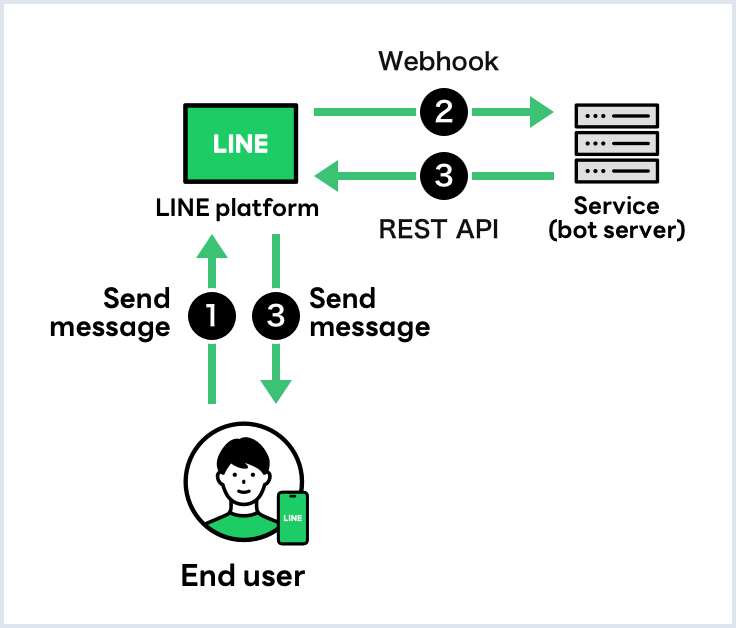

Set Line Webhook Endpoint

def setWebhook(endpoint, CHANNEL_ACCESS_TOKEN):
    endpointFixed = f"https://{endpoint.split('//')[-1]}/callback"
    url = "https://api.line.me/v2/bot/channel/webhook/endpoint"
    header = {'Content-Type': 'application/json', 'Authorization': 'Bearer ' + CHANNEL_ACCESS_TOKEN}
    body = json.dumps({'endpoint': endpointFixed})
    response = requests.put(url=url, data=body, headers=header)
    print(response)

setWebhook(http_tunnel.public_url, channelAccessToken)

app.run()

What to do next?

Context Awareness

How to harness historical context?

Response Diversity

variety of responses

Personality-based Response

Be aware of the roles / Response based on the roles

Knowledge-Grounded System

knowledgeable / Positive Feedback / Know what don't know

Interactive Training

 Learning with chatting / Reinforcement Learning

Thank you

Nasith Laosen (nasith.l@pkru.ac.th)

Du Mingzhe (mingzhe@nus.edu.sg)
