An efficient and effective Decentralized

Anonymous Voting System

2018, Wu, Wei-Jr Lai Ja-Ling

https://arxiv.org/abs/1804.06674

Introduction

• The election needs one or more authority for both authentication and protect the privacy of participant

  • However, it is difficult for voter to believe

    • government or authority that will always follow the rules

    • never get hacked

Introduction

Introduction

• Open Vote Network is decentralized, anonymous and transparent

  • cannot tally the result even only one voter doesn't cast his ballot

    • only suitable for small-scale voting

Introduction

System

Key ideas

• One-time Ring signature

• Stealth Address

System > Key ideas

One-time Ring Signature

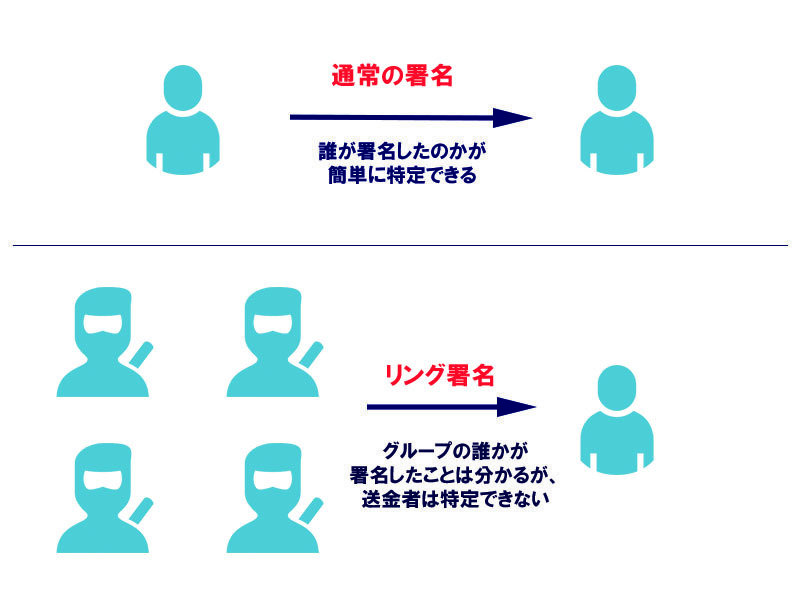

• General Ring Signature

  • signer in a particular group can signs the message as group member, and verifier cannot distinguish the identity of signer

  • a voter can cast their ballot twice

System > Key ideas > One-time Ring Signature

https://blog.ethereum.org/2016/01/15/privacy-on-the-blockchain/

One-time Ring Signature

• One-time Ring Signature

  • singer generate key pair \((x, P)\), additionally compute key image \(I = xH_p(P)\)

  • sign

    • create ring signature with group public keys \(P_i\) and own key pair \((x, P)\) and key image \(I\)

  • verify

    • check if \(I\) has been used in past signatures

      • Multiple uses imply that two signatures were produced under the same secret key

System > Key ideas > One-time Ring Signature

One-time Ring Signature

• If the mapping \(x \rightarrow I\) is an injection

  • Nobody can recover the public key from the key image and identify the signer

    • \(H_p(P) = I\cdot x^{-1}\)

  • The signer cannot make two signatures with different \(I\) and the same \(x\)

System > Key ideas > One-time Ring Signature

\(I = xH_p(P)\)

Stealth address

•  unlinkable payments scheme proposed in CryptoNote
  • The destination of each output is a public key, derived from recipient’s address and sender’s random data

System > Key ideas > Stealth address

Stealth address

System > Key ideas > Stealth address

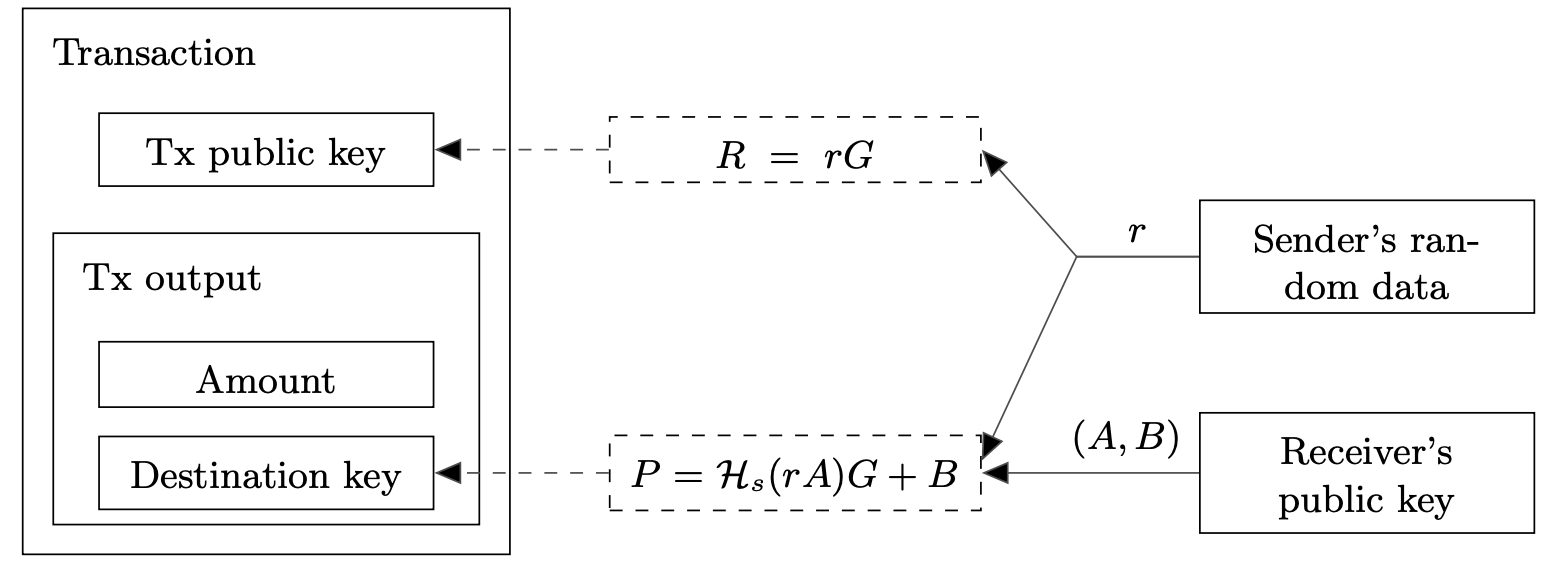

Alice(sender) wants to send a payment to Bob(receiver)

https://pdfs.semanticscholar.org/e4fa/14d96337e553ec4422b5204ba0107f0fdad3.pdf

Stealth address

System > Key ideas > Stealth address

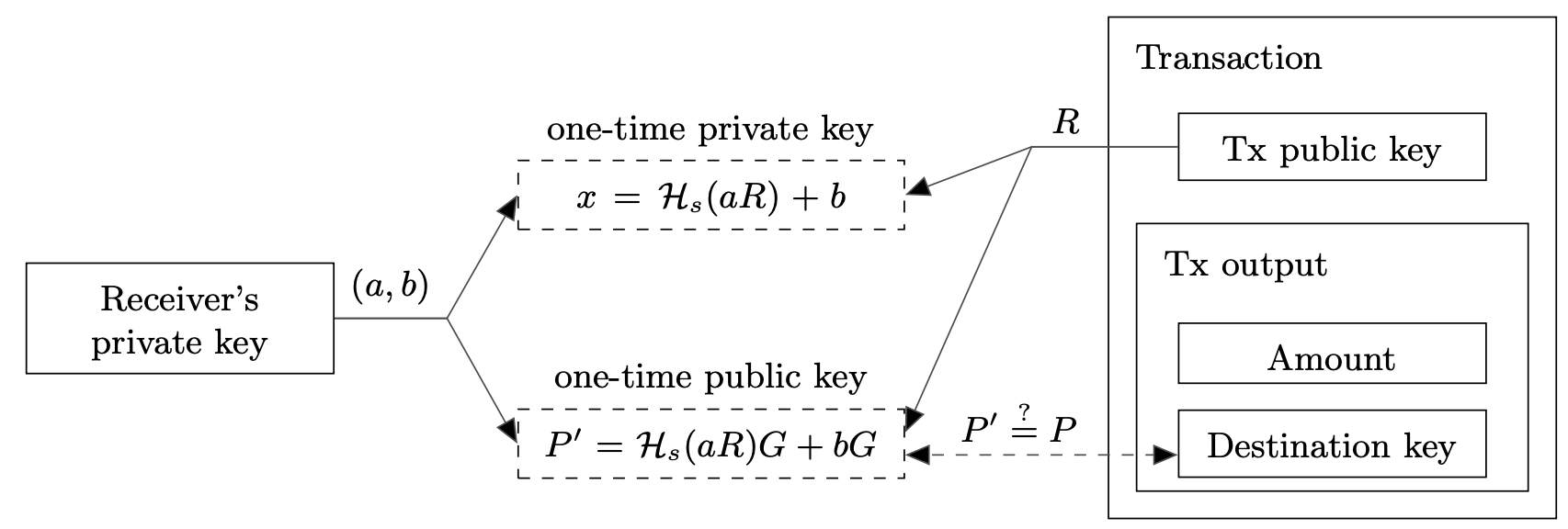

Bob checks if Alice’s transaction is sending for himself

https://pdfs.semanticscholar.org/e4fa/14d96337e553ec4422b5204ba0107f0fdad3.pdf

Stealth address

System > Key ideas > Stealth address

• In this propose, sender is voter, receiver is candidate
• It means that voters can obfuscate the observers who they actually vote for

Key management

System > Key ideas > Stealth address > Key management

• Information about election results should not be opened until tally phase
  • We need more than one people to share the first private key of candidate
    • Diffie-Hellman key exchange

Key management

System > Key ideas > Stealth address > Key management

1. Alice and Bob pick a random number \(r_a, r_b\) and announce \(r_aG, r_bG\) separetly
2. Both them can compute \(r_ar_bG\) and make it public
3. After voting phase, they submit \(r_a, r_b\) separately

• => \((r_ar_b, r_ar_bG)\) will be candidates' first shared key pair
  • candidate cannot tally before tally phase

Election

System > Election

• This election can split into 3 phase
  • setup
  • voting
  • tally

Setup

System > Election > Setup

• Voter list
  • A set of public key, each one is a point on elliptic point and corresponds to a valid voter
• Candidate
  • To generate public key for stealth address, voter can encode them into coordinate on elliptic curve
• Secret sharing
  • The chosen key managers build shared secret by DH on the smart contract
  • To ensure that key managers will submit their individual secret, introduce a deposit

Voting

System > Election > Voting

• Voter knows public information including candidates' first public key A, candidate list from smart contract

• First, compute a ballot \((SA, R)\) for selected candidate by \(A, B_i\)
• Then, the ballot be signed with owned private key and one-time ring signature to get signed ballot \((m, \sigma), m = (SA,R)\)
• Third, send signed ballot on smart contract with different Ethereum account

Voting

System > Election > Voting

• Complex operations cost much on smart contract
  • We separate the verification of ring signature from voting phase to reduce the computation cost
    • As a result, everyone can try to send invalid or revoting ballots
      • But those wrong ballots can always be detected
      • A rational attacker will not cost gas to make a useless attack

Tally

System > Election > Tally

• Key managers should open their individual secret for retrieve their deposit
• No one can vote after voting phase
• People who interested in election can access all information and tally the result by themselves

Tally

System > Election > Tally

• The signed ballot \(m, \sigma\) will be counted to candidate \(C_i\) if
  1. key image \(I\) is never shown before
  2. verify the signature
  3. stealth address is for \(C_i\)

Analysis

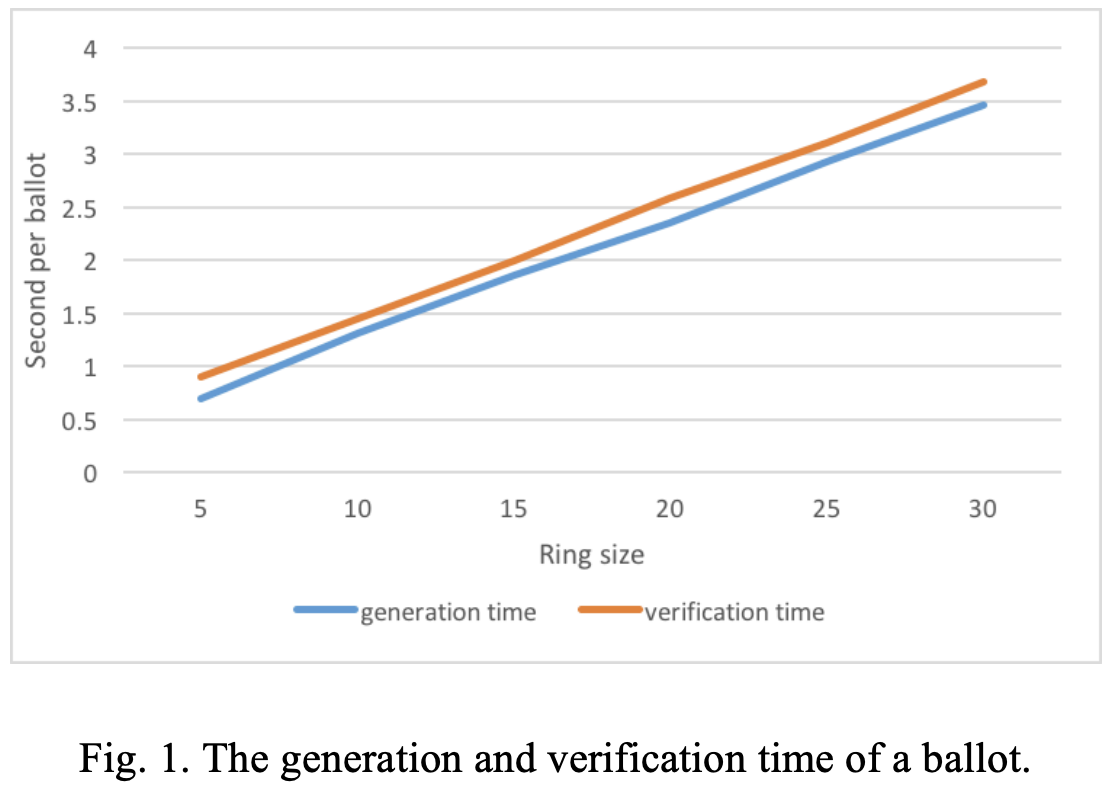

Time analysis

• Environment

  • 2 core, 2.7 GHz Intel Core i5 and 8 GB DDR3 RAM

  • written in javascript​

Analysis > Time analysis

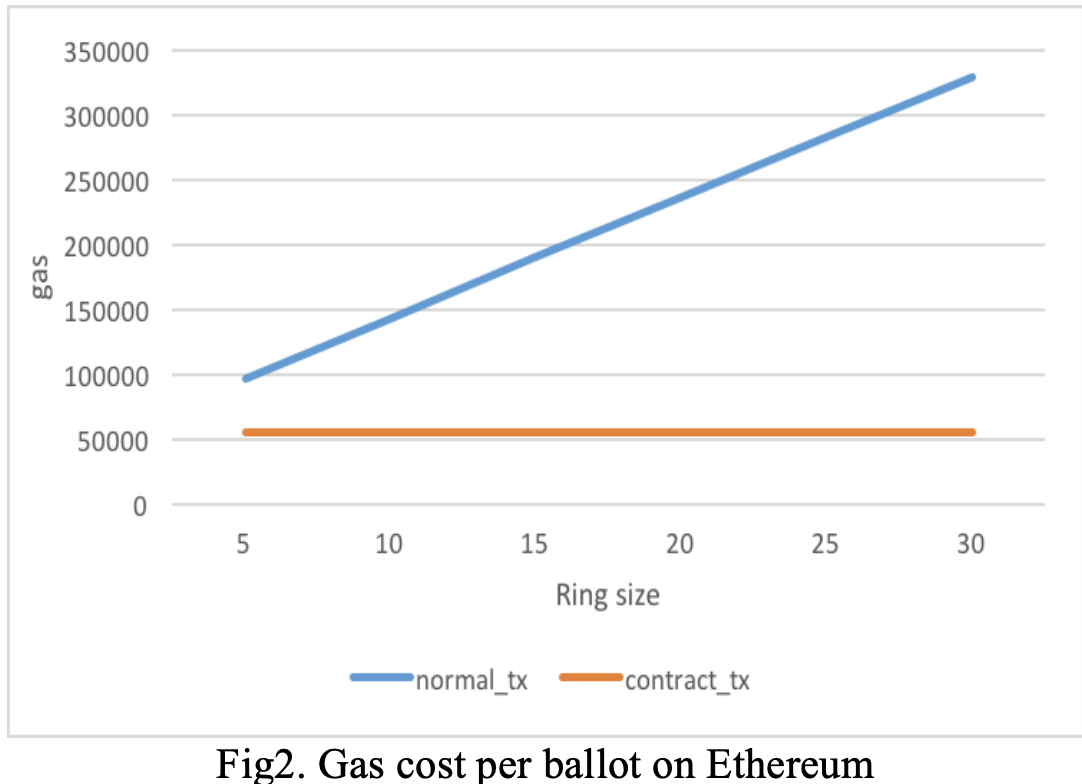

Gas cost

• We don't record the ballot information on smart contract directly, but save it in normal transaction

  • ​The ballot information on smart contract is only transaction id of normal transaction

Analysis > Gas cost

Security

• Anonymity is protected by ring signature

• Colluding of key managers is risk

  • In the worst case, all of them collude to retrieve shared secret key, can only make them tally the result earlier

Analysis > Security

Conclusion

• We proposed a decentralized anonymous voting system which only requires minimal trust in others and gas cost per voter

• Since the tally phase could speed up via parallel computation, the system is also suitable for large-scale voting

Conclusion
