Let's get hands on NodeMCU
YUXI GUEST
wP2QNBc3ifsN
Workshop #1 of IoT Medellín
https://www.meetup.com/es/IoT-Medellin/
@IotMedellin
by: @JFBanguera & @vlondonoo
Special Thanks to @YuxiGlobal
Topics to be covered
- Basics on Electronics
- NodeMCU Intro
- Blynk Intro
- Workshop steps
- Conclusion
Why Electronics for Software Devs
SW is based on HW
Be Jobs
Go IoT
Also we will need it for what's next
Regarding This workshop steps.
Electronics is the science of controlling electrical energy electrically, in which the electrons have a fundamental role.
Wikipedia
Study of electronic devices and technologies.
businessdictionary.com
Ohms Law
Ohm's law states that the current through a conductor between two points is directly proportional to the voltage across the two points.
Wikipedia
Ohm's Law deals with the relationship between voltage and current in an ideal conductor. This relationship states that:
The potential difference (voltage) across an ideal conductor is proportional to the current through it.
physics.uoguelph.ca
Simplifying...
Basic Electronic components
Resistors

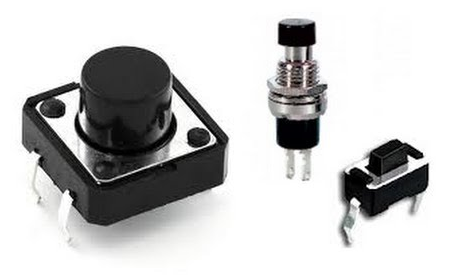

push buttons
Diodes

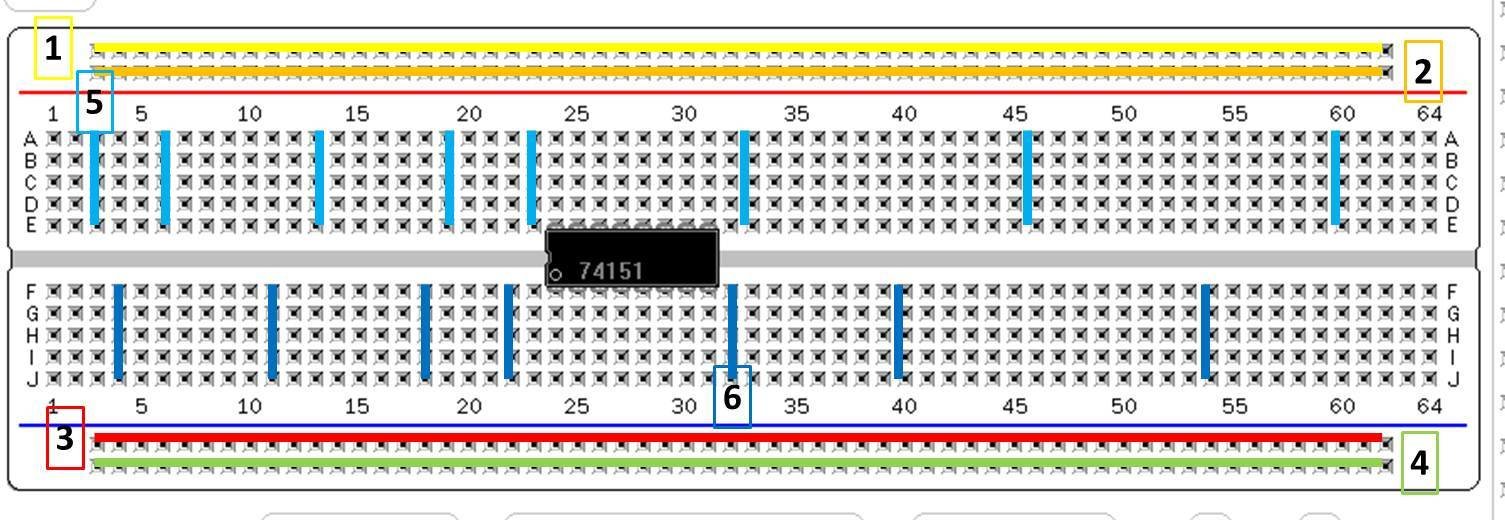

Protoboard
NodeMCU
"An open-source firmware and development kit that helps you to prototype your IOT product within a few Lua script lines."

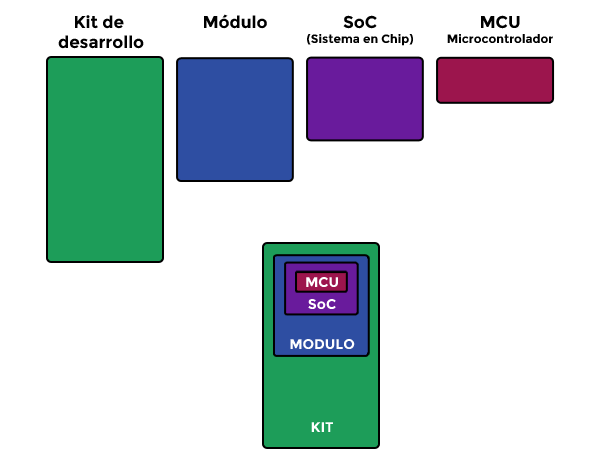

MCU COMPONENTS
Tensilica L106 de 32-bit.
SoC: ESP8266EX, wifi module
Incorporate antenna and flash memory to store programs or sketches
Módulo WiFi de 2.4 GHz,
RAM de unos 50 kB

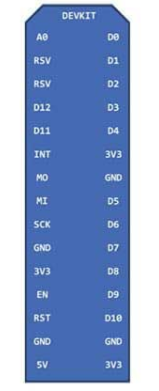

Acces to pins

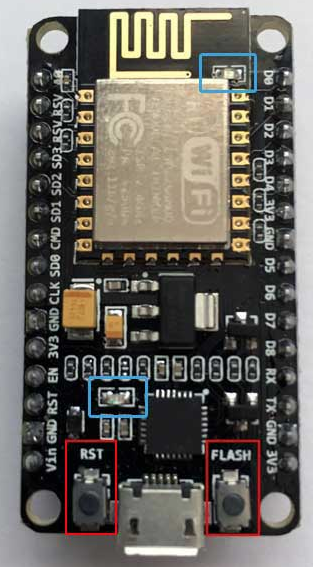

buttons and leds
Kit NodeMCU
Blynk

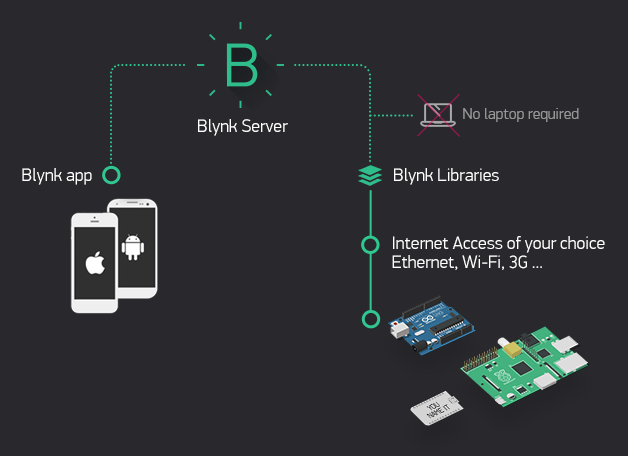

Blynk is a Platform with iOS and Android apps to control Arduino, Raspberry Pi and the likes over the Internet.
It's a digital dashboard where you can build a graphic interface for your project by simply dragging and dropping widgets.
COMPONENTS IN THE PLATFORM
Features
Connection to the cloud
Set of easy-to-use Widgets
Direct pin manipulation with no code writing
Easy to integrate and add new functionality using virtual pins
History data monitoring via History Graph widget
Device-to-Device communication using Bridge Widget
- Sending emails, tweets, push notifications, etc.
Now let's get to it!
https://github.com/felixbanguera/iot-medellin-nodemcu-blynk-1
Based on:
- https://nodemcu.readthedocs.io
- https://arduino-esp8266.readthedocs.io
- https://programarfacil.com/podcast/nodemcu-tutorial-paso-a-paso
- https://programarfacil.com/esp8266/como-programar-nodemcu-ide-arduino
Hands on ModeMCU and Blynk
By Felix Xilef
Hands on ModeMCU and Blynk
This presentation is to help with the steps to follow on the first workshop of the IoT Medellin community. The topics are: a. Fundamentos de Electronica Básica (enfocado al workshop) b. NodeMCU Teoría c. Blynk teoría d. Pasos del workshop e. Conclusiones
