Paddle

2017/02/10 翁子皓 何憶琳

Outline

• Installation
• Quick start
• Run on GPU / Cluster

Installation

• cmake >= 3.0 (the doc says >= 2.8??)
•
• python 2.7
• protobuf
• numpy

NOTE: I use Anaconda for python and the packages

Installation

git clone https://github.com/baidu/Paddle paddle
cd paddle
mkdir build && cd build
cmake .. -DCMAKE_INSTALL_PREFIX=<path> [other options...]
make -j && make install
export PATH=<path>:$PATH
paddle # run paddle, it will automatically install missing python packages

Quick Start

•  There's a quick start tutorial in the document
• Learn how to configure and run paddle for training and prediecting

Steps

• training / testing data
• define input (dataprovider.py)
• define model (trainer_config.py)
• define output

Input File

• Create a file that contains a list of our data filenames
• Paddle will loop through the list and read each file

dataprovider

• Define input type

• Read file and preprocess data

dataprovider

from paddle.trainer.PyDataProvider2 import *

# initializer: define input type and additional meta-data
# kwargs: passed from trainer_config.py
def initializer(settings, **kwargs):
    settings.input_type = { 'label': integer_value(10), 'word': dense_vector(100) }

# process: use yield to return a data
# file_name: a name from train_list
@provider(init_hook=initializer, cache=CacheType.CACHE_PASS_IN_MEM)
def process(settings, file_name):
    with open(file_name, 'r') as f:
        for line in f:
            label, word = line.split(':')
            label = int(label)
            word = word.split(',')
            yield { 'label': label, 'word': word }

trainer_config

• Configure parameters
• Define Layers

trainer_config

define_py_data_sources2(
    train_list=trn,
    test_list=tst,
    module="dataprovider",
    obj=process)

settings(
    batch_size=batch_size,
    learning_rate=2e-3,
    learning_method=AdamOptimizer(),
    regularization=L2Regularization(8e-4),
    gradient_clipping_threshold=25)

trainer_config

data = data_layer(name="word", size=len(word_dict))

# Define a fully connected layer with logistic activation.
# (also called softmax activation).
output = fc_layer(input=data, size=2, act=SoftmaxActivation())

if not is_predict:
    # For training, we need label and cost

    # define the category id for each example.
    # The size of the data layer is the number of labels.
    label = data_layer(name="label", size=2)

    # Define cross-entropy classification loss and error.
    cls = classification_cost(input=output, label=label)
    outputs(cls)
else:
    # For prediction, no label is needed. We need to output
    # We need to output classification result, and class probabilities.
    maxid = maxid_layer(output)
    outputs([maxid, output])

Run Paddle

cfg=trainer_config.py
paddle train \
  --config=$cfg \
  --save_dir=./output \
  --trainer_count=4 \
  --log_period=1000 \
  --dot_period=10 \
  --num_passes=10 \
  --use_gpu=false \
  --show_parameter_stats_period=3000 \
  2>&1 | tee 'train.log'

CLI arguments

• --config: network architecture path.

• --save_dir: model save directory.

• --log_period: the logging period per batch.

• --num_passes: number of training passes. One pass means the training would go over the whole training dataset once.

• --config_args: Other configuration arguments.

• --init_model_path: The path of the initial model parameter.

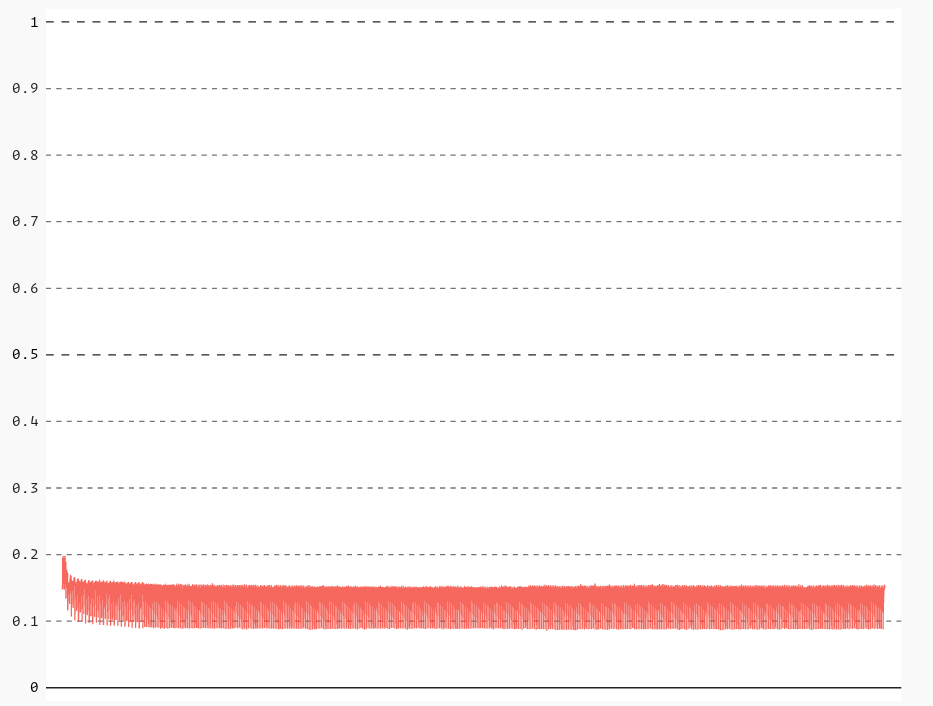

Result

• Bullet One
• Bullet Two
• Bullet Three

GPU / Cluster training

To train with GPU, we need to compile with GPU option

cmake .. -DWITH_GPU=ON

And run with GPU option

paddle train --use_gpu=true

GPU / Cluster training

• paddle/scripts/cluster_train
• conf.py
• paddle.py
• run.sh

TODO

• 研究Model (RNN, LSTM之類的)
• Cluster Training
• Scalability
• PCA
