Timeloop

Overview

• Infrastructure to evaluate the arch. design space of DNN accelerators
• Emulation to estimate performance and energy
• Mapper to generate schedule and stage data

Key Takeaway: co-design of dataflow and memory hierarchy is crucial for energy efficiency.

Model

• Specify the architecture in a abstract way
• Model estimates perf & energy numbers
• Abstraction supports specifying compute, memory and connections in a hierarchical way

Mapper

• constructs mapspace for a given hw config
• evaluates the quality of each mapping using a cost-model
• Searches the mapspace iteratively for optimal mapping

Motivation

• Model needs a mapper
  • Unlike a general purpose ISA, a single output can be computed in multiple ways in DNN accelerators
  • Finding optimal mapping among many possibilities is crucial
  • Optimal mapping can be computed for a (workload, architecture) pair
• Mapper needs a model
  • Searching through the mapspace requires a cost-model to compare different mappings

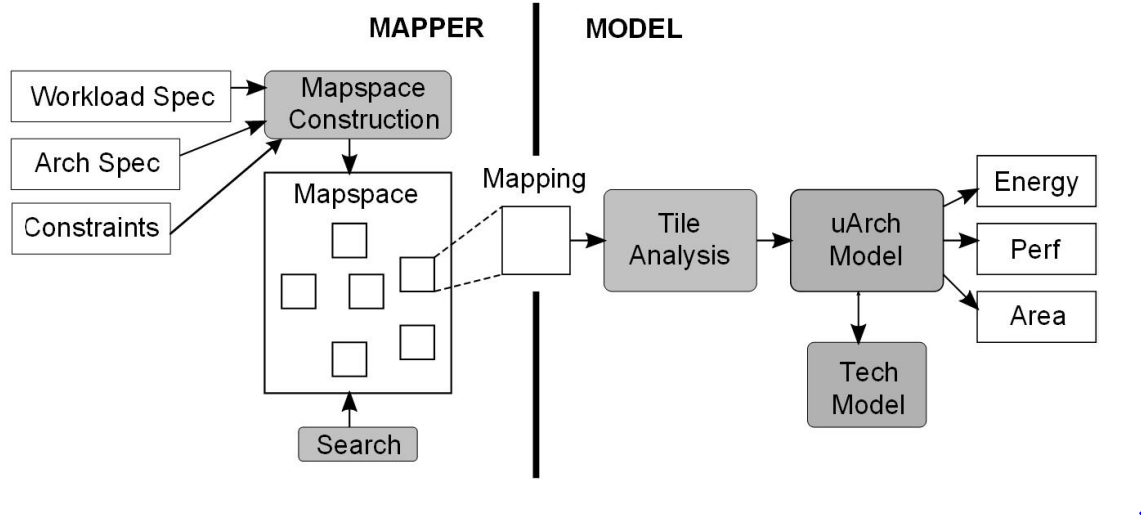

Overall Flow

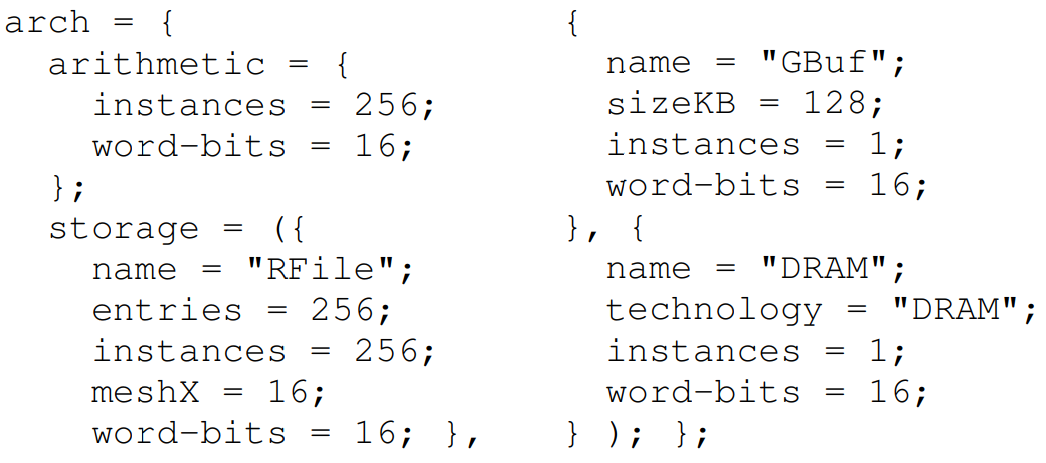

Arch Representation

RL formulation
