Open Storm Detroit Dynamics

A University-Utility Partnership

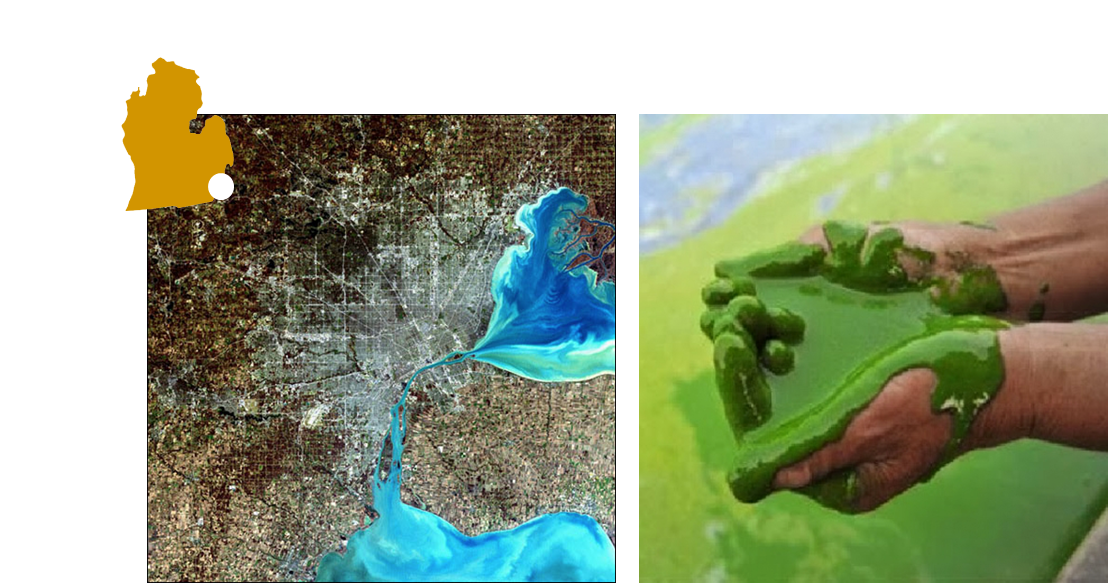

The Problem

The Plan

Nov 2017 - Nov 2018

The Plan

Nov 2017 - Nov 2018

The Plan

Nov 2017 - Nov 2018

The Plan

Nov 2017 - Nov 2018

Existing SCADA Workflow

Existing SCADA Workflow

Existing SCADA Workflow

Existing SCADA Workflow

Existing SCADA Workflow

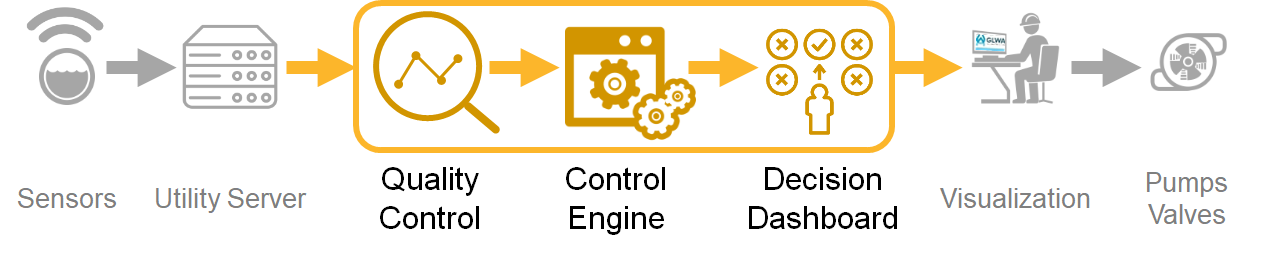

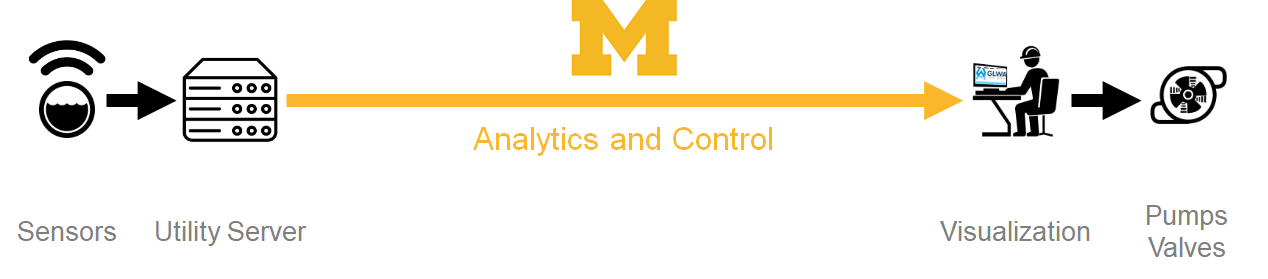

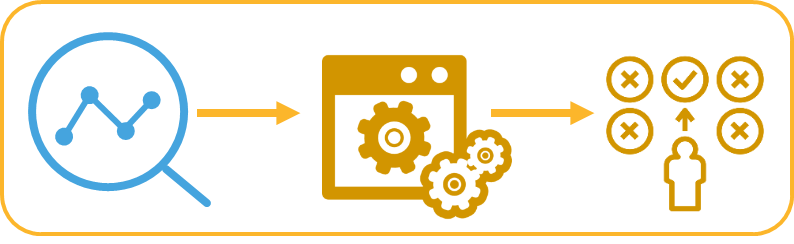

Description of Smart Water System

Description of Smart Water System

Description of Smart Water System

Description of Smart Water System

Description of Smart Water System

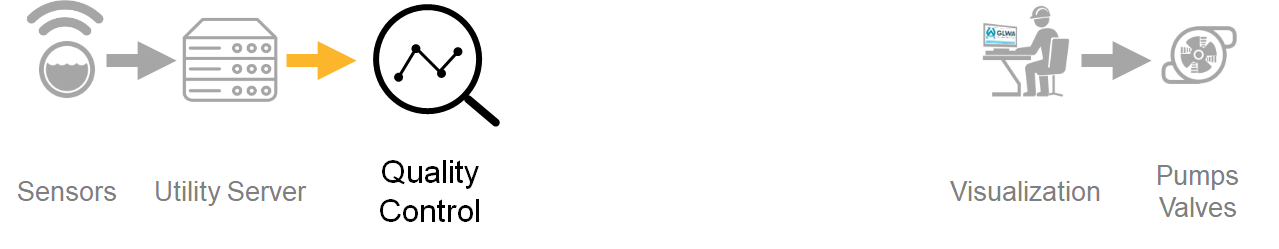

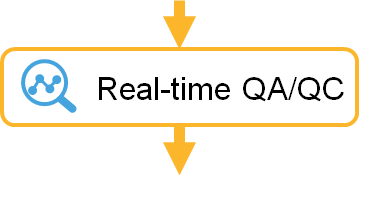

Quality Control

Because sensor data is noisy.

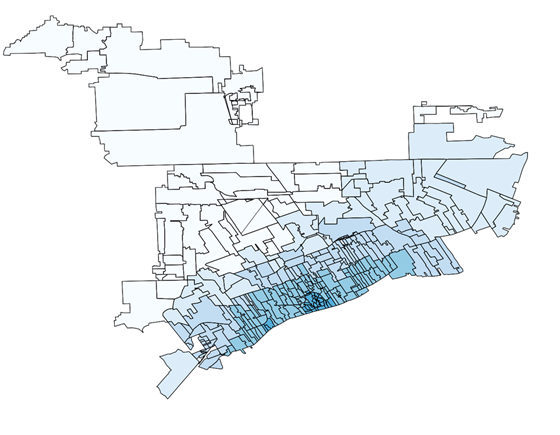

Real-Time Forecasting

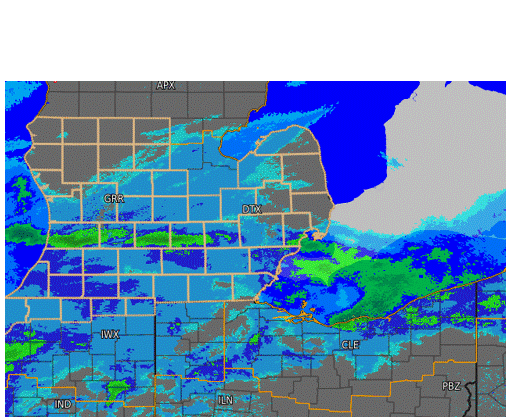

Ingest public radar products, process, and incorporate into hydraulic models and recommendation engine

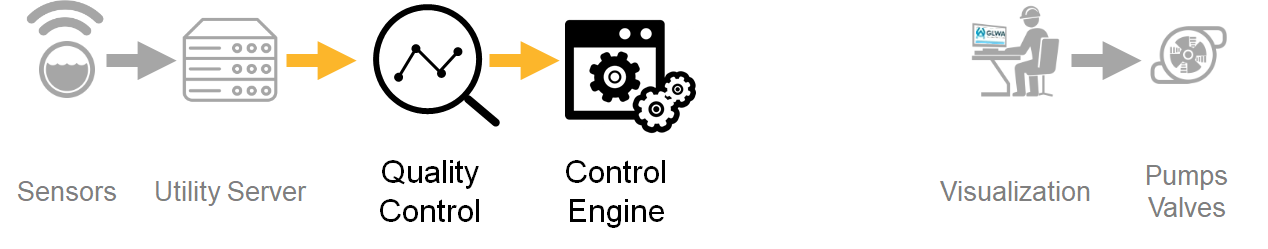

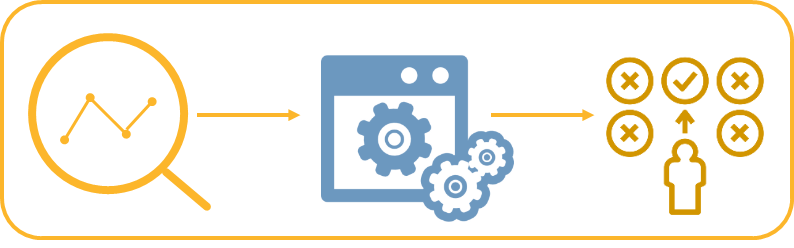

Control Engine

Even after QA/QC process, there are still 100s of data points to synthesize and transform into actionable information.

Existing Challenges

Without coordination, actions can lead to unforeseen consequences throughout the network.



Take this toy example with 3 upstream control points and a downstream WWTP.

Existing Challenges

As we use storage structures in the network to mitigate CSOs and reduce wet weather peaks at the outlet of the network, the structures fill up and experience stress.

Existing Challenges

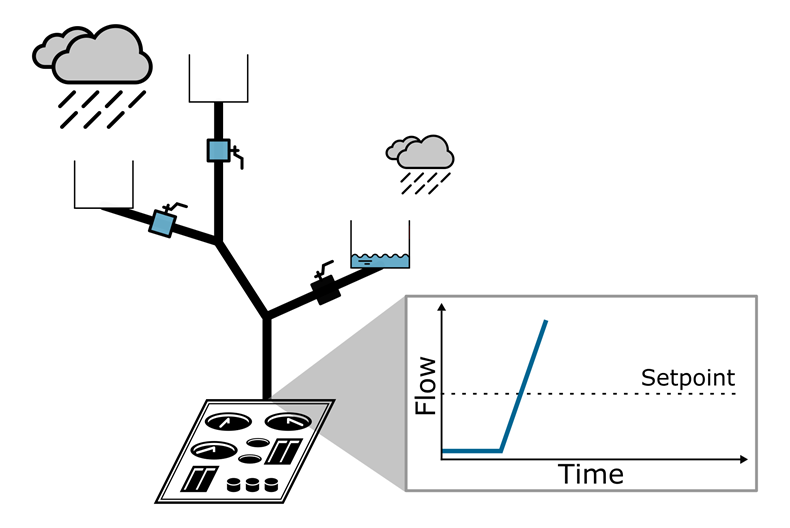

If we release stored water without information from the entire system, it could actually compound wet-weather effects downstream, or cause CSOs.

Existing Challenges

Alternatively, managing downstream objectives through the release from some assets could result in upstream flooding in others.

Existing Challenges

These problems require a structured framework to release upstream volumes to meet downstream objectives.

Implementation

What if we did things differently? Coordinating actions at the system level?





Implementation

Implementation

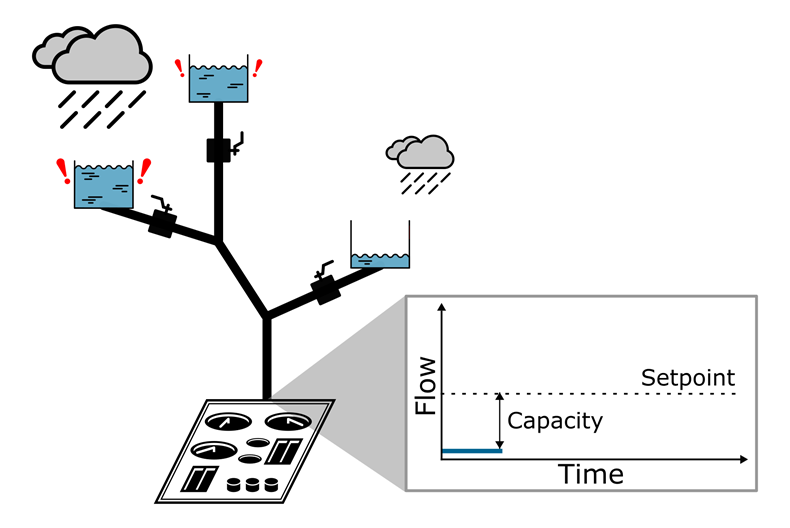

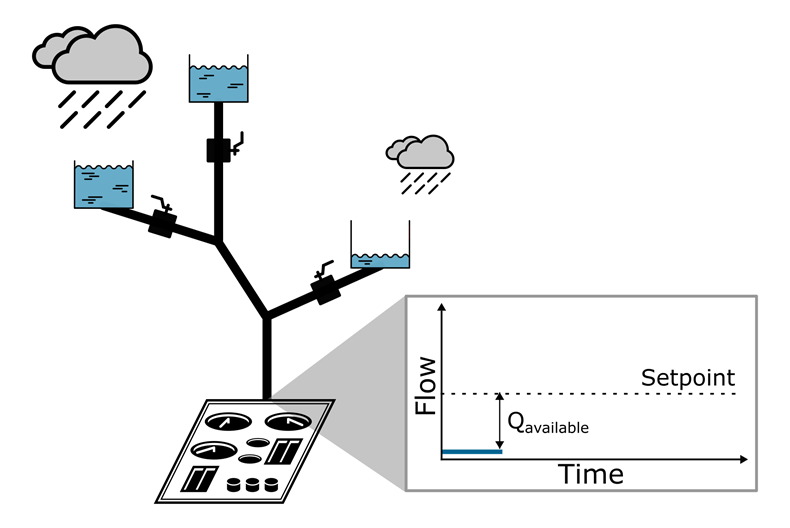

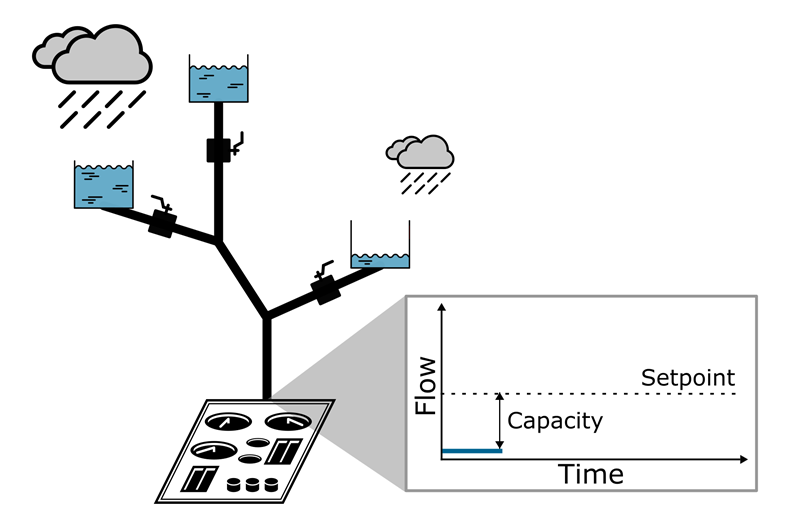

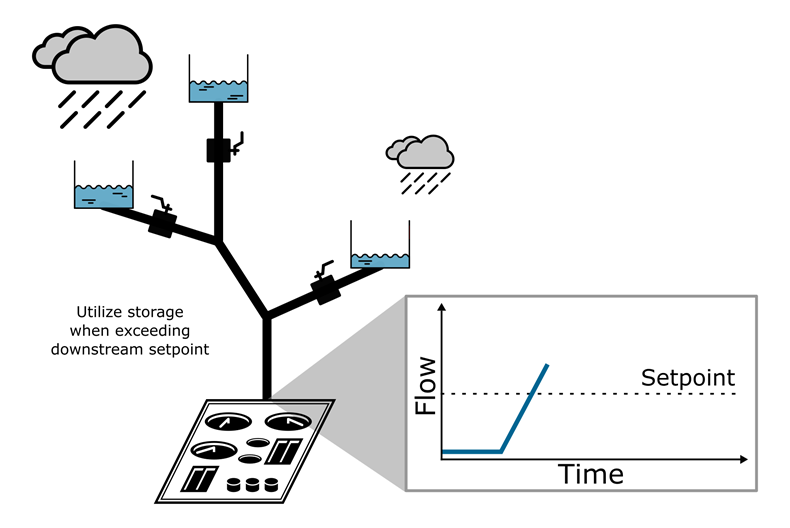

Initially during a rain event, holding water upstream creates capacity downstream.





Implementation

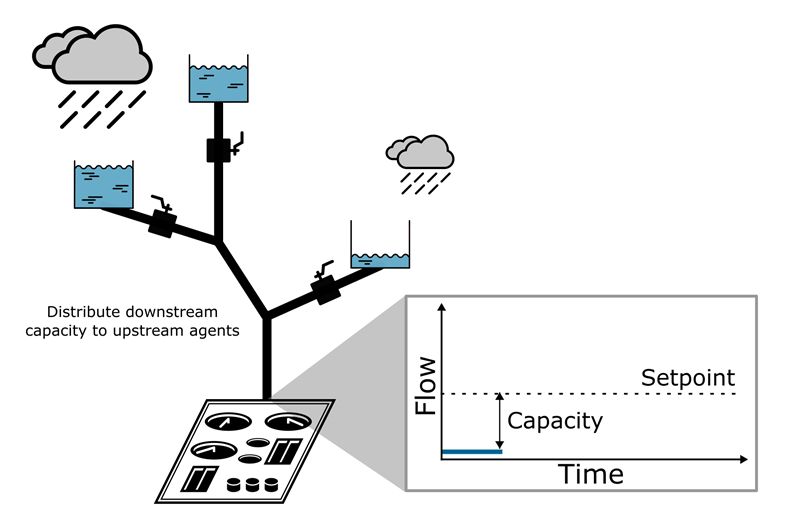

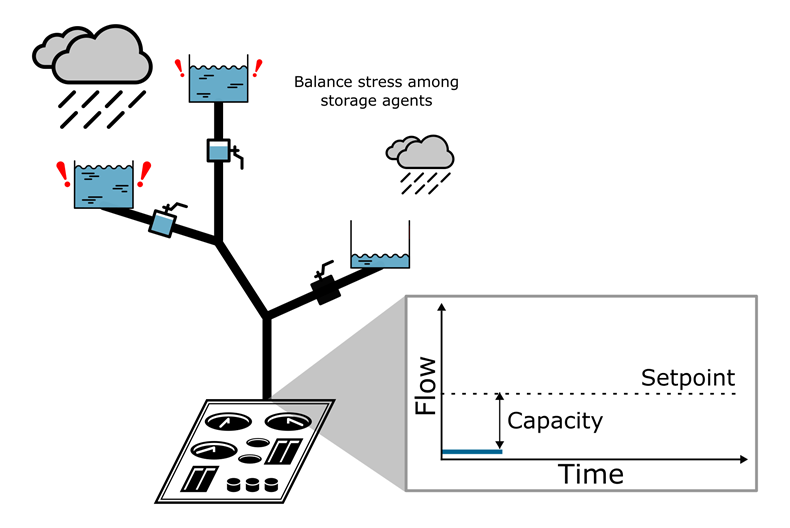

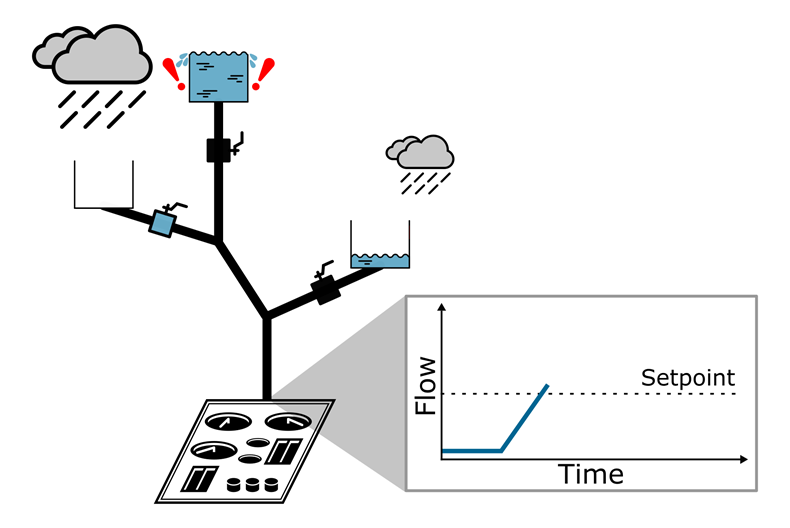

As storages fill, stress increases. We seek to distribute downstream capacity among upstream storages based on their stress.





Implementation

When downstream is above a desired set point, the algorithm discourages releases from upstream.





Implementation

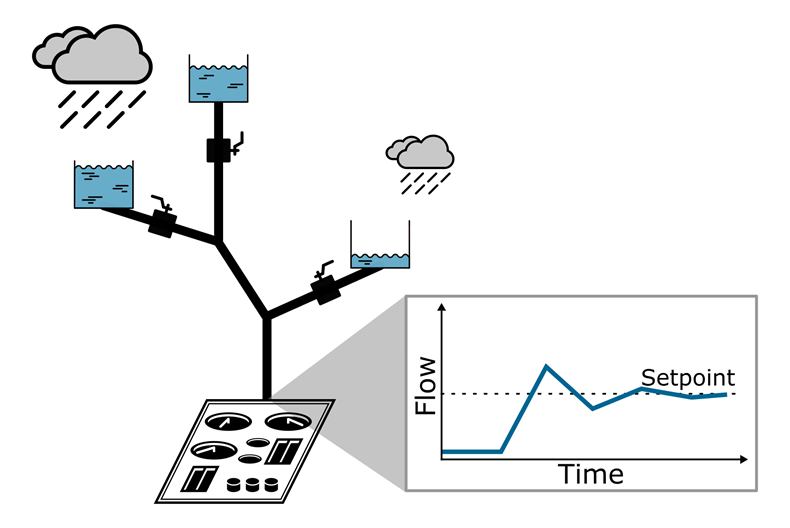

Repeating this process continuously throughout a wet-weather event will nudge downstream to its objective, while utilizing upstream storage maximally

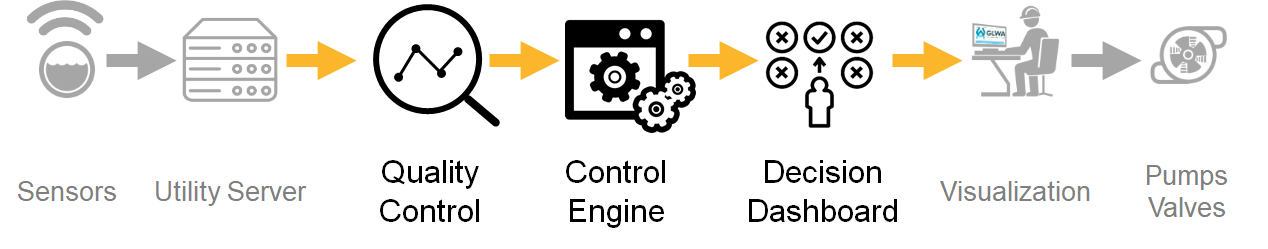

Decision Dashboard

No action without effective communication of recommendations to operators.

Decision Dashboard shows real-time and historical recommendations alongside system data like flow and levels.

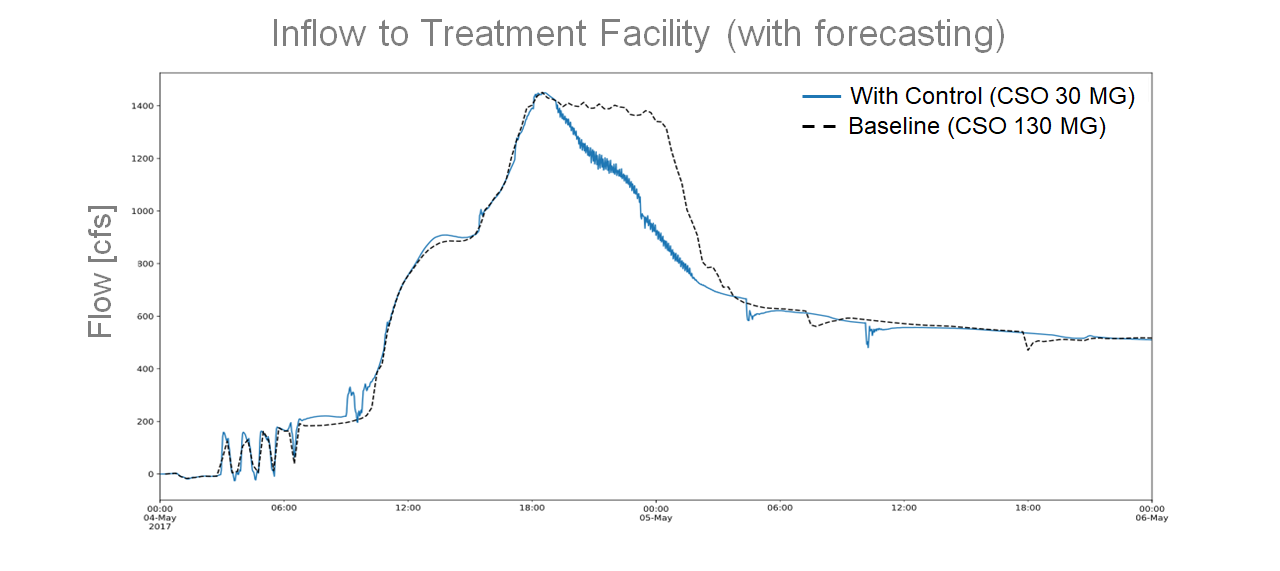

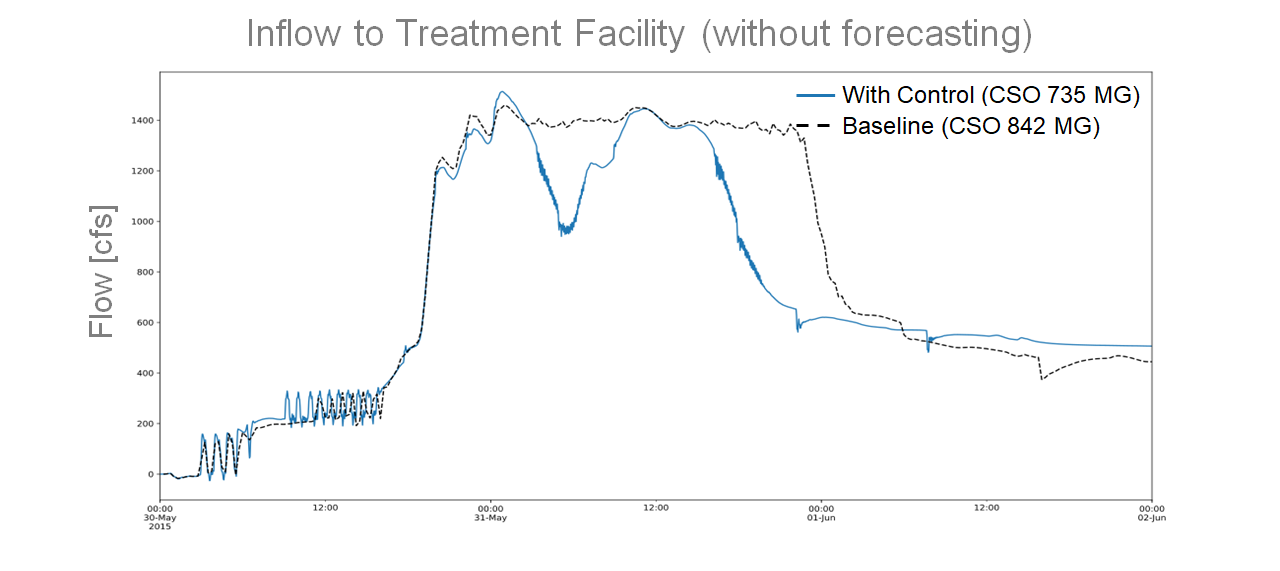

Analysis and Implementation

Does it work?

Analysis and Implementation

Does it work?

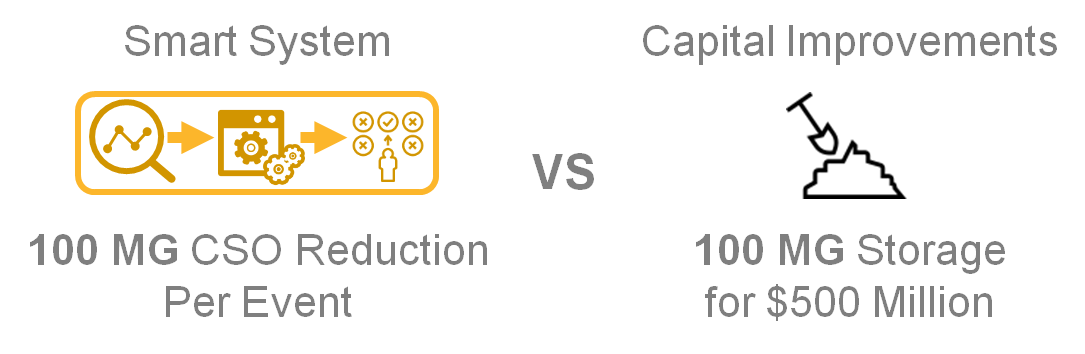

Value Added

WEFTEC 2018; Open Storm Detroit Dynamics

By Gregory Ewing

WEFTEC 2018; Open Storm Detroit Dynamics

IWS LIFT Challenge Finalist Presentation as presented by GLWA and the University of Michigan during WEFTEC 2018.
