Open Storm Detroit Dynamics

A University-Utility Partnership

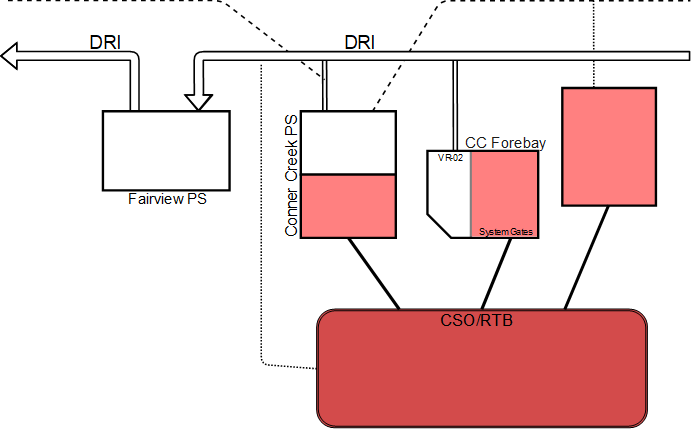

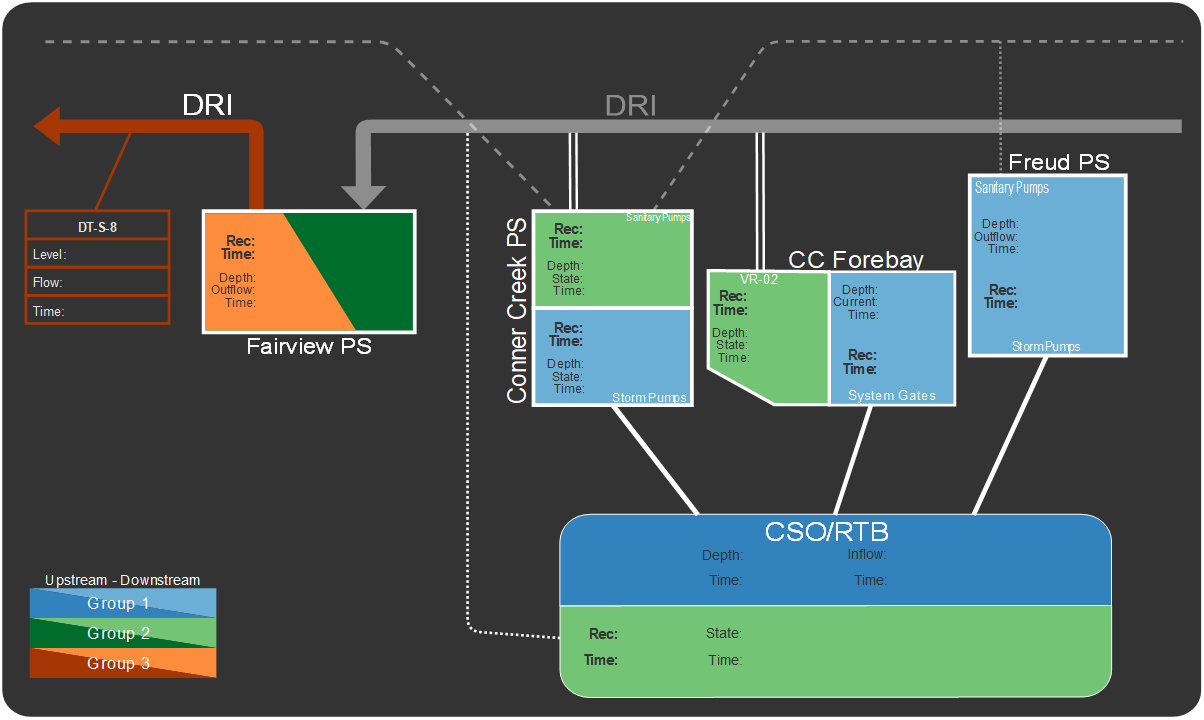

Dashboard Prototype

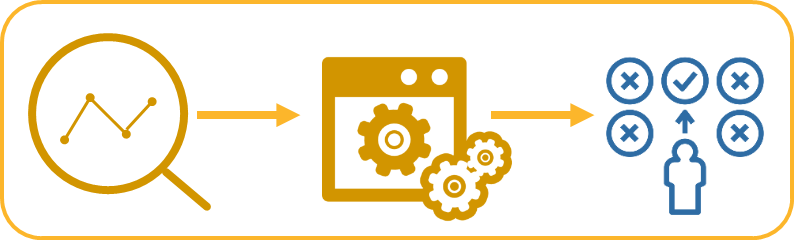

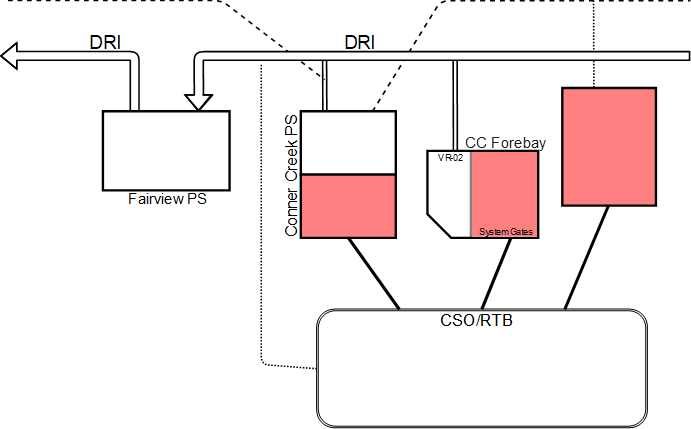

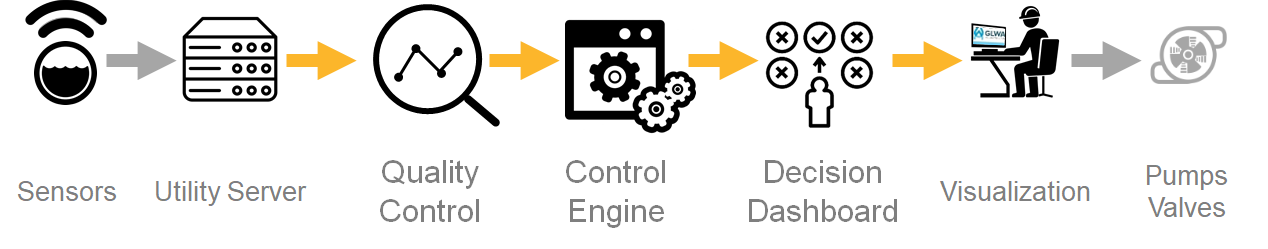

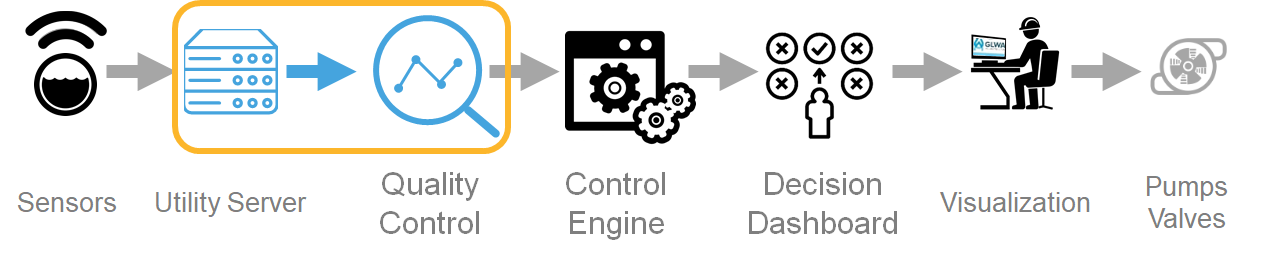

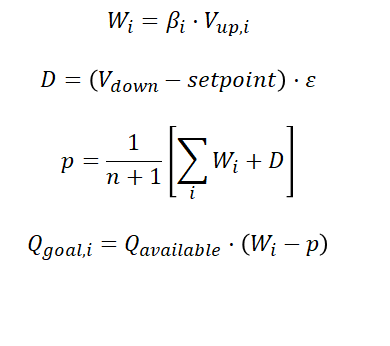

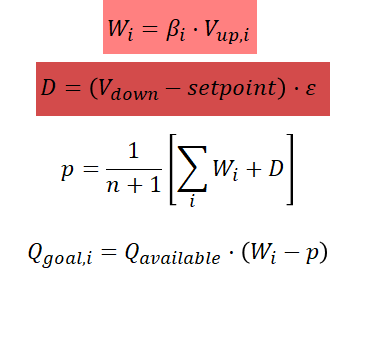

Under the Hood

Under the Hood

Under the Hood

Under the Hood

Under the Hood

Upstream

Under the Hood

Upstream

Downstream

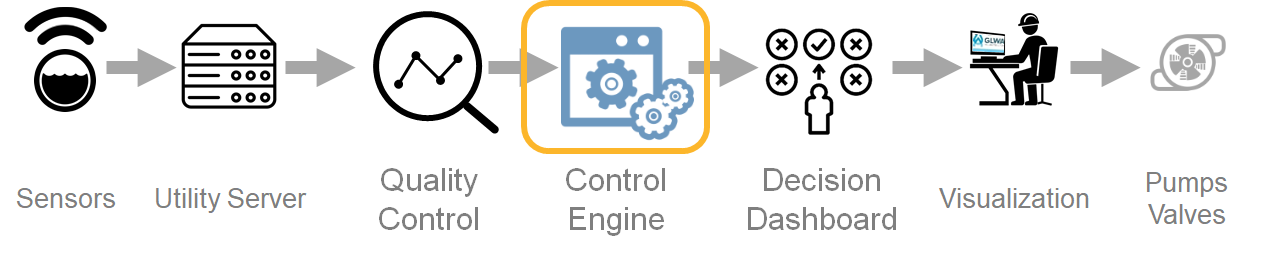

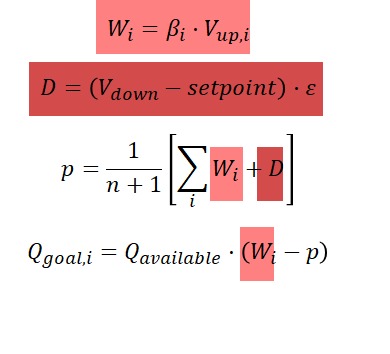

Under the Hood

Upstream

Downstream

\beta_1
β1\beta_1
\beta_2
β2\beta_2
\beta_3
β3\beta_3
\epsilon
ϵ\epsilon
setpoint
setpointsetpoint

Under the Hood

Upstream

Downstream

Under the Hood

Upstream

Downstream

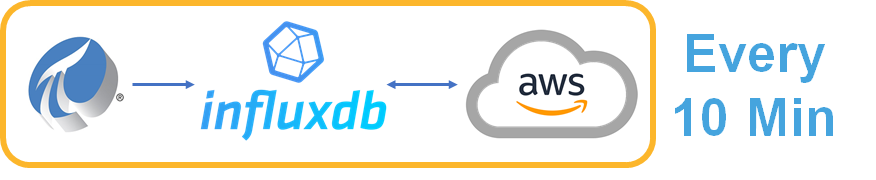

Under the Hood

Upstream

Recommendations

  • Setpoint Determination: Available Flow/Volume Downstream
  • Measurement Type, Upstream & Downstream
  • Curves: Pump, Gate, Valves, and Storage



Considerations

Recommendations

  • Setpoint Determination: Available Flow/Volume Downstream
  • Measurement Type, Upstream & Downstream
  • Curves: Pump, Gate, Valves, and Storage



Recommendation Types

Considerations

  • Station Flowrate
  • Pump On/Off Status
  • Gate/Valve State



Performance Methodology

Proposed Metrics:

  • Long Term: Evaluation of CSO statistics, CSO Vol vs. Time
  • Long Term: Cost Fines CSO vs Time
  • Score, Recommendation Achievement Score
  • Event Scale: Modeling for scenario analysis (SWMM)

Monitoring Recommendation Usefulness:

  • "Active": Operators log times when recommendation was followed
  • "Active": Operators log times when recommendations was NOT followed, and WHY
  • "Passive": Display score (above) and difference between real and rec.



Prototype Review

By Gregory Ewing

Prototype Review

Review of the recommendation engine and prototype for GLWA as part of the Open Storm Detroit Dynamics project.
