MediaOS DEV Training
INTRO
Overview
- Overview of code architecture
- Setup of devBox instances
- RAMS-ID and the setup of new users
- Sandbox
- Git workflow + Code Review Process
- Setting up a new region theme
- Cheat sheet
Code Architecture
The MediaOS platform uses below codebase levels to create the CORE functionality in the CMS/Front-end and theming for each brand/region in the US and across the EUHUB.
For more info: http://docs.hdigital.net/mediaos/code-architecture.html
CORE (CS) - https://github.com/Hearst-Digital/Rams-CS
THEME BASE - https://github.com/Hearst-Digital/rams-themes-base
THEMES US - https://github.com/Hearst-Digital/rams-themes-us
THEMES IT - https://github.com/Hearst-Digital/rams-themes-it
THEMES UK - https://github.com/Hearst-Digital/rams-themes-uk
THEMES NL - https://github.com/Hearst-Digital/rams-themes-nl
DevBox Setup
Using the HMI Dev Jenkins app and the AWS console, a full EC2 stack can be spun up with the below features.
Please follow this tutorial to go through the spin-up process step-by-step:
http://docs.hdigital.net/devboxes/hdm-devbox-setup.html
Features:
- apache2
- php54
- memcached
- mysql (client & server)
- elasticsearch
- imagemagick
- phpunit
- phpcs
- composer
- node
- npm
- grunt
- ruby
- sass
- git flow

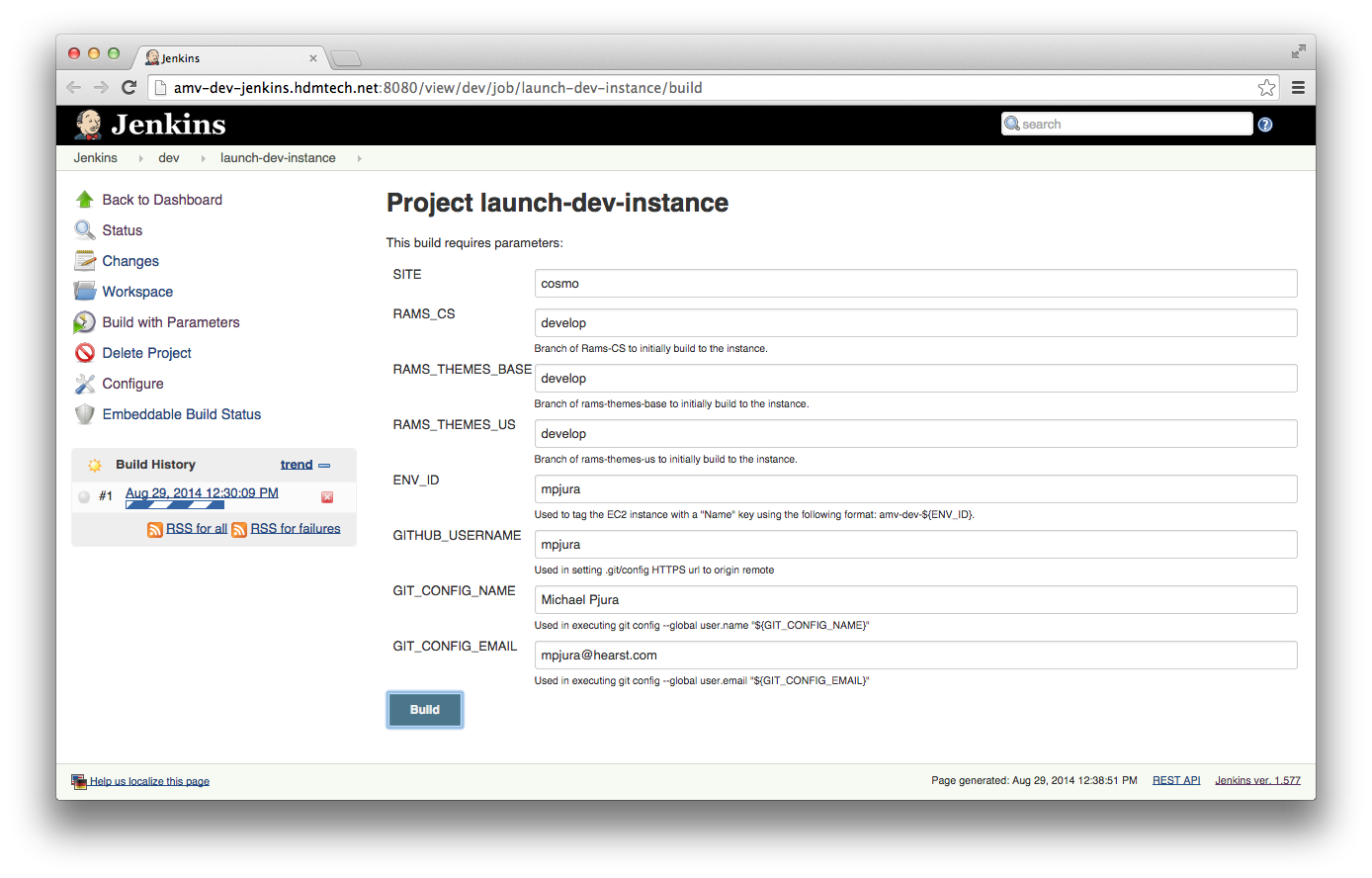

Jenkins settings
Use the below settings to setup a full stack EC2 instance, depending on which site/region you select jenkins will import the latest production DB with different release branches/versions for the CORE and themes
Connecting to DevBox
After a devbox has been deployed via Jenkins, you can connect via SSH and mount the box to your local machine with SSH FS, similar to mounting a network drive.
SSH
- Pass your public SSH key (id_rsa.pub) and IP to HMI/HMUK web ops so they can add it to jenkins
- A your IP and key has been added to jenkins, run in ssh ec2-user@www-{env-id}.hdmtech.net in the command line
- Once connected navigate to /home/www to see the codebase
Mounting Devbox to local machine
Using SSHFS, a devbox can be mounted to your local machine to edit files on the devbox locally.
http://docs.hdigital.net/devboxes/mount-devbox.html
Creating CMS accounts
Using RAMS-ID, member accounts can be setup to access to multiple MediaOS sites in the US/EUHUB. Accounts are divided into the below 4 account types. For more info about specific permissions, please refer to :
https://thetower.atlassian.net/wiki/display/II/Current+MediaOS+Permission+Levels
- Admin
- Managing Editor
- Editor
- Contributor
- Front-end Only
Admin area: https://rams-id.hdmtools.com/
URL structure
DEV
CMS - rams-devnameorfeaturename.hmitech.io
Site - www-devnameorfeaturename.hmitech.io
STAGE
CMS - rams-stage.sitename.com
Site - www-stage.sitename.com
PROD
CMS - rams.sitename.com
Site - www.sitename.com

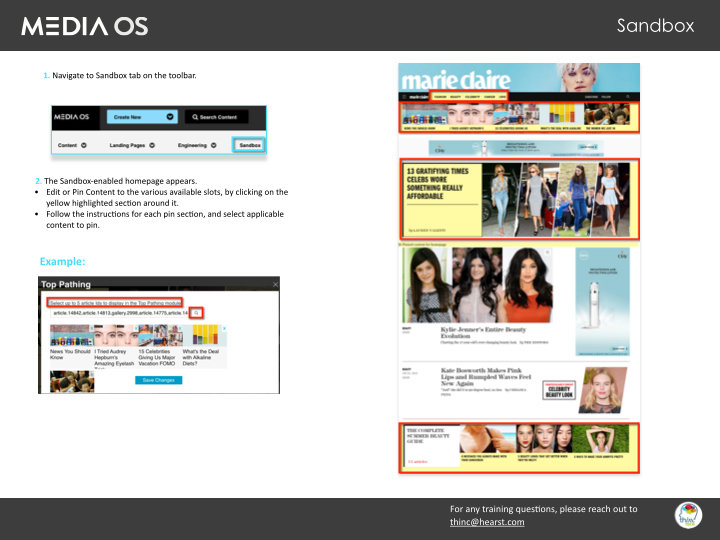

Sandbox
Within the CMS, the sandbox allows editorial to customise the home/section landing pages and top navigation menus.
Features include:
- NavBar
- Top Pathing
- Custom promo for homepage,
- Pinned collection on home page
- Pinned content from must read on home page
More info here: https://thetower.atlassian.net/wiki/download/attachments/52658455/MediaOS_101_Edited.pdf?version=1&modificationDate=1435765074571&api=v2
GIT workflow & code review
Requirements:
- Git flow installed (https://thetower.atlassian.net/wiki/display/CR/Git+Workflow+-+Git+Flow)
- Public SSH key from local machine/devbox added to github account (https://help.github.com/articles/generating-ssh-keys)
Steps
- Take JIRA ticket for development (https://thetower.atlassian.net/secure/RapidBoard.jspa?rapidView=152)
- Pull down the latest codebase from the develop branch with git pull origin develop
- Create a feature branch with git flow feature start {JIRA-ticket-no}-(feature-name}
- Publish feature to remote git repo so other developers can collaborate on the feature with git flow feature publish {JIRA-ticket-no}-(feature-name}
- Navigate to the repo on github.com and create a pull request
- When development is complete, add a comment to the pull request and assigned to another developer for code review
- If the feature passes the code review, it is then passed over QA to test the feature on their devbox
- Once it has passed QA, it is then merged into the develop branch in preparation for a code release to the live site
More info: https://thetower.atlassian.net/wiki/display/CR/Git+Workflow+-+Git+Flow
Setting up a new theme
To create a country theme for a specific brand, pull down the theme repo and follow the below steps:
- Duplicate the "everything" folder in themes-{region}/sites and rename it what the site is
- Update the config file with that site's information
- Add in the favicon and apple touch icon to the images folder
- Add the logos and set which gets pulled in where in the config
- Create a fonts folder
- Upload all font files you want to use (make sure they are renamed to something that a human can read)
- Create a _font-faces.scss partial (you can look at any of the other sites to see the structure)
More info: http://docs.hdigital.net/mediaos/setup-new-theme.html
Editing SASS/JS templates
http://docs.hdigital.net/mediaos/setup-new-theme/changing-sass.html
- Duplicate the "everything" folder in themes-{region}/sites and rename it what the site is
- Update the config file with that site's information
- Add in the favicon and apple touch icon to the images folder
- Add the logos and set which gets pulled in where in the config
- Create a fonts folder
- Upload all font files you want to use (make sure they are renamed to something that a human can read)
- Create a _font-faces.scss partial (you can look at any of the other sites to see the structure)
Cheat sheet
/* update DB on devbox */
cd /home/www/sites/cli; php Database.php migrations:migrate
/* clear cache on a page */
?force_database
/* clear memcached layer to update the front-end */
sudo service memcached restart
/* bypass caching layer on the page */
?dynamic
/* display errors on the page */
?show_errors
/* compile grunt */
cd /www/sites; grunt build
/* download branches */
git fetch --all
/* checkout/change feature branch */
git checkout feature/{branch-name}
