Flexible Image modelling for deblending and strong gravitational lensing
Rémy Joseph
Stockholm, Oct. 15 2021
Collaborators: Peter Melchior, Fred Moolekamp, Frederic Courbin (EPFL, SW), Jean-Luc Starck (CEA, FR), Aymeric Galan (EPFL), Austin Peel, Martin Millon (EPFL), François Lanusse (CNRS, FR), Jiaxuan Li (PKU), Jenny Greene, Johnny Greco (OSU).
Blending and Strong Gravitational Lensing
DECaLS and HST
Image credit: Dark Energy Camera Legacy Survey / NASA / ESA / Hubble / Huang et al.

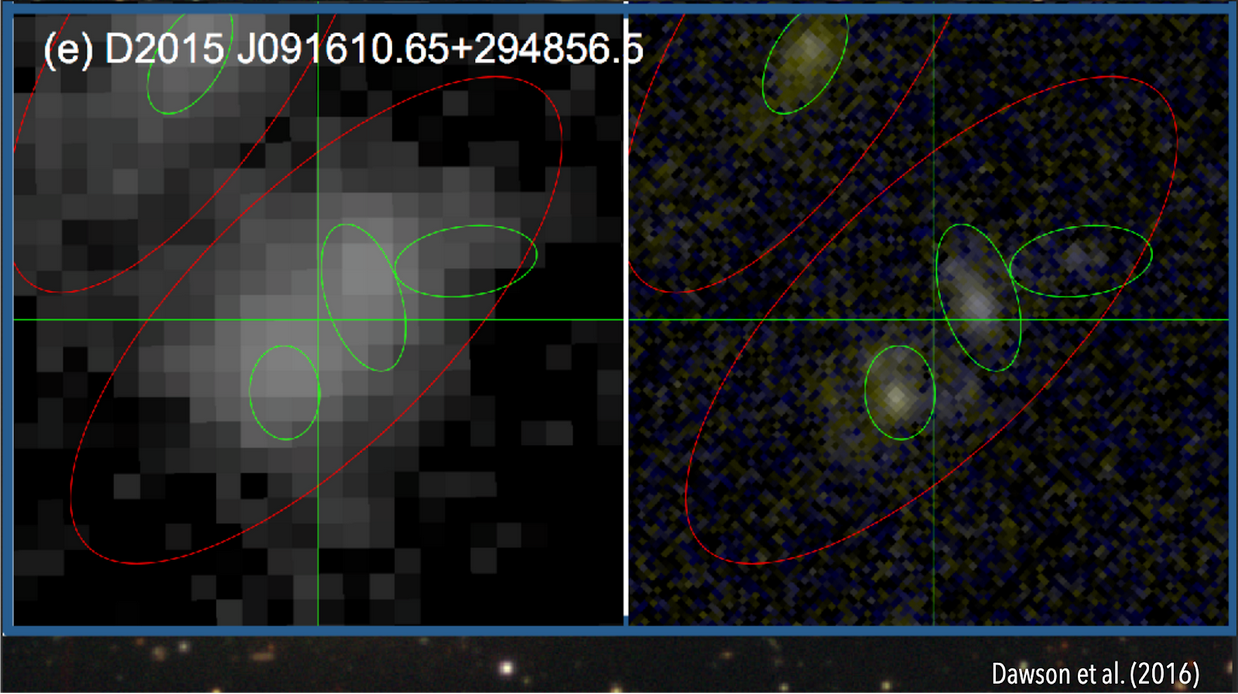

The problem of blending
- Blending: The apparent ovelap of objects on the plane of the sky

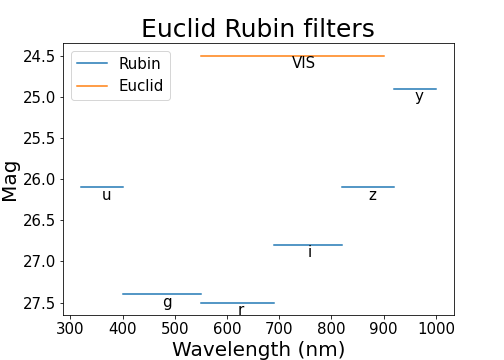

- Expected blending in Rubin: 63% of galaxies
Euclid: 43%
Sanchez et al. (in prep)

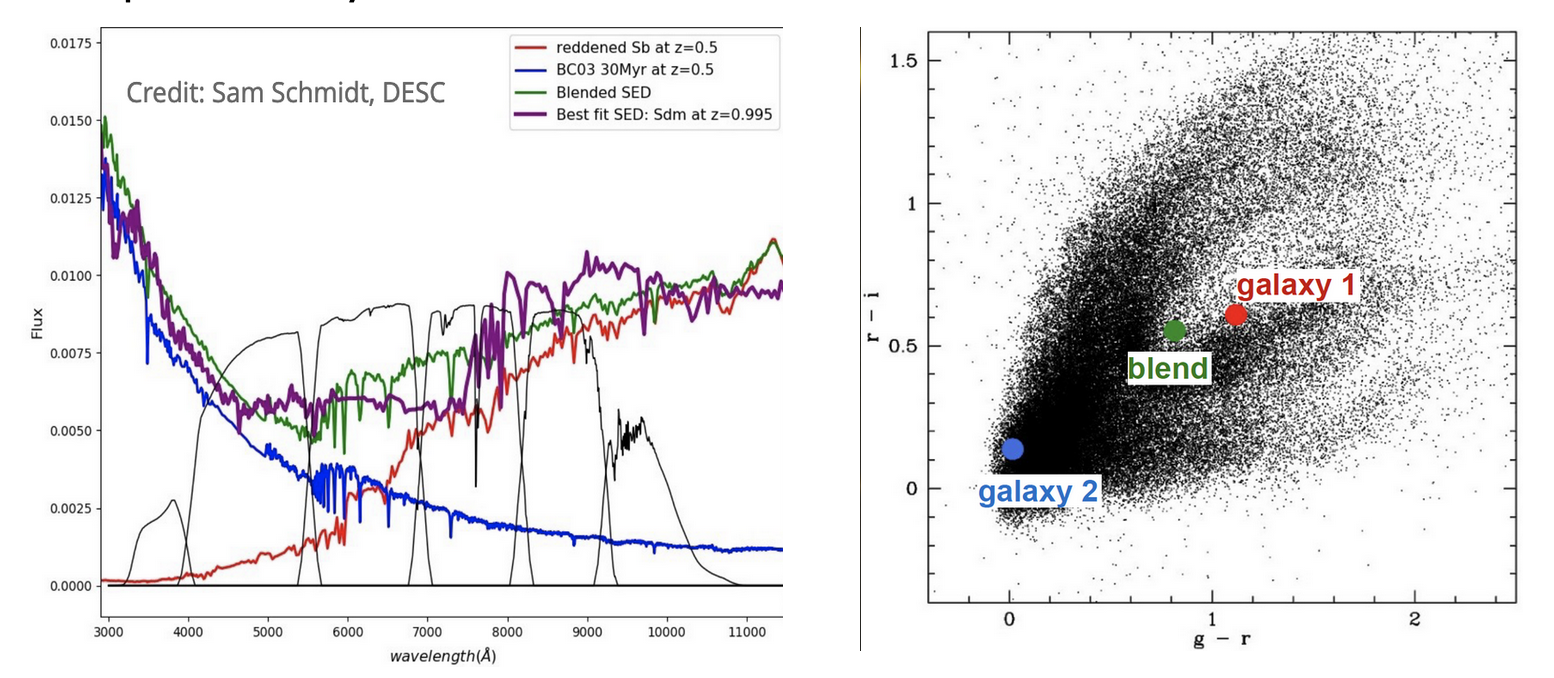

- Affects galaxy shapes, counts and photometric redshift measurements
MuSCADeT/SCARLET
- Colour-based: each band is a linear combination of monochromatic components
F435w: \(I_2\)
F606w: \(I_1\)
F814w: \(I_0\)
$$I_j = H_j \sum_i a_{j,i}m_i + N_j$$
$$m_0$$
$$m_1$$
$$I$$
SCARLET
Melchior et al. 2016 ( arXiv:1802.10157)
Linear Optimisation
Constraints: Positivity, Monotonicity, Bounding.
Functional decompositions:

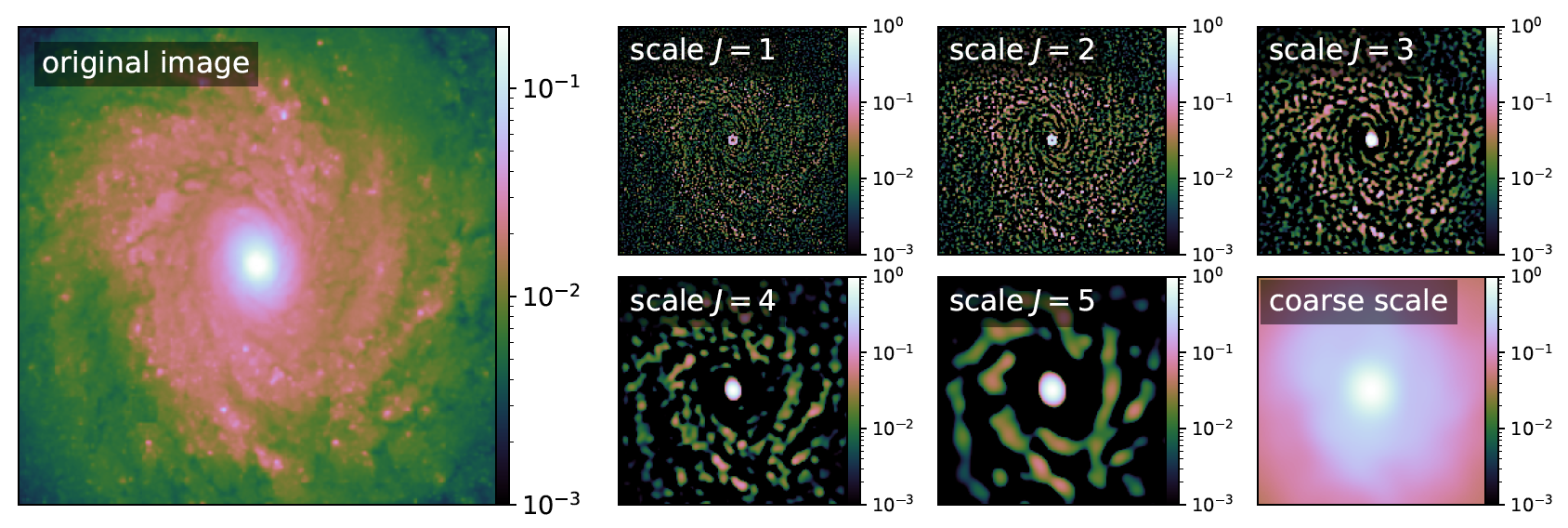

The Starlet transfrom

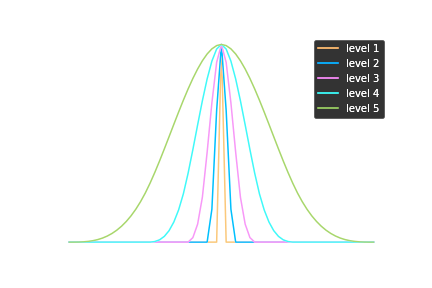

Starlet coefficients
- Multiscale transformation
- Decomposition in B-splines at different spatial scales
Starlet basis set

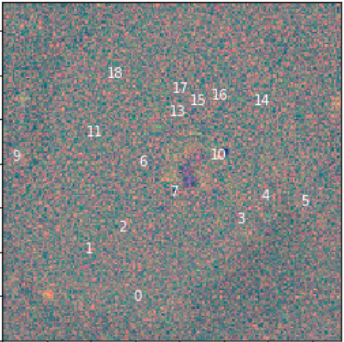

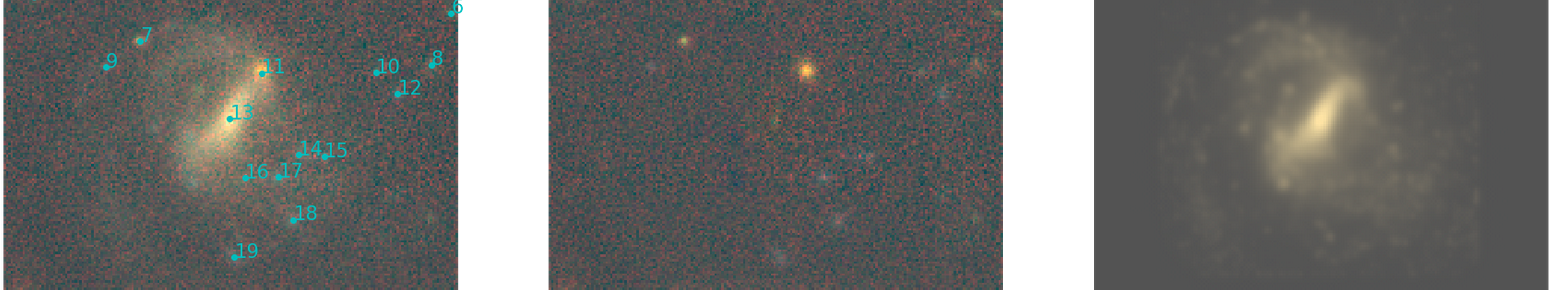

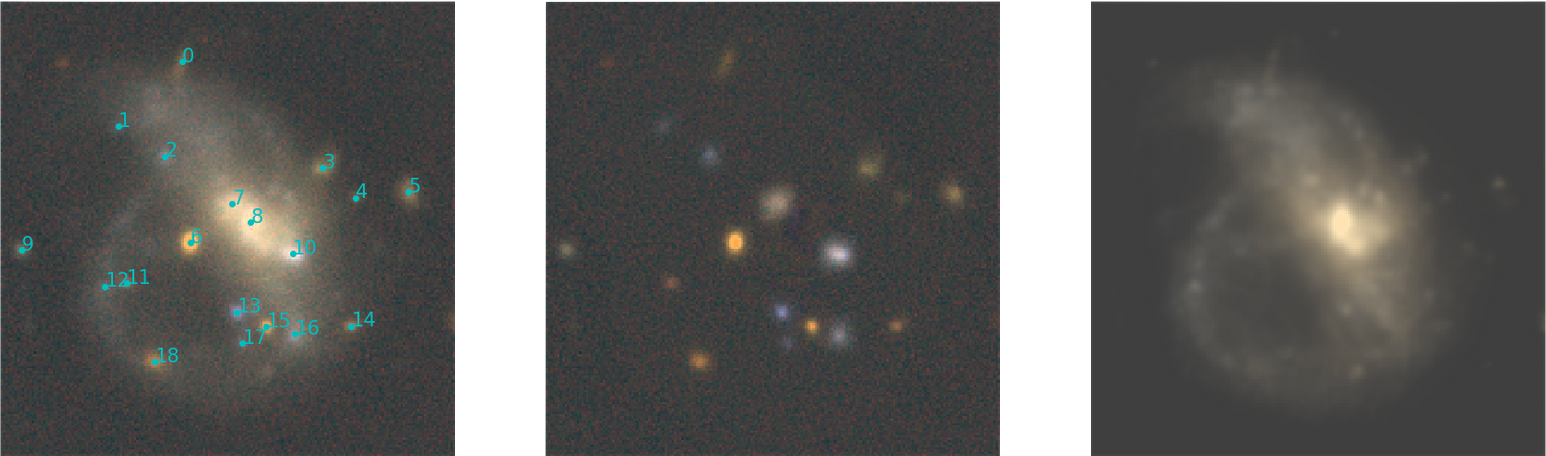

Low Surface Brightness Galaxies
On going work with Jiaxuan Li, Johnny Greco & Jenny Greene
HSC image
image-model
LSB model
Residuals

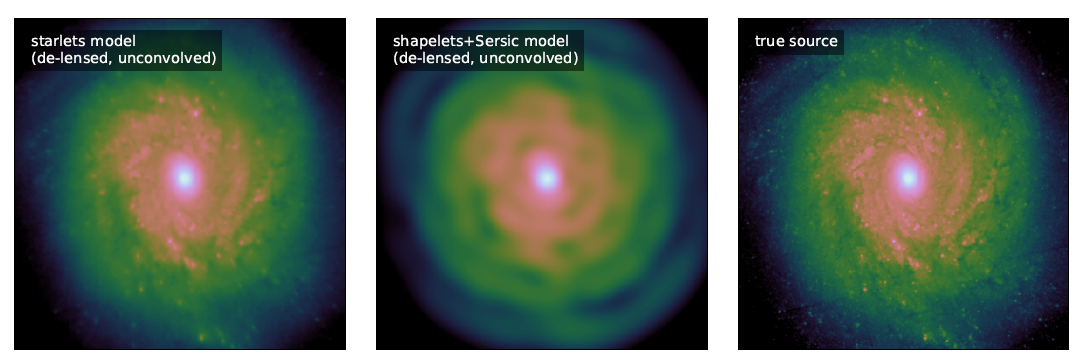

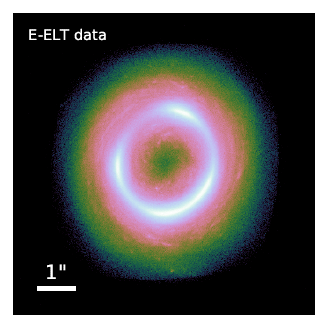

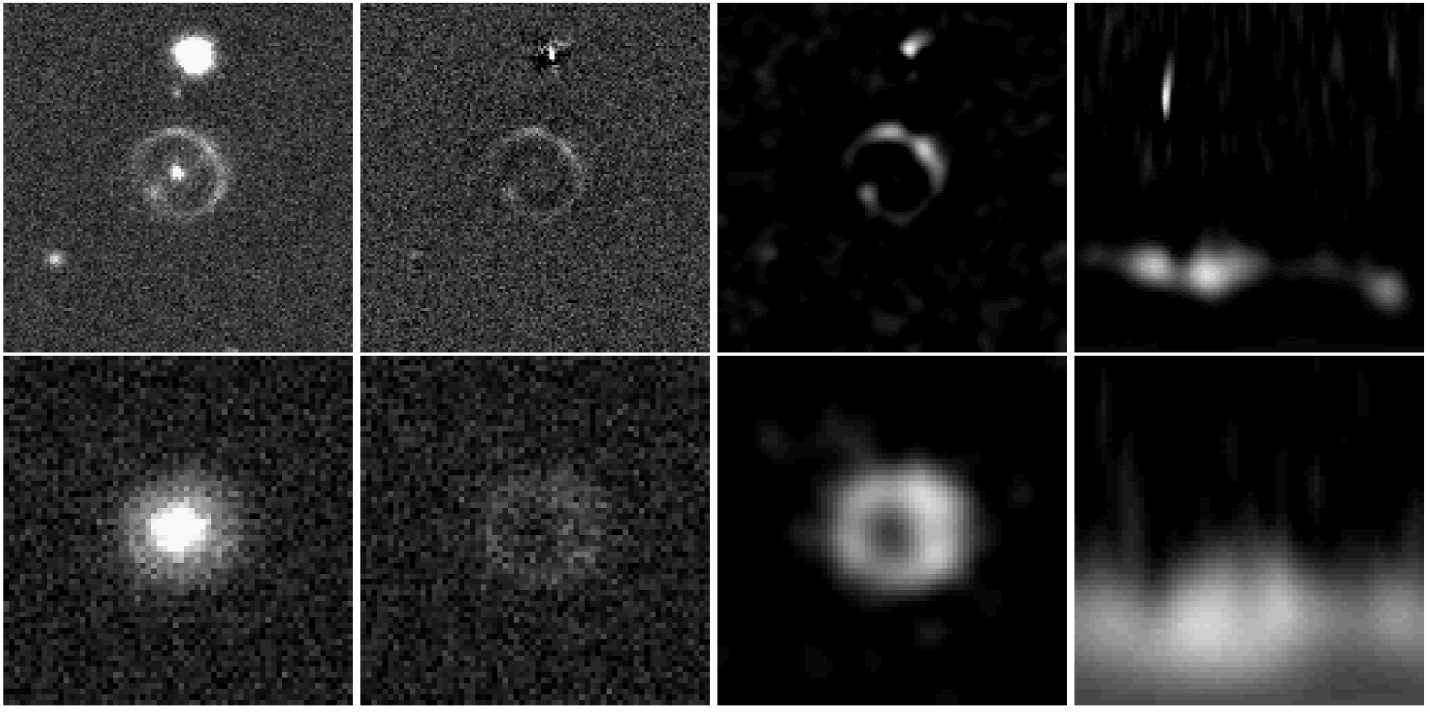

Reconstruction of strongly lensed source

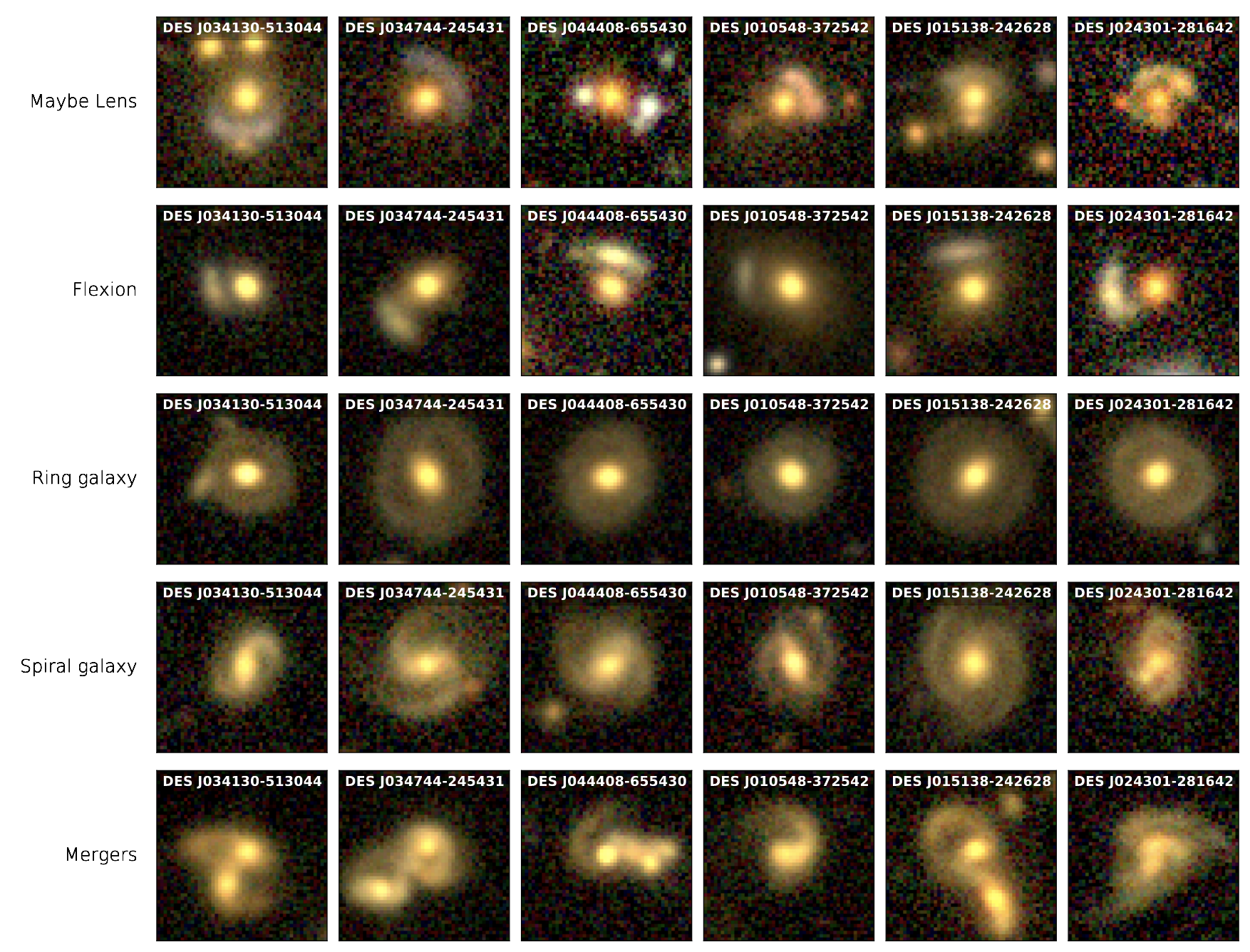

Strong gravitational lens searches
Automated searches rely heavily on ML to find strong lens candidates.
- ML finders are only as good as their training. e.g. Rojas et al. injects strongly lensed features in DES images to build a training set.
- ML finders identify ~1000s of candidates.

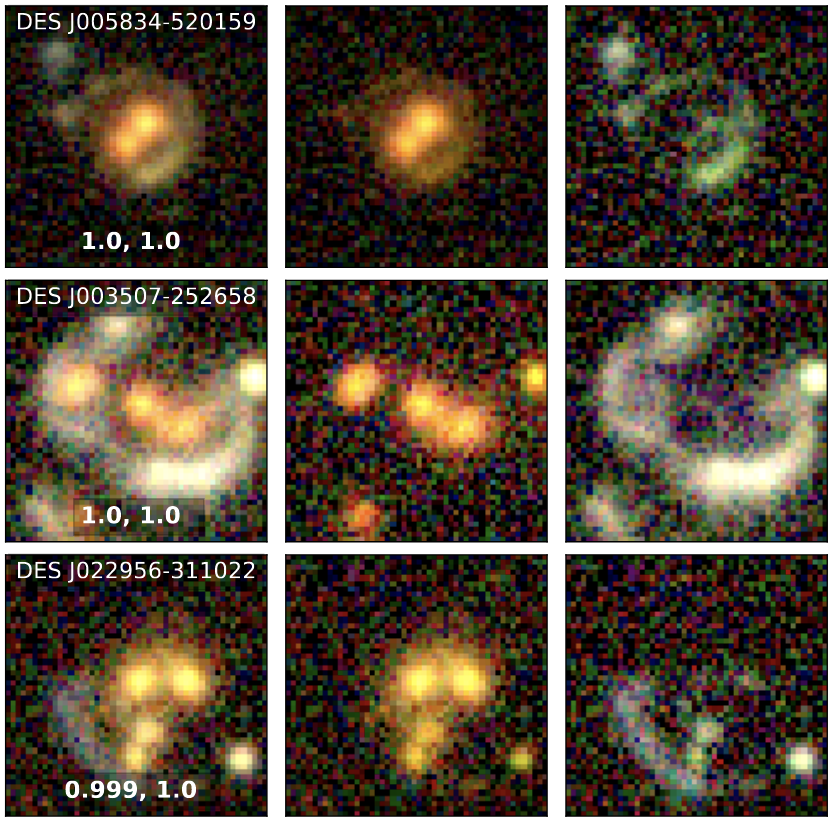

- Deblending for lens finding to help the finders (humans or not)
Future/Current projects:
Multi-resolution deblending
Pixel-level joint processing takes the best of both worlds:
- Higher resolution
- Deeper images
- Multiple bands
Expectations:
- Better deblending,
- improved shape measurement
- Better photometric redshifts
- Better detections
Future/Current projects:
Multi-resolution deblending
pixels
wavelength
pixels
pixels
HST cosmos, F814w
HSC DR2, grizy
\(Y_1\):
\(Y_2\):
pixels
Joint reconstruction
Better models and better constraints
Tools from machine learning

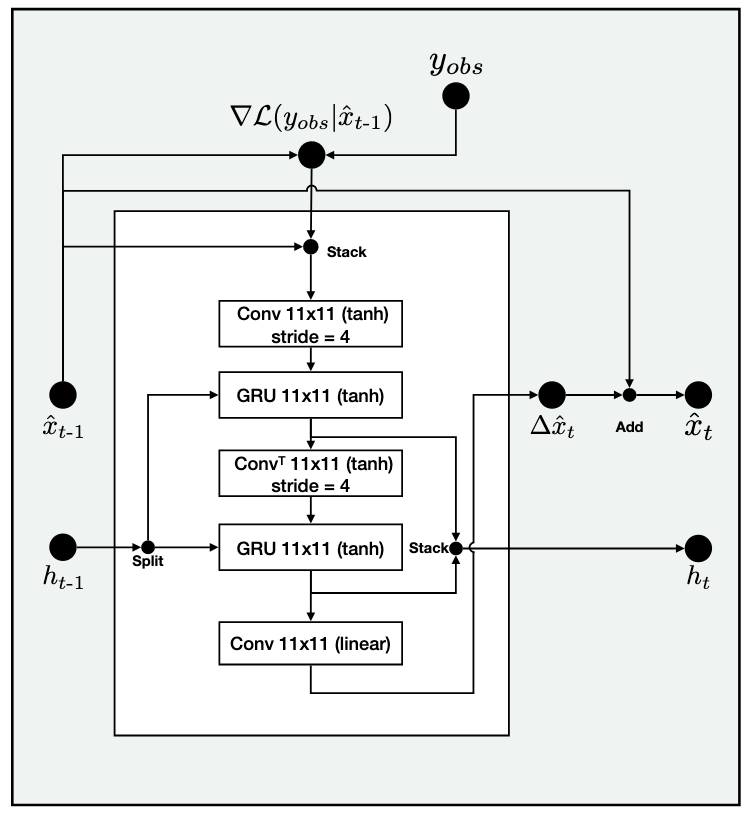

- Recurrent Inference Machine as a prox on lens models.
- Pixel CNN as a prior and a differenciable prox (ongoing work with F. Lanusse).
- (Autoencoders provide a space to sample from)
Credit: Morningstar et al. 2019
For Now

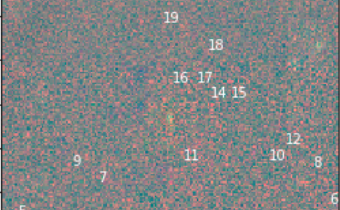

- Excited to hunt for lensed SNs
- Images, even unresolved have information

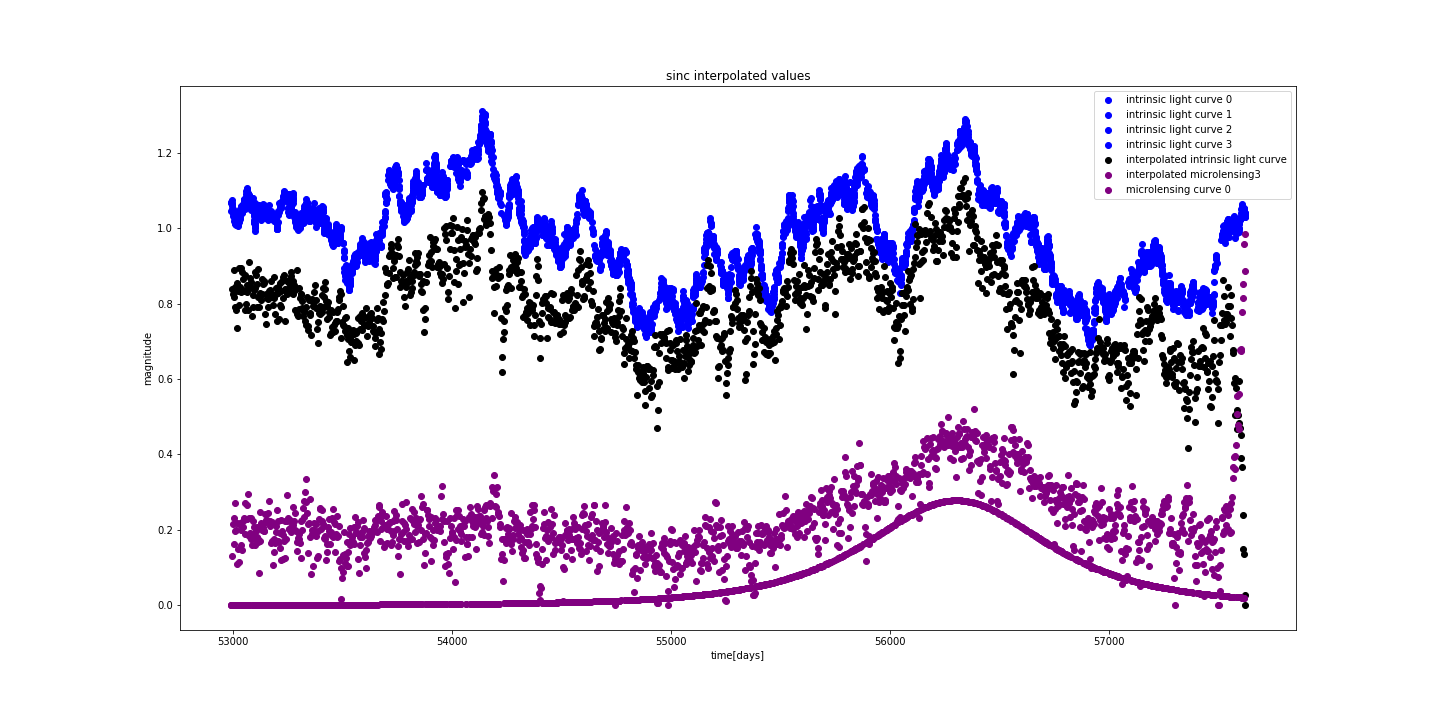

- Leverage ML in ZTF to find SN based on light curves, images, or both??
Credit: Fatima Zaidouni
Modelling astro images for
Deblending

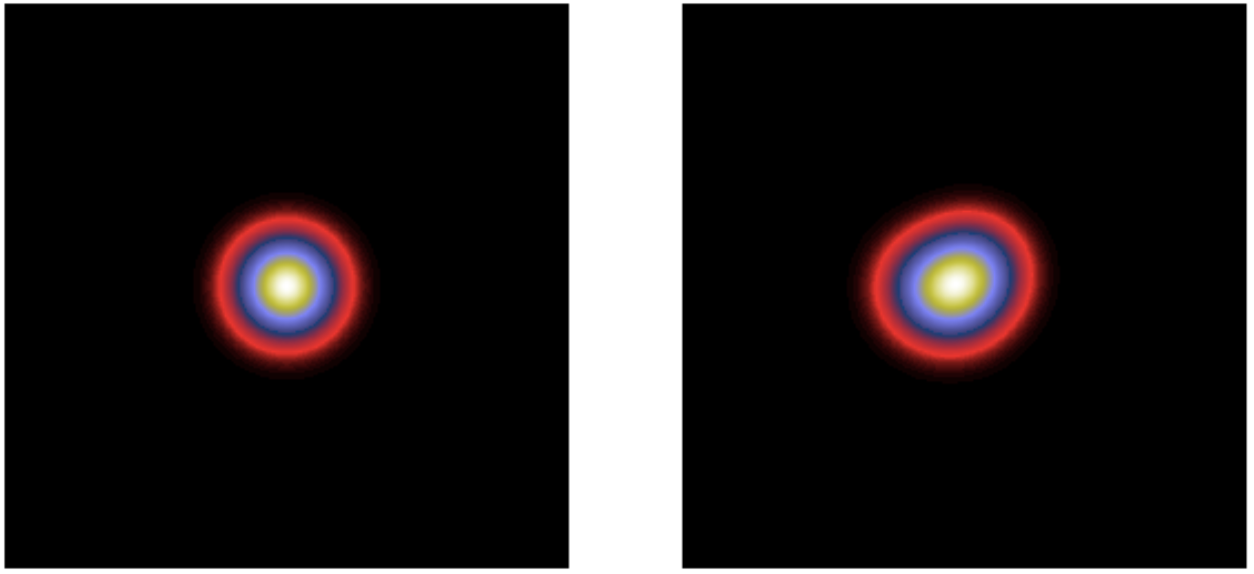

Galaxy light profile
Telescope refraction (convolution)
Instrument acquisition (pixelation)
Instrumental noise
Constraints on starlet coefficients
Is achieved by reconstructing sparse fields in starlets:
\( \tilde{S} = \underset{S}{argmin}\) \( \frac{1}{2}||I-HA\Phi S||^2_2 \) \(+\) \(\lambda||S||_1\) \(+\) \(\mathcal{i}_+(\Phi S) \)
Likelihood Sparsity Positivity
(smoothness constraint)
MuSCADeT: Joseph et al. 2016 (arxiv:1603.00473)
$$I_j = R*P_j * \sum_i a_{j,i}\Phi s_i + N_j, \qquad m_i = \Phi s_i$$
MuSCADeT
The algorithm
- Estimate the mixing matrix A (default)

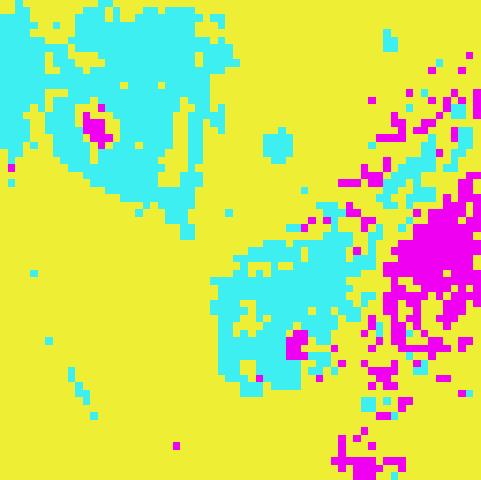

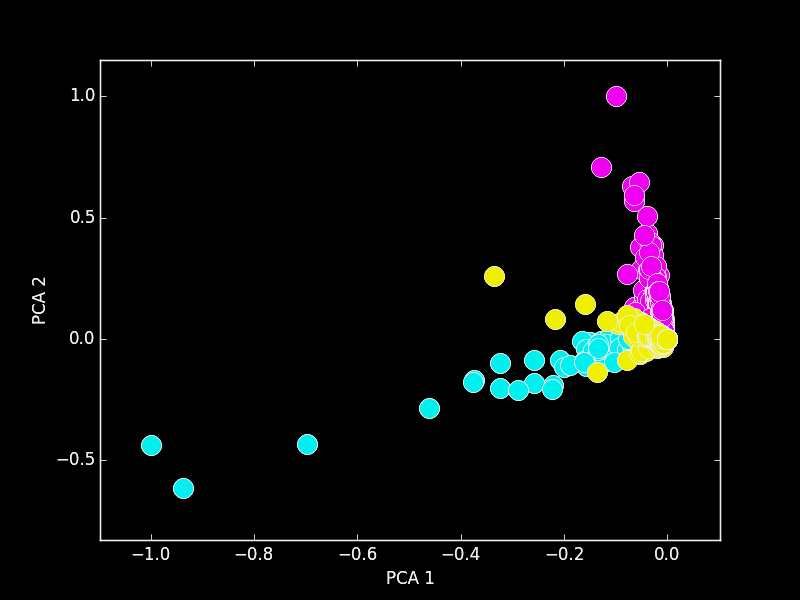

Colours are extracted from the scene using Principal Component Analysis (PCA) of the multi-band pixels
SCARLET
$$I_j = R*P_j * \sum_{i,n} a_{j,i,n}m_{i,n} +N_j$$
Melchior et al. 2016 ( arXiv:1802.10157)
- morphological assumptions as constraints:
- Positivity: All non-zero pixels must have positive values
- Monotonicity: Profiles smoothly decrease for the centre out.
-
Symmetry: Pixels about the central pixel take the value of the minimum of the two (Obsolete since Melchior, Joseph, Moolekamp 2019) - Bounding: Each galaxy profile is contained in a finite bounding box
Functional decompositions:
The Starlet transfrom

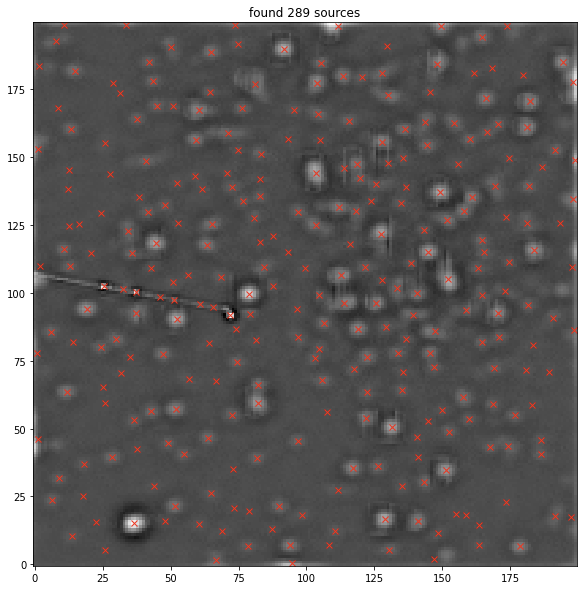

Illustration: Detection in crowded fields
Credit: Fred Moolekamp
NGC 6569
Sep detection
NGC 6569
Starlet+Sep detection
NGC 6569
Starlet level 1
$$I_j = R*P_j * \sum_{i,n} a_{j,i,n}m_{i,n}$$

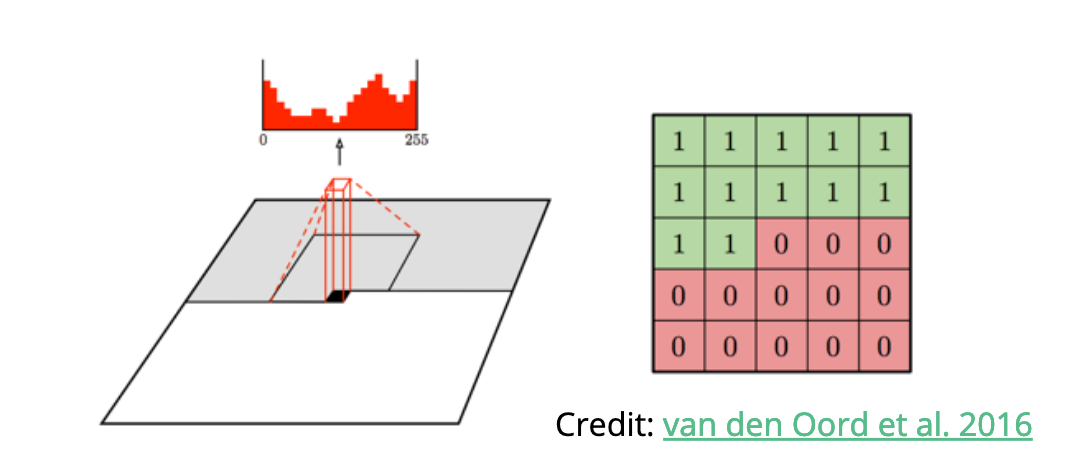

PixelCNN as a prox
In scarlet
- Scarlet is flexible to the kind of constraints we can impose on morphology. We are now implementing priors PixelCNN Lanusse et al. 2019:
$$p(m) = \prod_k p(m_k|m_{k-1}, ..., s_0) $$
\( \tilde{M} = \underset{M}{argmin}\) \( \frac{1}{2}||I-HAM||^2_2 \) \(+\) \(\sum_i p(m_i)\)
