Images for the Modern Web

Puzzle ITC Tech Kafi 15.03.2023

Mathis Hofer

Agenda

General

<img> srcset & sizes

<picture>

Control Loading Behavior

Next Generation (Web) Image Formats

Framework Support

General

A word about compat

Features shown are available in all evergreen browsers*

⚠️ *with a few exceptions ⚠️

Responsive Web Design

Ethan Marcotte, 2010



Fluid Layout

Flexible Images

Adaptive Design



Source: http://alistapart.com/article/responsive-web-design/

Constrain images

Default behavior:

Images will overflow (scrollbar)



Avoid overflowing with CSS:

<style>
  img {
    max-width: 100%;
    height: auto
  }
</style>
<img
  src="images/bikes-3000w.jpg"
  alt="Bikes in the rain"
/>

Other ways

aspect-ratio: 1/1;
aspect-ratio: 3/2;

object-fit: contain;
object-fit: cover;

object-position: top center;

Responsive Images

A method for providing the browser with multiple image sources depending on display density, size of the image element in the page, or any number of other factors.

In other words:

How to save thousands of Megabytes
of avoidable data on the wire!*











*especially favorable for mobile devices

But:

Use SVG if you can!

Scalable

Small*

Ideal for logos, icons, line graphics etc.





*use SVGO to optimize even more

<img> srcset & sizes

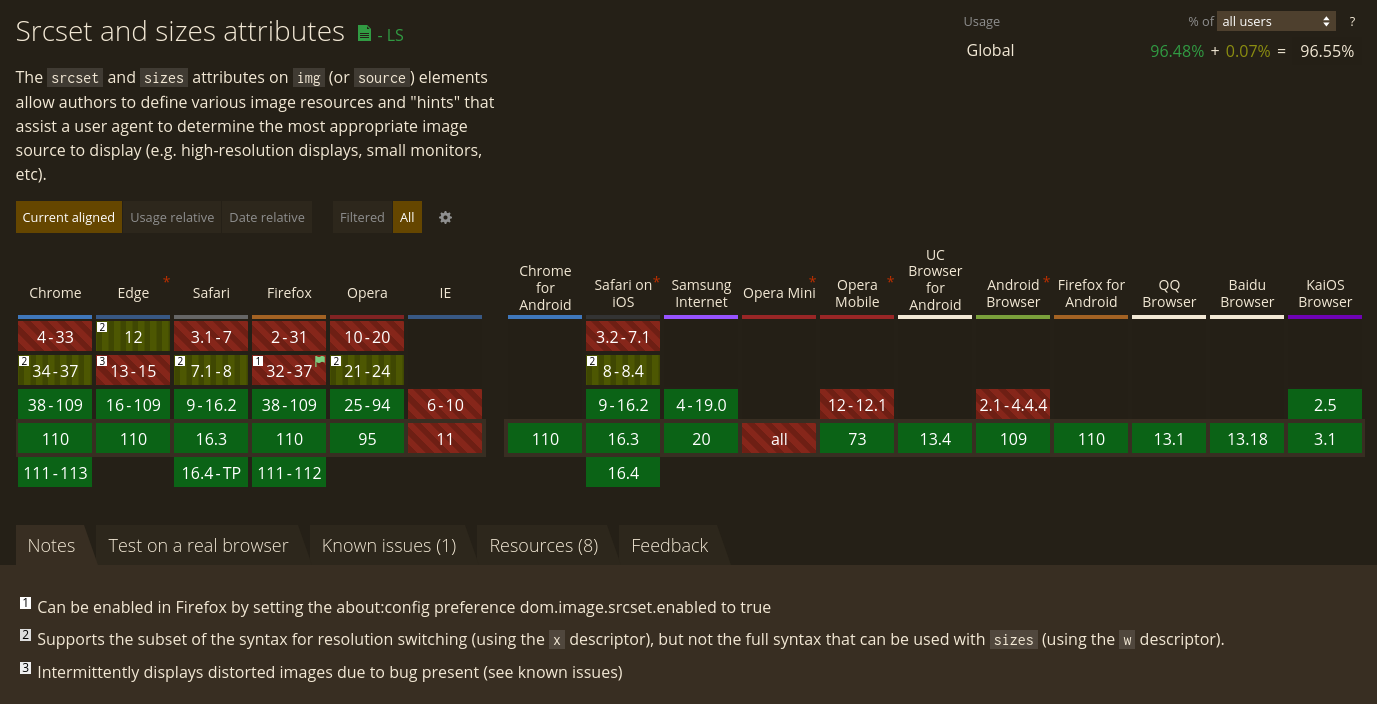

srcset

Suggestion/hint to the browser what image to load

Density Descriptors

<img
  srcset="
    images/bikes-500w.jpg  1x,
    images/bikes-1000w.jpg 2x,
    images/bikes-1500w.jpg 3x
  "
  src="images/bikes-1000w.jpg"
  alt="Bikes in the rain"
/>

Device Pixel Ratio (DPR):
the ratio of the resolution in physical pixels to the resolution in CSS pixels for the current display device



Useful for fixed-sized images

Width Descriptors

<img
  srcset="
    images/bikes-500w.jpg   500w,
    images/bikes-1000w.jpg 1000w,
    images/bikes-2000w.jpg 2000w,
    images/bikes-3000w.jpg 3000w
  "
  src="images/bikes-2000w.jpg"
  alt="Bikes in the rain"
/>

Width = viewport width

No calc()

Browser considers DPR as well

Breakpoints

Choosing the right breakpoints is science:

https://cloudfour.com/thinks/responsive-images-101-part-9-image-breakpoints/

Sizes

<img
  srcset="
    images/bikes-500w.jpg   500w,
    images/bikes-1000w.jpg 1000w,
    images/bikes-2000w.jpg 2000w
  "
  sizes="
    (max-width: 500px) 100px,
    (max-width: 1000px) 500px
  "
  src="images/bikes-2000w.jpg"
  alt="Bikes in the rain"
/>

Media condition (< media query)

Width relative to viewport (no %)

calc() can be used

Only with width descriptors & without CSS

...but I am confused 🤔

⚠️ CSS? ⚠️

background-image: image-set(
  url("images/bikes-500w.jpg") 1x,
  url("images/bikes-1000w.jpg") 2x
);

image-set()

Resolution Media Queries



https://css-tricks.com/responsive-images-css/

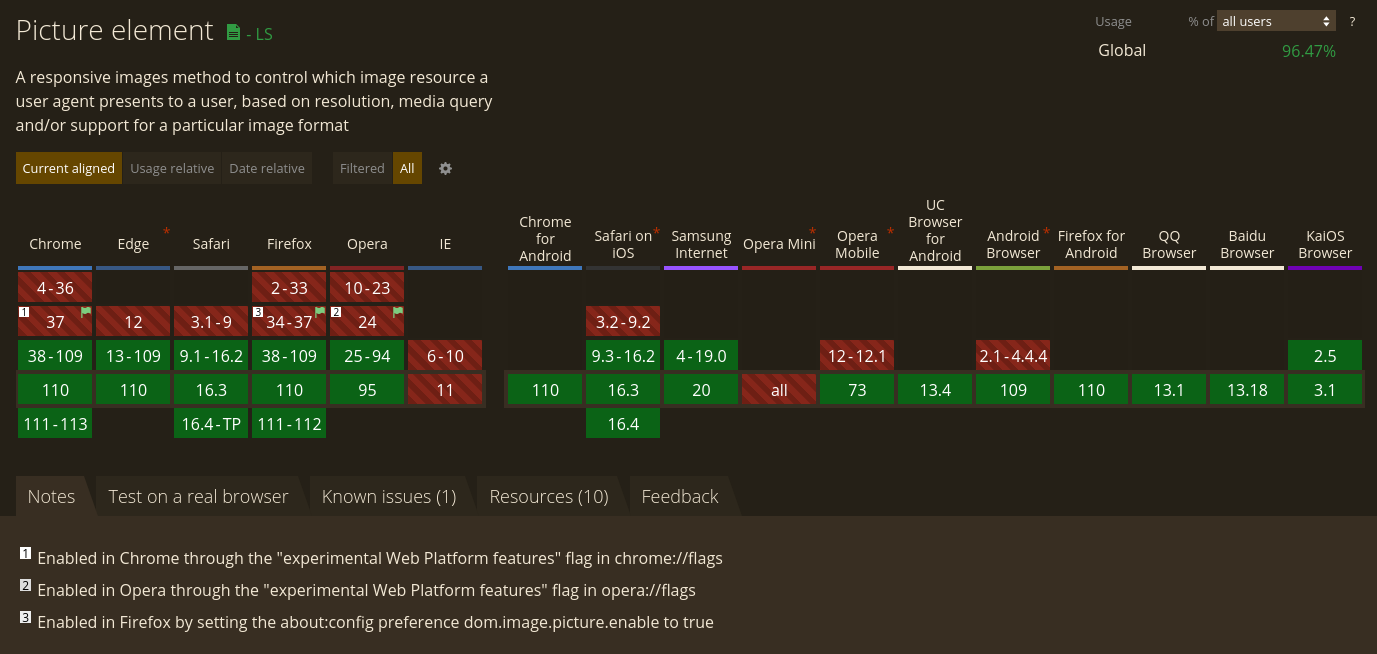

<picture>

Multiple sources

Similar to <audio> & <video>

How to use?

<picture>
  <source
    media="(max-width: 500px)"
    srcset="images/bikes-500w.jpg"
  />
  <source
    media="(max-width: 1000px)"
    srcset="images/bikes-1000w.jpg"
  />
  <source
    media="(min-width: 2001px)"
    srcset="images/bikes-3000w.jpg"
  />
  <img
    src="images/bikes-2000w.jpg"
    alt="Bikes in the rain"
  />
</picture>

Source

<source
  media="(max-width: 500px)"
  srcset="images/bikes-500w.jpg"
>

media = Media query

First matching <source> is considered
(not a hint)

<img> as fallback

"Art Direction"

Use different variants of an image (maybe with different aspect ratios?) for different resolutions



For example:
Use wide-angle image on desktops,
use close-up portrait on mobiles

Provide multiple formats

<picture>
  <source
    type="image/avif"
    srcset="images/bikes-2000w.avif"
  />
  <source
    type="image/webp"
    srcset="images/bikes-2000w.webp"
  />
  <img
    src="images/bikes-2000w.jpg"
    alt="Bikes in the rain"
  />
</picture>

Control Loading Behavior

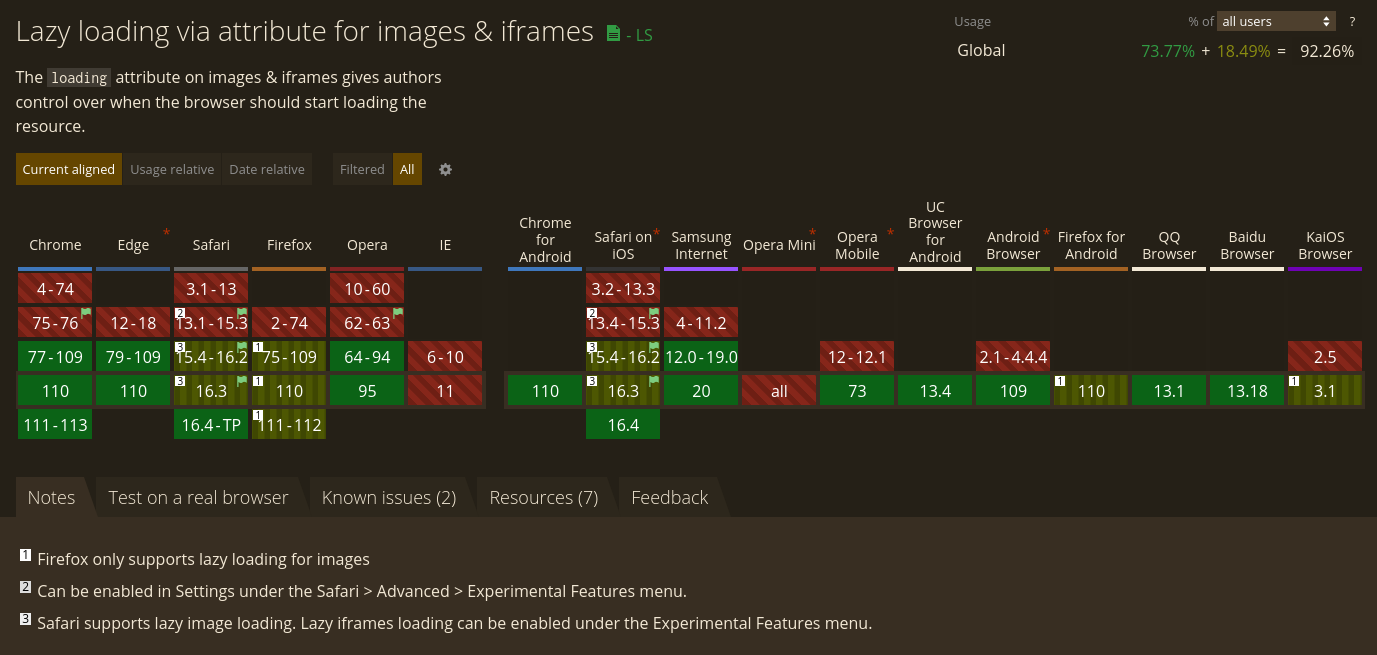

<img> Lazy Loading

  <img
    src="images/bikes-2000w.jpg"
    loading="lazy"
    alt="Bikes in the rain"
  >

Default value loading="eager"


loading="lazy" tells the user agent to hold off on loading the image until the browser estimates that it will be needed imminently.

⚠️ <img> Fetch Priority ⚠️

fetchpriority="high"
fetchpriority="low"
fetchpriority="auto" (default)



Loading priority relative to the other images



Chrome/Edge only

<img> Async Decoding

decoding="async"
decoding="sync"
decoding="auto" (default)



Allows you to control whether or not the browser is allowed to try to parallelize loading your image

⚠️ Save-Data ⚠️

Network client hint header

Manually activatable (Data Saver mode)

navigator.connection.saveData === true;



Blink-based browsers (Chrome, Edge, Opera)

https://web.dev/optimizing-content-efficiency-save-data/

⚠️ prefers-reduced-data ⚠️

<source media="(prefers-reduced-data: reduce)" ... />

Blink-based, behind flag



https://developer.mozilla.org/en-US/docs/Web/CSS/@media/prefers-reduced-data

Next Generation (Web) Image Formats

Most widely used today

Lossy:

JPEG
(30 years old)


Lossless:

PNG
(26 years old)

Next Generation Features

Lossy & Lossless

Image & Animation

Improved color depth

Improved compression (= smaller file size)

etc.

MDN Image Format Guide

https://developer.mozilla.org/en-US/docs/Web/Media/Formats/Image_types

APNG

Animated PNG



Lossless

Variety of color depths

Transparency

More performant than GIF



Works in all evergreen browsers

WEBP

Web Picture Format

Created by Google (10 years ago)



Lossy (based on VP8 video codec) & lossless

Images and animated images

Transparency

ICC profile support

25–35% smaller than JPEG
26% smaller than PNG



Works in all evergreen browsers

AVIF

AV1 Image File Format



Royalty-free standard

Alliance for Open Media



AV1 codec inside MP4/HEIF/MIAF container

AVIF Features

The next big thing



State-of-the-art features & performance:

Lossy & lossless

Images and animated images

Transparency

HDR

Wide Color Gamut, ICC profile support

50% smaller than JPEG

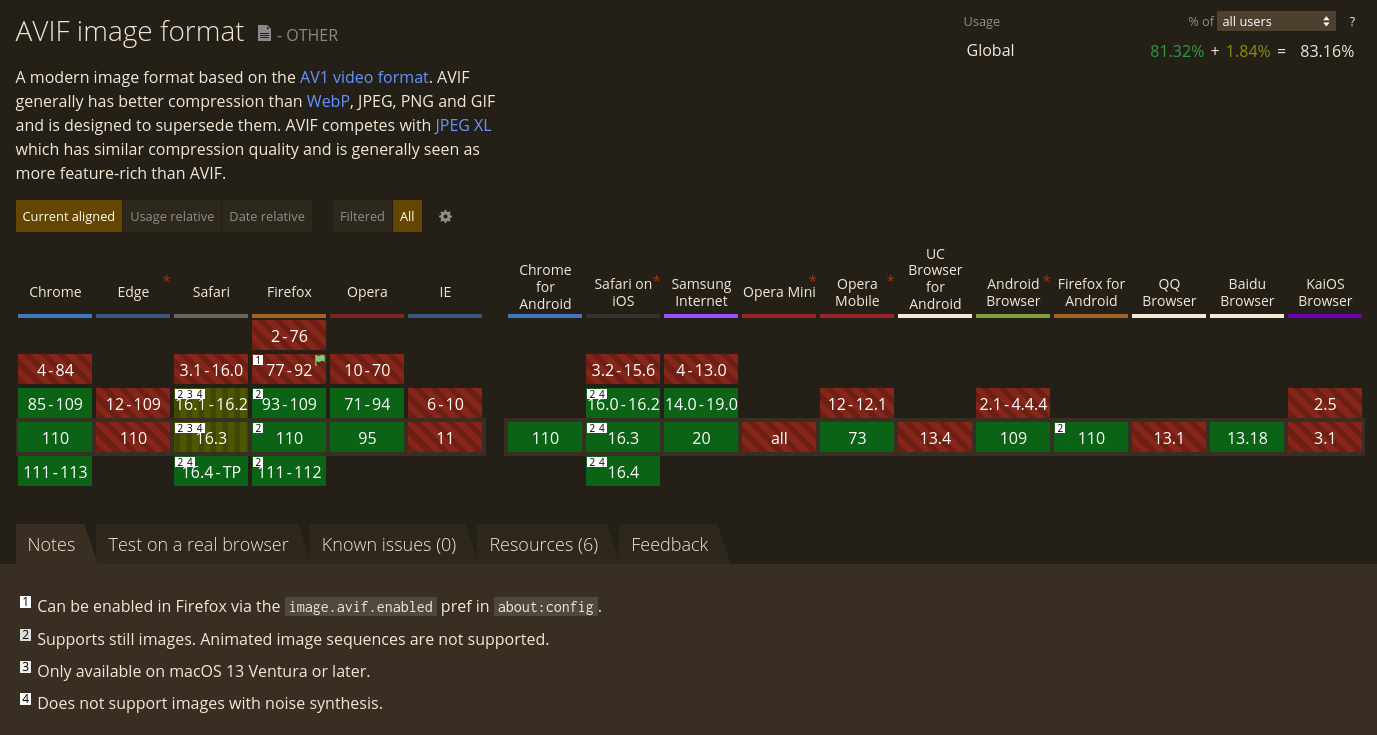

AVIF Browser Support

Browsers & tools support varies

Still images support in Chrome (2020), Firefox (2021), Opera (2020) & Safari (2022)

No Edge support

https://avif.io/blog/articles/avif-browser-support/



Supported on Cloudflare, Vimeo

AVIF Tooling

Gimp >= 2.10.22

Adobe Illustrator >= 26.3.1

Adobe Photoshop only via plugin yet?

Image Magick >= 7.0.25

https://squoosh.app/ (PWA)



https://avif.io/blog/articles/avif-converters/

AVIF Insights

Checkout the following talk by Jon Bauman for insights:

More exotic formats...

JPEG 2000

JPEG XR

HEIC



...that will never make it into the browsers?

Framework Support

Automate

Image resizing

Encoding to various formats

Rails Active Storage Variants

https://edgeguides.rubyonrails.org/active_storage_overview.html#transforming-images

<%= image_tag user.avatar.variant(
  resize_to_limit: [100, 100],
  format: :jpeg,
  saver: {
    subsample_mode: "on",
    strip: true,
    interlace: true,
    quality: 80
  }) %>

next/image

https://nextjs.org/docs/api-reference/next/image



Browser lazy loading

Blur-up placeholder

etc.

@astro/image

https://docs.astro.build/en/guides/integrations-guide/image/



Resizing

Encoding

etc.

What did I forget?

How is your experience?

Resources

Code examples:
https://github.com/hupf/techkafi-images

MDN Responsive Images Guide:
https://developer.mozilla.org/en-US/docs/Learn/HTML/Multimedia_and_embedding/Responsive_images

Responsive Images 101:
https://cloudfour.com/thinks/responsive-images-101-definitions/

Learn Responsive Design, Chapter 007 Responsive Images:

https://web.dev/learn/design/responsive-images/

AVIF: Creating a new image format in the open (Jon Bauman):
https://www.youtube.com/watch?v=BUkRlfkv2D8
