Browser Rendering
React
Browser

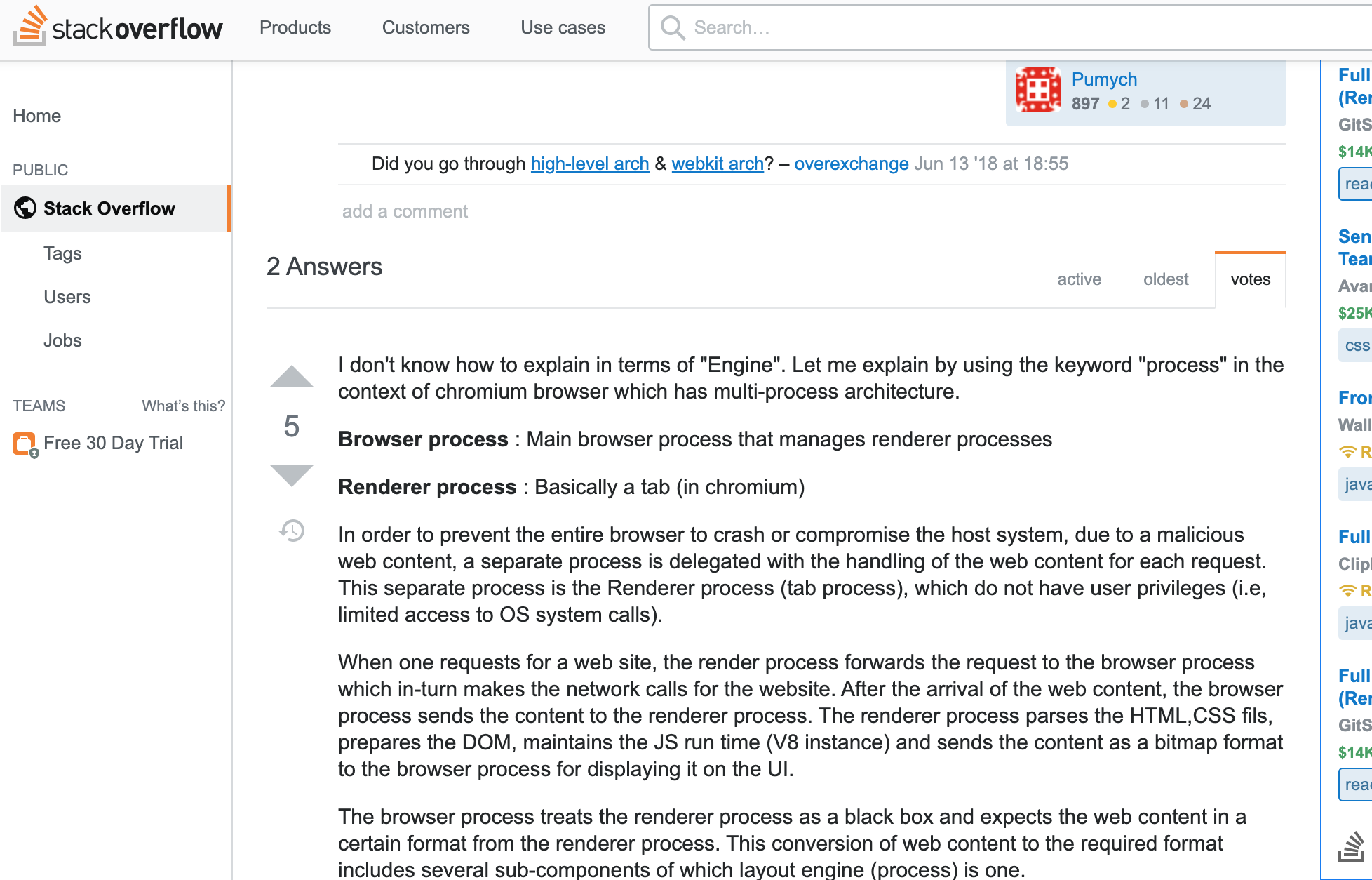

Engine ? Process ?

Process & Threads

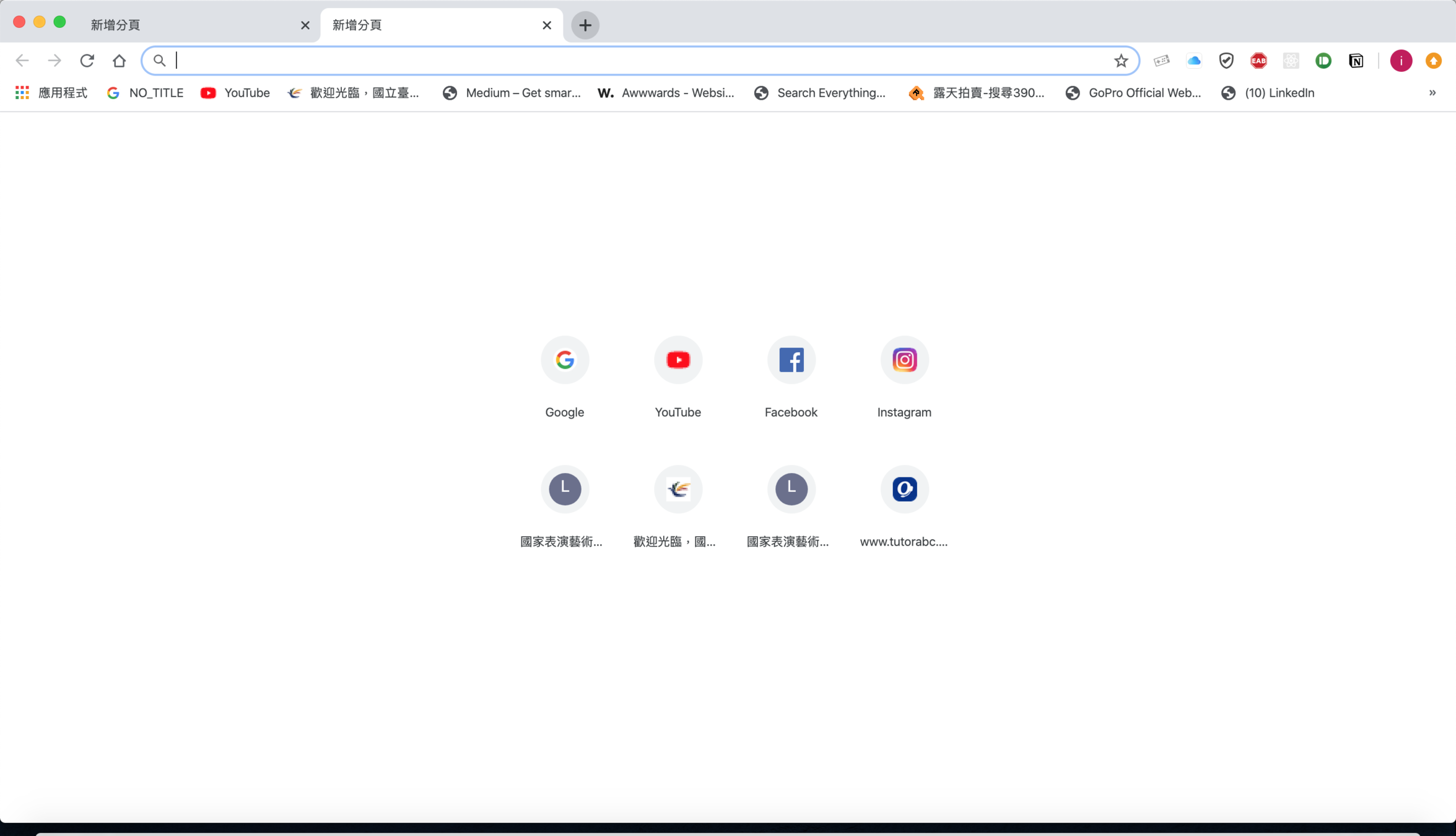

掌控chrome主要介面功能
掌控各個tab的畫面呈現
Browser Process

UI thread
enter
Search Query ?
url ?
url
Network thread

res
UI thread
Render Process

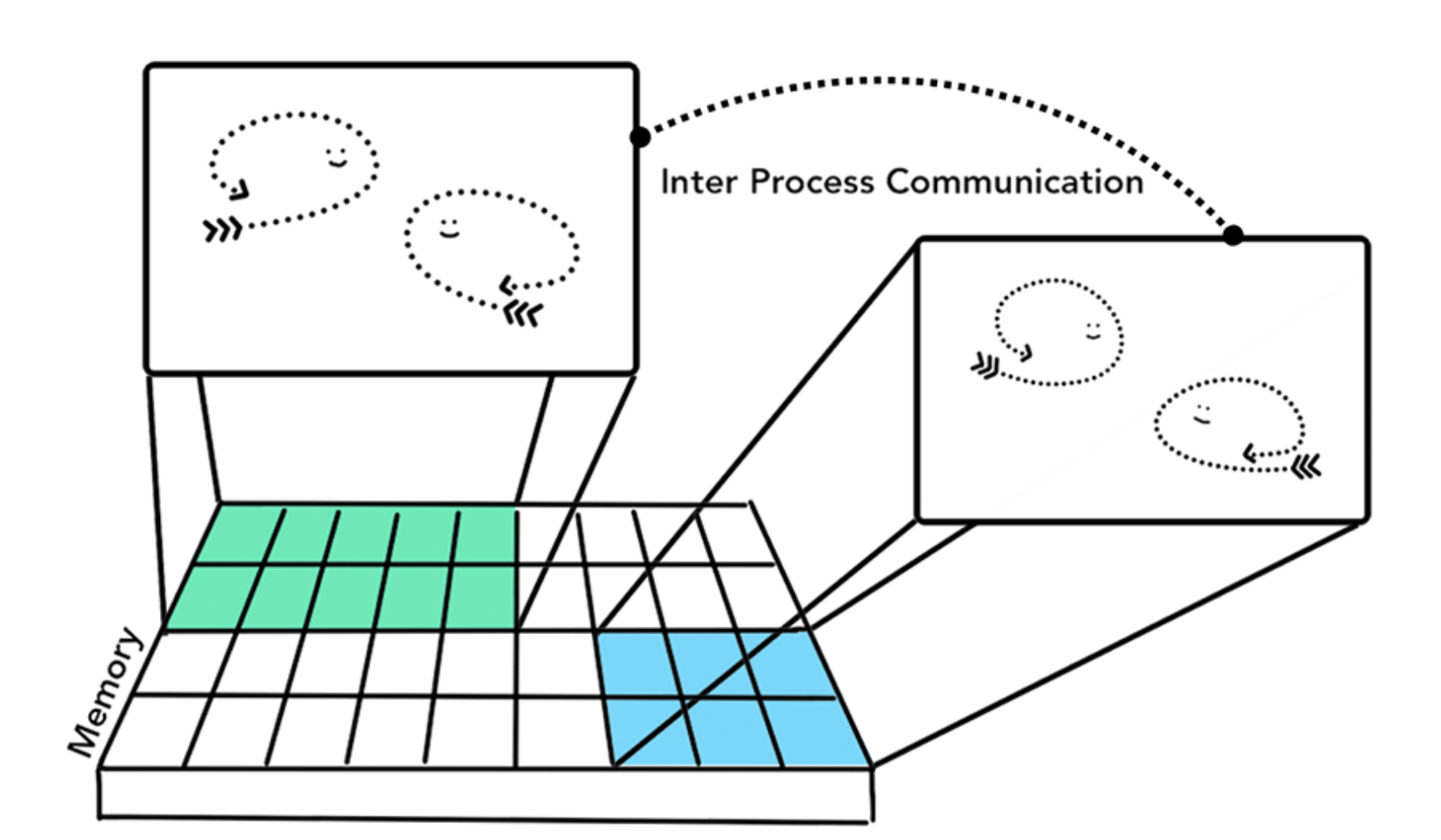

IPC
Main thread


Commit
Render Process

The main one!!
Parsing
1. HTML text string
DOM tree
2. Sub-resource loading

Main
Preload Scanner

<Script> Caution!!
<script async src="https://............"></script>
<script defer src="https://ㄅㄅㄅㄅㄅㄅㄅ"></script>

Styling

Generate the Render Tree
Layout
Render Tree
Layout Tree

Calculate x, y coordinates & bounding boxes information!!

Main
剔除&追加元素
display: none- pseudo class content-p::before{content:"HI !"}
DOM上有
DOM上無
Paint
從頭到尾給他畫起來!!
z-index??

Generate paint record:painting order
Paint Record

Main
Compositing v.s. Rasterizing
Naive Rastering

Raster
Thread



Main
Layer Tree
Paint Record
Main
commit
Compositor
rasterize
order
Raster
GPU
Display on screen
