Securing Docker

environment

Information security monitoring analyst:

Igor Tarpan

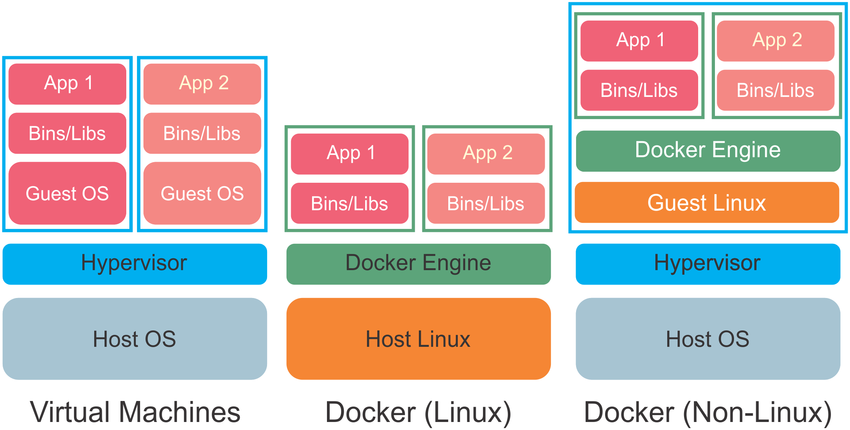

Docker vs VM's

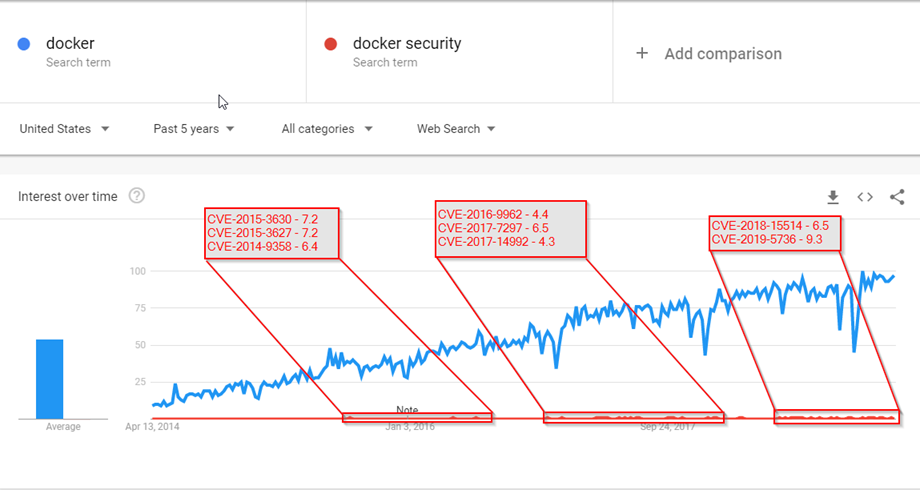

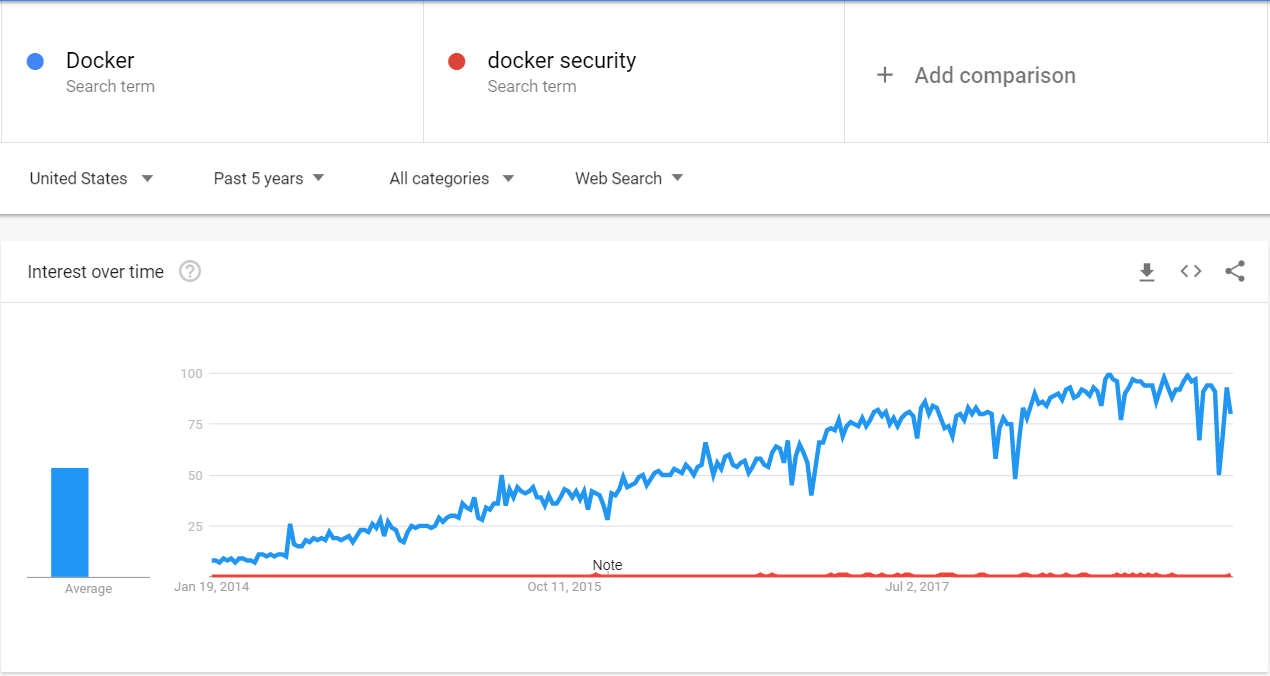

Security aproach

Security aproach

Agenda

  • Attack vectors
  • docker build
  • docker push & docker pull
  • docker run
  • Docker minimal security checklist

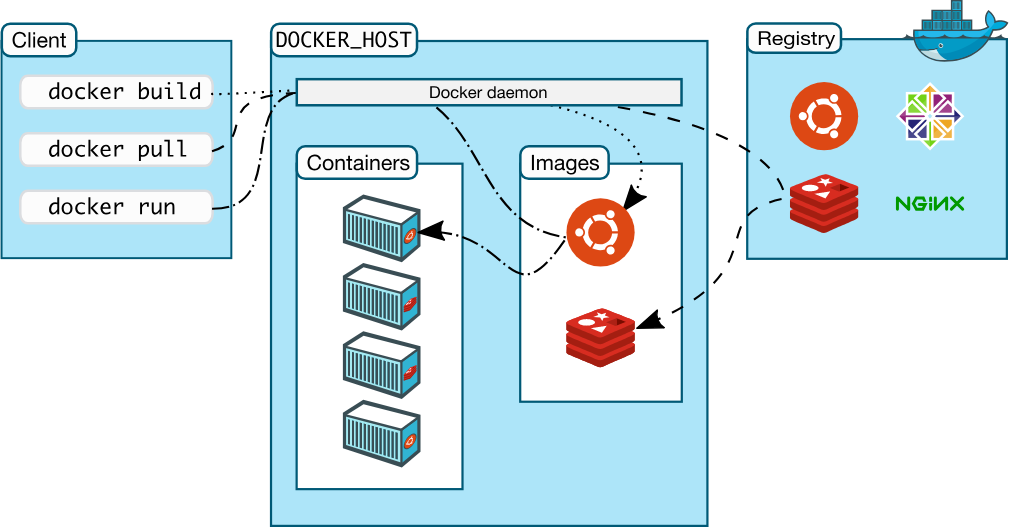

Attack vectors

docker build .

  • Do not run as root * (Dockerfile add user)
  • Use minimal base images for your application * (meme small cintainers)

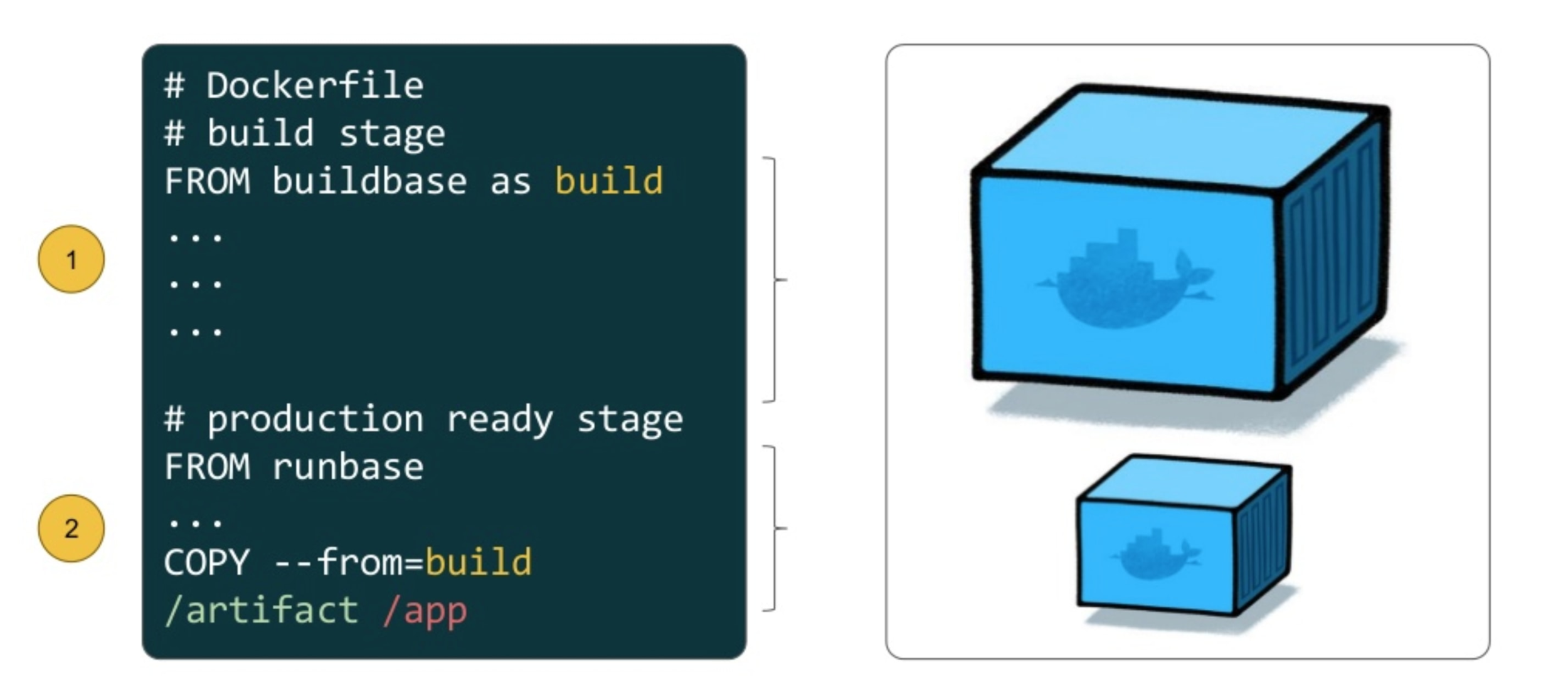

  • Use multi-stage builds for your application * (Multistage build)
  • Use COPY not ADD * (diffrences)
  • Use only official images but not blindly  (nginx as root)
  • STOP COPY . . * (demo ssh key)
  • Do not copy sensitive data in your image * (demo .env and use ignore)

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

Do not use root

FROM ubuntu:latest
RUN apt-get update --fix-missing && \
   apt-get install -y redis-server && \
   rm -rf /var/lib/apt/lists/*
USER 9000
EXPOSE 6379
CMD redis-server
second method will be soon *

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

docker run -p 9000:80 python:3.7.2-debian

935 Mb

docker run -p 9000:80 python:3.7.2-debian-slim

196 Mb

docker run -p 9000:80 python:3.7.2-alpine

93 Mb

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

Before

After

FROM maven:3.5.2-jdk-9

COPY src /usr/src/app/src

COPY pom.xml /usr/src/app

RUN mvn -f /usr/src/app/pom.xml clean package

EXPOSE 8080

ENTRYPOINT ["java","-jar","/usr/src/app/target/
flighttracker-1.0.0-SNAPSHOT.jar"]
#### Build ####
FROM maven:3.5.2-jdk-9 AS build

COPY src /usr/src/app/src

COPY pom.xml /usr/src/app

RUN mvn -f /usr/src/app/pom.xml clean package

#### Run ####
FROM openjdk:9

COPY --from=build /usr/src/app/target/flighttracker-1.0.0-SNAPSHOT.jar /usr/app/flighttracker-1.0.0-SNAPSHOT.jar

EXPOSE 8080

ENTRYPOINT ["java","-jar","/usr/app/flighttracker-1.0.0-SNAPSHOT.jar"]

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

docker build .

  • docker pull couchbase
  • docker pull redis
  • docker pull mongo
  • docker pull postgres
  • docker pull ubuntu (root)
  • docker pull nginx (root)
  • docker pull node
  • docker pull traefik
  • docker pull httpd
  • docker pull golang

docker build .

  • Do not run as root
  • Use minimal base images for your application
  • Use multi-stage builds for your application
  • Use COPY not ADD
  • Use only official images but not blindly
  • STOP COPY . .
  • Do not copy sensitive data in your image

Demo



docker push & docker pull

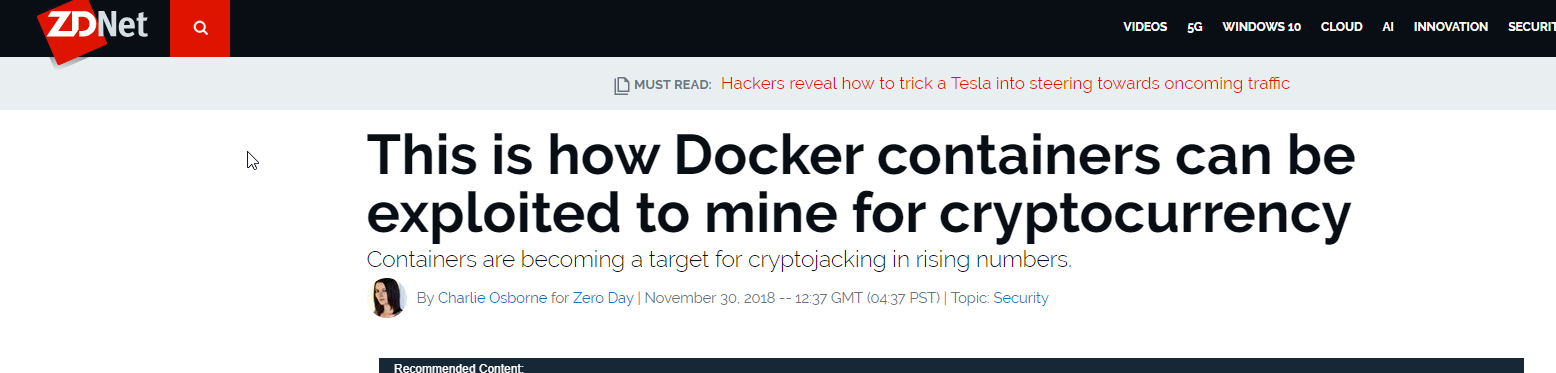

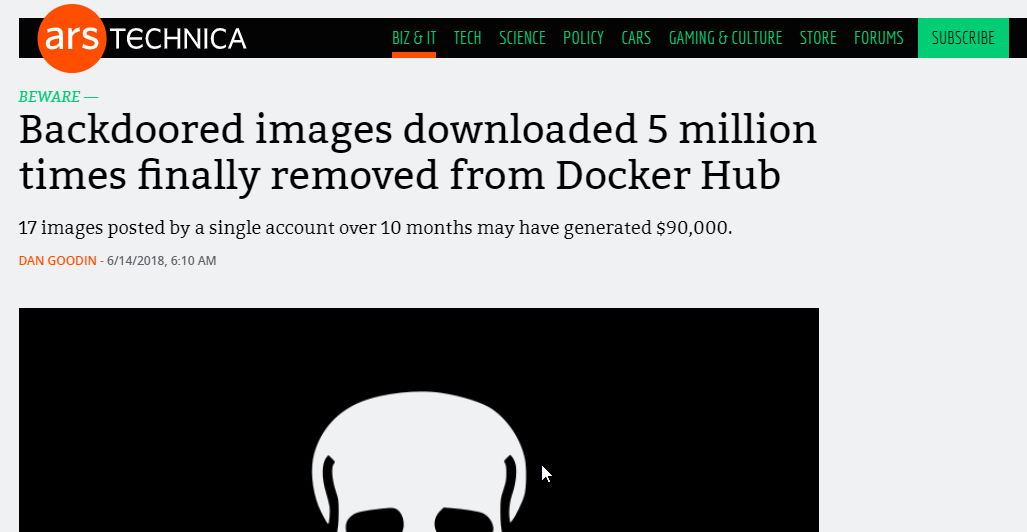

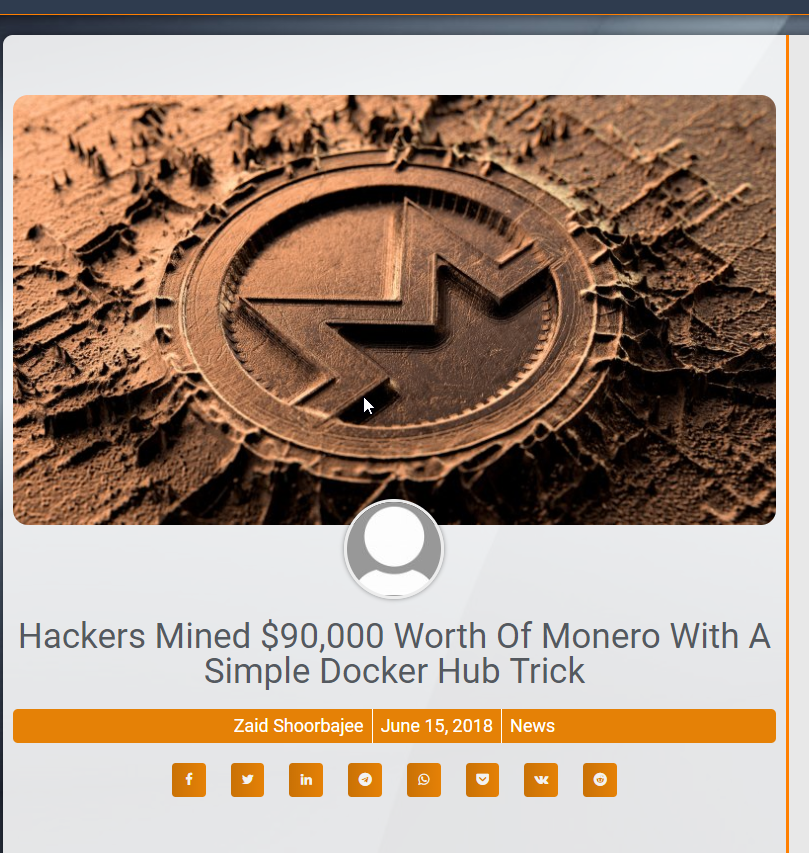

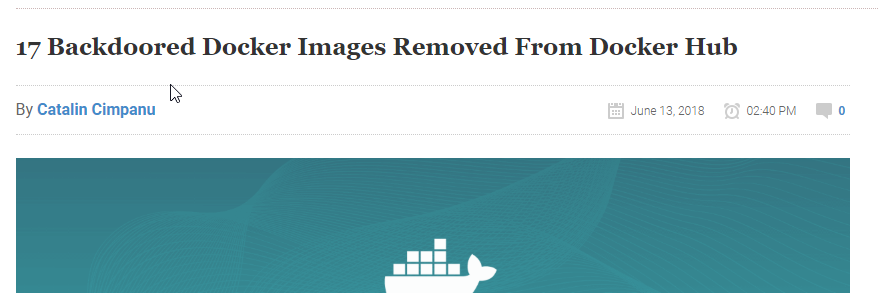

  • Avoid using third party images (bitcoin miners)
  • Use private repositories/registers and limit access to them ()
  • Docker Content Trust (Demo docker content trust)
  • Perform security scanning of your image at every deploy (demo Anchor)
  • Security should be part of your SDLC (Security life cicle img)
  • Update images to the latest version
  • Do not use image:latest

docker push & docker pull

  • Avoid using third party images
  • Use private repositories/registers and limit access to them
  • Perform security scanning of your image at every deploy
  • Security should be part of your SSDLC
  • Update images to the latest version
  • Do not use image:latest
  • Docker Content Trust (Demo docker content trust)

docker push & docker pull

  • Avoid using third party images
  • Use private repositories/registers and limit access to them
  • Perform security scanning of your image at every deploy
  • Security should be part of your SSDLC
  • Update images to the latest version
  • Do not use image:latest
  • Docker Content Trust (Demo docker content trust)

docker push & docker pull

  • Avoid using third party images
  • Use private repositories/registers and limit access to them
  • Perform security scanning of your image at every deploy
  • Update images to the latest version
  • Do not use image:latest
  • Docker Content Trust

Scan Docker images

docker push & docker pull

  • Avoid using third party images
  • Use private repositories/registers and limit access to them
  • Perform security scanning of your image at every deploy
  • Update images to the latest version
  • Do not use image:latest
  • Docker Content Trust (Demo docker content trust)

docker run

  • Update docker-engine and software component from the host
    • Do not mount sensitive data in container
  • Secrets should be stored carefully
  • All persistent data should be mount outside of container
  • Do not run container in elevation mode
  • Do not run as user
  • Use TLS everywhere  (demo HTTP2)

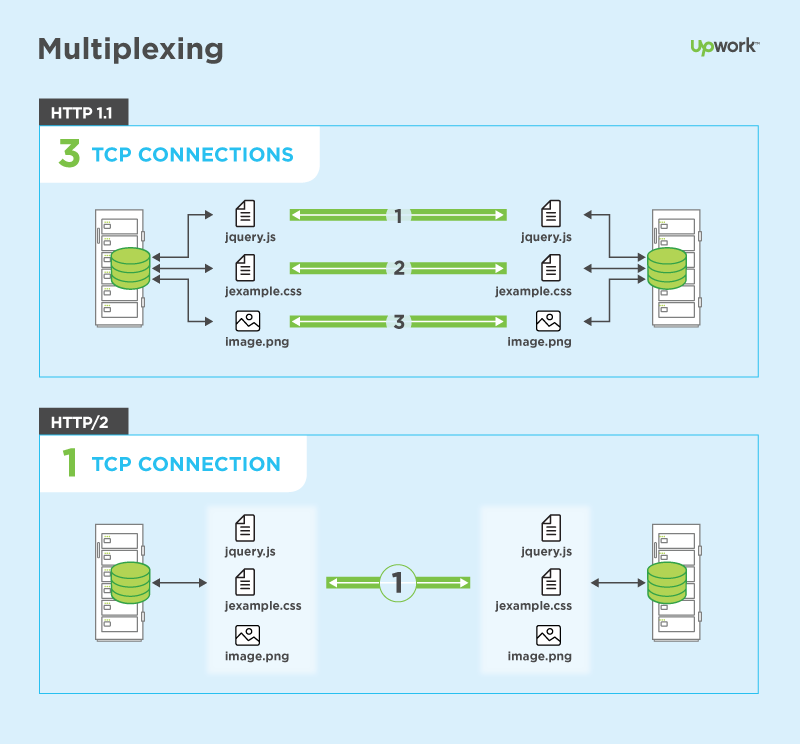

HTTP 1.1 vs HTTP/2

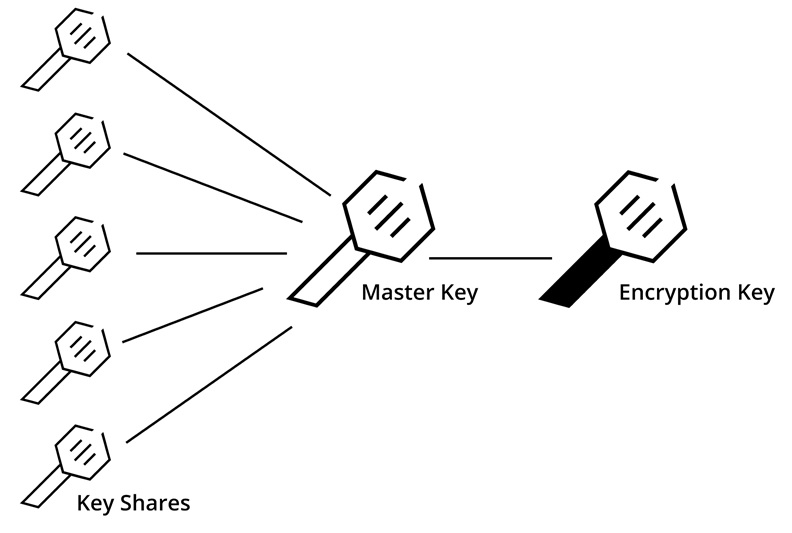

Vault by Hashicorp

docker run

  • stop doing -p 80:80, -p 9200:9200, -p 5432:5432
  • Use application gateways and firewalls in front of  your application
  • Limit resources for your containers
  • Runtime security (apparmor)
  • Monitor and Audit Container Activity

To much info ?

  • Limit
    • White list is better then black list
  • Encrypt
    • Longer key is better then short one
  • Safe secret management
    • Store them safely
    • Do not use defaults secrets
  • Scan
    • Auto is better then manual
  • Monitor
    • Application metrics is better then system metrics
  • Update
    • Daily is better then weekly

Too Little Info?

Secure Docker envoiroment
