2024年6月5日, 10:10-10:40 | 北京农学院体育馆218

王赫 (He Wang)

hewang@ucas.ac.cn

中国科学院大学 · 国际理论物理中心（亚太地区）

中国科学院大学 · 引力波宇宙太极实验室（北京/杭州）

On behalf of the LIGO-VIRGO-KAGRA collaborations

https://twitter.com/chipro/status/1768388213008445837?s=46&t=JmDXWgIucgr_FlsBFTvuRQ

DINGO+SEOBNRv4EHM找了3个ebbh

Evidence for eccentricity in the population of binary black holes observed by LIGO-Virgo-KAGRA
https://dcc.ligo.org/LIGO-G2400750

• GW Astronomy
• AI for Science · GW Data Analysis
• GW search · Pipeline
• Parameter estimation · Scientific discovery

• In 1916, A. Einstein proposed the GR and predicted the existence of GW.

• Gravitational waves (GW) are a strong field effect in the GR.

  • 2015: the first experimental detection of GW from the merger of two black holes was achieved.

  • 2017: the first multi-messenger detection of a BNS signal was achieved, marking the beginning of multi-messenger astronomy.

  • 2017: the Nobel Prize in Physics was awarded for the detection of GW.

  • As of now: more than 90 gravitational wave events have been discovered.

  • O4, which began on May 24th 2023, is currently in progress.

Gravitational waves generated by binary black holes system

GW detector

LIGO-VIRGO-KAGRA network

2017 Nobel Prize in Physics

• 引力波探测打开了探索宇宙的新窗口

• 不同波源，频率跨越 20 个数量级，不同探测器

• 多信使天文学

• Fundamental Physics
  • Existence of gravitational waves
  • To put constraints on the properties of gravitons
• Astrophysics
  • Refine our understanding of stellar evolution
  • and the behavior of matter under extreme conditions.
• Cosmology
  • The measurement of the Hubble constant
  • Dark energy

GWTC-3

• The current clouds over fundamental physics:
  • 量子力学与广义相对论的统一
  • 星系旋转曲线（暗物质）、宇宙加速膨胀（暗能量）
  • 哈勃常数H0
  • 中微子震荡和质量问题
  • ...

Matched filtering techniques (匹配滤波方法)


• In Gaussian and stationary noise environments, the optimal linear algorithm for extracting weak signals

• Works by correlating a known signal model \(h(t)\) (template) with the data.
• Starting with data: \(d(t) = h(t) + n(t)\).
• Defining the matched-filtering SNR \(\rho(t)\):
  \(\rho^2(t)\equiv\frac{1}{\langle h|h \rangle}|\langle d|h \rangle(t)|^2 \) , where \(\langle d|h \rangle (t) = 4\int^\infty_0\frac{\tilde{d}(f)\tilde{h}^*(f)}{S_n(f)}e^{2\pi ift}df \) ,
  \(\langle h|h \rangle = 4\int^\infty_0\frac{\tilde{h}(f)\tilde{h}^*(f)}{S_n(f)}df \), \(S_n(f)\) is noise power spectral density (one-sided).

• GW Astronomy
• AI for Science · GW Data Analysis
• GW search · Pipeline
• Parameter estimation · Scientific discovery

• 2016年，AlphaGo 第一版发表在了 Nature 杂志上

• 2021年，AI预测蛋白质结构登上 Science、Nature 年度技术突破，潜力无穷

• 2022年，DeepMind团队通过游戏训练AI发现矩阵乘法算法问题​

• 《达摩院2022十大科技趋势》将 AI for Science 列为重要趋势

  • “人工智能成为科学家的新生产工具，催生科研新范式”

• 2023年，DeepMind发布AI工具GNoME (Nature)，成功预测220万种晶体结构

• AI for Science：为科学带来了模型与数据双驱动的新的研究范式

  • AI + 数学、AI + 化学、AI + 医药、AI + 量子、AI + 物理、AI + 天文 ...

Pioneering works utilizing CNN

• The most common and direct approach, from Computer Vision (CV) to GW signal processing: pixel point \(\Rightarrow\) sampling point.

• Convolutional neural networks (CNN) can achieve comparable performance to Matched Filtering and surpass them in terms of execution speed (with GPU support) under Gaussian stationary noise.

AI for Science \(\rightarrow\) AI for GW Astronomy








• Artificial Intelligence (AI) has great potential to revolutionize gravitational wave astronomy by improving data analysis, modeling, and detector development.
• Representation and supervised learning crucially extract features from GW signals, autonomously identifying informative features and leveraging labeled data for accuracy.

• GW Astronomy
• AI for Science · GW Data Analysis
• GW search · Pipeline
• Parameter estimation · Scientific discovery

Matched-filtering Convolutional Neural Network (MFCNN)

• GW templates can be utilized as recognizable features for signal detection.
• It is feasible to generalize both matched-filtering and neural networks.
• Linear filters (i.e., matched-filtering) in signal processing can be reformulated as neural layers (i.e., CNNs).

MLGWSC-1

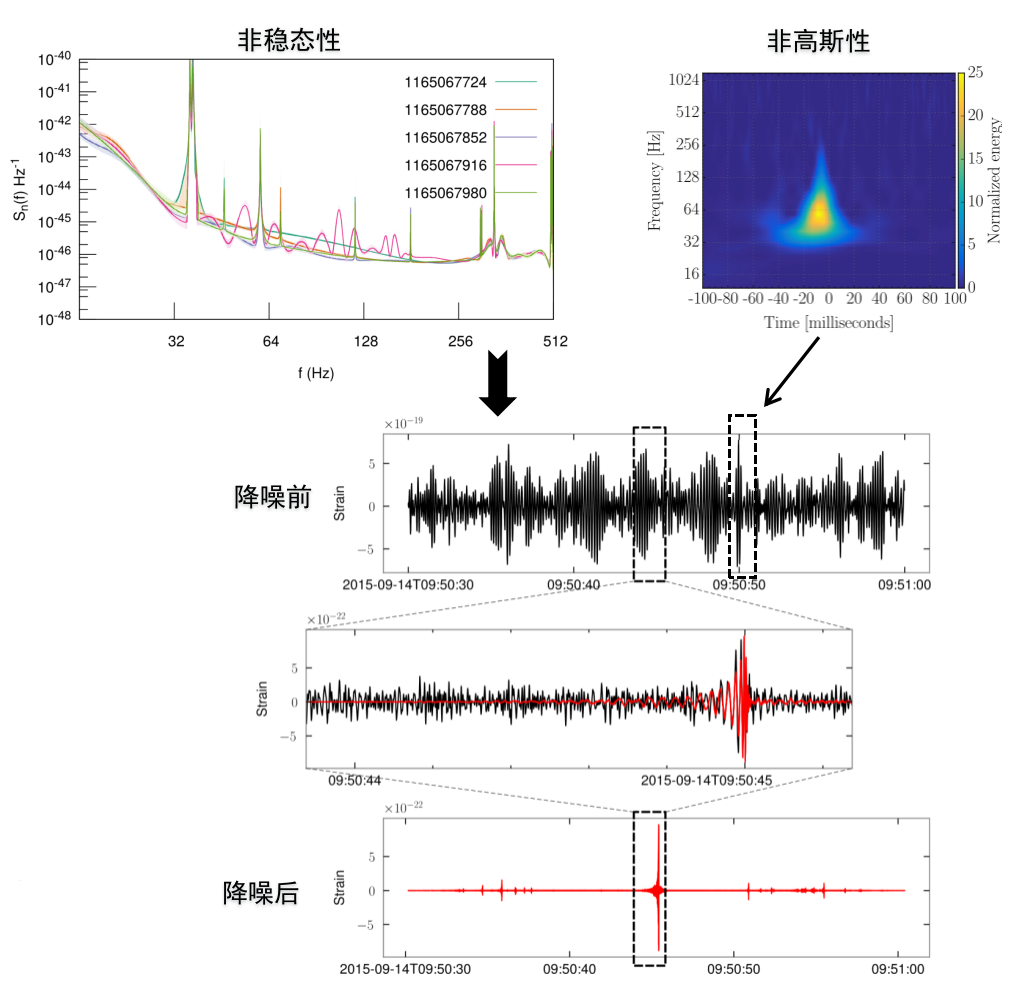

• The majority of AI algorithms used for testing are highly sensitive to non-Gaussian real noise backgrounds, resulting in high false positive rates.

CL.M., W.W., H.W., et al. PRD (2022)

Ensemble learning

• Leverages statistical approaches to utilize more information for making informed decisions by combining multiple models.

Expanding the dimension of the output

• is to call more information to make decisions in improving AI models.

Beyond Speed: Generalization and Discovery in GW Detection

• Leveraging our experience in  signal modeling  (MFCNN)
  and noise modeling (WaveFormer), we are gradually
  building an offline pipeline capable of searching for
  signals in complete GW observation data and calculating
  FARs.

He Wang, et al. MLST. 5, 1 (2024): 015046.

Challenges in Model Interpretability

• The black-box nature of AI models poses significant challenges in interpretability, making it difficult to compare AI-generated detection statistics with those derived from matched filtering chi-square distributions.
• Despite being able to identify potential gravitational wave signals, convincing the scientific community of the pipeline's validity and the statistical significance of new discoveries remains a hurdle.

He Wang, et al. MLST. 5, 1 (2024): 015046.

LVK.  arXiv:1602.03839

Challenges in Model Interpretability

• The black-box nature of AI models poses significant challenges in interpretability, making it difficult to compare AI-generated detection statistics with those derived from matched filtering chi-square distributions.
• Despite being able to identify potential gravitational wave signals, convincing the scientific community of the pipeline's validity and the statistical significance of new discoveries remains a hurdle.

He Wang, et al. MLST. 5, 1 (2024): 015046.

The negative log-likelihood cost function always strongly penalizes the most active incorrect prediction. And the correctly classified examples will contribute little to the overall training cost."
—— I. Goodfellow, Y. Bengio, A. Courville. Deep Learning. 2016. (book)

LVK.  arXiv:1602.03839

• GW Astronomy
• AI for Science · GW Data Analysis
• GW search · Pipeline
• Parameter estimation · Scientific discovery

Credit: LIGO Magazine.

• Traditional parameter estimation (PE) techniques rely on Bayesian analysis methods (posteriors + evidence)

• Computing the full 15-dimensional posterior distribution estimate is very time-consuming:
  • Calculating likelihood function
  • Template generation time-consuming
• Machine learning algorithms are expected to speed up!

• A complete 15-dimensional posterior probability distribution, taking about 1 s (<< \(10^4\) s).

• Prior Sampling: 50,000 Posterior samples in approximately 8 Seconds.

• Capable of calculating evidence
• Processing time: (using 64 CPU cores)
  • less than 1 hour with IMRPhenomXPHM,
  • approximately 10 hours with SEOBNRv4PHM

Nature Physics 18, 1 (2022) 112–17

HW, et al. Big Data Mining and Analytics 5, 1 (2021) 53–63.

（Based on 1912.02762）

【【机器学习】白板推导系列(三十三) ～ 流模型(Flow based Model)】

（Based on 1912.02762）

• Data: target data \(\mathbf{y}\in\mathbb{R}^{15}\) (with condition data \(\mathbf{x}\)).
• Task:
  • Fitting a flow-based model \(p_{\mathrm{y}}(\mathbf{y} ; \boldsymbol{\theta})\) to a target distribution \(p_{\mathrm{y}}^{*}(\mathbf{y})\)
  • by minimizing KL divergence with respect to the model’s parameters \(\boldsymbol{\theta}=\{\boldsymbol{\phi}, \boldsymbol{\psi}\}\),
  • where \(\boldsymbol{\phi}\) are the parameters of \(T\) and \(\boldsymbol{\psi}\) are the parameters of \(p_{\mathrm{z}}(\mathbf{z})=\mathcal{N}(0,\mathbb{I})\).
• Loss function:





• Assuming we have a set of samples \(\left\{\mathbf{y}_{n}\right\}_{n=1}^{N}\sim p_{\mathrm{y}}^{*}(\mathbf{y})\),



  Minimizing the above Monte Carlo approximation of the KL divergence is equivalent to fitting the flow-based model to the samples \(\left\{\mathbf{y}_{n}\right\}_{n=1}^{N}\) by maximum likelihood estimation.

归一化流模型示意图

• Bayesian inference, the Holy Grail of gravitational-wave data analysis,
  enables astrophysical interpretation and scientific discoveries.


Simulation-Based Inference (SBI)

• SBI \(\Rightarrow\) Fast and precise parameter estimation.
• SBI \(\Rightarrow\) TGR / Cosmology / PTA ...

PRL 127, 24 (2021) 241103.

PRL 130, 17 (2023) 171403.

Real-time gravitational wave science with neural posterior estimation

Sampling with prior knowledge for high-dimensional gravitational wave data analysis

He Wang, et al. Big Data Min. Anal. (2021)

He Wang, et al.  (2024)

(Sec.8.6 Red Book)

Global Fit

• The idea of the global fit method is to comprehensively model all astrophysical and instrumental features present in the space-borne gravitational wave data.
• This approach not only focuses on the signal from a single source, but attempts to capture the combined effects of all sources in the data, conducting a comprehensive analysis of the entire dataset to identify and model all potential signal and noise sources.

Technical challenges:

• High dimensional
• Highly correlated
• Multimodality
• Trans-dimensional

Neural density estimation

• Density fit for posterior distributions
  • use the old posterior to form a proposal for the extended data.
• Density fit for the Galaxy
  • fitt a Galaxy model for joint distribution for \((A, \beta, \lambda)\).
• ...

Disadvantages of MCMC

1. Computational Intensity: MCMC can be computationally demanding, especially for large datasets or highly complex models.
2. Difficulty in Tuning Parameters: Properly tuning MCMC algorithms can be challenging. Selecting the right step size or proposal distribution is crucial. Choosing the wrong tuning parameters can lead to inefficient sampling and inaccurate results.
3. Challenges in Reaching Convergence: MCMC chains must converge to the true distribution; otherwise, the results are meaningless.
4. Necessity for Appropriate Initial Values: The choice of initial values can affect the results.

Ref:

• Ashton, G, and C Talbot. MNRAS 507, no. 2 (2021): 2037–51.
• Korsakova, N, et al. (2402.13701)
• Wouters, T, et al. (2404.11397​)

Neural density estimation

• Density fit for posterior distributions
  • use the old posterior to form a proposal for the extended data.
• Density fit for the Galaxy
  • fitt a Galaxy model for joint distribution for \((A, \beta, \lambda)\).
• ...

• Exploring the importance of understanding how AI models make predictions in scientific research.
  • The critical role of generative models (生成模型是关键)
  • Quantifying uncertainty: a key aspect (不确定性量化问题)
  • Fostering controllable and reliable models (模型的可控可信问题)

"A running dog"

• The most common and direct approach, from Artificial Intelligence Generated Content (AIGC) to GW statistical inference: pixel point \(\Rightarrow\) inferred parameter.

• Exploring the importance of understanding how AI models make predictions in scientific research.
  • The critical role of generative models (生成模型是关键)
  • Quantifying uncertainty: a key aspect (不确定性量化问题)
  • Fostering controllable and reliable models (模型的可控可信问题)

"A corgi running on the street"

A picture is worth a thousand words.

A fraction of a thousand words.

Credit: 李宏毅

"A running dog"

• The most common and direct approach, from Artificial Intelligence Generated Content (AIGC) to GW statistical inference: pixel point \(\Rightarrow\) inferred parameter.
