Hadoop

A. Fraga, V. Ostertag, A. Ruiz Rodriguez

Friday 16^th of November 2017

Cranfield University

Hadoop presentation

Plan

INTRODUCTION

HISTORY

SOME BASICS

HOW IT WORKS

IMPLEMENTATION

CONCLUSION

Introduction

Hadoop presentation

Cranfield University

Cranfield University

Hadoop presentation

Hadoop

open-source

Memory storage

Big datasets processing

Developed in Java

HDFS

MapReduce (+ YARN since 2.0)

Cranfield University

Hadoop presentation

Goals & utilities

Handle hardware failures

used to do:

Marketing analysis

Machine learning

Data mining

Image processing

History

Hadoop presentation

Cranfield University

Cranfield University

Hadoop presentation

Chronology

2006

Released by Doug Cutting and Mike Cafarella

Hadoop

Cranfield University

Hadoop presentation

Chronology

2008

Yahoo moves its web index to Hadoop

Fastest system to sort a terabyte (209 seconds)

2009

Sort a terabyte in 62 seconds

2012

YARN is introduced

Cranfield University

Hadoop presentation

Success

Widely used:

Some basics

Hadoop presentation

Cranfield University

Cranfield University

Hadoop presentation

Map

[1, 2, 3, 4, 5, 6]

[1, 4, 9, 16, 25, 36]

Apply a function to every element.

Example:

map using square function

Cranfield University

Hadoop presentation

Reduce

Reduce a set of data to one value using  an accumulator

[1, 2, 3, 4, 5, 6]

21

Example:

reduce using the sum accumulator

In Hadoop, we use MapReduce

So, what is it?

Cranfield University

Hadoop presentation

How it works

Hadoop presentation

Cranfield University

Cranfield University

Hadoop presentation

Nodes

Master nodes

Slave nodes

(manager)

(worker)

Data Node

Task tracker

Name node

Job tracker

Cranfield University

Hadoop presentation

HDFS

Client

Name node

150 Mo file

64 Mo

64 Mo

22 Mo

Data node 1

Data node 2

Data node 3

example.txt

example.txt

Cranfield University

Hadoop presentation

HDFS

Name node

"example.txt"

=

Data node 1 + Data node 2 + Data node 3

Cranfield University

Hadoop presentation

Backup

Name node

Secondary name node

Rack 1

Rack 2

Data Node 1.2

Data Node 1.5

Data Node 2.1

Cranfield University

Hadoop presentation

Jobs

Client

Job tracker

submits jobs

slave node

Task tracker

Create the task

heartbeat

Map

Reduce

Name node

1

2

3

5

4

Cranfield University

Hadoop presentation

To do

Code the Mapper Class

Code the Reduce Class

Code the main

No need to worry about anything else!

Cranfield University

Hadoop presentation

YARN

What if I don't want to use MapReduce?

Implementation

Hadoop presentation

Cranfield University

Cranfield University

Hadoop presentation

What we want to do

We will code in JAVA using Hadoop

... Let's see how easy it is!

Cranfield University

Hadoop presentation

First step : main

We'll start by initializing the problem at hand:

WordCount

Text

String

Program's name

Variable ready to be solved

1

2

public class WordCount {

    public static void main(String[] args) throws Exception {
        // New configuration
        Configuration conf = new Configuration();

        // I want to create a new job
            Job job = Job.getInstance(conf, "word count");
            job.setJarByClass(WordCount.class);
        ...
    }
...
}

1

2

Cranfield University

Hadoop presentation

Cranfield University

Hadoop presentation

Mapper

Now, we want to use a mapper to count the words

WordCount

Text

String

Map

("word", 1)

("word", 1)

("word", 1)

("word", 1)

3

Result of the mapper for each processor

...

// My job will convert unstructured data into structured data
job.setMapperClass(TokenizerMapper.class);


...

3

Custom Mapper to create

Cranfield University

Hadoop presentation

Cranfield University

Hadoop presentation

Reduce

Then, we need to sum all the results

Text

String

Map

("word", 1)

("word", 1)

("word", 1)

("word", 1)

Hadoop

("word", (1,1,1,1))

Reduce

("word", 4)

Reduce

Gather the data

4

5

Cranfield University

Hadoop presentation

...

// Then it will combine local results
job.setCombinerClass(IntSumReducer.class);

// Then it will reduce everything
job.setReducerClass(IntSumReducer.class);

// But do it with this format
job.setOutputKeyClass(Text.class);
job.setOutputValueClass(IntWritable.class);


...

4

5

Custom Reducer class

Cranfield University

Hadoop presentation

Output

...

// Defining Input and output path
FileInputFormat.addInputPath(job, new Path(args[0]));
FileOutputFormat.setOutputPath(job, new Path(args[1]));

// Ok Job, do what I want you to do
System.exit(job.waitForCompletion(true) ? 0 : 1);

Cranfield University

Hadoop presentation

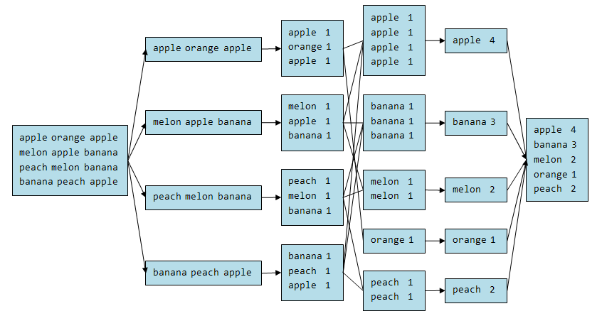

Example

Conclusion

Hadoop presentation

Cranfield University

MPI

Hadoop

Cranfield University

Hadoop presentation

Conclusion
