VS2015 & Bower

- A-proj
- CodaSlider
    - jquery
    - jquery-easing

A Proj

There is a project A using CodaSlider.js

B Proj

- B-proj
- LiquidSlider
    - jquery
    - jquery-easing
    - jquery-touchswipe
- A-proj
- CodaSlider
    - jquery
    - jquery-easing

A Proj

Then Project B use LiquidSlide.js

B Proj

- B-proj
- LiquidSlider
    - jquery
    - jquery-easing
    - jquery-touchswipe
- A-proj
- CodaSlider
    - jquery
    - jquery-easing

A Proj

Not Good

B Proj

- B-proj
- LiquidSlider
    - jquery
    - jquery-easing
    - jquery-touchswipe
- A-proj
- CodaSlider
    - jquery
    - jquery-easing

A Proj

Better~~~

B Proj

- B-proj
- LiquidSlider
    - ?????
    - ?????
- A-proj
- CodaSlider
    - ?????
    - ?????

A Proj

But ... ...
One day we all forget the dependency ...

Bower

distributed in rainforest of
New Guinea

( Flame Bowerbird )

Bower

  1. Front-end Package
    download tool.

  2. Package Version control.

  3. Package Dependency control.

Bower

All Bower does is install the right versions of the packages that the project needs and their dependencies.

In other words:
it downloads source files for the right libraries and everything they need into a special folder. Everything else is up to the developer.

Bower

> bower install

> bower install <package>

> bower install <package>#<version>

> bower install <name>=<package>#<version>

> bower uninstall <package>

> bower list

VS2015

  1. Build-in Bower

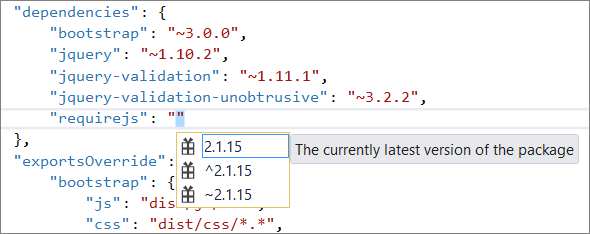

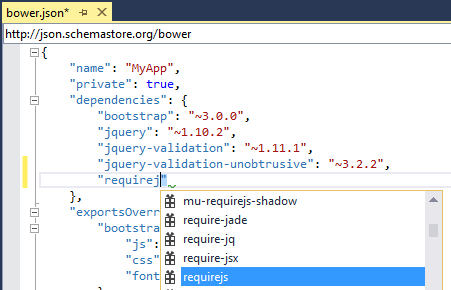

  2. Bower intelliSence

和Bower 沒有直接關係
透過手動或Grunt搬過來

直接編寫bower.json
進行package 新增移除

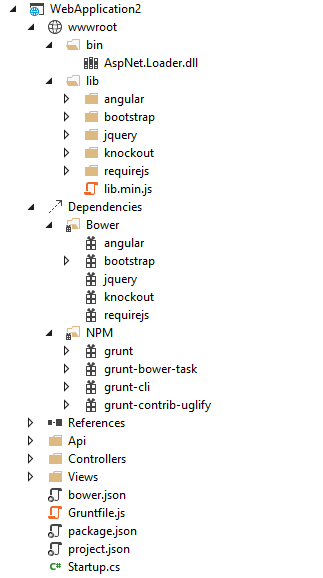

Bower下載的檔案會放
在Dependencies/Bower

  1. Edit Bowser.json

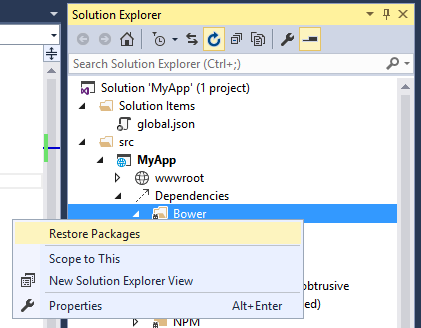

2. Right click Bower
choose Restore Packages

Done!!

All Bower does is install the right versions of the packages that the project needs and their dependencies.

In other words:
it downloads source files for the right libraries and everything they need into a special folder. Everything else is up to the developer.

exports file we need

透過手動搬移

Grunt, Gulp

Let's Demo

Discussion

The structure of our
.css & .js files

( 以下開始與Bower無關 )

Now

目前分類

1. jQuery



2. Script



3. css

/ jQuery
    jquery.js
    jquery-ui.js
    jquery.easing.js
    jquery.cookie.js
    jquery.cookie.2.2.0.js
    jquery.equalHeight.js
    jquery.tabSlideOut.js
    liquidSlider.js

/ Script
    common.js
    common-nonresp.js
    / Header
        SearchCompleteV2.js
        AdvantechFunction.js
    / ContactTab
        contact-tab.js
    / Footer
        footer.js
        aonline-livechat-global.js
    / success-story
	masonry.js
	jsrender.js
	underscore.js
	ployfill.js

/ css
    ... ...

分為三大類:

  1. lib or packages
    依package分類

  2. js or scripts
    依專案分類

  3. css
    依專案分類



/ lib (packages)
    / jquery
    / jquery-ui
    / jquery.cookie
    / liquidslider
    / bootstrap

/ js (scripts)
    common.js
    common-nonresp.js
    / homepage
    / success-stories

/ css (styles)
    common.css
    common-md.css
    / homepage
    / success-stories

第二層(lib)

1. package

(1) 各package內再細分
js, css, imgs... ...



(2) 不同版號的程式可管理在同一個package下,以版號做區別。

    /lib
        /jquery
            /js
                jquery.js
                jquery.min.js
                jquery.1.9.1.js

        /jquery-ui
            /js
                jquery-ui.js
                jquery-ui.min.js
            /css
                jquery-ui.css
                /themes

        /jquery.cookie
                jquery.cookie.js

        /liquidslider
            /js
                liquidslider.js
            /css
                liquidslider.css
                /css-img

        /bootstrap
            /js
                bootstrap.js
            /css
                bootstrap.css

第二層(js)

1. 全站共用的.js直放在/js最上層



2. 各專案專用的.js,建立各專案folder後,放在其下。



3. 為各專案特製的boundle.js 也放在各專案的folder下。


    /js
        common.js
        common-nonresp.js

        /homepage
            homepage.js

        /success-story
            success-story.js

        /tuple
            header.js
            footer.js

第二層(css)

1. package

(1) 依專案建folder分類,全站共用的.css放在 /css 最上層。



2. 與.css具有相依性的圖片,需建css-img folder並與 .css同一層;圖片以相對路徑的方式寫在 .css中。


    /css
        common.css
        common-mq.css
        reset.css

        /homepage
            homepage-style.css
            /homepage-style-css-img

        /success-stories
            prd-cs-style.css
            /prd-cs-style-css-img

Bower and VS2015

By Jayson Chiang

Bower and VS2015

Introduce Bower in VS2015
