Problem

Testing is boring, repeating, wasting time.

How to make some testing automatically?

E2E testing framework that runs test in a browser interacting as a real user.

• Developed by Google.

• Created especially for Angular applications.

• Can be used non Angular sites as well.

> npm install -g protractor

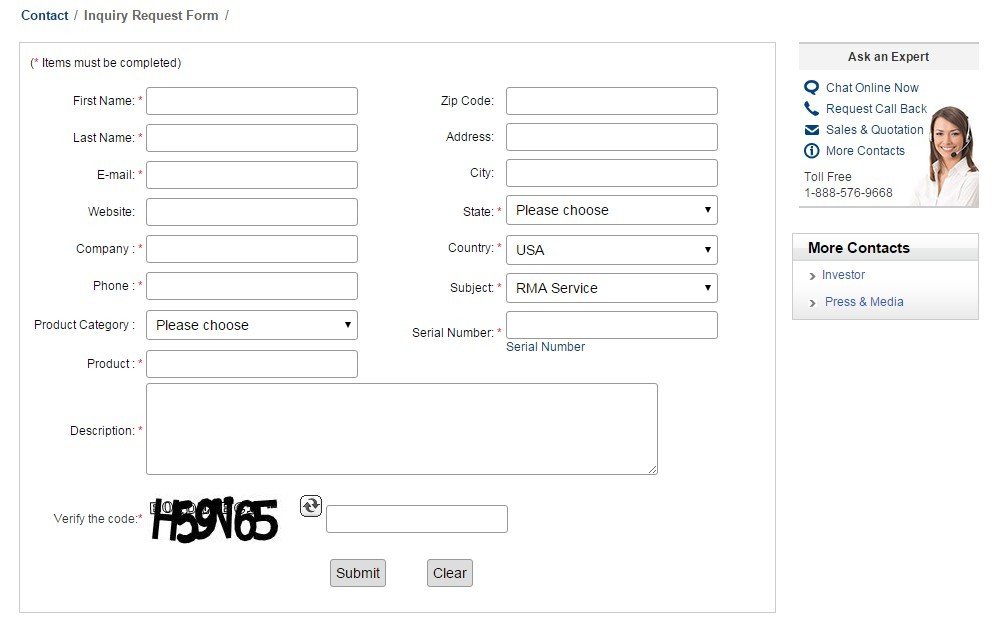

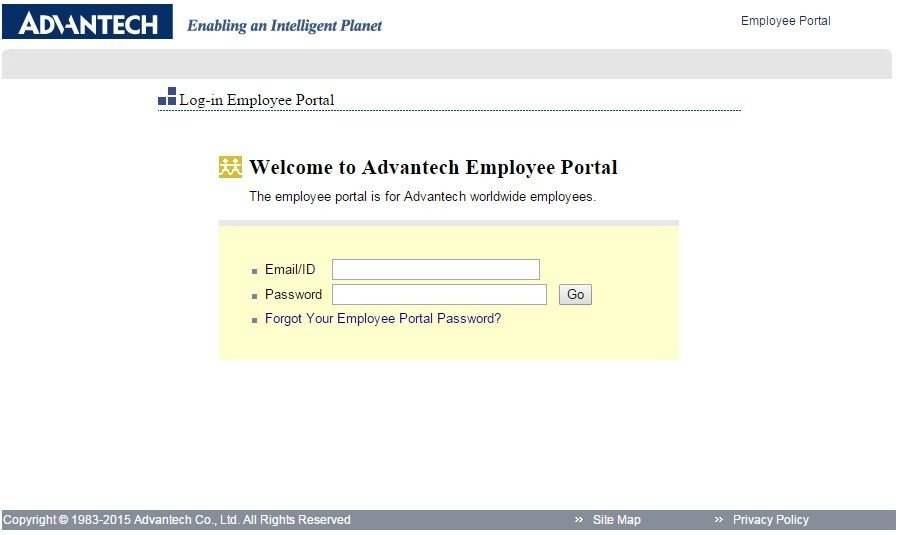

What can Protractor do ?

Quick Demo

How to write a Test Script

describe('angularjs homepage todo list', function() {

  it('first test', function() {

    browser.get('https://angularjs.org');

    var element(by.model('todoList.todoText'));

    expect(todoList.count()).toEqual(3);

  });

});

browser.ignoreSynchronization = true;

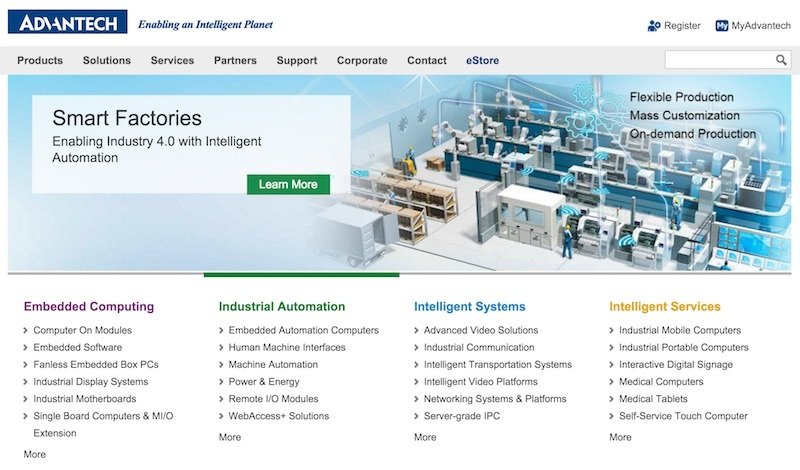

describe('Advantech homepage', function() {

    it('check bu ec link correct', function() {

          browser.get('http://www.advantech.com');

          $('.bu-color-ec').click();

          var url_now = browser.driver.getCurrentUrl();

          var url_spec = '/embedded-boards-design-in-services/';

          expect(url_now).toContain(url_spec);

    });

});

spec.js

PM

web UI

scenario

Designer

Developer

HTML

 in Search textbox

 send Key "Advantech"

 click "google search"

check Search Result

1. "Advantech" is the first result

2. the link is www.advantech.com

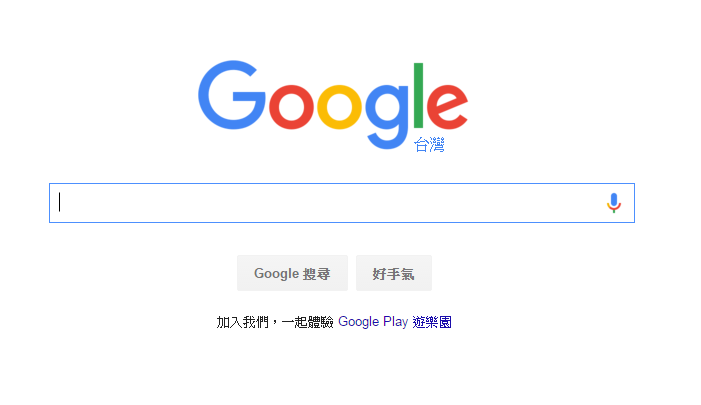

 go to Google Search

describe('[Test Google Search]', function() {










    it('the first search result is Advantech', function() {



        expect(result).toContain('Advantech');
    });

    it('the first search result is www.advantech.com', function() {



        expect(result).toContain('www.advantech.com');
    });

});

#lst-ib

#hplogo

input[name=btnK]

#ires .r a

browser.ignoreSynchronization = true;

describe('[Test Google Search]', function() {

    browser.get('https://www.google.com/');
    $('#lst-ib').sendKeys('advantech');
    $('#hplogo').click();
    $('input[name=btnK]').click();

    browser.driver.sleep(2000);

    var element =  $$('#ires .r a').get(0)

    it('the first search result is Advantech', function() {

        var result = element.getText();
        expect(result).toContain('Advantech');

    });

    it('the first search result is www.advantech.com', function() {

        var result = element.getAttribute('href');
        expect(result).toContain('www.advantech.com');

    });

});

#lst-ib

#hplogo

input[name=btnK]

#ires .r a

1. Google Resarch

2. Real case in Wise support portal website

DEMO

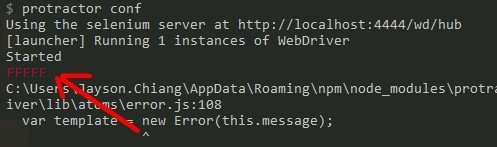

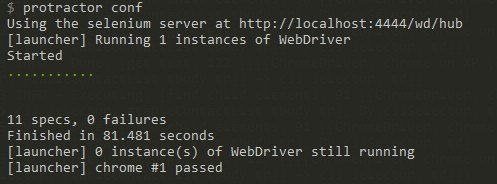

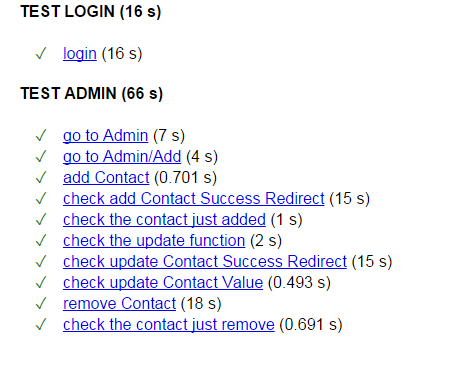

Advance - Report and PrintScreen

• Protractor can test most UI interact as real user.

• It can save time for repeating test cases.

• time spent writing/maintain tests and code.

Conclusion
