PARAMETRIZATION OF SURFACES
A function of two real variables \(z=f(x,y)\)
\(\mathbb R\)
a unique real number \(z.\)

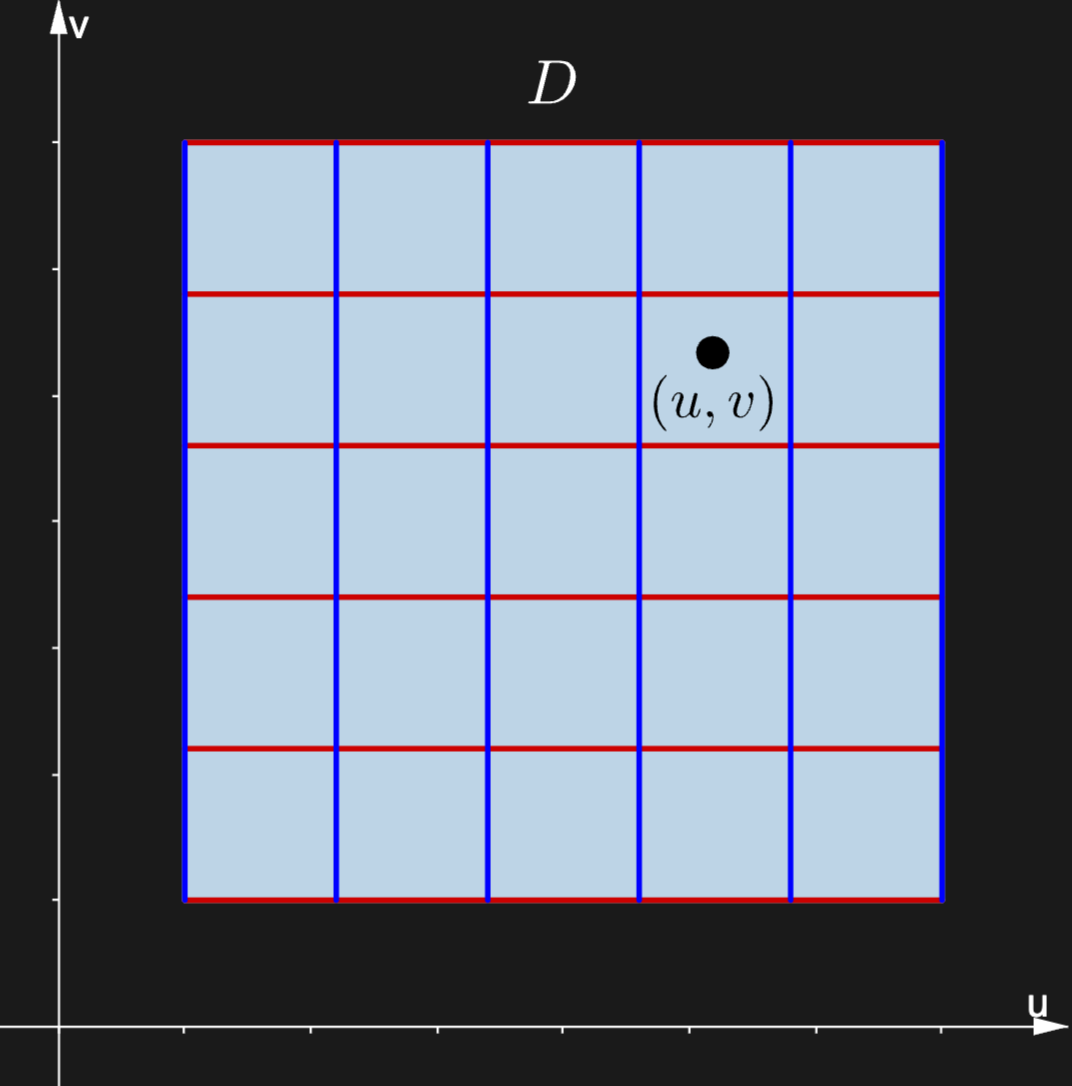

\((x,y)\)

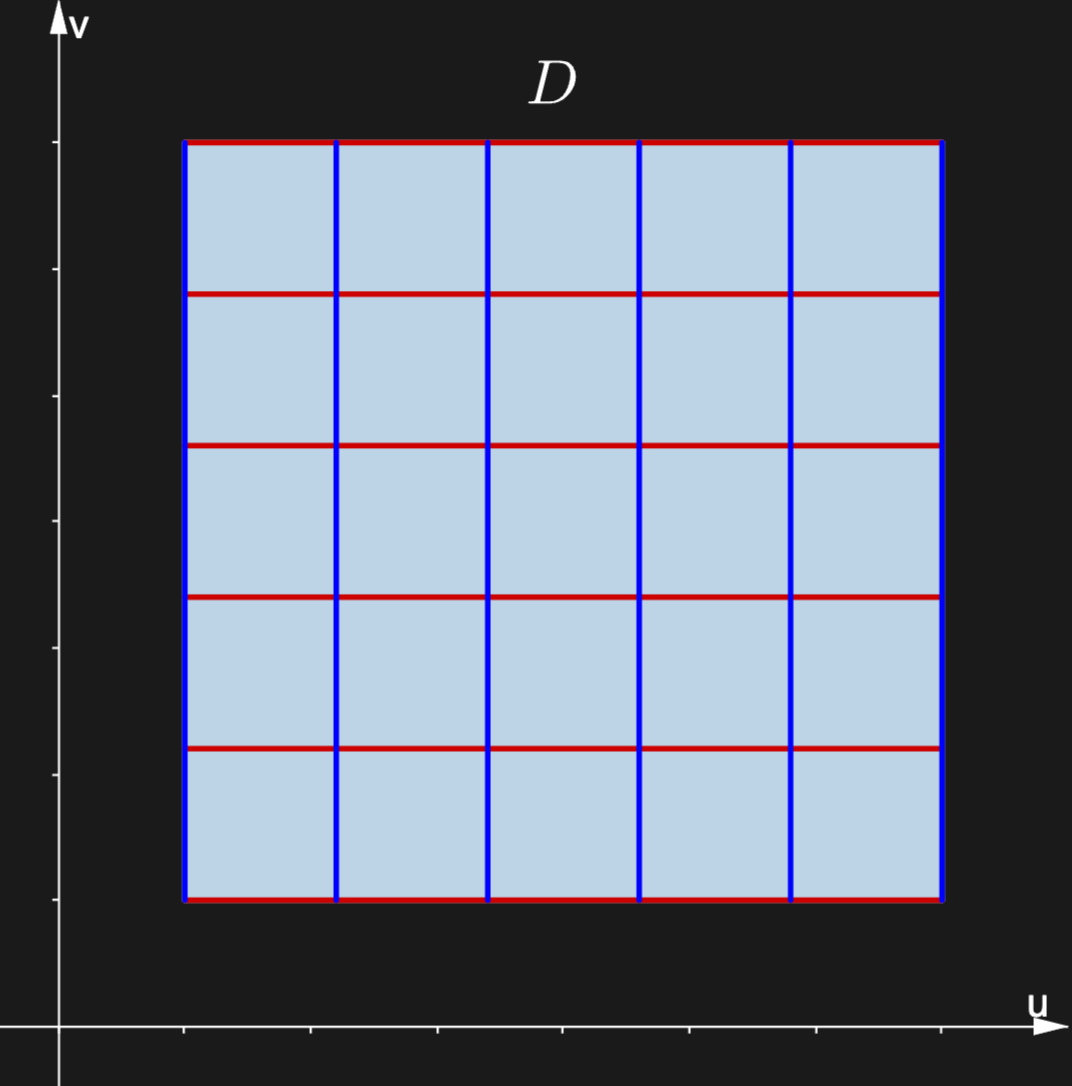

\(D\)
\(f\)
assigns to each point in its domain \(D\subset \mathbb R^2\)
\(D\subset\mathbb R^2\)

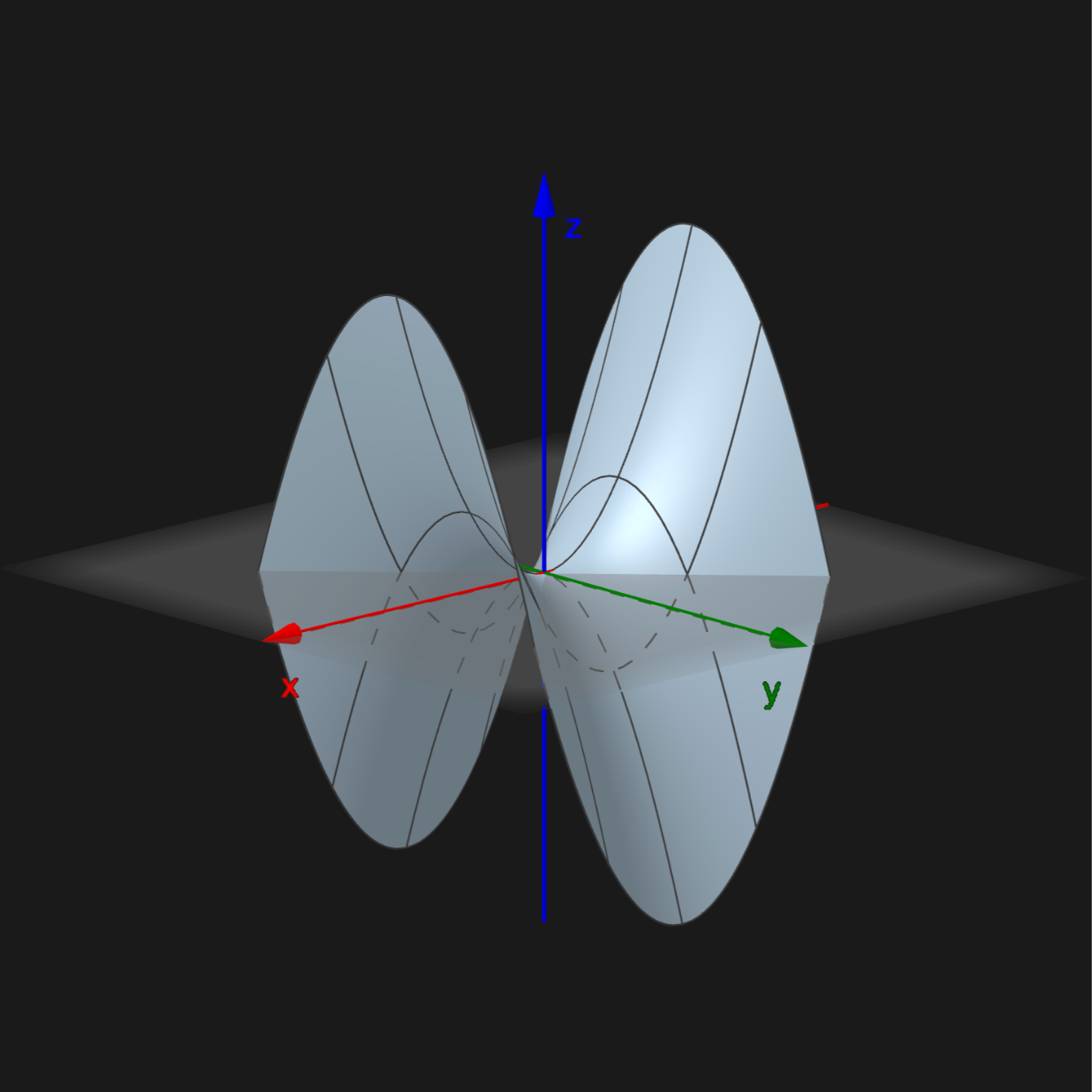

f(x,y) = x^2-y^2
Surface
Surface

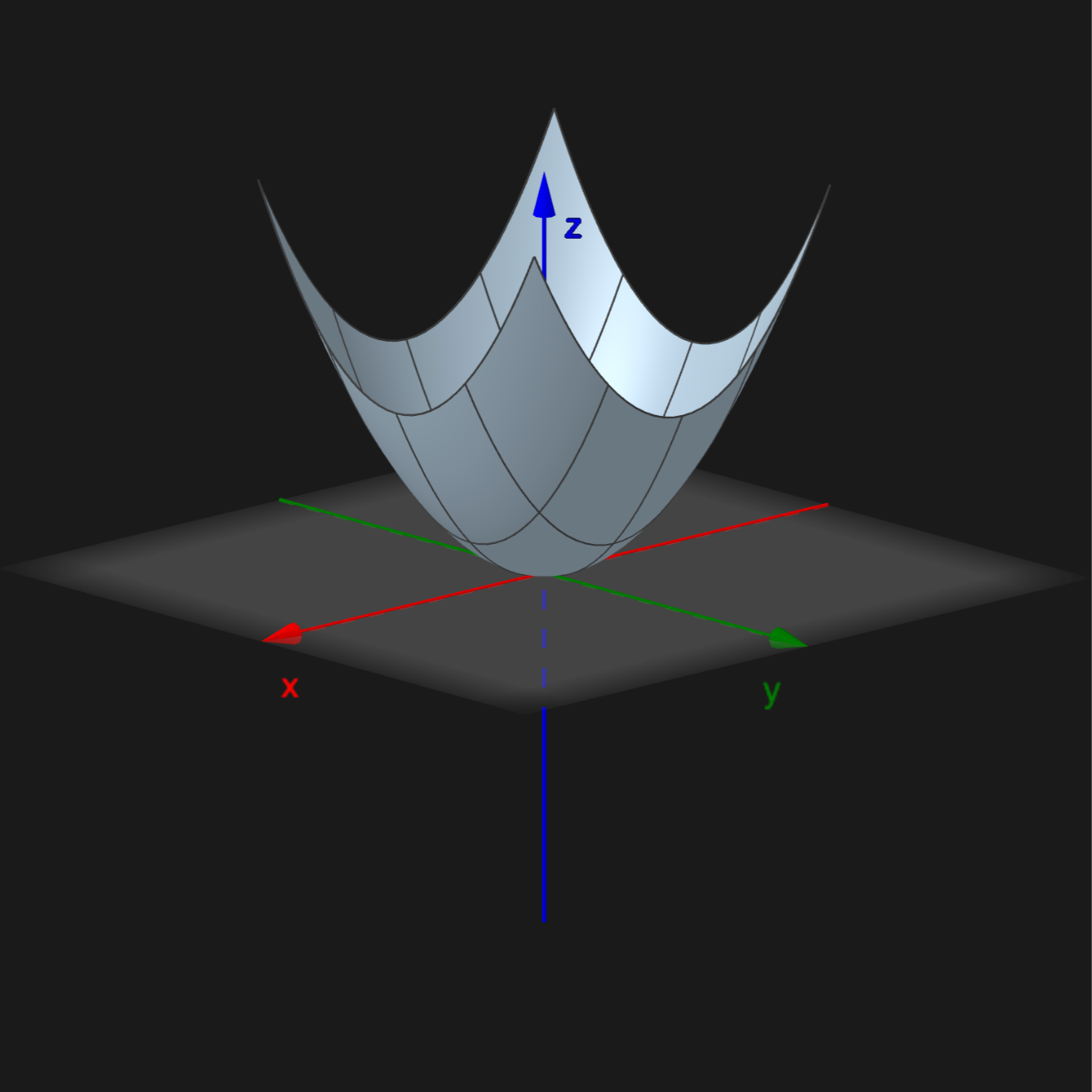

f(x,y) = x^2+ y^2
Surface

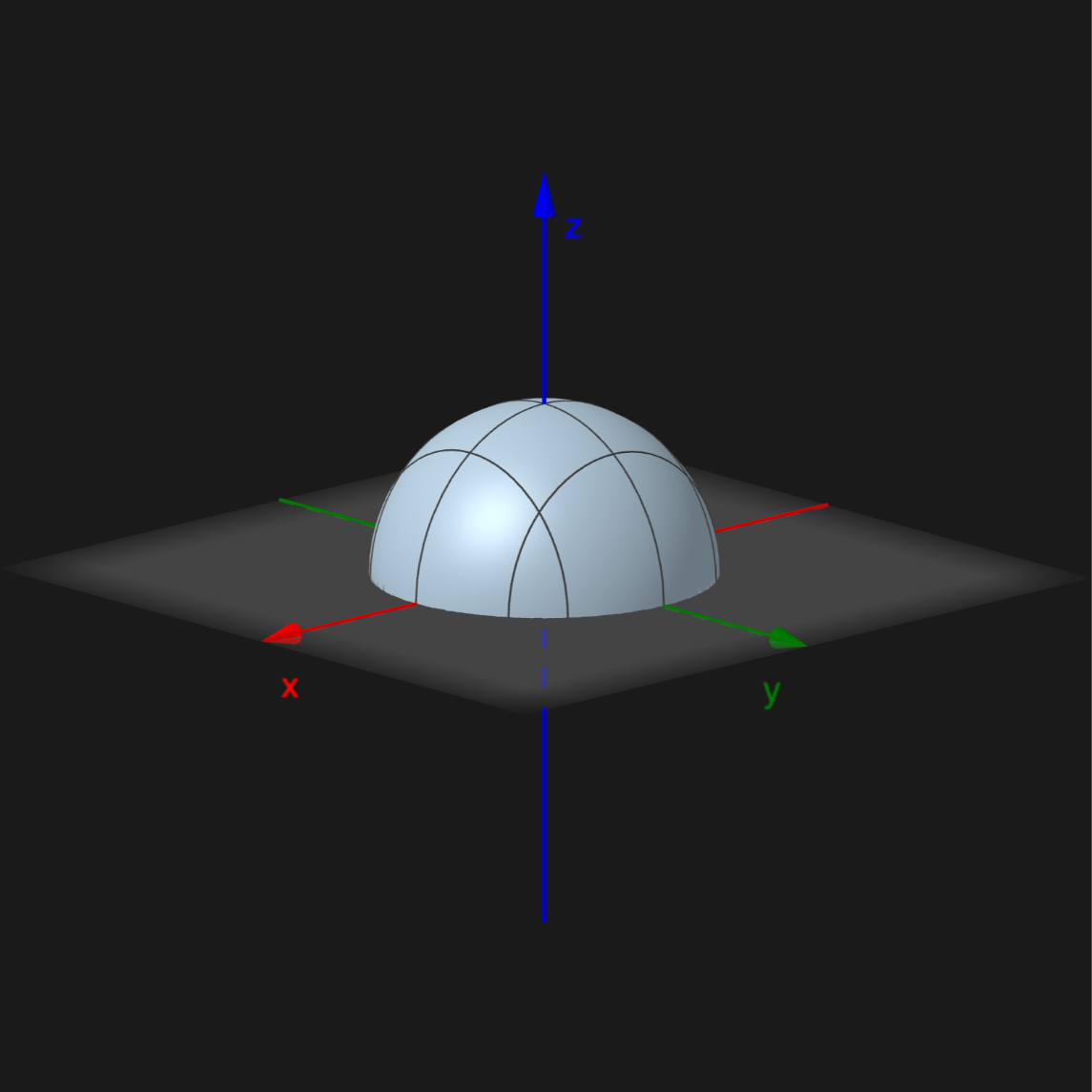

f(x,y) = \sqrt{1-x^2-y^2}
Surface
f(x,y) = ???
Surface

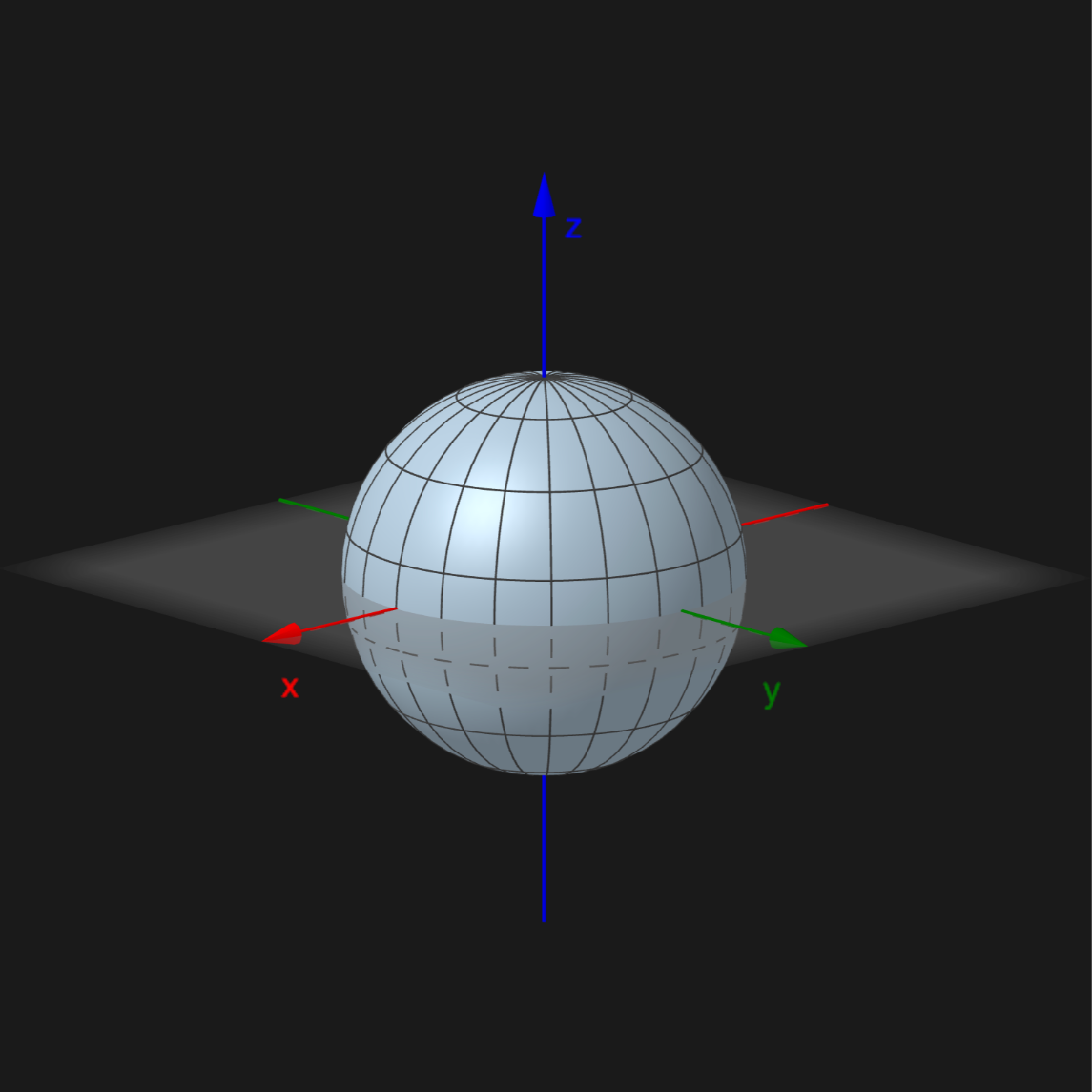

Sphere
f(x,y) = ???
Surface

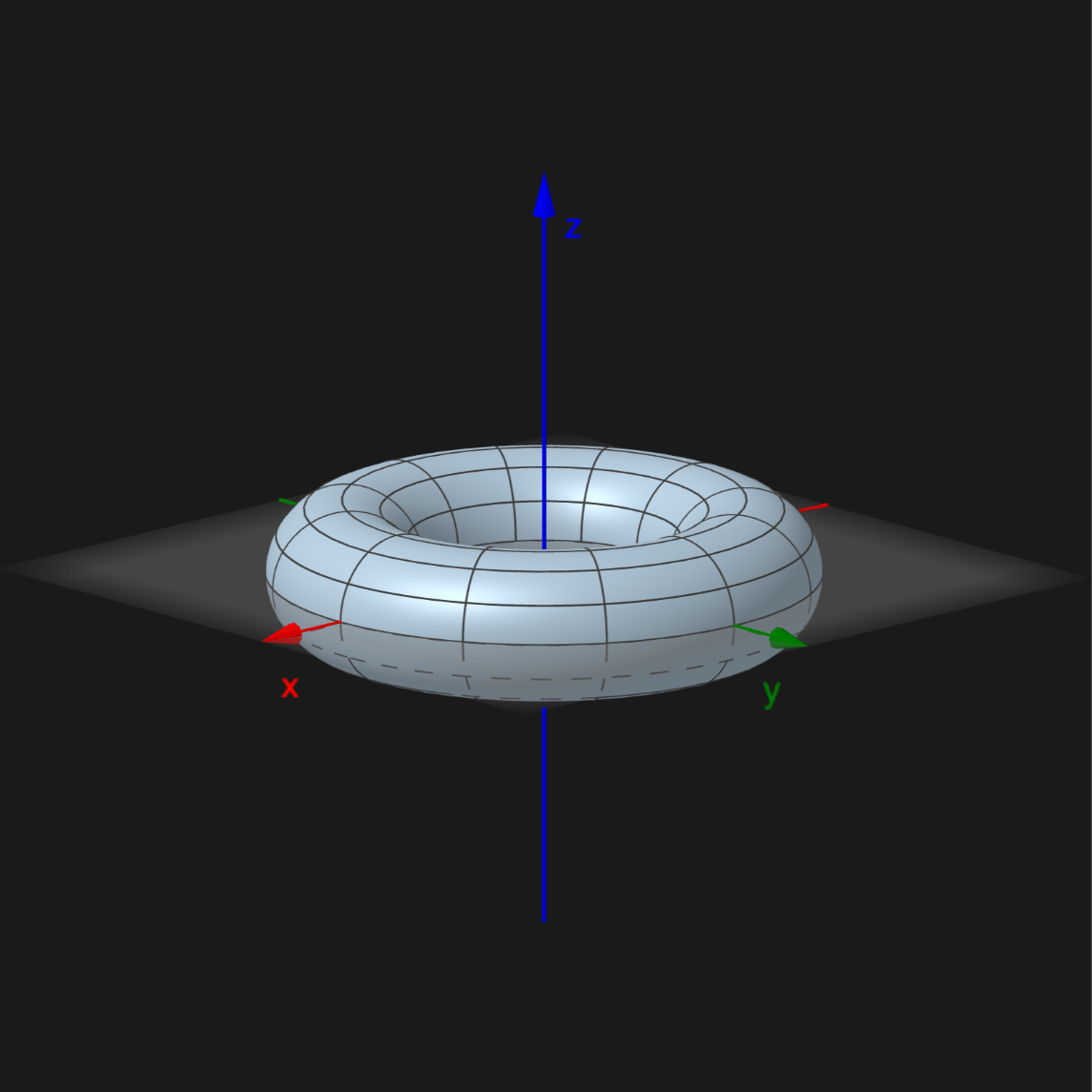

Torus
f(x,y) = ???
Surface

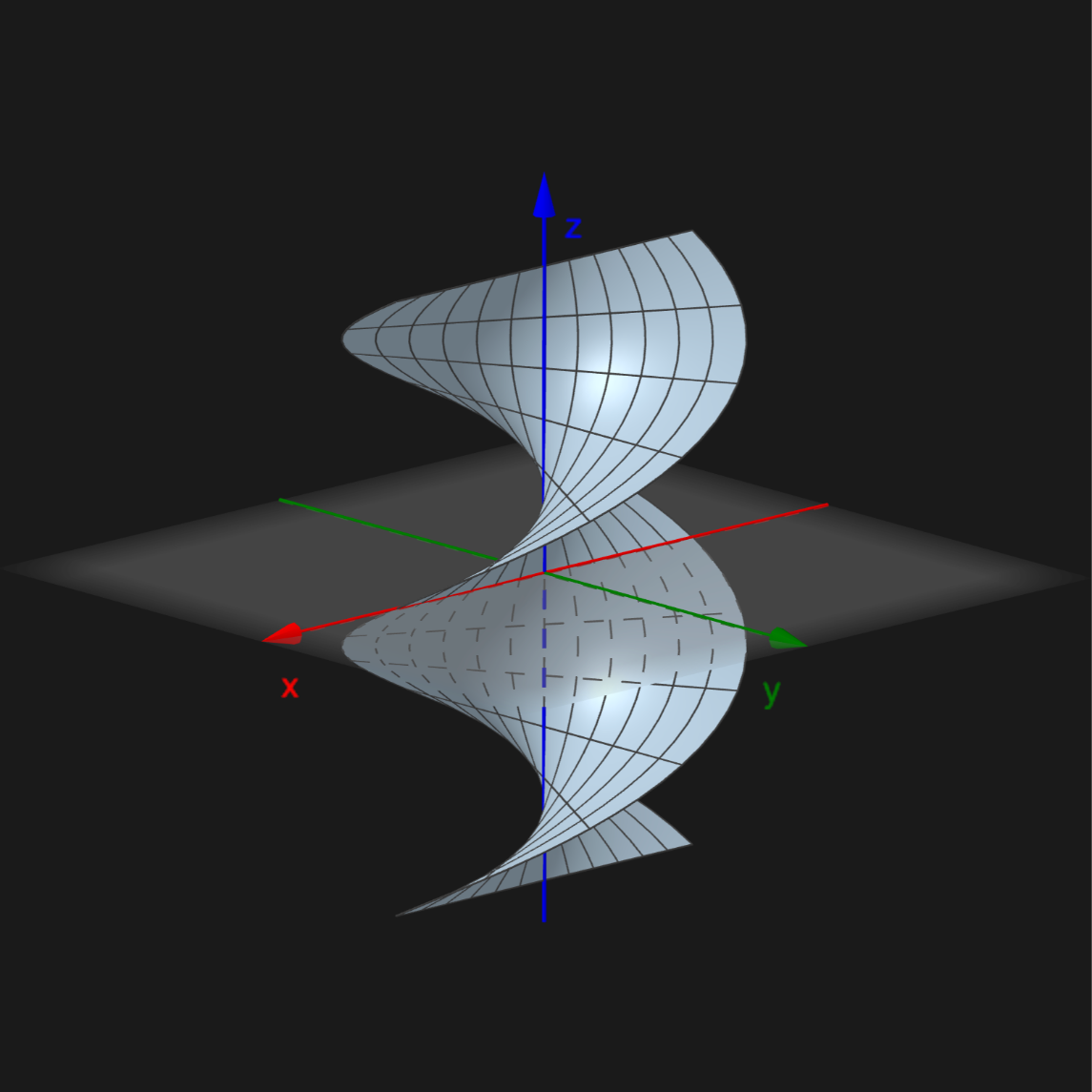

Helicoid
f(x,y) = ???

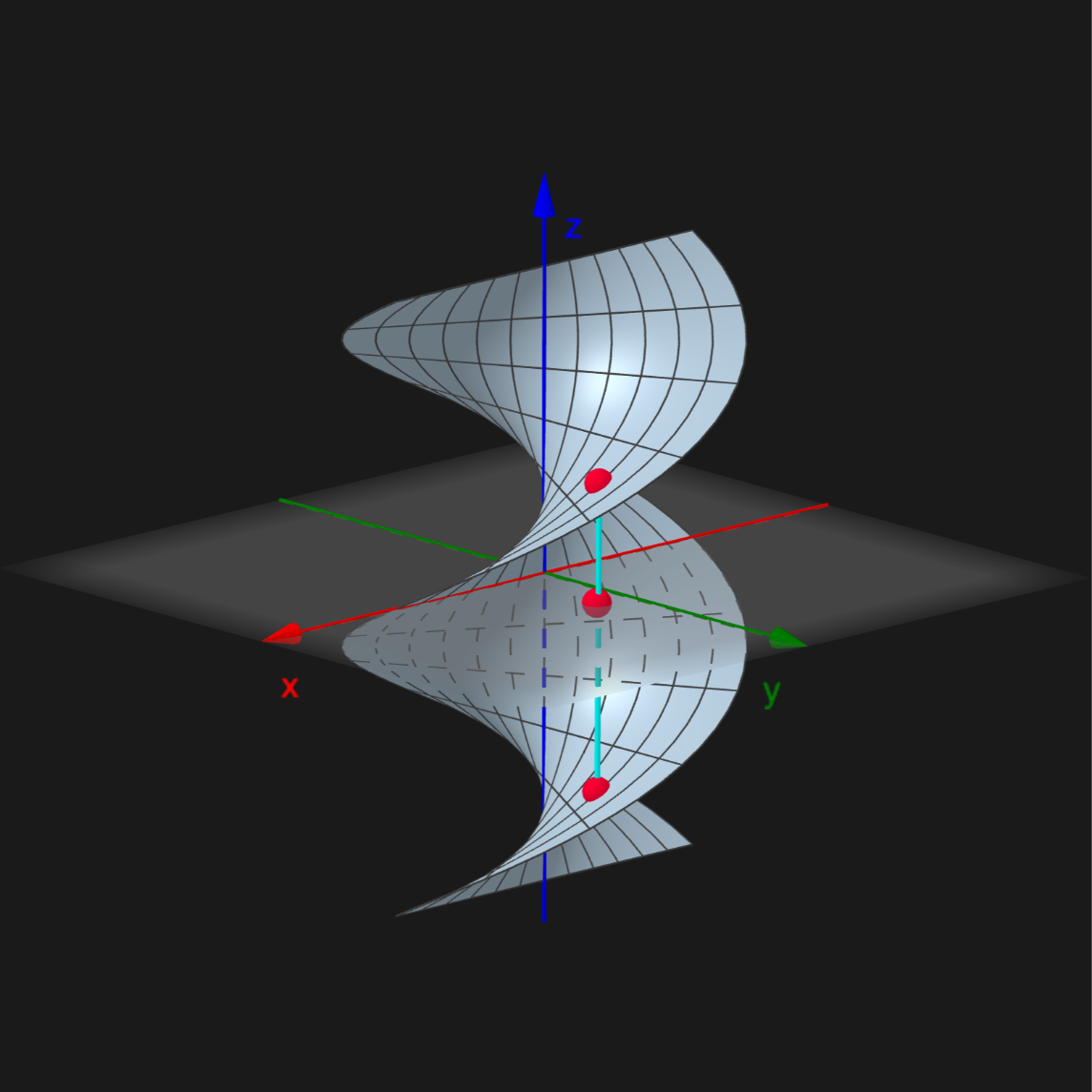

\left(x_1,y_1\right)
z_1=f\left(x_1,y_1\right)
z_2=f\left(x_1,y_1\right)
f(x,y) = ???
z_1 \neq z_2
It doesn't fit the definition of function!
Parametrization of surfaces
How can we defined these surfaces?
Sphere
Torus
Helicoid
Parametrization of surfaces
Parametrization of surfaces
Parametrization of surfaces
\mathbf r
x=x\left(u,v\right)
y=y\left(u,v\right)
z=z\left(u,v\right)
\left(x,y,z\right)
Parametrization of surfaces
Parametrization of surfaces

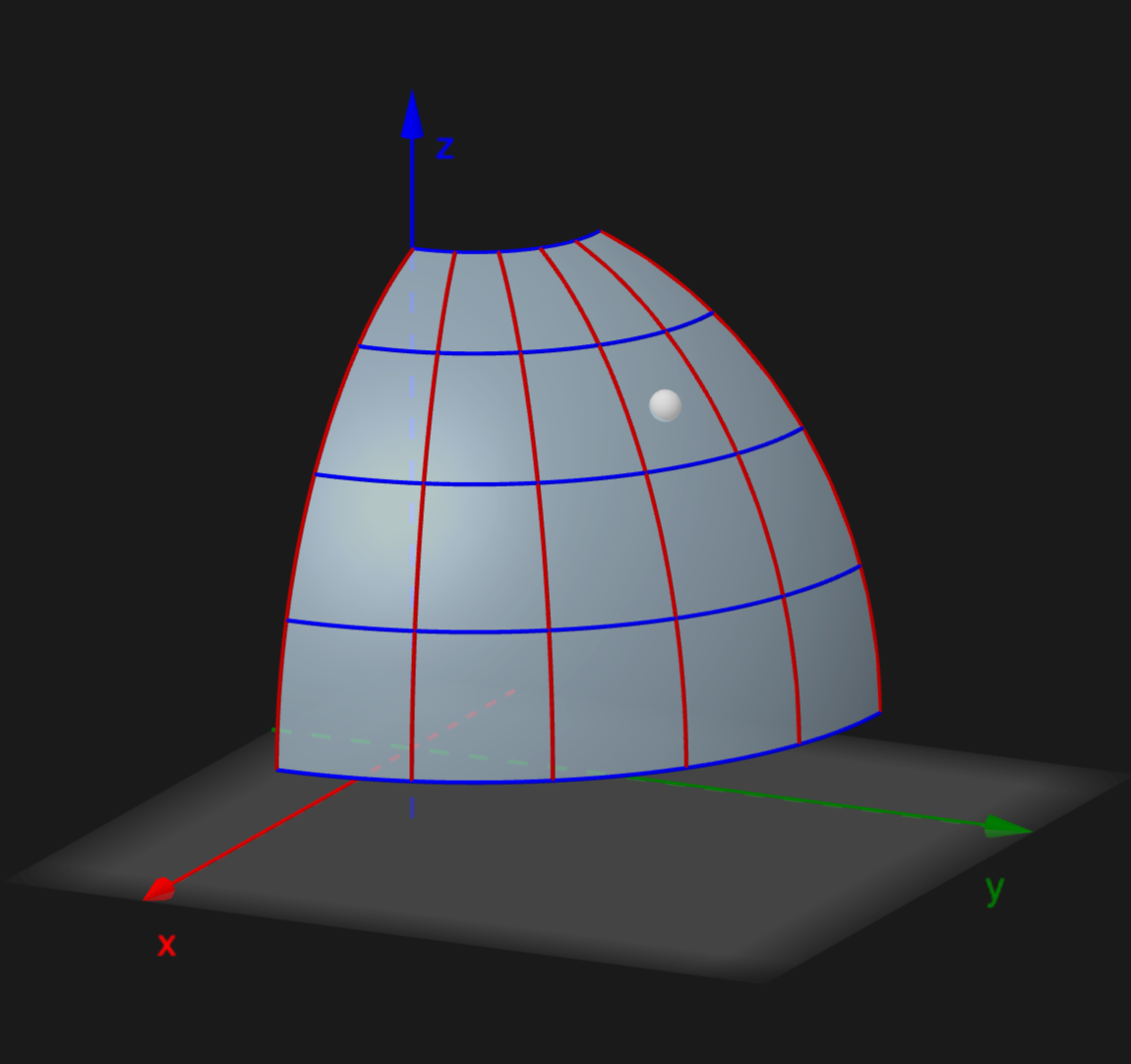

Sphere
Torus
Helicoid
x = \cos u \sin v
y = \sin u \sin v
z = \cos v
x = \cos u\left(\frac{1}{2}\cos v + 2\right)
y = \sin u \left(\frac{1}{2} \cos v + 2\right)
z = \frac{1}{2}\sin v
x = u \cos v
y = u \sin v
z = v
0\leq u\leq 2\pi
0\leq v\leq \pi
0\leq u\leq 2\pi
0\leq v\leq 2\pi
-2\leq u\leq 2
-\pi\leq v\leq \pi

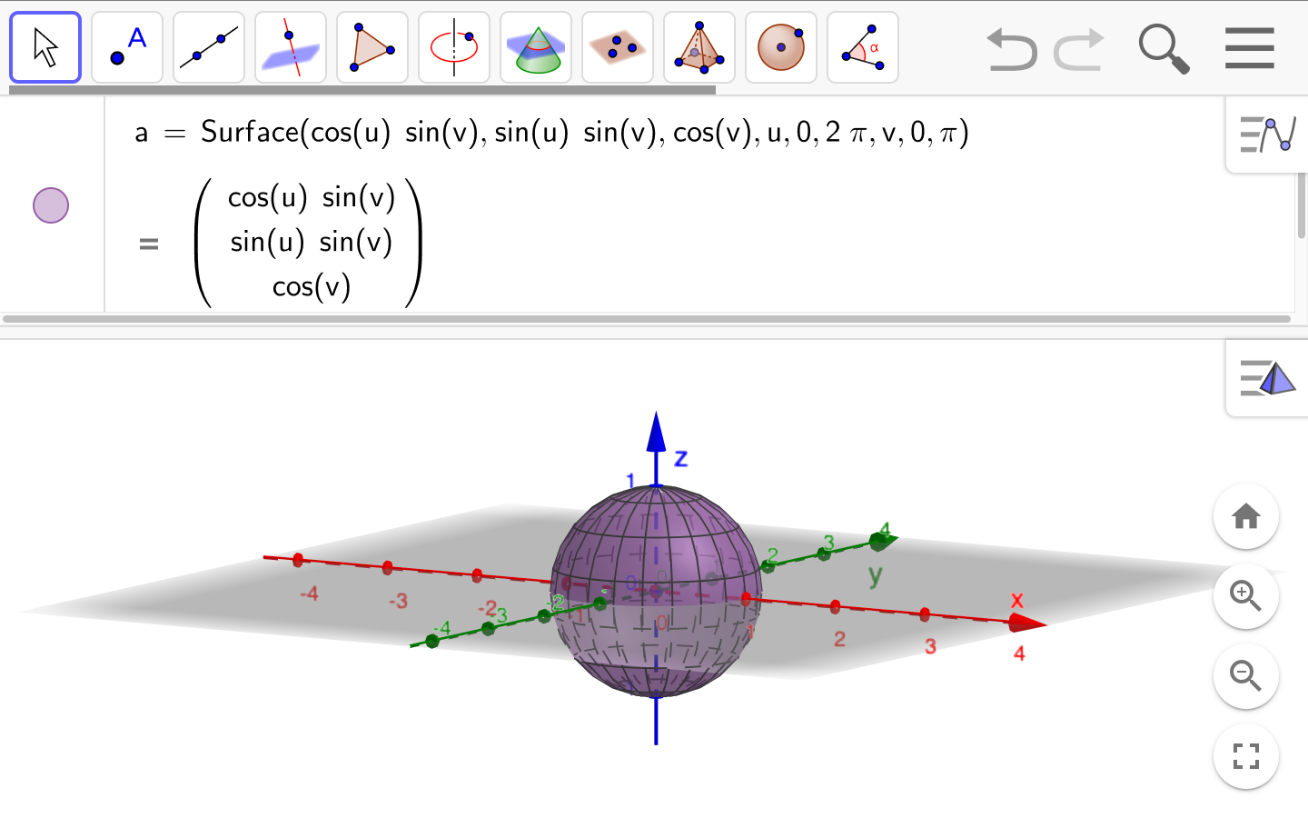

GeoGebra

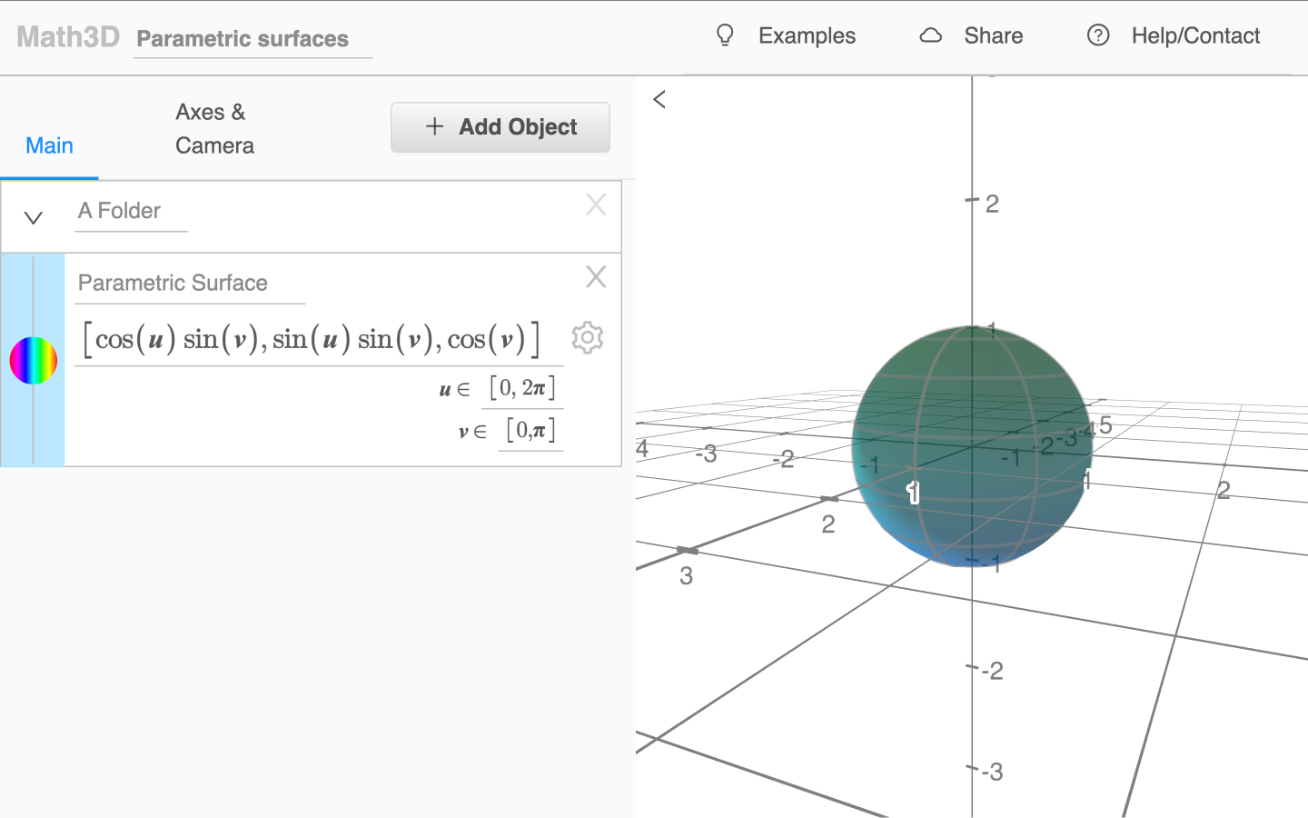

Math3D.org

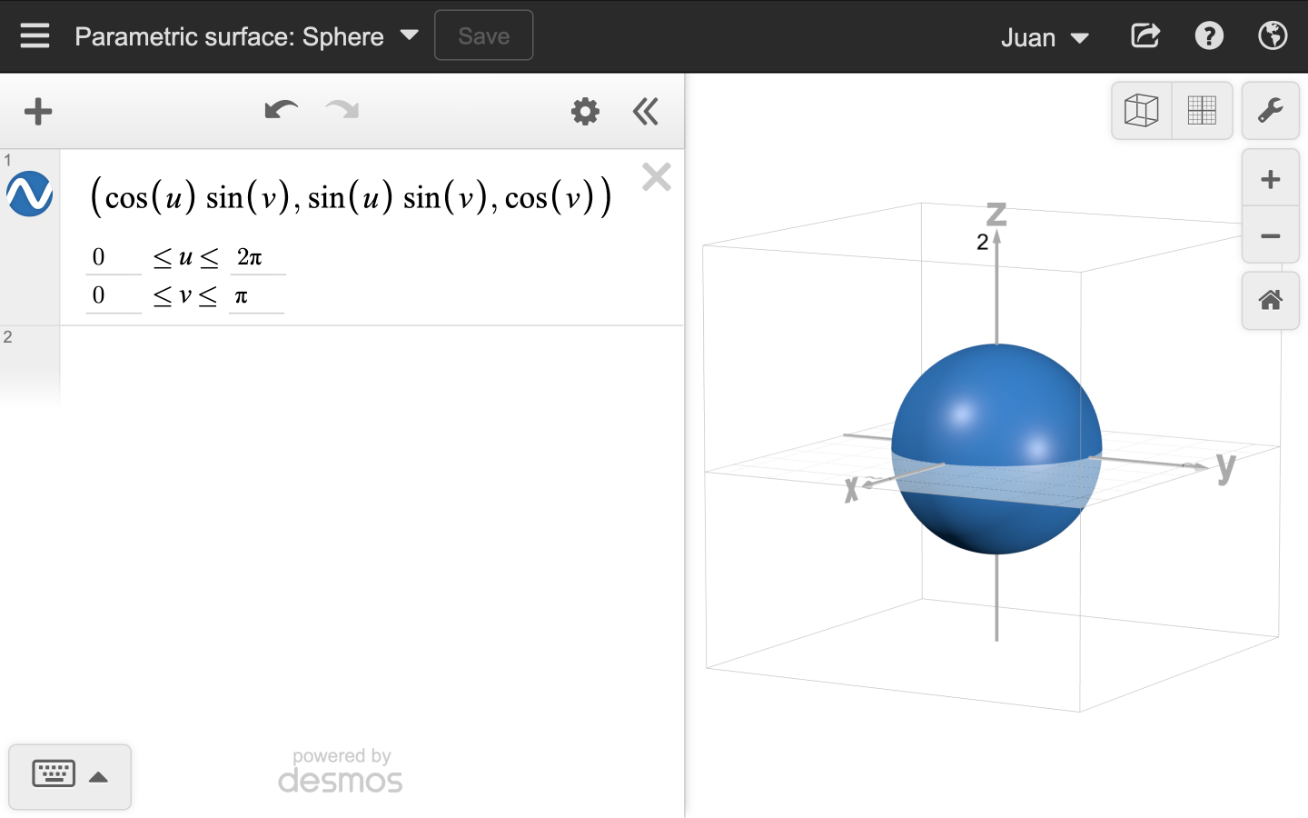

Desmos
