lets make

a robot

lets build it

first!

Select a main board

EaSY TO CONNECT

MULTIPLE ANALOGIC AND DIGITAL I/O

greaT community

ALL THE CODE YOU NEED IS ON INTERNET

lower capabilities

NOT GREAT AT BIG CALCULATIONS

And a restricted Arduino's environment

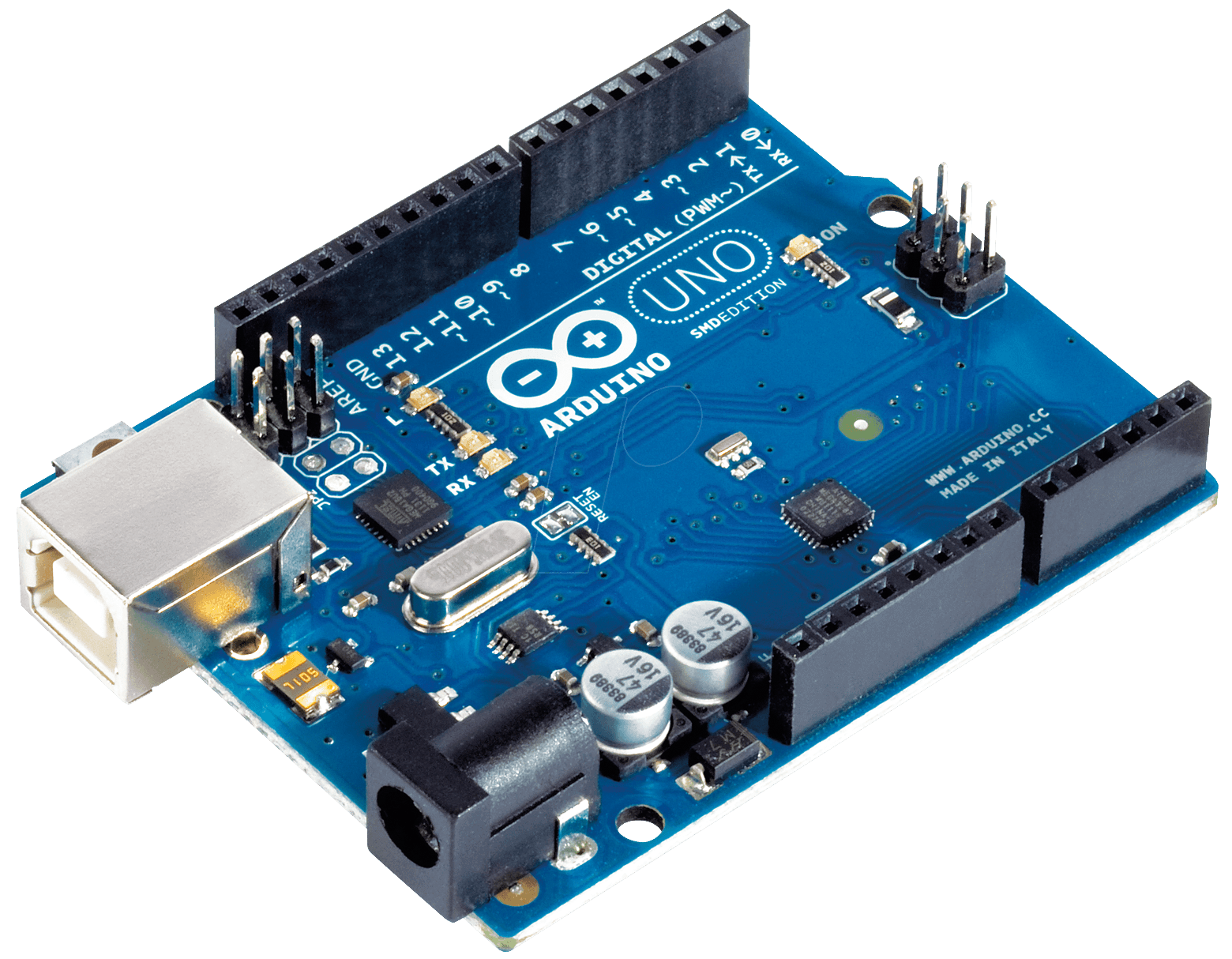

arduino

arduino

multiple modules

CAMERA, BLUETOOTH, ETC...

greaT community

ALL THE CODE YOU NEED IS ON INTERNET

great capabilities

CAN DO HEAVIER TASKS

And can do whatever you want

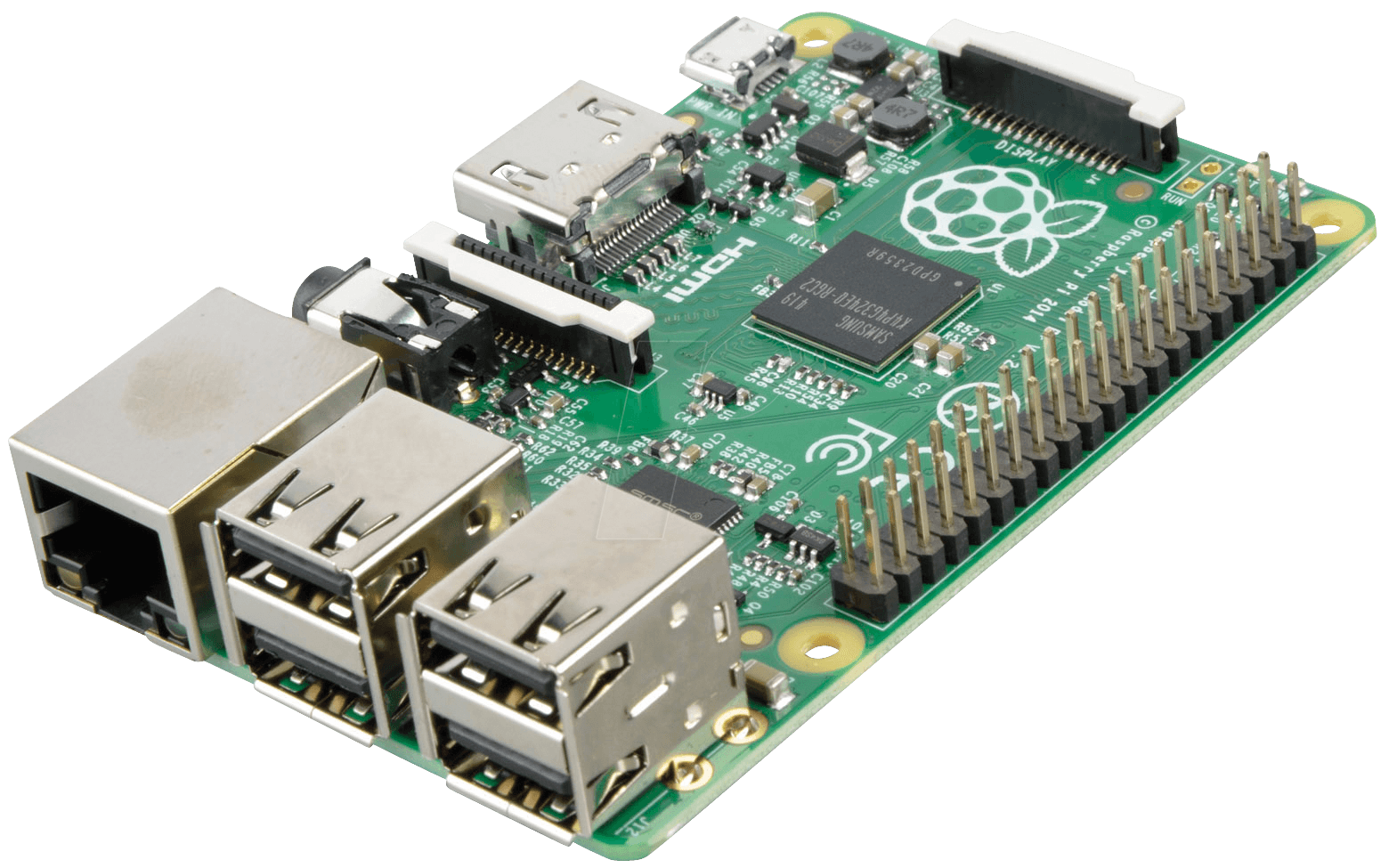

raspberry pi

ODROID

NANOPC

MINOWBOARD

BEAGLEBONE

BANANA PI

CUBIEBOARD

. . .

the no js parts

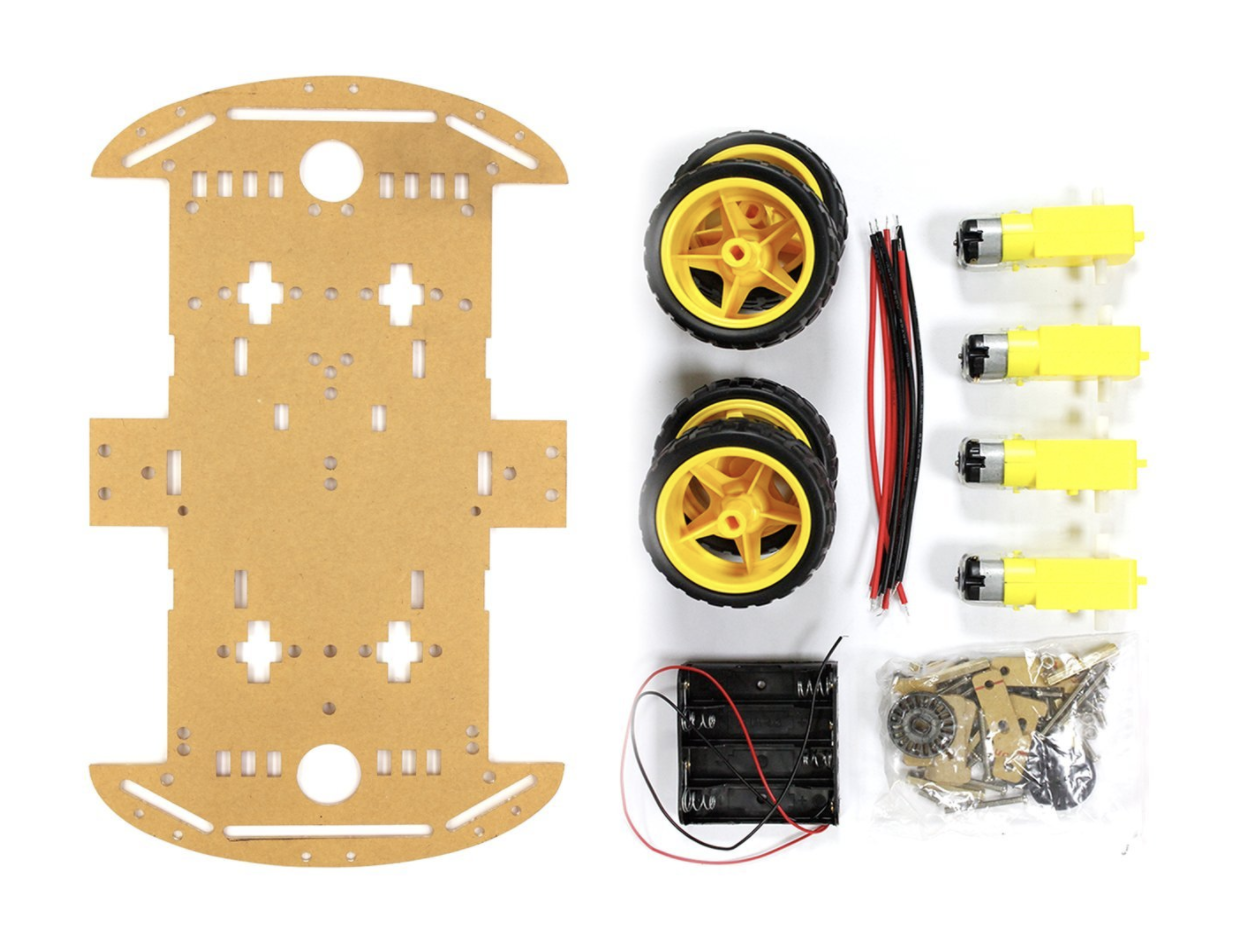

• Chasis

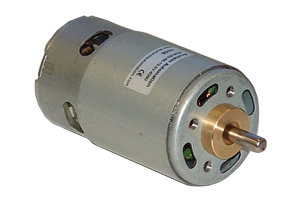

• 4 x DC Motor
• 4 x Wheels
• Battery module

                              13.99 €

things we need

things we need

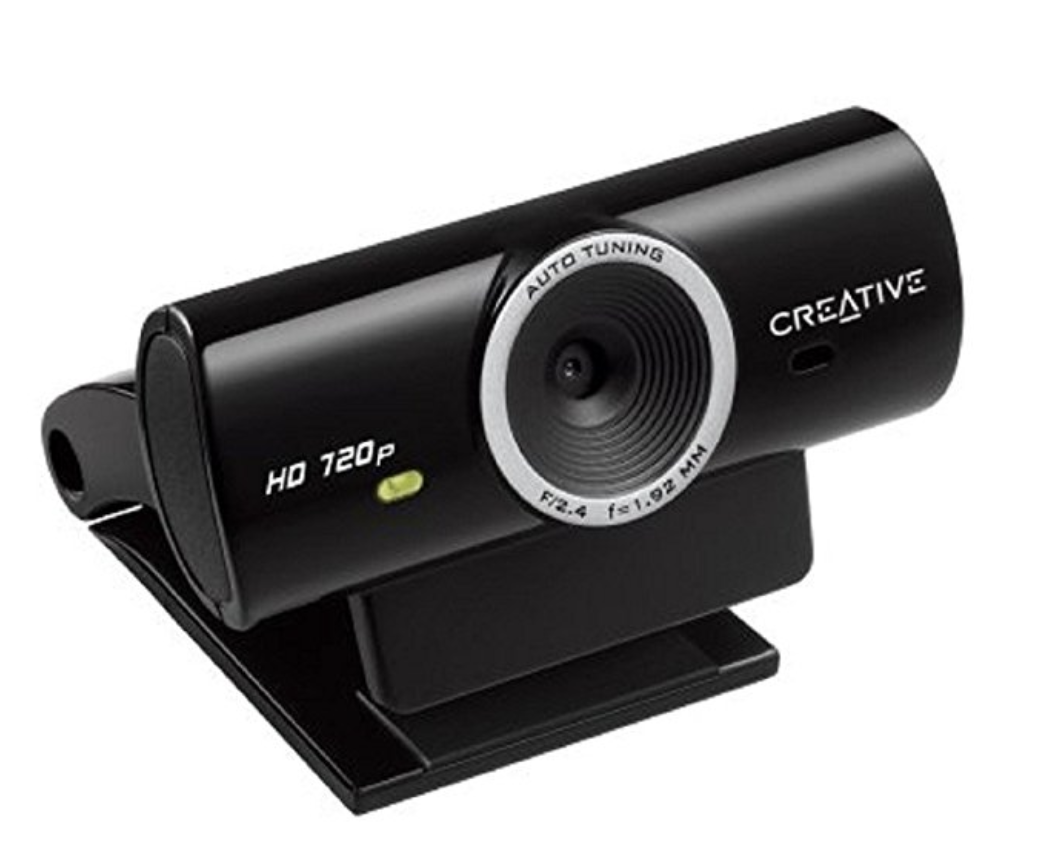

• Webcam

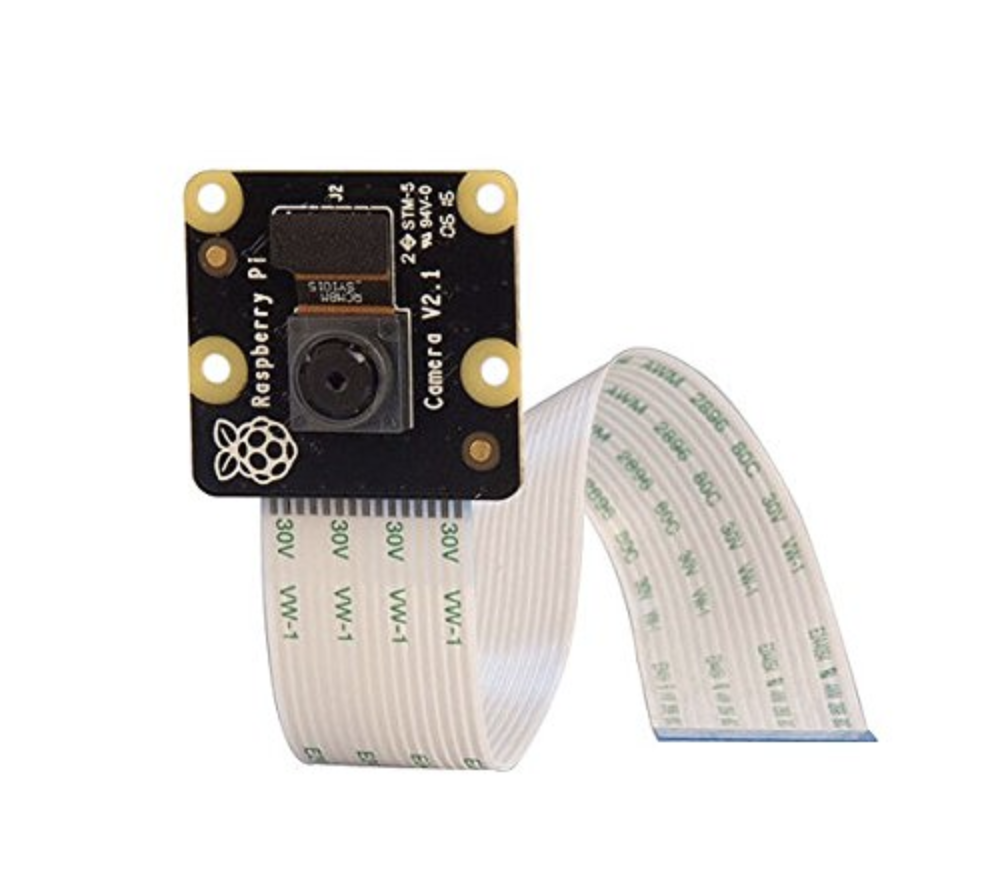

• Raspi Cam Module

          13.99 € / 29.90 €

things we need

things we need

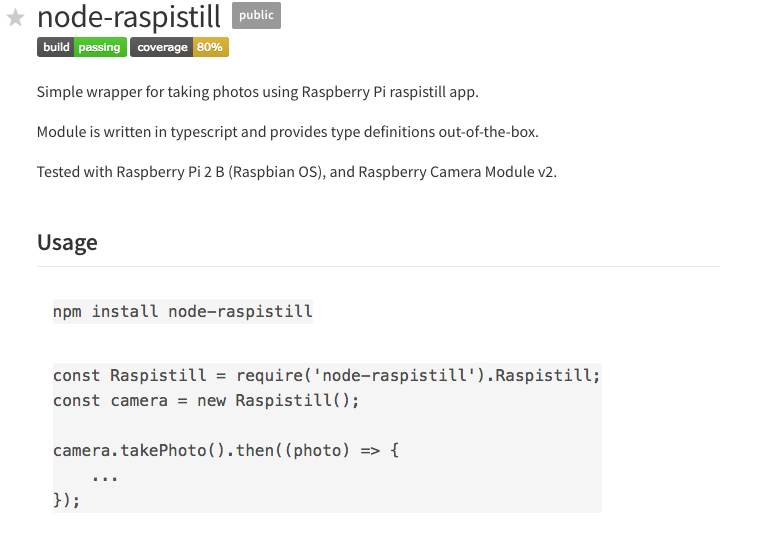

const Raspistill = require('node-raspistill').Raspistill;

...

class ImageAnalyzer {

  constructor() {
    this.camera = new Raspistill({
        fileName: 'test',
        verticalFlip: true,
        width: 640,
        height: 480
    });
  }

...

  async capture() {
    let photo = await this.camera.takePhoto();
  }

...
}

things we need

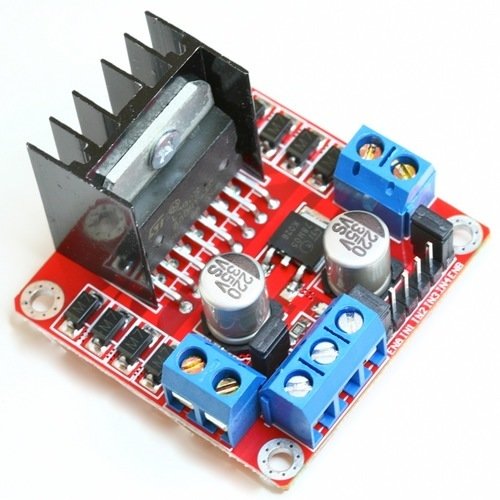

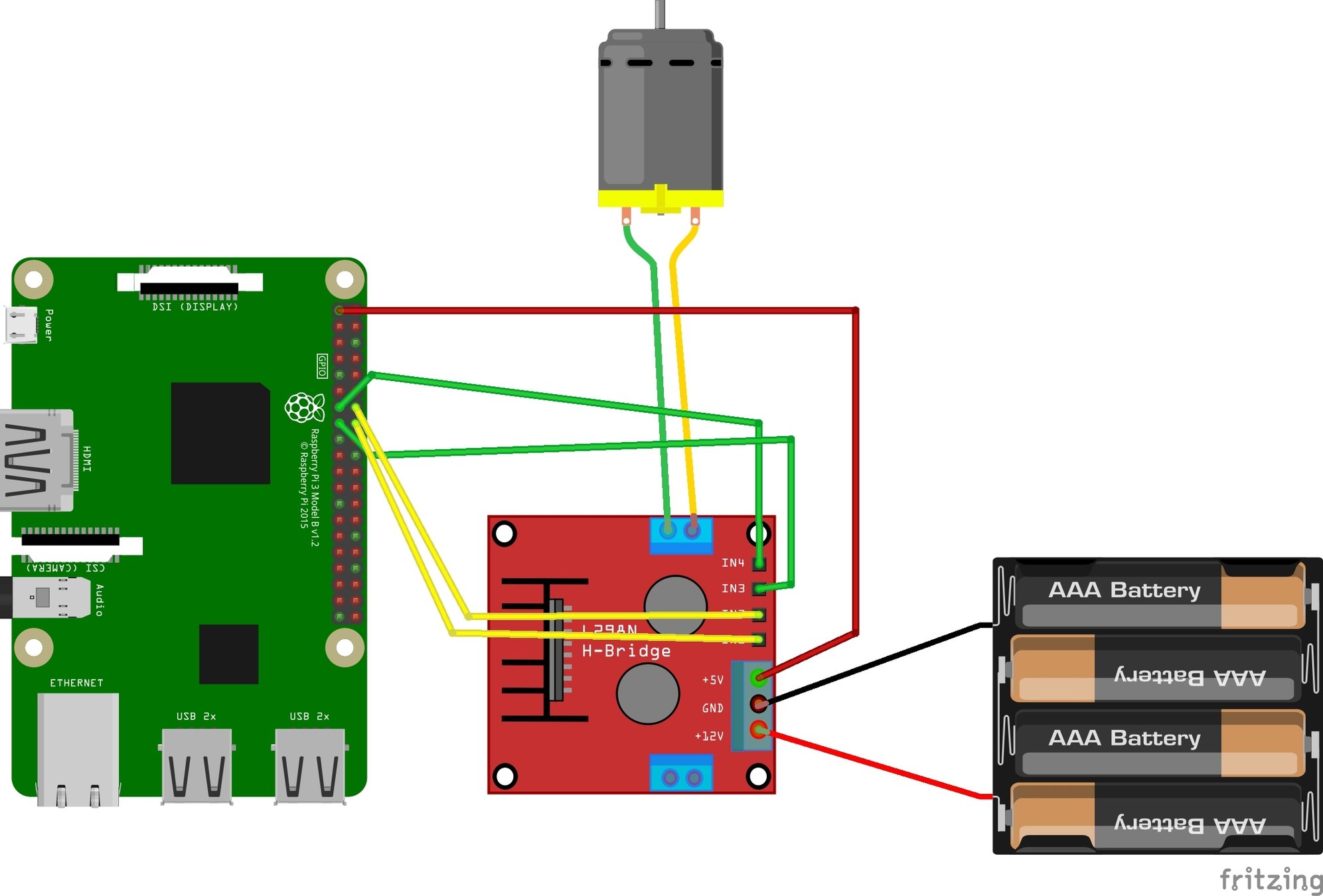

• L298N Motor controller

                               5.99 €

GPIO (General Purpose Input/Output) refers to a generic pin in a chipset and whose behaviour can be programmed by the user

things we need

things we need

things we need

  // SET MOTOR PINS
  const motors = {
    leftFront: 16,
    rightFront: 18
  };

  // SET PINS I/O MODE
  async.parallel([
      (callback) => { gpio.setup(motors.leftFront, gpio.DIR_OUT, callback); },
      (callback) => { gpio.setup(motors.rightFront, gpio.DIR_OUT, callback); },
  ], goForward);


  // SEND 1
  goForward() {
    async.parallel([
      (callback) => { gpio.write(this.motors.leftFront, true, callback)},
      (callback) => { gpio.write(this.motors.rightFront, true, callback)}
    ], callback);
  }

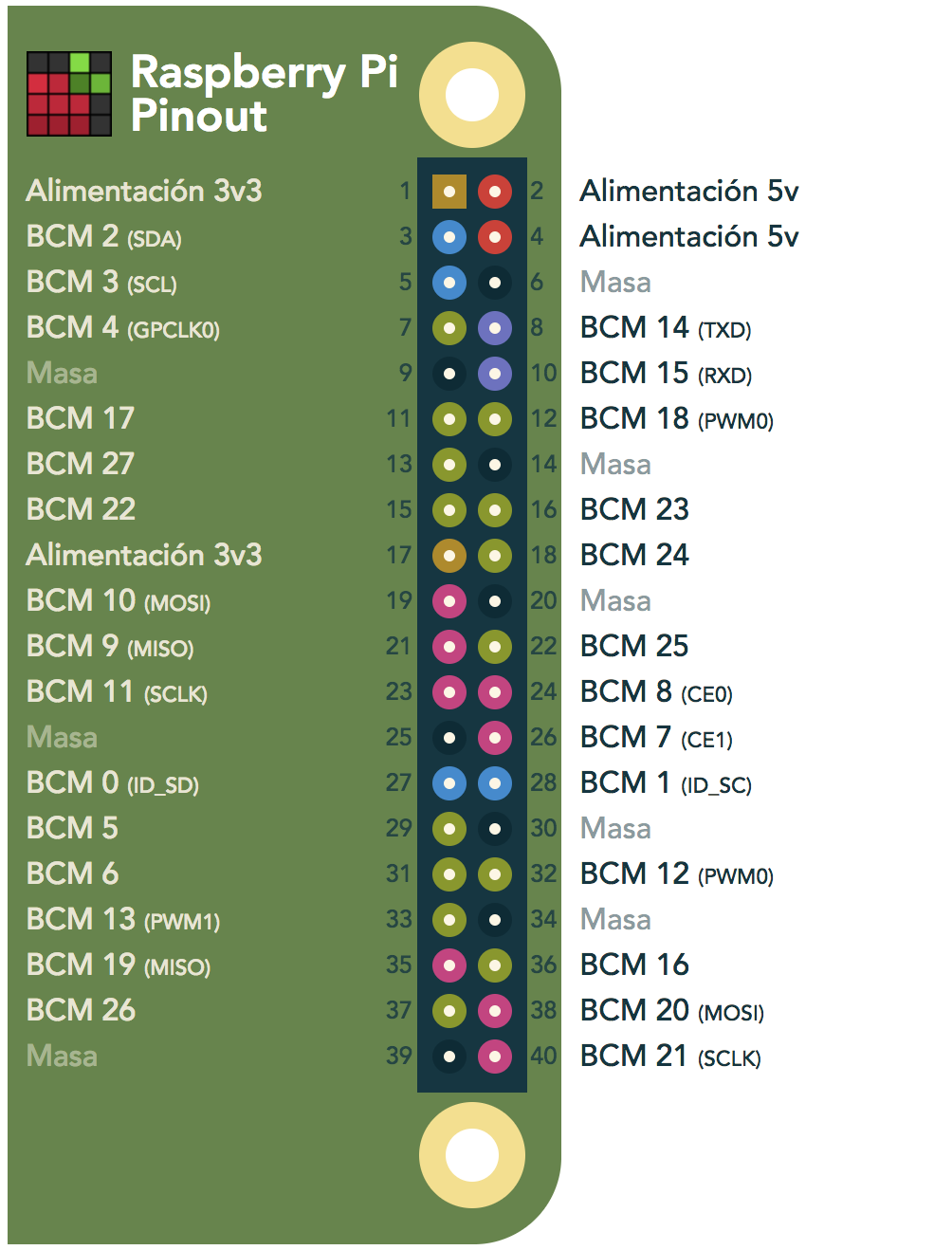

https://pinout.xyz/

Raspberry Pi Pinout guide

things we need

things we need

the js parts

     Have to move by remote control

     Have to send images

     Have to interact with the world

WHAT I NEED?

remote control

remote control

remote control

remote control

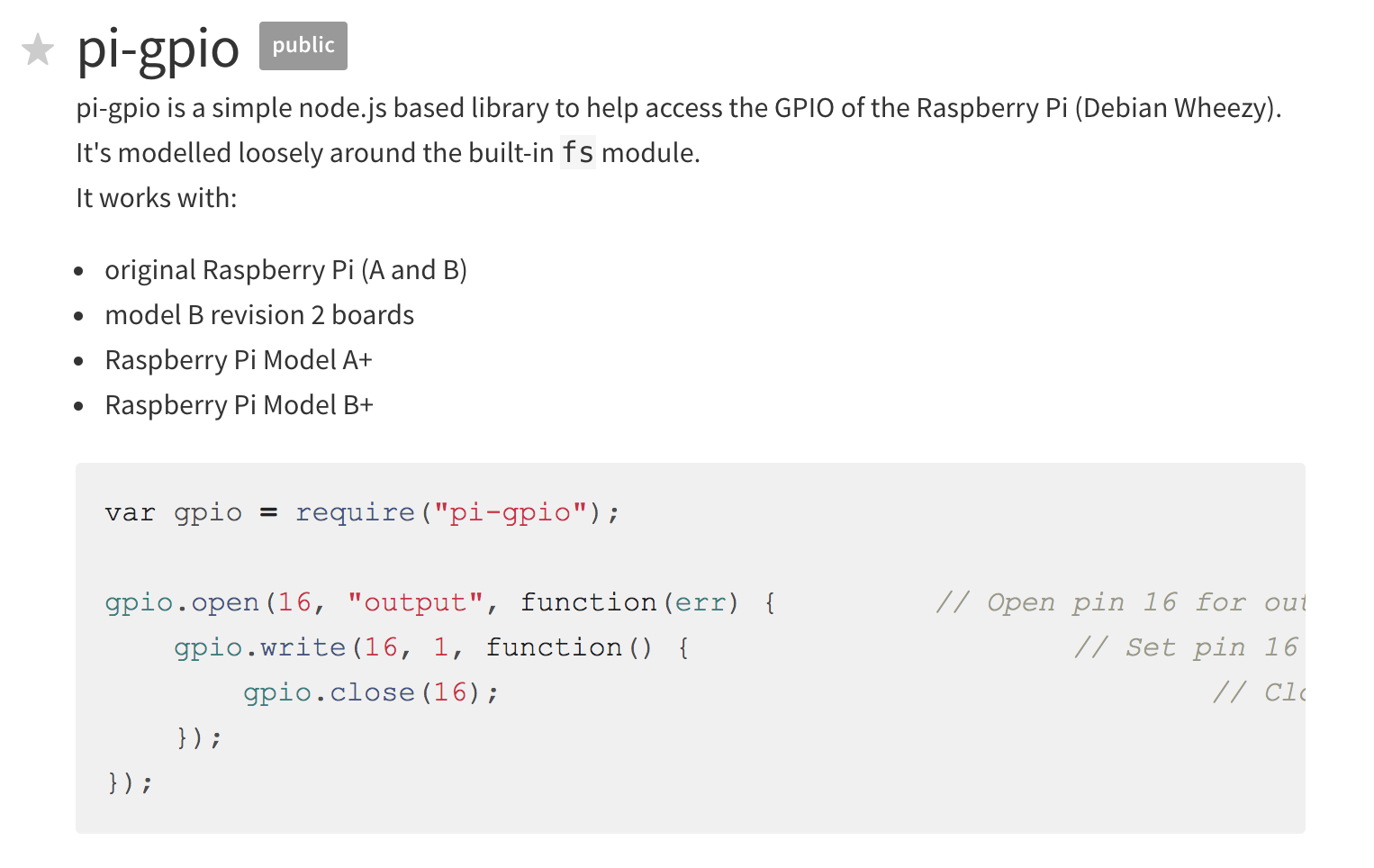

RPI-GPIO

class Robot {

  constructor(firebaseRef) {
    if (!firebaseRef) {
      firebase.initializeApp(CONFIG.firebase);
      firebaseRef = firebase.database().ref('orders');
    }

    this.direction;
    this.motors = this.initPins();
    this.firebaseRef = firebaseRef;
    this.listenOrders();
  }


  listenOrders() {
    this.firebaseRef.on('value', (snapshot) => {
      const direction = snapshot.val().direction;
      this.updateDirection(direction);
    });
  }

  ....

remote control

 initPins() {
    const motors = {
      leftFront: 16,
      leftBack: 13,
      rightFront: 18,
      rightBack: 15
    };

    async.parallel([
      (callback) => { gpio.setup(motors.leftFront, gpio.DIR_OUT, callback); },
      (callback) => { gpio.setup(motors.leftBack, gpio.DIR_OUT, callback); },
      (callback) => { gpio.setup(motors.rightFront, gpio.DIR_OUT, callback); },
      (callback) => { gpio.setup(motors.rightBack, gpio.DIR_OUT, callback); },
    ]);

    return motors;
  }

  goForward() {
    async.parallel([
      (callback) => { gpio.write(this.motors.leftFront, true, callback)},
      (callback) => { gpio.write(this.motors.rightFront, true, callback)}
    ]);
  }

remote control

WHAT I NEED?

     Have to move by remote control

     Have to send images

     Have to interact with the world

sending images

(Not selected solution)

sending images

?

sending images

Headless Chrome Node Api

sending images

const browser = await puppeteer.launch({
  headless: true,
  args: [
    "--allow-running-insecure-content",
    "--ignore-certificate-errors",
    "--use-fake-ui-for-media-stream",
     "--unsafely-treat-insecure-origin-as-secure"
  ],
  userDataDir: "/Users/jroji/tmp/puppeteer/Chrome",
});

await page.goto('https://appr.tc/r/910993264', {
    waitUntil: 'networkidle'
});

await page.click("#confirm-join-button");

sending images

sending images

STORAGE

sending images

sending images

WHAT I NEED?

     Have to move by remote control

     Have to send images

     Have to interact with the world

interacting

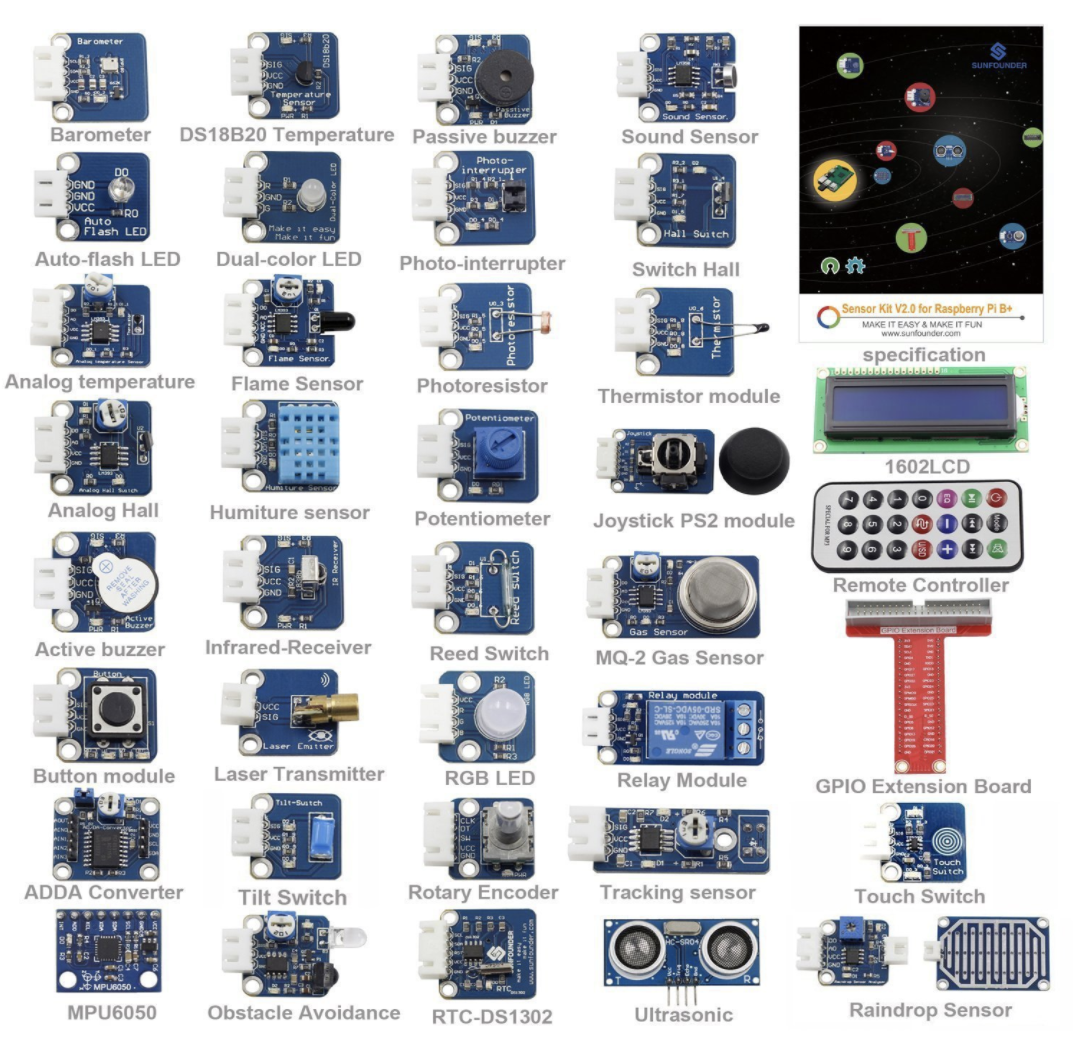

A world of sensors

Humidity

Distance

Temperature

Motion

...

interacting

interacting

interacting

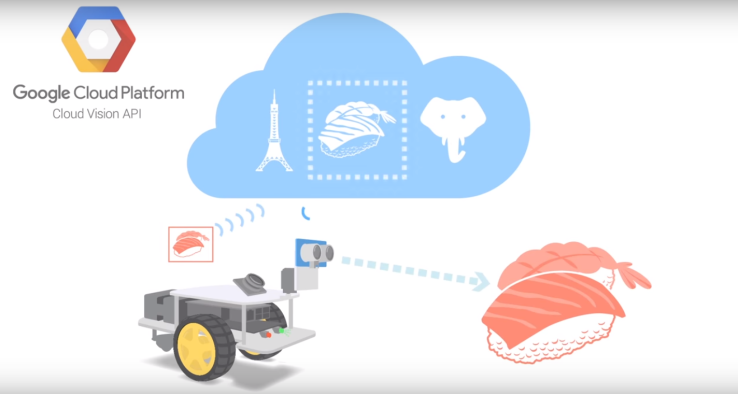

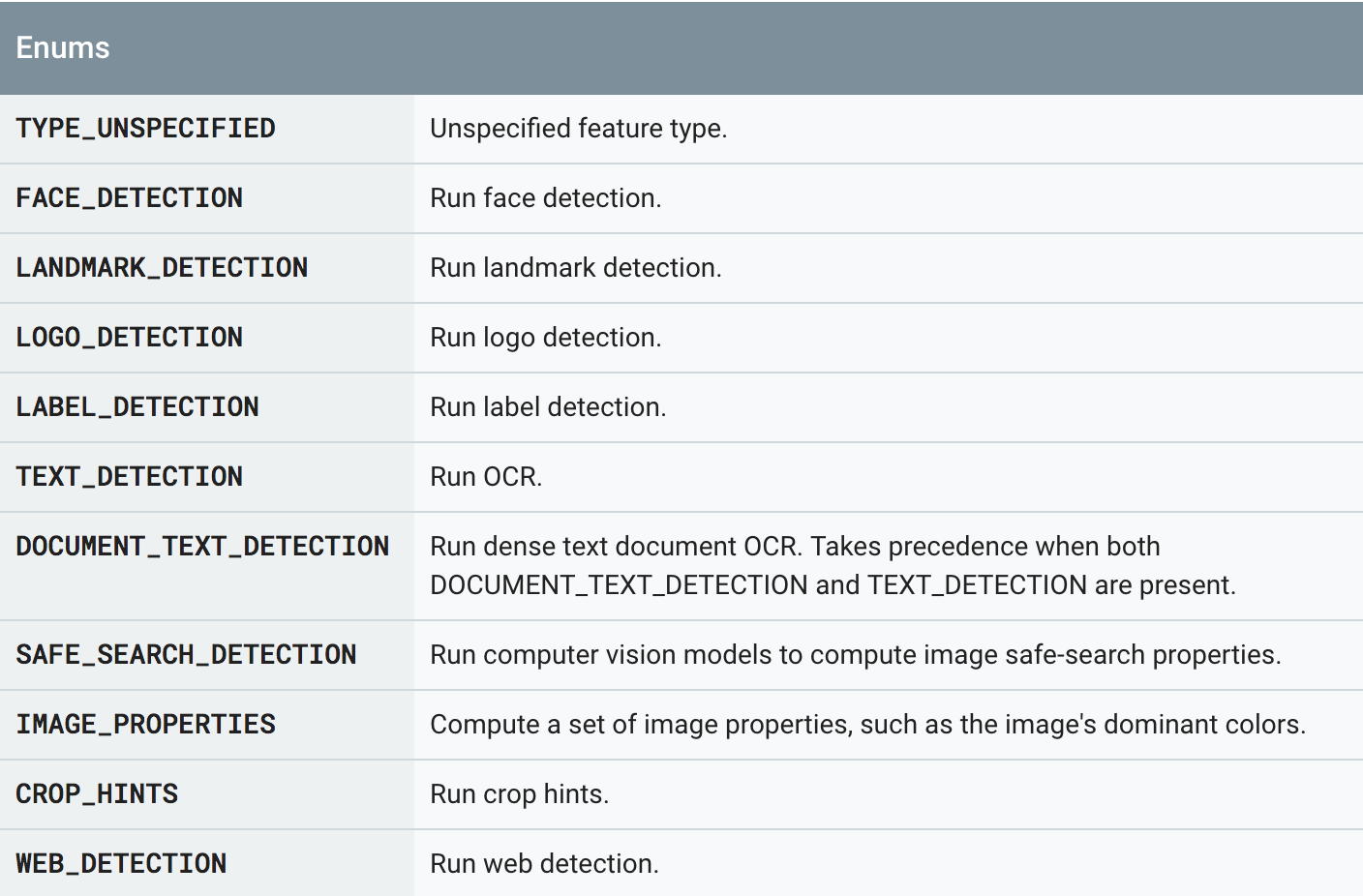

Google Cloud Platform API  KEY

Google Vision API

interacting

interacting

interacting

 /**
   * Construct request body for the petition
   * @param {string} image
   * @param {string} type
   */
  constructRequest(image = this.imageURI, type = 'LABEL_DETECTION') {
    return {
      "requests": [
        {
          "features": [
            {
              // TYPE OF THE DETECTION, LABEL BY DEFAULT
              "type": type
            }
          ],
          "image": {
            "source": {
              // IMAGE TO BE ANALYZED
              "imageUri": image
            }
          }
        }
      ]
    };
  }
}

storage

interacting

Banana

interacting

     Have to move by remote control

     Have to send images

     Have to interact with the world

WHAT I NEED?

     Have to move by remote control

     Have to send images

     Have to interact with the world

DEMO

TIME!

Just in case...
