Getting to Know the Identity of .NET 4.5

Where Did We Come From?

Cornerstone of authorization in the last decade

public interface IIdentity
{
    string AuthenticationType {get;}
    bool IsAuthenticated {get;}
    string Name {get;}
}

public interface IPrincipal
{
    IIdentity Identity {get;}
    bool IsInRole(string role);
}

var principal = WindowsPrincipal.GetCurrent();
if (principal.IsInRole("Sales") == false)
{
    // Do something.
}
else
{
    // Access denied or do something else.
}

public void SomeMethodUsingPrincipalPermission()
{
    // Throw exception if not authorized.
    new PrincipalPermission(null, "Sales").Demand();

    // Do something.
}

[PrincipalPermission(SecurityAction.Demand, Role = "Sales")]
public void SomeMethodUsingPrincipalPermission()
{
    // Attibute throws exception if not authorized.
    // Do something.
}

Drawback:

authorization checks are embedded within the code, and authorization checks only work with role information.

var principal = WindowsPrincipal.GetCurrent();
if (principal.IsInRole("Sales") == false)
{
    // Do something.
}
else
{
    // Access denied or do something else.
}

public void SomeMethodUsingPrincipalPermission()
{
    // Throw exception if not authorized.
    new PrincipalPermission(null, "Sales").Demand();

    // Do something.
}

[PrincipalPermission(SecurityAction.Demand, Role = "Sales")]
public void SomeMethodUsingPrincipalPermission()
{
    // Attibute throws exception if not authorized.
    // Do something.
}

 The security class structure looked like this through.NET 4.0

public interface IClaimsIdentity
{
    IClaimsIdentity Actor {get; set;}
    SecurityToken BootstrapToken {get; set;}
    ClaimCollection Claims {get;}
    string Label {get; set;}
    string NameClaimType {get; set;}
    string RoleClaimType {get; set;}

    IClaimsIdentity Copy();
}

public interface IClaimsPrincipal
{
    ClaimsIndentityCollection Identities {get;}

    IClaimsPrincipal Copy();
}

Claims?!

public class Claim
{
    public virtual string ClaimType {get;}
    public virtual string Issuer {get;}
    public virtual string OriginalIssuer {get;}
    public virtual IDictionary<string,string> Properties {get;}
    public virtual IClaimsIdentity Subject {get;}
    public virtual string Value {get;}
    public virtual string ValueType {get;}

    // Methods omitted for brevity.
}

From WIF to .NET 4.5

system.security.principal

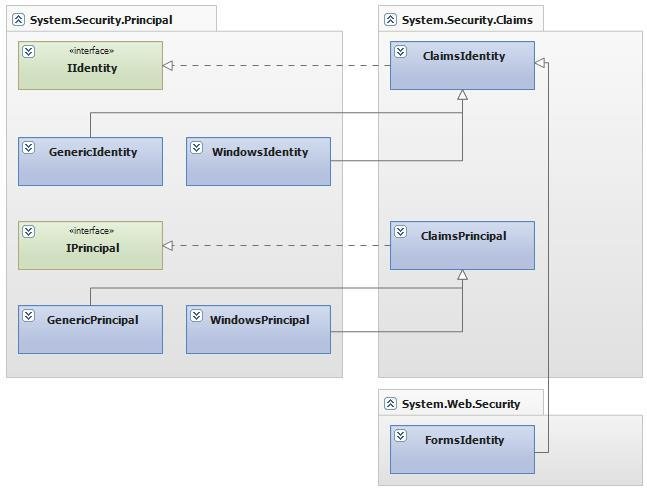

This is the security class structure in .NET 4.5.

Claims-Aware Web Application (Active)

(demo)

Security Protocols

Integrated Windows Authentication

- Accounts

- Usergroups

ASP.NET membership and roles provider

- user names

- passwords

- roles

CLAIMS

ISSUER

(AUTHORITY)

Terminology

• Service Provider (Resource Server) - this is the web-server you are trying to access information on


• Identity Provider (Authorization Server) - this is the server that owns the user identities and credentials. It's who the user actually authenticates with


• Security Token Service (STS) -  is a software based identity provider responsible for issuing security tokens, especially software tokens, as part of a claims-based identity system.

• Smart Client - this is how the user is interacting with the Resource Server, with a native application


• Passive client -  this is how the user is interacting with the Resource Server, with a javascript application


• ​Token -  Compressed, encoded, possibly encrypted, and it usually looks like gobbly-gook, key passed to SP on each request

SAML 2.0

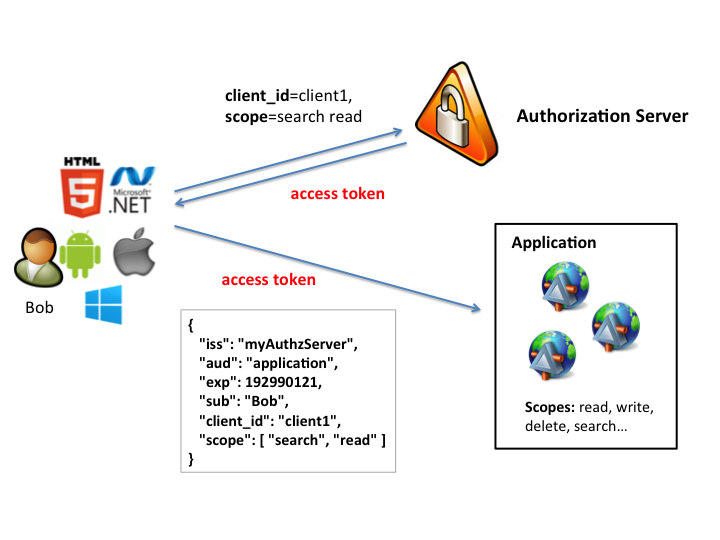

OAuth 2

Strategy

Authorization, not Authentication

You've got me?

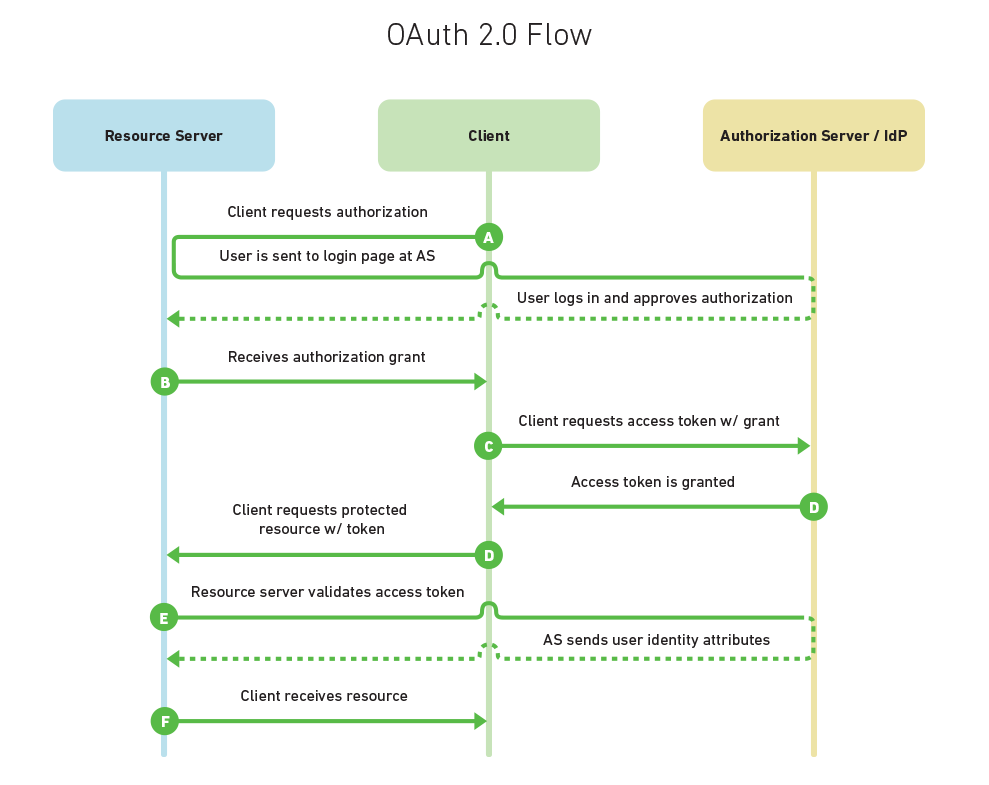

OAuth 2

SSL / TLS

.... MITM

SAML 2.0 / OAuth 2

Good & Evil?

OpenID

Demo... ?

http://tools.ietf.org/html/rfc6749

OWIN

Open Web Interface for .NET

Middleware

Application

Server

Host
