IGF - Architecture IT:

scénarios

M1.5.3

Projet Jumelage DZ-23

M Fernando Paunero

M Jesús Ortega

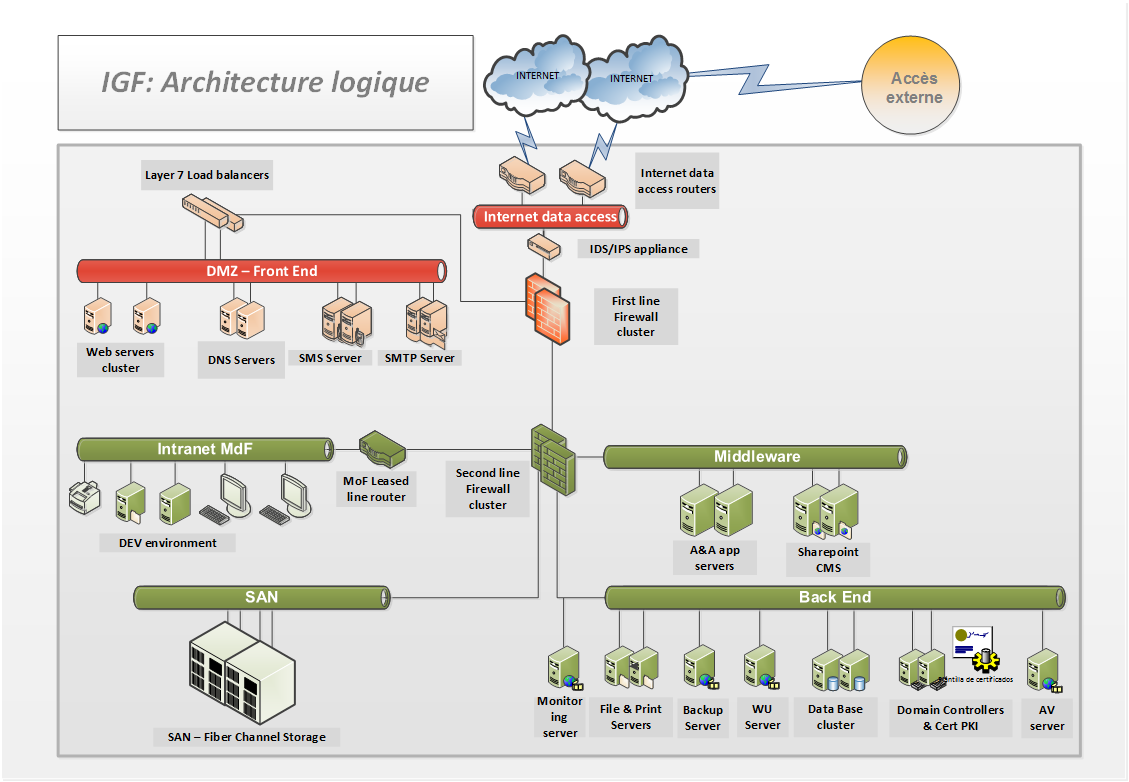

IGF: Architecture IT

Infrastructure hw & sw & services

A

B

  • alternative top

C

  • alternative moyen
  • alternative practique

Data Center

 AIFP/CMFP

Data Center IGF

1

2

3

4

5

Layered infrastructure

IGF

architecture

1

2

3

4

virtual servers farm

SAN

physical servers

infrastructure virtuelle

IGF

architecture

1

2

3

virtual servers farm

SAN

physical servers

infrastructure virtuelle

servers + comm

IGF

architecture

Architecture IT

Infrastructure hw & sw & services

A

  • alternative top

budget aproximatif

IGF architecture blocks

Rack 42U

1

Switches ethernet

2

VMWare farm servers

3

FC SAN switches

4

SAN

5

Physical servers

6

IGF architecture blocks

Rack 42U

1

1 x Rack 42 U (PDU, KVM, 3KW UPS)

8.345 €

One rack unit is 1.75 inches (44.45 mm) high

IGF architecture blocks

Ethernet switches

2

2 x Switch LAN HP 5120 48G

14.668 €

IGF architecture blocks

Servers farm

3

5 x HP Proliant DL360 Gen9 8SFF Server (2 CPU, 256GB RAM, 2HDx300GB, 2x800w PS; 2 HBA ports)

62.750 €

IGF architecture blocks

Fabric SAN switches

4

2 x HP SN6000 16Gb 48/48 Fiber Channel Switch

96.940 €

IGF architecture blocks

SAN

5

1 x HP 3PAR StoreServ 8200 (24TB SAS, 3.84TB SSD)

78.570 €

IGF architecture blocks

Physical servers

6

3 x HP Proliant DL360 Gen9 Server (1 CPU, 16GB RAM, 2HD x 600GB, 2 500w PS; 2 HBA ports)

12.705 €

IGF architecture blocks

VMWare licenses

7

MS Windows Server 2012 licences

8

MS Windows SQL Server 2014

9

MS Sharepoint Server 2016

10

+++??

11

IGF architecture blocks

VMWare licenses

7

  • vCenter Console (1 lic mandatory)
  • vSphere  ESX STD or Ent plus (1 lic per CPU)
  • NSX (1 lic per CPU)

69.715 €

IGF architecture blocks

Windows Server 2012

8

  • Datacenter or Standard (same functionality but virtualization rights)
    • Datacenter: 1 lic per 2 CPU no restrictions in VM
    • Standard: 1 lic per 2 CPU (VM only in physical server: no VM movements)

54.290 €

IGF architecture blocks

SQL Server 2014

9

  • Enterprise or Standard (main difference AA vs AP clusters)
    • Enterprise: 1 lic per core , AA cluster
    • Standard: 1 lic per core, AP cluster

60.400 €

IGF architecture blocks

Sharepoint 2016

10

  • Enterprise or Standard by server
    • cal's std & ent

16.000 €

IGF architecture blocks

+ ??

11

  • dev tools
  • digital content tools
  • payments services
  • mail services
  • sms services
  • ...

IGF architecture blocks

HW support

12

SW support

13

Install & config services

14

IGF architecture blocks

hw support

12

  • 3 years warranty
  • NBD: next bussiness day
  • 24x7
  • parts & labour

40.821 €

IGF architecture blocks

sw support

13

  • 1 year warranty
  • mail & phone support
  • patches & updates download

16.618 €

IGF architecture blocks

install & config

14

  • hw installation
  • firmware configuration
  • os installation and configuration
  • infrastructure services design
  • service installation and configuration
  • service integration
  • security services

86.916 €

A

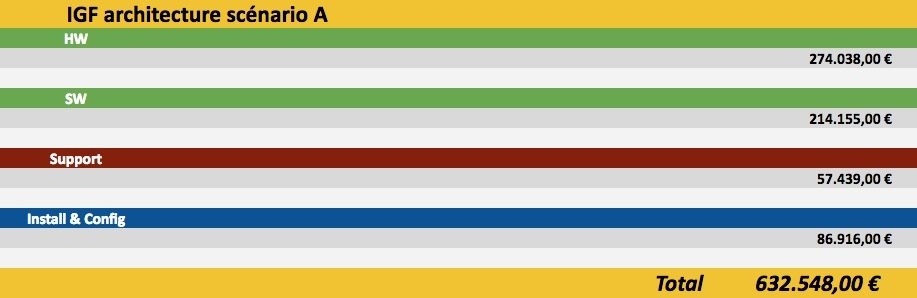

IGF architecture - prix approximatif:   scénario A

IGF architecture - prix approximatif:   scénario B

B ?

1

2

3

virtual servers farm

SAN

physical servers

réduire le prix final mais maintenir le dessin

infrastructure virtuel

servers + comm

IGF

architecture

     rack, eth switches, srv model

    one DNS server

cheaper SAN model

     cheaper SAN FC switches

just three vm servers

WS 2012 Standard lic

SQL 2014 Standard lic

        less int. connected users

  vSphere STD lic

less vm

infrastructure virtuelle

servers + comm

IGF

architecture

IGF architecture - prix approximatif:

scénario B

B

Architecture IT

Infrastructure hw & sw & services

A

B

  • alternative top

C

  • alternative moyen
  • alternative practique

Data Center

 AIFP/CMFP

Data Center IGF

1

2

3

4

5

Layered infrastructure

IGF

architecture

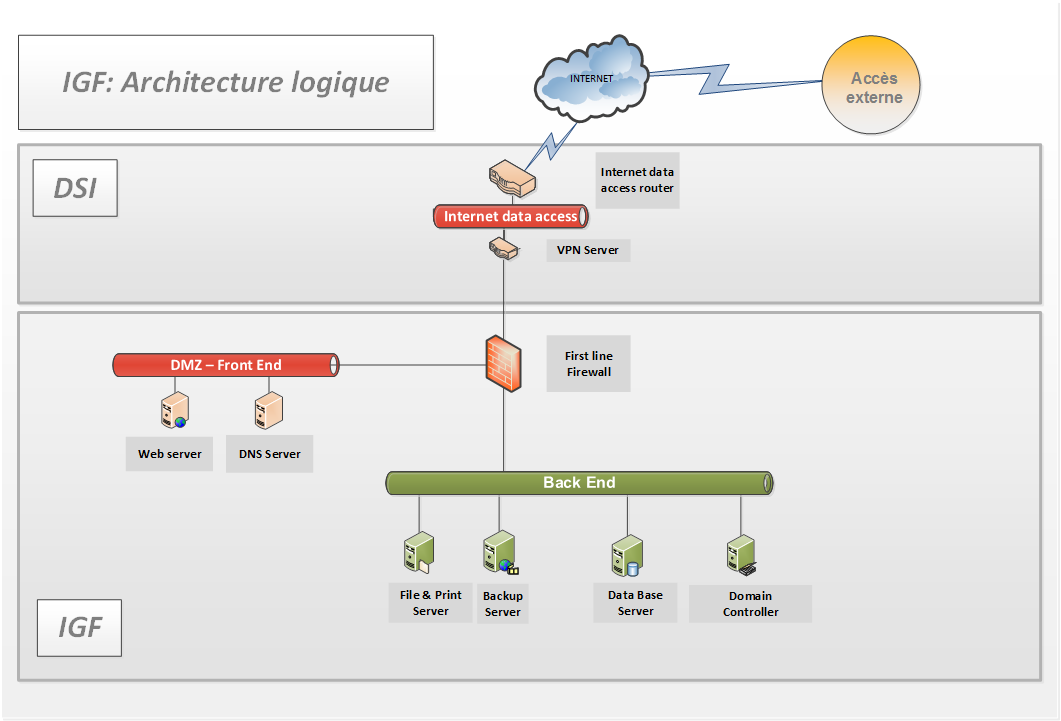

Architecture IT

scénario C

     NO SAN

WS 2012 Standard lic

My SQL

        less int. connected users

  vSphere STD lic

4 vm

     rack, srv model

     eth switches

   vm  srv model

1 vm server

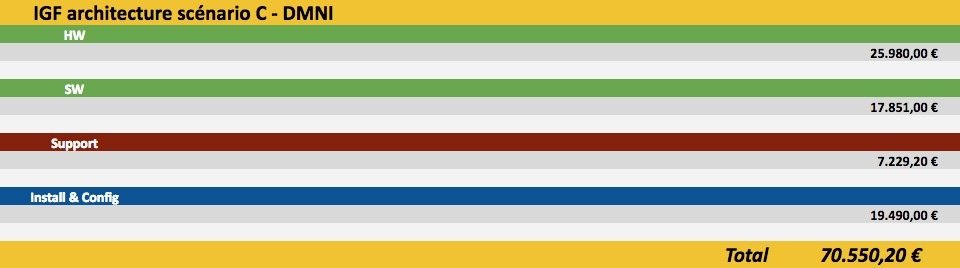

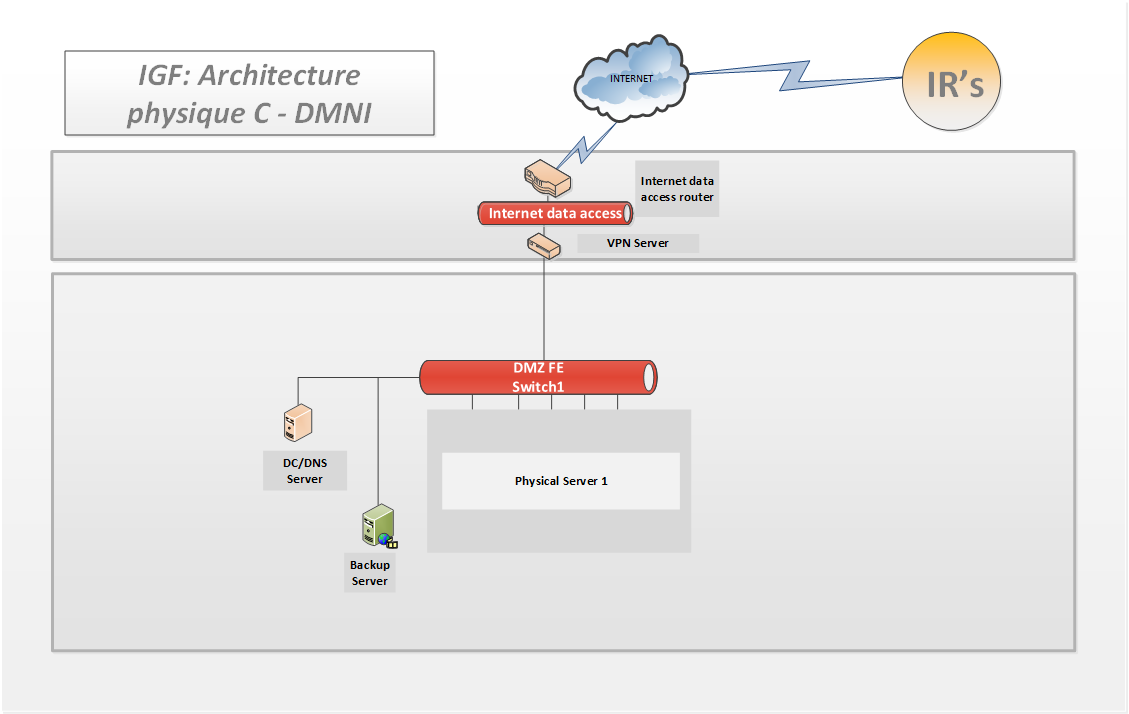

IGF architecture - prix approximatif:

scénario C - DMNI

C

     cheap SAN

WS 2012 Standard lic

My SQL

        less int. connected users

  vSphere STD lic

8 vm

     rack, srv model

     eth switches

    vm srv model

2 vm servers

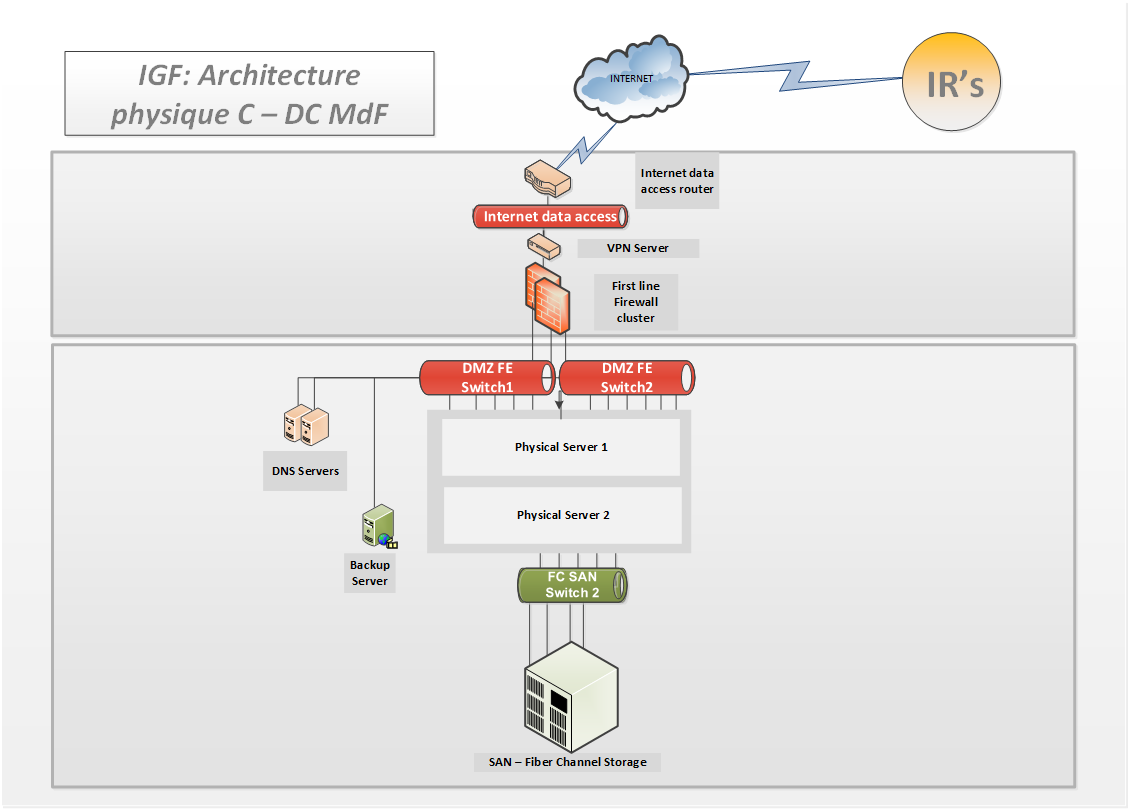

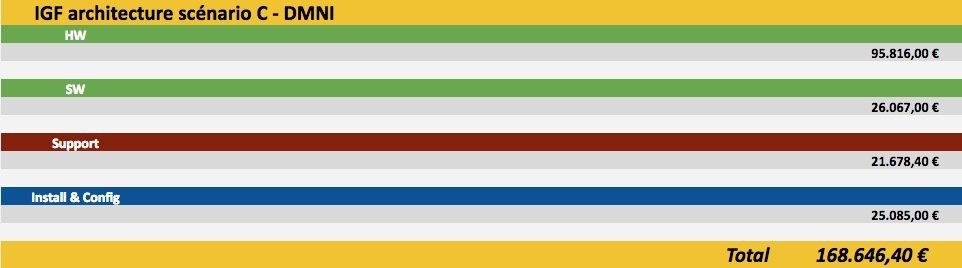

IGF architecture - prix approximatif:

scénario C - DC

C
