Kost: About me

• Security Consultant in Diverto
• Linux and FLOSS enthusiast
• Open source developer
• Have code in OpenVAS, Nmap, Metasploit, ...
• https://github.com/kost
• Android "developer" since 2010
• started counting from first Market app
• mostly focused on NDK and ADK

About us in pictures

About us in pictures

Dobrica: about me

• System administrator at Library (FFZG)
• Free Software Biggot
• Hacking Hardware
• http://blog.rot13.org/
• http://www.rot13.org/~dpavlin/

Should I develop hardware at all?

• It depends :)
• Basic sensor data
• Ambient Temperature
• Humidity
• Accelerometers
• Other sensors / usage
• Wind speed
• Pyro
• SCADA

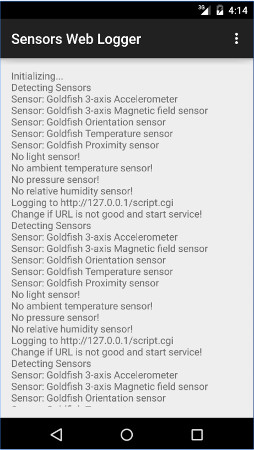

Example: Sensors Web Logger

• Simple Android App to log Sensors
• Basically it performs following
• Get All available sensors
• Send GET request to specified server
• Do it every X minutes
• Links
• https://play.google.com/store/apps/details?id=org.kost.android.sensorsweblogger&hl=hr
• https://github.com/kost/SensorsWebLogger

Example: Sensors Web logger

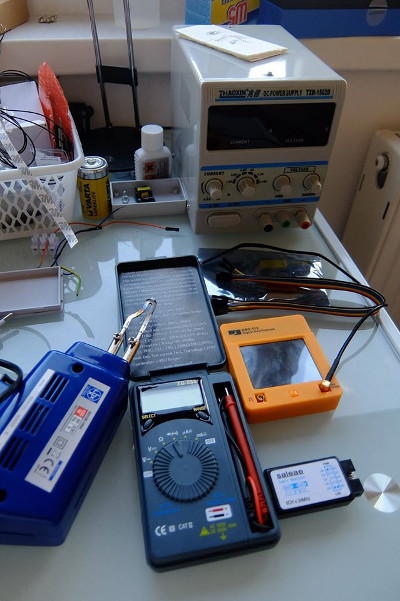

Basic hardware kit needed

Links on AliExpress/Bangood

• We're lazy - thanks Ivan Voras
• Soldering: http://goo.gl/ePG7Ni
• Voltmeter: http://goo.gl/J57z7N
• Osciloscope: http://goo.gl/HKuCbP
• Logic probe: http://goo.gl/rbWxJS
• Power source: http://goo.gl/76dPqO
• Arduinos: http://goo.gl/63pTE2

Useful hardware devices

• Beside that - we would recommend
• BusPirate
• TTL serial cable
• Actually you don't need TTL
• if you have BusPirate

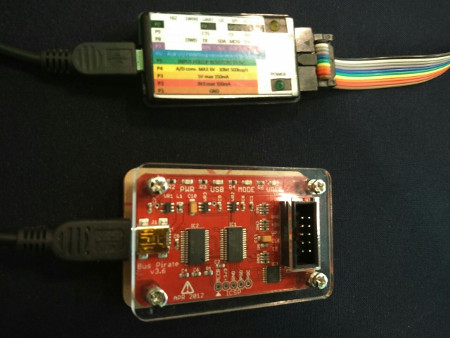

Bus Pirate

Logic Analyzer

Wireless

• Frequency
• 2.4 Ghz
• 5 Ghz
• Standard wireless thing
• Access Point
• STA / clients
• ad hoc*
• mesh*

Useful wireless tools for reversing

• Obtaining
• Kismet
• Aircrack-ng suite
• tcpdump on device
• Analysing
• wireshark
• tshark
• moloch (heavy duty!)
• pcap bindings for your favourite language
• good hex editor and calculator

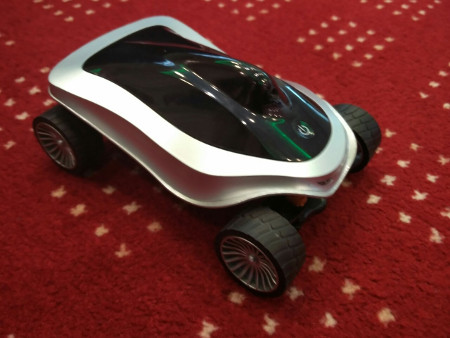

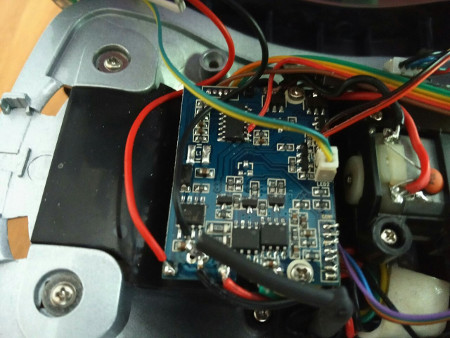

Daugther was crazy about RC cars

She lost interest, daddy got it

It's daddy toy

Basic protocol analysis

Few quick tips

• GUI is useful for quick analysis
• text is good for finding patterns

char peer0_0[] = {
0xa1, 0x7b, 0x00, 0x00, 0x00, 0x00, 0x00, 0x7b,
0xff, 0xa1, 0x7b, 0x00, 0x00, 0x00, 0x00, 0x00,
0x7b, 0xff };

tshark -r pcap1.pcap -T fields -e data

Wireless protocol reversing example

tshark -r pcap1.pcap -T fields -e data | grep a17 | less

a17b8e0000000009ff
a17b8e0000000009ff
a17b8e0000000009ff
a17b00000000007bff
a17b00000000007bff
a17b00000000007bff

Demo time!

Let's pray to the demo gods

Interesting part

She wants it back now :)

Bluetooth

• 2.4 Ghz
• Modes
• Server
• Client
• References
• https://developer.android.com/guide/topics/connectivity/bluetooth.html

Bluetooth Analysis

• It is possible with plugin
• Dump and analysis
• bluez tools
• ubertooth one
• spectrum analyzer (very low level)
• gnu radio and sdr (very low level)
• References
• http://ubertooth.sourceforge.net/

Bluetooth and PhoneGap

• It is possible with plugin
• Modes
• Server
• Client
• References
• https://github.com/don/BluetoothSerial

NFC

• 13.56 Mhz
• Near Field Communication
• Mifare not supported on newer Androids
• If it is Mifare Classic - you're lucky! ;)
• reversing/analysing/cracking easy
• except it does not work on Android very well

You tag might not be NFC

• 135 khz
• Alternative frequency and protocol
• Usually doors and access control systems
• Just ID
• No encryption
• IT does NOT work on Android very well

Debugging

• ADB over TCP/IP
• second USB port
• USB hub
• Toast Messages
• printk()

ADB over TCP/IP

• TCP port 5555
• adb example
• Security implications

ADB over TCP

• Usually hidden from Setting UI
• Usually does not need root

su
setprop service.adb.tcp.port 5555
stop adbd
start adbd

adb tcpip 5555
adb connect 192.168.0.101:5555

• Last one - if you have ADB USB already

Accessory Development Kit

• Officialy supported
• Bluetooth
• USB
• Protocol
• Android Open Acessory(AOA) protocol.

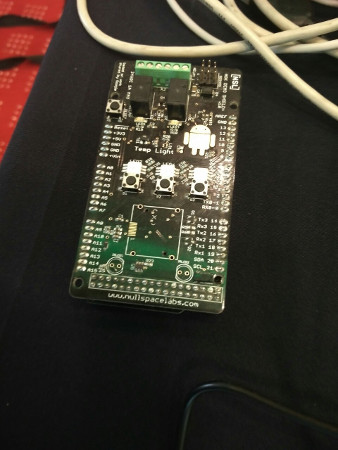

Simple ADK demo board

Serial

• Root is not needed
• Integrated in Android API
• Good frameworks on top of API
• Android 3.1+
• References
• https://developer.android.com/guide/topics/connectivity/usb/index.html
• https://stackoverflow.com/questions/21800932/comunicating-with-serial-usb-device-over-android

Android Serial Driver Library

• driver library for communication with USB serial hardware
• Using host API (Android 3.1+)
• USB host serial driver library for CDC, FTDI, Arduino and other devices
• References
• https://github.com/mik3y/usb-serial-for-android/
• https://stackoverflow.com/questions/21800932/comunicating-with-serial-usb-device-over-android

Simple serial example

sbSerialPort port = driver.getPort(0);
port.open(connection);
try {
  port.setBaudRate(115200);
  byte buffer[] = new byte[16];
  int numBytesRead = port.read(buffer, 1000);
  Log.d(TAG, "Read " + numBytesRead + " bytes.");
} catch (IOException e) {
} finally {
  port.close();
}

PhoneGap/Cordova

• It is possible to talk serial
• Works only on android
• References
• https://github.com/xseignard/cordovarduino
• http://dynamicremo.blogspot.hr/2015/07/simple-serial-communication-app-using.html

Simple example

• Install cordova
• Install platform and plugin

cordova platform add android
cordova plugin add https://github.com/xseignard/cordovarduino.git
cordova run android --device

• Start communicating with serial port

Sample code

$(document).ready(function(){
 $("#connect_button").click(function(){
  serial.requestPermission(
   function success(){
    // BaudRate for many Chips: 115200, Sometimes arduino: 9600
    var opts = {"baudRate":115200, "dataBits":8, "stopBits":1, "parity":0, "dtr":false}
    serial.open(opts,
     function success(){
      alert("Success");
     }, function error(evt){
      alert("Error");
     }
    );
   },
   function error(evt){
    alert("Error");
   }
  );
 });
});

Multimeter

Multimeter communication analysis

• Multimeter have serial communication
• Basic serial communication reversing
• Looking at the product specification
• Looking at the similar products specs
• If not, basic baud rate "brute" guessing
• as well as other parameters (stop bit, etc)
• Getting as much communication as possible
• how it looks like in different states
• find patterns and differences

Multimeter communication

• Only receive serial communication
• Serial communication
• 2400 bps
• 8 bits
• 1 stop bit
• No Parity
• Packet pattern
• 14 byte packets with 0D0A on the end
• First few bytes - the value, other bit flags

Multimeter Android App

• What if I can get readings on Android
• Features
• get nice graph (1 channel logic analyzer)
• export values to CSV
• take picture with camera on spike (with OSD)
• Proof of concept
• Android App using mik3y serial library
• Drawing graphs using Android Plot

Demo time!

Let's pray to the demo gods

Multimeter App PoC
