Roller Blind Installation

35 Slides

Keylite Accredited Installer Academy

Roller Blind Installation

1. Manual Roller Blind

2. Solar Roller Blind

3. Electric Roller Blind

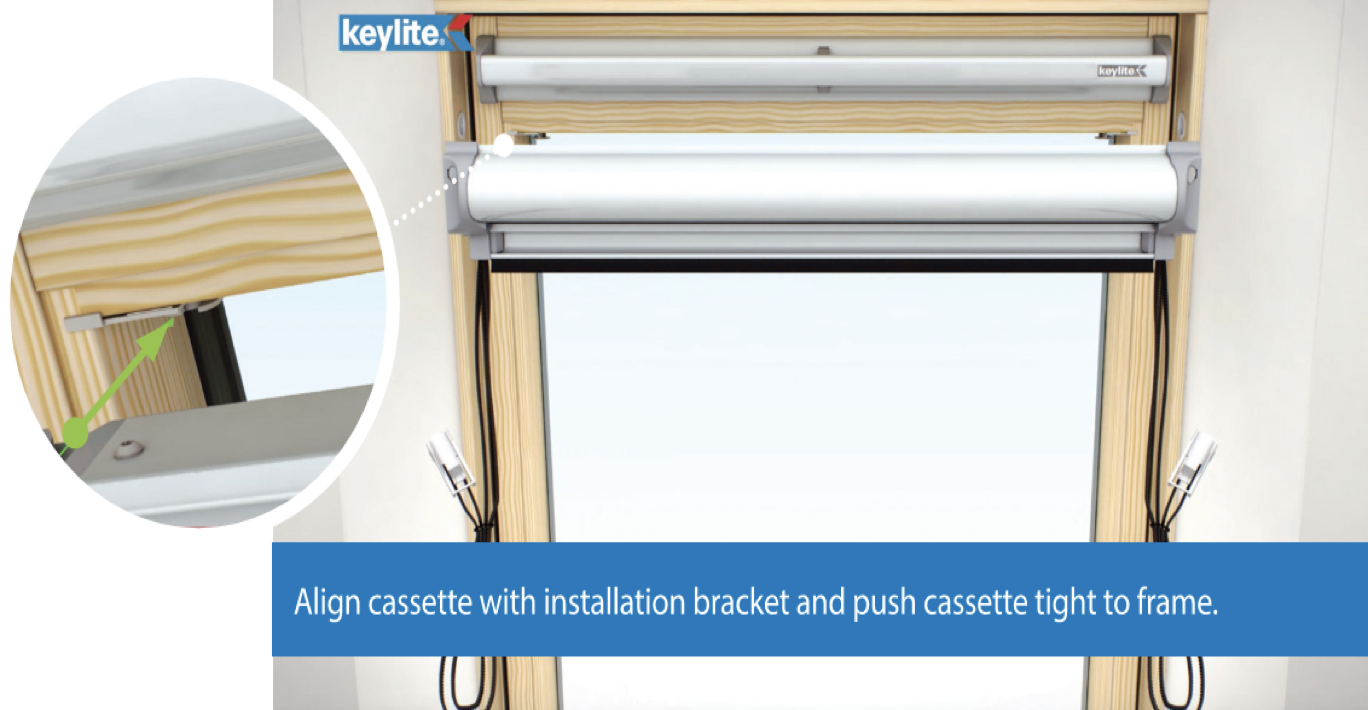

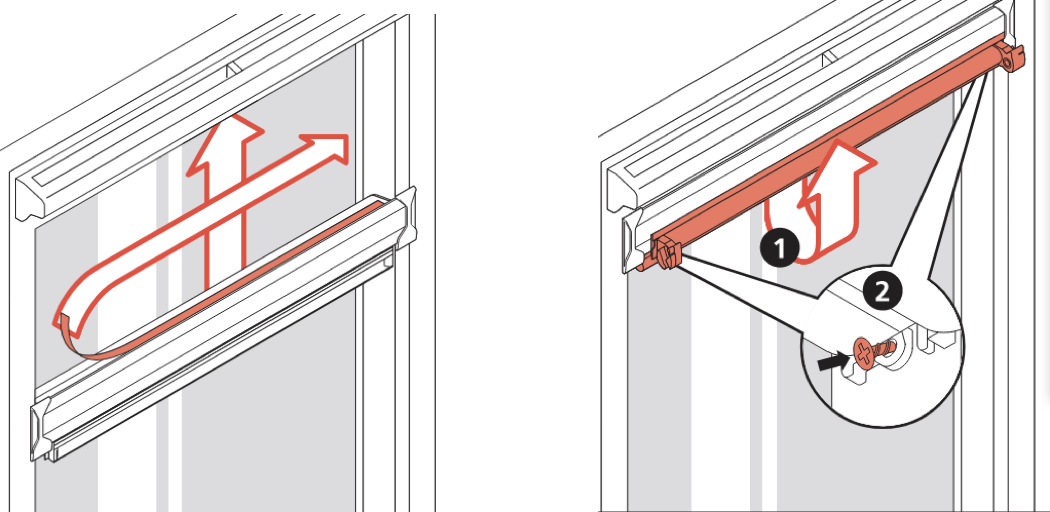

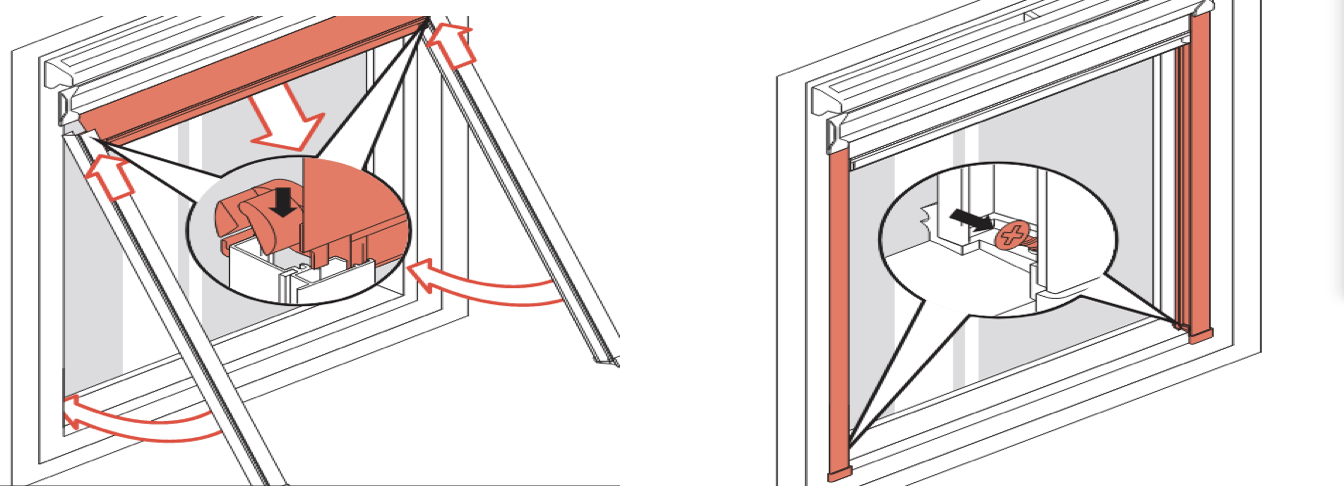

Remove plastic film from the top of the cassette and push firmly into the top recess of the sash to hold it into place. Fold back the material to reveal the two fixing positions. Using a hand screw driver fix the cassette into position using the two screws provided.

Keylite Accredited Installer Academy

Roller Blind Installation

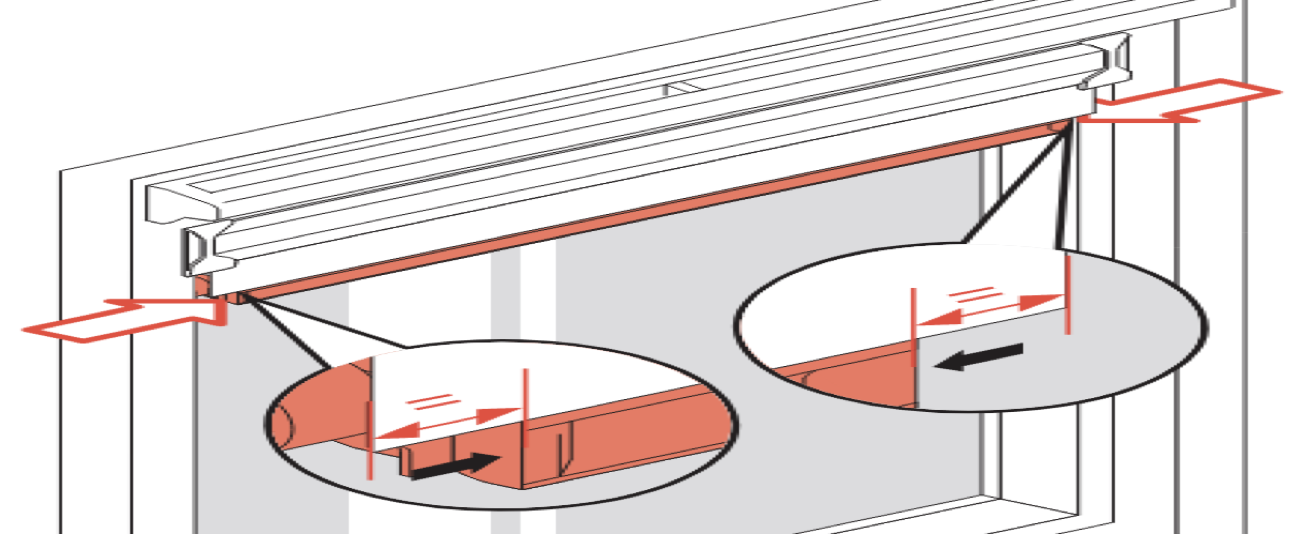

Ensure that the overhand of the material each side of the lower aluminium handle. If the material overhand is not equal on the left and right hand side, slide the aluminium handle left / right on the material to adjust to suit.

Keylite Accredited Installer Academy

Roller Blind Installation

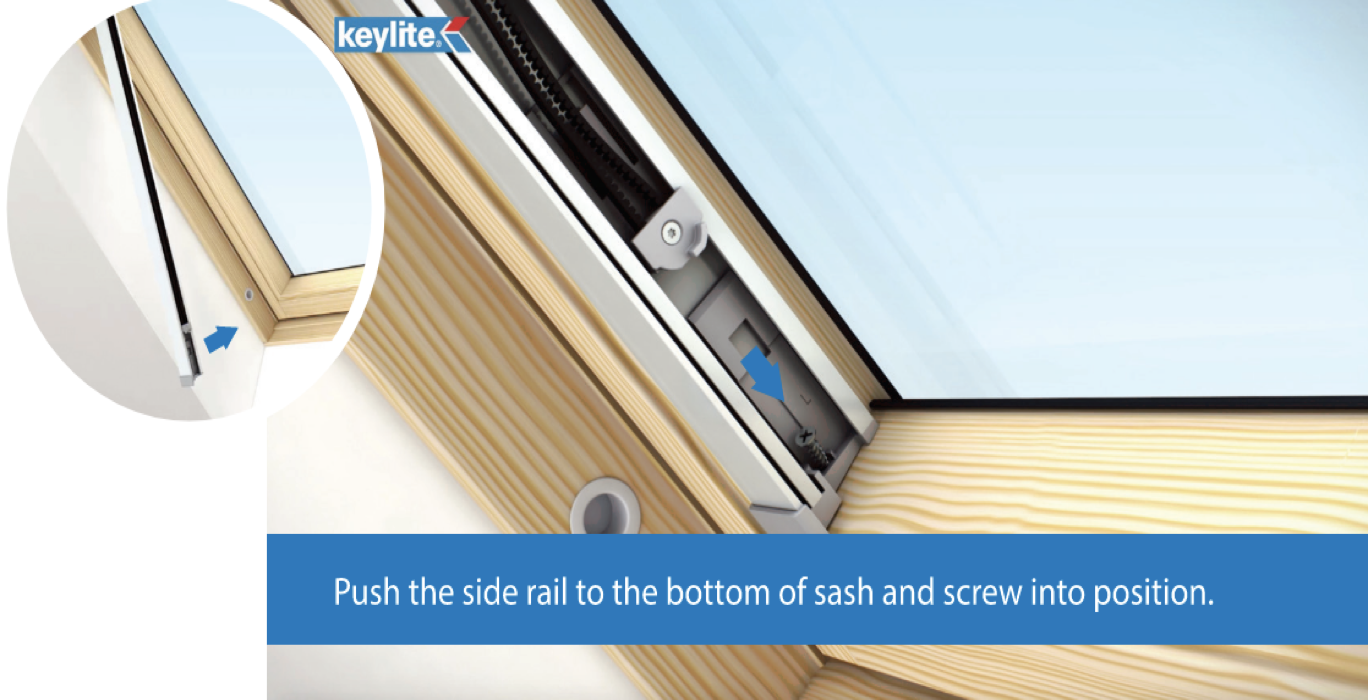

Push the two side rails in through the aluminium handle ensuring the material is guided through the front rebate of the side rail extrusion. The side rail will also push into place to the underside of the cassette. Fix the side rails by installed the screws to the bottom left and bottom right of the side rails.

Keylite Accredited Installer Academy

Roller Blind Installation

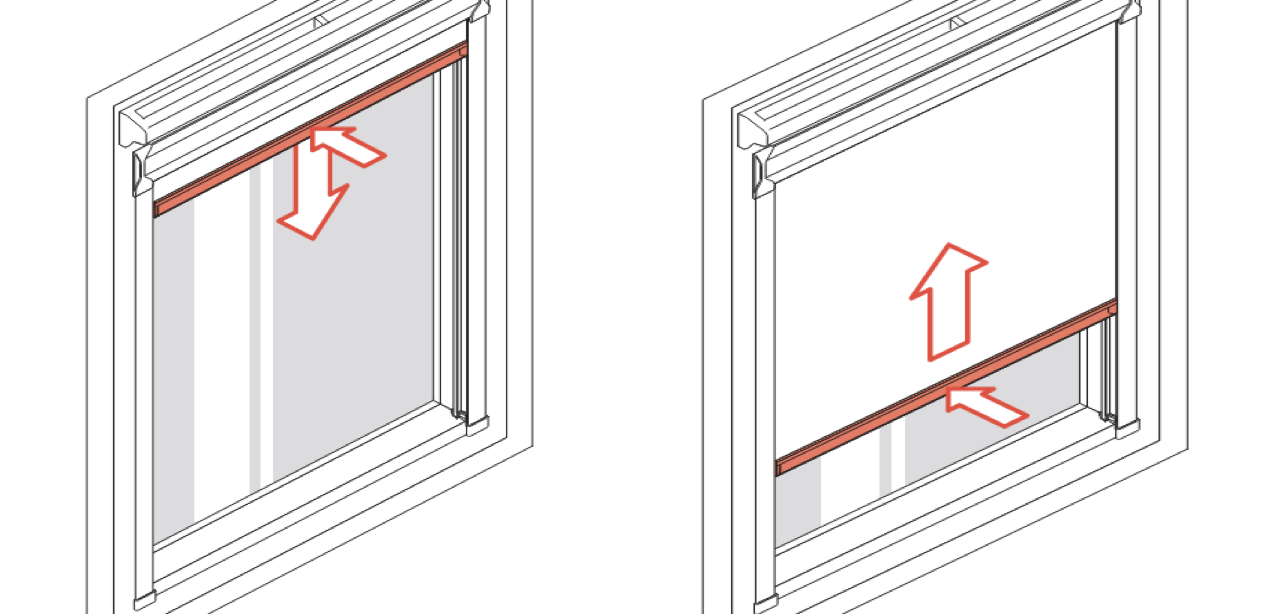

Close and open the blind the ensure it operates correctly.

Keylite Accredited Installer Academy

Roller Blind Installation

Solar Roller Blind Installation

Keylite Accredited Installer Academy

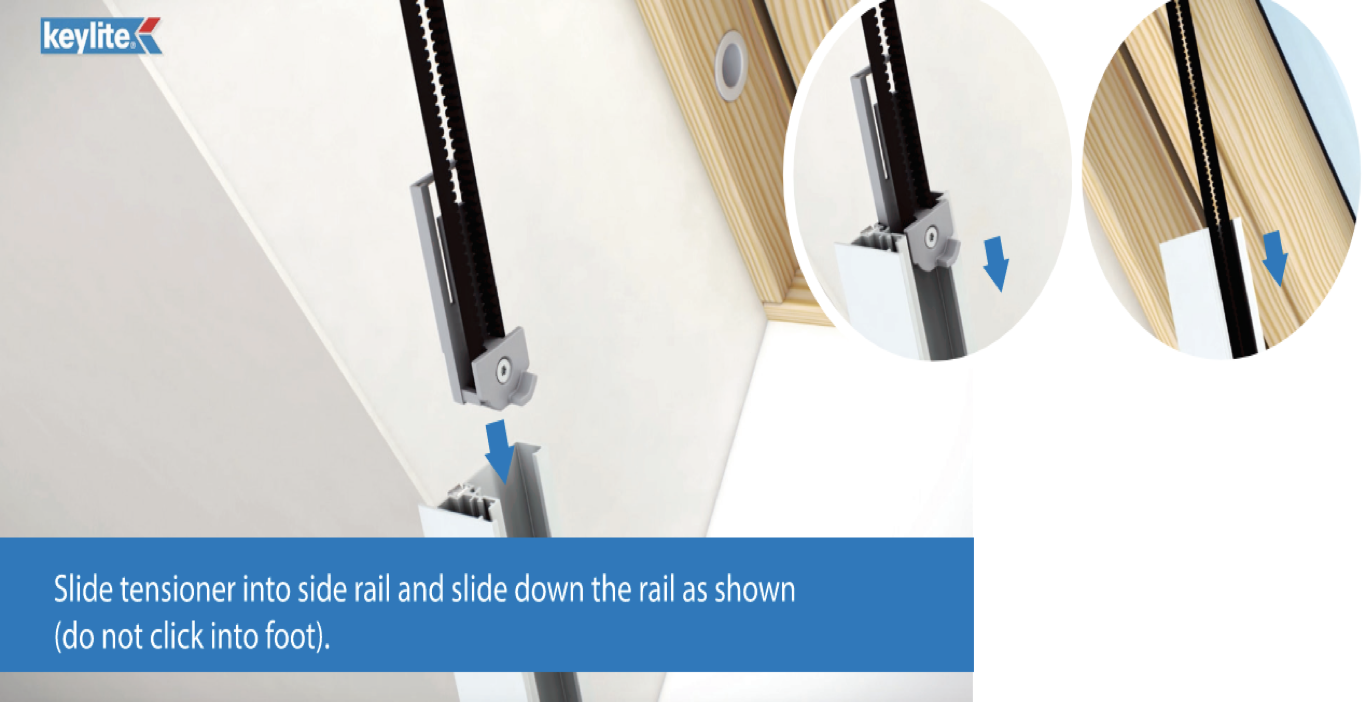

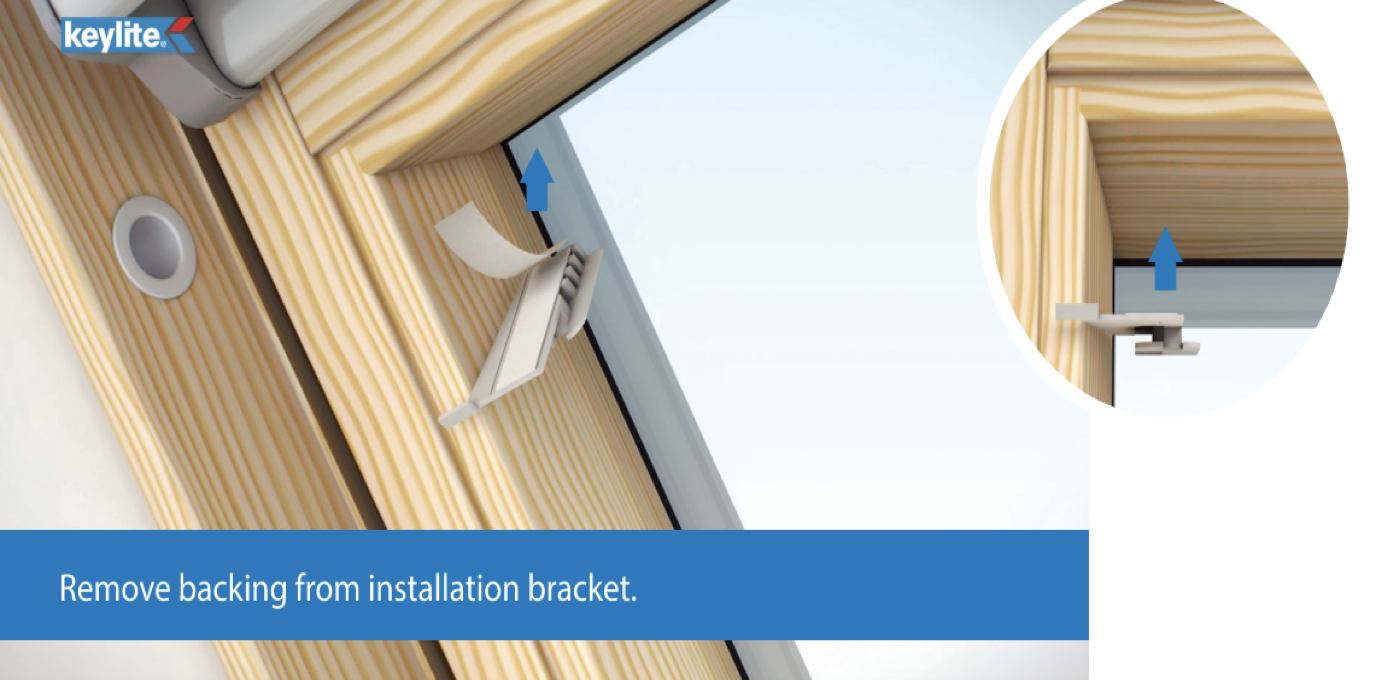

Solar Roller Blind Installation

Keylite Accredited Installer Academy

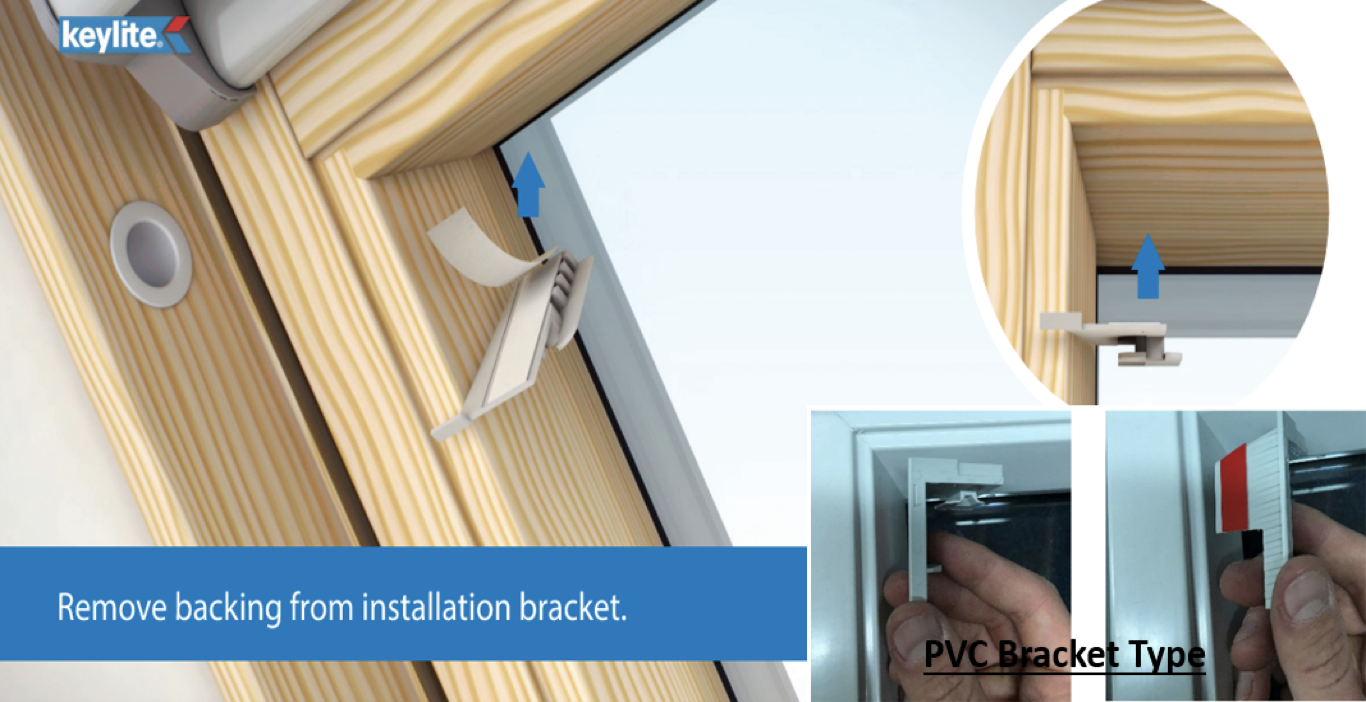

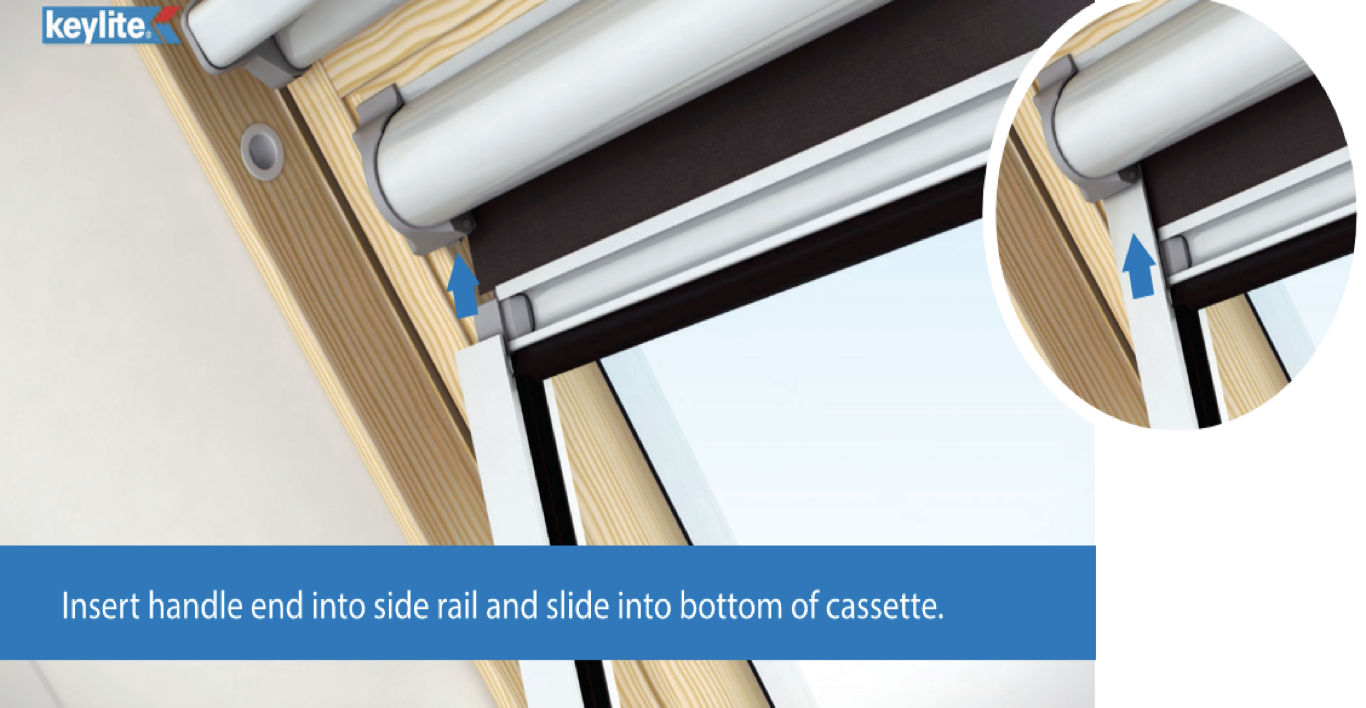

Solar Roller Blind Installation

Keylite Accredited Installer Academy

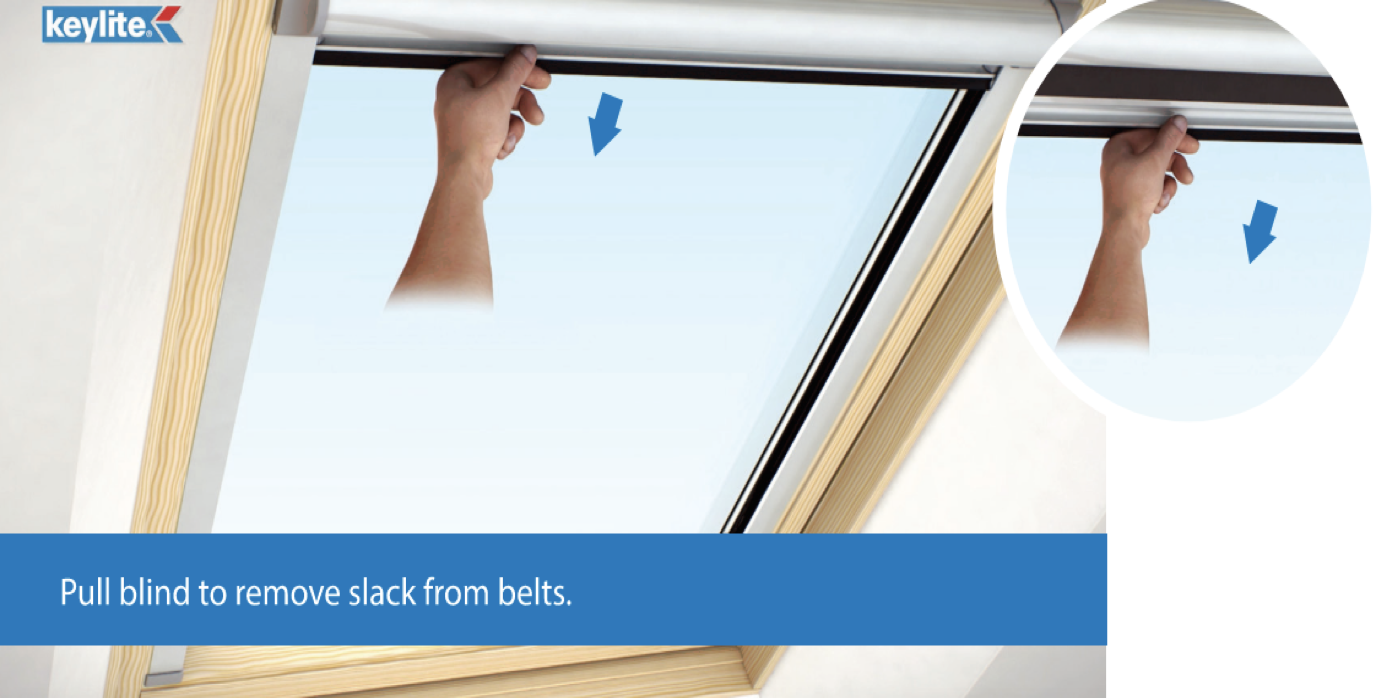

Solar Roller Blind Installation

Keylite Accredited Installer Academy

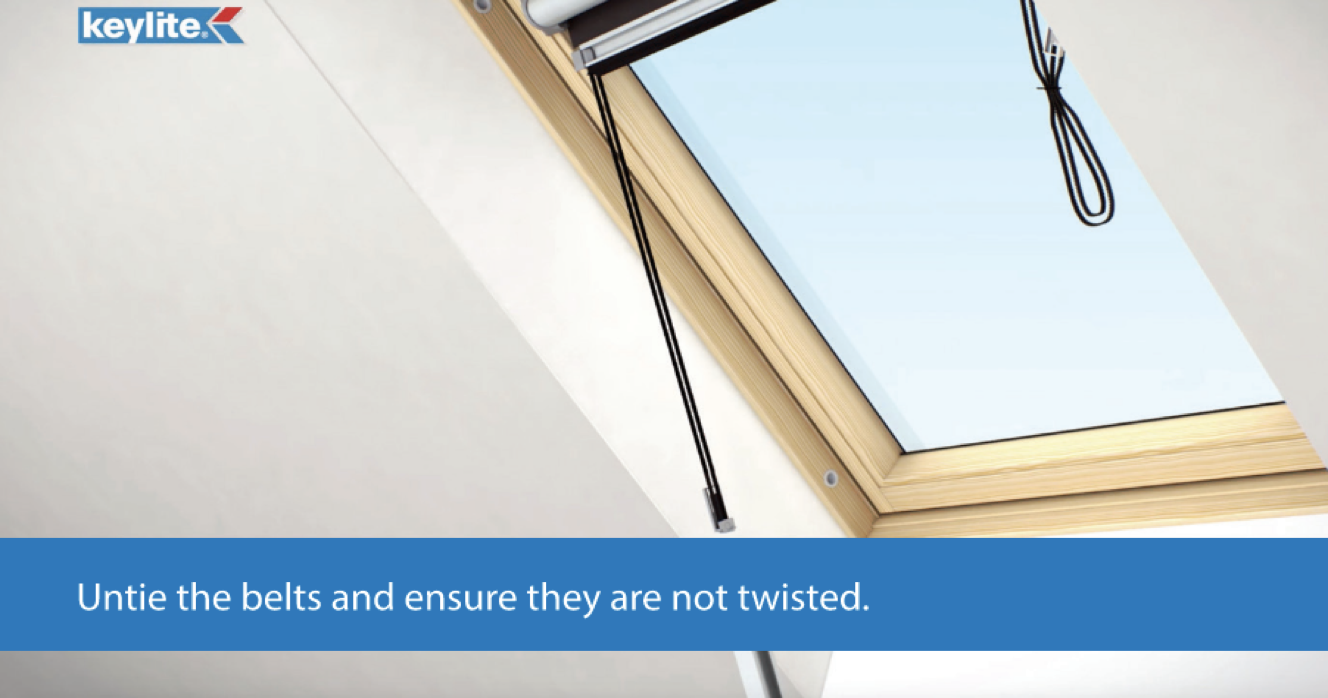

Solar Roller Blind Installation

Keylite Accredited Installer Academy

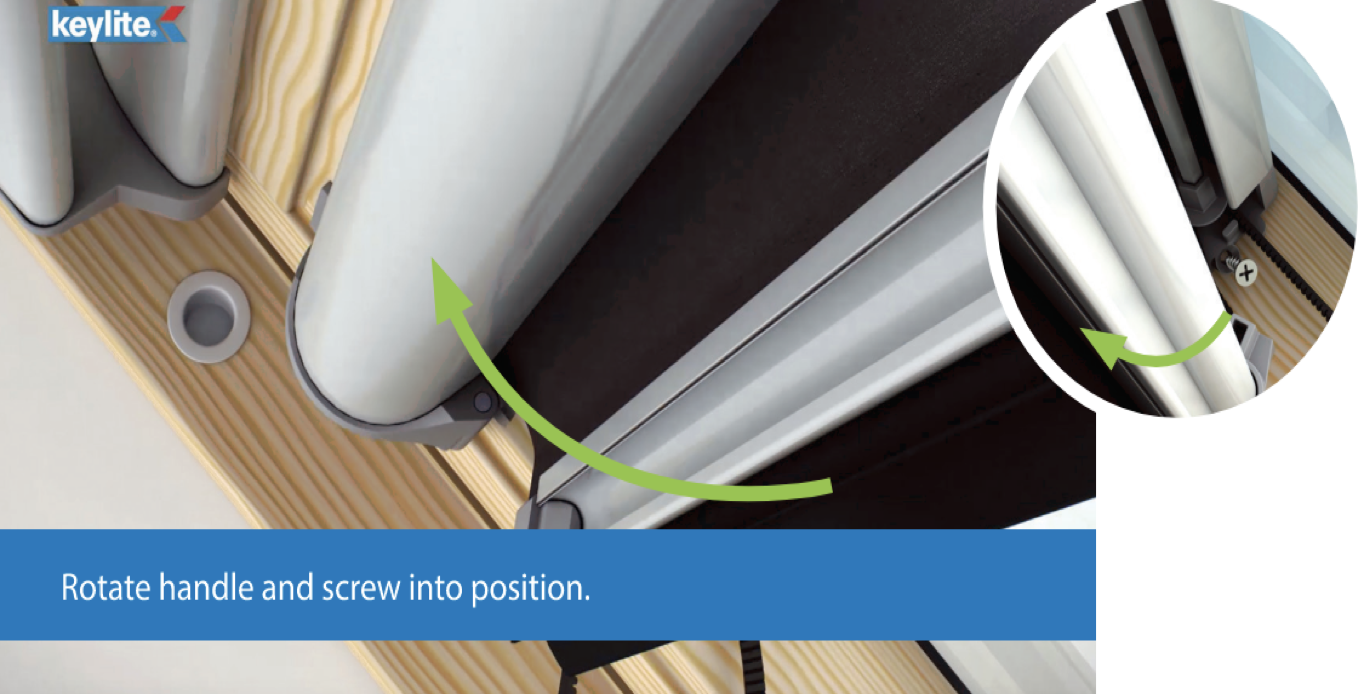

Solar Roller Blind Installation

Keylite Accredited Installer Academy

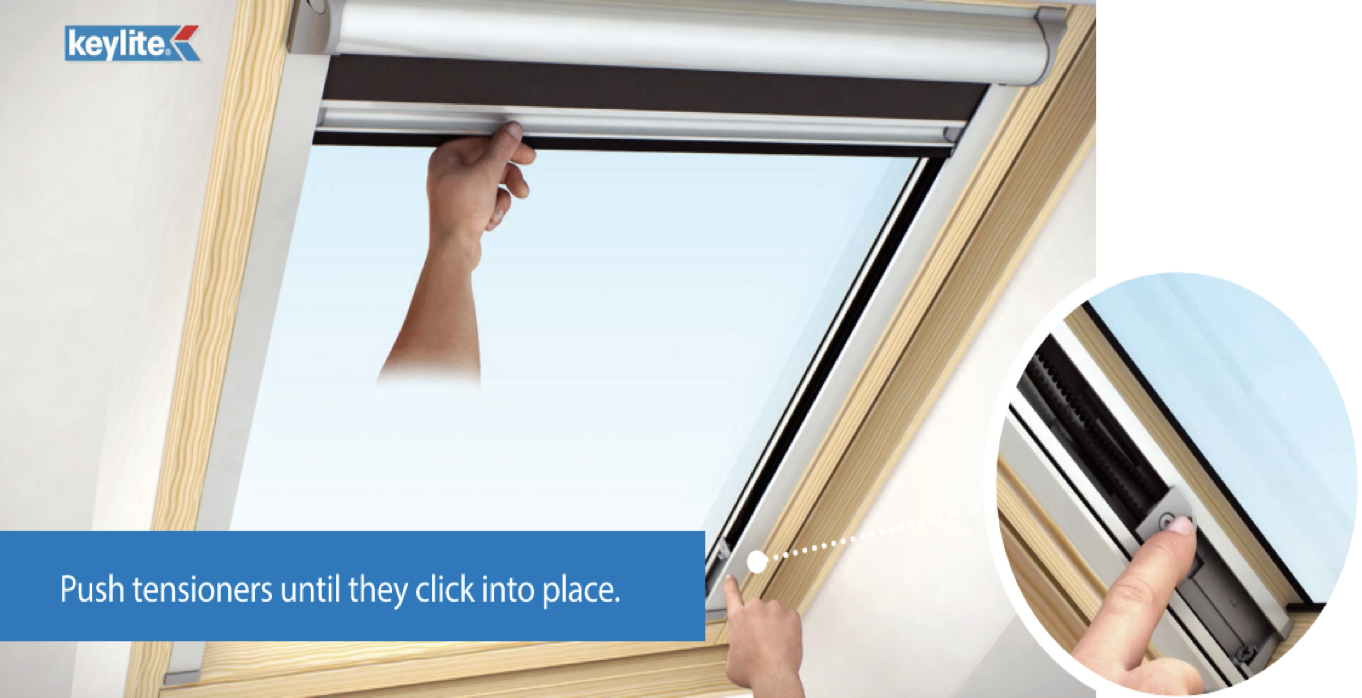

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Keylite Accredited Installer Academy

Solar Roller Blind Installation

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Remove the white 10mm plug to the top left hand corner of the sash rebate.

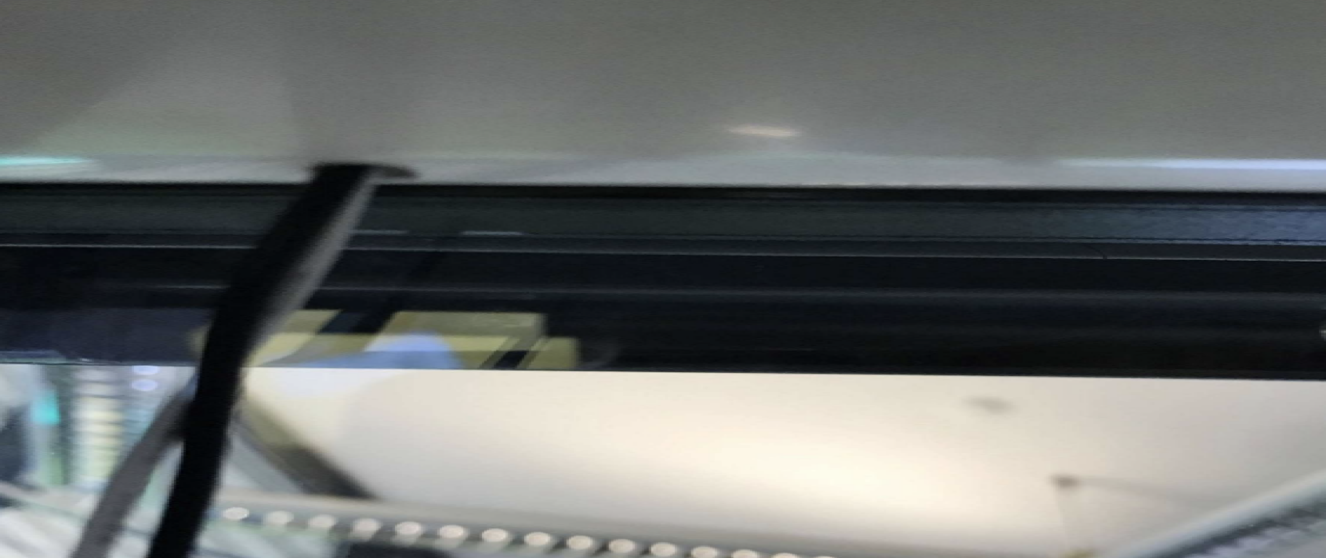

Remove the blind cassette from the box and guide he black and white cables through the while in the sash.

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

Keylite Accredited Installer Academy

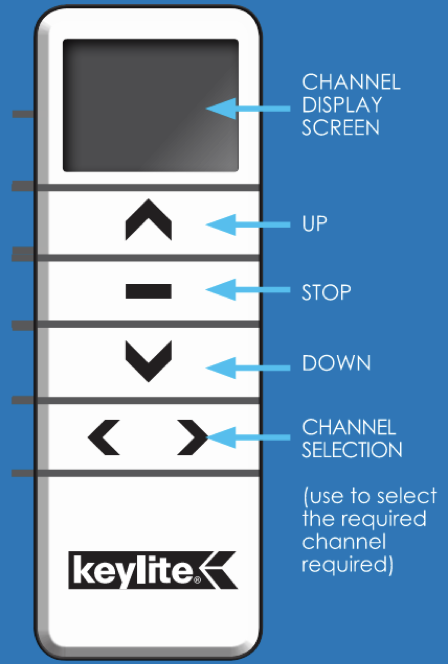

Electric Roller Blind Installation

Keylite Accredited Installer Academy

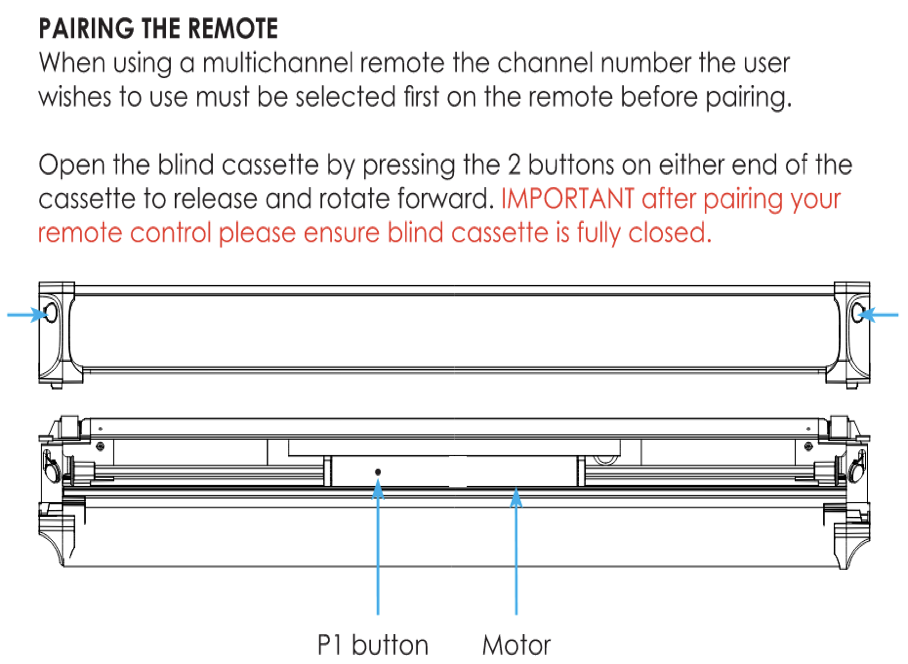

Electric Roller Blind Installation

Keylite Accredited Installer Academy

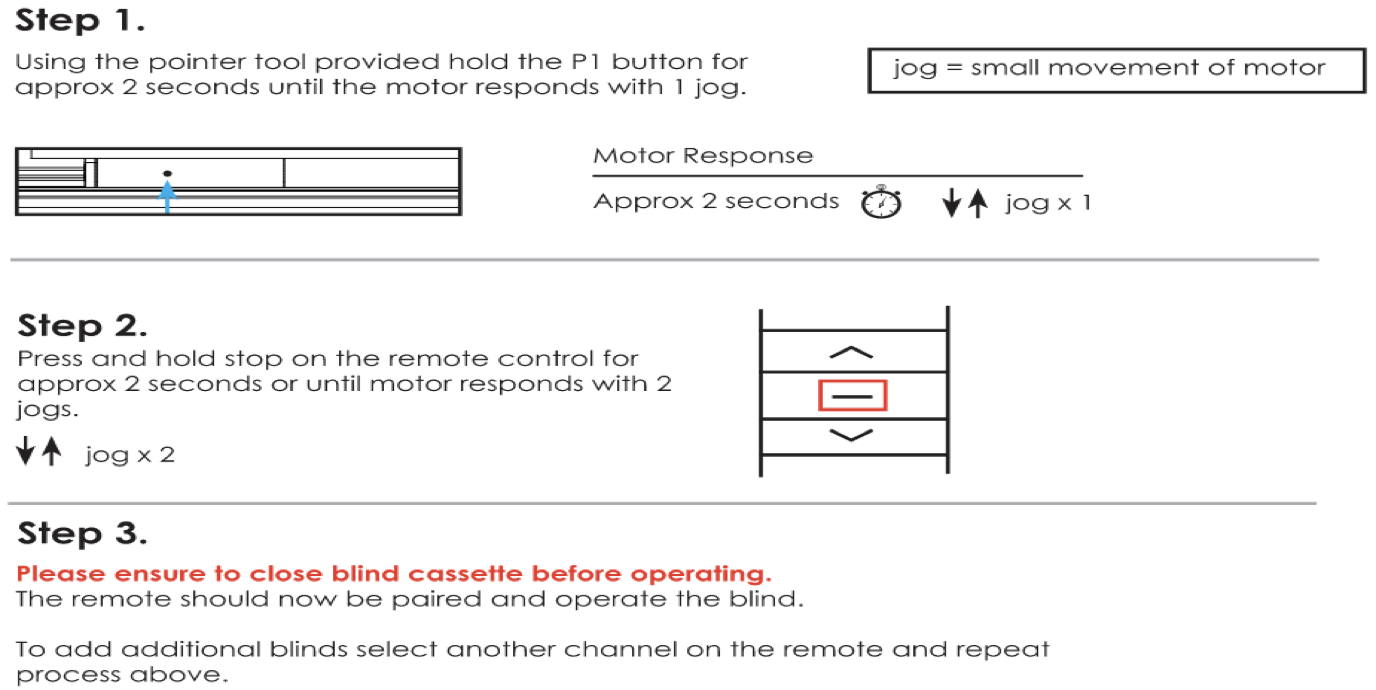

Electric Roller Blind Installation

Keylite Accredited Installer Academy

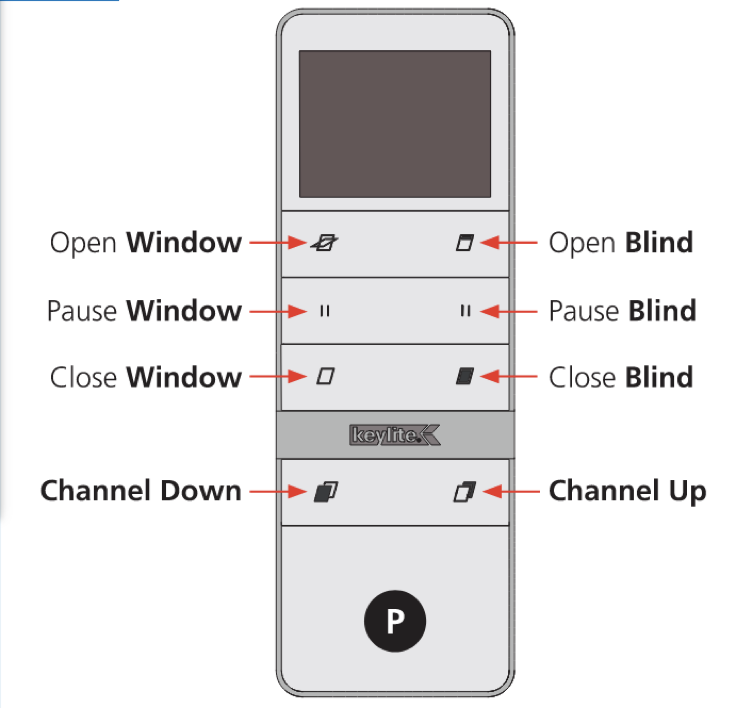

Electric Roller Blind Installation

Keylite Accredited Installer Academy

Electric Roller Blind Installation

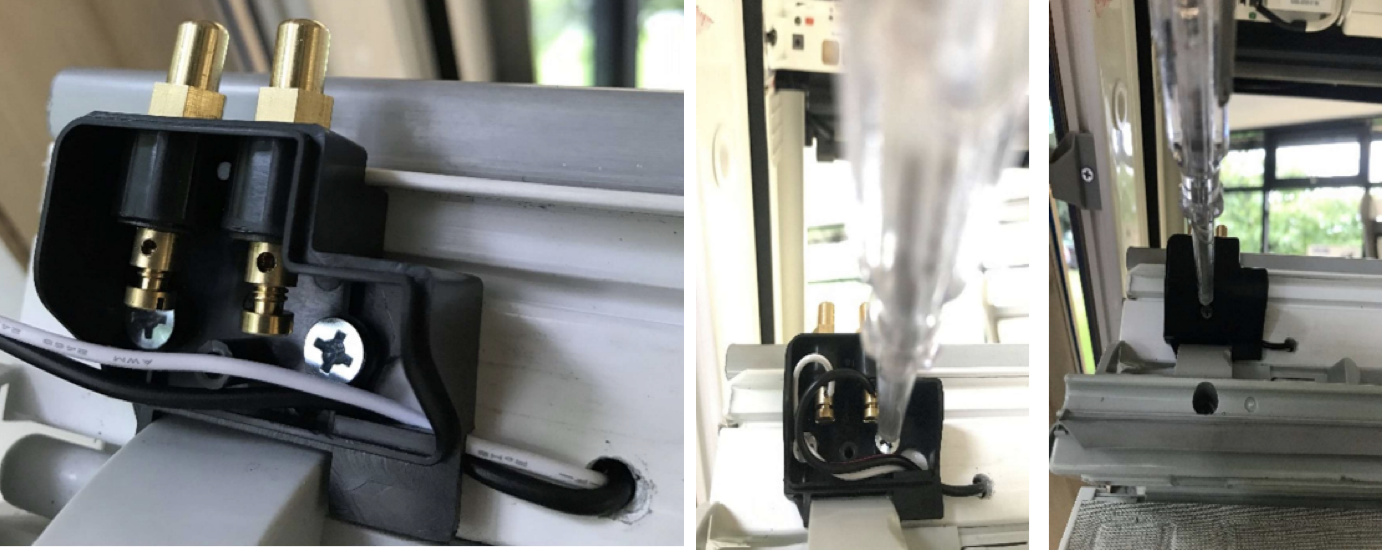

Feed the black and white cable through the side of the blind contact housing. Connect the white cable to the left sided contact and the black wire to the right sided contact.
