Stage 2

Roof Window Flashings

24 Slides

• What is a Flashing Kit?
• Features
• Tile Flashings
• Deep Tile Flashings
• Slate Flashings
• Plain Tile Flashings
• Zinc Flashings
• Copper Flashings
• Low Pitch Flashings
• Renovation Flashings
• Corrugated Flashings

Roof Window Flashings

What is a Flashing Kit?

What is a Flashing Kit?

Keylite Flashing Kits are the most effective way to ensure a watertight installation for your roof window and have been designed to integrate efficiently with a range of roofing materials.

Keylite Flashing systems can be installed on any sloping roof with a pitch from 10° to 90°. The installation of the kit is made easy following our user friendly instructions and installation videos.

What is a Flashing Kit?

Each Flashing Kit traditionally contains a Bottom Apron, a Top Apron and a set of Side Soakers. Our variety of flashings are individually tailored to suit the choice of roofing material used and ensure optimum performance is achieved.

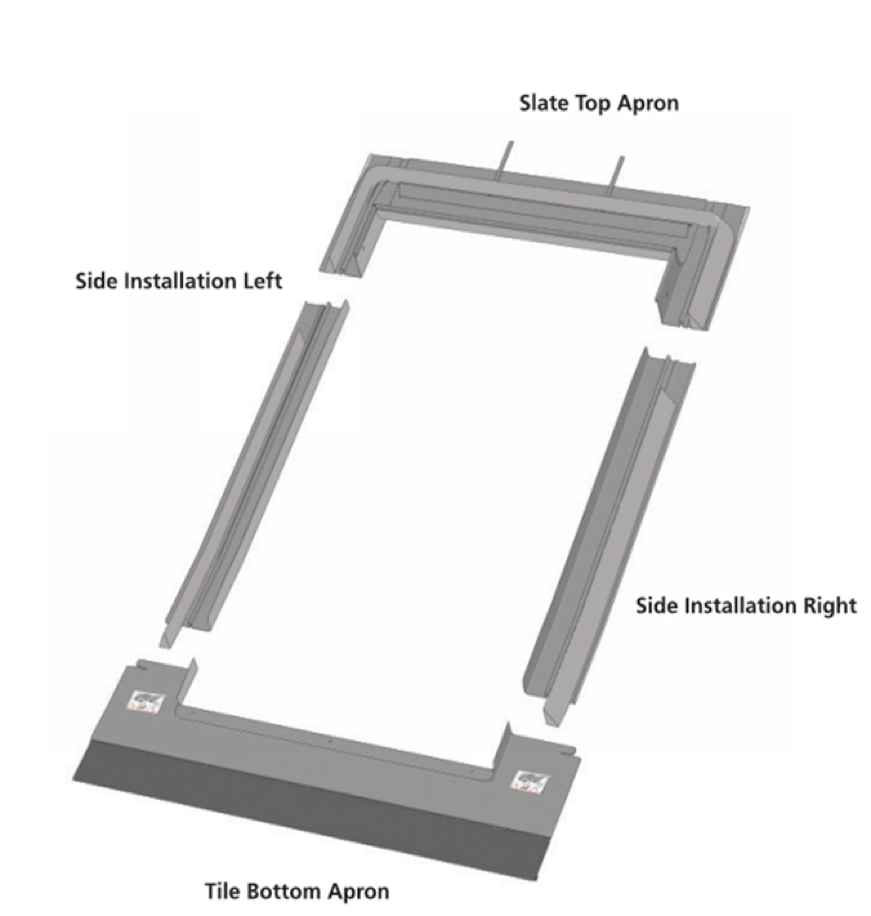

Tile Roof Flashing Components

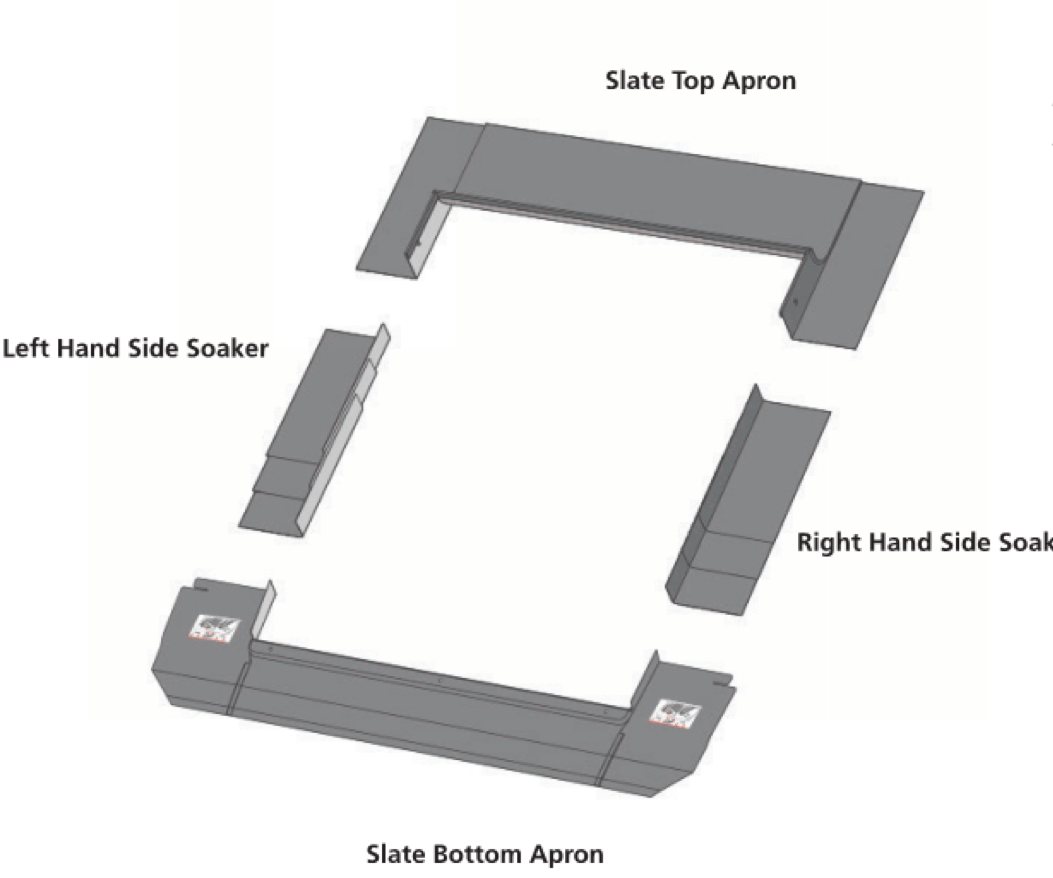

Slate Roof Flashing Components

Features

Features

Recessed Installation

Keylite roof windows guarantee the most recessed installation in the market. Compared with our competitors, we can ensure our roof windows sit up to 20mm lower in the roof to provide the best external finish.

Durability

Keylite roof windows have been subjected to extensive testing at the centre for sustainable technologies to stretch our products ability.

Innovations

All Keylite flashing systems are provided with a unique one piece bottom apron, with the exception of the corrugated flashing kit. It is designed to not only aid the installer in achieving easy first time fitting but also improves the aesthetic finish.

Features

Versatility

Keylite's prefabricated roof flashings can integrate with virtually any roofing material, overlapping harmoniously to provide a watertight seal around the window.

Reliability

Keylite use less screws on its flashing systems thus reducing the risk of water ingress, ensuring a reliable and watertight installation.

Flashings Types

Tile Flashing (TRF)

• Roof Pitch 20°-90°
• Material Profile - Max 45mm
• Flashing for single window installation into interlocking profiled tiles or interlocking plain tiles

Components

• Top Apron
• One Piece Bottom Apron
• Left and Right Installations

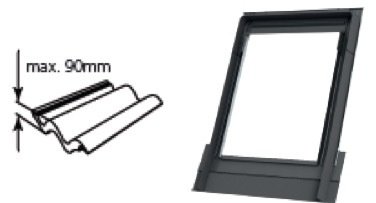

Deep Tile Flashing (DTRF)

• Roof Pitch 15°-90°
• Material Profile - Max 90mm
• Flashing for single window installation into flat or profiled interlocking tiles
• Also suitable for interlocking slate
• Suitable for profiled sheeting

Components

• Top Apron
• One Piece Bottom Apron
• Left and Right Installations

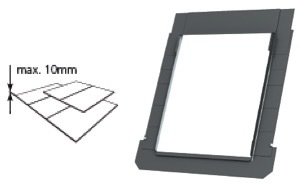

Slate Flashing (SRF)

• Roof Pitch 15°-90°
• Material Profile - Max 10mm
• Flashing for single window installation into slate up to 10mm thick

Not to be used with an interlocking tile

Components

• Top Apron
• One Piece Bottom Apron
• Left and Right Side Soakers

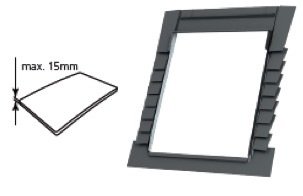

Plain Tile Flashing (PTRF)

• Roof Pitch 25°-90°
• Material Profile - Max 15mm
• Flashing for single window installation into plain tiles

Not to be used with an interlocking tile

Components

• Top Apron
• One Piece Bottom Apron
• First notched left and right side soakers
• Left and Right Side Soakers

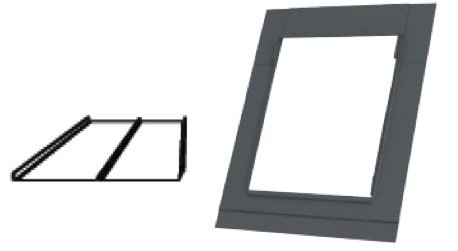

Zinc Flashing (ZRF)

• Roof Pitch 15°-90°
• Flashing for single window installation into zinc sheeting

Components

• Top Apron
• One Piece Bottom Apron
• Left and Right Side Soakers

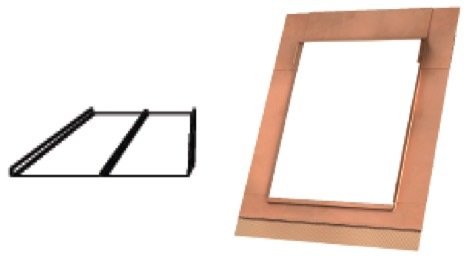

Copper Flashing (CURF)

• Roof Pitch 15°-90°
• Flashing for single window installation into copper sheeting

Roof window and flashing to be ordered together to ensure flashing matches window components

Components

• Top Apron
• One Piece Bottom Apron
• Left and Right Side Soakers

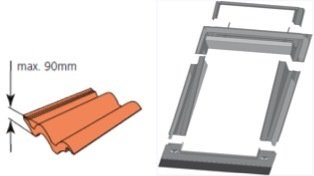

Low Pitch Flashing (LTRF)

• Roof Pitch 10°-75°
• Flashing for single window installation

Flashing to suit flat or profiled interlocking tiles. Also suitable for interlocking slate and profiled sheeting.

Components

• Top Apron Capping Piece
• Fully insulated Top Apron
• One Piece Bottom Apron
• Fully Insulated Left and Right Side Soakers

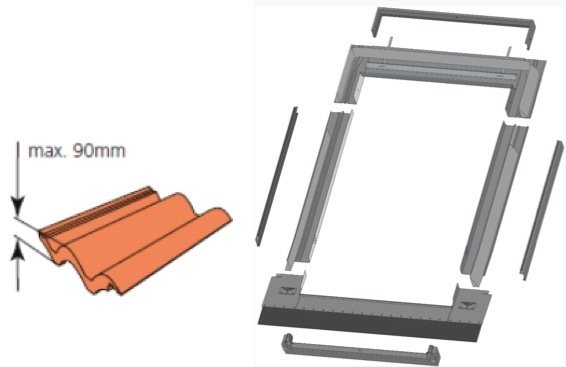

Renovation Flashing (RTRF)

• Roof Pitch 15°-90°
• Flashing for single window installation
• Material Profile maximum 90mm

Renovation flashings to suit flat or profiled interlocking tiles. Also suitable for interlocking slate and profiled sheeting.

Components

• Top Apron Capping Piece
• Top Apron
• Bottom Apron
• Left and Right Side Soakers

Renovation Flashing (RTRF)

Alternative renovation flashing kits can be supplied to suit either slate or tiled roofs.

Tile Components

• Top Apron Capping Piece
• Tile Top Apron
• Left and Right Frame Side Flashing
• Left and Right Side Soakers
• Tile Bottom Apron
• Bottom Frame Piece

Slate Components

• Top Apron Capping Piece
• Slate Top Apron
• Left and Right Frame Side Flashing
• Left and Right Side Soakers
• Slate Bottom Apron
• Bottom Frame Piece

Corrugated Flashing (CRF)

• Roof Pitch 15°-90°
• Material Profile max 5mm
• Flashing for single window installation into flat or corrugated metal roofing sheets
• Site fabricated 5mm upstand to be made from roofing material
• When installing CRF flashings, the structural opening must be +5mm of the roof window width & length instead of the standard 40mm

Components

• Top Apron Capping Piece
• Bottom Frame Piece

Quiz

Please continue to the quiz below
