Proximal-to-distal Molecular  Motor Asymmetry Controls Flagellar Wave Reversal


Feng Ling, Yi Man, Eva Kanso

University of Southern California

APS DFD 2020

Tap me!

What is flagellar wave reversal?

Quick turn around

Rapid braking

Journey to the Microcosmos (2020)

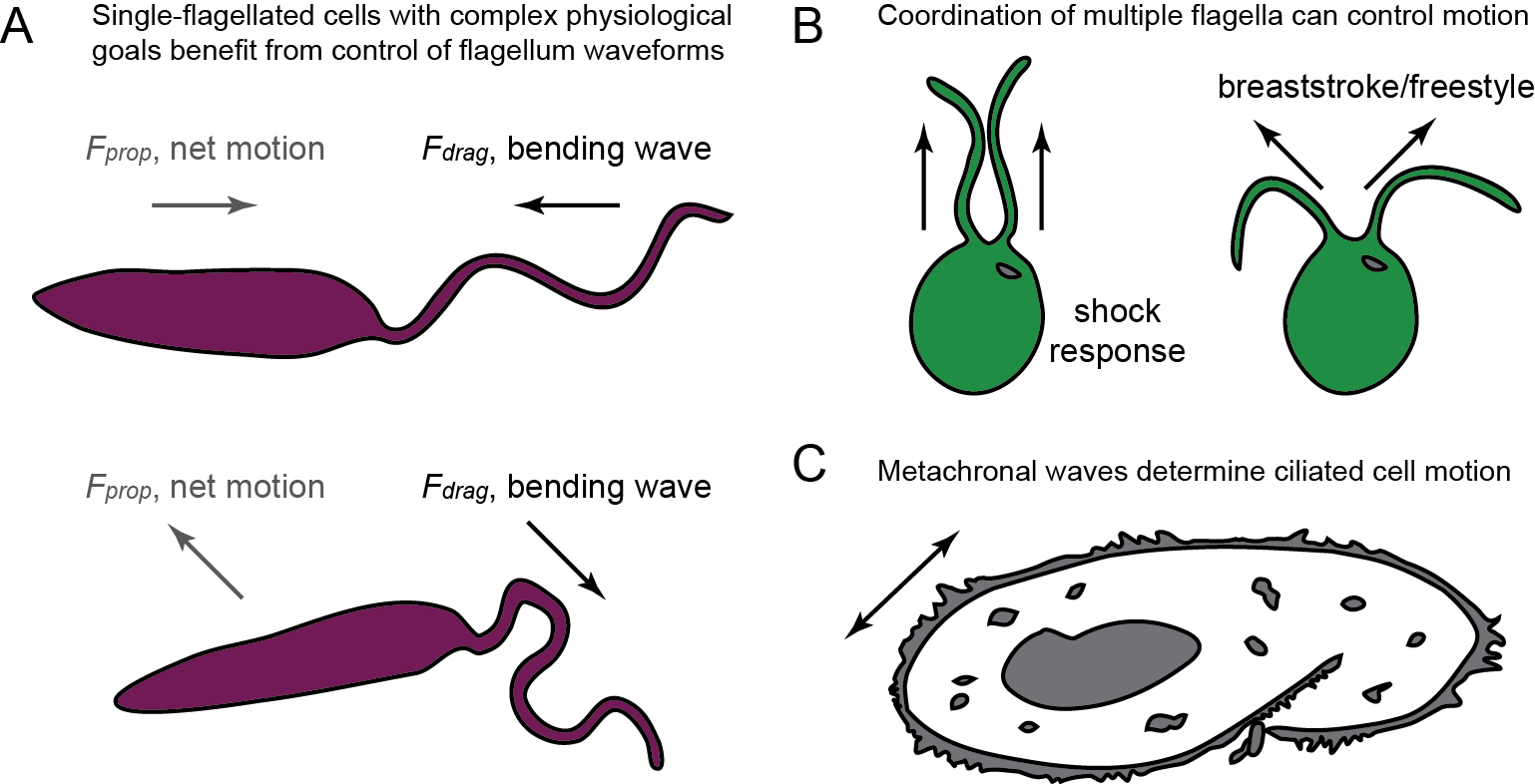

But why wave reversals?

  • a common navigation strategy is to intersperse a "running/forward" gait with bursts of "tumble/reverse/stop" phase where sensing could occur

  • this means mono-flagellates need flagellar wave reversals

  • two model organisms exhibiting wave reversal traits are parasites that separately cause sleeping sickness and Leishmaniasis.

Tip-to-base (T2B) "forward" waves

Base-to-tip (B2T) "reversed" waves




T. Brucei

L. Mexicana

Diversity for Complex Function

metachronal waves

Not all flagellar waves reverse

  • spermatozoa typically swim with base-to-tip (B2T) waves in helical trajectories

  • multi-flagellated cells and ciliated microorganisms can change locomotion strategies by altering cilia/flagella synchronization

Lin and Nicastro (2018)

Lin and Nicastro (2018)

Diversity from Similar Structures

How do homologous internal structures and mechanisms produce this diversity in motion?

How does the length-wise symmetric axoneme produce waves that travel in different directions?

Less Tip motors => less T2B waves

  • experiments on genetic mutants link wave reversal to asymmetry in dynein motors

  • specifically, wild type organism typically exhibit tip-to-base (T2B) waves, while mutants missing dynein arms near the tip favor base-to-tip (B2T) waves*

  • can/do wild type organisms use this asymmetry to control wave direction?

Edwards et al., PNAS (2018)

Wild Type Statistics /




Intermittent T2B





Mutant Statistics





Observed Waveforms

Tap Me !

Edwards et al., PNAS (2018)

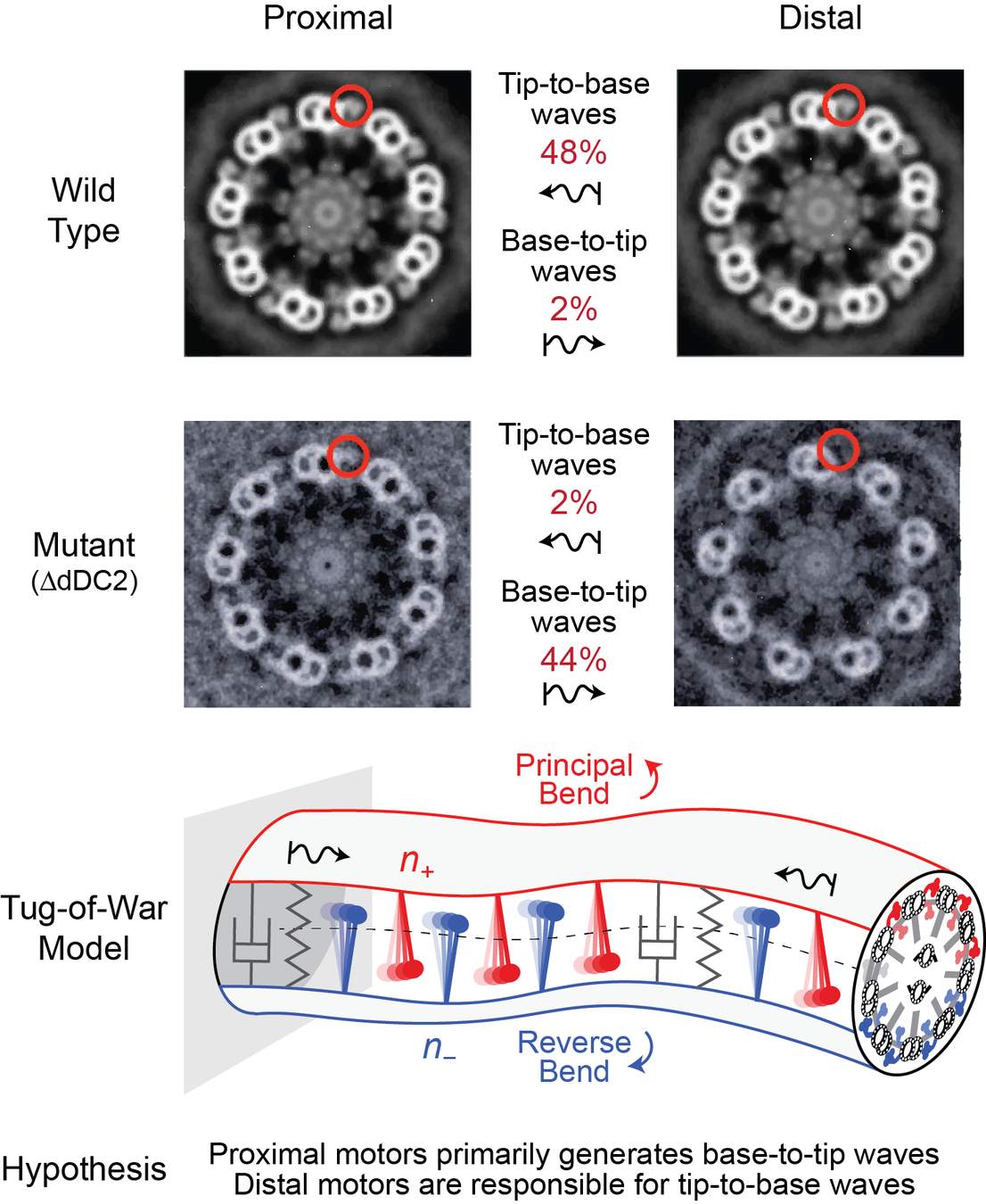

Tug-of-War Model of Flagellum

  • model a flagellum as two micro-filaments coupled elastically and via molecular motor dynamics*

  • each filament (\(\,+\) and \(−\) ) has a population of motors that bend the centerline in opposite directions (\(\,n_+\) and \(n_-\))

  • Motors attach under a fixed rate but detach due to both natural transitions & geometric feedback

Motor Dynamics & Geometric Feedback

  • binding/unbinding (attach/detach) of dynein \(\rightarrow\) inter-doublet sliding

  • sliding force couple + elastic resistance  \(\rightarrow\) active bending moment

  • feedback could arise via sliding control, curvature control, or "geometric clutch"

Qiu et al., Nature Struct. Mol. Bio (2012)

Sartori et al., eLife (2016)

Dimensional & Dimensionless Parameters

flagellum length


bending rigidity

drag coefficient

\(L~~~~~~~~~~~\sim50\,[\mu m]\)


\(B~~~~~~\sim1\,[nN\,\mu m^2]\)

\(\xi_\perp~~~~ 10^{-3}\sim1\,[Pa\,s]\)

doublet link modulus

total dynein density

\(K~~~~\sim 2\,[\mu N\,\mu m^{-2}]\)

\(\rho~~~~~~~~\lesssim 400\,[\mu m^{-1}]\)

dynein stall force

detachment force

null-force speed

reaction time



\(v_o~~~~~~~5\sim7\,[\mu m\,s^{-1}]\)


sperm number

\(\text{Sp}^4\;=~\dfrac{\xi_\perp L/\tau_o}{B/L^3}\)

passive moment

duty ratio

char. force

relative disp.

active moment







attachment rate

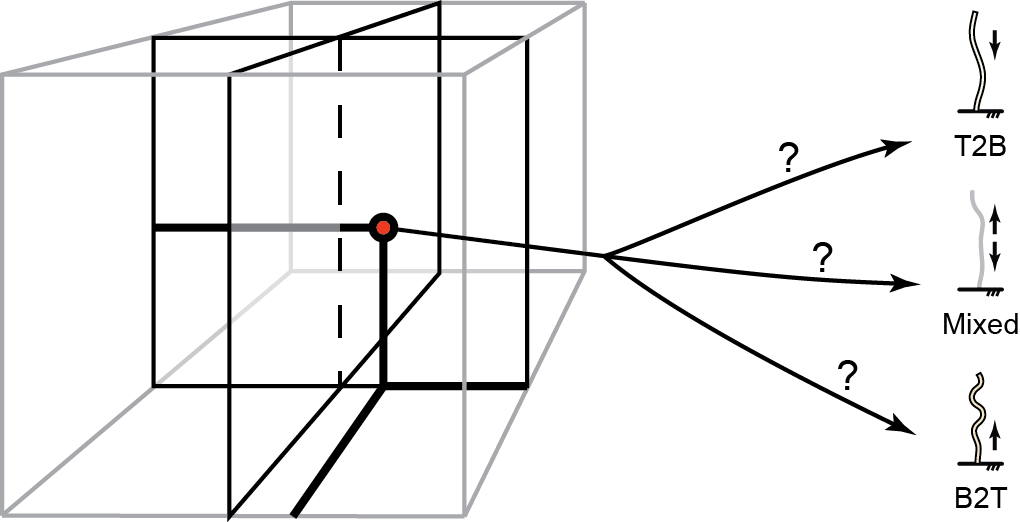

System I/O




active moment


sperm number

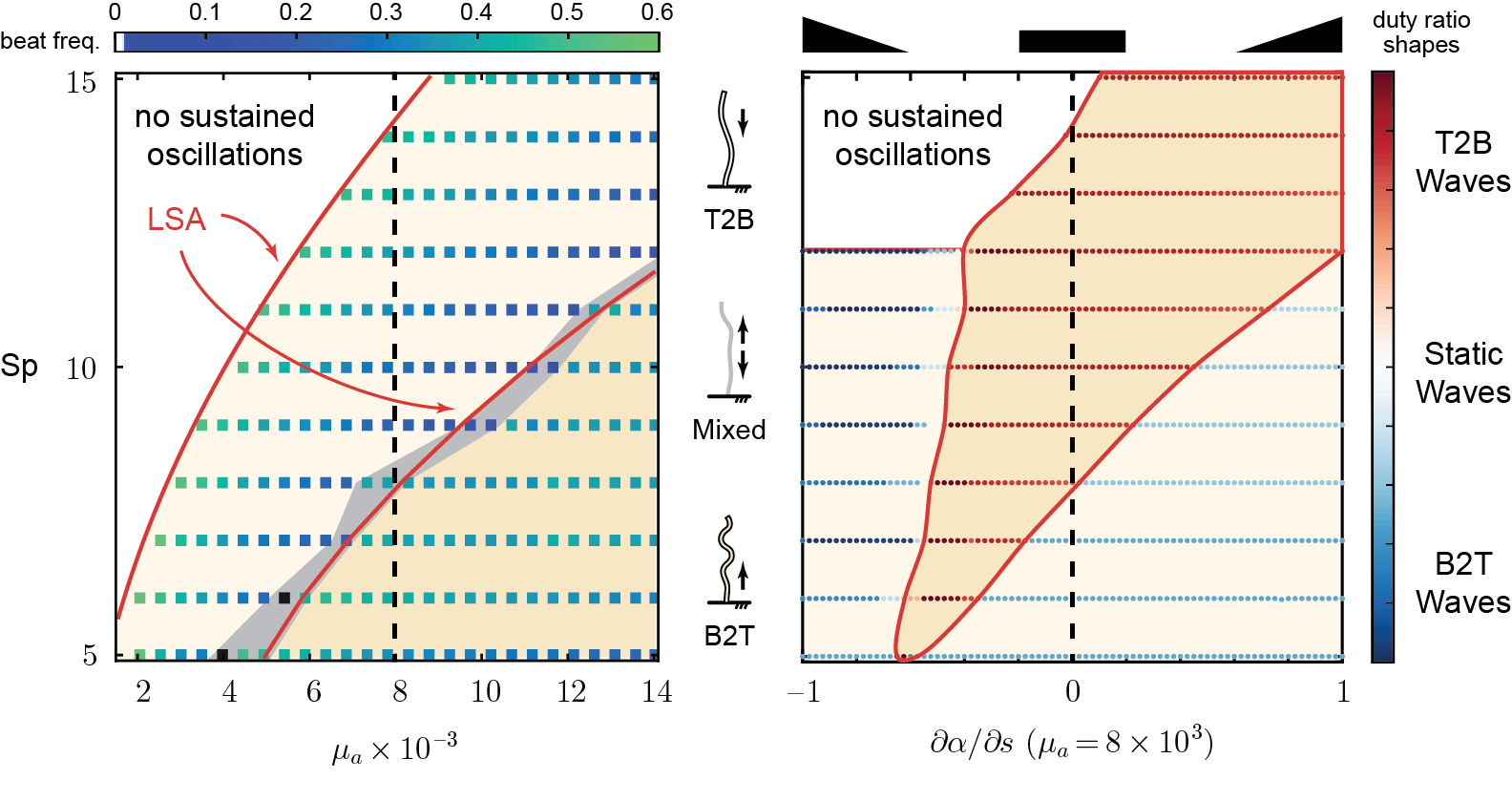

Ramping up the Motor Activity

fixing all parameters except \(\text{Sp}\) and dimensionless activity \(\mu_a\), we see that sliding control give rise to

  • a Hopf bifurcation where instability induces sustained oscillations
  • larger activity give rise to a 2nd transition from T2B to B2T waves
  • the transition zone can show mixed wave states, especially under added thermal noise*

sperm number

active moment

Biasing the Attachment Rate

If we fix \(\mu_a\) but vary the attachment duty ratio \(\alpha\) linearly as a function of arclength \(s\)

  • more activity near the base, or        [\(\partial\alpha/\partial s>0\)], leads to base-to-tip B2T waves
  • more activity near the tip, or            [\(\partial\alpha/\partial s<0\)], leads to tip-to-base T2B waves




sperm number

motor asymm.







Controlling Wave Reversals

  • previous results suggests that bi-stability zones could exist

  • if we gradually vary from a base-heavy activity profile (\(\alpha_{prox}(s)\)) to a tip-heavy profile (\(\alpha_{dist}(s)\)) and back, we should observe

    • B2T waves \(\rightarrow\) mixed waves \(\rightarrow\) T2B waves \(\rightarrow\) mixed waves \(\rightarrow\) B2T waves

proximal dynein   /   distal dynein

Edwards et al., PNAS (2018)


\(\alpha(s) = (1-c_{tip})\cdot\alpha_{prox}(s)\)




  • Trypanosome flagellum contains two distinct families of dynein motors, each built from two ends and meet in the middle.
  • Inspired by this, we tested two different way of changing motor activity along the arclength \(s\)

proximal dynein   /   distal dynein

Edwards et al., PNAS (2018)

Two ways to switch

translating bump

switch between two groups





Controlling Wave Reversals

B2T waves are possible even when activity concentrates near the tip! And the opposite is also true!


\(\mu_a=8\times 10^3\)




\(\mu_a=8\times 10^3\)

\(\mathbf{f}_h\cdot \mathbf{n}\)

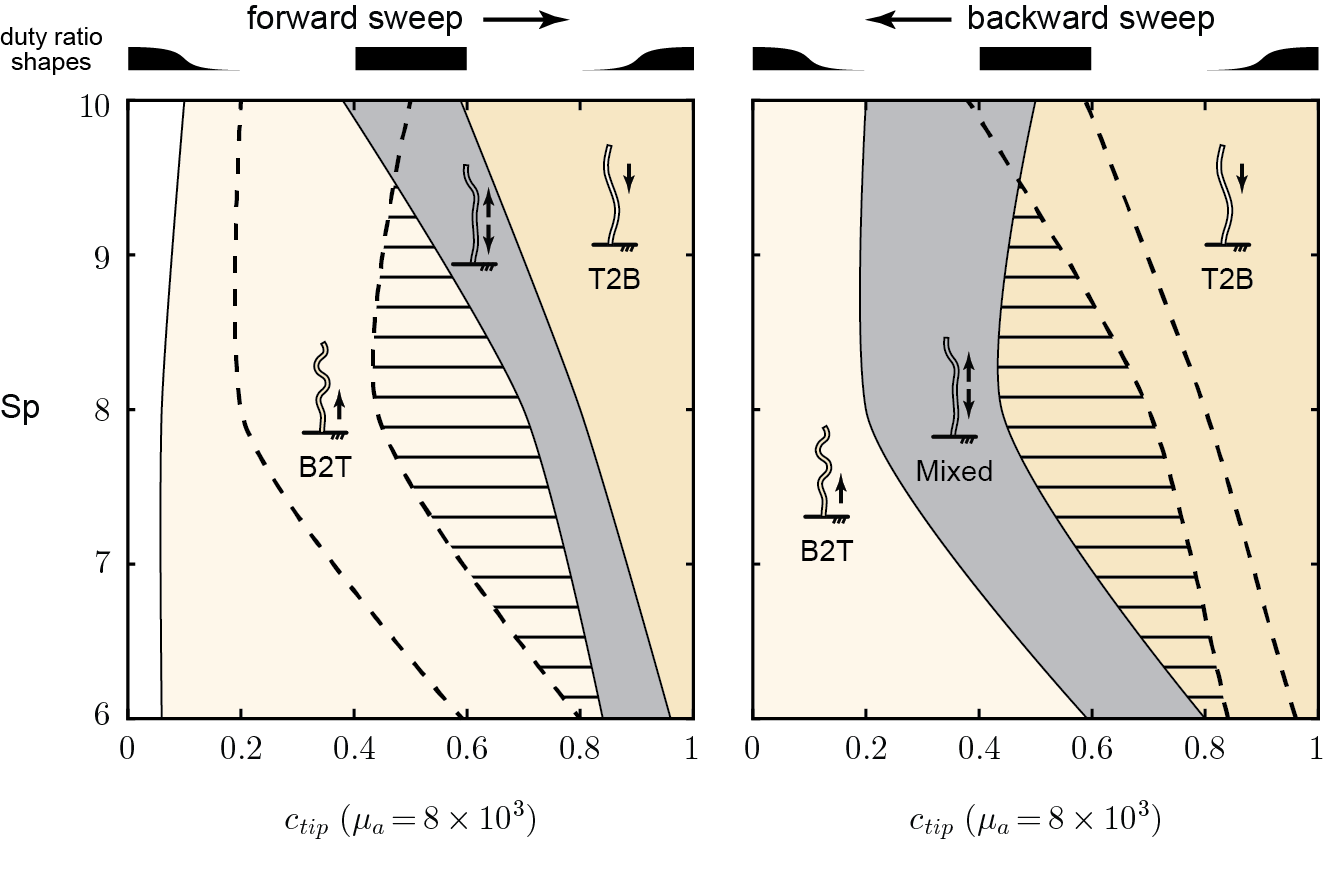

Bistable Zones

motor activity distributed in the  shaded region can support both B2T and T2B waves!

sperm number

motor asymm.

  • increase in total activity magnitude introduces a T2B to B2T transition under sliding control*

  • biasing activity at either end leads to wave initiations near that end in general, e.g., base heavy activity \(\rightarrow\) B2T waves

  • there exists a bi-stable region where same activity pattern can produce different wave propagation directions

How activity affect wave directions

  • comparable to real data, but

    • difficult to estimate accurate activity parameters and characteristic scales in geometric feedback

  • other chemical details and 3D geometrical effects could further complicate this story

Some Concluding Remarks

  • results discussed utilize only sliding control

    • combination of different feedback mechanism might better explain diverse behaviors

  • effects on propulsive efficiency*

  • LSA about traveling wave states

Experimental observations

  • B2T waves can be triggered by either a lack of tip motors or more Ca\(^{2+}\)

  • T2B waves at higher frequency => faster straight swimming

  • (asymmetric) B2T waves are at larger amplitude but much slower frequency => helical slow swimming

  • Geometric clutch theories are popular but there are separate evidences on how curvature/sliding control fits wave shapes better

Curvature Control

  • Wave direction change is impossible without changing direction of motor detachment

  • frequency (slowly) increases with increased activity

  • do not produce (very) large amplitude waveforms

Sliding control

  • Base-to-tip wave can be triggered by either a lack of tip activity or an increase in "activity"

  • Tip-to-base wave produces smaller net forces (slower swimming)

  • frequency decreases with "activity increase"

Comparing with Experiments

  • Show/prove why direction cannot change under curvature control?

  • Construct a threshold-based sliding control analytical model assume

    • \[\theta(s,t) = T(s) \sin(ks-\omega t)\]

    • \[m_a(s,t) = M(s) \sin(ks-\omega t)\]

    • \[n_+(s,t) = N(s) \sin(ks-\omega t)\]

    • \[n_-(s,t) = N(s) \cos(ks-\omega t)\]

  • 2 DiffEQs coupling T,M w/ BCs (linearized elastic filament eqn)

  • 1 Eqn coupling M and N and T (expression of active torque)

  • 1 Eqn coupling N and T (dynamics on motor)

Analytical model for intuitive explanations?

Tanhks 4 Yo Attention
