Assistance au développement et au test d’applications sécurisées
Soutenance de thèse
Présentée par : Loukmen REGAINIA
12 Juin 2018
Sous la direction de :
- Pr. Sébastien SALVA
- Dr. Cédric BOUHOURS
-
Implementing secure software
- expertise, knowledge, time consuming
- Software security is essential and should be considered as early as possible
- Developers are provided with a plethora of documents:
- Vulnerabilities, Attacks, Weaknesses, etc
- Security Principles and best practices
- Security Patterns
Introduction
2
- Weakness
- Vulnerability
- Attack
- Threat
- Security Principle
Introduction
CWE-89: Improper Neutralization of Special Elements used in an SQL Command ('SQL Injection')
CVE-2018-8045 (Joomla 3.5.0 - 3.8.5)
CAPEC-66: SQL Injection
In depth defense
Relying on user input
3
Security patterns
A pattern is a generic solution to a recurrent problem
4
Security patterns
A pattern is a generic solution to a recurrent problem
security
security
4

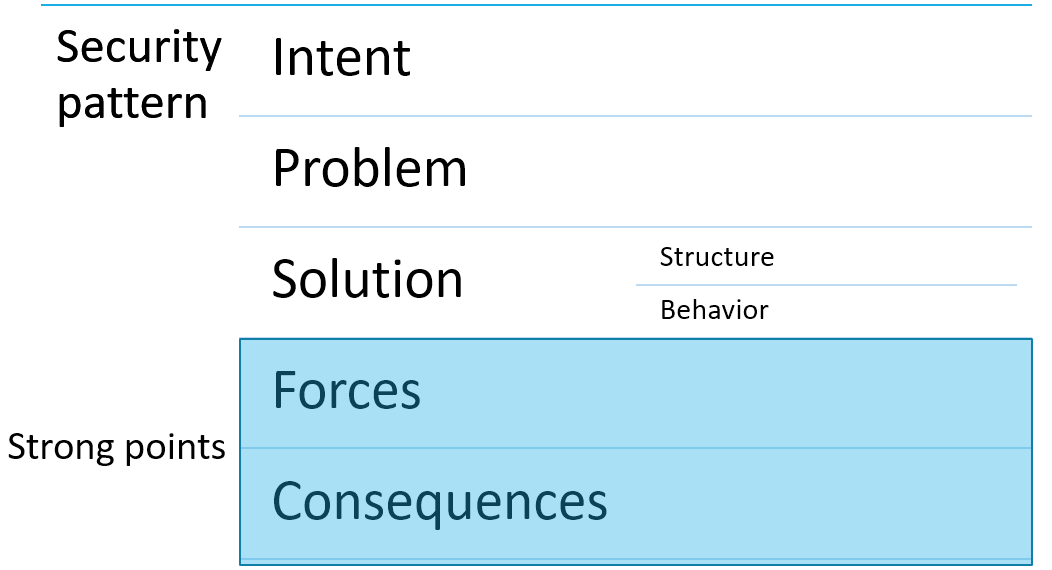

SP := (C,P,S)
Security patterns
Context
Problem
Solution
Schumacher et al. 2001
5
Security patterns
A pattern is generic
Must be integrated
Difficult and error prone task
6
Security patterns
7
Pattern
Application model
Pattern Integration
Security patterns
8
Security patterns
8
Security patterns
A security pattern is not an island M. Schumacher et al.
9
K.Yskout et al.
Contributions
- Measure Security Pattern integration quality
- Measure Security Pattern effectiveness against vulnerabilities
- Knowledge Base design and fulfillment
- Security Pattern classifications
- Security and Pattern testing
10
-
Security Pattern integration
-
Security Pattern classification
-
Security and Pattern testing
-
Conclusions and Perspectives

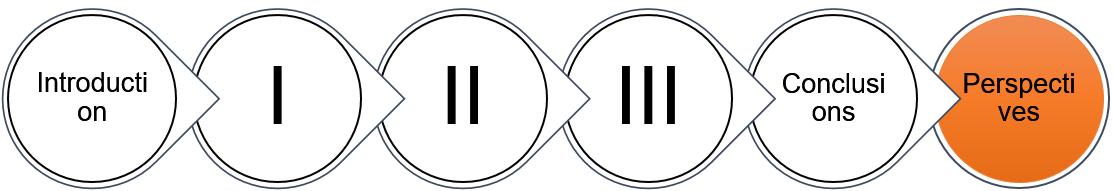

Outline
11
1 :Security Pattern integration
12
Introduction
Where:
- M the UML model of the application
- V = {V1,..,Vn} a set of Vulnerabilities
- SP = {Sp1,..,Spk} a set of Security Patterns
- Pvi , Pspj sets of Vulnerability i, and Security Pattern j LTL (Linear Temporal Logic) generic properties
M
V
SP
Wants to protect
Against
Using
Dev
13

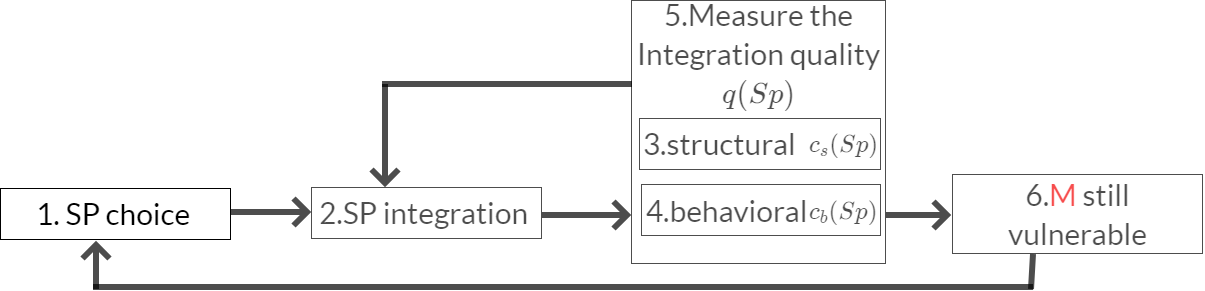

Big picture
1. SP choice
2.SP integration
3.structural
4.behavioral
5.Measure the Integration quality
6.M still vulnerable
Vulnerability coefficient
Vulnerabilities V
14
2. Pattern integration (Structural)
15

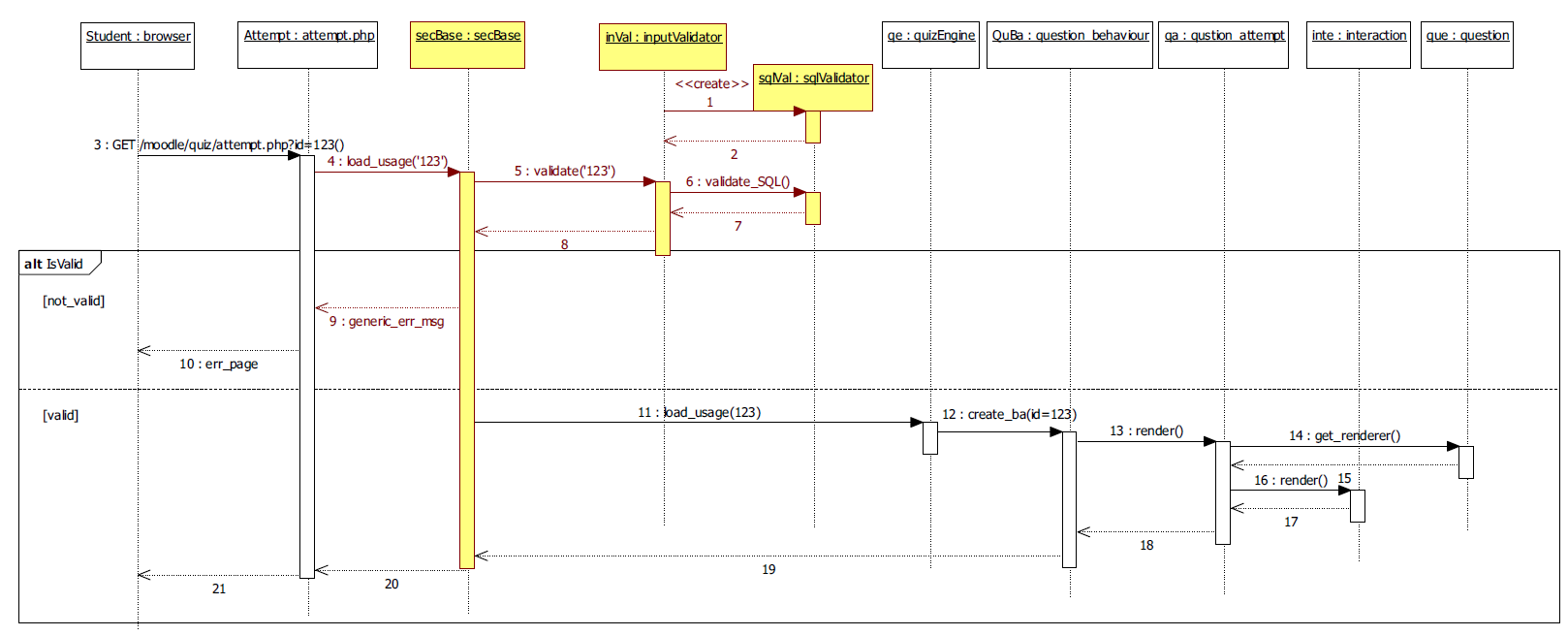

2. Pattern integration (Behavioral)
16
3. Structural integration quality
With the Disclosure Coefficient of the Pattern i
17

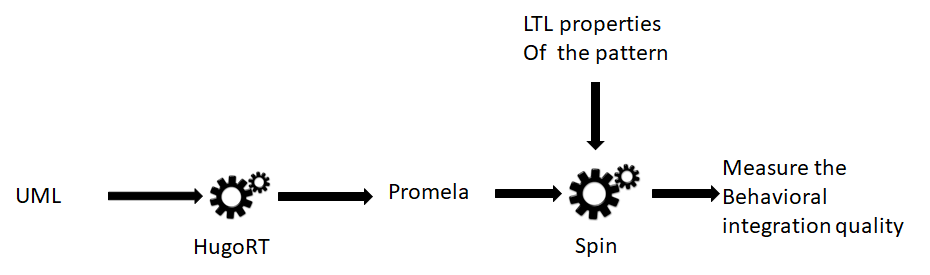

4. Behavioral integration quality
18
4. Linear Temporal Logic (LTL)
Generic :
Instantiated :
19
4. Behavioral integration quality
where:
20
K. Yoon 1995
Simple Additive Weighting
5. Overall integration quality
A Pattern Sp
The set SP
where
21

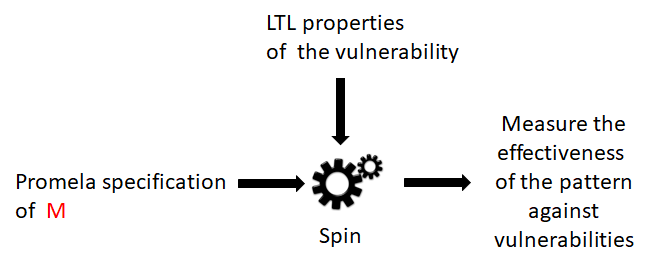

6. Pattern effectiveness
Overall vulnerability coefficient
- We check whether M is still vulnerable
22
Chapter Conclusions
Open issues :
- A Pattern cannot be the silver bullet against a vulnerability
- Need to use other patterns Difficult to choose patterns
M
V
SP
Wants to protect
Against
Using
Dev
23
Published in :
- CIEL 2015
- Softeng 2016
- TSI 2016
2 : Security Pattern classification
24
Open problems
- Many Security Patterns difficult choice
- One Security Pattern cannot protect an application
- Directly associating a Pattern and an Attack or a Weakness is awkward
- Security Patterns are inter-related
25
Big Picture
3 Security Patterns classifications WRT:
- Weaknesses
- Attacks and Weaknesses
- Attack steps and techniques
26

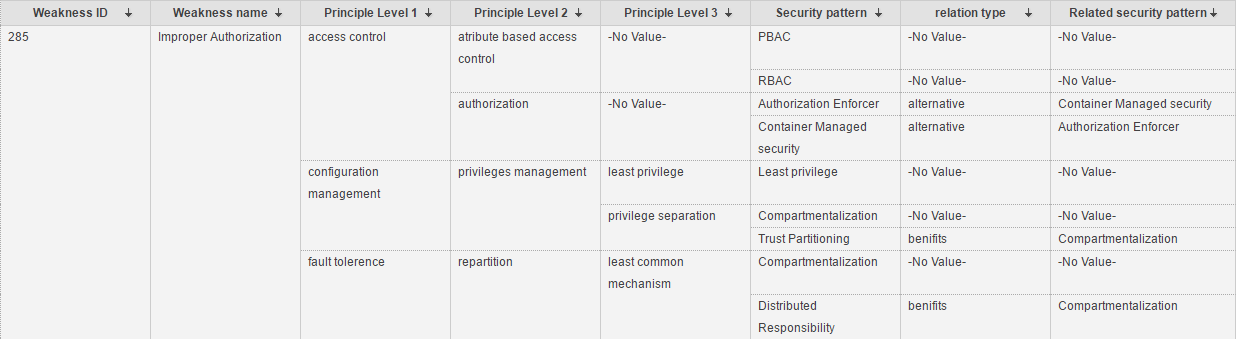

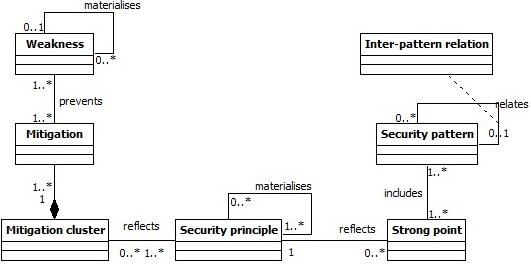

Classification Meta-model
- Objective : Classify patterns w.r.t weaknesses
27

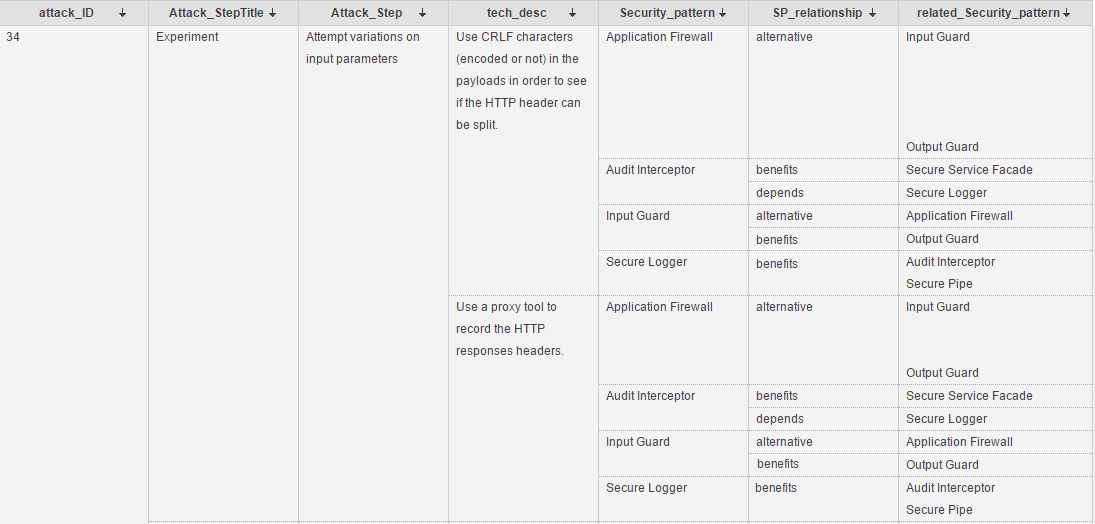

Classification Extraction
28

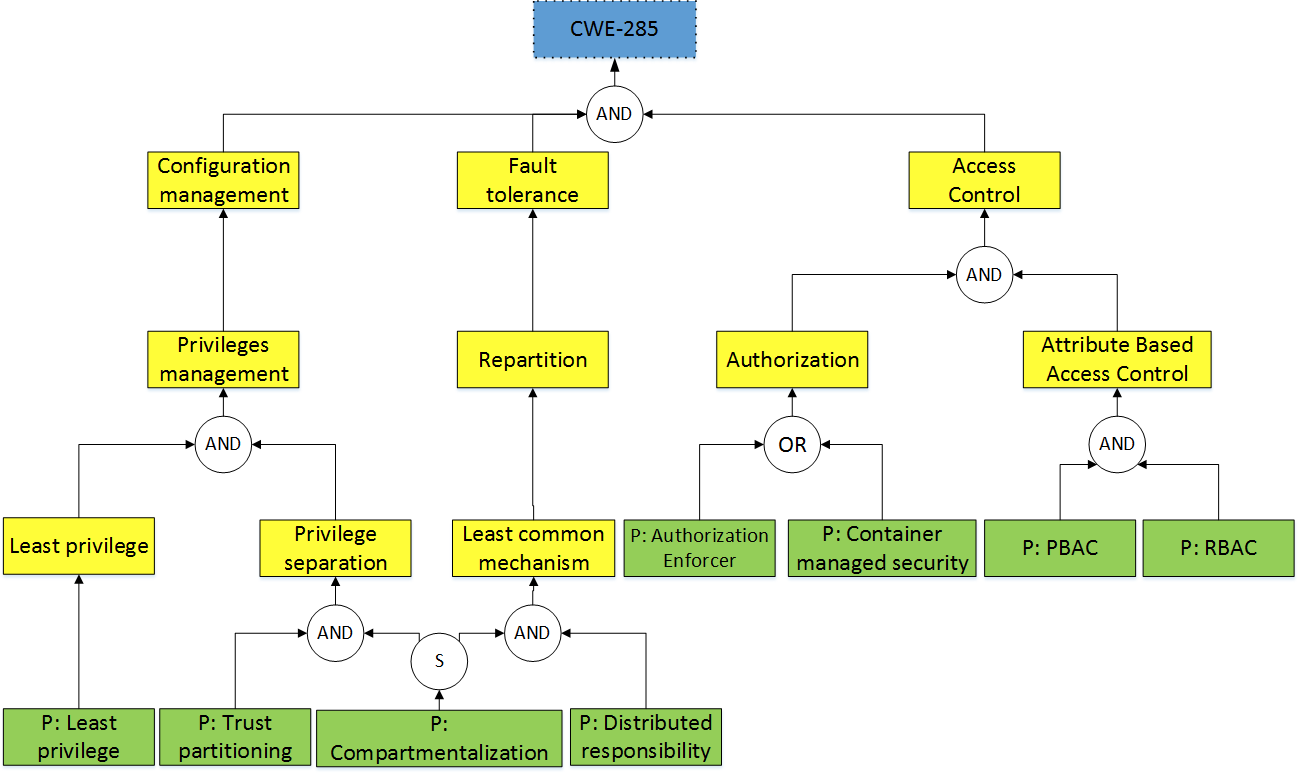

Security Activity Graphs generation
29
Weakness
Principle
Pattern
S
Split
S.Ardi et al. 2006
Classification Meta-model
30
- Objective : Classify patterns w.r.t Attack steps and techniques
Classification Extraction
31
Attack Defense Trees
An ADTree can be expressed with :
Opponent "o"
Proponent"p"
Algebra (ADTerms):
Graphical:
32
B.Kordy et al. 2014
ADTree generation
33
Chapter Conclusions
We presented :
- Data Integration methods
- 3 classifications comply with
- Navigability
- Unambiguity
- Usefulness
- Automatic generation of :
- Security Activity Graphs
- Attack Defense Trees
Perspectives:
- Generate tests from ADTrees to test attacks and security patterns
Knowledge base
34
Published in :
- AICSSA 2016
- ICISSP 2017
- CRISIS 2017
- RSIS 2018

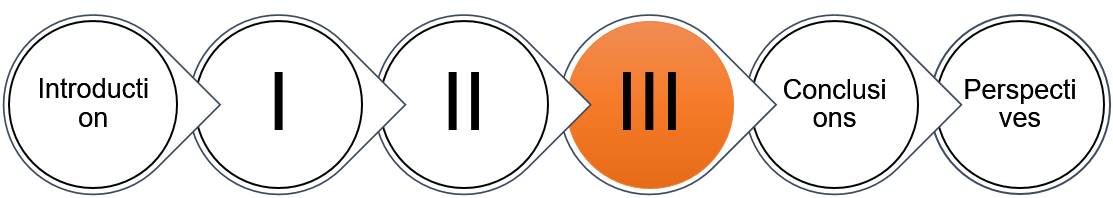

3 : Security and Pattern testing
35
We propose:
- Pragmatic approach to guide developers in choosing security solutions and writing concrete test cases for :
- Checking whether the application is vulnerable
- Checking whether pattern observable consequences are absent
- Writing concrete security tests is long and difficult
- Testing security patterns (Generic) is difficult
Open Problems
36
37
Meta-model

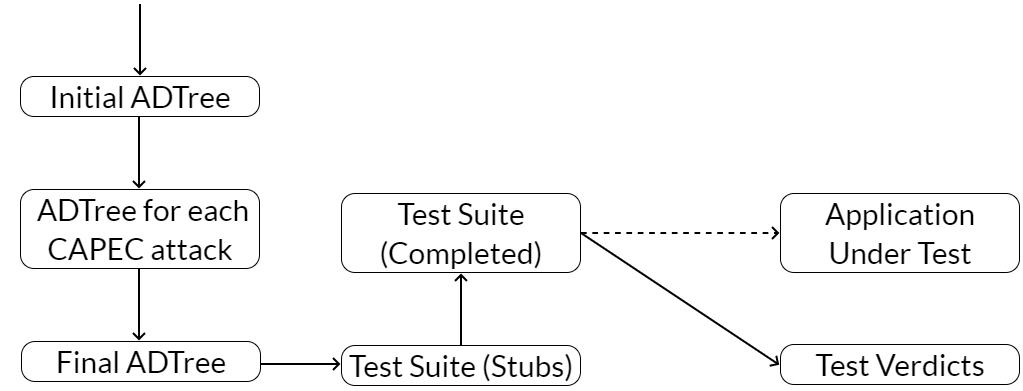

Method steps
38
Initial ADTree
ADTree for each CAPEC attack
step 1
step 2
step 3-4
Final ADTree
Test Suite (Stubs)
step 5
Test Suite (Completed)
Application Under Test
Test Verdicts
step 6
step 7
Step 1: Initial ADTree T
- CAPEC-66: SQL Injection
- CAPEC-244: XSS Targeting URI Placeholders
39
Step 2: ADTree Generation
The form of the tree depends on the Knowledge base
40
Step 3-4: Final ADTree
Basic Attack Defence Step (BADStep)
st
sp
41
Step 5: Test Suite Generation
Attack Scenario
Test Suite
42
Step 6: Test Suite Completion
43
Given
When
Then
Procedure
Completed using pentesting tools
A procedure is generic if reusable in a context
Step 7: Test Suite Execution
Local test verdicts
44
Step 7: Test Suite Execution
Final test verdicts
45
Method Evaluation
- 24 participants to evaluate :
- Comprehensibility
- Accuracy
- Efficiency
- Security pattern choice w.r.t :
- SQL Injection
- Cross site scripting
- Writing test cases
46
Part 1 (1h30):
- Basic documents
Part 2(1h30):
- Basic documents
- ADTrees
- GWT test cases
Method Evaluation
Comprehensibility | Part 1 | Part 2 |
---|---|---|
Pattern choice | 00.0% | 33% |
Understanding Attacks | 41.7% | 87.5% |
Understanding Patterns | 37.5% | 87.5% |
Writing test cases | 33.3% | 58.3% |
47
Method Evaluation
Accuracy | Part 1 | Part 2 |
---|---|---|
Pattern choice (correct) | 00.0% | 62.5% |
Writing test cases (correct) | 0.1% | 78.1% |
48
Method Evaluation
Efficiency | Part 1 | Part 2 |
---|---|---|
Pattern choice | 32 m | 14 m |
Writing test cases | 46 m | 60 m |
49
Chapter conclusions
50
We proposed :
- Knowledge base for test case generation
- Test case generation and execution
- Check vulnerability
- Check observable pattern consequences
- Evaluation with 24 participants
Issues :
- Checking pattern consequences (not enough)
- Knowledge base not exhaustive
Published in :
- AFADL 2017
- ICTSS 2017
We presented approaches and tools to assist developers :
-
Security Pattern integration
-
Security pattern classification
-
Security and Pattern testing
Conclusions
51
Perspectives
- Knowledge base completion
- Check patterns behavioral properties w.r.t execution traces
- Associate patterns with well known threat management methodologies
- Security Reference Architecture (patterns + Knowledge base)
52
Thank you for your attention
ADTree generation method 1
ADTree generation method 1
- POS Tagger and stop words definition
- Distance matrix with “Jaccard”
- Hierarchical clustering with “Ward”
ASSPC
ADTree generation method 2
Step 3: Security pattern choice
Basic Attack Defence Step (BADStep)
Keep security pattern conjunctions
Step 5: Test suite generation
Test case (TC) example :
Step 5: Test suite generation
BADStep
Test scenario extraction from ADTree using ADTerms
Step 5: Test suite generation
Step 6: Test case completion
Methodology Evaluation results
- C1: Comprehensibility
Methodology Evaluation results
- C2: Effectiveness
Methodology Evaluation results
- C2: Effectiveness
Methodology Evaluation results
- C3: Efficiency
