Database!

Topics

  • Normalization
  • Queries and Indexes
  • Advanced Topics
  • Anti-Patterns

Normalization

n-normal Forms

  • 1-NF First Normal Form
  • 2NF Second Normal Form
  • 3NF Third Normal Form
  • BCNF Boyce-Codd Normal Form (3.5NF?)
  • EKNF Elementary Key Normal Form
  • 4NF Fourth Normal Form
  • ETNF Essential Tuple Normal Form
  • 5NF Fifth Normal Form
  • DKNF Domain Key Normal Form
  • 6NF Sixth Normal Form

First Normal Form

  • Single Value
  • Unique Types
  • Unique Columns

Second Normal Form

  • At 1NF
  • Single Column Primary Key

Third Normal Form

  • At 2NF
  • No Transitive Dependency

Queries and Indexes

Relational Algebra

  • Projection, Selection, Rename
  • Joins

SQL 101

  • SELECT, WHERE
  • GROUP BY, HAVING

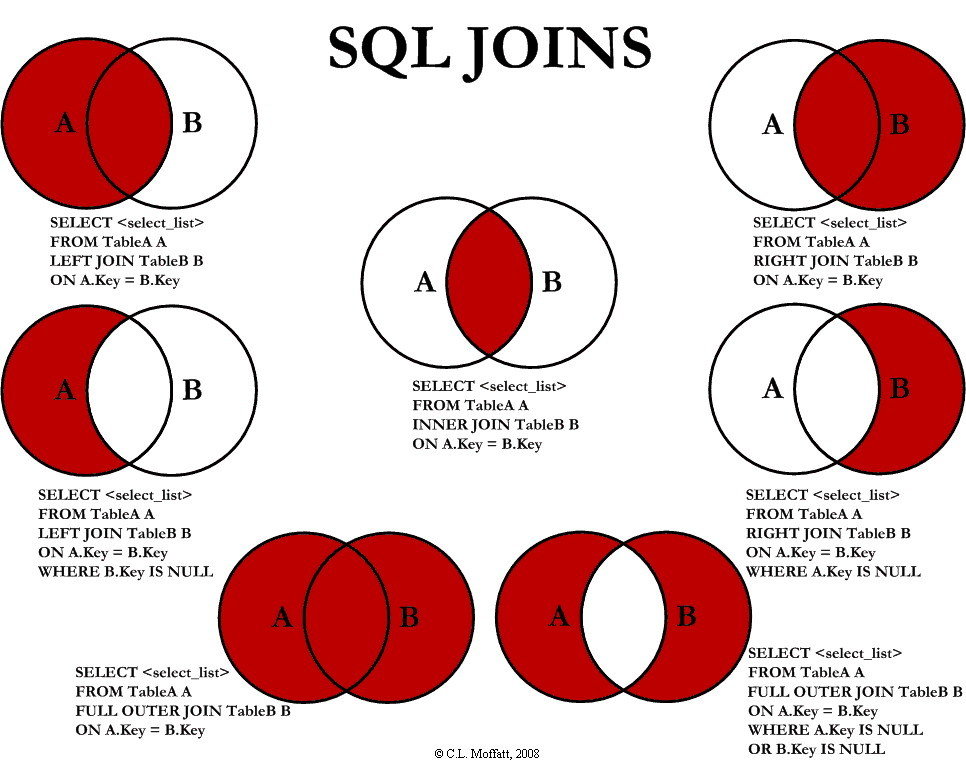

  • INNER JOIN, LEFT/RIGHT JOIN

Indexes

  • Types of Indexes
  • When to use Indexes
  • When not to use Indexes

Advanced Topics

Advanced SQL

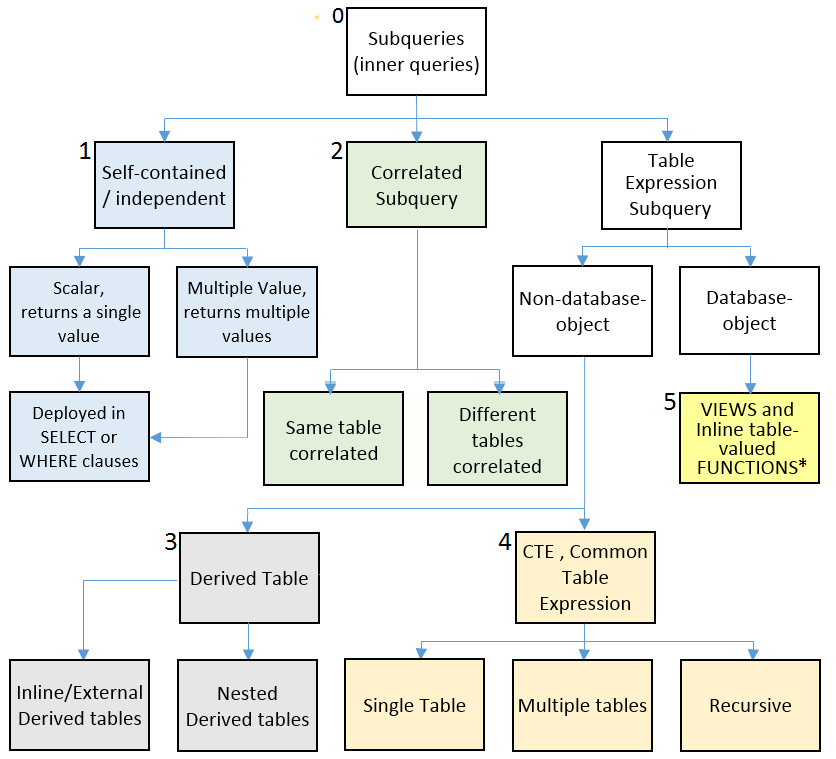

  • Subqueries
  • Class Table Extensions
  • Lateral Joins
  • Window Functions
  • Materialized Views

Class Table Extensions

WITH regional_sales AS (
        SELECT region, SUM(amount) AS total_sales
        FROM orders
        GROUP BY region
     ), top_regions AS (
        SELECT region
        FROM regional_sales
        WHERE total_sales > (SELECT SUM(total_sales)/10 FROM regional_sales)
     )
SELECT region,
       product,
       SUM(quantity) AS product_units,
       SUM(amount) AS product_sales
FROM orders
WHERE region IN (SELECT region FROM top_regions)
GROUP BY region, product;

Lateral Joins

SELECT user_id, first_order_time, next_order_time, id FROM
  (SELECT
        user_id,
        min(created_at) AS first_order_time
        FROM orders GROUP BY user_id) o1
  LEFT JOIN LATERAL
  (SELECT id, created_at AS next_order_time
   FROM orders
   WHERE user_id = o1.user_id AND created_at > o1.first_order_time
   ORDER BY created_at ASC LIMIT 1)
   o2 ON true;

Window Functions

SELECT sum(salary) OVER w, avg(salary) OVER w
  FROM empsalary
  WINDOW w AS (PARTITION BY depname ORDER BY salary DESC);

Materialized Views

CREATE TABLE invoice (
    invoice_no    integer        PRIMARY KEY,
    seller_no     integer,       -- ID of salesperson
    invoice_date  date,          -- date of sale
    invoice_amt   numeric(13,2)  -- amount of sale
);

CREATE MATERIALIZED VIEW sales_summary AS
  SELECT
      seller_no,
      invoice_date,
      sum(invoice_amt)::numeric(13,2) as sales_amt
    FROM invoice
    WHERE invoice_date < CURRENT_DATE
    GROUP BY
      seller_no,
      invoice_date
    ORDER BY
      seller_no,
      invoice_date;

CREATE UNIQUE INDEX sales_summary_seller
  ON sales_summary (seller_no, invoice_date);

Design Patterns

Use Cases

  • Tree/Nested Structure
  • Polymorphic Association
  • Entity/Attribute Value
  • Metaprogramming
  • Full-text Search
  • Extensions

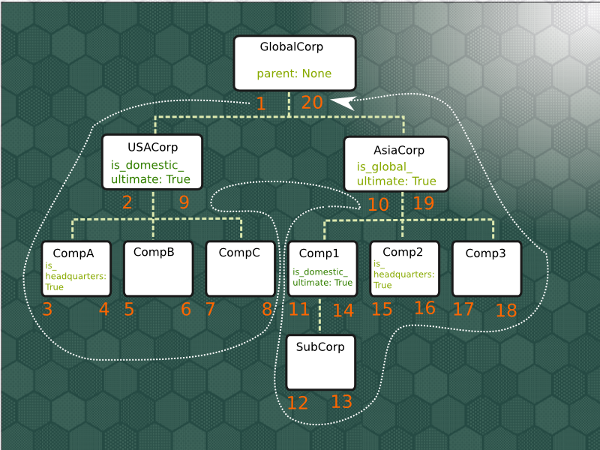

Tree Nested Structure

  • Adjacency Tree
  • Path
  • MPTT

Polymorphic Association

  • Content Table Pattern
  • Single Table Inheritance
  • Individual Tree

EAV

  • Template Pattern
  • Use Cases
  • Pitfalls

Metaprogramming

  • Information Schema
  • Postgres Commands
  • Explain/Analyze

Metaprogramming

select
    (select cls.relname from pg_class cls where cls.oid = cnstr.conrelid) as tbl,
    (select array_agg(attname) from pg_attribute
       where
            attrelid = cnstr.conrelid and ARRAY[attnum] <@ cnstr.conkey) as fk_col,
    (select cls.relname from pg_class cls where cls.oid = cnstr.confrelid) as target
    from pg_constraint cnstr
    where
        cnstr.confrelid = (select oid from pg_class where relname = 'auth_user');
select table_name
from information_schema.columns
where
    column_name ilike '%name%' and
    table_name not ilike 'pg_%';

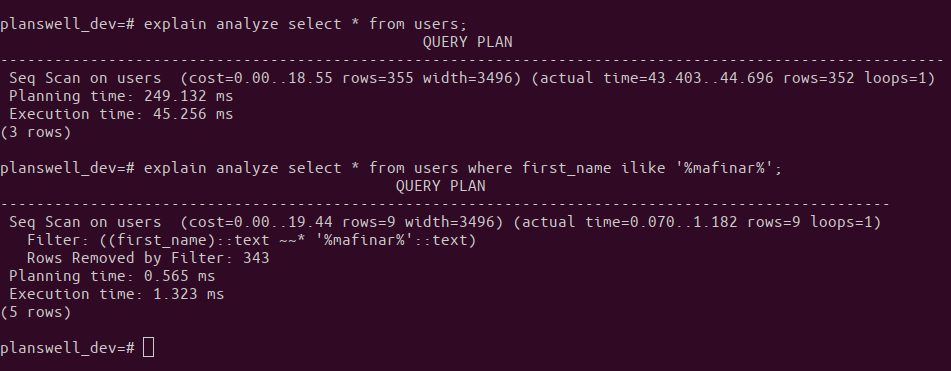

Explain/Analyze

Extensions

  • Full Text Search
  • PostGIS
  • Others (CIText, tablefunc)

Full-text Search

SELECT title
FROM pgweb
WHERE to_tsvector(title || ' ' || body) @@ to_tsquery('create & table')
ORDER BY last_mod_date DESC
LIMIT 10;

Pivot Table

SELECT *
FROM crosstab(
  'SELECT
    a date,
    b.desc AS os,
    (random() * 10000 + 1)::int AS value
     FROM generate_series(
        (now() - ''100 days''::interval)::date,
        now()::date, ''1 DAY''::interval) a,
        (SELECT unnest(ARRAY[''OSX'', ''Windows'', ''Linux'']) AS DESC) b
     ORDER BY 1,2
  ','SELECT unnest(ARRAY[''OSX'', ''Windows'', ''Linux''])'
)
AS ct(date date, OSX int, Windows int, Linux int);

Database

By Mafinar Khan
