Strategic

Domain-Driven-Design

for

Improving

Flutter

Architecture

Majid Hajian

mhadaily

Updated - April 2020

mhadaily

Share Experiences

Well?

Best Practices

mhadaily

Patterns

Methodology

+

mhadaily

Resource Capacity

Project Complexity

App development Complexity Growth

without DDD

Resource Capacity

Project Complexity

App development Complexity Growth

with DDD

When DDD can help?

Flutter APP

Amount of data

Performance

Business Logic complexity

Technical complexity

YAGNI

You are not gonna need it

Shortening development time

KISS

Keep it short and simple

Maintainable code

DDD

Focus on essential parts

Simplifying the problem

What we will learn today

Introduction to DDD

Proposed Flutter architectures

Strategic Domain Driven Design

DEMO

mhadaily

ME.dart

import 'package:flutter/material.dart';

MaterialApp(
   ThemeData(
        name: "Majid Hajian",
        location: "Oslo, Norway",
        description: '''
        	Passionate Software engineer,
	        Community Leader, Author and international Speaker
         ''',
        main: "Flutter/Dart, PWA, IoT",
        homepage: "https://www.majidhajian.com",
        socials: {
          twitter: "https://www.twitter.com/mhadaily",
          github: "https://www.github.com/mhadaily"
        },
        books: {
          "Progressive Web App with Angular": {
             version: "1.0.0",
             publishedBy: "Apress",
             foundOn: "www.pwawithangular.com",
          }
        },
        author: {
          packtpub: "PWA development, 7 hours video course",
          Udemy: "PWA development, 7 hours video course"
        }
        founder: "Softiware As (www.Softiware.com)"
        devDependencies: {
          tea: "green", mac: "10.14+",
        },
        engines: {
          MobileEraConference: "Orginizer",
          ngVikingsConference: "Orginizer",
          MobileMeetupOslo:"Co-Orginizer",
          FlutterDartOslo: "Co-Orginizer",
          GDGOslo: "Co-Orginizer",
        }
     ),
 )

mhadaily

Find me on the internet by

mhadaily

Domain

Driven

Design

mhadaily

When we develop a Software

Primarily focus is

Technology

mhadaily

When we develop a Software

Primarily focus is

Technology

Business

mhadaily

Write code

Build An App

Understand Client Needs

Solve Problems

D

is for

DOMAIN

mhadaily

Strategic design tools

Tactical

design tools

mhadaily

Strategic design tools

Tactical

design tools

mhadaily

Why is Strategic Domain-Driven Design Important?

Strategic

DDD

Decomposing

mhadaily

Strategic

DDD

Decomposing

Core Domain

Sub Domains

mhadaily

A Manufacturer App

Sales

Manage Employees

Accounting

Marketing

Product Catalog

mhadaily

customer

name

interest

Sales

customer

name

phone

Employees

customer

address

availability

Marketing

customer

name

payment method

Accounting

mhadaily

customer

name

interest

Advanced issue found

▲

Sales

customer

name

phone

Support

customer

address

availability

Order

customer

name

payment method

Accounting

Bounded Context

Namespace

Folder

Project

mhadaily

customer

name

interest

Sales

customer

name

phone

Employees

Ubiquitous Language

mhadaily

customer

name

interest

Sales

customer

name

phone

Employees

customer

address

availability

Marketing

customer

name

payment method

Accounting

Context Map

mhadaily

customer

name

interest

Sales

customer

name

phone

Employees

customer

address

availability

Marketing

customer

name

payment method

Accounting

Shared

Kernel

e.g.

USER

Authentication

mhadaily

customer

name

interest

Sales

customer

name

phone

Support

customer

address

availability

Order

customer

name

payment method

Accounting

Open Host Service

mhadaily

customer

name

interest

Sales

customer

name

phone

Support

customer

address

availability

Order

customer

name

payment method

Accounting

Open Host Service

API

mhadaily

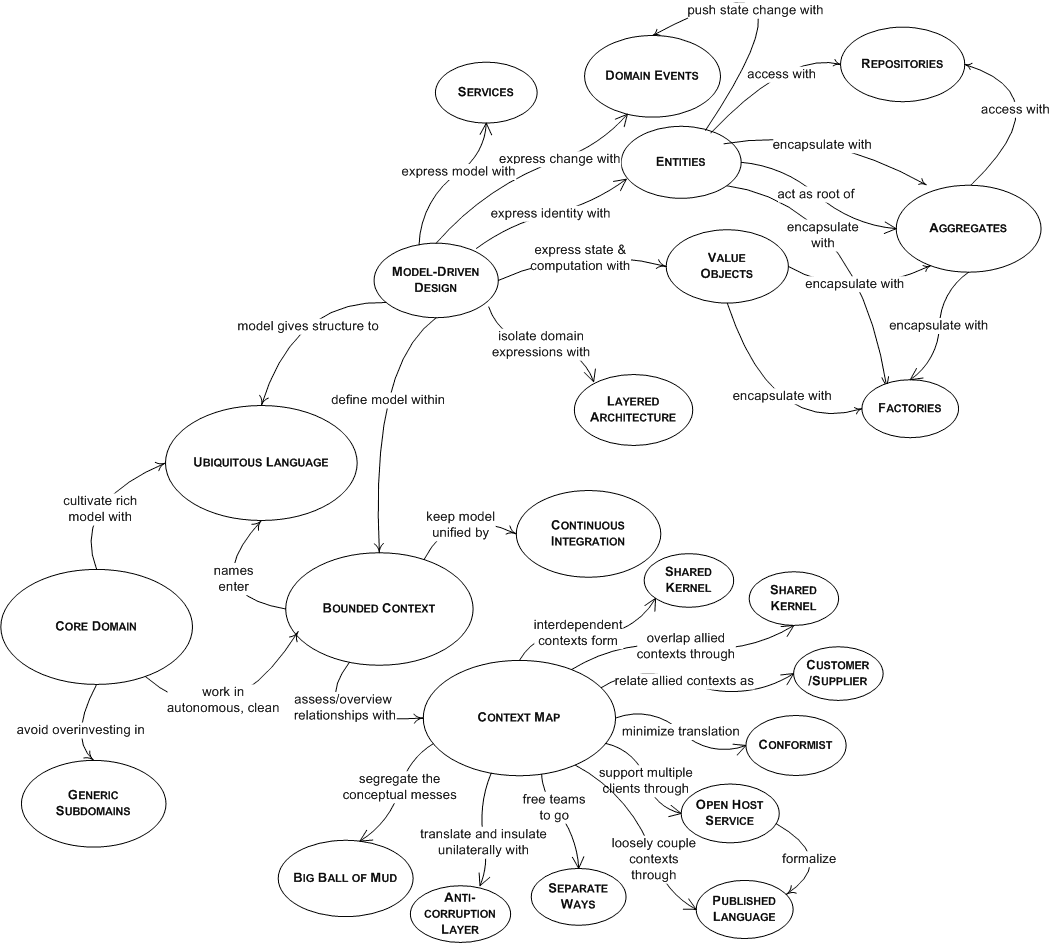

Navigation

Map

by Eric Evans

Flutter

Architecture

mhadaily

Enterprise

Manufacturing App

mhadaily

Sales

Common

Catalog

E-commerce App

mhadaily

Sales

Common

Catalog

E-commerce App

Presentation

Screen

Logic Holder

Widgets

Smart UI - Feature

Screen

Logic Holder

Smart UI - Feature

BLoC

ChangeNotifier

BLoC

ChangeNotifier

mhadaily

Sales

Common

Catalog

E-commerce App

Presentation

Application

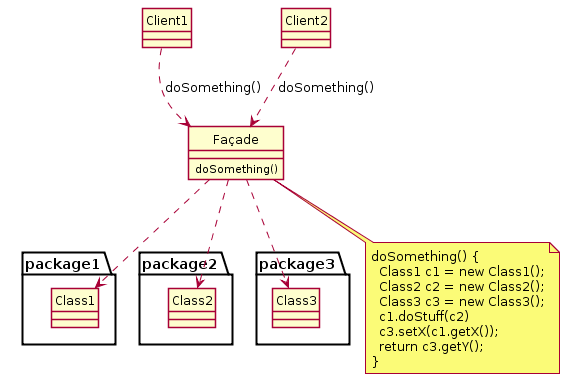

Use Case Specific Facades

Simplify

mhadaily

Sales

Common

Catalog

E-commerce App

Domain

Presentation

Application

Text

Entities

Interfaces

Logic

mhadaily

Object Values

Sales

Common

Catalog

E-commerce App

Domain

Infrastructure

Presentation

Application

Text

Remote Data Source

Models

Local Data Source

Geo Location, ...

Raw Data

Models

Repositories

Sales

Catalog

E-commerce App

Domain

Infrastructure

Presentation

Application

mhadaily

Sales

Catalog

E-commerce App

Domain

Infrastructure

Presentation

Application

API

mhadaily

Simpler

Sales

Common

Catalog

E-commerce App

Presentation

Screen

Logic Holder

BLoC

Widgets

Screen

Logic Holder

BLoC

mhadaily

Utils

Sales

Common

Catalog

E-commerce App

Logic

Presentation

Text

Advanced issue found

▲

mhadaily

Logic

Business logic

GetLatestNewsWithAuthorsUseCase

Sales

Common

Catalog

E-commerce App

Logic

Data

Presentation

Text

Remote Data Source

Local Data Source

Geo Location, ...

Raw Data

Models

Logic

Repositories

Sales

Catalog

E-commerce App

Logic

Data

Presentation

Logic

mhadaily

Demo

source code

https://github.com/mhadaily/flutter-architecture-ddd

├── lib
│   ├── catalog
│   │   ├── api
│   │   │   └── index.dart
│   │   ├── application
│   │   │   └── catalog_facade_service.dart
│   │   ├── domain
│   │   │   ├── entities
│   │   │   │   └── product.dart
│   │   │   ├── interfaces
│   │   │   │   └── product_interface.dart
│   │   │   └── logic
│   │   │       ├── catalog_logic.dart
│   │   │       └── get_official_product_manufacturer.dart
│   │   ├── infrastructure
│   │   │   ├── data_sources
│   │   │   │   ├── product_local_data_provider.dart
│   │   │   │   └── product_remote_data_provider.dart
│   │   │   ├── models
│   │   │   │   └── product_model.dart
│   │   │   └── repositories
│   │   │       └── product_repository.dart
│   │   └── presentation
│   │       ├── catalog-detail
│   │       │   ├── bloc
│   │       │   │   ├── bloc.dart
│   │       │   │   ├── catalog_detail_bloc.dart
│   │       │   │   ├── catalog_detail_event.dart
│   │       │   │   └── catalog_detail_state.dart
│   │       │   └── catalog_detail_screen.dart

│   │       ├── catalog-list
│   │       │   ├── bloc
│   │       │   │   ├── bloc.dart
│   │       │   │   ├── catalog_list_bloc.dart
│   │       │   │   ├── catalog_list_event.dart
│   │       │   │   └── catalog_list_state.dart
│   │       │   └── catalog_list_screen.dart
│   │       └── widgets
│   │           └── catalog_name.dart
│   ├── common
│   │   ├── config
│   │   │   └── config.dart
│   │   ├── exceptions
│   │   │   ├── exceptions.dart
│   │   │   ├── local_exceptions.dart
│   │   │   └── server_exceptions.dart
│   │   ├── helpers
│   │   │   └── helpers.dart
│   │   ├── platform
│   │   │   └── connectivity.dart
│   │   ├── utils
│   │   │   └── utils.dart
│   │   └── widgets
│   │       └── widgets.dart
│   ├── injections.dart
│   └── main.dart

mhadaily

Advanced

── catalog
│   ├── logic
│   │   ├── catalog_logic.dart
│   │   ├── get_official_product_manufacturer.dart
│   │   └── product_repository.dart
│   └── presentation
│       ├── catalog-detail
│       │   ├── bloc
│       │   │   ├── bloc.dart
│       │   │   ├── catalog_detail_bloc.dart
│       │   │   ├── catalog_detail_event.dart
│       │   │   └── catalog_detail_state.dart
│       │   └── catalog_detail_screen.dart
│       ├── catalog-list
│       │   ├── bloc
│       │   │   ├── bloc.dart
│       │   │   ├── catalog_list_bloc.dart
│       │   │   ├── catalog_list_event.dart
│       │   │   └── catalog_list_state.dart
│       │   └── catalog_list_screen.dart
│       └── widgets
│           └── catalog_name.dart

├── common
│   ├── config
│   │   └── config.dart
│   ├── exceptions
│   │   ├── exceptions.dart
│   │   ├── local_exceptions.dart
│   │   └── server_exceptions.dart
│   ├── helpers
│   │   └── helpers.dart
│   ├── platform
│   │   └── connectivity.dart
│   ├── utils
│   │   └── utils.dart
│   └── widgets
│       └── widgets.dart
├── data_sources
│   ├── product_local_data_provider.dart
│   ├── product_model.dart
│   └── product_remote_data_provider.dart
├── injections.dart
└── main.dart

mhadaily

Simple

NOT HARD RULES

BUT GUIDANCE

LET DDD GUIDE US

Summary

mhadaily

Introduction to DDD

Flutter architecture inspired by DDD

Strategic Domain Driven Design Ideas

What we have learned

mhadaily

Majid Hajian

mhadaily

Slides and link to source code

bit.ly/ddd-flutter

majid[at]softiware[dot]com
